  1. Lecture 11: Flight Management System (FMS)

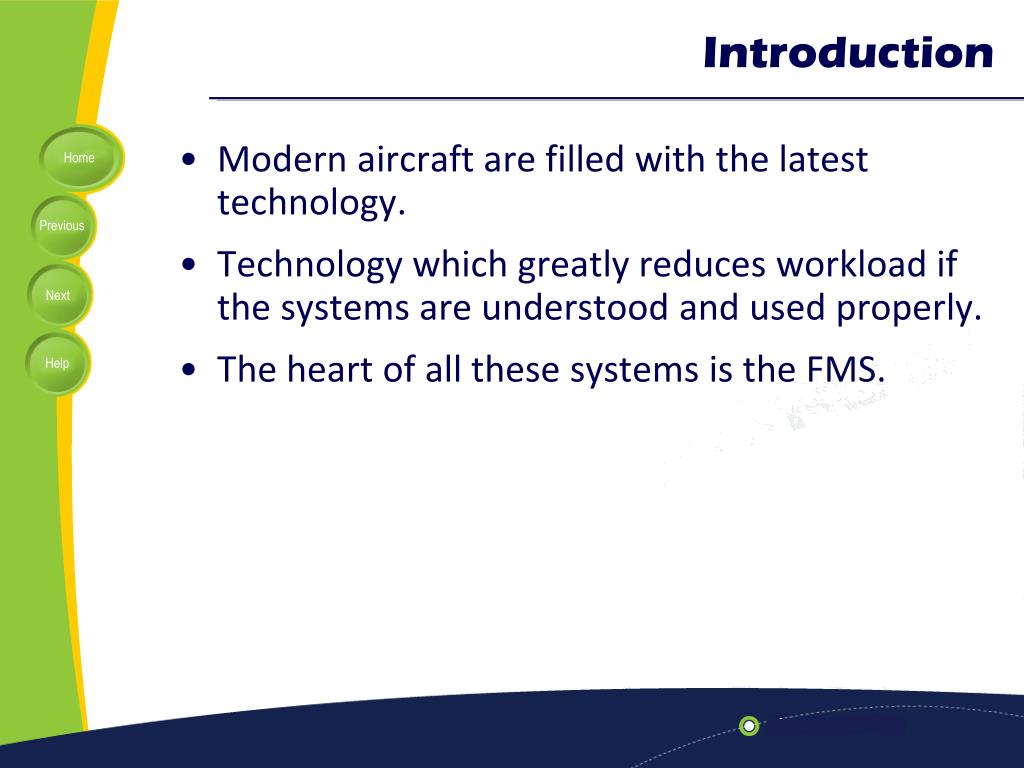

  2. Introduction • Modern aircraft are filled with the latest technology. • Technology which greatly reduces workload if the systems are understood and used properly. • The heart of all these systems is the FMS.

  3. What is FMS? • FMS is stand for Flight Management System (FMS) is a specialized computer system that automates a wide variety of in-flight tasks. • FMS acts as the ‘brain’ of the aircraft navigation system.

  4. FMS Components • From the cockpit, the FMS is normally controlled through a Control Display Unit (CDU) which incorporates a small screen and keyboard. • The FMS sends the flight plan for display on the EFIS, Navigation Display (ND) • Control Display Unit

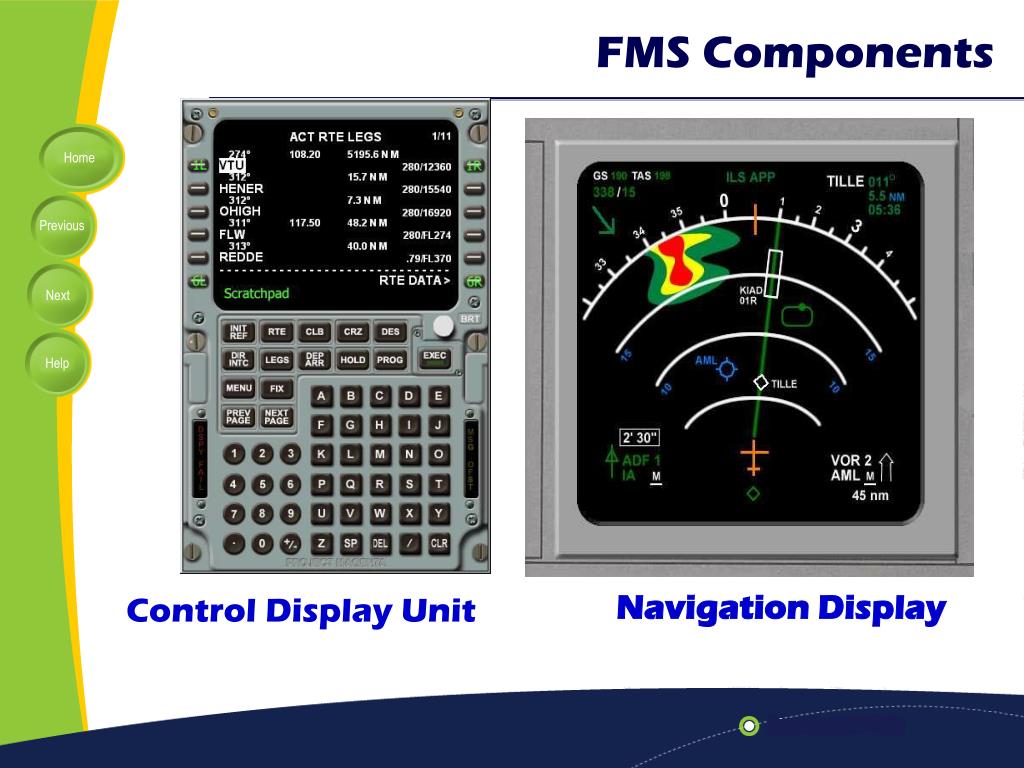

  5. FMS Components • Navigation Display • Control Display Unit

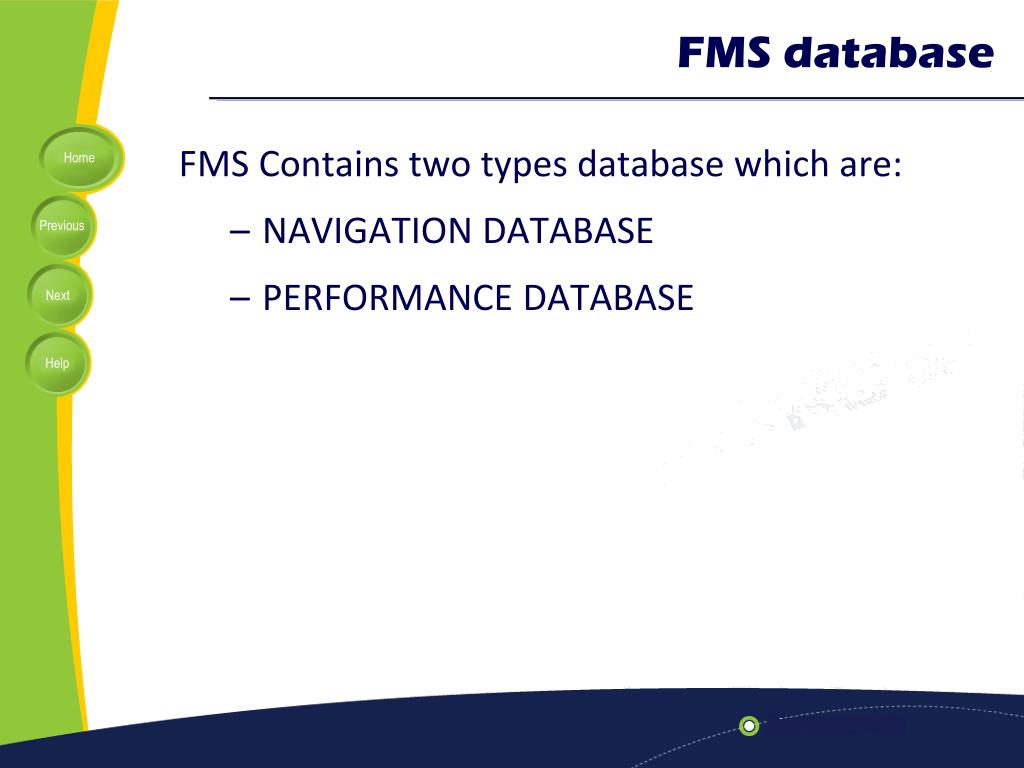

  6. FMS database FMS Contains two types database which are: • NAVIGATION DATABASE • PERFORMANCE DATABASE

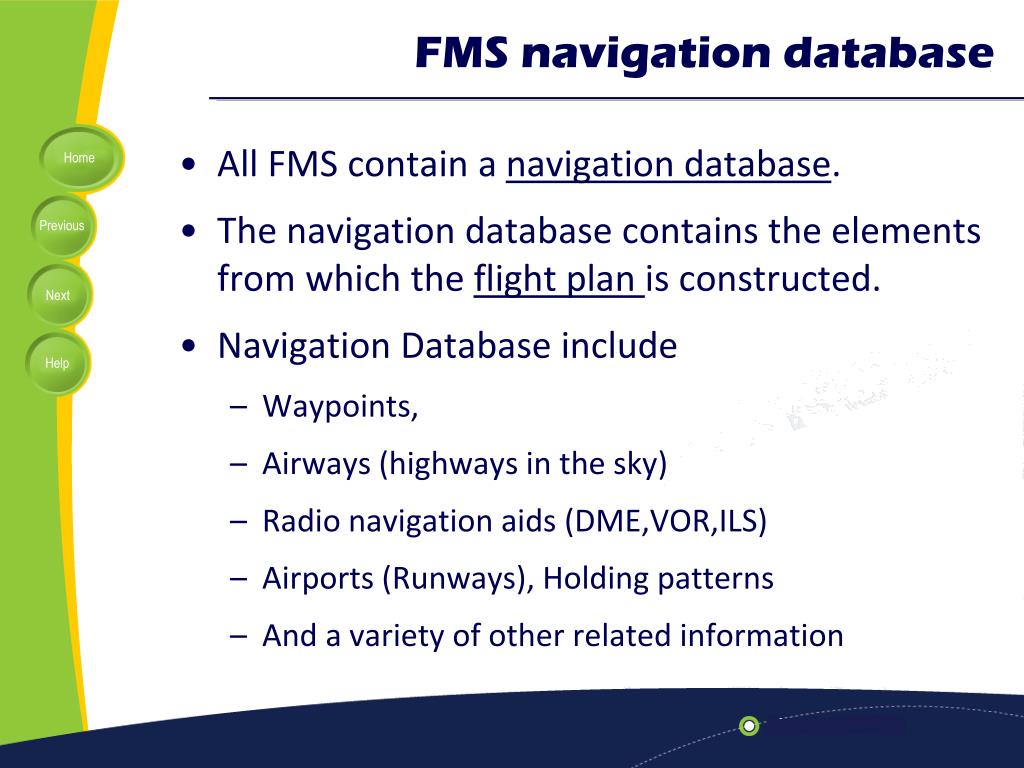

  7. FMS navigation database • All FMS contain a navigation database. • The navigation database contains the elements from which the flight plan is constructed. • Navigation Database include • Waypoints, • Airways (highways in the sky) • Radio navigation aids (DME,VOR,ILS) • Airports (Runways), Holding patterns • And a variety of other related information

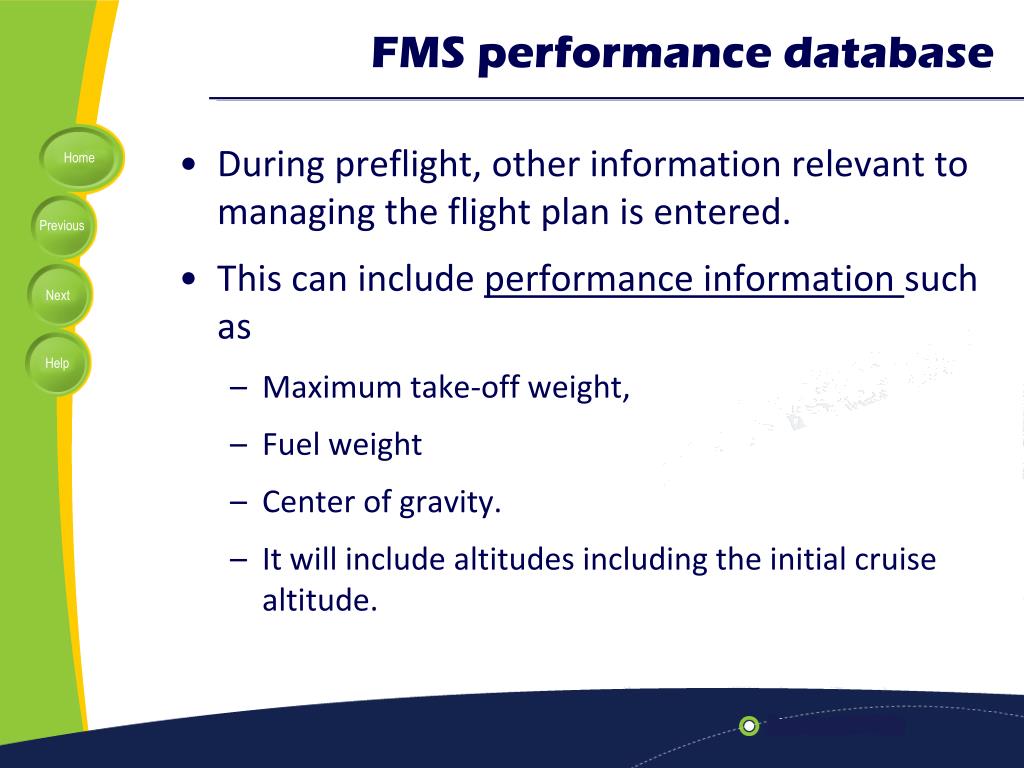

  8. FMS performance database • During preflight, other information relevant to managing the flight plan is entered. • This can include performance information such as • Maximum take-off weight, • Fuel weight • Center of gravity. • It will include altitudes including the initial cruise altitude.

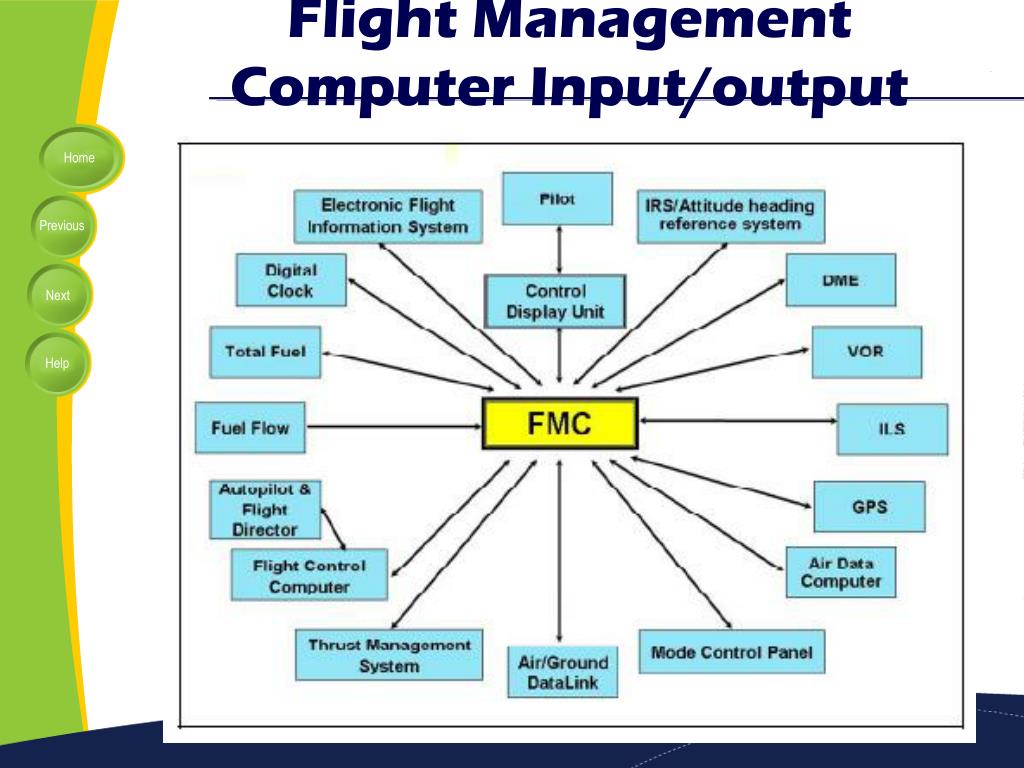

  9. Flight Management Computer Input/output

  10. FMS Operation • Pilot key in input route information to CDU of FMS • The navigation and aircraft performance database must be verified. • Routing must be confirmed accurate and correct and any ATC changes to expected routing must be entered manually. • The pilot becomes a manager of this sophisticated system, monitoring progress and updating or changing parameters as necessary.

  11. FMS Advantages • FMS are designed to : • Improve Navigation • Aid Fuel Efficiency • Reduce Crew Workload • More Accurate

  12. FMS Advantages • FMS are designed to: • Navigation • A principal task of the FMS is to determine the aircraft's position and the accuracy of that position. • Given the flight plan and the aircraft's position, the FMS calculates the course to follow. • Autopilot can be set to follow the course. • Aid Fuel Efficiency • It calculates performance data and the most fuel-efficient route to be flownbased on typical aircraft parameters such as weight, cruise altitude and actual aircraft position, regardless of weather conditions.

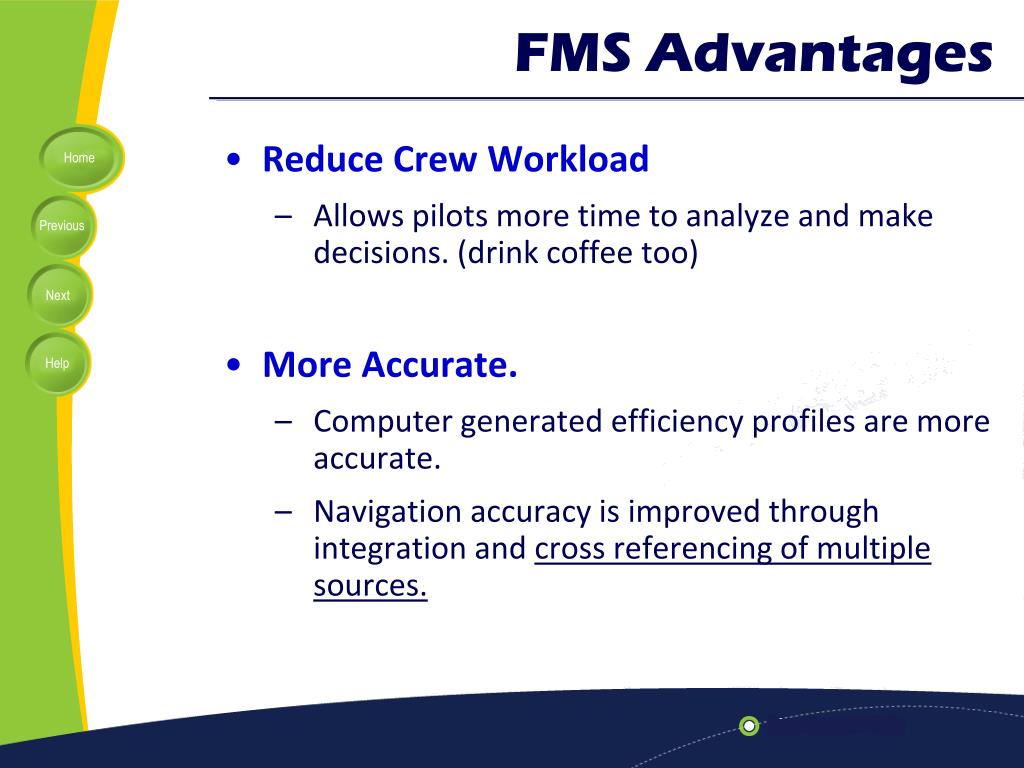

  13. FMS Advantages • Reduce Crew Workload • Allows pilots more time to analyze and make decisions. (drink coffee too) • More Accurate. • Computer generated efficiency profiles are more accurate. • Navigation accuracy is improved through integration and cross referencing of multiple sources.

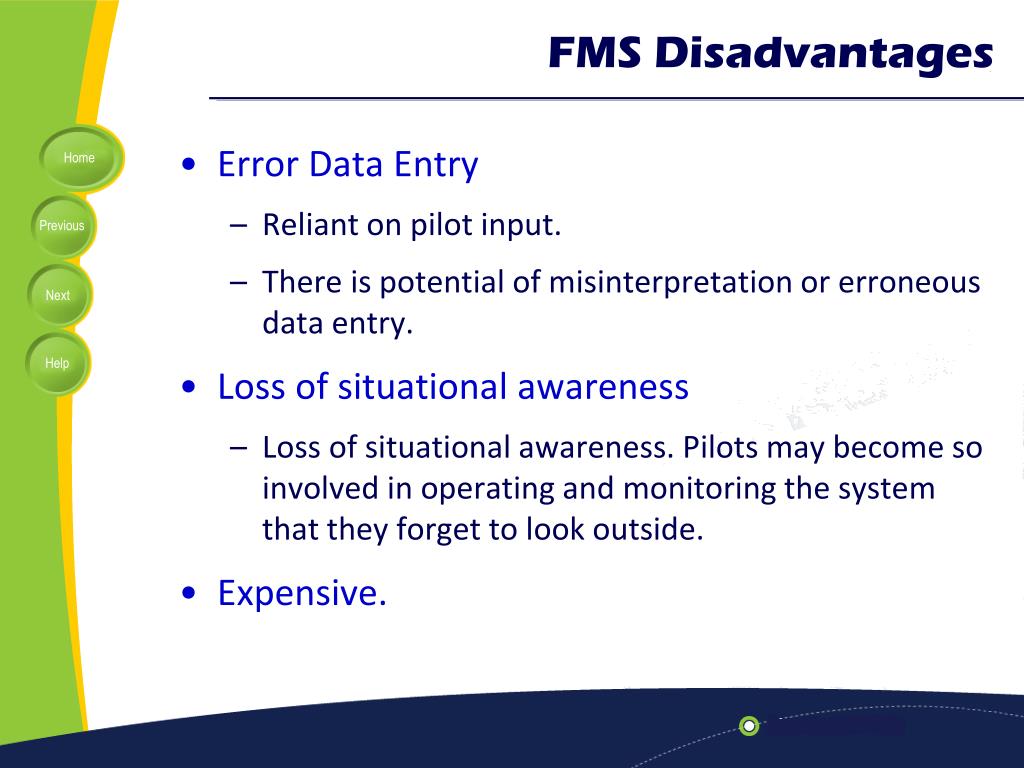

  14. FMS Disadvantages • Error Data Entry • Reliant on pilot input. • There is potential of misinterpretation or erroneous data entry. • Loss of situational awareness • Loss of situational awareness. Pilots may become so involved in operating and monitoring the system that they forget to look outside. • Expensive.

  15. Question Bank 1. a) Describe about FMS? b) Explain advantages and disadvantages of FMS
