  1. Indira Gandhi National Open Universitypresents

  2. A Video LectureCourse:Systems Analysis

  3. DATA MODELING

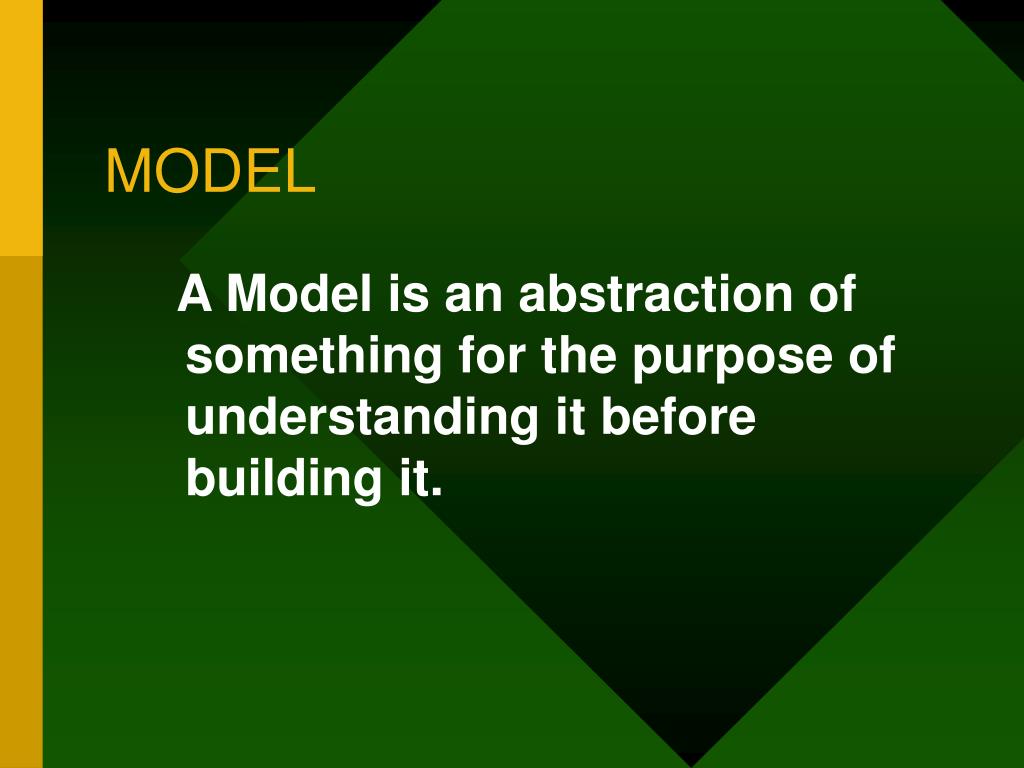

  4. MODEL A Model is an abstraction of something for the purpose of understanding it before building it.

  5. DATA MODELING • Answers a set of following specific questions that are relevant to any data processing application

  6. Questions answered by a Data Model • What are the primary data objects to be processed by the system • What is the composition of each data object and what attributes describe the object

  7. Questions answered by a Data Model • Where do objects currently reside • What are the relationships between each object and other objects • What is the relationship between the objects and the processes that transform them

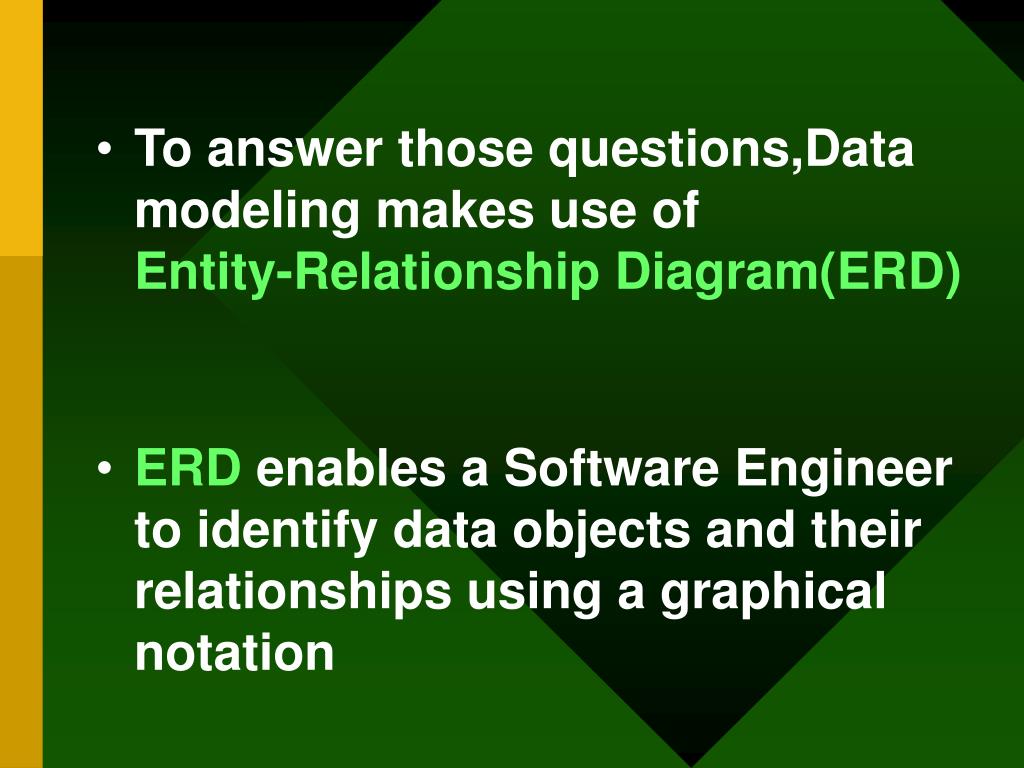

  8. To answer those questions,Data modeling makes use of Entity-Relationship Diagram(ERD) • ERD enables a Software Engineer to identify data objects and their relationships using a graphical notation

  9. DATA OBJECTS A data object is a representation of almost any composite information that must be understood by software.By composite information,we mean something that has a number of different properties or attributes. A person is a data object A car is a data object

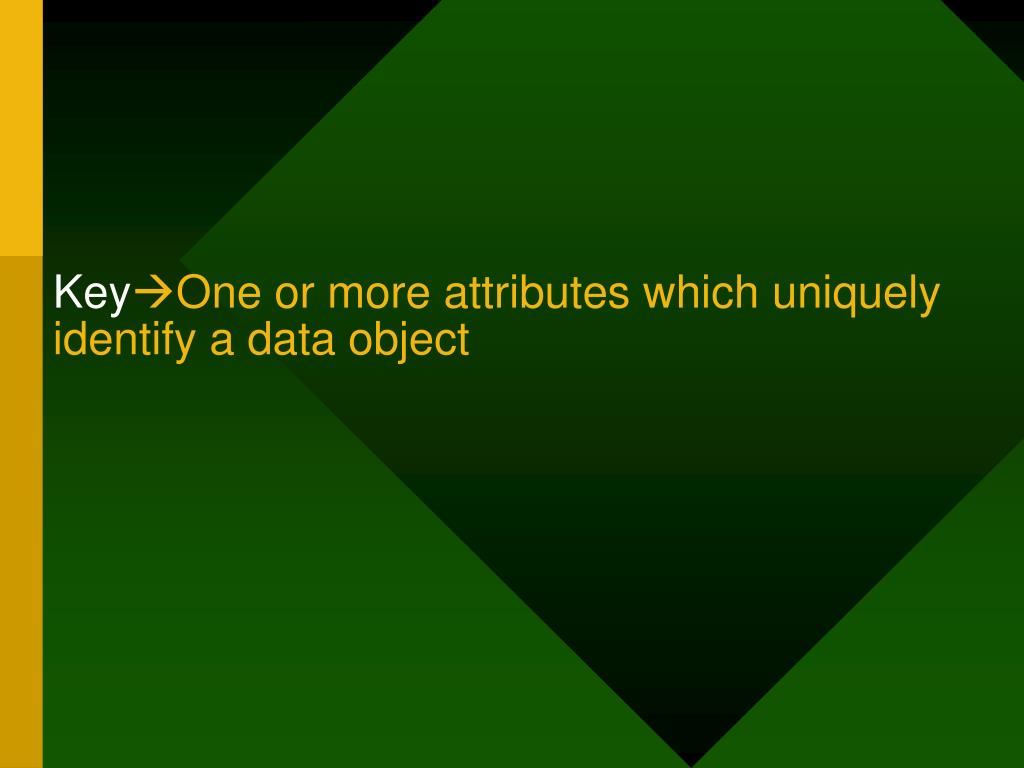

  10. KeyOne or more attributes which uniquely identify a data object

  11. Attributes of Person: Name,Address,Age, Driving license number Driving license number is the key Attributes of Car:Make,Model,Chassis Number, Body type,Color Chassis Number is the key

  12. RELATIONSHIPS Data objects are connected to one another in a variety of different ways Here, owns is the relationship Example: a Person owns a Car

  13. Identification of Objects, Attributes & Relationships Problem: A University should schedule its class rooms for final Exams. Examinations will be conducted for all courses for students of all sections

  14. Data Objects • Course • Section • Room

  15. Attributes of Course • Name • Department • Code

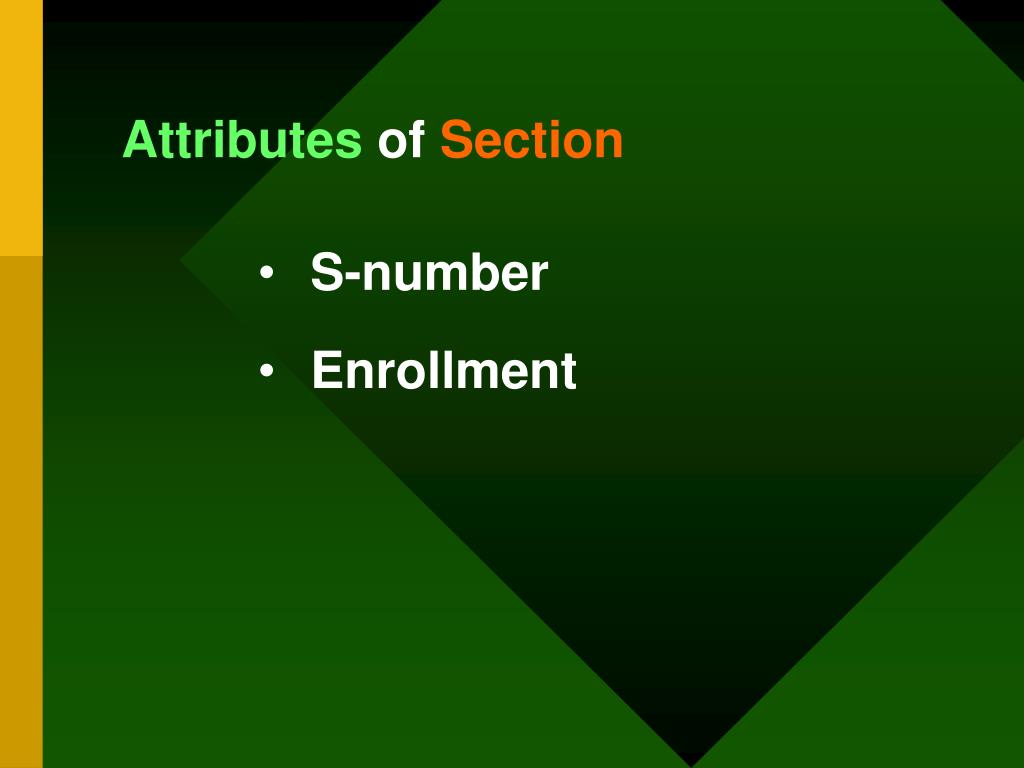

  16. Attributes of Section • S-number • Enrollment

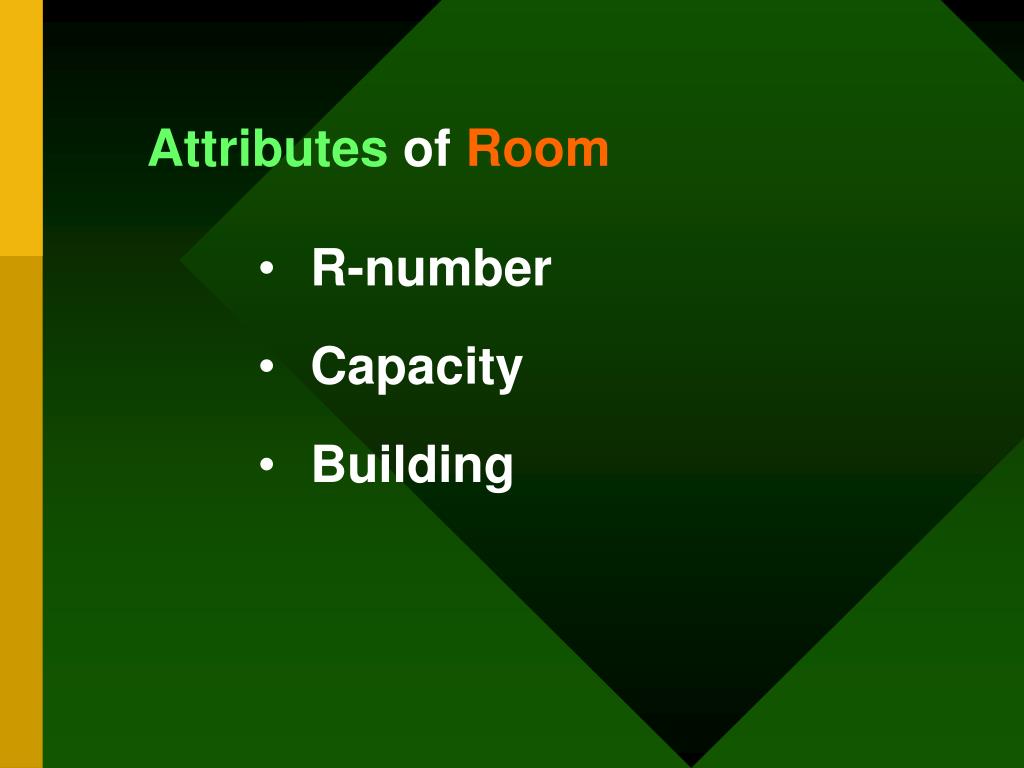

  17. Attributes of Room • R-number • Capacity • Building

  18. Relationships: • Code & S-number

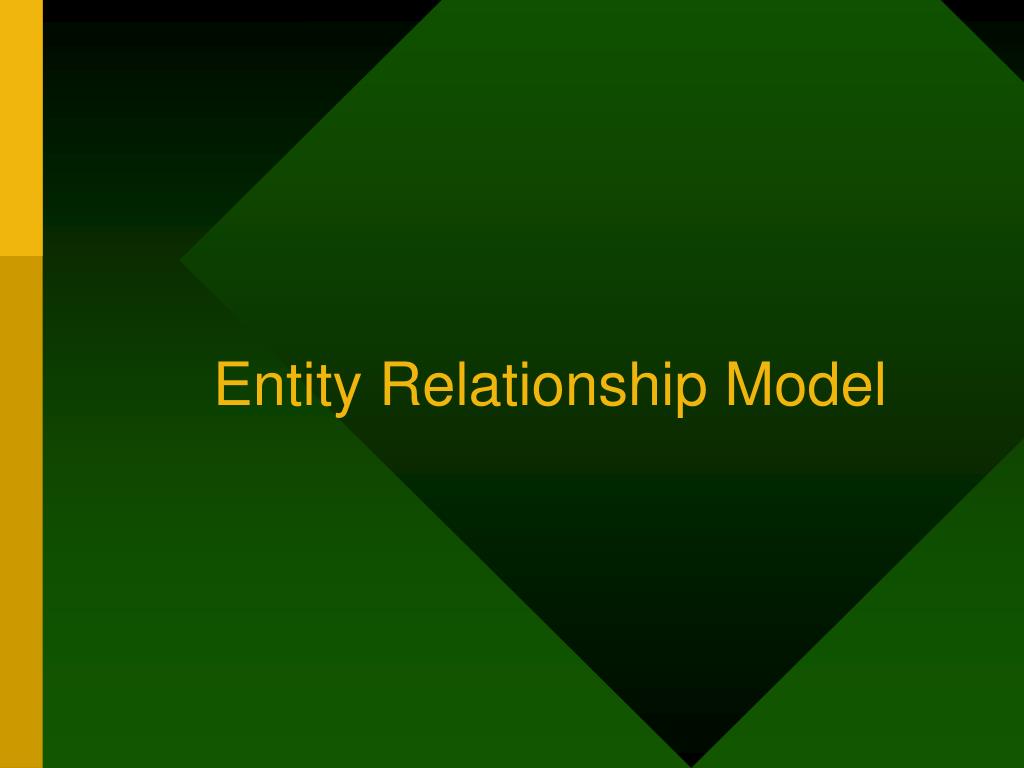

  19. Entity Relationship Model

  20. Simple and Composite Attributes • CITY is a Simple attribute • NAME is a Composite attribute because we can subdivide it into First Name,Middle Name and Last Name

  21. Single and Multi Valued Attributes • AGE is a single valued attribute • DEPENDENT-NAME is a multi valued attribute

  22. Derived Attributes • EMPLOYEMENT-LENGTH of Employee entity set is a derived attribute of Start-date and Current-date

  23. Keys • Super Key • Candidate Key For example,Consider CUSTOMER entity set with attributes (1)Social security (2)Customer name (3)Customer street (4)Customer city Now,Social security is a super key.Also,any set of attributes containing Social security forms a super key So,Social-security is also candidate key

  24. ENTITY-RELATIONSHIP DIAGRAM A E-R diagram consists of following components: • Rectangles-represent Entity sets • Ellipses-represent Attributes • Diamonds-represent Relationship sets • Lines-link attributes to Entity sets and Entity sets to relationship sets • Double Ellipses-represent multi valued attributes • Dashed Ellipses-denote derived attributes • Double lines-indicate total participation of an entity in a relationship set

  25. E-R diagram corresponding to Customers and Loans

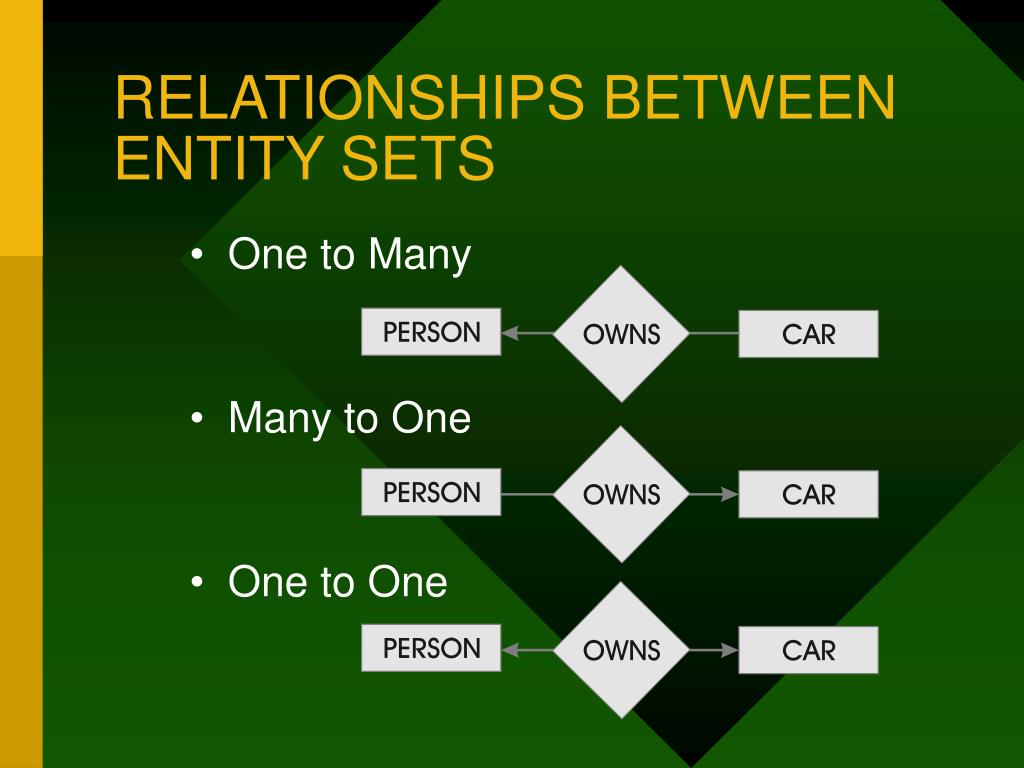

  26. One to Many Many to One One to One RELATIONSHIPS BETWEEN ENTITY SETS

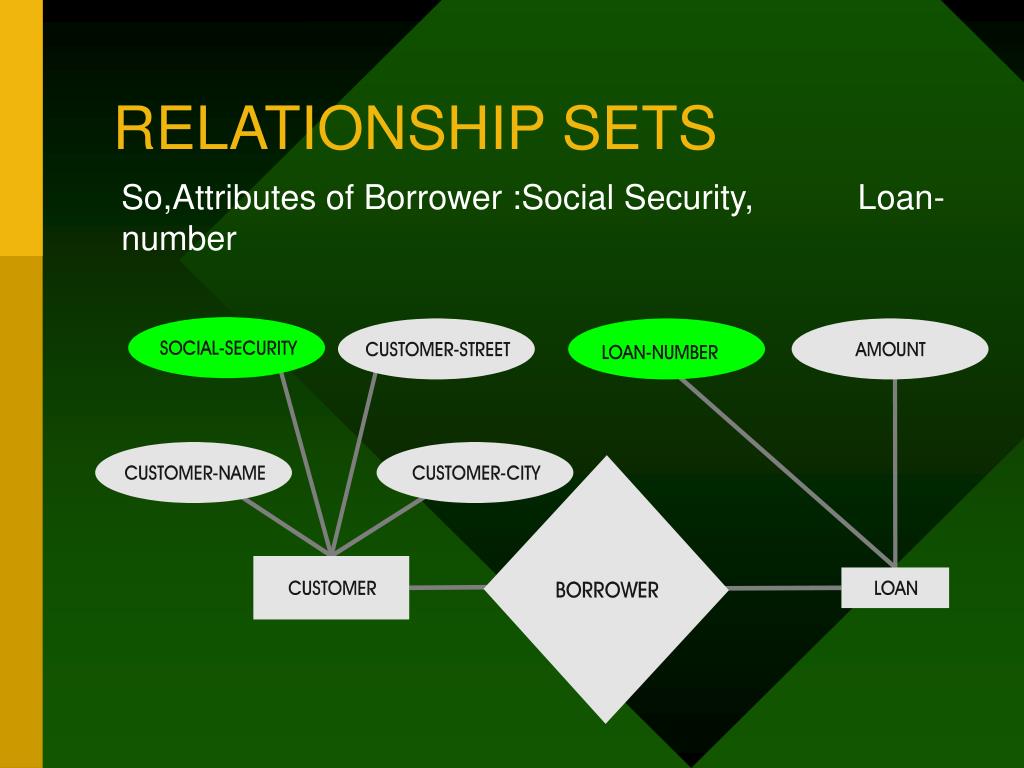

  27. RELATIONSHIP SETS So,Attributes of Borrower :Social Security, Loan-number

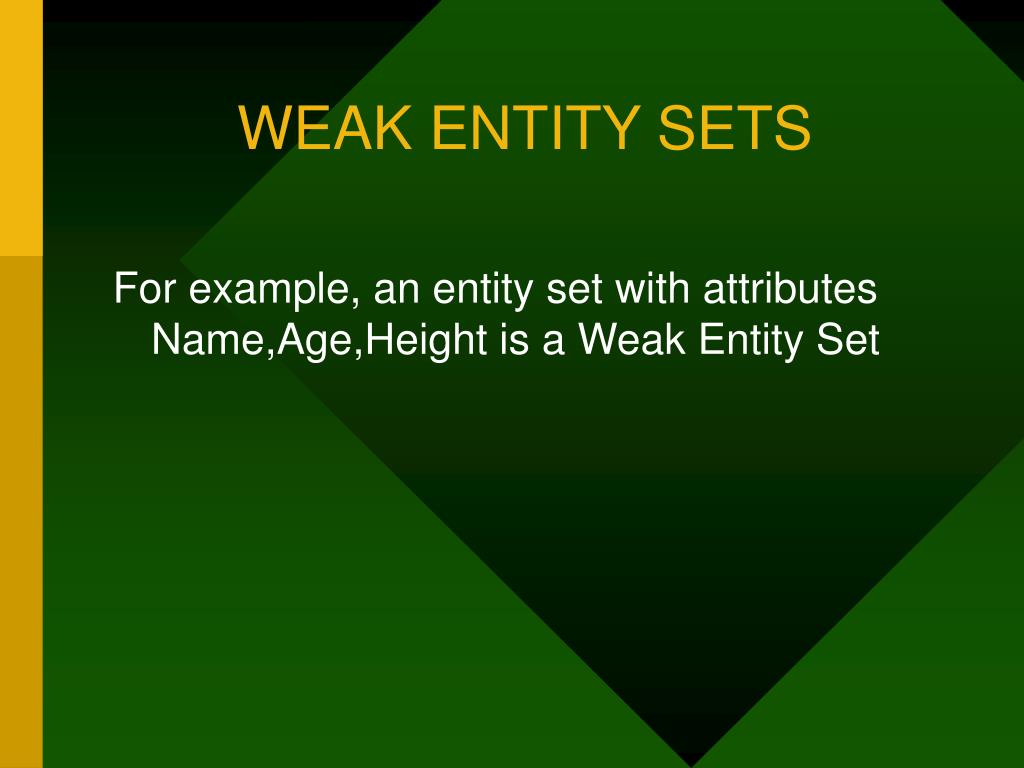

  28. WEAK ENTITY SETS For example, an entity set with attributes Name,Age,Height is a Weak Entity Set

  29. STRONG ENTITY SET • An Entity set with Passport no.,Name ,age,Height,Address is a Strong Entity Set as Passport no. can be used as key attribute

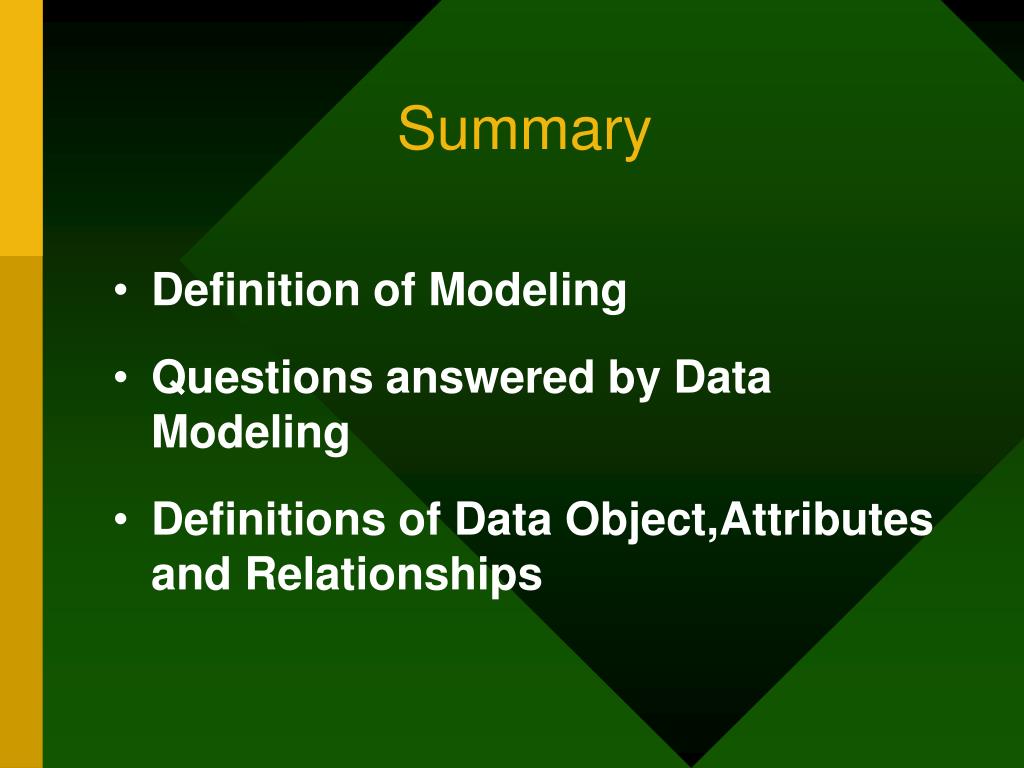

  30. Summary • Definition of Modeling • Questions answered by Data Modeling • Definitions of Data Object,Attributes and Relationships

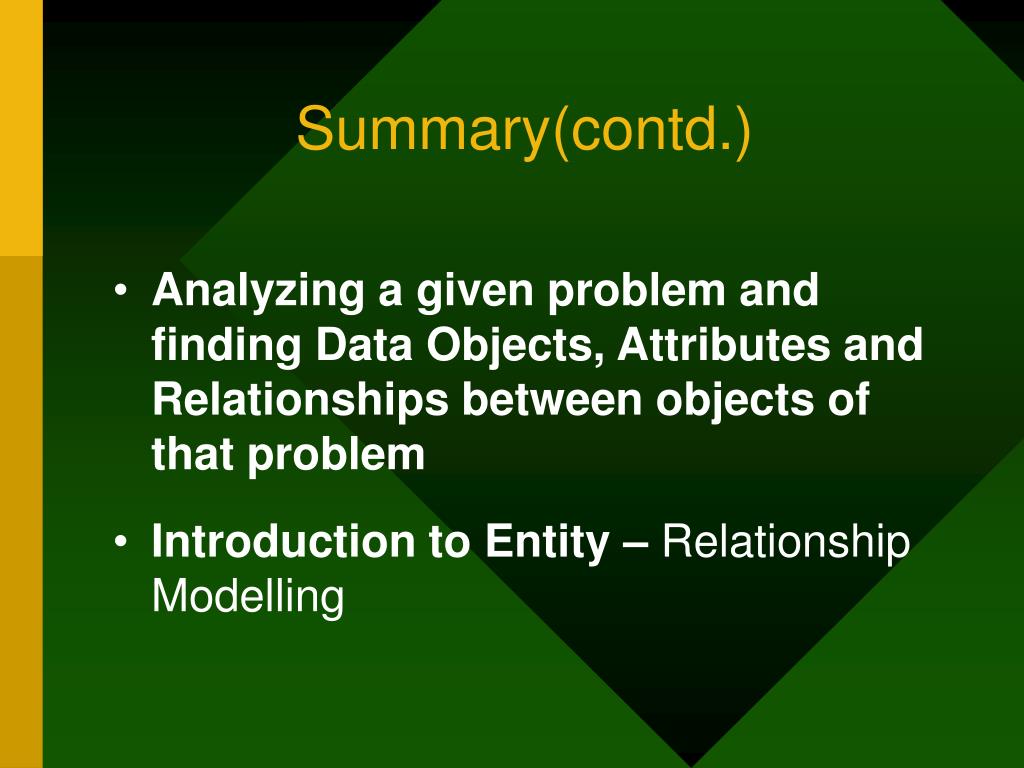

  31. Summary(contd.) • Analyzing a given problem and finding Data Objects, Attributes and Relationships between objects of that problem • Introduction to Entity – Relationship Modelling

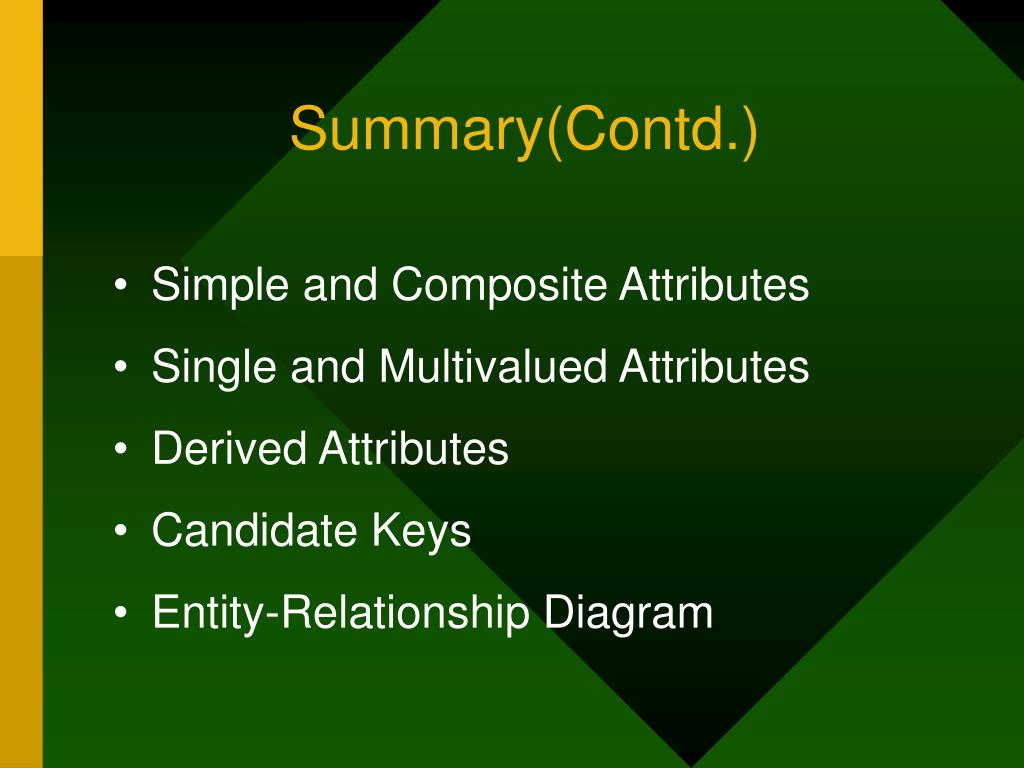

  32. Summary(Contd.) • Simple and Composite Attributes • Single and Multivalued Attributes • Derived Attributes • Candidate Keys • Entity-Relationship Diagram

  33. Summary(contd.) • Weak Entity Sets • Strong Entity Sets
