  1. Virtual Packet Core Cloud solution for LTE

  2. if you need to construct LTE network for 1mln users... How will it work for operator?

  3. if you need to construct LTE network for 1mln users... If you need to constructLTE network for 1 mIn users…

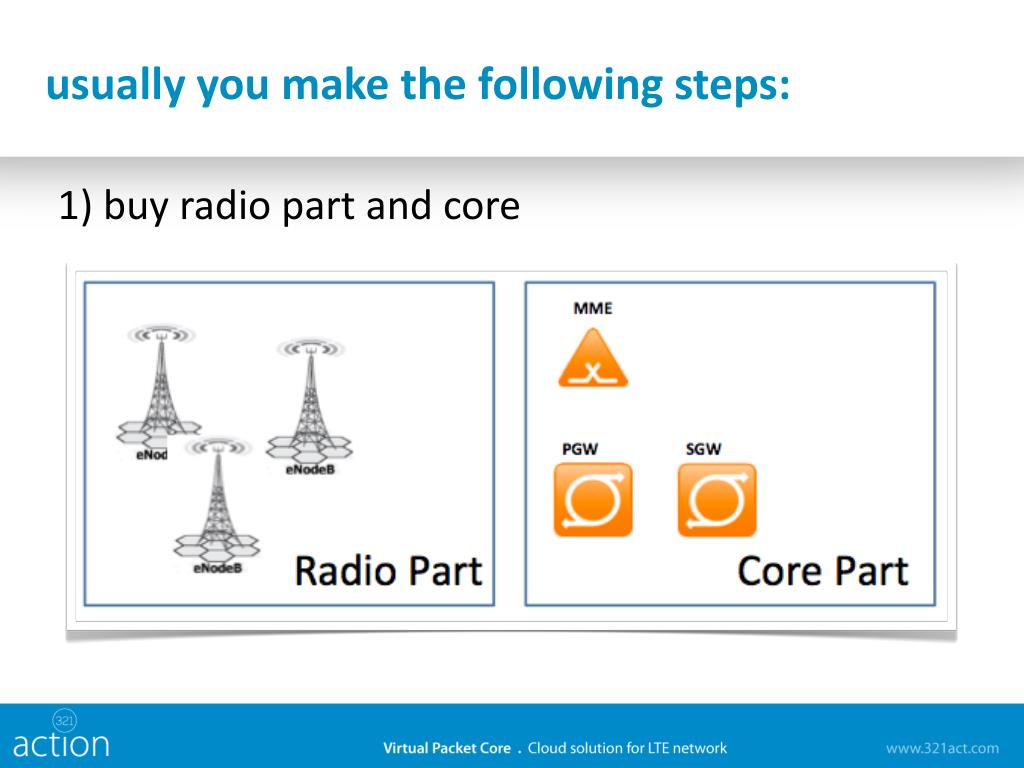

  4. usually you make the following steps: 1) buy radio part and core

  5. if you need to construct LTE network for 1mln users... usually you make the following steps: 2) install equipment, provide electricity supply and air conditioning system

  6. usually you make the following steps: 3) buy licenses

  7. usually you make the following steps: 4) Conclude technical support agreements and etc...

  8. if you need to construct LTE network for 1mln users... BUT if you choose VPC it will be as follows

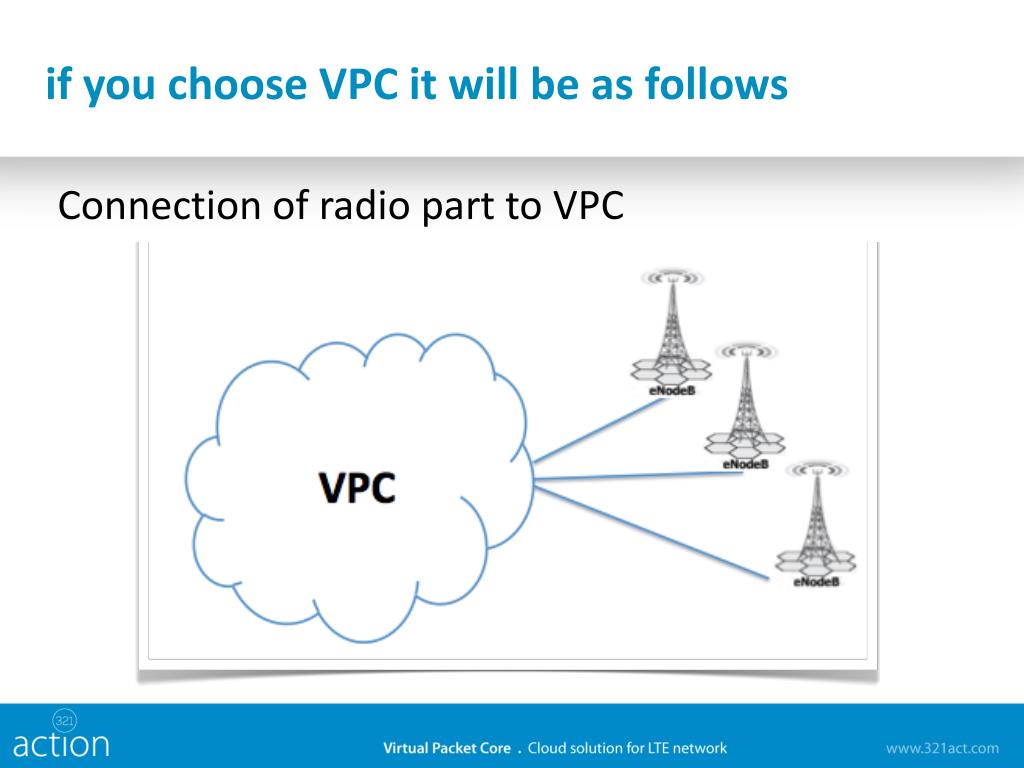

  9. if you choose VPC it will be as follows Connection of radio part to VPC

  10. if you choose VPC it will be as follows you just need to sign agreement of yearly lease of VPC with fixed amount per one user

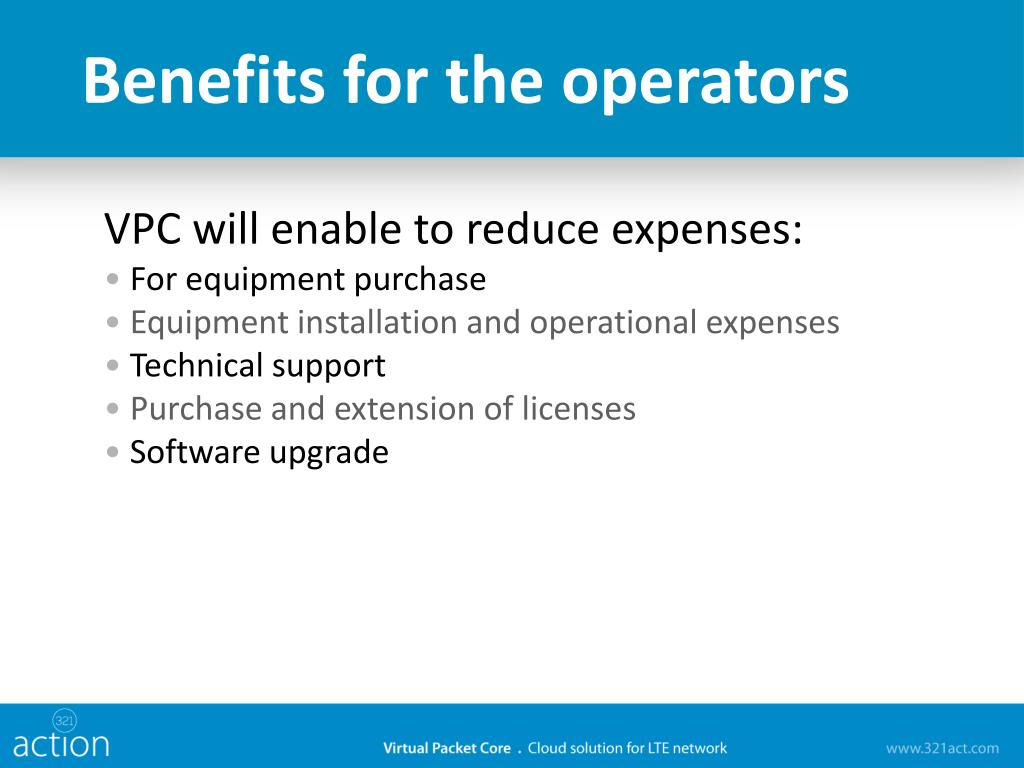

  11. Benefits for the operators VPC will enable to reduce expenses: • For equipment purchase •Equipment installation and operational expenses • Technical support •Purchase and extension of licenses • Software upgrade

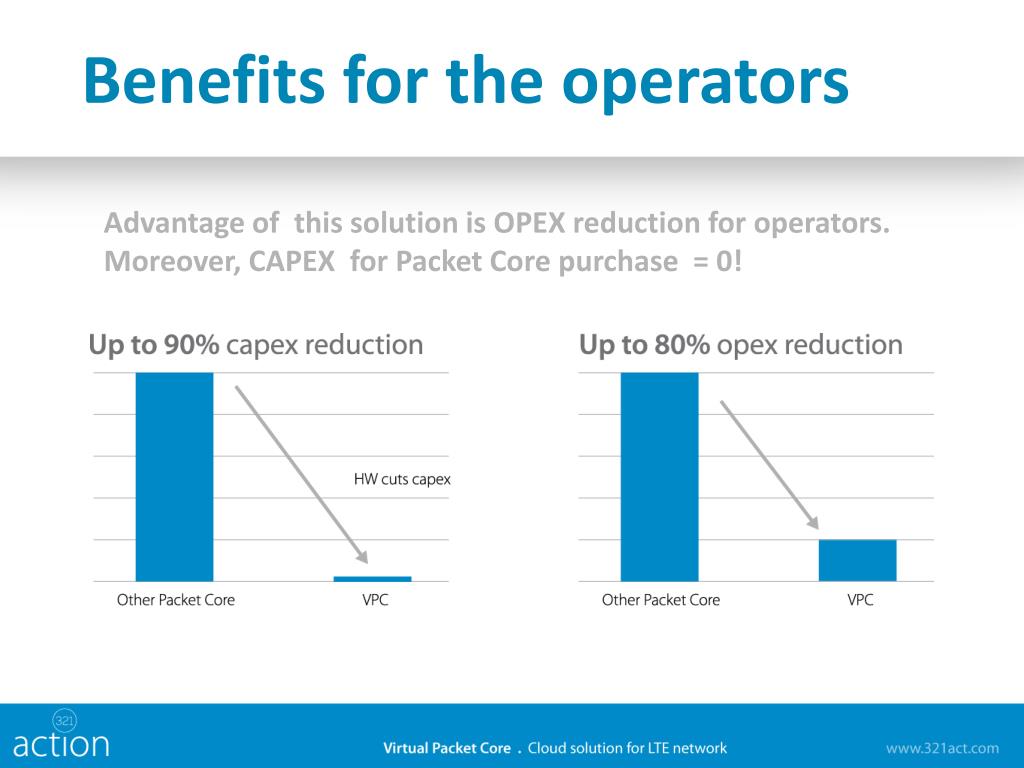

  12. Benefits for the operators Advantage of this solution is OPEX reduction for operators. Moreover, CAPEX for Packet Core purchase = 0!

  13. so, what’s the need to buy Packet Core when you can use VPC?

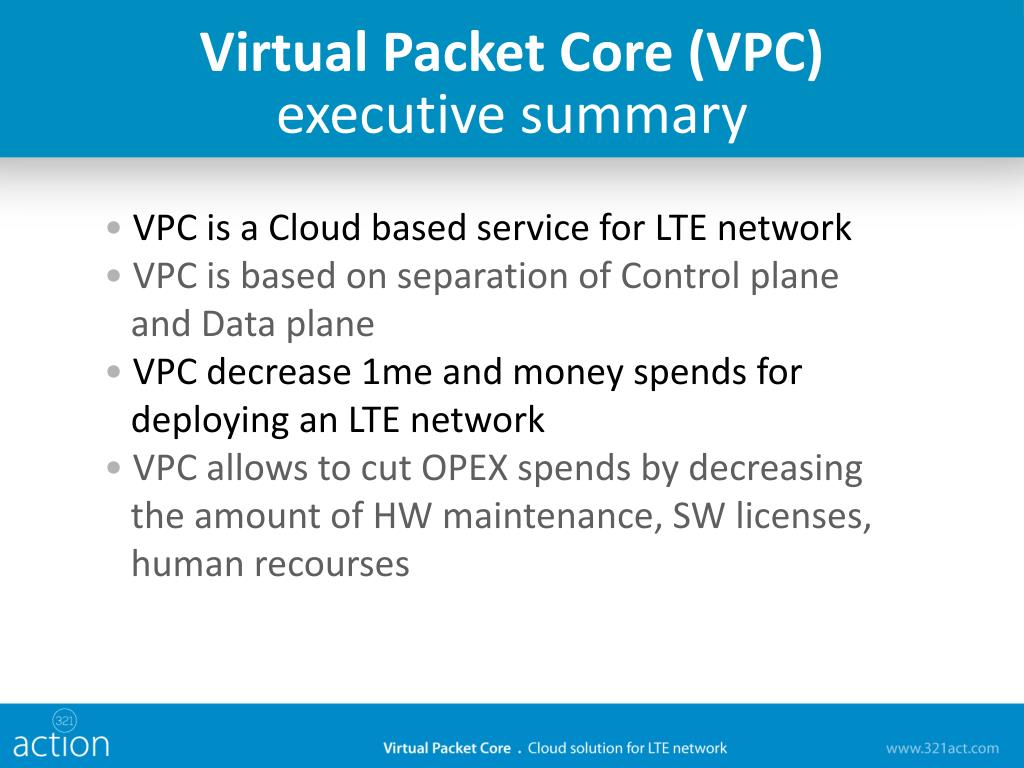

  14. Virtual Packet Core (VPC) executive summary • VPC is a Cloud based service for LTE network •VPC is based on separation of Control plane and Data plane • VPC decrease 1me and money spends for deploying an LTE network •VPC allows to cut OPEX spends by decreasing the amount of HW maintenance, SW licenses, human recourses

  15. How VPC works

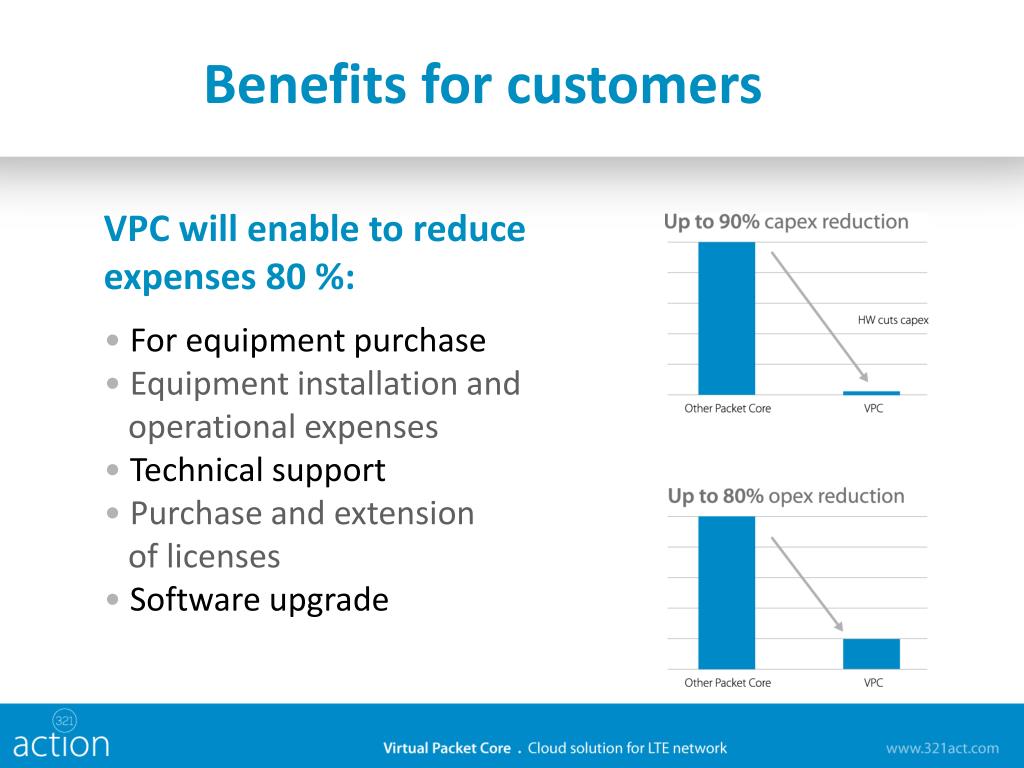

  16. Benefits for customers VPC will enable to reduce expenses 80 %: • For equipment purchase •Equipment installation and operational expenses • Technical support •Purchase and extension of licenses • Software upgrade

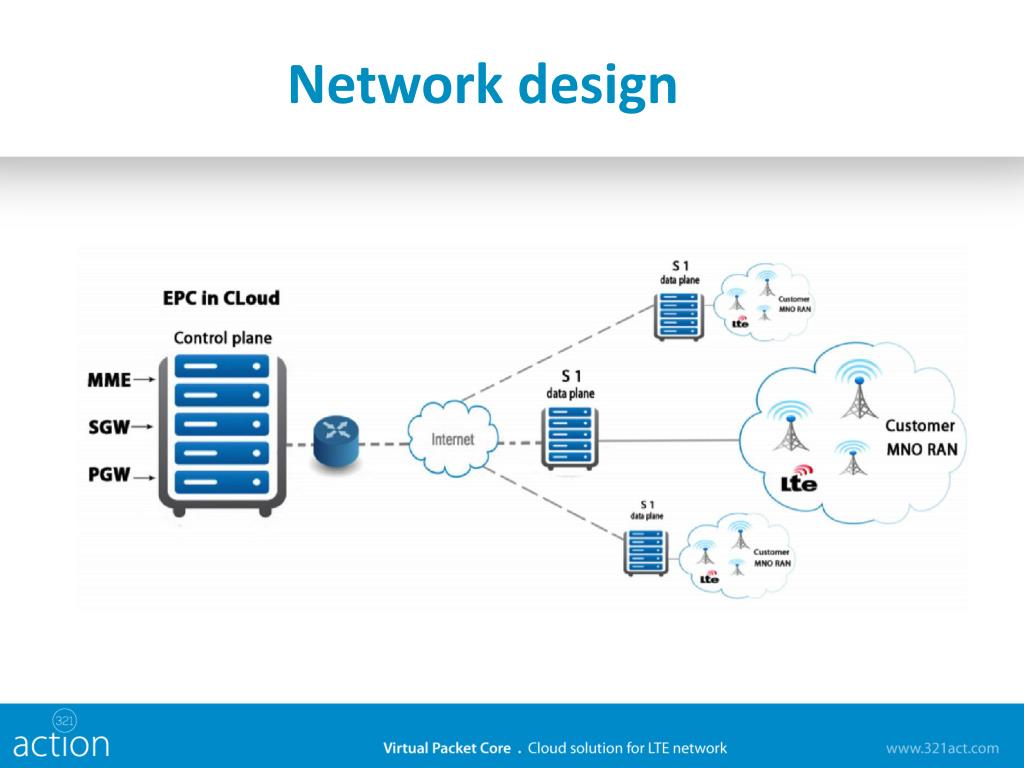

  17. Network design

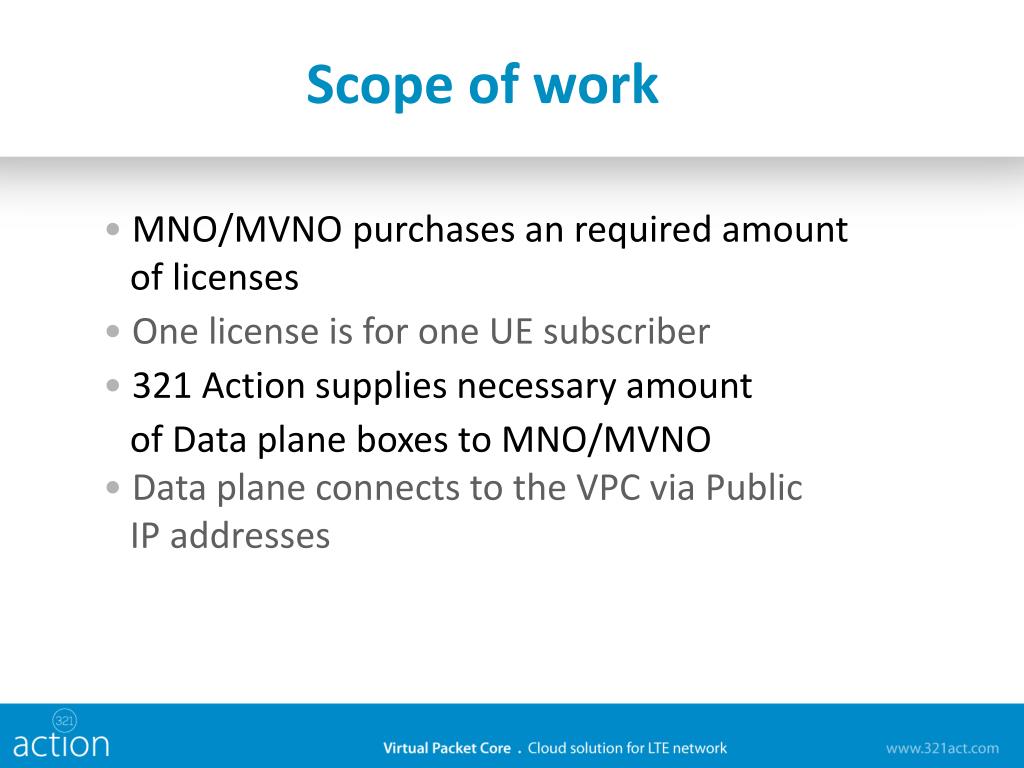

  18. Scope of work • MNO/MVNO purchases an required amount of licenses • One license is for one UE subscriber • 321 Action supplies necessary amount of Data plane boxes to MNO/MVNO •Data plane connects to the VPC via Public IP addresses

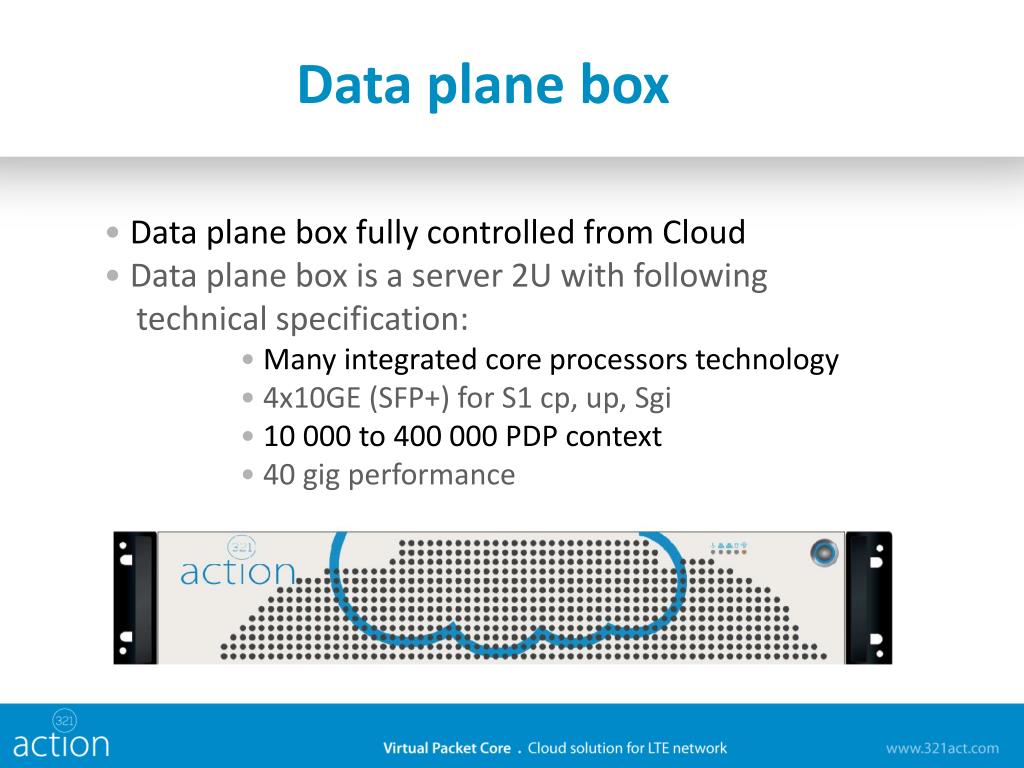

  19. Data plane box • Data plane box fully controlled from Cloud • Data plane box is a server 2U with following technical specification: • Many integrated core processors technology • 4x10GE (SFP+) for S1 cp, up, Sgi • 10 000 to 400 000 PDP context •40 gig performance

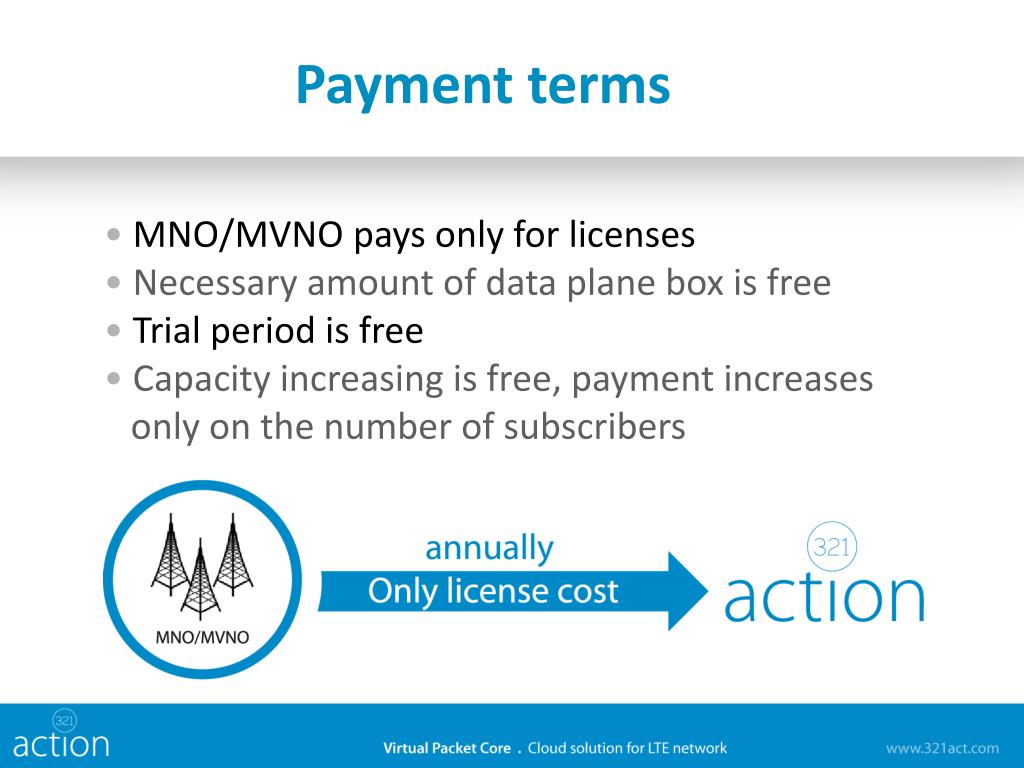

  20. Payment terms • MNO/MVNO pays only for licenses • Necessary amount of data plane box is free • Trial period is free • Capacity increasing is free, payment increases only on the number of subscribers

  21. www.321act.com
