PFMT755-800-4 4-LINE GND SCIF/TEMPEST FILTER LOW KVAR DESIGN

In environments where electromagnetic integrity is paramountu2014such as SCIFs and secure data centersu2014the PFMT755-800-4 EMI Filter by Premier Filters offers a robust solution. This 4-line plus ground filter provides over 100dB attenuation from 14kHz to 40GHz, ensuring minimal electromagnetic interference. With a maximum voltage of 0-277/0-480VAC and a current capacity of 800A per line, it meets stringent standards including MIL-STD-220, MIL-F-15733, MIL-STD-810, and the LV Directive. <br><br>Enhance your facility's electromagnetic security. Explore the PFMT755-800-4 EMI Filter.

premierfilters
Download Presentation

PFMT755-800-4 4-LINE GND SCIF/TEMPEST FILTER LOW KVAR DESIGN

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

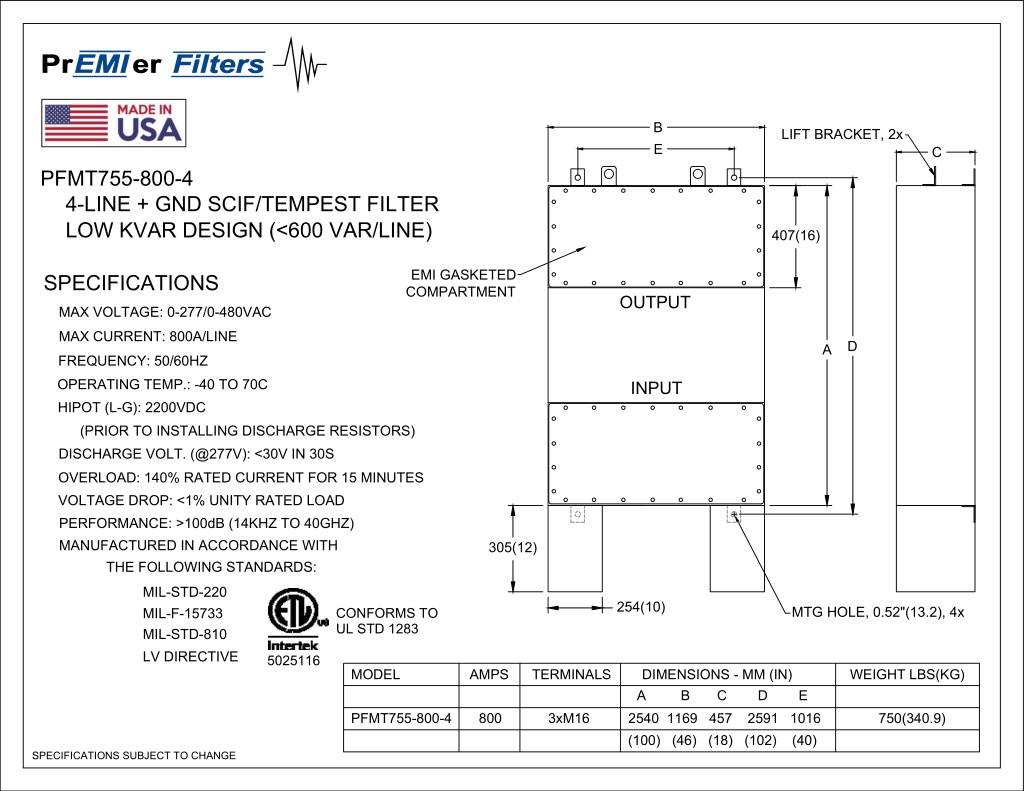

  1. B E LIFT BRACKET, 2x C PFMT755-800-4 4-LINE + GND SCIF/TEMPEST FILTER LOW KVAR DESIGN (<600 VAR/LINE) 407(16) EMI GASKETED COMPARTMENT SPECIFICATIONS OUTPUT MAX VOLTAGE: 0-277/0-480VAC MAX CURRENT: 800A/LINE D A FREQUENCY: 50/60HZ OPERATING TEMP.: -40 TO 70C INPUT HIPOT (L-G): 2200VDC (PRIOR TO INSTALLING DISCHARGE RESISTORS) DISCHARGE VOLT. (@277V): <30V IN 30S OVERLOAD: 140% RATED CURRENT FOR 15 MINUTES VOLTAGE DROP: <1% UNITY RATED LOAD PERFORMANCE: >100dB (14KHZ TO 40GHZ) MANUFACTURED IN ACCORDANCE WITH THE FOLLOWING STANDARDS: 305(12) MIL-STD-220 MIL-F-15733 MIL-STD-810 LV DIRECTIVE 254(10) MTG HOLE, 0.52"(13.2), 4x CONFORMS TO UL STD 1283 5025116 MODEL AMPS TERMINALS DIMENSIONS - MM (IN) WEIGHT LBS(KG) A B C D E PFMT755-800-4 800 3xM16 2540 1169 457 2591 1016 750(340.9) (100) (46) (18) (102) (40) SPECIFICATIONS SUBJECT TO CHANGE
