DC EMI Filters: Protecting Electronics from Power Line Interference

DC EMI Filters are designed to protect electronic systems from electromagnetic interference (EMI) in Direct Current (DC) power supplies. These filters prevent high-frequency noise and disturbances from entering or leaving the power supply, which could otherwise disrupt the performance of sensitive devices like communication equipment, medical instruments, and industrial control systems. By reducing unwanted electrical noise, DC EMI filters ensure stable, reliable, and efficient operation of electronic systems.

premierfilters
Download Presentation

DC EMI Filters: Protecting Electronics from Power Line Interference

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

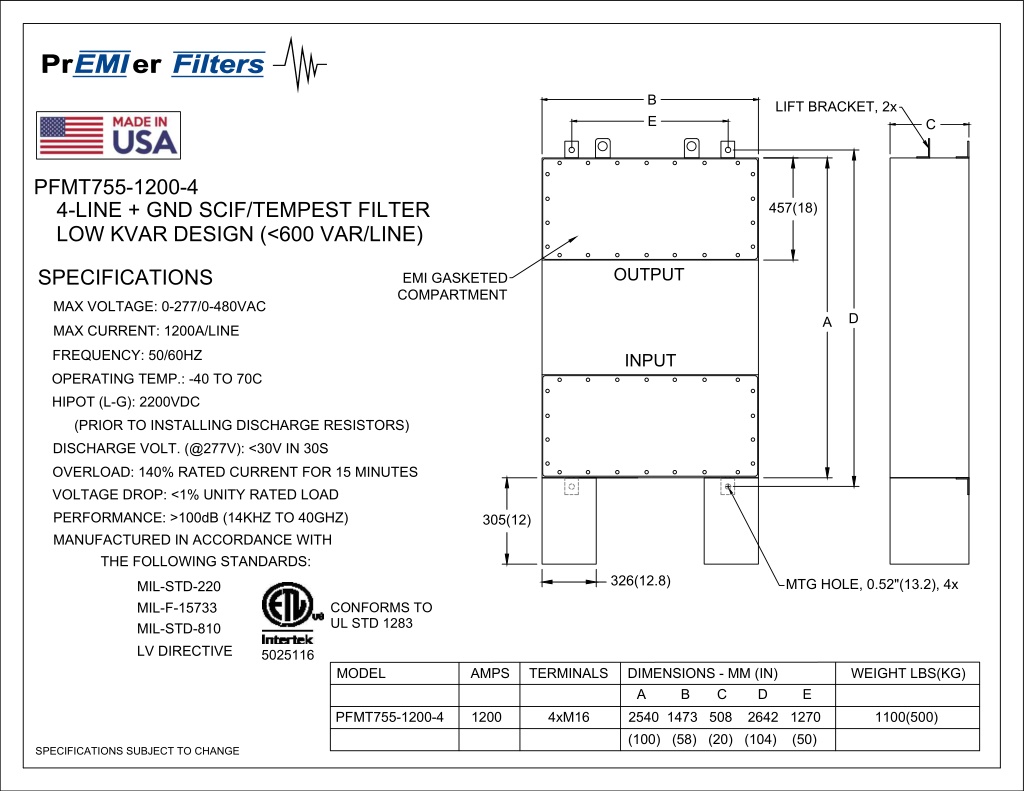

  1. B E LIFT BRACKET, 2x C PFMT755-1200-4 4-LINE + GND SCIF/TEMPEST FILTER LOW KVAR DESIGN (<600 VAR/LINE) 457(18) OUTPUT SPECIFICATIONS EMI GASKETED COMPARTMENT MAX VOLTAGE: 0-277/0-480VAC D A MAX CURRENT: 1200A/LINE FREQUENCY: 50/60HZ INPUT OPERATING TEMP.: -40 TO 70C HIPOT (L-G): 2200VDC (PRIOR TO INSTALLING DISCHARGE RESISTORS) DISCHARGE VOLT. (@277V): <30V IN 30S OVERLOAD: 140% RATED CURRENT FOR 15 MINUTES VOLTAGE DROP: <1% UNITY RATED LOAD PERFORMANCE: >100dB (14KHZ TO 40GHZ) MANUFACTURED IN ACCORDANCE WITH THE FOLLOWING STANDARDS: 305(12) 326(12.8) MTG HOLE, 0.52"(13.2), 4x MIL-STD-220 MIL-F-15733 MIL-STD-810 LV DIRECTIVE CONFORMS TO UL STD 1283 5025116 MODEL AMPS TERMINALS DIMENSIONS - MM (IN) WEIGHT LBS(KG) A B C D E PFMT755-1200-4 1200 4xM16 2540 1473 508 2642 1270 1100(500) (100) (58) (20) (104) (50) SPECIFICATIONS SUBJECT TO CHANGE
