PFMF370-100: Compact 100A 2-Line EMI Filter for Demanding Systems

Looking for a compact yet powerful EMI filter? The PFMF370-100 by Premier Filters is a 2-line filter rated at 100A, ideal for industrial, commercial, and high-current systems requiring efficient electromagnetic interference suppression.<br><br>Built to deliver stable, noise-free performance, this filter is perfect for protecting sensitive equipment in environments with stringent EMI compliance demands. Rugged and reliable, the PFMF370-100 supports high-performance power applications with ease.<br><br>Visit Premier Filters to learn more about the PFMF370-100 and its full capabilities. Check it out now!

premierfilters
Download Presentation

PFMF370-100: Compact 100A 2-Line EMI Filter for Demanding Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

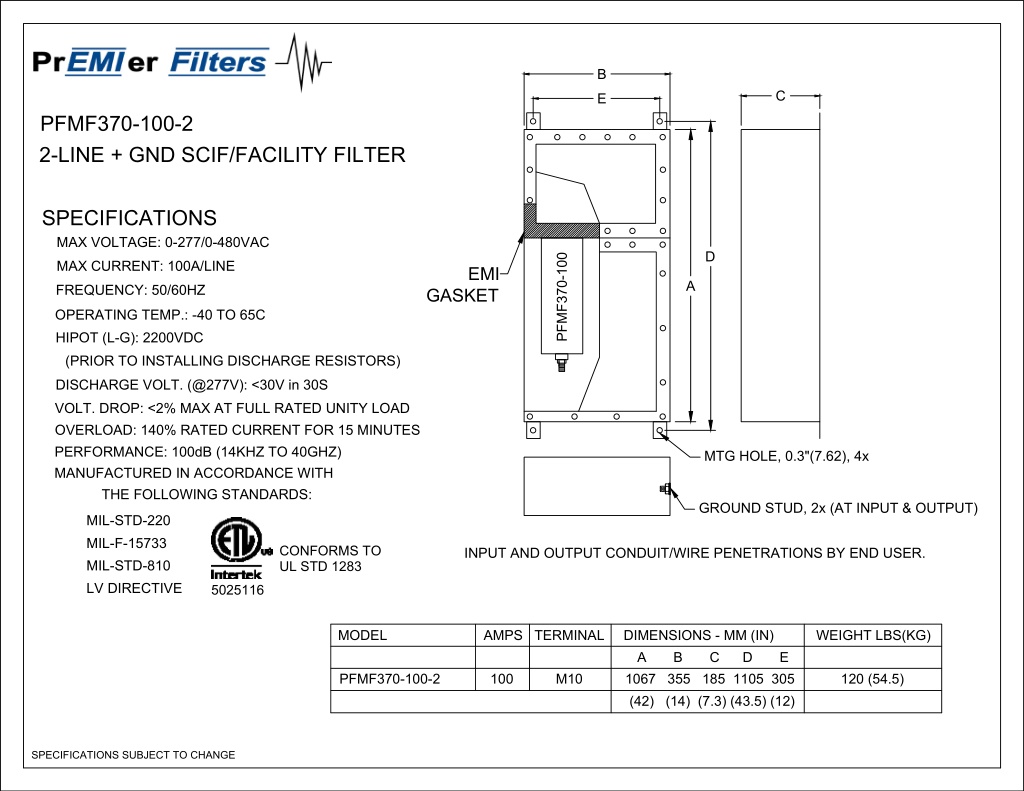

  1. Pr erFilters EMI B C E PFMF370-100-2 2-LINE + GND SCIF/FACILITY FILTER SPECIFICATIONS MAX VOLTAGE: 0-277/0-480VAC D PFMF370-100 MAX CURRENT: 100A/LINE EMI A FREQUENCY: 50/60HZ GASKET OPERATING TEMP.: -40 TO 65C HIPOT (L-G): 2200VDC (PRIOR TO INSTALLING DISCHARGE RESISTORS) DISCHARGE VOLT. (@277V): <30V in 30S VOLT. DROP: <2% MAX AT FULL RATED UNITY LOAD OVERLOAD: 140% RATED CURRENT FOR 15 MINUTES PERFORMANCE: 100dB (14KHZ TO 40GHZ) MANUFACTURED IN ACCORDANCE WITH THE FOLLOWING STANDARDS: MTG HOLE, 0.3"(7.62), 4x GROUND STUD, 2x (AT INPUT & OUTPUT) MIL-STD-220 MIL-F-15733 MIL-STD-810 LV DIRECTIVE CONFORMS TO UL STD 1283 INPUT AND OUTPUT CONDUIT/WIRE PENETRATIONS BY END USER. 5025116 MODEL AMPS TERMINAL DIMENSIONS - MM (IN) WEIGHT LBS(KG) A B C D E PFMF370-100-2 100 M10 1067 355 185 1105 305 120 (54.5) (42) (14) (7.3) (43.5) (12) SPECIFICATIONS SUBJECT TO CHANGE
