PFM77S-60-22 1PH MILITARY FILTER

The PFM77S-60-22 1PH Military Filter is a high-performance EMI suppression filter designed for military applications. It is built to meet the demanding requirements of military-grade environments, ensuring reliable operation in challenging conditions.

premierfilters
Download Presentation

PFM77S-60-22 1PH MILITARY FILTER

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

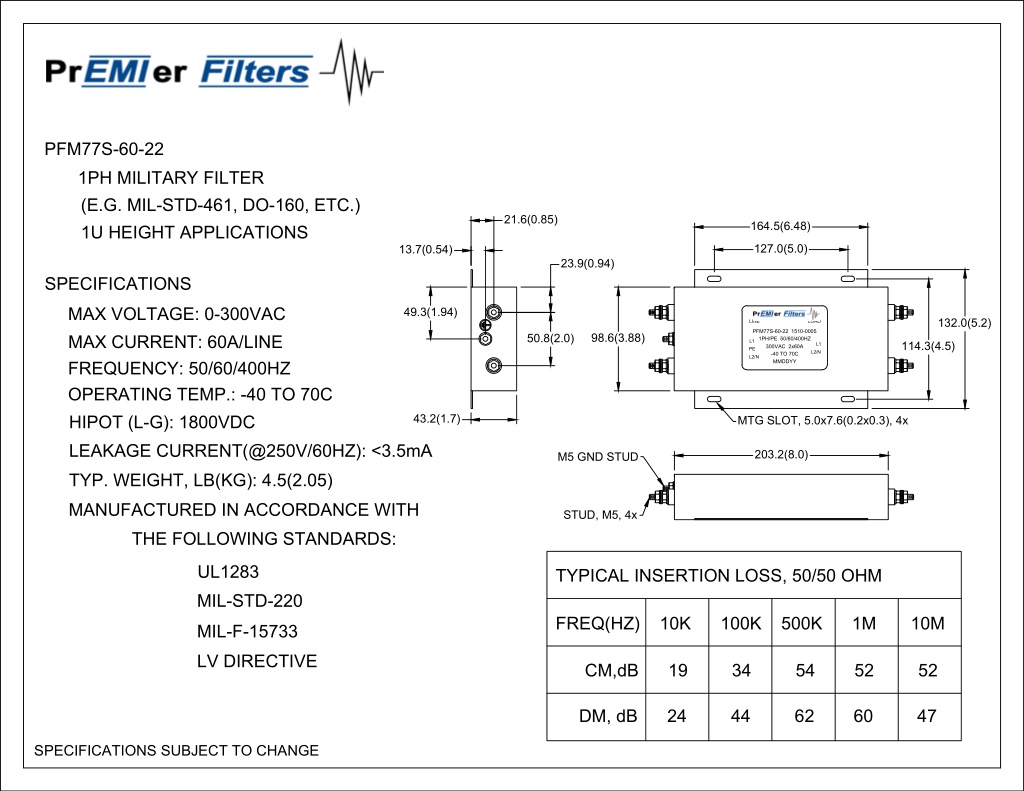

  1. Pr erFilters EMI PFM77S-60-22 1PH MILITARY FILTER (E.G. MIL-STD-461, DO-160, ETC.) 1U HEIGHT APPLICATIONS 21.6(0.85) 164.5(6.48) 127.0(5.0) 13.7(0.54) 23.9(0.94) SPECIFICATIONS MAX VOLTAGE: 0-300VAC MAX CURRENT: 60A/LINE 49.3(1.94) Pr erFilters EMI LINE LOAD 132.0(5.2) PFM77S-60-22 1510-0005 98.6(3.88) 50.8(2.0) 1PH/PE 50/60/400HZ L1 114.3(4.5) L1 300VAC 2x60A PE L2/N -40 TO 70C MMDDYY L2/N FREQUENCY: 50/60/400HZ OPERATING TEMP.: -40 TO 70C HIPOT (L-G): 1800VDC 43.2(1.7) MTG SLOT, 5.0x7.6(0.2x0.3), 4x LEAKAGE CURRENT(@250V/60HZ): <3.5mA 203.2(8.0) M5 GND STUD TYP. WEIGHT, LB(KG): 4.5(2.05) MANUFACTURED IN ACCORDANCE WITH STUD, M5, 4x THE FOLLOWING STANDARDS: UL1283 TYPICAL INSERTION LOSS, 50/50 OHM MIL-STD-220 FREQ(HZ) 10K 100K 500K 1M 10M MIL-F-15733 LV DIRECTIVE CM,dB 19 34 54 52 52 DM, dB 24 44 62 60 47 SPECIFICATIONS SUBJECT TO CHANGE
