PFM75S-30-22 1PH MILITARY FILTER

The PFM75S-30-22 is a 1-phase military-grade EMI filter designed for high-performance applications, particularly in military and other demanding environments. This filter is engineered to suppress high-frequency electromagnetic interference (EMI) and provide effective noise suppression, ensuring the reliable operation of sensitive electronic systems.

premierfilters
Download Presentation

PFM75S-30-22 1PH MILITARY FILTER

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

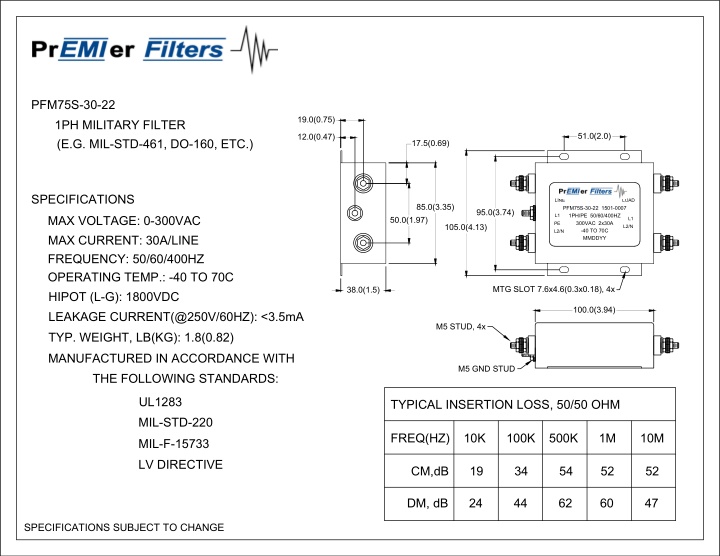

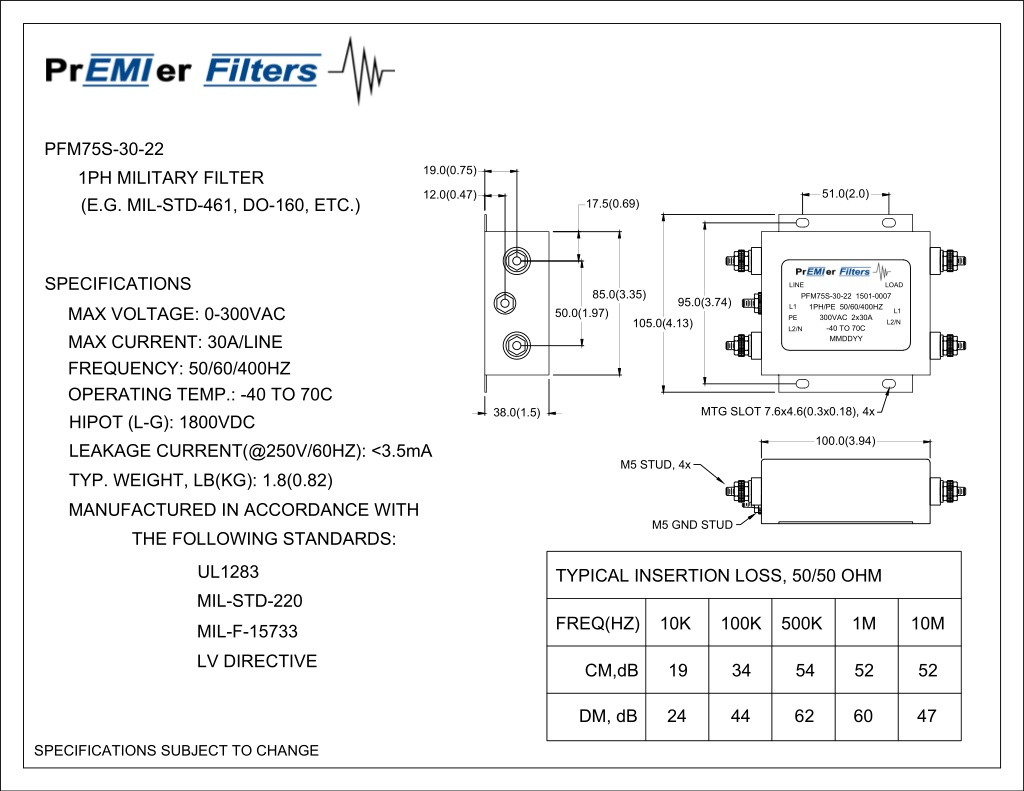

  1. Pr erFilters EMI PFM75S-30-22 19.0(0.75) 1PH MILITARY FILTER (E.G. MIL-STD-461, DO-160, ETC.) 51.0(2.0) 12.0(0.47) 17.5(0.69) Pr erFilters EMI SPECIFICATIONS LINE LOAD PFM75S-30-22 1501-0007 85.0(3.35) 95.0(3.74) 1PH/PE 50/60/400HZ L1 MAX VOLTAGE: 0-300VAC MAX CURRENT: 30A/LINE 50.0(1.97) L1 300VAC 2x30A -40 TO 70C MMDDYY PE 105.0(4.13) L2/N L2/N FREQUENCY: 50/60/400HZ OPERATING TEMP.: -40 TO 70C HIPOT (L-G): 1800VDC MTG SLOT 7.6x4.6(0.3x0.18), 4x 38.0(1.5) 100.0(3.94) LEAKAGE CURRENT(@250V/60HZ): <3.5mA M5 STUD, 4x TYP. WEIGHT, LB(KG): 1.8(0.82) MANUFACTURED IN ACCORDANCE WITH M5 GND STUD THE FOLLOWING STANDARDS: UL1283 TYPICAL INSERTION LOSS, 50/50 OHM MIL-STD-220 FREQ(HZ) 10K 100K 500K 1M 10M MIL-F-15733 LV DIRECTIVE CM,dB 19 34 54 52 52 DM, dB 24 44 62 60 47 SPECIFICATIONS SUBJECT TO CHANGE
