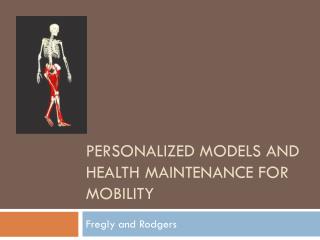

Personalized Models and Health Maintenance for mobility. Fregly and Rodgers. Overview. Personalized Models Health Maintenance Gaps Summary. Overview. Personalized Models Motivation Personalized modeling methods Full-body scan for personalized model creation

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Personalized Models and Health Maintenance for mobility' - prem


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
overview
Overview
  • Personalized Models
  • Health Maintenance
  • Gaps
  • Summary
overview1
Overview
  • Personalized Models
    • Motivation
    • Personalized modeling methods
    • Full-body scan for personalized model creation
    • Customization of robot function using personalized models
  • Health Maintenance
  • Gaps
  • Summary
why personalized models
Why Personalized Models?
  • “One size fits none” - everyone is different!
  • Increases objectivity in treatment planning (different clinicians may plan different treatments given same patient data).
  • Can facilitate identification of previously unknown treatments (e.g., modified gait to treat knee OA).
  • May permit identification of best treatment option for a specific patient.
  • May permit identification of sensitive treatment parameters (i.e., which parameter values do clinicians need to “get right”?)
highly variable outcomes
Highly Variable Outcomes

For some treatments, standard deviation in outcome is bigger than the effect size.

Where problems are

too complex for models

Where models

should be focused

Scope of model applicability must be properly defined.

high fidelity anatomic shoulder elbow model

HIGH FIDELITY ANATOMIC SHOULDER & Elbow MODEL

Frans C.T. van der Helm, Ph.D., Delft

delft shoulder and elbow model
Delft Shoulder and Elbow Model
  • High fidelity anatomic musculoskeletal model constructed from extensive measurements performed on a single cadaver specimen.
  • Model accounts for more variables (including sarcomere length) than any other upper extremity model.
  • Model validation: Muscle forces cannot be measured, so no strict validation!
  • The same model personalization approach cannot be performed on living patients.
model applications
Model Applications
  • Glenohumeralarthrodesis
  • Glenohumeralendoprosthesis
  • Tendon transfer after brachial plexus lesion
  • “Reverse” shoulder endoprosthesis
  • Scapula fractures
  • Functional electrical stimulation for tetraplegics
  • Neurological disorders
  • Computer Assisted Surgical Planning (CASP)
  • Wheelchair propulsion
  • Garbage collection
  • Brick-layering
orthopaedic surgery and rehabilitation

ORTHOPAEDIC SURGERY AND REHABILITATION

Maria Benedetti, M.D., Alberto Leardini, Ph.D., and Marco Viceconti, Ph.D. - Bologna

possible uses of gait analysis
Possible Uses of Gait Analysis
  • Assessment – Assess after treatment how the treatment worked for a group of patients. (Common)
  • Identification – Identify on an individual patient basis which patients should be treated (but not how they should be treated). (Becoming more common)
  • Prediction – Predict on an individual patient basis which treatment should be performed and how it should be performed (where personalized models may help). (Does not yet happen)
  • The potential value of Prediction depends on the clinical problem at hand.
clinical example for prediction
Clinical Example for Prediction
  • Clinical Situation:Oncological patients who receive a limb salvage procedure.
  • Problem: How to get the bone allograft to heal – it needs load to repair but not so much that it breaks.
  • Observation: Each case is unique – surgical and rehabilitation design are not stereotypical.
  • Proposed solution: Treatment design using gait and imaging data in a personalized musculoskeletal model that estimates muscle & bone loads.
  • Challenge: How to gain confidence in patient-specific predictions of muscle & bone loads?
personalized model creation use
Personalized Model Creation & Use

Valente et al., Computer Aided Medicine Conference, 2010

design of total ankle replacement
Design of Total Ankle Replacement

Leardini et al., ClinOrthopRelat Res, 2004

Though not personalized, design developed using patient data and modeling methods.

patient specific musculoskeletal models

PATIENT-SPECIFIC MUSCULOSKELETAL MODELS

Bart Koopman, Ph.D. and Herman van der Kooij, Ph.D., Enschede

model personalization
Model Personalization
  • Problem: Most musculoskeletal models are generic, and uniform scaling is inaccurate.
  • Solution: Scale/deform a generic parametric model to match each patient.
    • Image based scaling of bone geometry (CT, MRI)
    • Functional kinematic scaling of joint positions/orientations (marker-based motion, laser scans, inertial sensors)
    • Functional dynamic scaling of muscle strength (dynamometers)
  • Challenge: Fusion of data from different modalities.
model utilization
Model Utilization
  • Collect pre-treatment imaging, kinematic, and dynamic data.
  • Simulate surgical scenarios and parameters.
  • Select scenario and parameters that optimize post-treatment outcome.
  • Implement plan in surgical navigation system.
  • Validate model predictions using surgical cases not planned with model.
  • Example: Which tendon to transfer to restore hip abduction strength in patients with Trendelenburg gait?
neuro mechanical models
Neuro-Mechanical Models
  • How do people interact with and adapt to their environments (e.g., with robotic systems)?
  • Visual, proprioceptive, and vestibular feedback all play a role.
  • No simulation tools currently exist to optimize human-machine interactions in rehabilitation devices.
research goal
Research Goal

Multiscale personalized human musculoskeletal models that enable:

  • Early detection of balance abnormalities.
  • Design of innovative devices for prevention and treatment of musculoskeletal disorders.
  • Identification of the source of pathology (e.g., is it muscular or skeletal?).
  • Quantitative assessment of treatment strategies.
personalized modeling
Personalized Modeling

Personalized spine models for studying scoliosis

Partners: Hospitals in Paris, Saint Etienne, and Montreal

internal external registration
Internal-External Registration

Where are the bones with respect to the skin markers?

Bi-plane X-rays with External Markers

Gait Data

Direct registration of presonalizedskeletalmodels to external marker locations for gaitanalysis.

hocoma advanced functional movement therapy

Hocoma - Advanced functional movement therapy

Peter Hostettler, PhD & CEO, and team, Zurich

future directions
Future Directions
  • Neurorehabilitation is current focus.
  • Orthopaedic rehabilitation viewed as a potentially big future market.
  • Current robotic training system designed using the gait pattern of one of the designers.
  • Customization of robot to individual patients could be valuable in the the future (with possible role of personalized personalized modeling).
overview2
Overview
  • Personalized Models
  • Health Maintenance
    • Remote monitoring
    • Remote training & treatment
    • Prediction modeling
  • Gaps
  • Summary
remote monitoring and remotely supervised training treatment

Remote monitoring and Remotely supervised training & treatment

HermieHermens, PhD, Enschede

remote health care vision
Remote Health Care Vision
  • Goal: Create new health care services by combining biomedical engineering with information and communication technology.
  • “Enabling monitoring and treatment of subjects anywhere, anytime and intervene when needed.”
  • Remote monitoring – Remote measurement of vital biosignals without interfering with daily activities.
  • Remotely supervised training & treatment – monitoring + feedback that enable a patient to train when and where convenient and with the same quality of training as in a clinical environment.
benefits
Benefits
  • Remote Monitoring
    • Less intramural care (costs)
    • More freedom for patient
    • Peace of mind
  • Remotely Supervised Treatment
    • High intensity training possible (more = better)
    • Training in natural environment translates to more effective training
    • Puts patient in driver seat
    • Clinician can ‘treat’ several patients at the same time
  • Main challenges are technological feasibility and clinical/patient acceptance.
example tele treatment of chronic back pain
Example: Tele-Treatment of Chronic Back Pain
  • Studies report a change in activity level due to chronic back pain.
  • Clinical study: 29 chronic back pain patients and 20 asymptomatic controls
  • Activity levels monitored for 7 consecutive days using an 3D inertial motion sensor
  • Overall activity levels the same but activity patterns different between groups.
  • Will normalization of activity patterns through feedback improve outcome? (Clinical trial running)
example tele treatment of neck shoulder pain
Example: Tele-Treatment of Neck/Shoulder Pain
  • Chronic shoulder/neck pain typically shows no clear physiological overloading.
  • Solution: Design a remote feedback system to warn patients when insufficient relaxation occurs.
  • Muscle relaxation assessed via surface EMG with real-time feedback provided to patient and therapist.
  • 100 patients treated in Belgium, Germany, Sweden, and the Netherlands
  • Outcome as good as classic treatment
  • Approach appreciated by patients and therapists
institut for sundhedsvidenskab og teknologi aalborg university aalborg denmark

INSTITUT FOR SUNDHEDSVIDENSKAB OG TEKNOLOGIAalborg Universityaalborg, DenmarK

DEPT. OF HEALTH SCIENCE AND TECHNOLOGY

slide32

TeleKat COPD (KOL)

TeleKat projectapplies User Driven Innovation to develop wireless telehomecare technology enabling COPD patients to perform self-monitoring of their status, and to maintain rehabilitation activities in their homes.

brian caulfield academic director

Technology to monitor older adults

  • Systems deployed to 620 people
  • Building Predictive models based on data collected

Brian Caulfield, Academic Director

slide34

Gait Analysis Platform (GAP)

TRIL Gait Analysis Platform (GAP) consists of:•    Pressure sensing walkway (Tactex, S4 Sensors, Victoria, BC, Canada)•    Two SHIMMER™ kinematic sensors worn on the subject’s shanks•    Two orthogonally mounted web cameras

Unobtrusive capture of gait parameters and physiological data in 600 patients.

Data used develop diagnostics capabilities to detect increased gait variability & unsteadiness in elderly people (Predicting fall risk to 85% accuracy).

Can help with early identification of onset of diseases such as Parkinson’s

wellness and exercise
Wellness and Exercise
  • A complete home/work technology platform has been developed for the project, using a wearable wireless sensors system (SHIMMERs™) and an open shareable  software platform (BioMOBIUS™).
  • This facilitates effective monitoring and biofeedback during exercise whilst enhancing end-user motivation and involvement in the process.
balance strength exercise
Balance & Strength Exercise
  • Balance and Strength Exercise (BaSE) program includes console-based system installed in each of the participant’s homes.
  • System guides the user through each of their exercises, reminding them of correct way to execute each movement.
  • System prompts participant to carry out prescribed number of exercise repetitions.
  • Using a combination of camera and kinematic sensors, BaSE system provides real-time feedback to participant on their performance and transmits data collected to the physiotherapist.
  • Allows monitoring and modification of prescribed exercise programs between clinic visits.
overview3
Overview
  • Personalized Models
  • Health Maintenance
  • Gaps
  • Summary
gaps for personalized modeling
Gaps for Personalized Modeling
  • How to validate model predictions (especially for internal quantities such as muscle, joint, and bone loads)?
  • How to calibrate “unobservable” parameters to which model predictions are sensitive?.
  • How to create personalized neural control models?
  • How to make generation of model-based predictions fast and easy for a clinical setting?
gaps for health maintenance
Gaps for Health Maintenance
  • User-centered development
  • Effective technology transfer
  • Demonstration of efficacy
  • Need for models to identify predictive variables
overview4
Overview
  • Personalized Models
  • Health Maintenance
  • Gaps
  • Summary
summary for personalized modeling
Summary for Personalized Modeling
  • We have lots of technology! What we need are better ways to predict how to use technology to achieve significant improvements in mobility for specific patients and impairments.
  • Personalized modeling is one option for predicting how to use technology more effectively.
  • Creating personalized musculoskeletal models is not enough – we also need to include personalized neural control/neuroplasticity models so that patient responses to possible treatments can be predicted.
summary for health maintenance
Summary for Health Maintenance
  • Technology for monitoring in progress
  • Collaborations world-wide
  • Need for user-centered development
  • Predictive models needed
