  1. Concurrency, Processes, and System calls Benefits and issues of concurrency The basic concept of process System calls

  2. Concurrency • Allows multiple applications to run at the same time • Analogy: juggling

  3. Benefits of Concurrency • What are the limitations without concurrency? • Long response time • Resources under utilized • Better resource utilization • Resources unused by one application can be used by the others • Better average response time • No need to wait for other applications to complete

  4. Benefits of Concurrency Keyboard CPU Disk Time Finishing time Keyboard CPU Disk

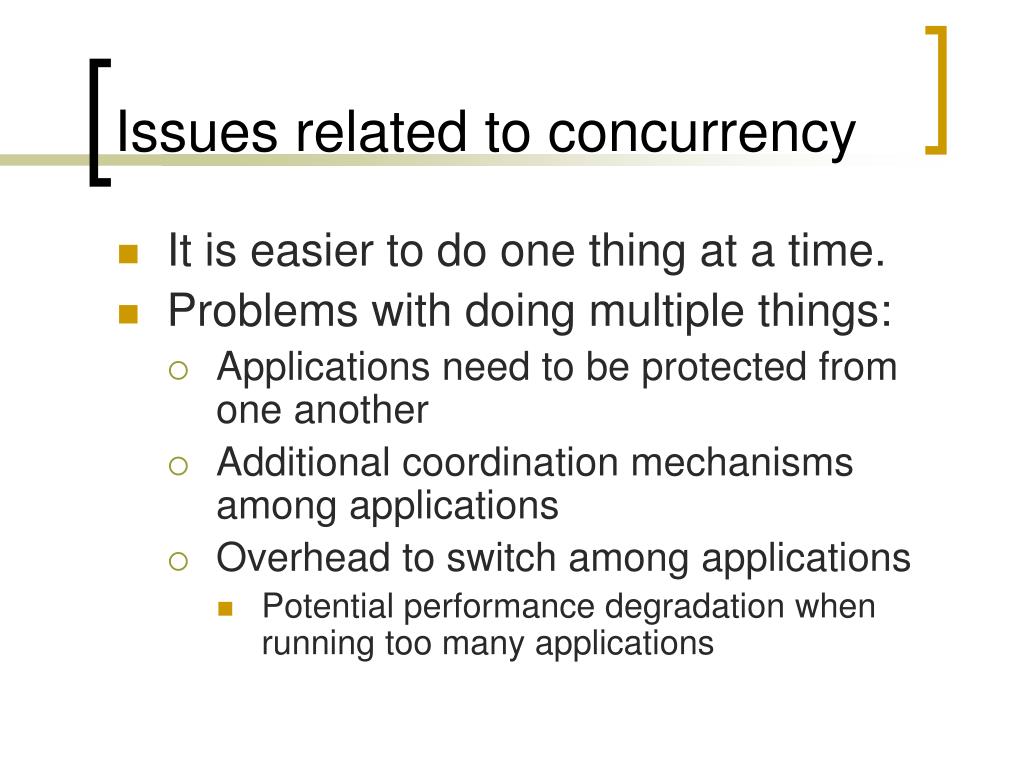

  5. Issues related to concurrency • It is easier to do one thing at a time. • Problems with doing multiple things: • Applications need to be protected from one another • Additional coordination mechanisms among applications • Overhead to switch among applications • Potential performance degradation when running too many applications

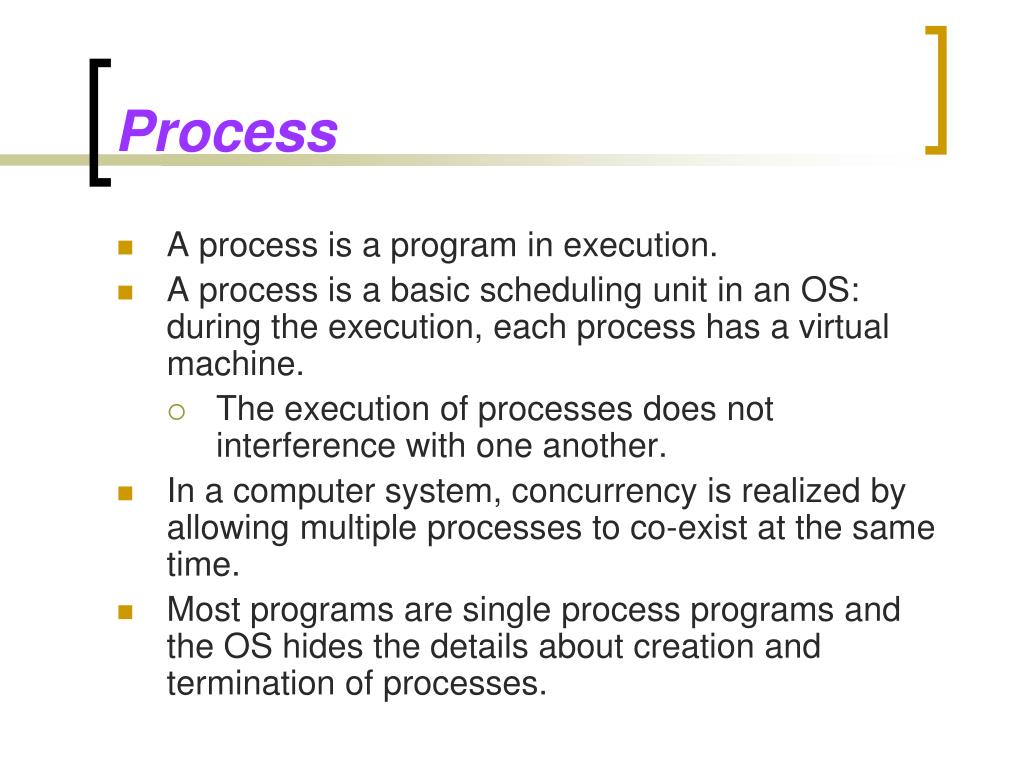

  6. Process • A process is a program in execution. • A process is a basic scheduling unit in an OS: during the execution, each process has a virtual machine. • The execution of processes does not interference with one another. • In a computer system, concurrency is realized by allowing multiple processes to co-exist at the same time. • Most programs are single process programs and the OS hides the details about creation and termination of processes.

  7. Process .vs. Program • Program: a collection of instructions • Process: a running instance of the program, with additional states and system resources • Example of additional states: process state (running, waiting, ready, etc) • Example of system resources: memory.

  8. Process != Program • Two processes can run the same program • The code segment of two processes are the same program • These two processes are totally independent of one another.

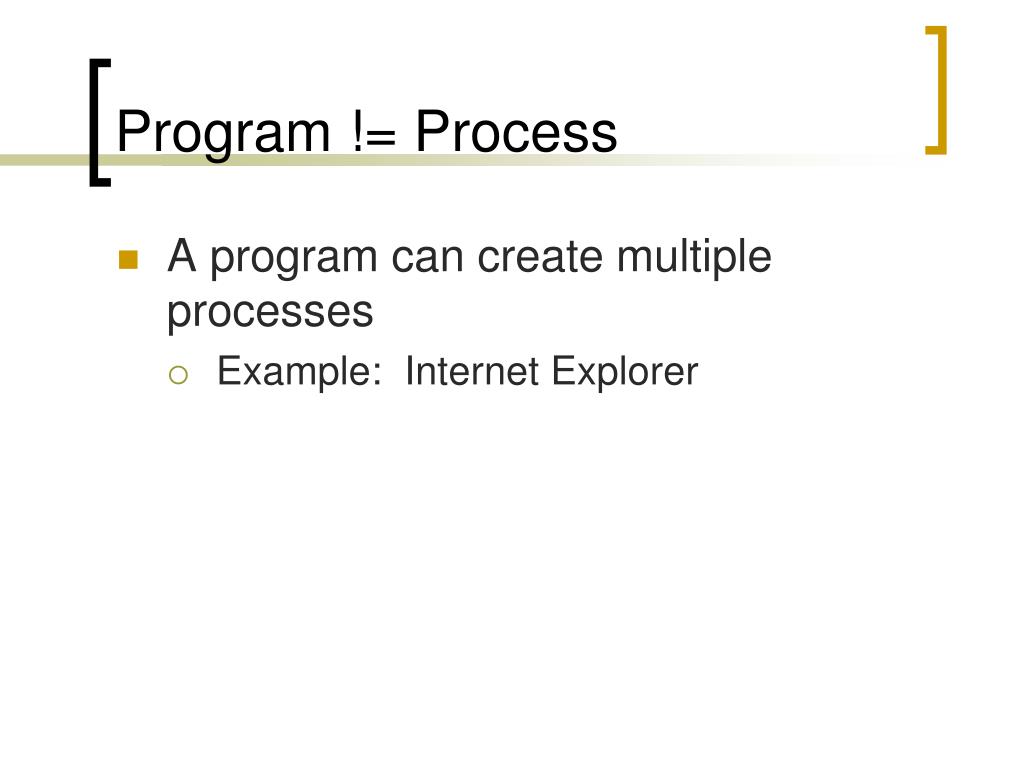

  9. Program != Process • A program can create multiple processes • Example: Internet Explorer

  10. Process context • It takes more than the “executable” to run a program. • Process context, sometimes also called process image, includes everything needed for the OS to run the program correctly. • Program counter • Stack pointer, etc

  11. System calls • System calls are functions (enhanced instructions) implemented in OS that can be used by user processes. • Handling system calls is like handling interrupts (sometimes call software interrupts). • Instead of a hardware event, the program issues an “interrupt” instruction. • All processors support such an instruction. The semantics of such instructions on different processors are similar (but have some slight differences). • On x86, the instruction is int/iret. • On MIPS, the instruction is syscall. • On some other older machines, the instruction is called trap.

  12. Void open (char *file_name) { asm { load OpenSystemCallNum, r8 move filename, r9 syscall } } • The semantic of the syscall instruction is similar to a routine call instruction. • The difference is that (1) the syscall handler address is obtained from the system call/interrupt vector (table) maintained by the OS; and (2) the mode is changed to the system mode. Interrupt vector 0x0 0x1 . . “Open” handler OpenSystemCallNum

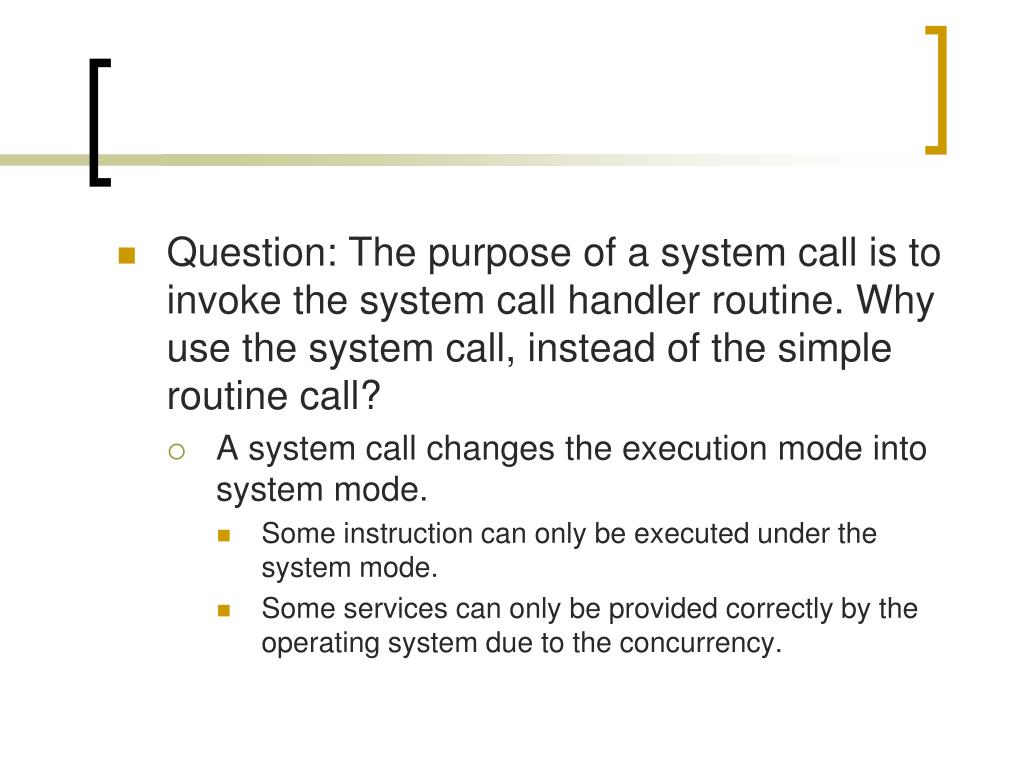

  13. Question: The purpose of a system call is to invoke the system call handler routine. Why use the system call, instead of the simple routine call? • A system call changes the execution mode into system mode. • Some instruction can only be executed under the system mode. • Some services can only be provided correctly by the operating system due to the concurrency.

  14. Question: Is syscall a system mode instruction or a user mode instruction? • How about iret in x86?

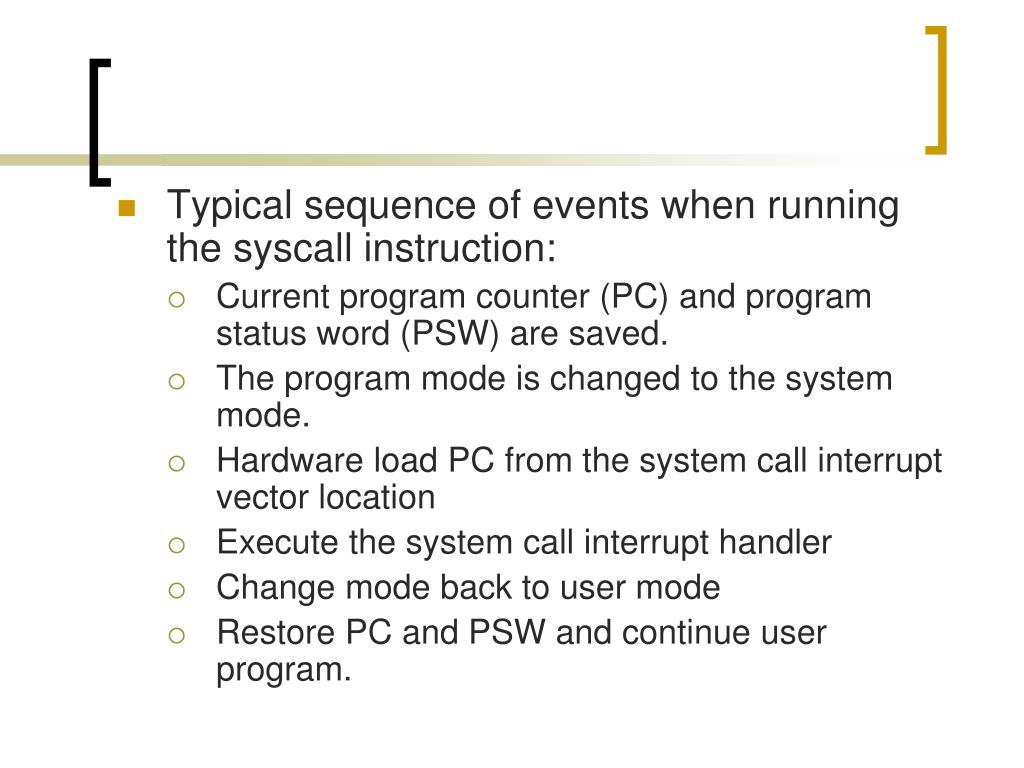

  15. Typical sequence of events when running the syscall instruction: • Current program counter (PC) and program status word (PSW) are saved. • The program mode is changed to the system mode. • Hardware load PC from the system call interrupt vector location • Execute the system call interrupt handler • Change mode back to user mode • Restore PC and PSW and continue user program.

  16. System call interface • The system call interface is the description of the set of system calls supported by the OS. • The OS interface is pretty much defined by the system call interface. • Typical types of system calls • Process control • File management • Device management • Information management • Communication management

  17. Assuming that a system call and a routine performs the same task, which one will have better performance? • Homework!!
