  1. Teles customer trainingNovember 2008 Presenter: Eyal Shmueli

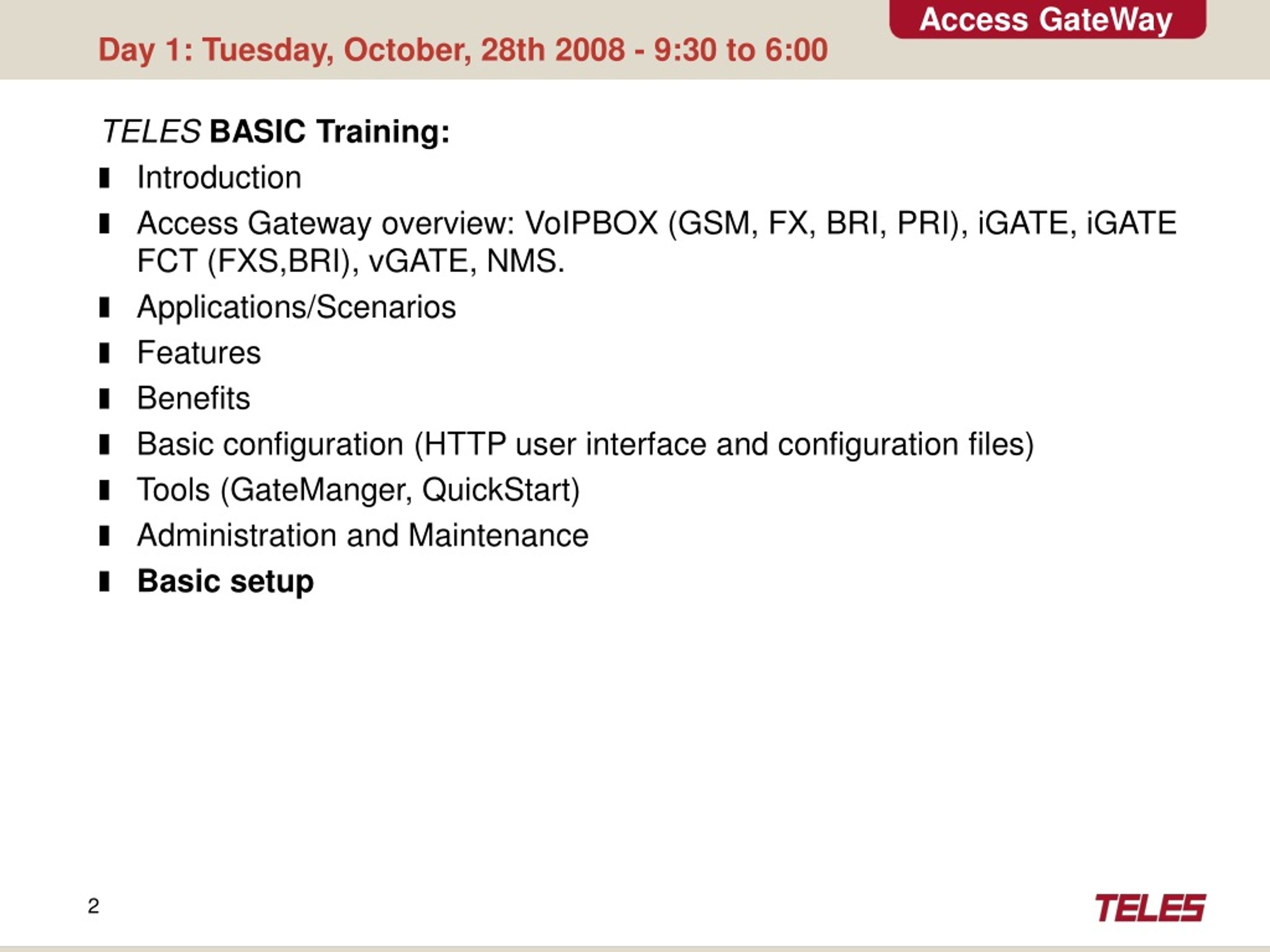

  2. Day 1: Tuesday, October, 28th 2008 - 9:30 to 6:00 TELES BASIC Training: • Introduction • Access Gateway overview: VoIPBOX (GSM, FX, BRI, PRI), iGATE, iGATE FCT (FXS,BRI), vGATE, NMS. • Applications/Scenarios • Features • Benefits • Basic configuration (HTTP user interface and configuration files) • Tools (GateManger, QuickStart) • Administration and Maintenance • Basic setup

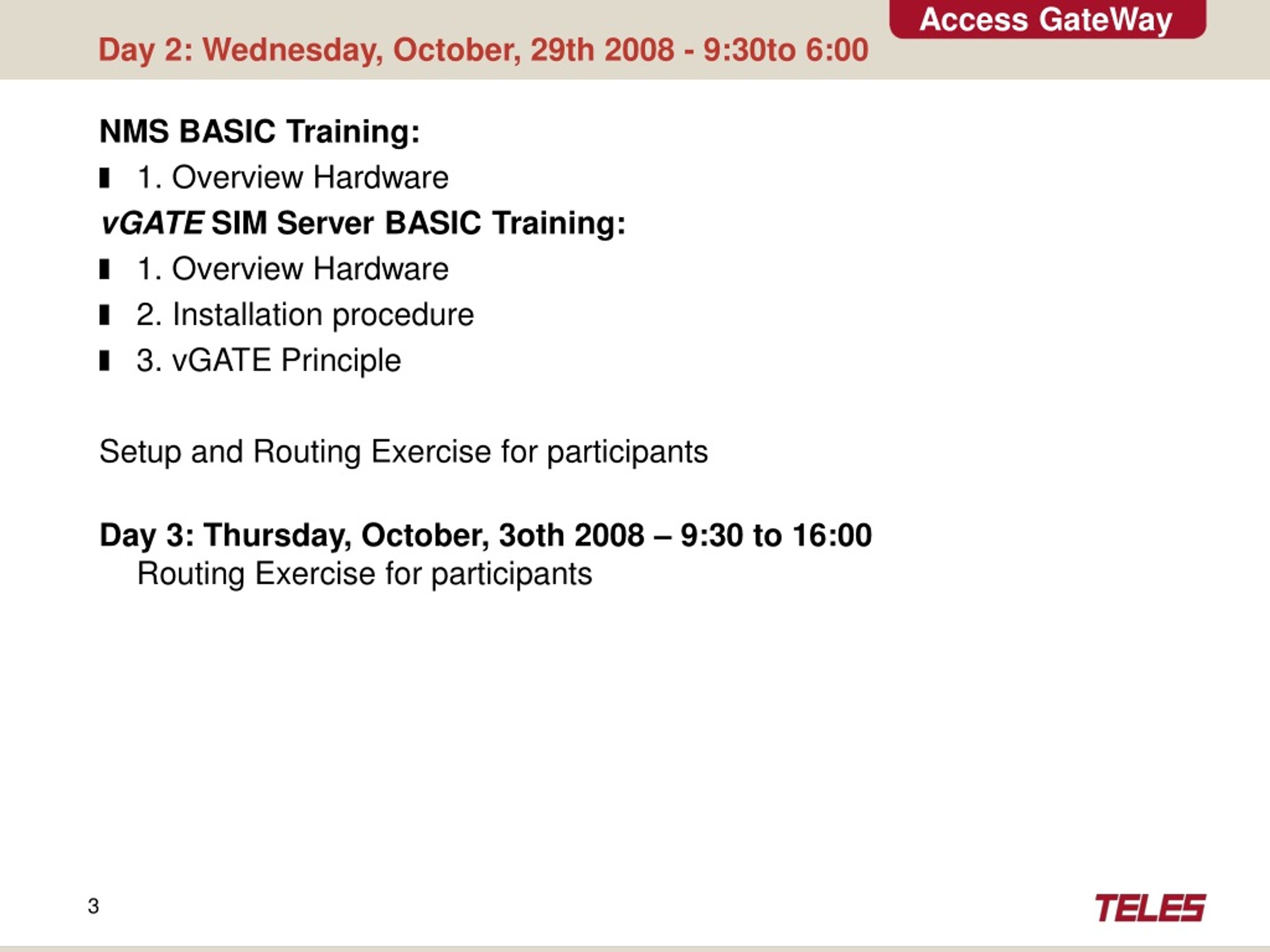

  3. Day 2: Wednesday, October, 29th 2008 - 9:30to 6:00 NMS BASIC Training: • 1. Overview Hardware vGATE SIM Server BASIC Training: • 1. Overview Hardware • 2. Installation procedure • 3. vGATE Principle Setup and Routing Exercise for participants Day 3: Thursday, October, 3oth 2008 – 9:30 to 16:00Routing Exercise for participants

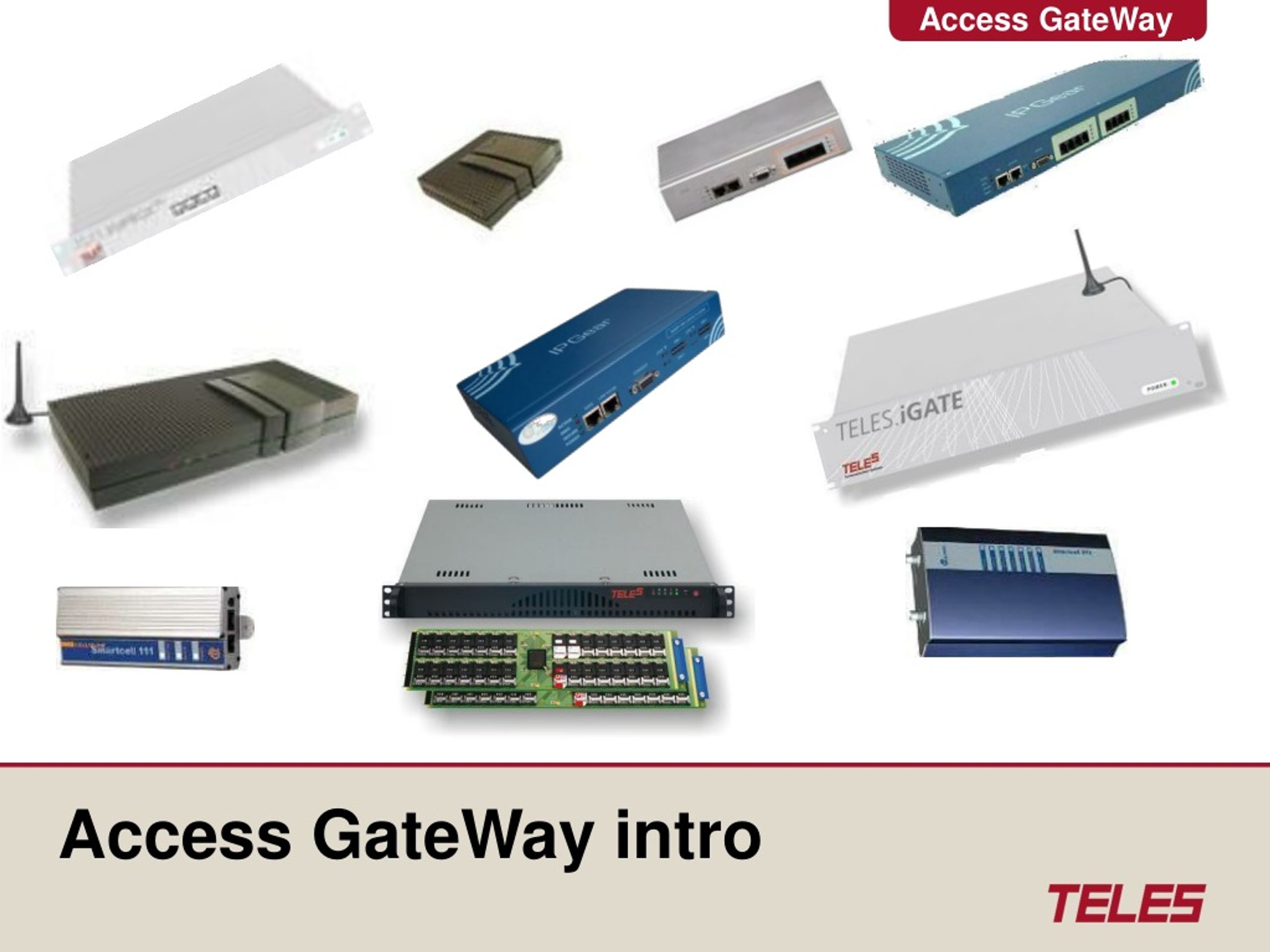

  4. Access GateWay intro

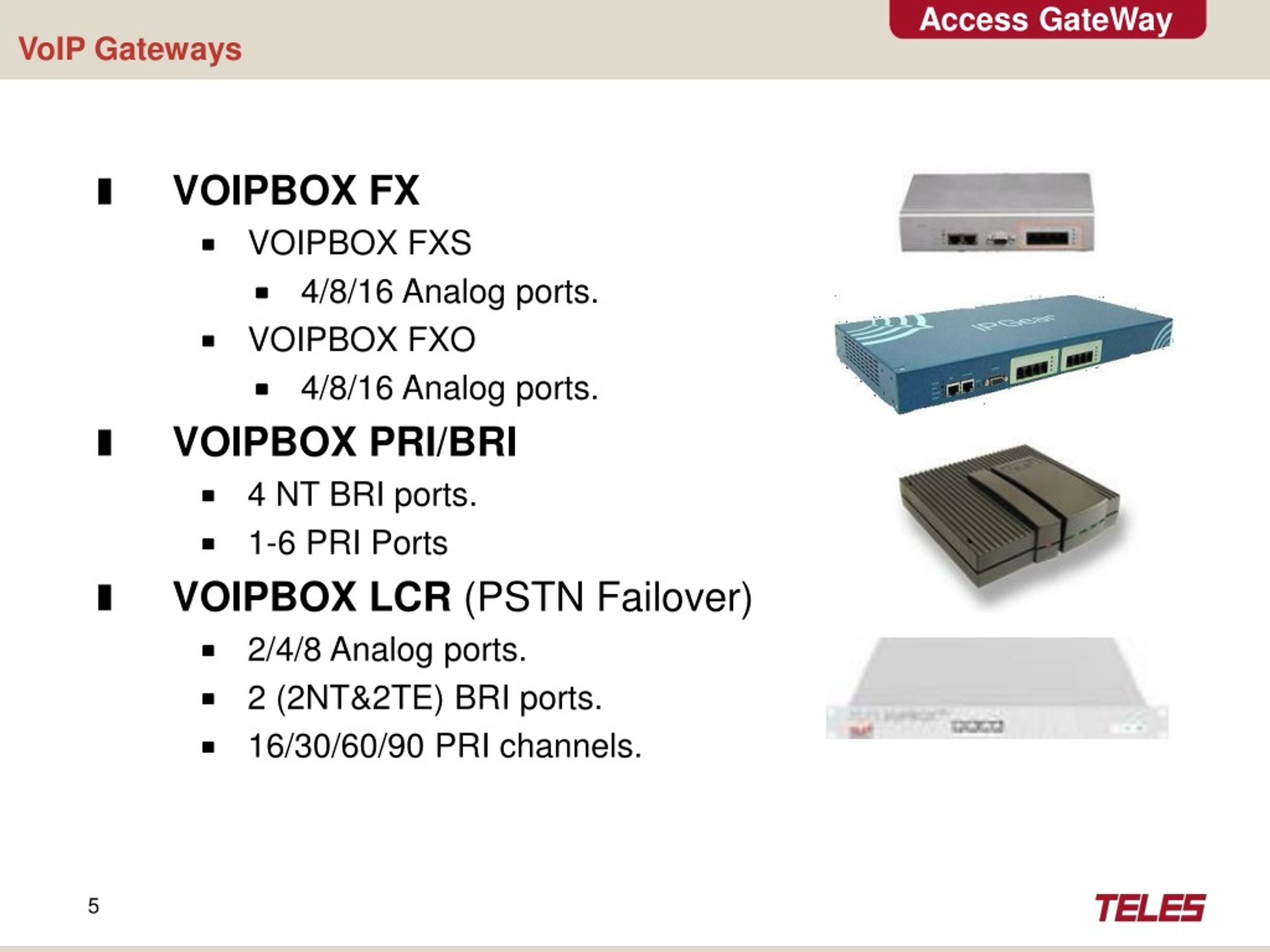

  5. VoIP Gateways • VOIPBOX FX • VOIPBOX FXS • 4/8/16 Analog ports. • VOIPBOX FXO • 4/8/16 Analog ports. • VOIPBOX PRI/BRI • 4 NT BRI ports. • 1-6 PRI Ports • VOIPBOX LCR (PSTN Failover) • 2/4/8 Analog ports. • 2 (2NT&2TE) BRI ports. • 16/30/60/90 PRI channels.

  6. Mobile Gateways iGATE • Mobile interface: GSM, CDMA R-UIM, and 3G/UMTS • Scalable from 4 to 32 channels • Flexible PSTN connectivity: PRI (E1/T1), • VoIP optional (LCR – 3 & 4 legs) • vGATE (SIM server) compatible. vGATE (Centralized management platform for SIM cards) • All SIM cards are stored in one central SIM server. • SIM information is transferred to GSM gateways via IP. • Maximum capacity of 6000 SIM cards. • Automatic recharging of pre-paid SIM cards.

  7. Mobile Gateways VoIPBOX FX GSM/CDMA • 4 Mobile interfaces - GSM or CDMA R-UIM • 4 Analog interfaces - FXS • 8 VoIP channels • Built in Router • vGATE (SIM server) compatible VoIPBOX GSM 4 • 4 Mobile interfaces – GSM. • 4 VoIP channels. • Built in Router

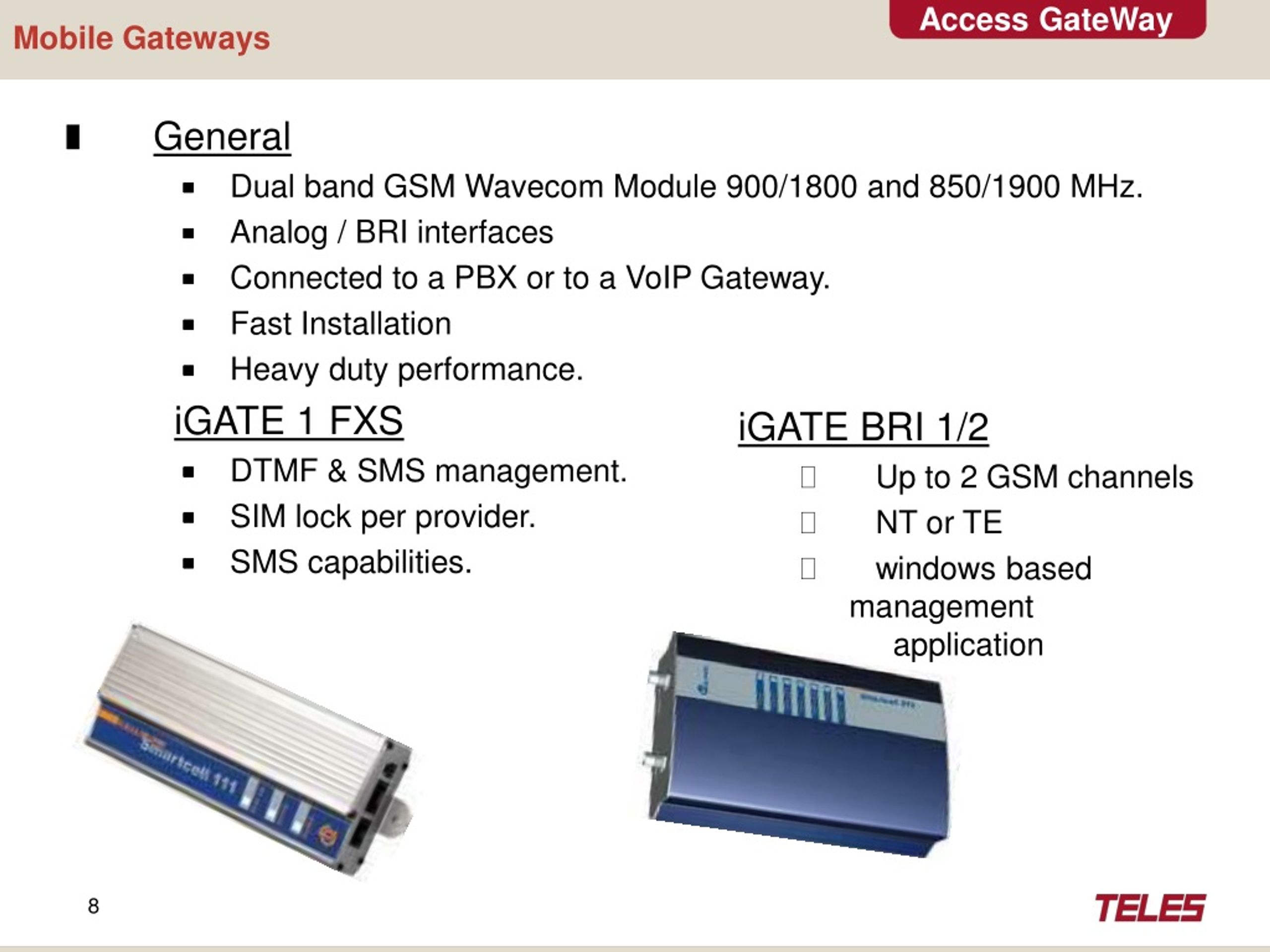

  8. Mobile Gateways • General • Dual band GSM Wavecom Module 900/1800 and 850/1900 MHz. • Analog / BRI interfaces • Connected to a PBX or to a VoIP Gateway. • Fast Installation • Heavy duty performance. iGATE 1 FXS • DTMF & SMS management. • SIM lock per provider. • SMS capabilities. • iGATE BRI 1/2 • Up to 2 GSM channels • NT or TE • windows based management application

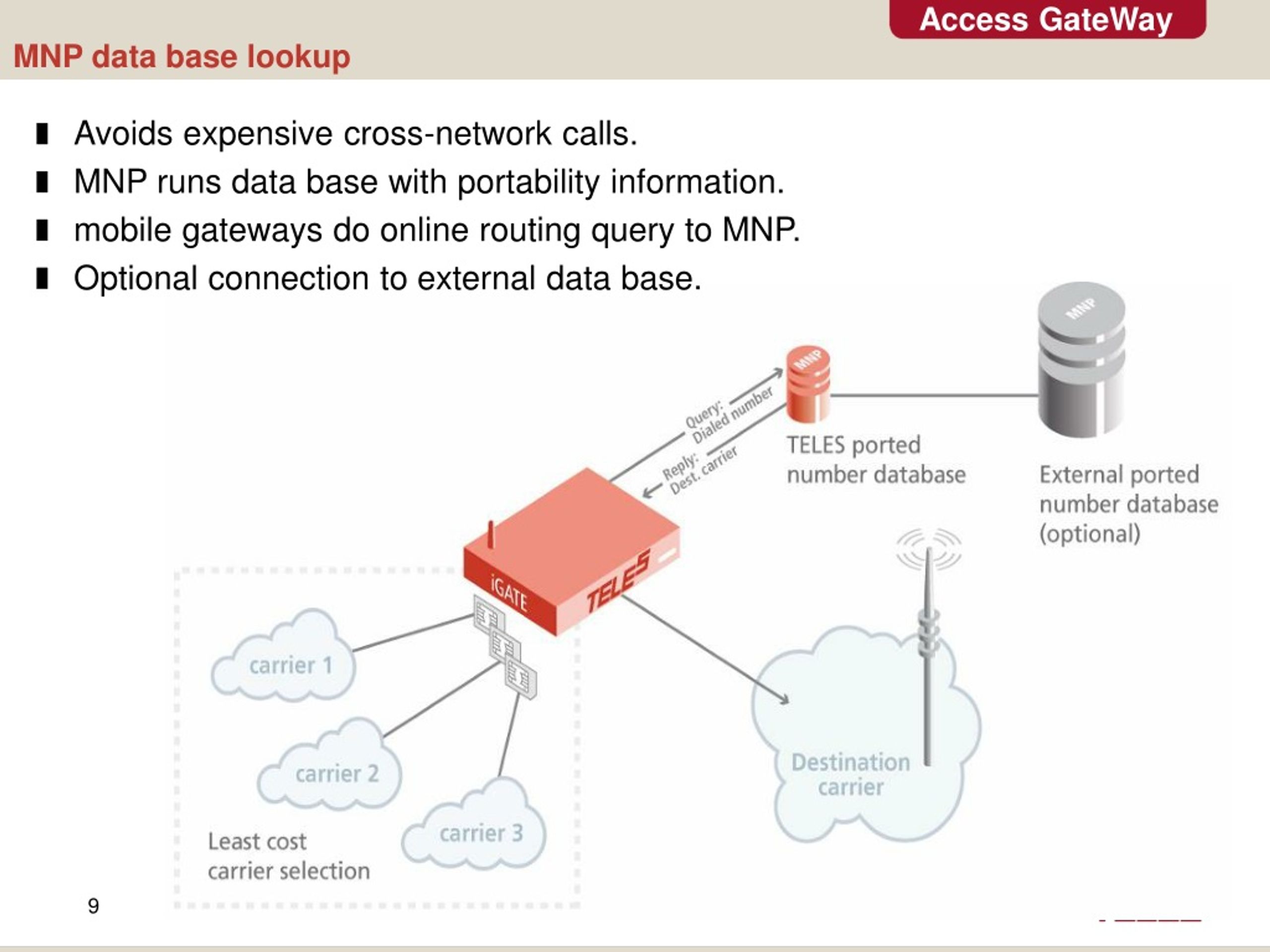

  9. MNP data base lookup • Avoids expensive cross-network calls. • MNP runs data base with portability information. • mobile gateways do online routing query to MNP. • Optional connection to external data base.

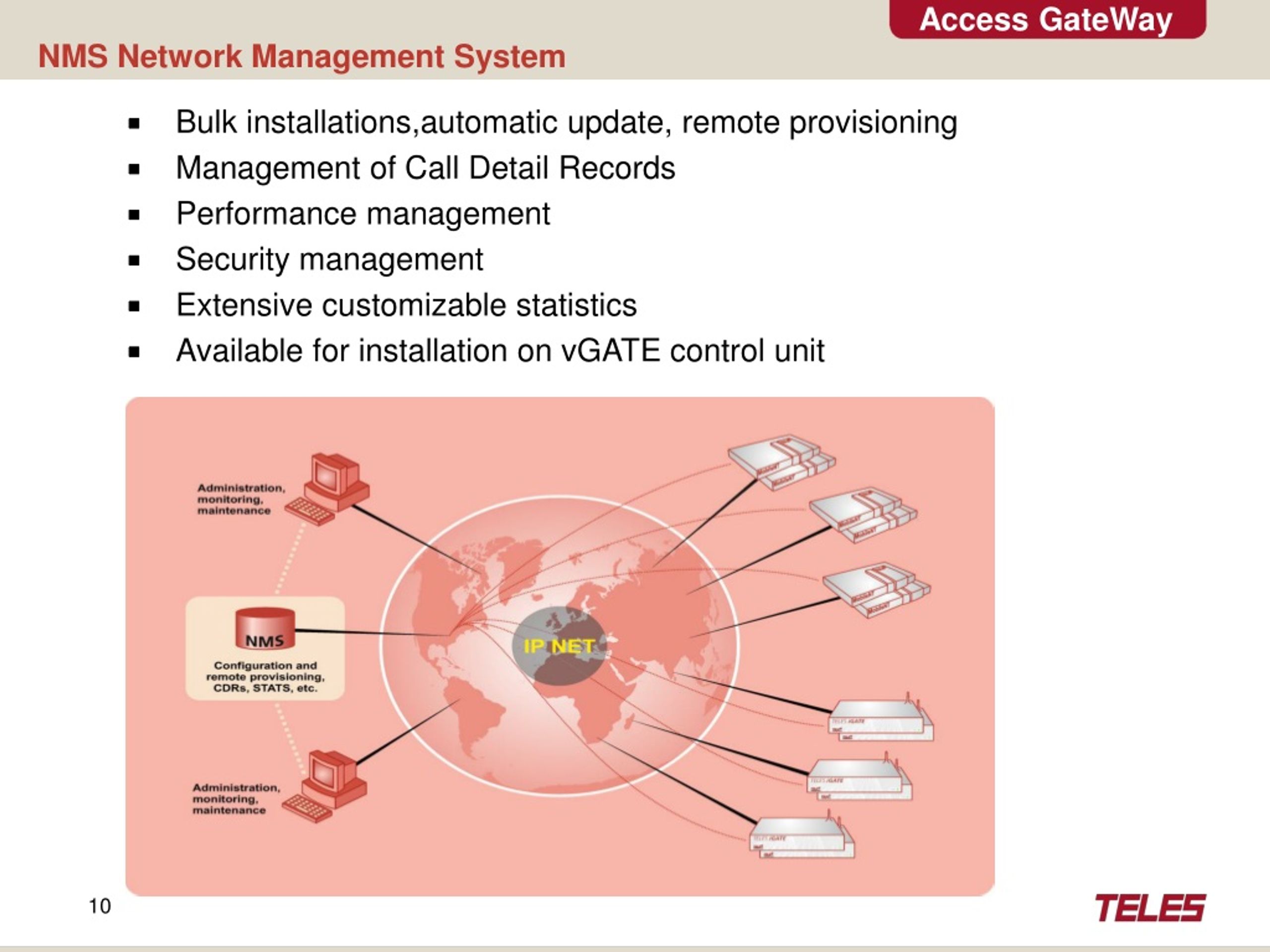

  10. NMS Network Management System • Bulk installations,automatic update, remote provisioning • Management of Call Detail Records • Performance management • Security management • Extensive customizable statistics • Available for installation on vGATE control unit

  11. http://www.teles.com Thank you
