Introduction to Algorithms

1. Introduction to Algorithms Jiafen Liu Sept. 2013

2. Today’s task • Develop more asymptotic notations • How to solve recurrences

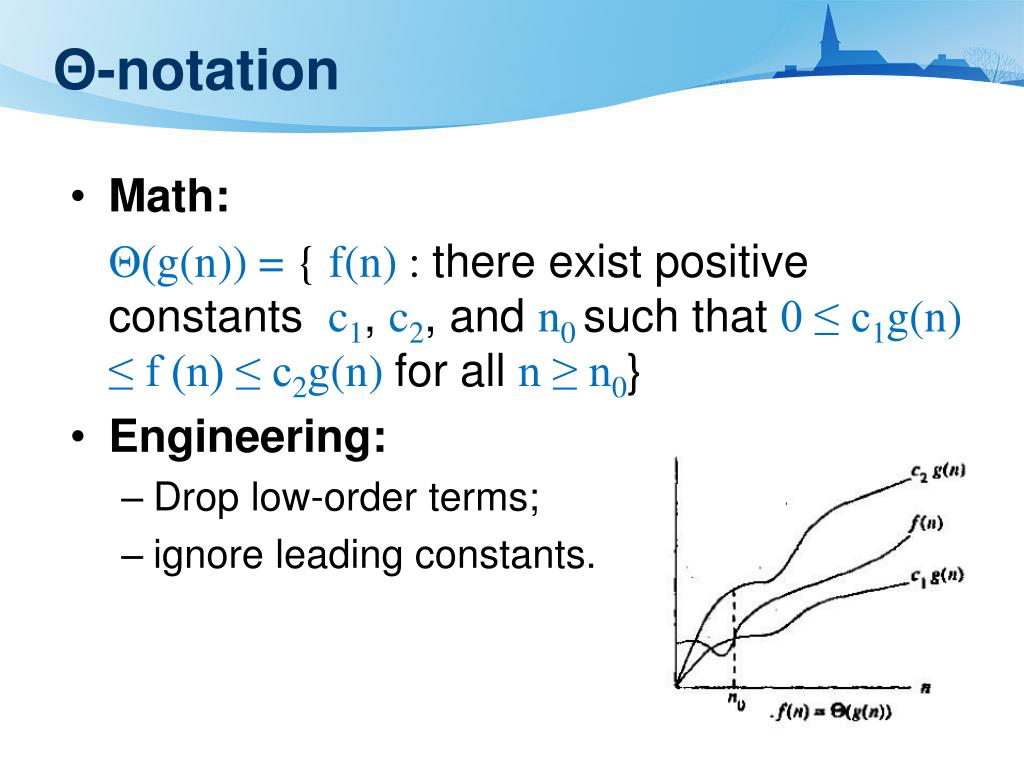

3. Θ-notation • Math: Θ(g(n)) = { f(n) : there exist positive constants c1, c2, and n0such that 0 ≤ c1g(n) ≤ f (n) ≤ c2g(n)for all n ≥ n0} • Engineering: • Drop low-order terms; • ignore leading constants.

4. O-notation • Another asymptotic symbol used to indicate upper bounds. • Math: • Ex : 2n2= O(n3) (c= 1, n0= 2) • “=” means “one-way” equality

5. Set definition of O-notation • Math: • Looks better? • EX : 2n2 ∈ O(n3) • O-notation corresponds roughly to “less than or equal to”.

6. Usage of O-notation • Macro substitution: A set in a formula represents an anonymous function in the set, if O-notation only occurs on the right hand of formula. • Ex: f(n) = n3+ O(n2) Means f(n) = n3+ h(n) for some h(n) ∈O(n2), here we can think of h(n) as error term.

7. Usage of O-notation • If O-notation occurs on the left hand of formula, such as n2+ O(n) = O(n2), which means for any f(n) ∈O(n): there exists some h(n) ∈O(n2), makes n2+ f(n) = h(n) • O-notation is an upper-bound notation. • It makes no sense to say f(n) is at least O(n2).

8. Ω-notation • How can we express a lower bound? • Ex:

9. Θ-notation • O-notation is like ≤ • Ω-notation is like ≥. • And Θ-notation is like = • Now we can give another definition of Θ-notation • We also call Θ-notation as “tight bound”.

10. A Theorem on Asymptotic Notations • Theorem 3.1 • For any two functions f(n) and g(n), we say f(n)=Θ(g(n))if and only if f(n)=O(g(n)) and f(n)=Ω(g(n)). • Ex: , how can we prove that?

11. Two More Strict Notations • We have just said that: • O-notation and Ω-notation are like ≤and ≥. • o-notation and ω-notation are like < and >. • Difference with O-notation : This inequality must hold for all c instead of just for 1.

12. What does it mean? “for any constant c ” • With o-notation, we mean that: no matter what constant we put in front of g(x), f(x) will be still less than cg(x) for sufficiently large n. No matter how small c is. • Ex: 2n2= o(n3) • An counter example: • 1/2n2 = Ω (n2) does not hold for each c. • (n0= 2/c)

13. Two More Strict Notations • We have just said that: • O-notation and Ω-notation are like ≤and ≥. • o-notation and ω-notation are like < and >. • Difference with Ω-notation : This inequality must hold for all c instead of just for 1.

14. Solving recurrences • The analysis of merge sort from Lecture 1 required us to solve a recurrence. • Lecture 3: Applications of recurrences to divide-and-conquer algorithms. • We often omit some details inessential while solving recurrences: • n is supposed to be an integer because the size of input is an integer typically . • Ignore the boundary conditions for convenience.

15. Substitution method • The most general method : Substitution method • Guess the form of the solution. • Verify by induction. • Solve for constants. • Substitution method is used to determine the upper or lower bounds of recurrence.

16. Example of Substitution • EXAMPLE: T(n) = 4T(n/2) + n (n≥1) • (Assume that T(1) = Θ(1)) • Can you guess the time complexity of it? • Guess O(n3). (Prove O and Ω separately.) • We will prove T(n) ≤ cn3by induction. • First ,we assume that T(k) ≤ ck3for k < n • T(k) ≤ ck3holds while k=n/2 by assumption.

17. Example of Substitution • All we need is • this holds as long as c ≥ 2 • for n ≥ 1 desired desired residual

18. Base Case in Induction • We must also handle the initial conditions, that is, ground the induction with base cases. • Base: T(n) = Θ(1) for all n < n0, where n0 is a suitable constant. • For 1 ≤ n< n0, we have “Θ(1)” ≤ cn3, if we pick c big enough. Here we are! BUT thisboundisnottight !

19. A tighter upper bound? • We shall prove that T(n) = O(n2) . • Assume that T(k) ≤ ck2 for k < n. Anybody can tell me why? Now we need –n ≥ 0 But it seems impossible for n ≥ 1 desired residual

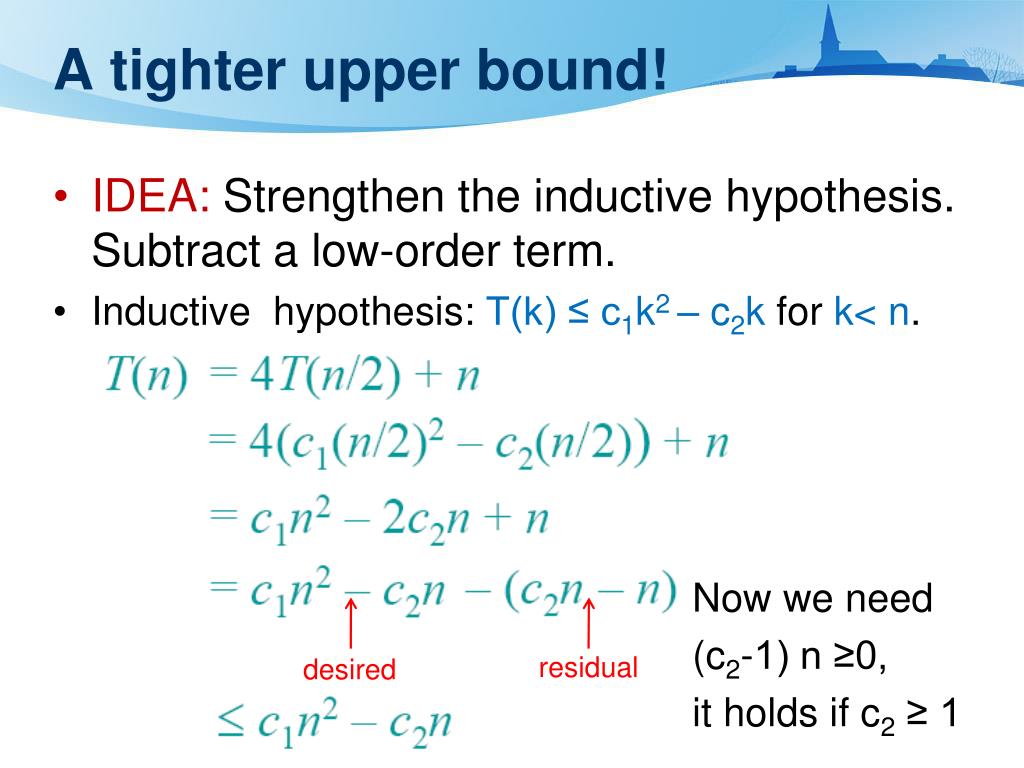

20. A tighter upper bound! • IDEA: Strengthen the inductive hypothesis. Subtract a low-order term. • Inductive hypothesis: T(k) ≤ c1k2 – c2k for k< n. Now we need (c2-1) n ≥0, it holds if c2 ≥ 1 desired residual

21. For the Base Case • We have proved now that for any value of c1, and provided c2 ≥ 1. • Base: We need T(1) ≤ c1– c2 • Assumed T(1) is some constant. • We need to choose c1 to be sufficiently larger than c2, and c2 has to be at least 1. • To handle the initial conditions, just pick c1 big enough with respect to c2.

22. About Substitution method • We have worked for upper bounds, and the lower bounds are similar. • Try it yourself. • Shortcomings: • We had to know the answer in order to find it, which is a bit of a pain. • It would be nicer to just figure out the answer by some procedure, and that will be the next two techniques.

23. Recursion-tree method • A recursion tree models the costs (time) of a recursive execution of an algorithm. • The recursion-tree method can be unreliable, just like any method that uses dot,dot,dots (…). • The recursion-tree method promotes intuition, however. • The recursion tree method is good for generating guesses for the substitution method.

24. Example of recursion tree • Solve T(n) = T(n/4) + T(n/2)+ n2:

25. Example of recursion tree • Solve T(n) = T(n/4) + T(n/2)+ n2:

26. Example of recursion tree • Solve T(n) = T(n/4) + T(n/2)+ n2:

27. Example of recursion tree • Solve T(n) = T(n/4) + T(n/2)+ n2: ? How many leaves? <n We just need an upper bound.

28. Example of recursion tree • Solve T(n) = T(n/4) + T(n/2)+ n2: ＜2n2 • So T(n) = Θ(n2) ? ? ? ? Recall 1+1/2+1/4+1/8+…

29. The Master Method • It looks like an application of the recursion tree method but with more precise. • The sad part about the master method is it is pretty restrictive. • It only applies to recurrences of the form: T(n) = a T(n/b) + f(n) , where a ≥1, b >1, and f(n) is asymptotically positive. • aT(n/b) means every problem you recurse on should be of the same size.

30. Three Common Cases

31. Three Common Cases • Case 1:

32. Three Common Cases • Case 1: • Case 2:

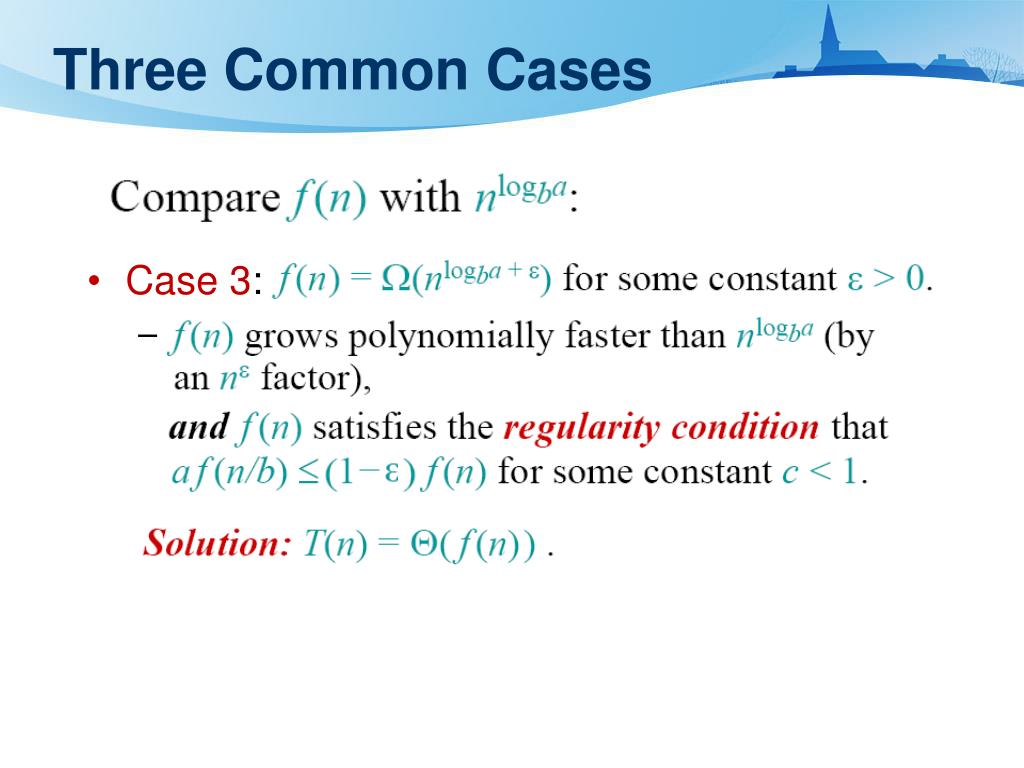

33. Three Common Cases • Case 3:

34. Examples • Ex: T(n) = 4T(n/2) + n • a = 4, b= 2 • and

35. Examples • Ex: T(n) = 4T(n/2) + n2 • a = 4, b= 2 • and

36. Examples • Ex: T(n) = 4T(n/2) + n3 • a = 4, b= 2 • and

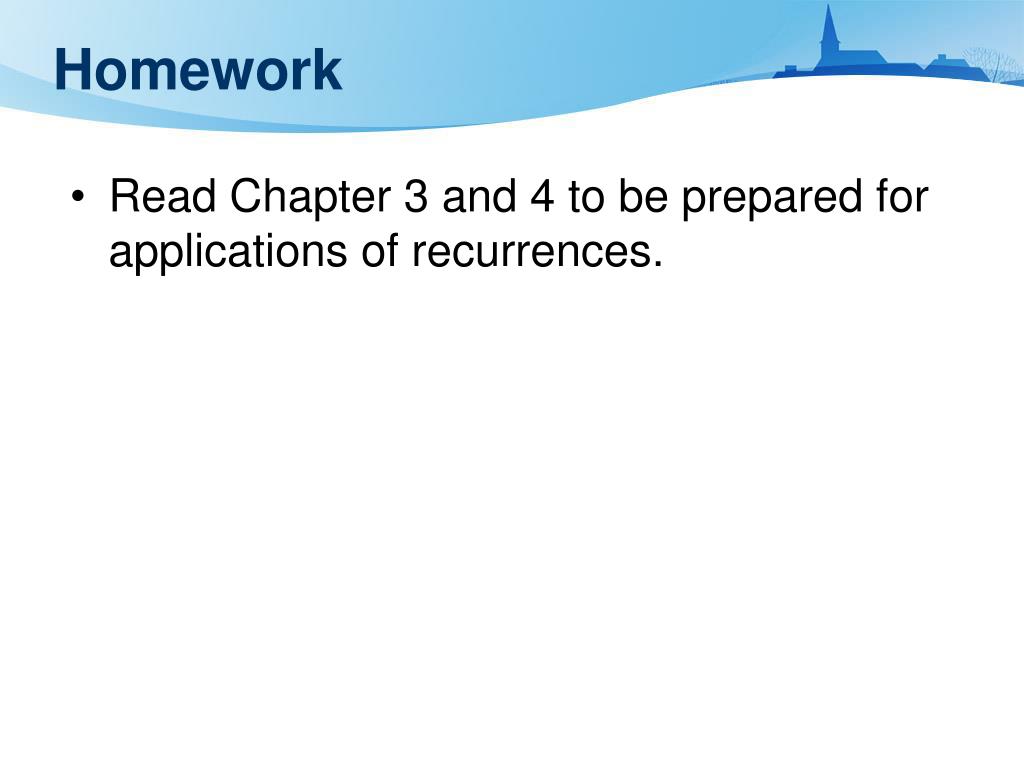

37. Homework • Read Chapter 3 and 4 to be prepared for applications of recurrences.

38. Proof of Master Method Height = ？ logbn #(leaves) = ?

39. Proof of Master Method • CASE1: The weight increases geometrically from the root to the leaves. The leaves hold a constant fraction of the total weight. Height = ？ logbn #(leaves) = ?

40. Proof of Master Method • CASE2(k= 0) :The weight is approximately the same on each of the logbn levels. Height = ？ logbn #(leaves) = ?

41. Proof of Master Method • CASE3: The weight decreases geometrically from the root to the leaves. The root holds a constant fraction of the total weight. Height = ？ logbn #(leaves) = ?

42. Have FUN !
