Soil Sorption Properties

Soil Sorption Properties. Ability of soil to bind various substances from the dispersion medium Polydisperse system is a mixture of particles of various shapes and sizes mixed with organic substances. Soil Colloids. Mineral Colloids Clay minerals Primary silicates

portia-ratliff
Download Presentation

Soil Sorption Properties

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Soil Sorption Properties • Ability of soil to bind various substances from the dispersion medium • Polydisperse system is a mixture of particles of various shapes and sizes mixed with organic substances

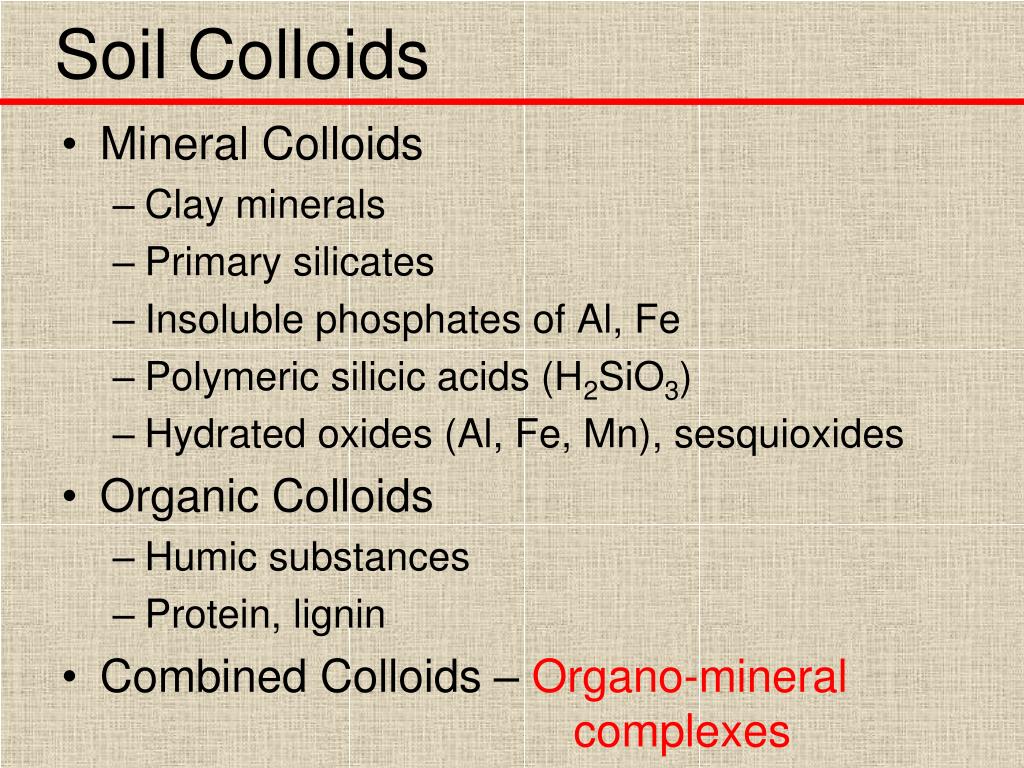

  2. Soil Colloids • Mineral Colloids • Clay minerals • Primary silicates • Insoluble phosphates of Al, Fe • Polymeric silicic acids (H2SiO3) • Hydrated oxides (Al, Fe, Mn), sesquioxides • Organic Colloids • Humic substances • Protein, lignin • Combined Colloids – Organo-mineral complexes

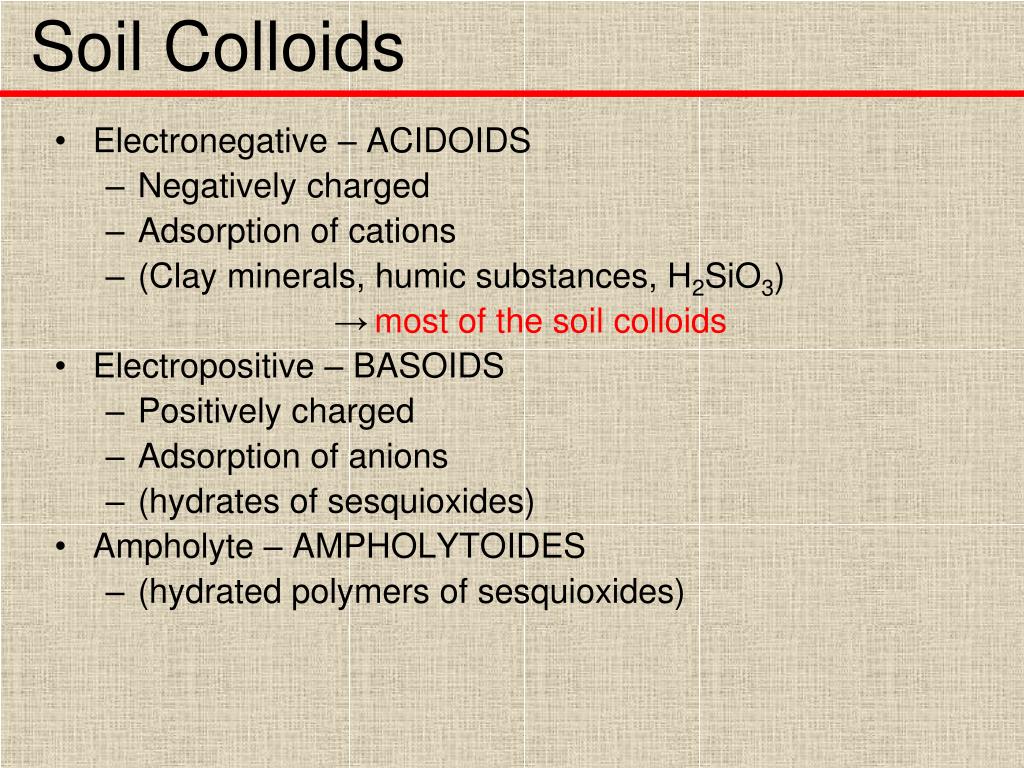

  3. Soil Colloids • Electronegative – ACIDOIDS • Negatively charged • Adsorption of cations • (Clay minerals, humic substances, H2SiO3) →most of the soil colloids • Electropositive – BASOIDS • Positively charged • Adsorption of anions • (hydrates of sesquioxides) • Ampholyte – AMPHOLYTOIDES • (hydrated polymers of sesquioxides)

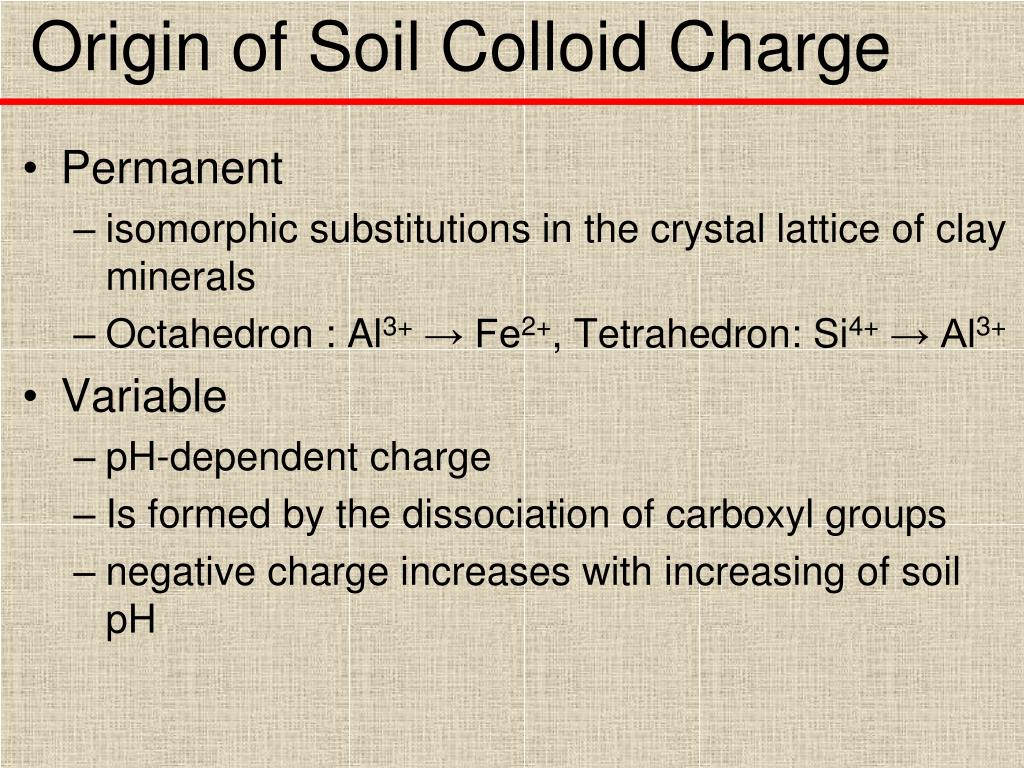

  4. Origin of Soil Colloid Charge • Permanent • isomorphic substitutions in the crystal lattice of clay minerals • Octahedron : Al3+→ Fe2+, Tetrahedron: Si4+ → Al3+ • Variable • pH-dependent charge • Is formed by the dissociation of carboxyl groups • negative charge increases with increasing of soil pH

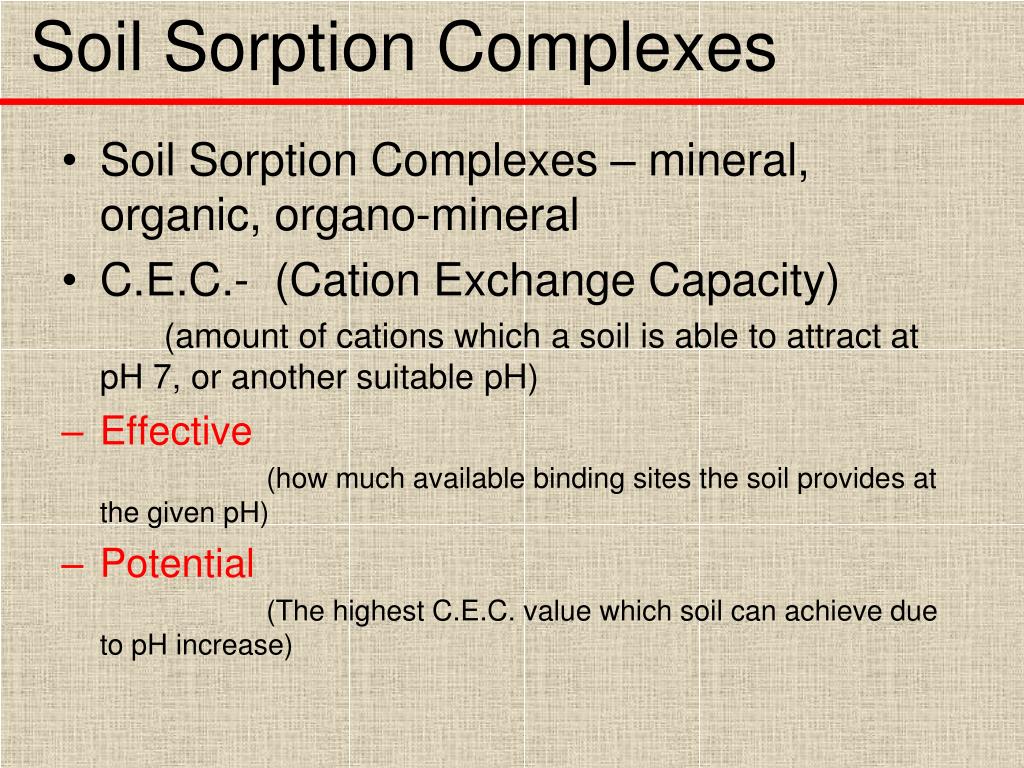

  5. Soil Sorption Complexes • Soil Sorption Complexes – mineral, organic, organo-mineral • C.E.C.- (Cation Exchange Capacity) (amount of cations which a soil is able to attract at pH 7, or another suitable pH) • Effective (how much available binding sites the soil provides at the given pH) • Potential (The highest C.E.C. value which soil can achieve due to pH increase)

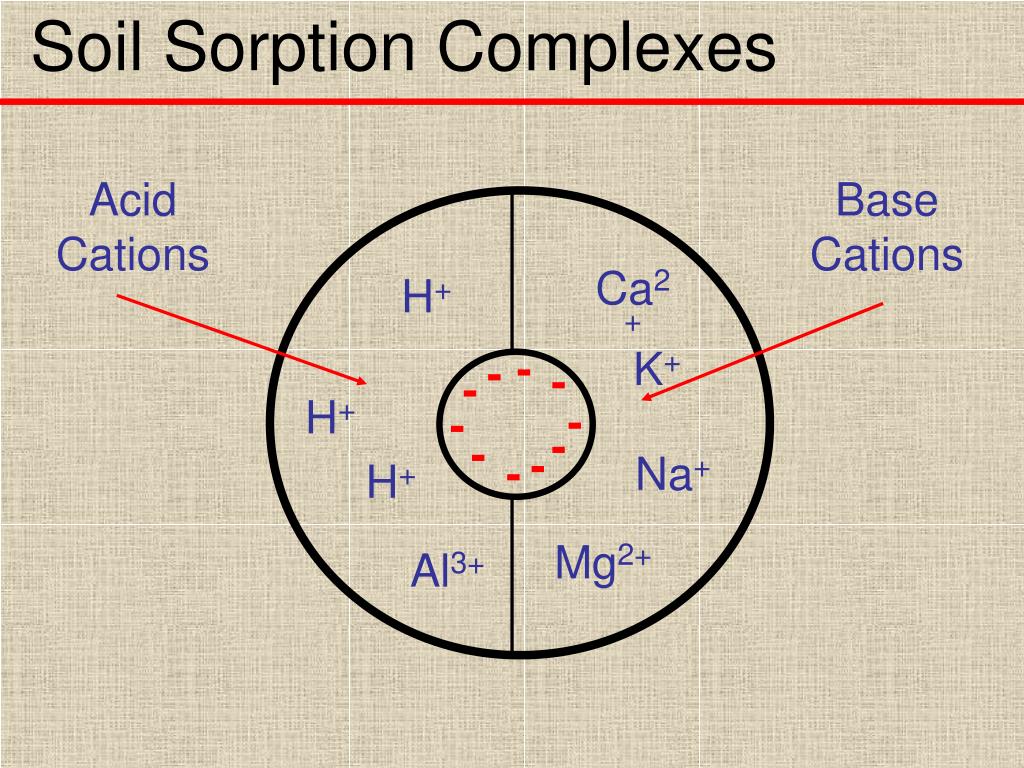

  6. Soil Sorption Complexes Acid Cations Base Cations Ca2+ H+ - K+ - - - H+ - - - - - - Na+ H+ Mg2+ Al3+

  7. Methods for C.E.C. Determination • The diverse range of methods • Index Ion Method (The sorption complex is saturated by the index ions → index ions are displaced and their concentration is determined) • Saturation of sorption complex by index ion • Washing of excess ions • Displacing of index ion and its determination • Mehlich method • Bower method

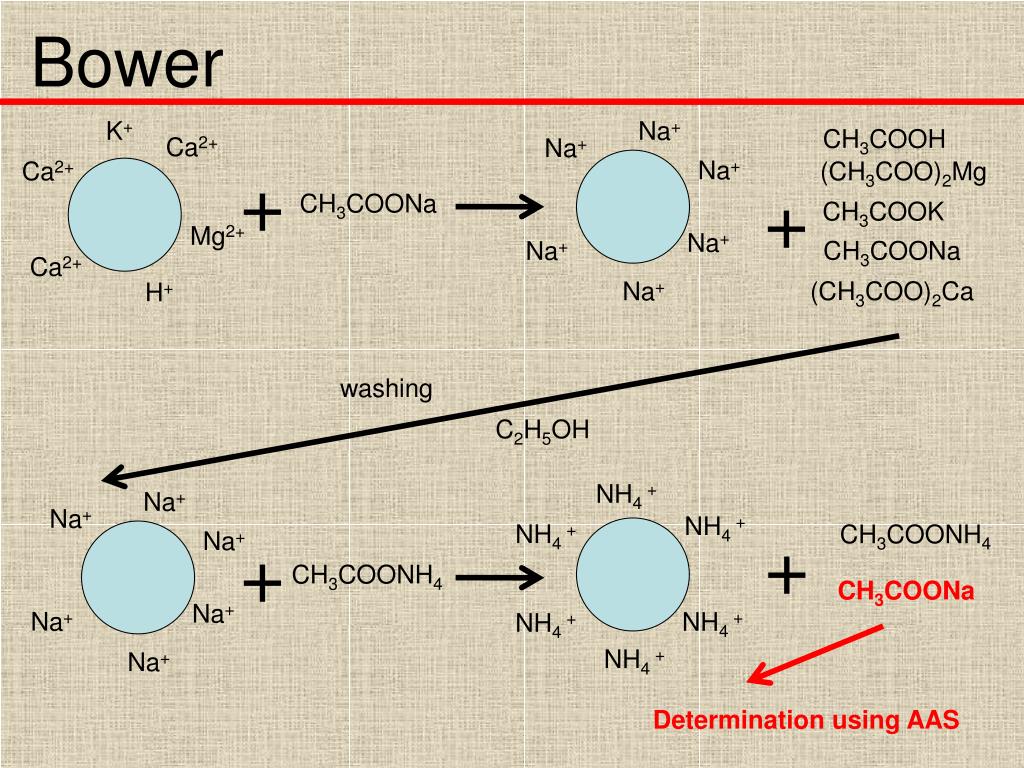

  8. Bower CH3COOH Ca2+ + (CH3COO)2Mg K+ Na+ Na+ + Ca2+ Na+ Na+ CH3COONa CH3COOK Na+ Na+ CH3COONa Ca2+ Mg2+ (CH3COO)2Ca Na+ Na+ Na+ Na+ NH4 + Na+ Na+ H+ washing C2H5OH + CH3COONH4 + CH3COONH4 NH4 + CH3COONa NH4 + NH4 + NH4 + Determination using AAS NH4 +

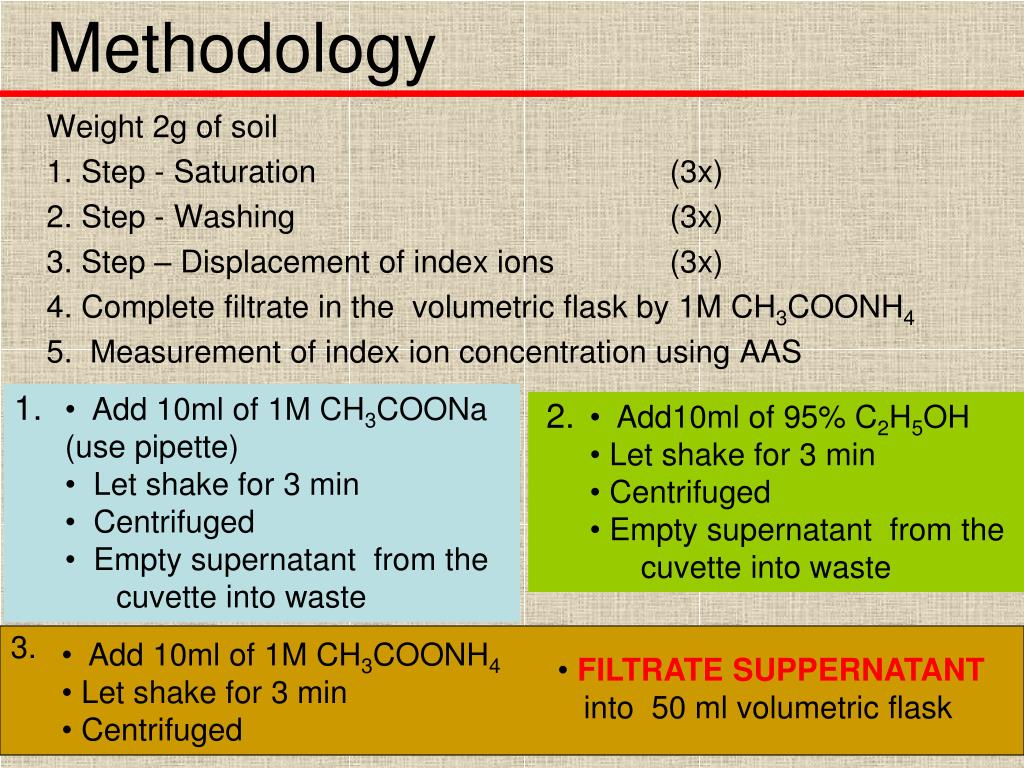

  9. 1. • Add 10ml of 1M CH3COONa (use pipette) • Let shake for 3 min • Centrifuged • Empty supernatant from the cuvette into waste 2. • Add10ml of 95% C2H5OH • Let shake for 3 min • Centrifuged • Empty supernatant from the cuvette into waste Methodology Weight 2g of soil 1. Step - Saturation (3x) 2. Step - Washing (3x) 3. Step – Displacement of index ions (3x) 4. Complete filtrate in the volumetric flask by 1M CH3COONH4 5. Measurement of index ion concentration using AAS 3. • Add 10ml of 1M CH3COONH4 • Let shake for 3 min • Centrifuged • FILTRATE SUPPERNATANT • into 50 ml volumetric flask

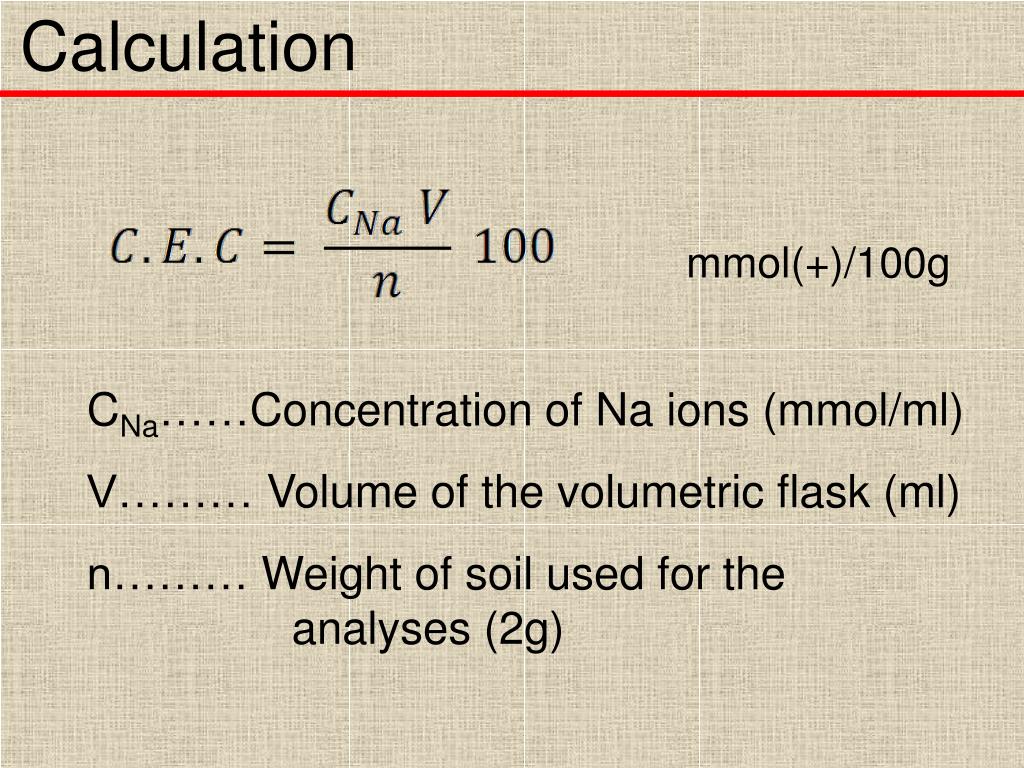

  10. Calculation mmol(+)/100g CNa……Concentration of Na ions (mmol/ml) V………Volume of the volumetric flask (ml) n……… Weight of soil used for the analyses (2g)

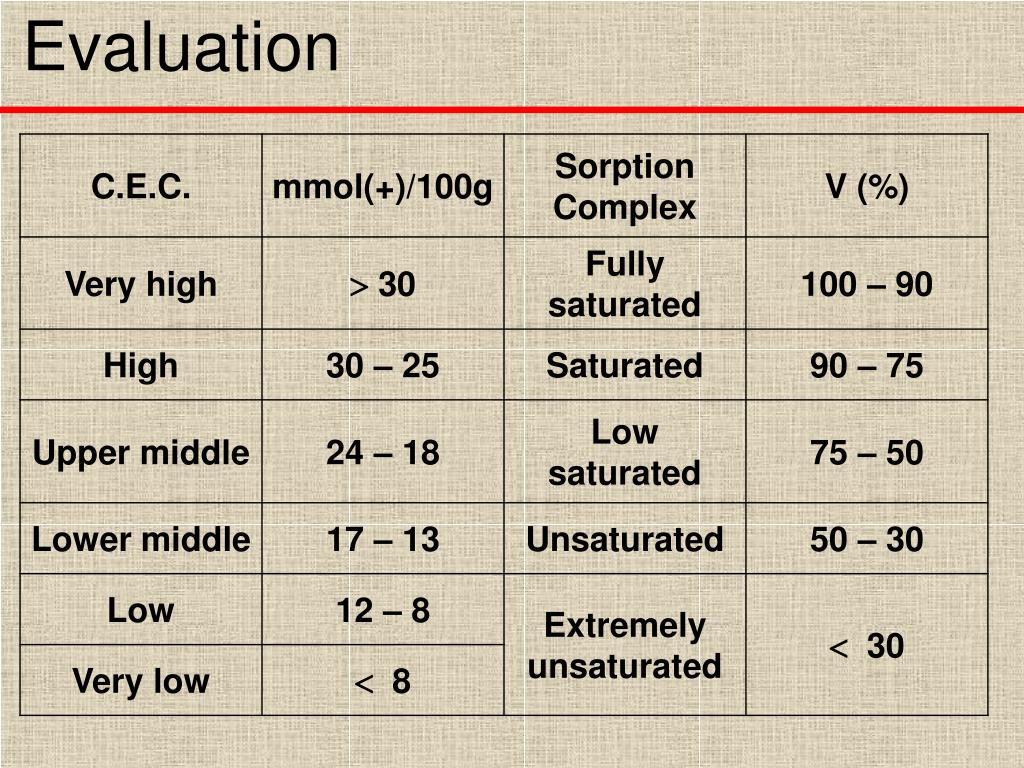

  11. Evaluation

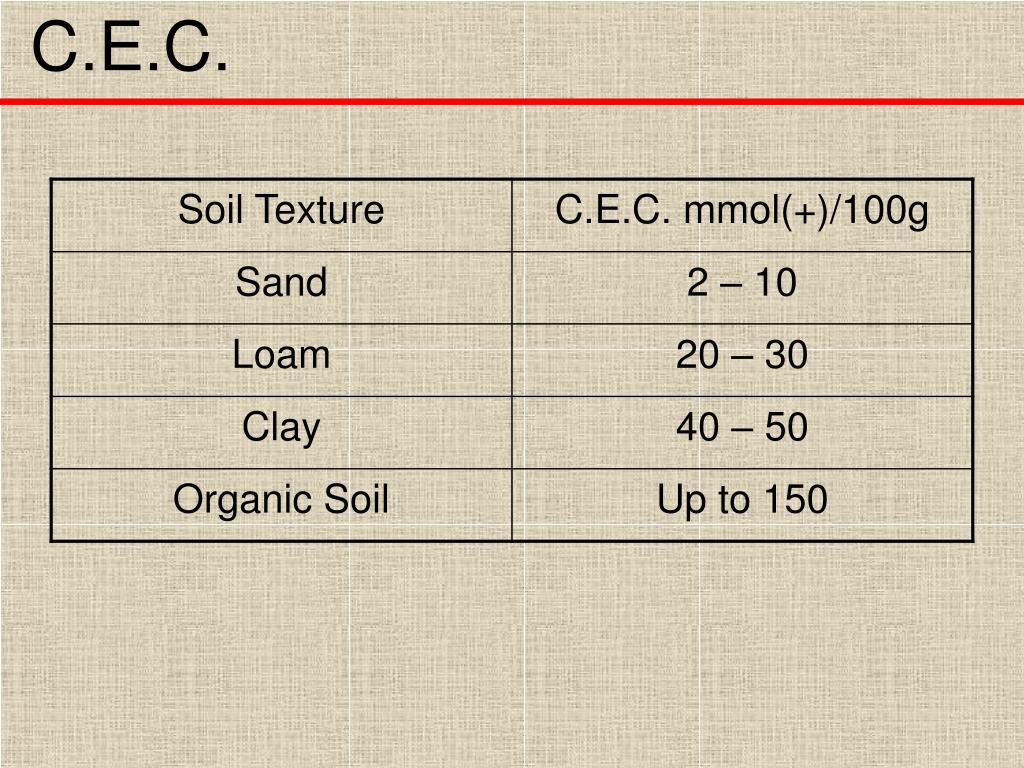

  12. C.E.C.
