Presentation Transcript
slide1
6LoWPAN: The Wireless Embedded Internet

Companion Exercise Slides

Zach Shelby, Martti Huttunen

This work is licensed under the Creative Commons Attribution-Noncommercial-Share Alike 3.0 Unported License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-sa/3.0/ or send a letter to Creative Commons, 171 Second Street, Suite 300, San Francisco, California, 94105, USA

Figures on slides with book symbol from 6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann, ISBN: 978-0-470-74799-5, (c) 2009 John Wiley & Sons Ltd

the book
The Book

6LoWPAN: The Wireless Embedded Internet

by Zach Shelby, Carsten Bormann

Length: 254 pages

Publisher: John Wiley & Sons

http://www.6lowpan.net

Companion web-site with blog, full companion course slides and exercises

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

outline
Outline
  • Introduction
  • Embedded Devices
  • Operating Systems
  • Embedded Development
  • 6LoWPAN Implementation Issues
  • Exercise Hardware
  • Contiki & uIP
  • Exercises

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

introduction
Introduction

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

embedded meets wireless
Embedded Meets Wireless
  • Microcontrollers are everywhere in embedded systems
    • appliances, watches, toys, cameras, industrial control, mobile phones, sensors, cars, automation
  • Microcontroller vs. microprocessor market
    • 15 x more microcontroller units sold yearly (8 billion)
    • 20 billion vs 43 billion USD market by 2009
  • Possibilities of wireless are endless
    • 802.15.4 chips to 150 million unit sales by 2009
  • Embedded systems have special characteristics
  • Academic community very computer science and protocol driven, often ignoring
    • Physical layer realities
    • Embedded system operation
    • Real-time capabilities

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

embedded devices
Embedded Devices

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

device architecture
Device Architecture
  • Microcontroller and program code
  • Power supply
    • Power management
    • Renewable energy?
  • Memory (RAM, FLASH)
  • Sensors
  • Actuators
  • Communication
  • Input/output
  • Part of a larger system?

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

microcontroller
Microcontroller
  • Main processing units of embedded devices
  • Special purpose and highly integrated
    • Integrated RAM, ROM, I/O, peripherals
    • Extremely good power to performance ratio
    • Cheap, typically 0.25 - 10.00 USD
  • Executes programs including embedded system control, measurement & communications
    • Usually time-critical requiring guarantees
    • Real-time performance a common requirement
      • Pre-emptive scheduled tasks
      • Queues and semaphores

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

example msp430
Example: MSP430
  • Texas Instruments mixed-signal uC
  • 16-bit RISC
  • ROM: 1-60 kB
  • RAM: Up to 10 kB
  • Analogue
    • 12 bit ADC & DAC
    • LCD driver
  • Digital
    • USART x 2
    • DMA controller
    • Timers

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

example atmel avr

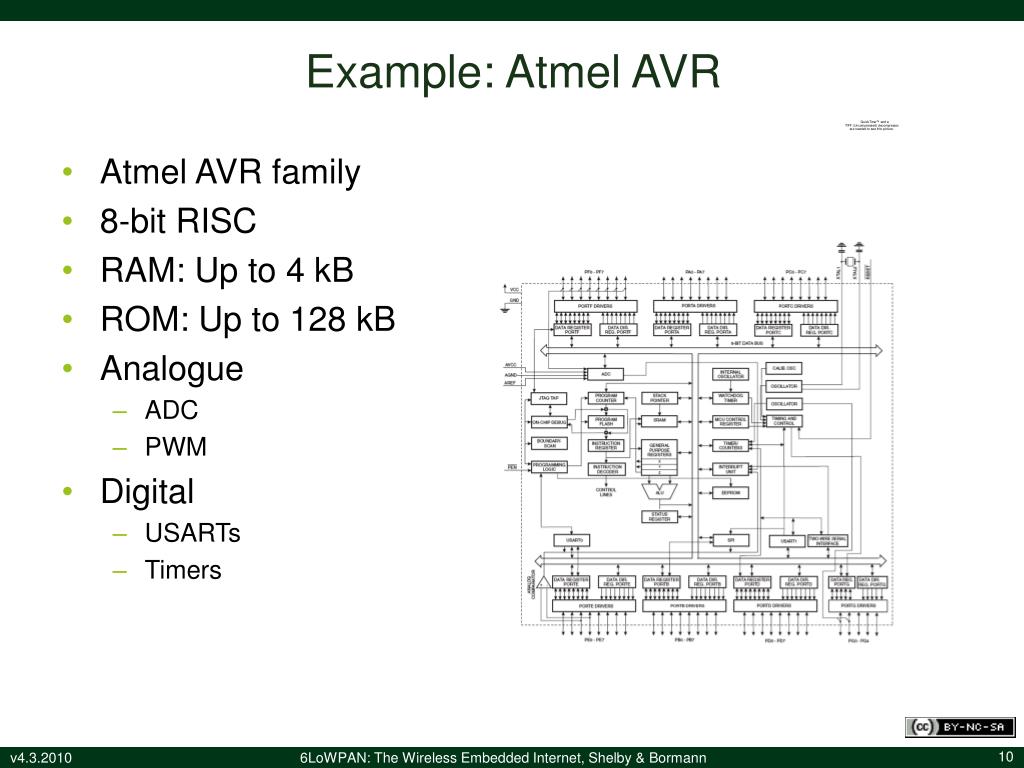

Example: Atmel AVR
  • Atmel AVR family
  • 8-bit RISC
  • RAM: Up to 4 kB
  • ROM: Up to 128 kB
  • Analogue
    • ADC
    • PWM
  • Digital
    • USARTs
    • Timers

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

memory
Memory
  • Random access memory (RAM)
    • Included on-board in microcontrollers
    • Often the most valuable resource
  • Read-only memory (ROM)
    • Usually actually implemented with NOR flash memory
  • Flash
    • Eraseable programmable memory
    • Can be read/written in blocks
    • Slow during the write process
    • Consumes power of course!
  • External memory
    • External memory supported by some microcontrollers
    • Serial flash always supported

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

common bus interfaces
Common Bus Interfaces
  • Digital and analogue I/O
    • Accessed by port and pin number (e.g. P1.3)
    • Some pins are also connected to interrupts
  • UART
    • Asynchronous serial bus
    • After level translation it is an RS232 bus
    • Usually kbps up to 1 mbps
  • SPI (serial peripheral interface)
    • Synchronous serial bus
    • Reliable with speeds of several Mbps
  • I2C (inter-integrated circuit) bus
    • 2-wire bus with data and clock
  • Parallel bus
    • Implemented with X-bit width
    • X-bit address and clock signals

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

communications
Communications
  • Embedded devices are autonomous but most often part of a larger system
  • Thus communications interfaces are very important in the embedded world
  • Wired interfaces
    • Serial: RS232, RS485
    • LAN: Ethernet
    • Industrial: Modbus, Profibus, Lontalk, CAN
  • Wireless interfaces
    • Low-power: IEEE 802.15.4 (ZigBee, ISA100, Wireless HART)
    • WLAN: WiFi
    • WAN: GPRS, WiMax

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

transceivers

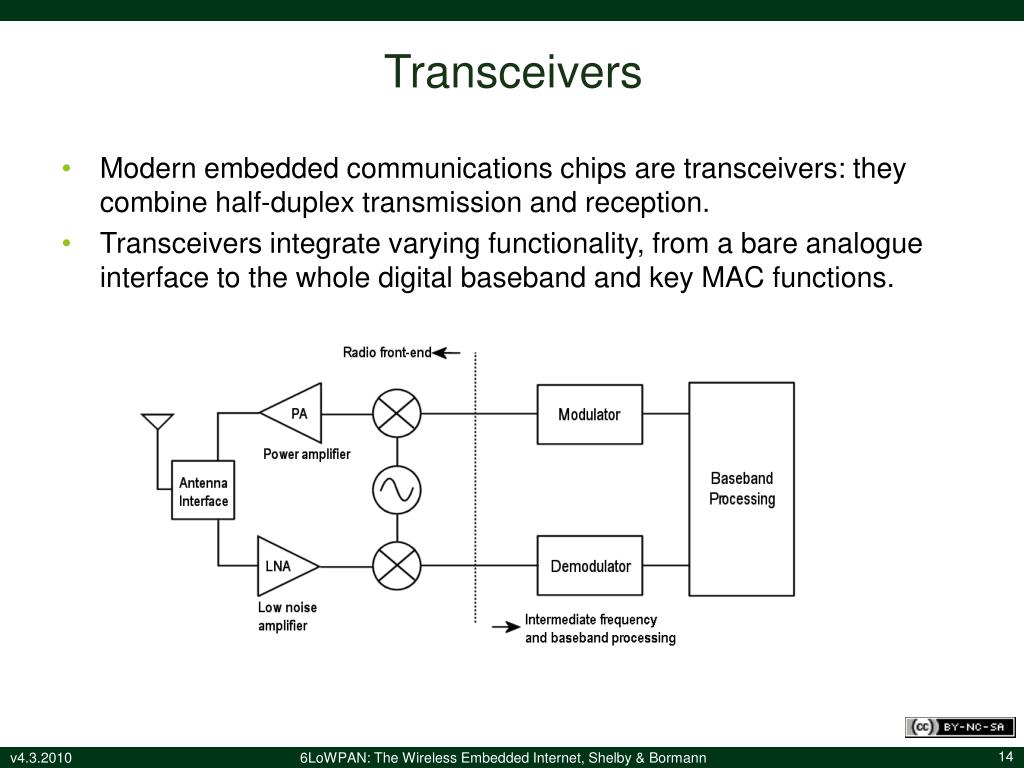

Transceivers
  • Modern embedded communications chips are transceivers: they combine half-duplex transmission and reception.
  • Transceivers integrate varying functionality, from a bare analogue interface to the whole digital baseband and key MAC functions.

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

important characteristics

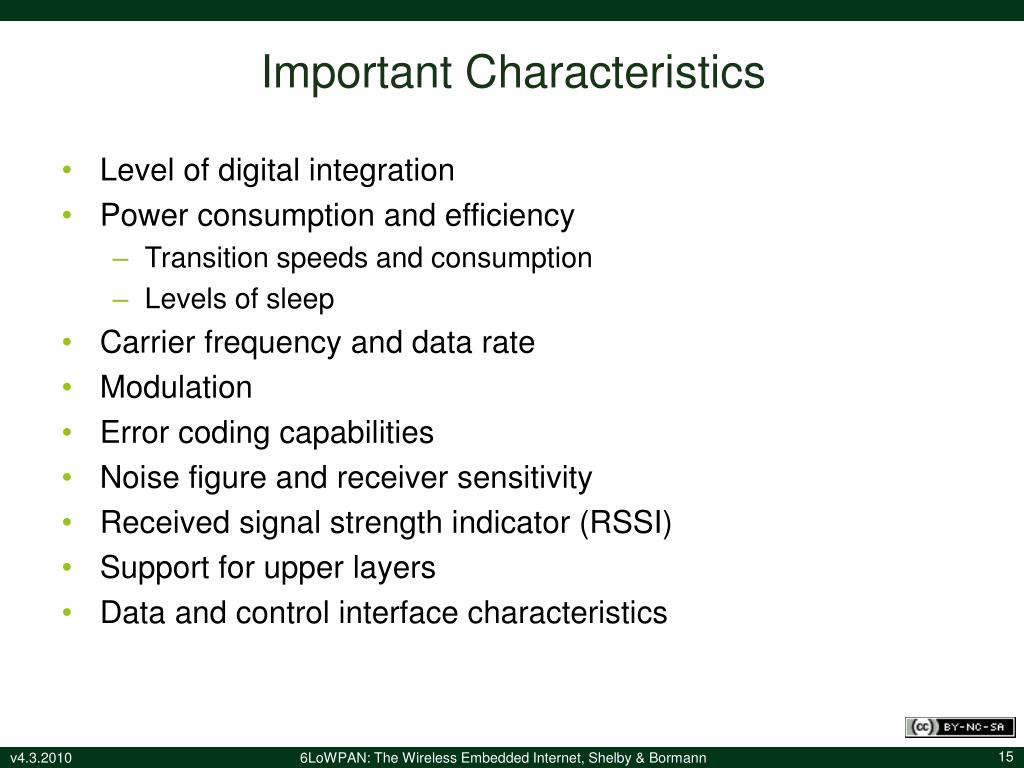

Important Characteristics
  • Level of digital integration
  • Power consumption and efficiency
    • Transition speeds and consumption
    • Levels of sleep
  • Carrier frequency and data rate
  • Modulation
  • Error coding capabilities
  • Noise figure and receiver sensitivity
  • Received signal strength indicator (RSSI)
  • Support for upper layers
  • Data and control interface characteristics

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

example rfm tr1000
Example: RFM TR1000
  • Proprietary radio at 916 MHz
  • OOK and ASK modulation
  • 30 kbps (OOK) or 115.2 kbps (ASK) operation
  • Signal strength indicator
  • Provides bit interface
  • Not included:
    • Synchronization
    • Framing
    • Encoding
    • Decoding

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

example cc2420
Example: CC2420
  • IEEE 802.15.4 compliant radio
  • 2.4 GHz band using DSSS at 250 kbps
  • Integrated voltage regulator
  • Integrated digital baseband and MAC functions
    • Clear channel assessment
    • Energy detection (RSSI)
    • Synchronization
    • Framing
    • Encryption/authentication
    • Retransmission (CSMA)

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

example cc2430
Example: CC2430
  • System-on-a-chip solution
  • Integrated 8051 microcontroller
    • 32 MHz Clock Speed
    • ADC, DAC, IOs, 2 UARTs etc.
    • 8 kB of RAM, up to 128 kB of ROM
  • Integrated IEEE 802.15.4 radio, like the CC2420
  • Power consumption 10-12 mA higher than the CC2420, coming from the 8051 microcontroller
  • Saves cost, only about 1 EUR more expensive than the CC2420
  • Internal DMA makes radio and UART performance better than with a uC + CC2420 solution

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

power consumption

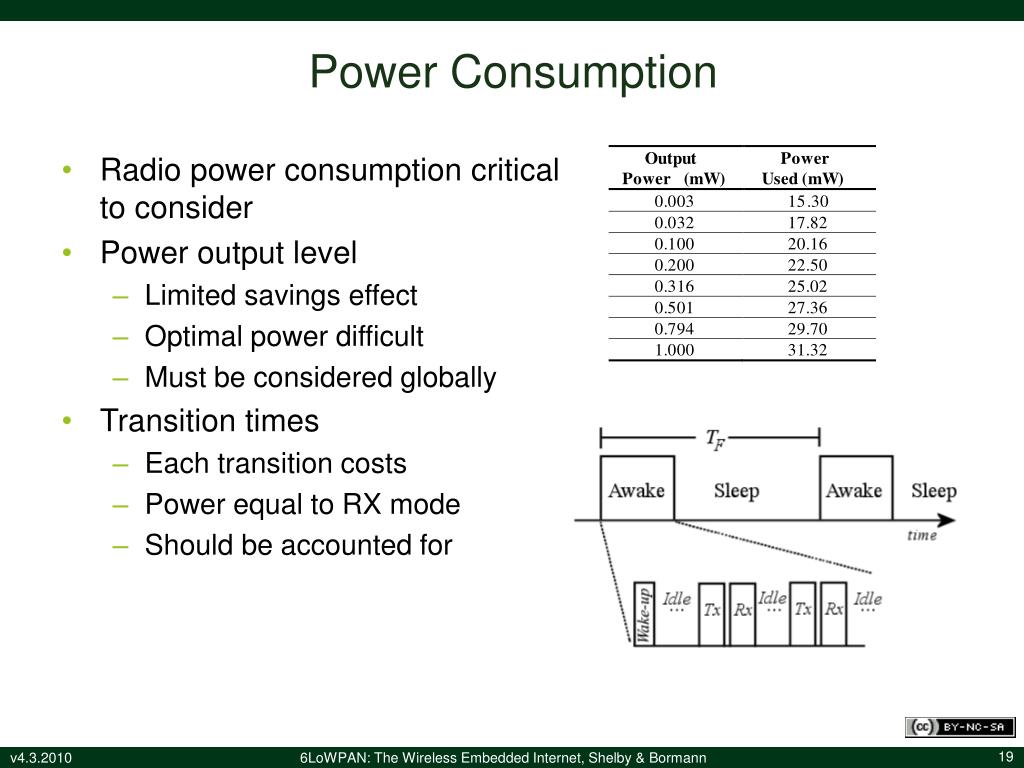

Power Consumption
  • Radio power consumption critical to consider
  • Power output level
    • Limited savings effect
    • Optimal power difficult
    • Must be considered globally
  • Transition times
    • Each transition costs
    • Power equal to RX mode
    • Should be accounted for

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

power consumption1
Power Consumption

A simple approximation for power consumption:

= Time that takes to go from sleep state to awake state

= Transmitter setup time, i.e. time it takes for the transmitter to be ready

= Time in the Tx state

= Receiver setup time, i.e. time it takes for the receiver to be ready

= Time in the Rx state

= Time in the idle state

= Time in the sleep state

= Average number of times per frame that the transmitter is used

= Average number of times per frame that the receiver is used

= Duration of the time frame

= Power used in the Tx state

= Power used in the Rx state

= Power used in the idle state

= Power used in the sleep state

= Average power used by the transceiver

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

sensors actuators

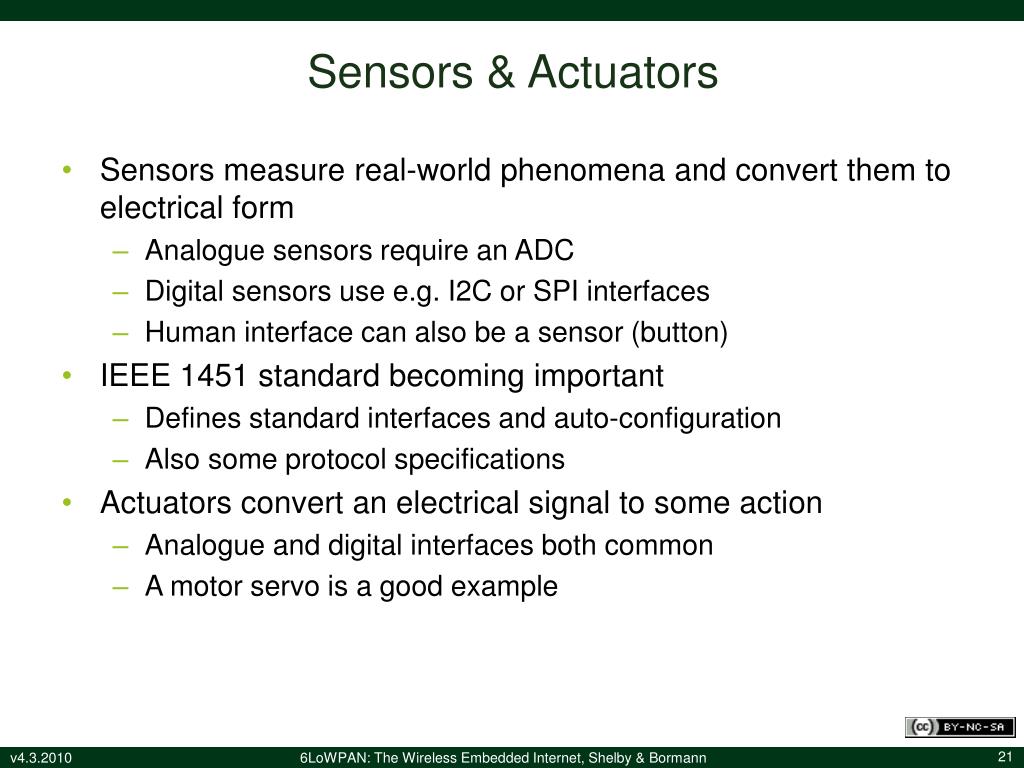

Sensors & Actuators
  • Sensors measure real-world phenomena and convert them to electrical form
    • Analogue sensors require an ADC
    • Digital sensors use e.g. I2C or SPI interfaces
    • Human interface can also be a sensor (button)
  • IEEE 1451 standard becoming important
    • Defines standard interfaces and auto-configuration
    • Also some protocol specifications
  • Actuators convert an electrical signal to some action
    • Analogue and digital interfaces both common
    • A motor servo is a good example

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

operating systems
Operating Systems

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

real time operating systems
Real-time Operating Systems
  • Library vs. operating system
    • Operating system manages all resources
  • Embedded systems have pre-defined tasks
    • Designed to optimize size, cost, efficiency etc.
  • Real-time
    • Real-time OS provides tools to meet deadlines
    • Pre-emptive, queues, semaphores
  • Concurrency
    • Execution flows (tasks) able to run simultaneously
    • Threads and processes
  • Sockets and APIs

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

real time issues
Real-time Issues
  • Wireless embedded systems usually are real-time
    • Watch, robot, building sensor, control node
  • A RTOS only facilitates real-time system creation
    • Still requires correct software development
  • RTOS is not necessarily high performance
    • Can meet general system deadlines (soft real-time)
    • or deterministically (hard real-time)
  • Deadlines can be met using
    • Specialized pre-emptive scheduling algorithms
    • Proper inter-task design & communication
    • Semaphores and queues to avoid racing

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

real time issues1

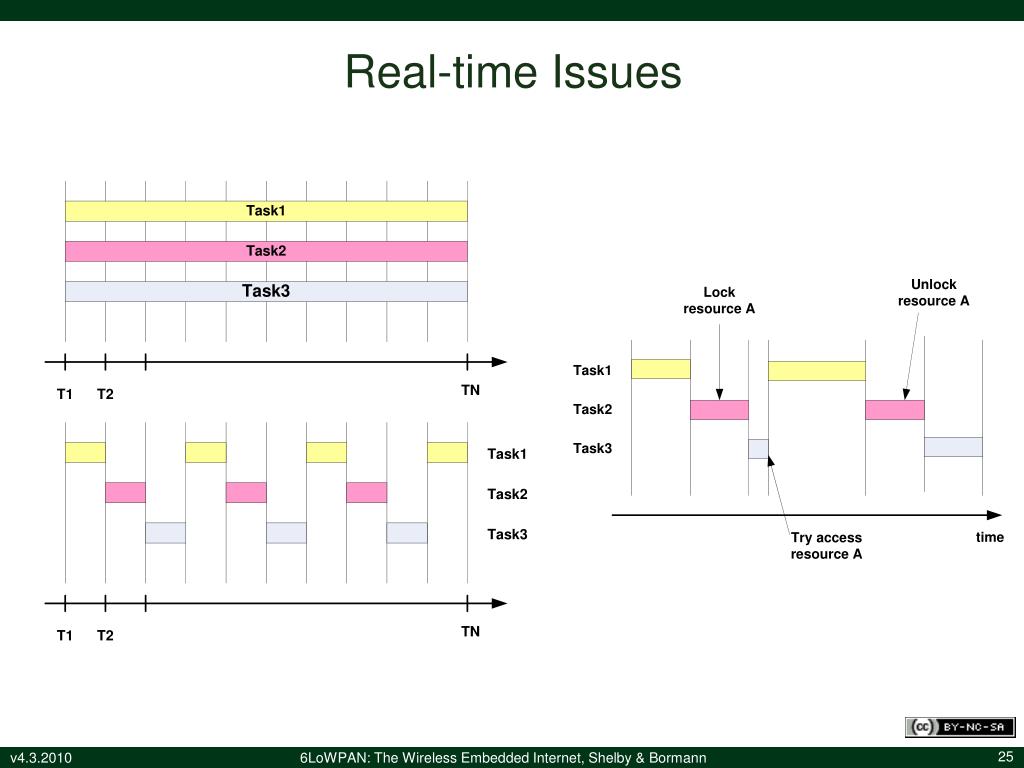

Real-time Issues

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

concurrency

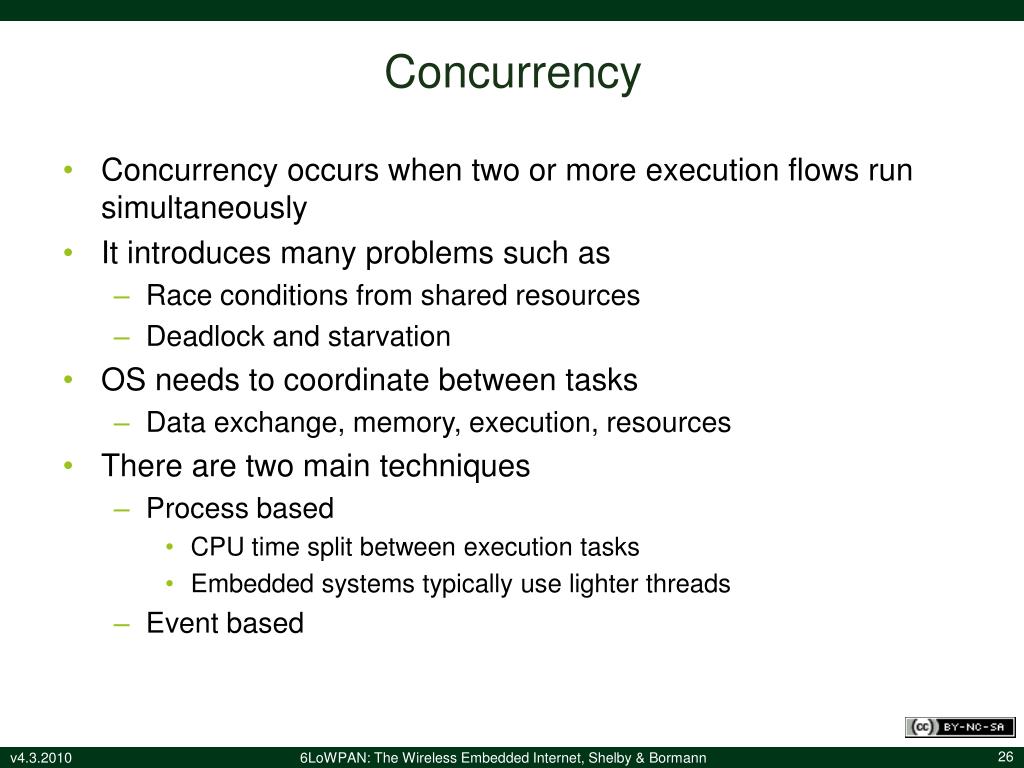

Concurrency
  • Concurrency occurs when two or more execution flows run simultaneously
  • It introduces many problems such as
    • Race conditions from shared resources
    • Deadlock and starvation
  • OS needs to coordinate between tasks
    • Data exchange, memory, execution, resources
  • There are two main techniques
    • Process based
      • CPU time split between execution tasks
      • Embedded systems typically use lighter threads
    • Event based

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

concurrency1
Concurrency
  • Process based
  • Event based

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

os examples
OS Examples
  • Example embedded operating systems
    • Contiki (www.sics.se/~adam/contiki)
    • FreeRTOS (www.freertos.org)
    • TinyOS (www.tinyos.org)
    • and thousands of others...
  • For higher powered MCUs (e.g. ARMs)
    • VX Works
    • Microcontroller Linux (Android, Maemo etc.)
    • Windows CE
    • Symbian

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

embedded development
Embedded Development

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

embedded development1

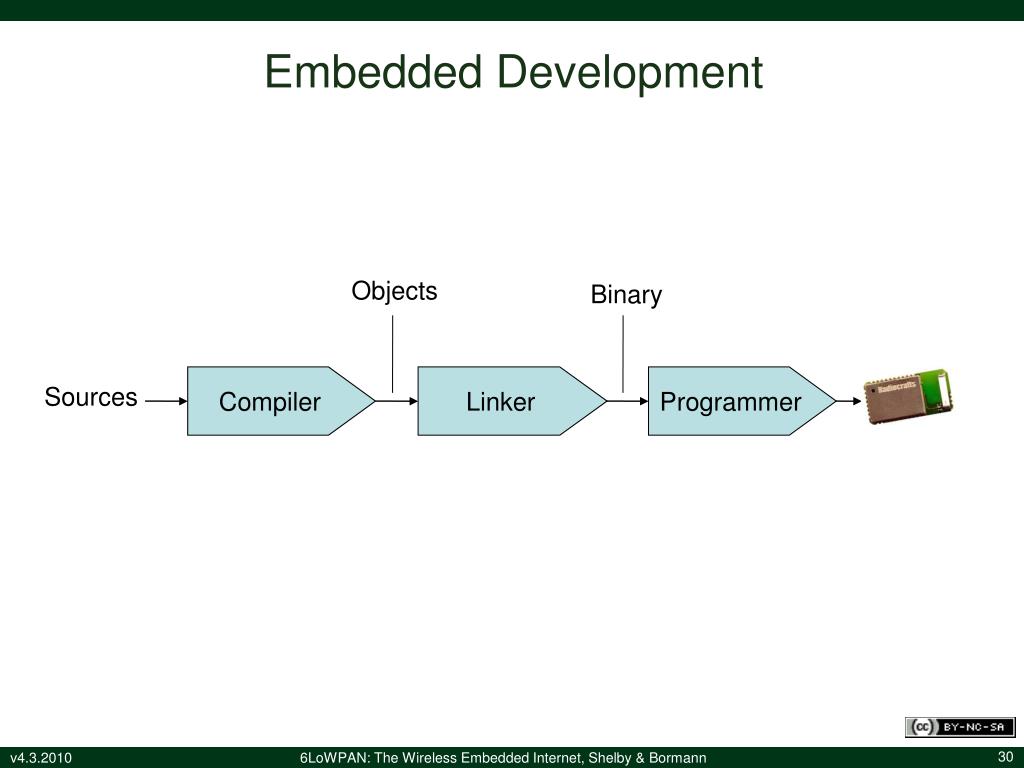

Embedded Development

Objects

Binary

Compiler

Linker

Programmer

Sources

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

embedded development2
Embedded Development
  • Software resides in system non-volatile memory
    • External or internal flash/eeprom/prom memories
    • Modern microcontrollers are capable of writing the internal flash memory run-time and often do not have an external memory bus
  • Development is done outside the system
  • Cross-compilers are used to create binary files
    • Cross-compiler creates binary files for a different architecture than it is running on
    • Various commercial and free compilers available
  • System is programmed by uploading the binary
    • In-system programming tools or external flashers

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

cross compiler environments

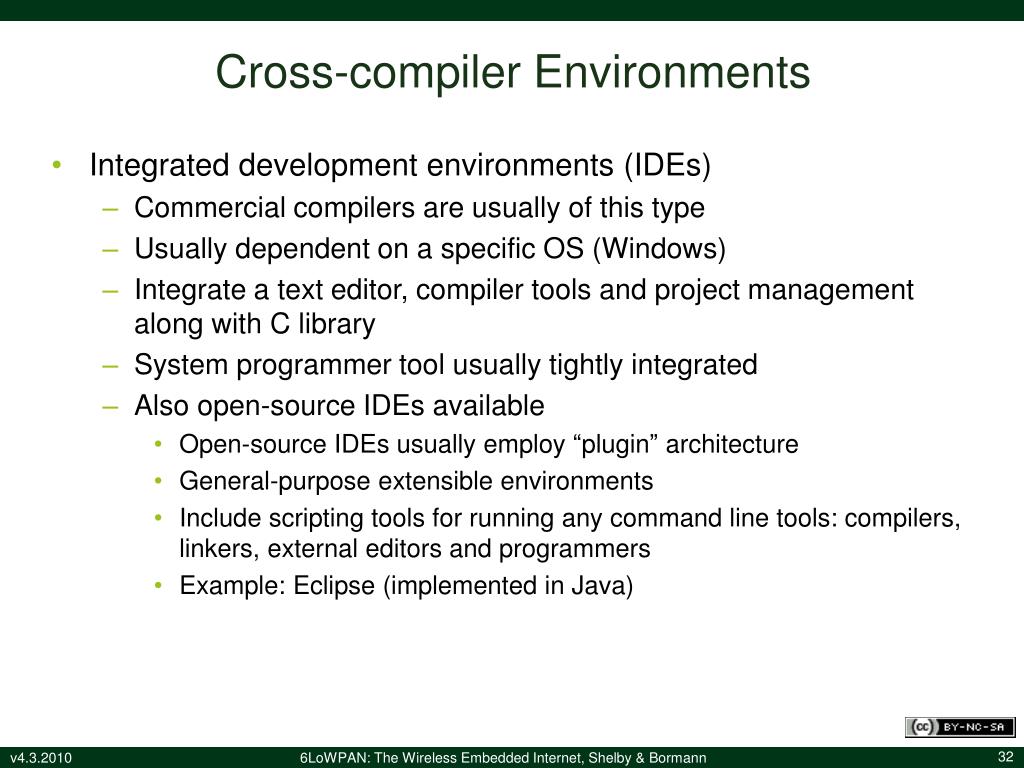

Cross-compiler Environments
  • Integrated development environments (IDEs)‏
    • Commercial compilers are usually of this type
    • Usually dependent on a specific OS (Windows)‏
    • Integrate a text editor, compiler tools and project management along with C library
    • System programmer tool usually tightly integrated
    • Also open-source IDEs available
      • Open-source IDEs usually employ “plugin” architecture
      • General-purpose extensible environments
      • Include scripting tools for running any command line tools: compilers, linkers, external editors and programmers
      • Example: Eclipse (implemented in Java)

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

cross compiler environments1
Cross-compiler Environments
  • Command line utilities
    • Separate compiler/linker, editor and project management tools, architecture-dependent C library
  • Project management: make
    • make is an automated software building tool
    • Based on target-dependency-operation style blocks
    • Allows use of project templates and separate platform build rules by using “include files”
    • Most common way of managing open-source software projects
    • automake and autoconf tools extend functionality to platform-independent software development

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

cross compiler environments2
Cross-compiler Environments
  • Command line compilers
    • most common is gcc: available for a multitude of microcontroller and -processor architectures
    • sdcc: Small Device C Compiler: PICs, 8051's etc.
    • single-architecture compilers
  • System programming tools
    • usually specific to a single microcontroller family
    • vary greatly in their ease of use and interface type
    • most require some sort of programming cable or a programmer device to upload software
    • dependent on the microcontroller programming algorithm
      • standard buses (SPI, UART, JTAG) vs. proprietary buses

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

cross compiler environments3
Cross-compiler Environments
  • Command-line tools vs. (commercial) IDEs
    • IDEs are easily accessible: single installer, single GUI
    • Commercial IDEs vary greatly in usability, standards compliance and are (usually) tied to a single architecture -> bad portability
    • Most commercial IDEs don't really support templates
      • Programmer must go through various dialogs to create a new project
      • Often project files can not just be copied (contain directory paths and such) and may be binary format
    • Command line tools have a steeper learning curve
      • Once learned, applicable to most architectures
      • Higher flexibility and ease of duplicating projects

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

cross compiler issues
Cross-compiler Issues
  • Portability
    • Header files may not follow standard naming
    • Hardware-specific header files might not be automatically selected
      • Most commercial IDEs use different names for each different hardware model -> difficulties in portability
      • gcc e.g. uses internal macros for model selection -> easier portability via environment variables, no header changes
  • Hardware register access and interrupt handlers
    • Interrupt handler declaration is compiler-dependent
      • Declaration format is not standardized
      • Can be worked around via macros (in most cases)‏
    • Some compilers (and C libraries) require I/O macros
      • gcc ports implement direct register access modes

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

open source tools
Open-source Tools
  • Various text editors available: nedit, emacs, vi ...
  • Project build system: make
  • Compilers/linkers: binutils & gcc, sdcc
    • binutils: as, ld, objcopy, size etc.
    • gcc: c compiler; uses binutils to create binary files
  • Standard C libraries
    • Provide necessary development headers and object files for linking and memory mapping
    • msp430-libc for MSP430, avr-libc for AVR
  • Programmers
    • AVR: uisp, avrdude
    • MSP430: msp430-bsl, msp430-jtag
    • CC2430: nano_programmer
  • IDE: Eclipse

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

sdcc compiler
SDCC Compiler
  • Simple Device C Compiler
  • http://www.sdcc.org
  • Specialized in 8051, PIC, HC08 etc. microcontrollers
    • Has CC2430 and CC2510 support
  • sdcc application handles both compilation and linking
  • Uses make build environment
  • Compatible with Eclipse
  • Support for banking (needed in 8051 with 64k+ ROM)
    • Thanks to Peter Kuhar for banking support

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

6lowpan implementation issues
6LoWPAN Implementation Issues

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

chip models
Chip Models
  • How to integrate 6LoPWAN into an embedded device?
  • Challenges:
    • Lack of standard interfaces (no USB or PCMCIA)
    • No standard operating systems (if any!)
    • Power consumption limitations
    • Price limitations
  • Models for integrating 6LoWPAN include SoC, two-chip or network processor
  • System-on-a-chip model
    • Everything on one chip

+ Maximum integration

+ Minimum price and size

- Longer, more difficult development

- Little if any portability

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

chip models1

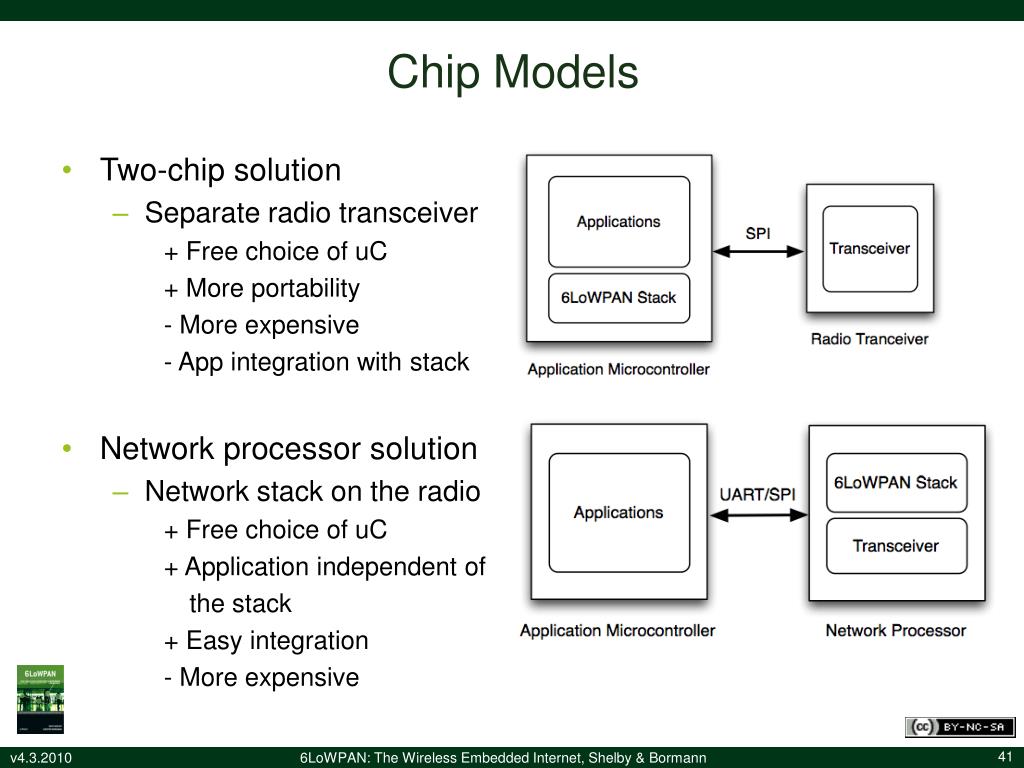

Chip Models
  • Two-chip solution
    • Separate radio transceiver

+ Free choice of uC

+ More portability

- More expensive

- App integration with stack

  • Network processor solution
    • Network stack on the radio

+ Free choice of uC

+ Application independent of

the stack

+ Easy integration

- More expensive

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

contiki uipv6
Contiki uIPv6
  • Popular embedded OS for small microcontrollers
    • MSP430, AVR, PIC, 8051 etc.
  • http://www.sics.se/contiki
  • Standard C-based
  • Portable applications
  • Lightweight protothreads
  • uIPv6 Stack
    • Full IPv6 support
    • RFC4944 + 6lowpan-hc
    • UDP, TCP, ICMPv6
  • Great for research

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

nanostack 2 0
NanoStack 2.0
  • Sensinode’s commercial 6LoWPAN stack
  • Network processor model
    • NAP interface over UART
  • Optimized for SoC radios
    • TI CC2430, CC2530
    • TI CC1110
    • Portable
  • IPv6/6LoWPAN stack
    • UDP, ICMPv6
    • RFC4944, 6lowpan-hc
    • 6lowpan-nd
    • NanoMesh IP routing

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

router integration

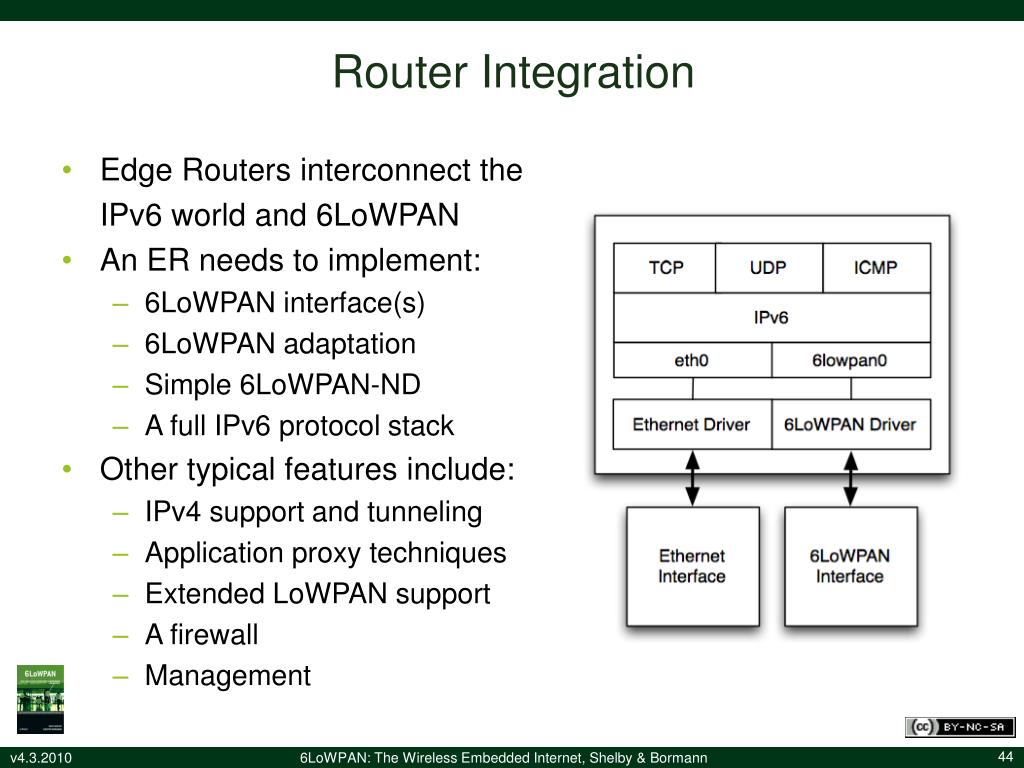

Router Integration
  • Edge Routers interconnect the

IPv6 world and 6LoWPAN

  • An ER needs to implement:
    • 6LoWPAN interface(s)
    • 6LoWPAN adaptation
    • Simple 6LoWPAN-ND
    • A full IPv6 protocol stack
  • Other typical features include:
    • IPv4 support and tunneling
    • Application proxy techniques
    • Extended LoWPAN support
    • A firewall
    • Management

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

example exercise hardware

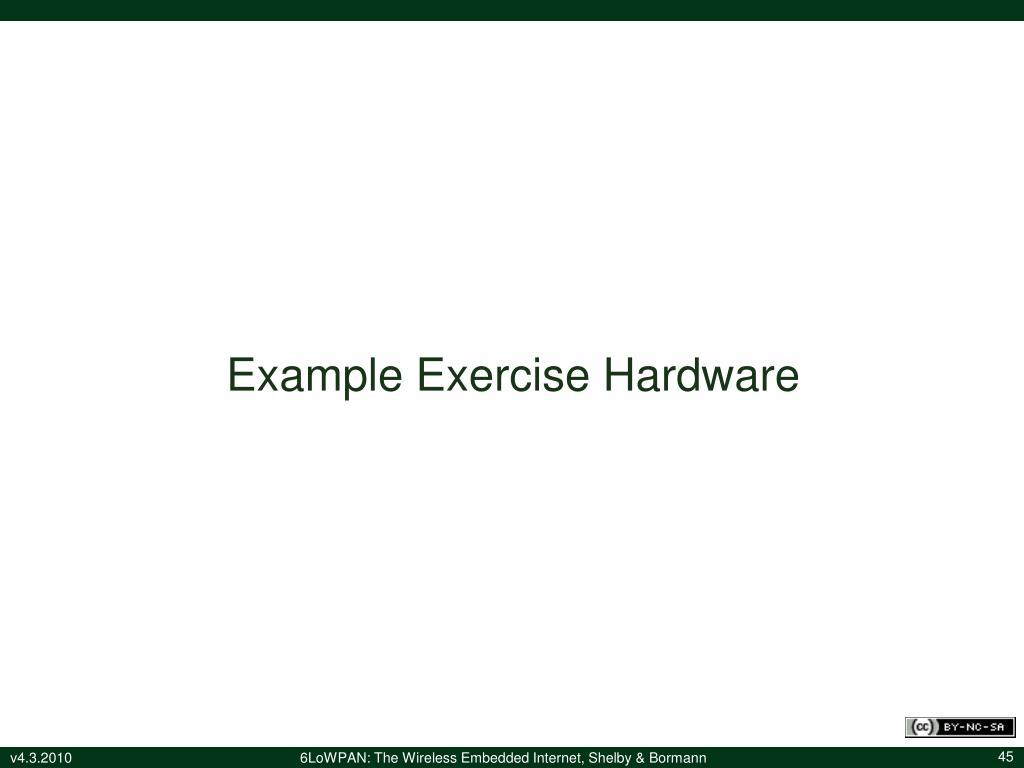

Example Exercise Hardware

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

exercise hardware
Exercise Hardware
  • NanoRouter USB 2.4GHz
    • Serial USB device
    • NanoStack 2.0
    • High-power amplifier
  • NanoSensor 2.4GHz
    • Demo sensor node
    • Rechargeable batteries
    • 3-axis accelerometer
    • Light sensor
    • D-connector for external sensors
  • Support for either NanoStack or Contiki

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

nanosensor d connector
NanoSensor D-connector
  • Standard 9-pin D-connector for sensor expansion
  • D-connector pin-out:

1 = 3.3V in/out

2 = Digital I/O or programmer connection

3 = Analog switch control. 1=external I/O in use

4 = Reset

5 = Ground

6 = A/D (Digital I/O). P0_0

7 = Digital I/O (P2_1) or programming connection

8 = UART out (from RC module)

9 = UART in (to RC module)

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

contiki
Contiki

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

what is contiki
What is Contiki?
  • Contiki is an open-source operating system/protocol stack for embedded systems
  • Highly portable and reasonably compact
  • Protocol stack configuration customizable
  • Originally created by Adam Dunkels, developer of the uIP stack
  • http://www.sics.se/contiki

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

contiki processes
Contiki processes
  • Contiki core is event-driven
    • Interrupts and HW drivers generate events
    • Events are dispatched to event handlers by the Contiki core
    • Event handlers must return control to core as soon as possible
    • Co-operative multitasking
  • Basic processes are implemented using protothreads
    • Easier to create sequential operations
    • An abstraction to avoid complex state-machine programming
      • In more complex applications, the amount of states may be huge

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

contiki execution models
Contiki execution models
  • Contiki offers multiple execution models
  • Protothreads: thread-like event handlers
    • Allow thread-like structures without the requirement of additional stacks
    • Limits process structure: no switch/case structures allowed
    • May not use local variables
  • Multi-threading model available
    • For more powerful systems
    • Allows structured application design

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

contiki processes1
Contiki processes
  • Contiki core is event-driven
    • Interrupts and HW drivers generate events
    • Events are dispatched to event handlers by the Contiki core
    • Event handlers must return control to core as soon as possible
    • Co-operative multitasking
  • Basic processes are implemented using protothreads
    • Easier to create sequential operations
    • An abstraction to avoid complex state-machine programming
      • In more complex applications, the amount of states may be huge

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

contiki processes an example
Contiki processes: An example

/* Declare the process */

PROCESS(hello_world_process, “Hello world”);

/* Make the process start when the module is loaded */

AUTOSTART_PROCESSES(&hello_world_process);

/* Define the process code */

PROCESS_THREAD(hello_world_process, ev, data) {

PROCESS_BEGIN(); /* Must always come first */

printf(“Hello, world!\n”); /* Initialization code goes here */

while(1) { /* Loop for ever */

PROCESS_WAIT_EVENT(); /* Wait for something to happen */

}

PROCESS_END(); /* Must always come last */

}

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

contiki processes notes
Contiki processes: Notes
  • A process may not use switch-case constructs
    • A limitation of the protothread model
    • Complex state structures and switches should be subroutines
  • A process may not declare local variables
    • Variables will lose their values at any event waiting call
    • All variables required by the main process must be static
  • Effects on application design
    • The main process thread should only contain sequences between event waits
    • All operations should be done in subroutines

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

contiki events
Contiki events
  • process_post(&process, eventno, evdata);
    • Process will be invoked later
  • process_post_synch(&process, evno, evdata);
    • Process will be invoked now
    • Must not be called from an interrupt (device driver)
  • process_poll(&process);
    • Sends a PROCESS_EVENT_POLL event to the process
    • Can be called from an interrupt
  • Using events

PROCESS_THREAD(rf_test_process, ev, data) {

while(1) {

PROCESS_WAIT_EVENT();

if (ev == EVENT_PRINT) printf(“%s”, data);

}

}

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

contiki timers
Contiki timers
  • Contiki has two main timer types; etimer and rtimer
  • Etimer: generates timed events

Declarations:

static struct etimer et;

In main process:

while(1) {

etimer_set(&et, CLOCK_SECOND);

PROCESS_WAIT_EVENT_UNTIL(etimer_expired(&et));

etimer_reset(&et);

}

  • Rtimer: uses callback function
    • Callback executed after specified time

rtimer_set(&rt, time, 0 , &callback_function, void *argument);

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

contiki protocol stacks
Contiki Protocol Stacks
  • Contiki has 2 different protocol stacks: uIP and Rime
  • uIP provides a full TCP/IP stack
    • For interfaces that allow protocol overhead
    • Ethernet devices
    • Serial line IP
    • Includes IPv4 and IPv6/6LoWPAN support
  • Rime provides compressed header support
    • Application may use MAC layer only
  • Protocol stacks may be interconnected
    • uIP data can be transmitted over Rime and vice versa

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

the rime protocol stack
The Rime protocol stack
  • Separate modules for protocol parsing and state machines
    • Rime contains the protocol operation modules
    • Chameleon contains protocol parsing modules
  • Rime startup: an example
    • Configure Rime to use sicslowmac over cc2430 rf
    • Startup is done in platform main function: platform/sensinode/contiki-sensinode-main.c

rime_init(sicslowmac_init(&cc2430_rf_driver));

set_rime_addr(); //this function reads MAC from flash and places

//it to Rime address

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

rime receiving
Rime: Receiving
  • Setting up Rime receiving: broadcast
    • Set up a callback function

Declarations:

static struct broadcast_conn bc;

static const struct broadcast_callbacks broadcast_callbacks = {recv_bc};

The callback definition:

static void

recv_bc(struct broadcast_conn *c, rimeaddr_t *from);

In main process:

broadcast_open(&bc, 128, &broadcast_callbacks);

  • Unicast receive in a similar manner

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

rime sending
Rime: Sending
  • Sending broadcast data using Rime

Declarations:

static struct broadcast_conn bc;

In main process:

packetbuf_copyfrom("Hello everyone", 14);

broadcast_send(&bc);

  • Sending unicast data using Rime

Declarations:

static struct unicast_conn uc;

In your function:

rimeaddr_t *addr;

addr.u8[0] = first_address_byte;

addr.u8[1] = second_address_byte;

packetbuf_copyfrom("Hello you", 9);

unicast_send(&uc, &addr);

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

creating contiki ports
Creating Contiki Ports
  • First step: see if your cpu already has code
    • If yes, configure your platform to use it
    • If not, see other cpu directories for implementation models
  • Second step: see if your hardware is close to other platforms
    • If yes, copy code from example platform and modify
    • If not, see other platforms for minimal model
  • Create a test application
    • Start with LEDs in platform/myplatform/contiki-myplatform-main.c
    • Use for loops to make sure that your compiler works
    • Continue by adding printf's to see if your UART works
  • First real application
    • Create an etimer for your test process: flash LEDs, print info
    • Try different timeouts to see if your clocks are correct
  • Add more drivers and try them out

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

exercises
Exercises

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

contiki basics
Contiki Basics
  • Create your own Contiki “Hello World” application using /examples/sensinode as an example. Compile and run it on the CC2430 target platform
  • Create two parallel Contiki processes, each controlling a different LED

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

contiki advanced
Contiki Advanced
  • Use an etimer to set a timer event for your own process after a certain period (for example to flash a LED).
  • Make two processes, and use process events between them.
  • Make a Contiki application to read the NanoSensor accelerometer and light sensors using the ADC on the CC2430. Convert the values using the sensor data sheets and print them out periodically.
  • Make Contiki sensor libraries for the NanoSensor buttons and sensors (using code from above) and use them to print events.

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

contiki uip
Contiki uIP
  • Make an application which uses uIP protosockets, and spawns protothreads to handle both UDP and TCP sockets.
  • Make a client application and a server application which communicate between each other over UDP.
  • Design a publish/subscribe protocol implementation over UDP/6LoWPAN using the MQTT-S specification (simplified). Implement Publisher, Subscriber and Broker applications.
  • Use MQTT-S to publish and subscribe to NanoSensor buttons and sensor values.

6LoWPAN: The Wireless Embedded Internet, Shelby & Bormann

ad
