  1. Introduction to UNIX / Linux - 5 Dr. Jerry Shiao, Silicon Valley University SILICON VALLEY UNIVERSITY CONFIDENTIAL

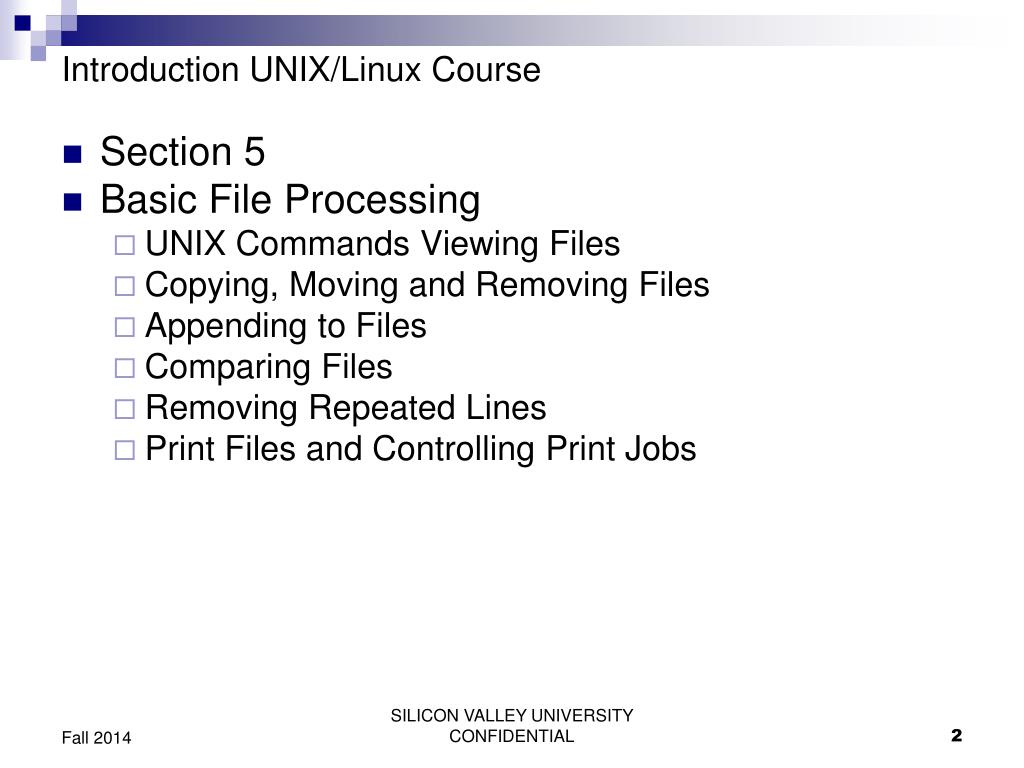

  2. Introduction UNIX/Linux Course • Section 5 • Basic File Processing • UNIX Commands Viewing Files • Copying, Moving and Removing Files • Appending to Files • Comparing Files • Removing Repeated Lines • Print Files and Controlling Print Jobs SILICON VALLEY UNIVERSITY CONFIDENTIAL

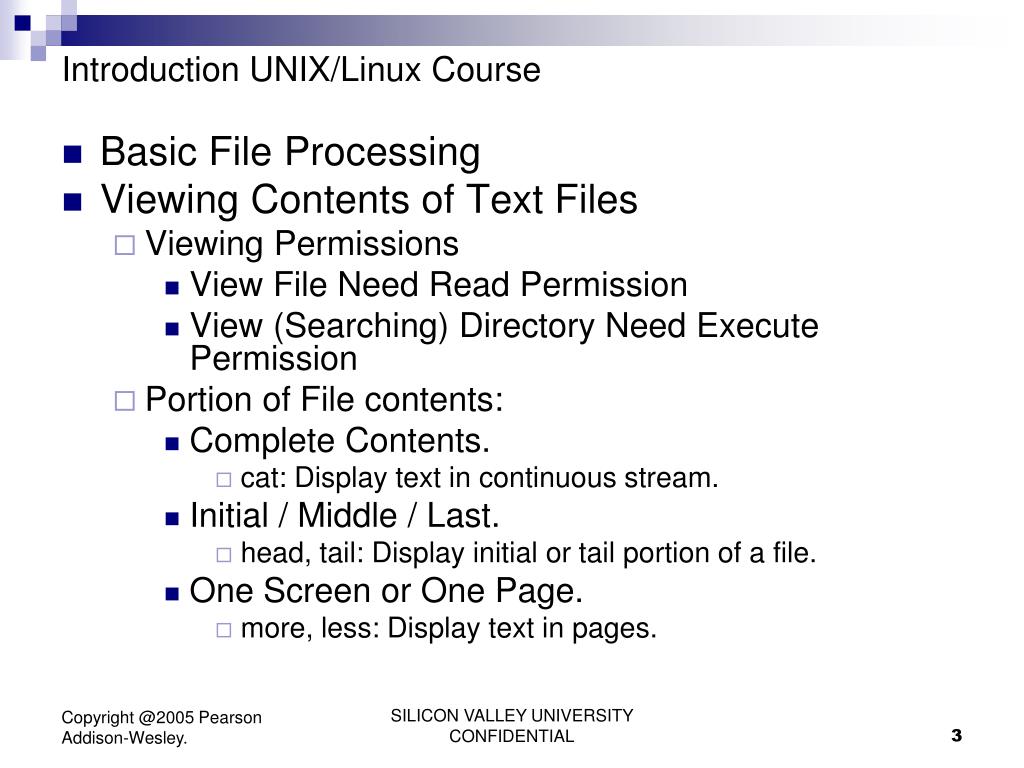

  3. Introduction UNIX/Linux Course • Basic File Processing • Viewing Contents of Text Files • Viewing Permissions • View File Need Read Permission • View (Searching) Directory Need Execute Permission • Portion of File contents: • Complete Contents. • cat: Display text in continuous stream. • Initial / Middle / Last. • head, tail: Display initial or tail portion of a file. • One Screen or One Page. • more, less: Display text in pages. SILICON VALLEY UNIVERSITY CONFIDENTIAL

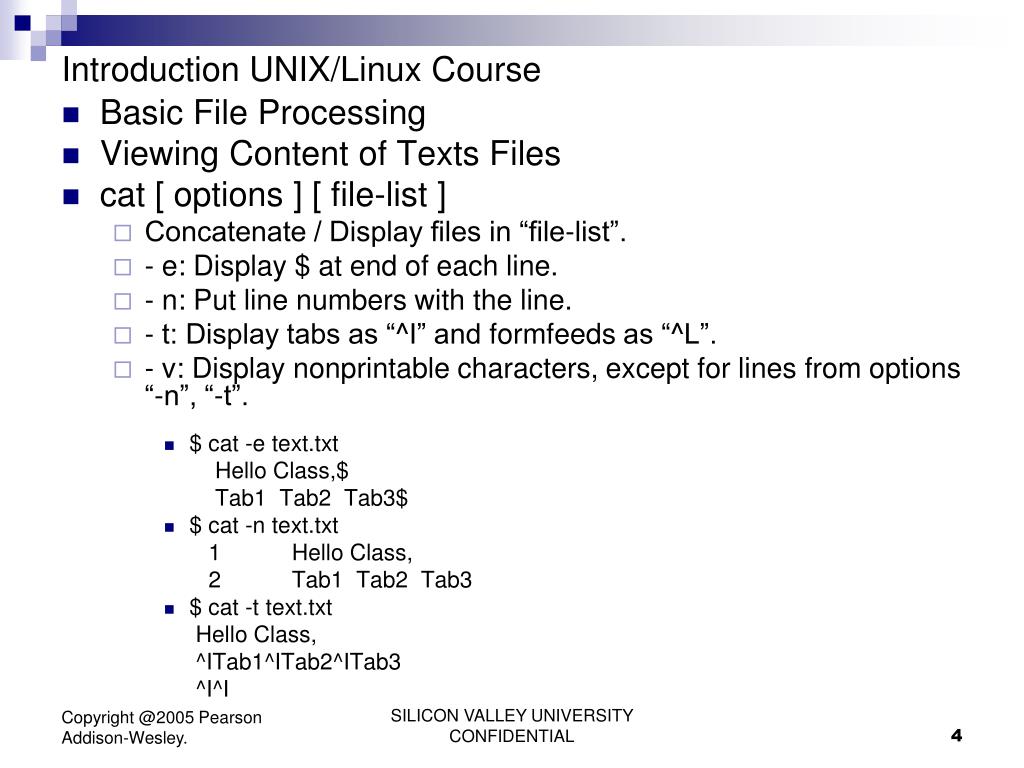

  4. Introduction UNIX/Linux Course • Basic File Processing • Viewing Content of Texts Files • cat [ options ] [ file-list ] • Concatenate / Display files in “file-list”. • - e: Display $ at end of each line. • - n: Put line numbers with the line. • - t: Display tabs as “^I” and formfeeds as “^L”. • - v: Display nonprintable characters, except for lines from options “-n”, “-t”. • $ cat -e text.txt Hello Class,$ Tab1 Tab2 Tab3$ • $ cat -n text.txt 1 Hello Class, 2 Tab1 Tab2 Tab3 • $ cat -t text.txt Hello Class, ^ITab1^ITab2^ITab3 ^I^I SILICON VALLEY UNIVERSITY CONFIDENTIAL

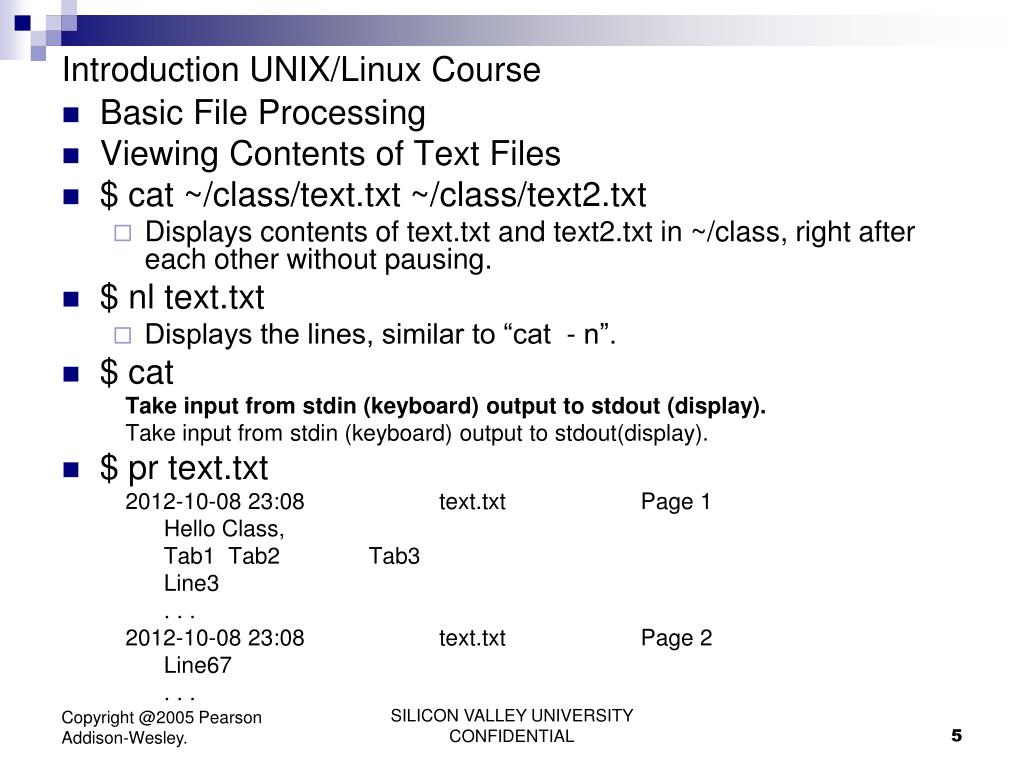

  5. Introduction UNIX/Linux Course • Basic File Processing • Viewing Contents of Text Files • $ cat ~/class/text.txt ~/class/text2.txt • Displays contents of text.txt and text2.txt in ~/class, right after each other without pausing. • $ nl text.txt • Displays the lines, similar to “cat - n”. • $ cat Take input from stdin (keyboard) output to stdout (display). Take input from stdin (keyboard) output to stdout(display). • $ pr text.txt 2012-10-08 23:08 text.txt Page 1 Hello Class, Tab1 Tab2 Tab3 Line3 . . . 2012-10-08 23:08 text.txt Page 2 Line67 . . . SILICON VALLEY UNIVERSITY CONFIDENTIAL

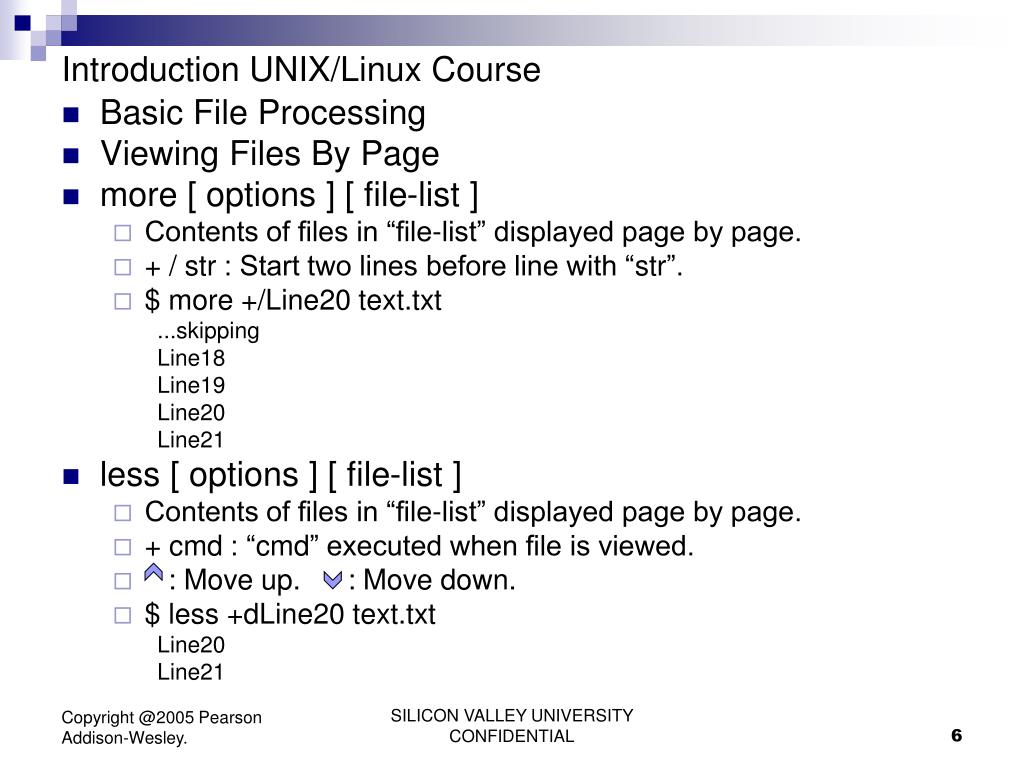

  6. Introduction UNIX/Linux Course • Basic File Processing • Viewing Files By Page • more [ options ] [ file-list ] • Contents of files in “file-list” displayed page by page. • + / str : Start two lines before line with “str”. • $ more +/Line20 text.txt ...skipping Line18 Line19 Line20 Line21 • less [ options ] [ file-list ] • Contents of files in “file-list” displayed page by page. • + cmd : “cmd” executed when file is viewed. • : Move up. : Move down. • $ less +dLine20 text.txt Line20 Line21 SILICON VALLEY UNIVERSITY CONFIDENTIAL

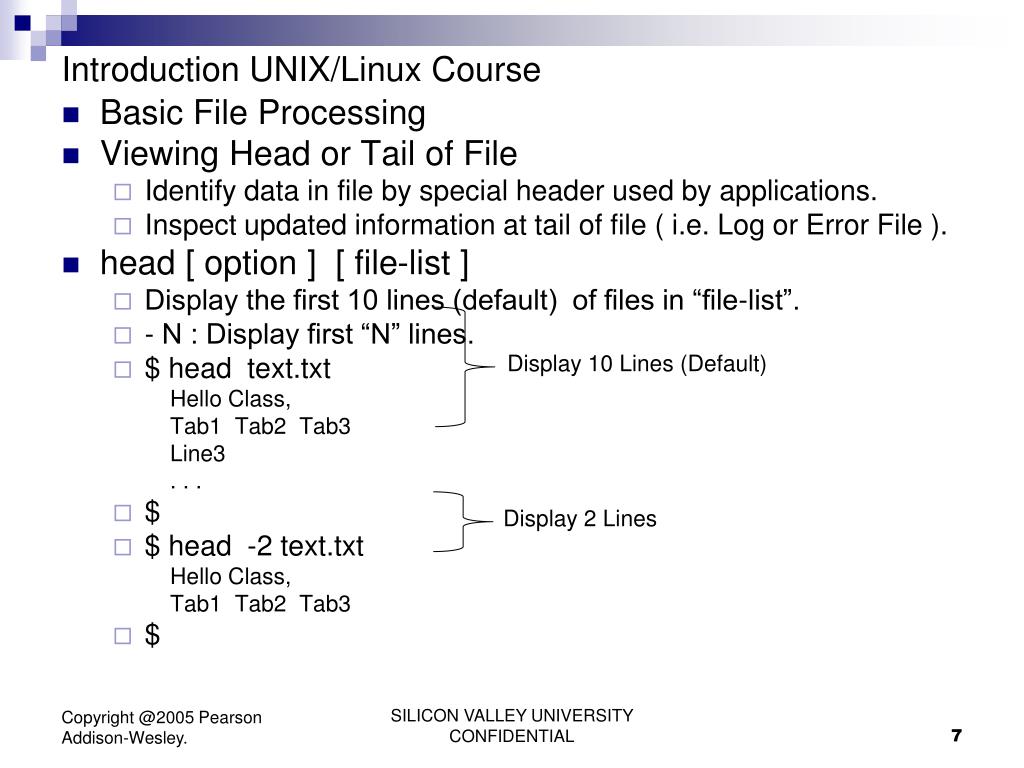

  7. Introduction UNIX/Linux Course • Basic File Processing • Viewing Head or Tail of File • Identify data in file by special header used by applications. • Inspect updated information at tail of file ( i.e. Log or Error File ). • head [ option ] [ file-list ] • Display the first 10 lines (default) of files in “file-list”. • - N : Display first “N” lines. • $ head text.txt Hello Class, Tab1 Tab2 Tab3 Line3 . . . • $ • $ head -2 text.txt Hello Class, Tab1 Tab2 Tab3 • $ Display 10 Lines (Default) Display 2 Lines SILICON VALLEY UNIVERSITY CONFIDENTIAL

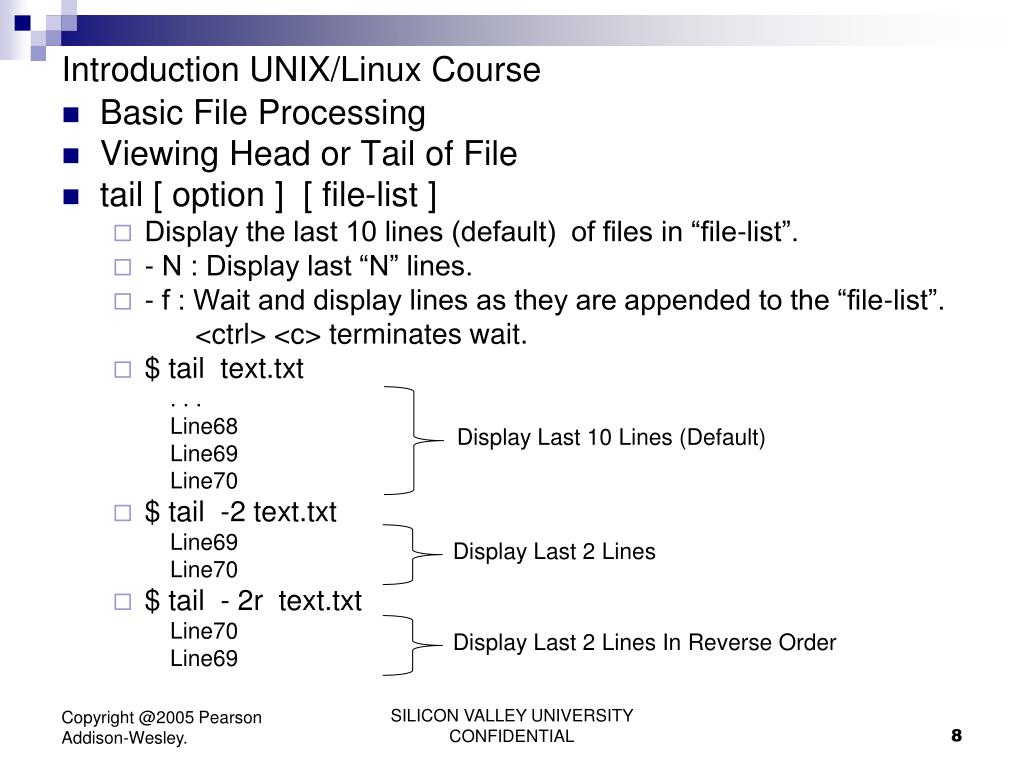

  8. Introduction UNIX/Linux Course • Basic File Processing • Viewing Head or Tail of File • tail [ option ] [ file-list ] • Display the last 10 lines (default) of files in “file-list”. • - N : Display last “N” lines. • - f : Wait and display lines as they are appended to the “file-list”. <ctrl> <c> terminates wait. • $ tail text.txt . . . Line68 Line69 Line70 • $ tail -2 text.txt Line69 Line70 • $ tail - 2r text.txt Line70 Line69 Display Last 10 Lines (Default) Display Last 2 Lines Display Last 2 Lines In Reverse Order SILICON VALLEY UNIVERSITY CONFIDENTIAL

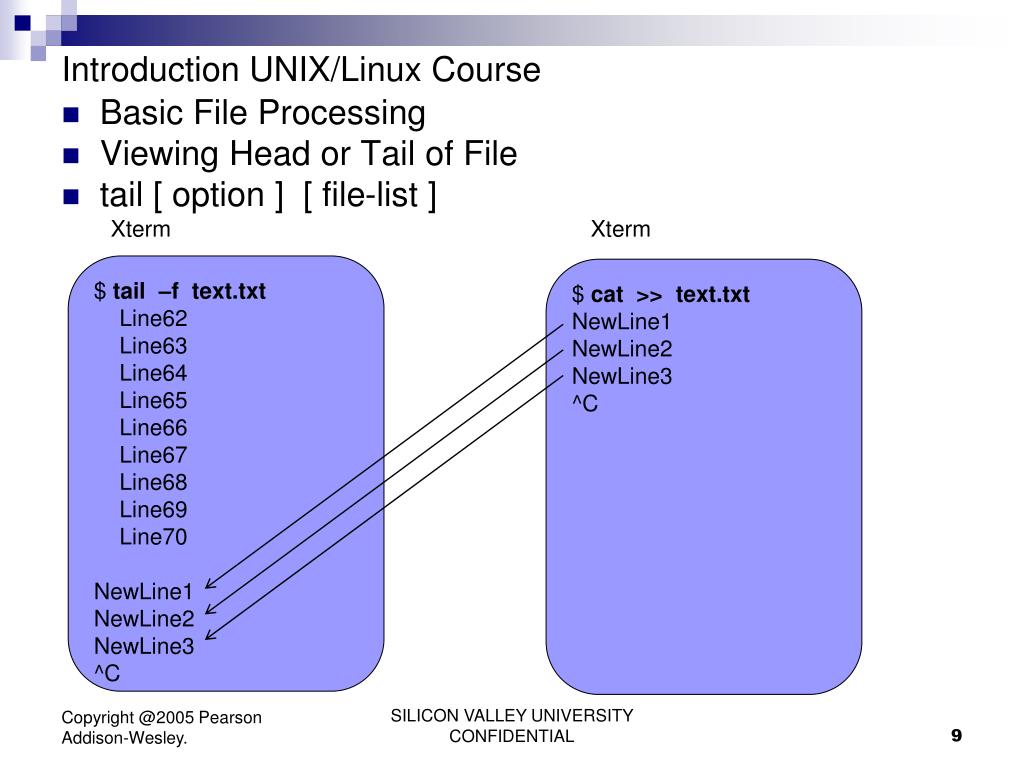

  9. Introduction UNIX/Linux Course Xterm Xterm • Basic File Processing • Viewing Head or Tail of File • tail [ option ] [ file-list ] $ tail –f text.txt Line62 Line63 Line64 Line65 Line66 Line67 Line68 Line69 Line70 NewLine1 NewLine2 NewLine3 ^C $ cat >> text.txt NewLine1 NewLine2 NewLine3 ^C SILICON VALLEY UNIVERSITY CONFIDENTIAL

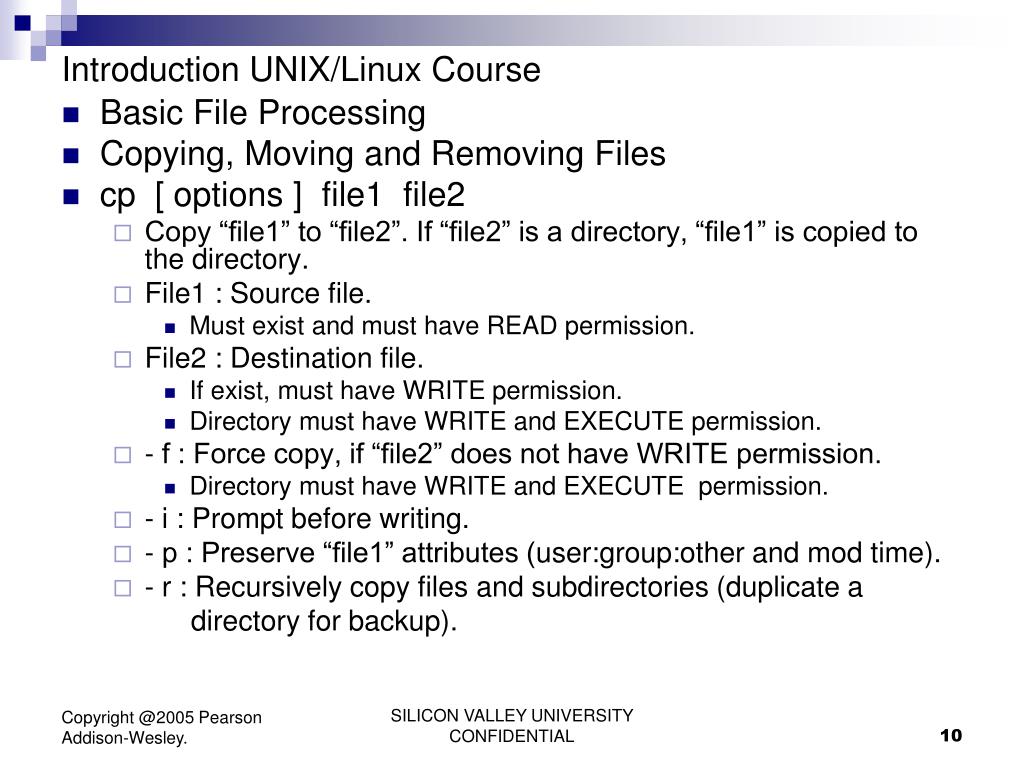

  10. Introduction UNIX/Linux Course • Basic File Processing • Copying, Moving and Removing Files • cp [ options ] file1 file2 • Copy “file1” to “file2”. If “file2” is a directory, “file1” is copied to the directory. • File1 : Source file. • Must exist and must have READ permission. • File2 : Destination file. • If exist, must have WRITE permission. • Directory must have WRITE and EXECUTE permission. • - f : Force copy, if “file2” does not have WRITE permission. • Directory must have WRITE and EXECUTE permission. • - i : Prompt before writing. • - p : Preserve “file1” attributes (user:group:other and mod time). • - r : Recursively copy files and subdirectories (duplicate a directory for backup). SILICON VALLEY UNIVERSITY CONFIDENTIAL

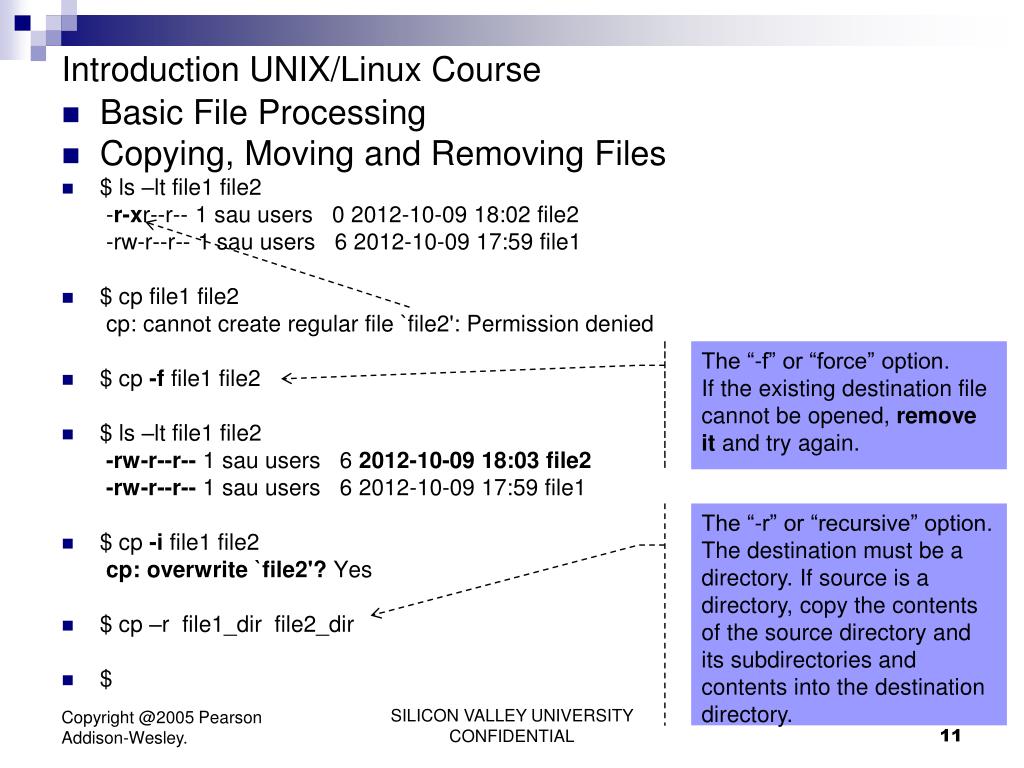

  11. Introduction UNIX/Linux Course • Basic File Processing • Copying, Moving and Removing Files • $ ls –lt file1 file2 -r-xr--r-- 1 sau users 0 2012-10-09 18:02 file2 -rw-r--r-- 1 sau users 6 2012-10-09 17:59 file1 • $ cp file1 file2 cp: cannot create regular file `file2': Permission denied • $ cp -f file1 file2 • $ ls –lt file1 file2 -rw-r--r-- 1 sau users 6 2012-10-09 18:03 file2 -rw-r--r-- 1 sau users 6 2012-10-09 17:59 file1 • $ cp -i file1 file2 cp: overwrite `file2'? Yes • $ cp –r file1_dir file2_dir • $ The “-f” or “force” option. If the existing destination file cannot be opened, remove it and try again. The “-r” or “recursive” option. The destination must be a directory. If source is a directory, copy the contents of the source directory and its subdirectories and contents into the destination directory. SILICON VALLEY UNIVERSITY CONFIDENTIAL

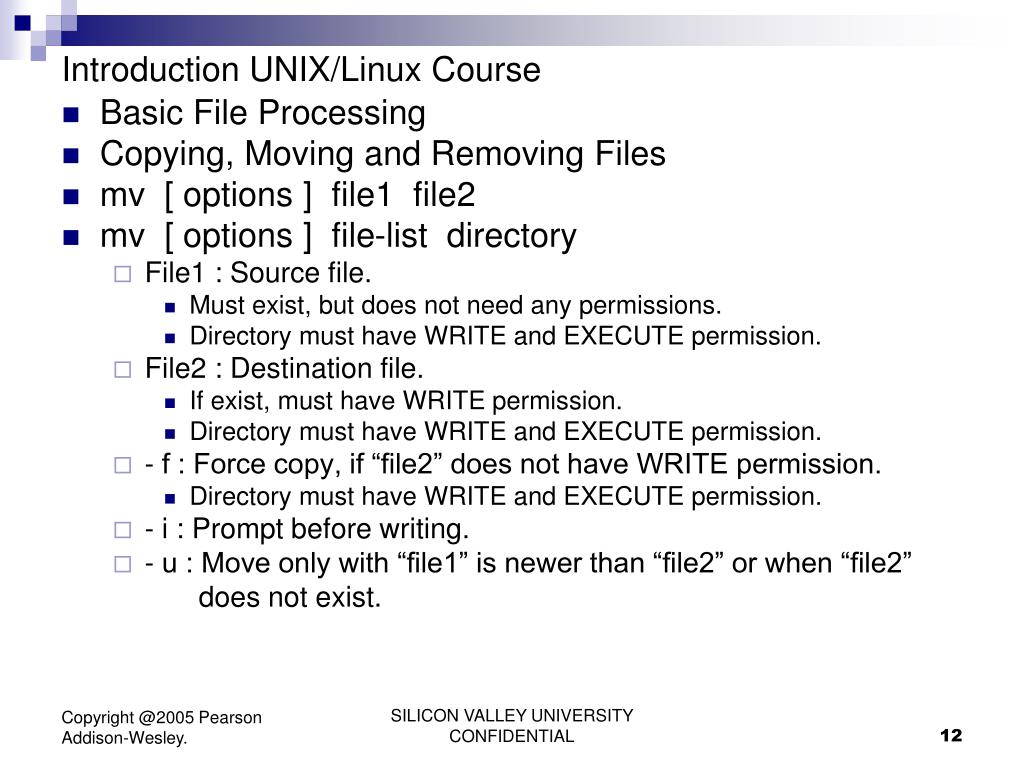

  12. Introduction UNIX/Linux Course • Basic File Processing • Copying, Moving and Removing Files • mv [ options ] file1 file2 • mv [ options ] file-list directory • File1 : Source file. • Must exist, but does not need any permissions. • Directory must have WRITE and EXECUTE permission. • File2 : Destination file. • If exist, must have WRITE permission. • Directory must have WRITE and EXECUTE permission. • - f : Force copy, if “file2” does not have WRITE permission. • Directory must have WRITE and EXECUTE permission. • - i : Prompt before writing. • - u : Move only with “file1” is newer than “file2” or when “file2” does not exist. SILICON VALLEY UNIVERSITY CONFIDENTIAL

  13. Introduction UNIX/Linux Course • Basic File Processing • Copying, Moving and Removing Files • $ ls-lt drwxr-xr-x 2 sau users 4096 2012-10-10 12:12 file_dir -rw-r--r-- 1 sau users 39 2012-10-10 12:08 file2 lrwxrwxrwx1 sau users 5 2012-10-09 17:59 file1_link -> file1 • $ ls -ltfile_dir/ -rw-r--r-- 1 sau users 74 2012-10-10 12:12 file2 • $ mv –u file2 file_dir/ • $ ls -lt drwxr-xr-x 2 sau users 4096 2012-10-10 12:12 file_dir -rw-r--r-- 1 sau users 39 2012-10-10 12:08 file2 lrwxrwxrwx1 sau users 5 2012-10-09 17:59 file1_link -> file1 • $ ls -ltfile_dir/ -rw-r--r-- 1 sau users 74 2012-10-10 12:12 file2 . . . • $ ls -lt dr-xr-xr-x 2 sau users 4096 2012-10-10 13:46 file_dir lrwxrwxrwx1 sau users 5 2012-10-09 17:59 file1_link -> file1 • $ mv file1_link file_dir/ mv: cannot move `file1_link' to `file_dir/file1_link': Permission denied File older. Do not move. If overwrite an existing file, compare the modification times of the source and target files. SILICON VALLEY UNIVERSITY CONFIDENTIAL

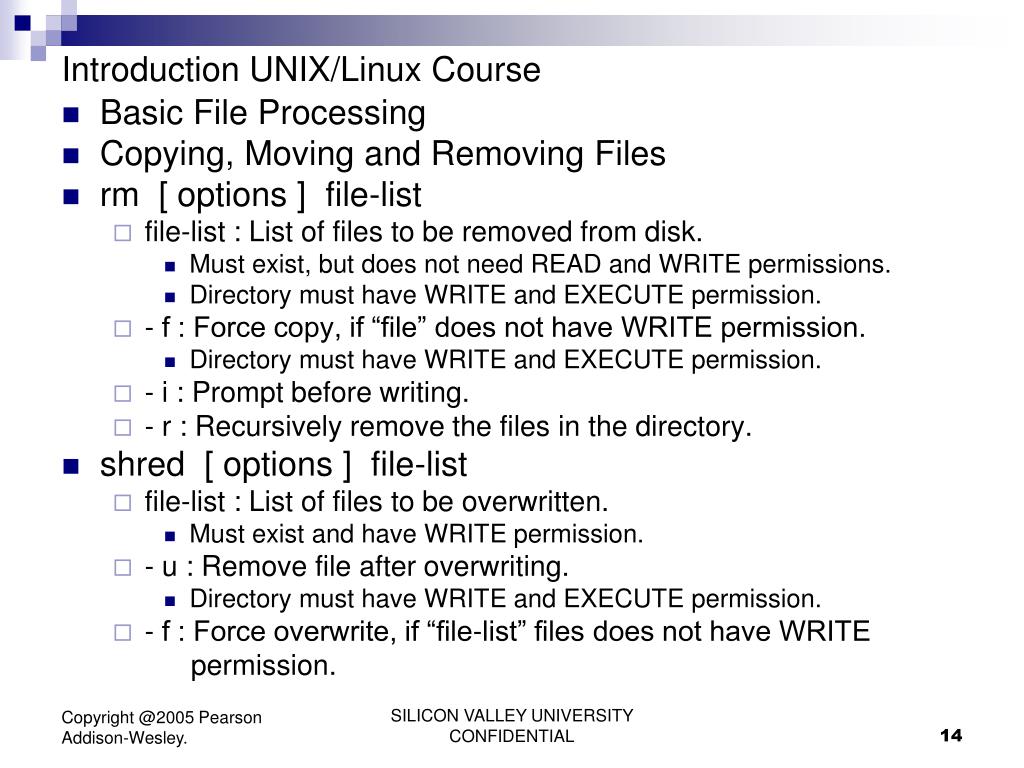

  14. Introduction UNIX/Linux Course • Basic File Processing • Copying, Moving and Removing Files • rm [ options ] file-list • file-list : List of files to be removed from disk. • Must exist, but does not need READ and WRITE permissions. • Directory must have WRITE and EXECUTE permission. • - f : Force copy, if “file” does not have WRITE permission. • Directory must have WRITE and EXECUTE permission. • - i : Prompt before writing. • - r : Recursively remove the files in the directory. • shred [ options ] file-list • file-list : List of files to be overwritten. • Must exist and have WRITE permission. • - u : Remove file after overwriting. • Directory must have WRITE and EXECUTE permission. • - f : Force overwrite, if “file-list” files does not have WRITE permission. SILICON VALLEY UNIVERSITY CONFIDENTIAL

  15. Introduction UNIX/Linux Course Current directory file2 without WRITE permission will be prompt. Directory in path without WRITE has access permission. • Basic File Processing • Copying, Moving and Removing Files • $ ls -lt dr-xr-xr-x 2 sau users 4096 2012-10-10 17:04 file_dir -r--r--r-- 1 sau users 5 2012-10-10 17:04 file2 • $ rm file2 file_dir/file3 rm: remove write-protected regular file `file2'? yes rm: cannot remove `file_dir/file3': Permission denied • $ ls -lt dr-xr-xr-x 3 sau users 4096 2012-10-10 17:15 file_dir • $ ls -ltfile_dir drwxr-xr-x 2 sau users 4096 2012-10-10 17:18 file_dir2 -r--r--r-- 1 sau users 5 2012-10-10 17:04 file3 • $ rm-rffile_dir rm: cannot remove directory `file_dir/file_dir2': Permission denied rm: cannot remove `file_dir/file3': Permission denied • $ chmod 755 file_dir • $ rm -rffile_dir • $ Recursive Force requires WRITE/EXECUTE in all directories. Files does not need WRITE permission with Force Option. SILICON VALLEY UNIVERSITY CONFIDENTIAL

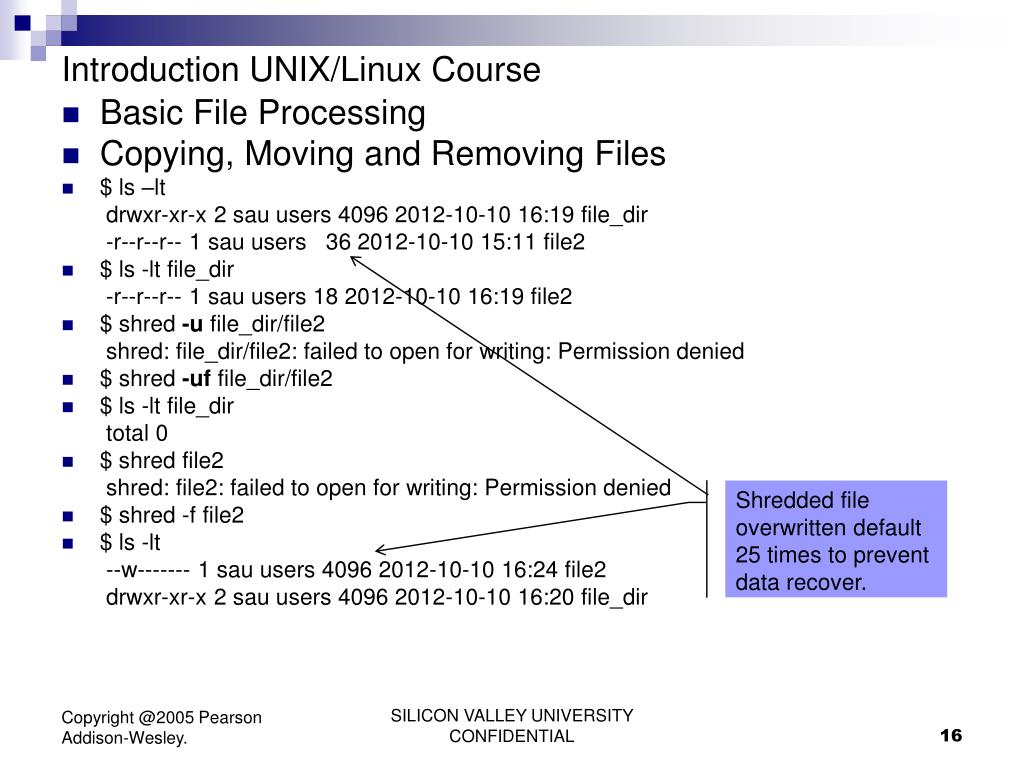

  16. Introduction UNIX/Linux Course • Basic File Processing • Copying, Moving and Removing Files • $ ls –lt drwxr-xr-x 2 sau users 4096 2012-10-10 16:19 file_dir -r--r--r-- 1 sau users 36 2012-10-10 15:11 file2 • $ ls -ltfile_dir -r--r--r-- 1 sau users 18 2012-10-10 16:19 file2 • $ shred -u file_dir/file2 shred: file_dir/file2: failed to open for writing: Permission denied • $ shred -uffile_dir/file2 • $ ls -ltfile_dir total 0 • $ shred file2 shred: file2: failed to open for writing: Permission denied • $ shred -f file2 • $ ls-lt --w------- 1 sau users 4096 2012-10-10 16:24 file2 drwxr-xr-x 2 sau users 4096 2012-10-10 16:20 file_dir Shredded file overwritten default 25 times to prevent data recover. SILICON VALLEY UNIVERSITY CONFIDENTIAL

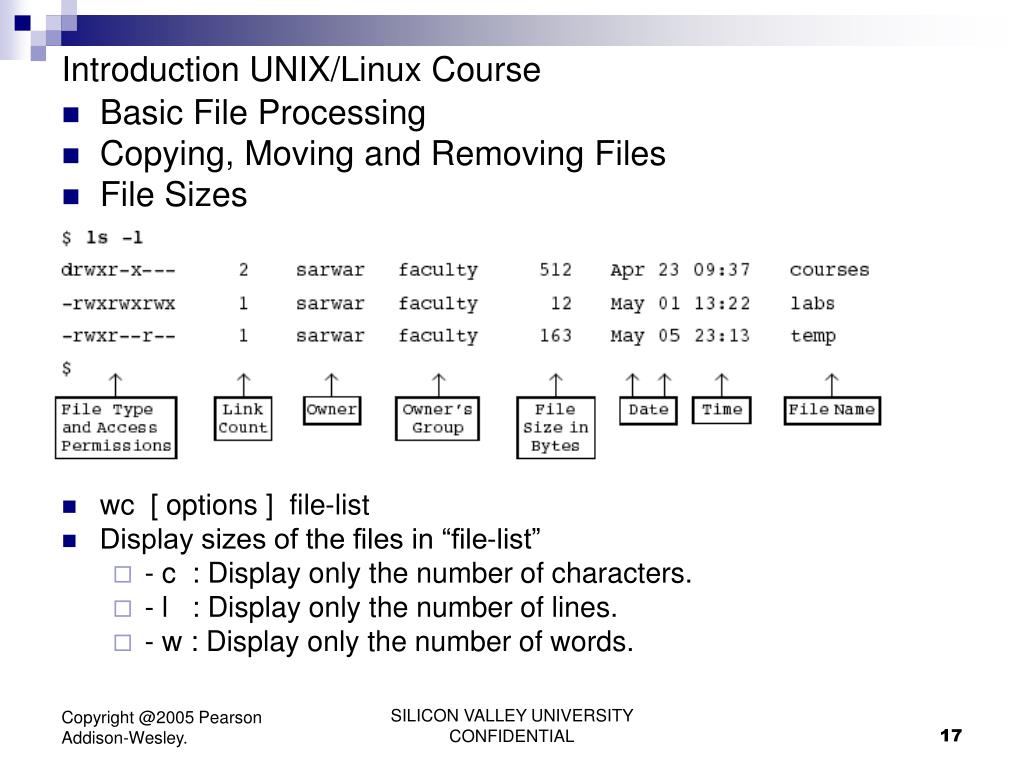

  17. Introduction UNIX/Linux Course • Basic File Processing • Copying, Moving and Removing Files • File Sizes • wc [ options ] file-list • Display sizes of the files in “file-list” • - c : Display only the number of characters. • - l : Display only the number of lines. • - w : Display only the number of words. SILICON VALLEY UNIVERSITY CONFIDENTIAL

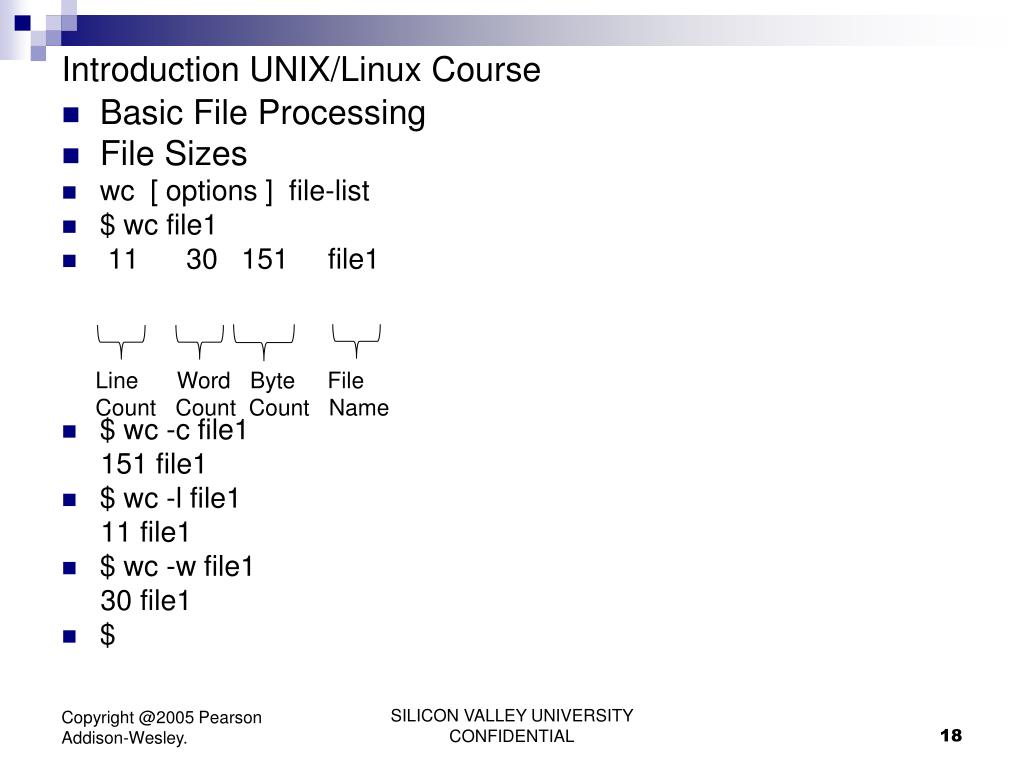

  18. Introduction UNIX/Linux Course • Basic File Processing • File Sizes • wc [ options ] file-list • $ wc file1 • 11 30 151 file1 • $ wc -c file1 151 file1 • $ wc -l file1 11 file1 • $ wc -w file1 30 file1 • $ Line Word Byte File Count Count Count Name SILICON VALLEY UNIVERSITY CONFIDENTIAL

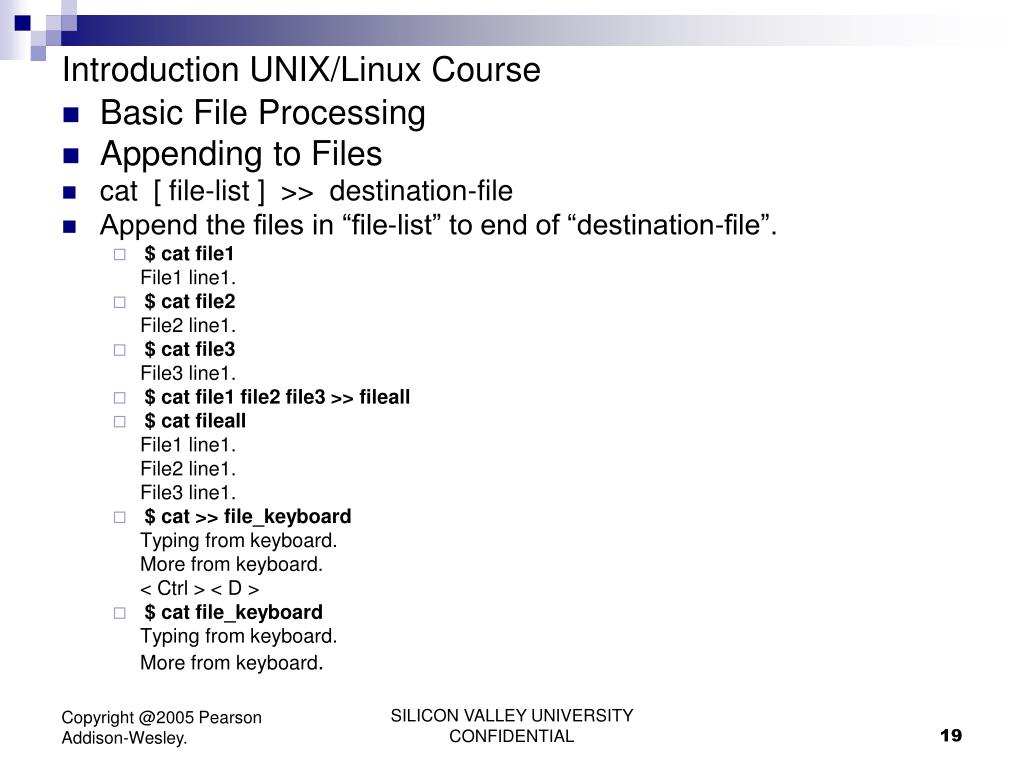

  19. Introduction UNIX/Linux Course • Basic File Processing • Appending to Files • cat [ file-list ] >> destination-file • Append the files in “file-list” to end of “destination-file”. • $ cat file1 File1 line1. • $ cat file2 File2 line1. • $ cat file3 File3 line1. • $ cat file1 file2 file3 >> fileall • $ cat fileall File1 line1. File2 line1. File3 line1. • $ cat >> file_keyboard Typing from keyboard. More from keyboard. < Ctrl > < D > • $ cat file_keyboard Typing from keyboard. More from keyboard. SILICON VALLEY UNIVERSITY CONFIDENTIAL

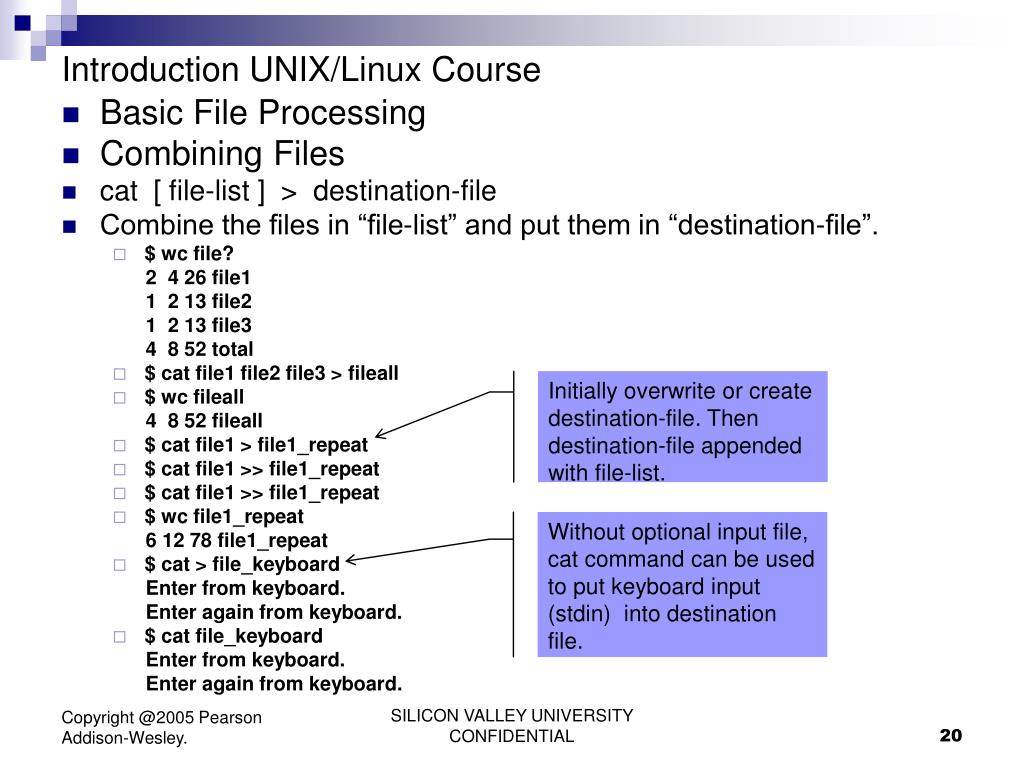

  20. Introduction UNIX/Linux Course • Basic File Processing • Combining Files • cat [ file-list ] > destination-file • Combine the files in “file-list” and put them in “destination-file”. • $ wc file? 2 4 26 file1 1 2 13 file2 1 2 13 file3 4 8 52 total • $ cat file1 file2 file3 > fileall • $ wcfileall 4 8 52 fileall • $ cat file1 > file1_repeat • $ cat file1 >> file1_repeat • $ cat file1 >> file1_repeat • $ wc file1_repeat 6 12 78 file1_repeat • $ cat > file_keyboard Enter from keyboard. Enter again from keyboard. • $ cat file_keyboard Enter from keyboard. Enter again from keyboard. Initially overwrite or create destination-file. Then destination-file appended with file-list. Without optional input file, cat command can be used to put keyboard input (stdin) into destination file. SILICON VALLEY UNIVERSITY CONFIDENTIAL

  21. Introduction UNIX/Linux Course • Basic File Processing • Comparing Files • diff [ options ] [ file1 ] [ file2 ] • Compare “file1” with “file2” line-by-line and display differences between them as a series of commands that can be used to convert “file1” to “file2”. • Generates a (add), c (change), d (delete) commands. • - b : Ignore trailing white spaces. • - e : Generate script for “ed” editor to change “file1” to “file2”. • - h : Fast comparision. SILICON VALLEY UNIVERSITY CONFIDENTIAL

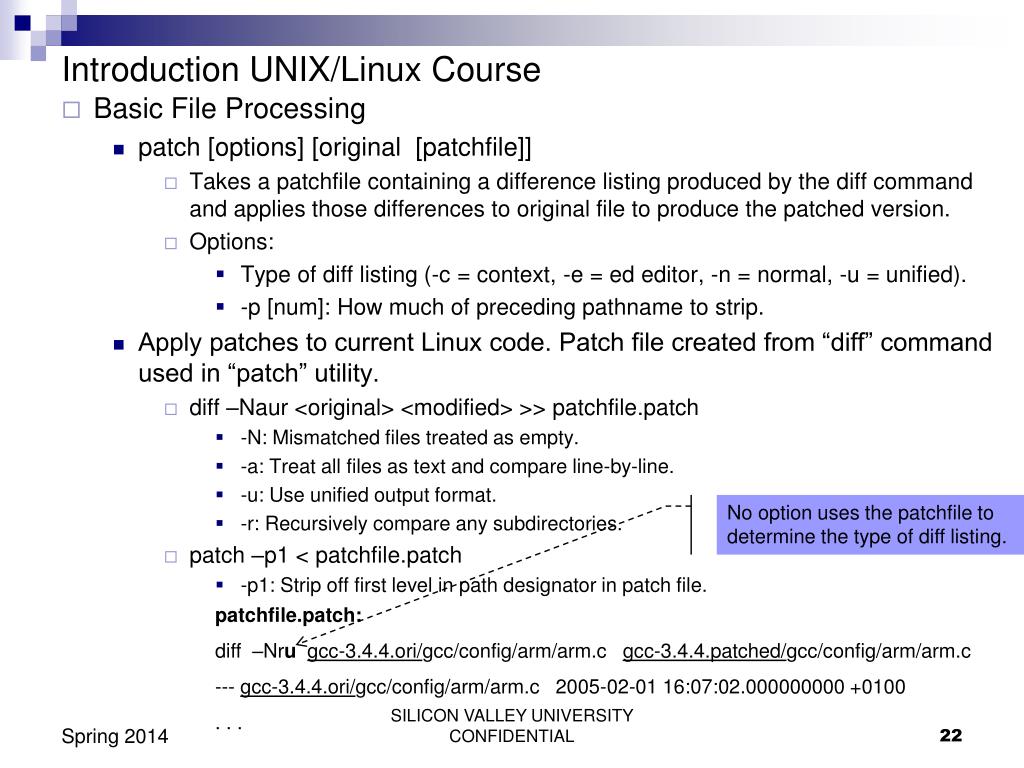

  22. Introduction UNIX/Linux Course Basic File Processing patch [options] [original [patchfile]] Takes a patchfile containing a difference listing produced by the diff command and applies those differences to original file to produce the patched version. Options: Type of diff listing (-c = context, -e = ed editor, -n = normal, -u = unified). -p [num]: How much of preceding pathname to strip. Apply patches to current Linux code. Patch file created from “diff” command used in “patch” utility. diff –Naur <original> <modified> >> patchfile.patch -N: Mismatched files treated as empty. -a: Treat all files as text and compare line-by-line. -u: Use unified output format. -r: Recursively compare any subdirectories. patch –p1 < patchfile.patch -p1: Strip off first level in path designator in patch file. No option uses the patchfile to determine the type of diff listing. patchfile.patch: diff –Nrugcc-3.4.4.ori/gcc/config/arm/arm.c gcc-3.4.4.patched/gcc/config/arm/arm.c --- gcc-3.4.4.ori/gcc/config/arm/arm.c 2005-02-01 16:07:02.000000000 +0100 . . . Spring 2014 SILICON VALLEY UNIVERSITY CONFIDENTIAL 22

  23. Introduction UNIX/Linux Course $ diff file1 file2 1,3c1,2 < File1 line1. < File1 line2. < File2 line1. --- > File2 line1. Change this line. > File2 line1.5 Insert this line. 4a4,5 > File2 line3. > File2 line4. • Basic File Processing • Comparing Files • sau@buildbed-vm: cat -n < class > file1 1 File1 line1. 2 File1 line2. 3 File2 line1. 4 File2 line2. • sau@buildbed-vm: cat -n < class2 > file2 1 File2 line1. Change this line. 2 File2 line1.5 Insert this line. 3 File2 line2. 4 File2 line3. 5 File2 line4. • sau@buildbed-vm: diff –e file1 file2 > diff_1_2 • sau@buildbed-vm: cat >> diff_1_2 w q • sau@buildbed-vm: • sau@buildbed-vm: ed file1 < diff_1_2 80 137 $ cat file1 File2 line1. Change this line. File2 line1.5 Insert this line. File2 line2. File2 line3. File2 line4. SILICON VALLEY UNIVERSITY CONFIDENTIAL

  24. Introduction UNIX/Linux Course • Basic File Processing • Removing Repeated Lines • uniq [ options ] [ +N ] [ input-file ] [output-file ] • Remove consecutive repetitious lines from the sorted “input-file” and write non-repetitious lines to “output-file”. • + N : Number of characters skipped before checking for uniqueness. • - c : Precede each output line by the number of times it occurs. • - d : Display the repeated lines. • - u : Display the lines that are not repeated. • sort [ options ] file-list • Write concatenation of files in file-list to stdout. • - o : Write result to file instead of stdout. • - k : Start key at column. • - n : Compare according to string numerical value. SILICON VALLEY UNIVERSITY CONFIDENTIAL

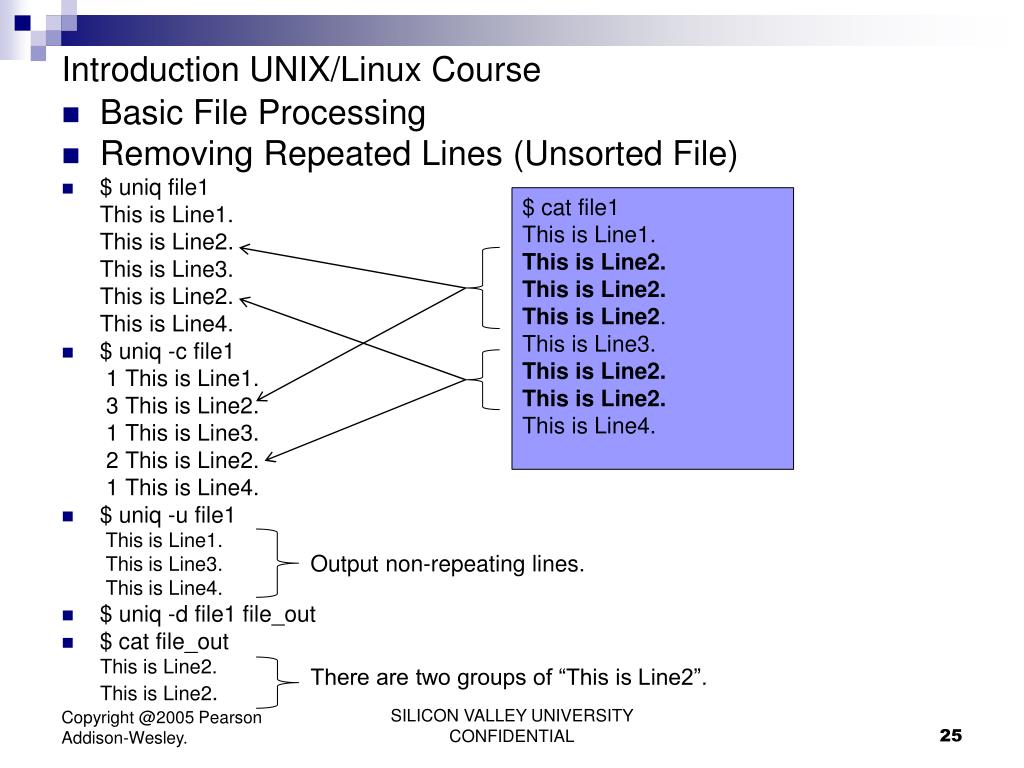

  25. Introduction UNIX/Linux Course $ cat file1 This is Line1. This is Line2. This is Line2. This is Line2. This is Line3. This is Line2. This is Line2. This is Line4. • Basic File Processing • Removing Repeated Lines (Unsorted File) • $ uniq file1 This is Line1. This is Line2. This is Line3. This is Line2. This is Line4. • $ uniq -c file1 1 This is Line1. 3 This is Line2. 1 This is Line3. 2 This is Line2. 1 This is Line4. • $ uniq -u file1 This is Line1. This is Line3. This is Line4. • $ uniq -d file1 file_out • $ cat file_out This is Line2. This is Line2. Output non-repeating lines. There are two groups of “This is Line2”. SILICON VALLEY UNIVERSITY CONFIDENTIAL

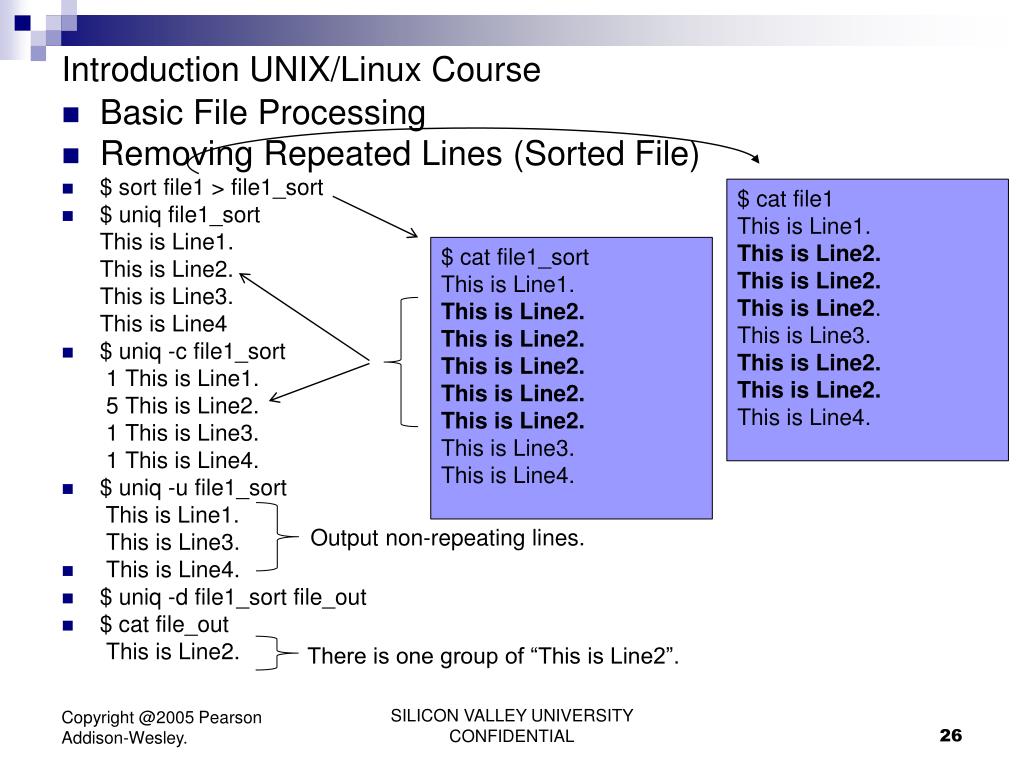

  26. Introduction UNIX/Linux Course $ cat file1 This is Line1. This is Line2. This is Line2. This is Line2. This is Line3. This is Line2. This is Line2. This is Line4. • Basic File Processing • Removing Repeated Lines (Sorted File) • $ sort file1 > file1_sort • $ uniq file1_sort This is Line1. This is Line2. This is Line3. This is Line4 • $ uniq -c file1_sort 1 This is Line1. 5 This is Line2. 1 This is Line3. 1 This is Line4. • $ uniq -u file1_sort This is Line1. This is Line3. • This is Line4. • $ uniq -d file1_sort file_out • $ cat file_out This is Line2. $ cat file1_sort This is Line1. This is Line2. This is Line2. This is Line2. This is Line2. This is Line2. This is Line3. This is Line4. Output non-repeating lines. There is one group of “This is Line2”. SILICON VALLEY UNIVERSITY CONFIDENTIAL

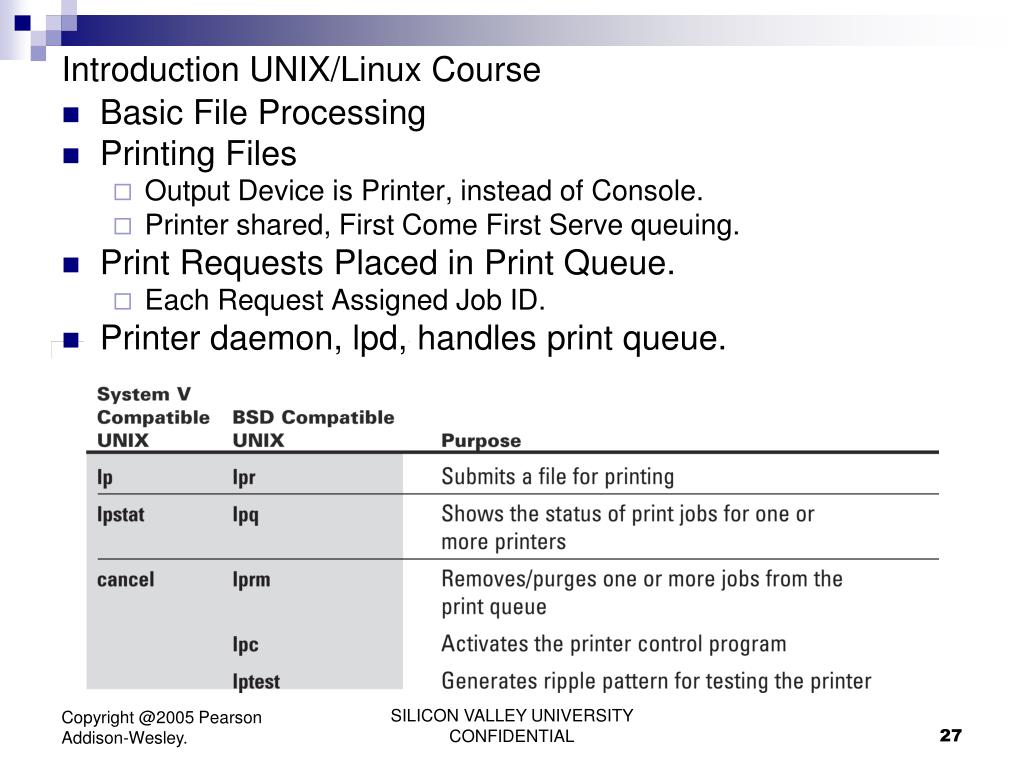

  27. Introduction UNIX/Linux Course • Basic File Processing • Printing Files • Output Device is Printer, instead of Console. • Printer shared, First Come First Serve queuing. • Print Requests Placed in Print Queue. • Each Request Assigned Job ID. • Printer daemon, lpd, handles print queue. SILICON VALLEY UNIVERSITY CONFIDENTIAL

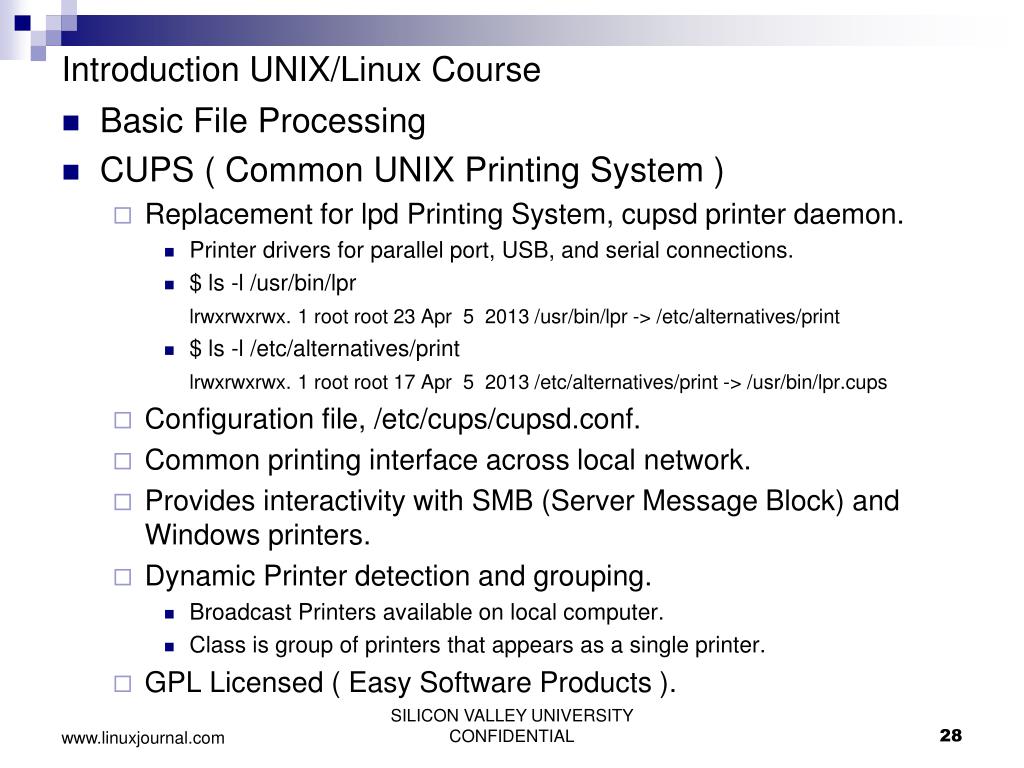

  28. Introduction UNIX/Linux Course • Basic File Processing • CUPS ( Common UNIX Printing System ) • Replacement for lpd Printing System, cupsd printer daemon. • Printer drivers for parallel port, USB, and serial connections. • $ ls -l /usr/bin/lpr lrwxrwxrwx. 1 root root 23 Apr 5 2013 /usr/bin/lpr -> /etc/alternatives/print • $ ls -l /etc/alternatives/print lrwxrwxrwx. 1 root root 17 Apr 5 2013 /etc/alternatives/print -> /usr/bin/lpr.cups • Configuration file, /etc/cups/cupsd.conf. • Common printing interface across local network. • Provides interactivity with SMB (Server Message Block) and Windows printers. • Dynamic Printer detection and grouping. • Broadcast Printers available on local computer. • Class is group of printers that appears as a single printer. • GPL Licensed ( Easy Software Products ). SILICON VALLEY UNIVERSITY CONFIDENTIAL

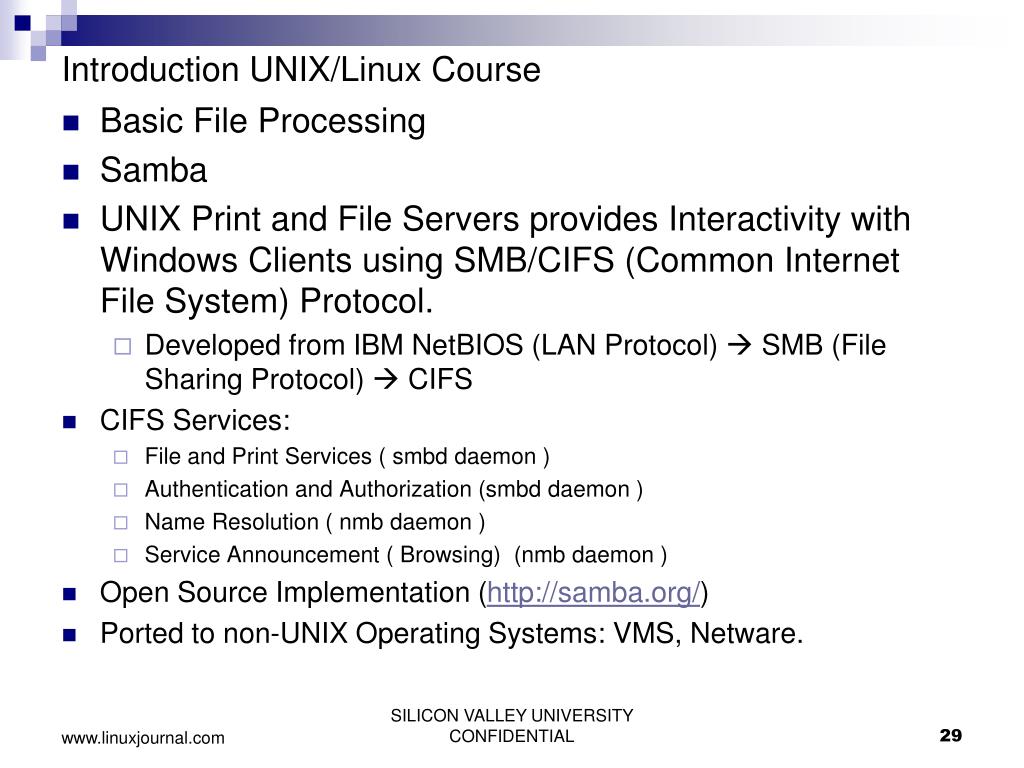

  29. Introduction UNIX/Linux Course • Basic File Processing • Samba • UNIX Print and File Servers provides Interactivity with Windows Clients using SMB/CIFS (Common Internet File System) Protocol. • Developed from IBM NetBIOS (LAN Protocol)  SMB (File Sharing Protocol)  CIFS • CIFS Services: • File and Print Services ( smbd daemon ) • Authentication and Authorization (smbd daemon ) • Name Resolution ( nmb daemon ) • Service Announcement ( Browsing) (nmb daemon ) • Open Source Implementation (http://samba.org/) • Ported to non-UNIX Operating Systems: VMS, Netware. SILICON VALLEY UNIVERSITY CONFIDENTIAL

  30. Introduction UNIX/Linux Course • Basic File Processing • Printing Files • lp [ options ] file-list • Submit a Print Request to Print the Files in “file-list” • - P page-list : Print pages specified in ‘page-list’. • - d ptr : Submit the print request for the ‘ptr’ printer. • - m : Send mail after printing is complete. • - n N : Print ‘N’ copies. • - t title : Print ‘title’ on a banner page. • - w : Write to user’s terminal after printing is complete. • lpr [ options ] file-list • - # N : Print ‘N’ copies. • - P ptr : Submit the print request for the ‘ptr’ printer. • - T title : Print ‘title’ on a banner page. • - m : Send mail after printing is complete. • - p : Format the output by using the pr command. SILICON VALLEY UNIVERSITY CONFIDENTIAL

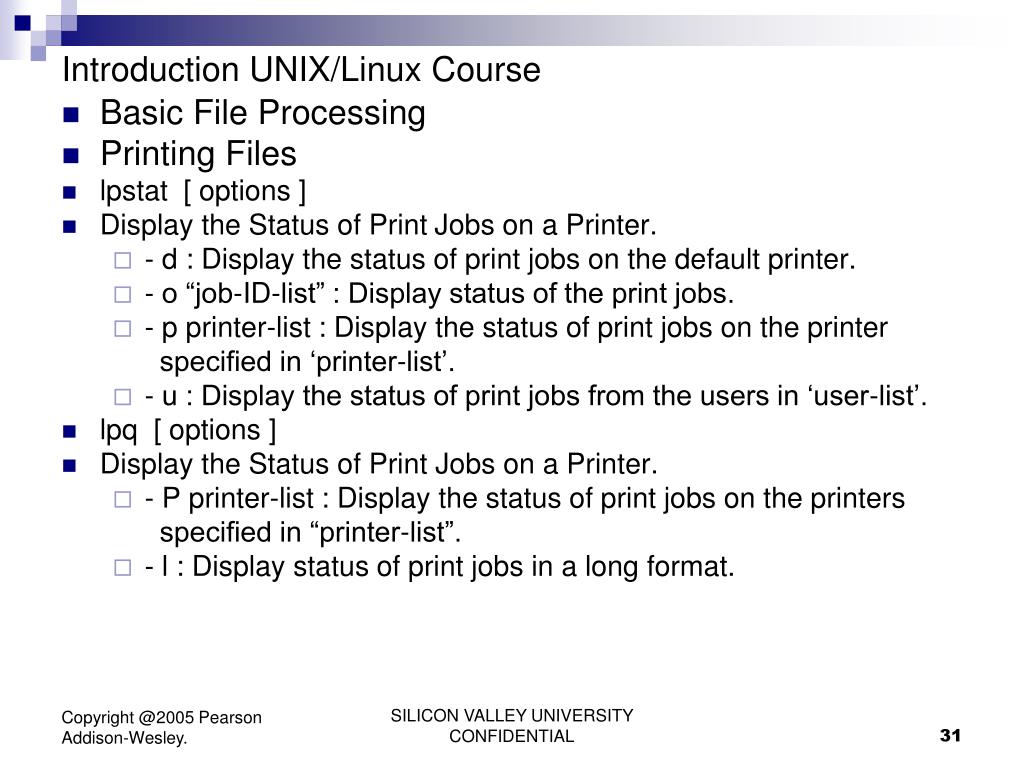

  31. Introduction UNIX/Linux Course • Basic File Processing • Printing Files • lpstat [ options ] • Display the Status of Print Jobs on a Printer. • - d : Display the status of print jobs on the default printer. • - o “job-ID-list” : Display status of the print jobs. • - p printer-list : Display the status of print jobs on the printer specified in ‘printer-list’. • - u : Display the status of print jobs from the users in ‘user-list’. • lpq [ options ] • Display the Status of Print Jobs on a Printer. • - P printer-list : Display the status of print jobs on the printers specified in “printer-list”. • - l : Display status of print jobs in a long format. SILICON VALLEY UNIVERSITY CONFIDENTIAL

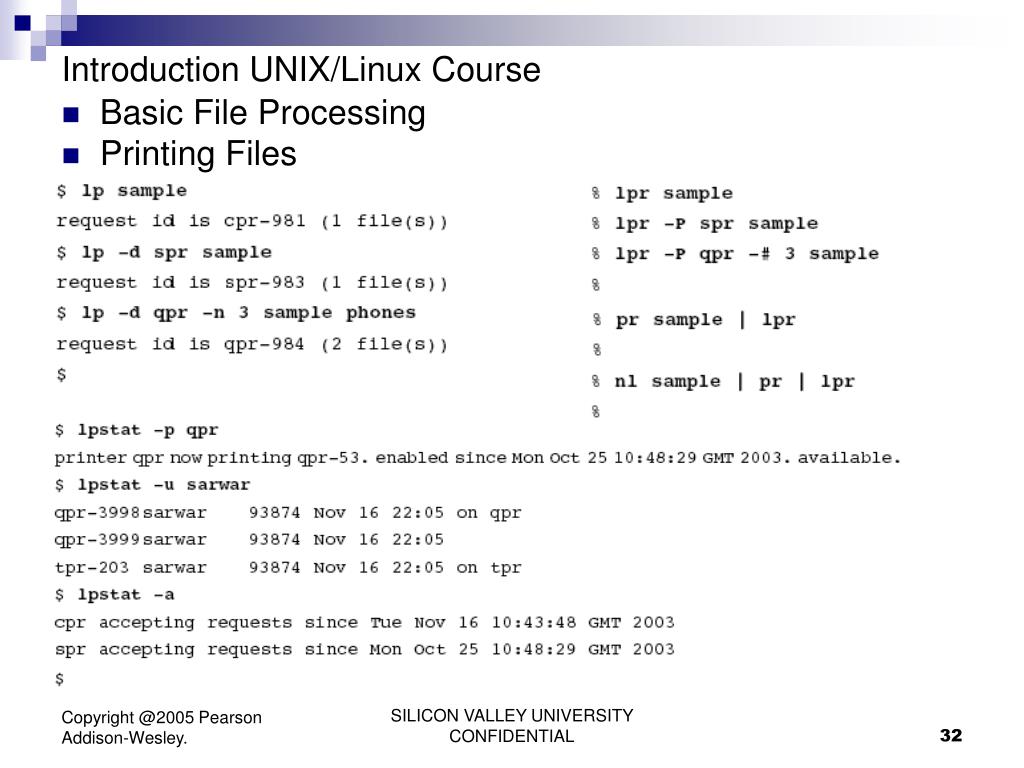

  32. Introduction UNIX/Linux Course • Basic File Processing • Printing Files SILICON VALLEY UNIVERSITY CONFIDENTIAL

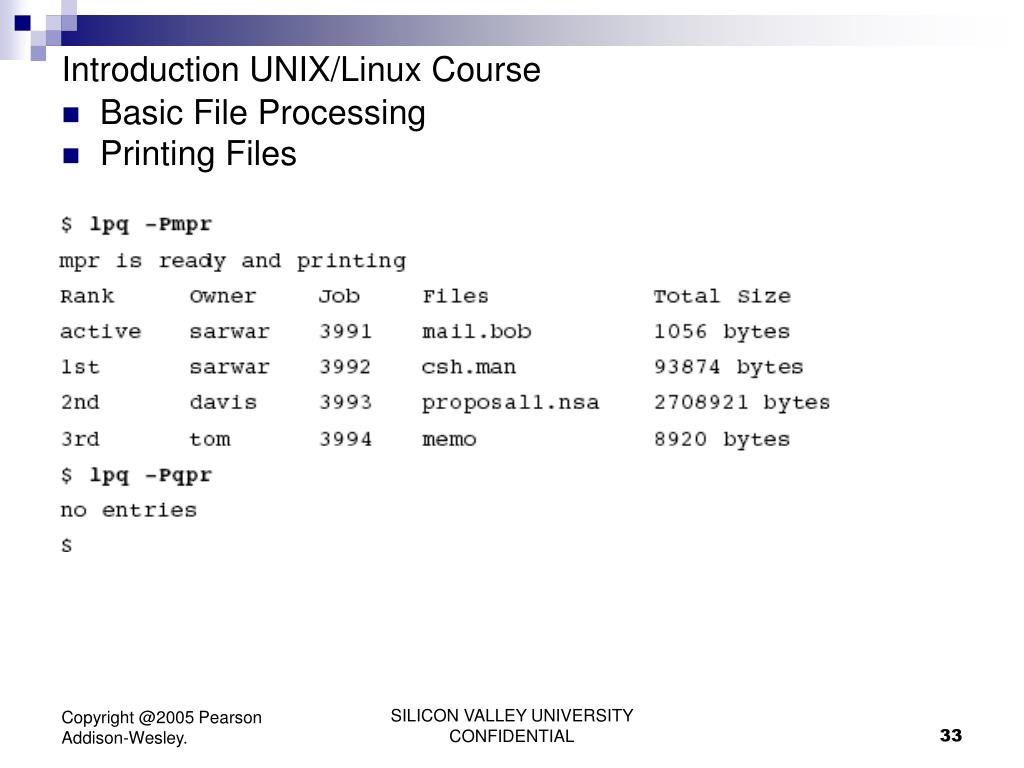

  33. Introduction UNIX/Linux Course • Basic File Processing • Printing Files SILICON VALLEY UNIVERSITY CONFIDENTIAL

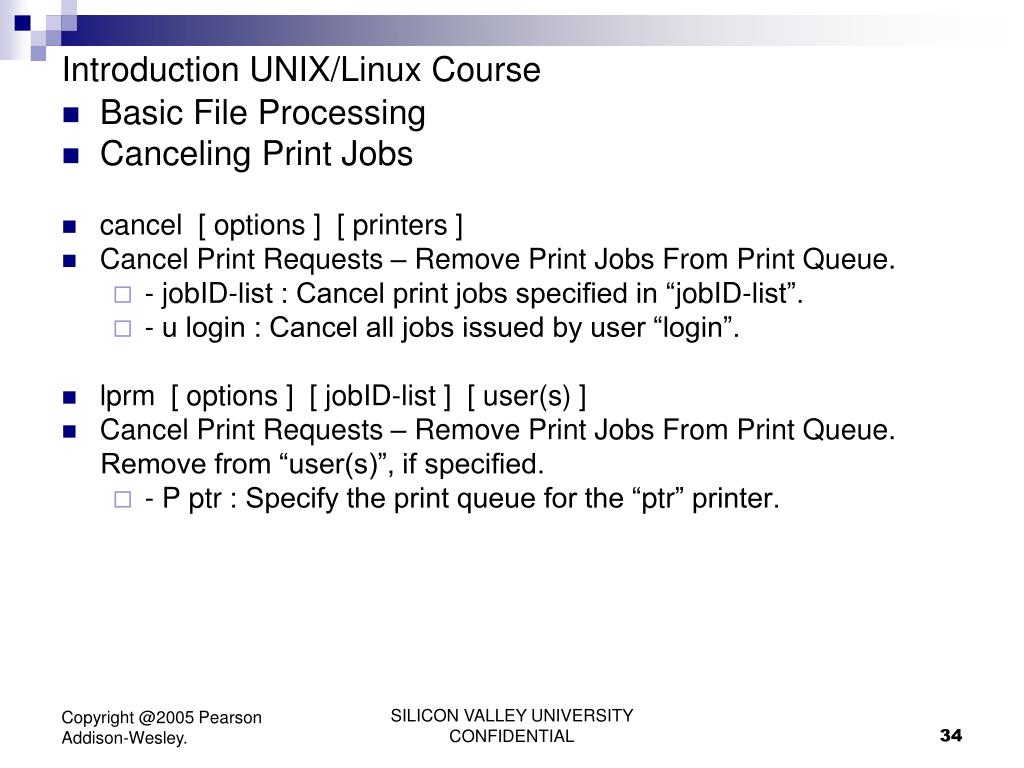

  34. Introduction UNIX/Linux Course • Basic File Processing • Canceling Print Jobs • cancel [ options ] [ printers ] • Cancel Print Requests – Remove Print Jobs From Print Queue. • - jobID-list : Cancel print jobs specified in “jobID-list”. • - u login : Cancel all jobs issued by user “login”. • lprm [ options ] [ jobID-list ] [ user(s) ] • Cancel Print Requests – Remove Print Jobs From Print Queue. Remove from “user(s)”, if specified. • - P ptr : Specify the print queue for the “ptr” printer. SILICON VALLEY UNIVERSITY CONFIDENTIAL

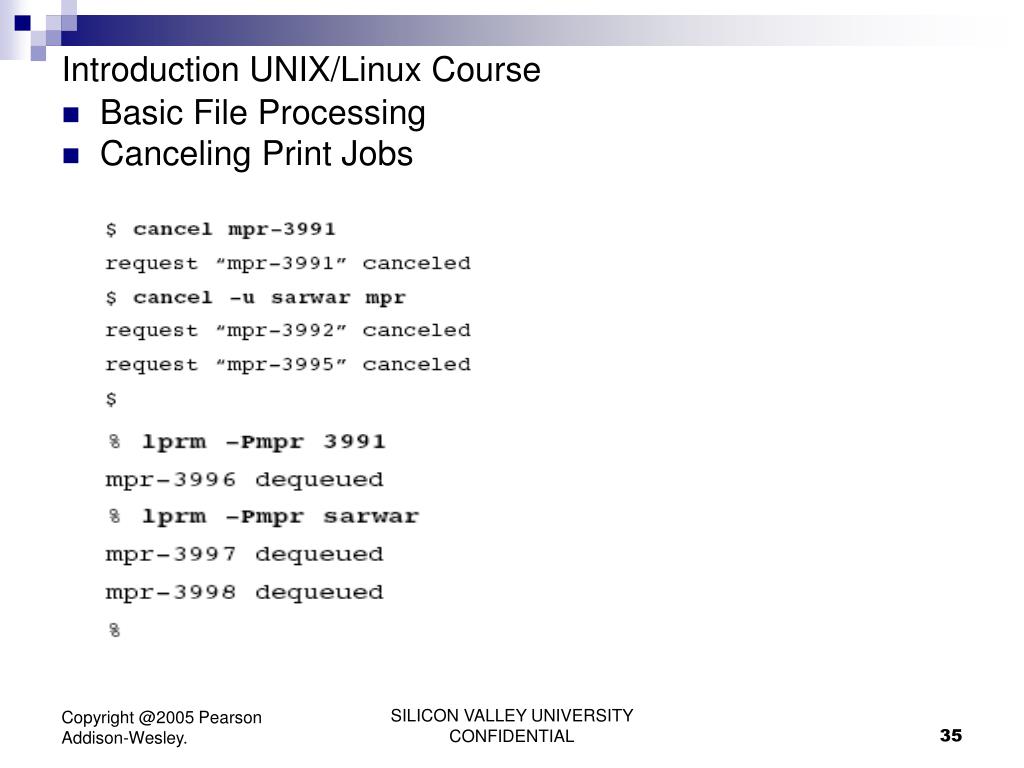

  35. Introduction UNIX/Linux Course • Basic File Processing • Canceling Print Jobs SILICON VALLEY UNIVERSITY CONFIDENTIAL
