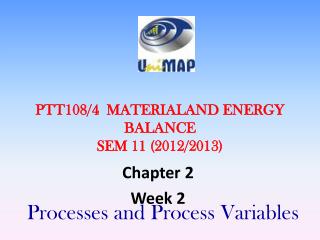

PTT108/4 MATERIALAND ENERGY BALANCE

SEM 11 (2012/2013)

Chapter 2

Week 2

Processes and Process Variables

slide2

Density

Temperature

Processes and

Process Variables

Flow rate

Pressure

Chemical composition

Moles & molecular weight

Part per million (ppm) & part per billion (ppb)

Mass & mole fractions

Concentration

Average molecular weight

slide3

Process

Process

Unit

Input/Feed

Output/Product

  • Process Any operation that cause a physical or chemical change in a substance.
  • Can consist of several process unit.
  • Chemical/bioprocess engineering is responsible to design and operate the process.
    • Formulation of process flow sheet/layout running day-to-day process
    • Specification of individual process unit
    • Associated operating variables
slide4

Density & Specific VOLUME

  • Density ()
    • Mass per unit volume of the substance
    • Unit g/cm3; kg/m3; lbm/ft3
  • Specific Volume
    • Volume occupied by a unit mass of the substances
    • Inverse of density
    • Unit cm3/g; m3/kg; ft3/lbm

Densities of pure solids and liquids are essentially independent of pressure and vary relatively slightly with temperature.

slide5

EXERCISE

  • The density of CCl4 is 1.595 g/cm3; what is
    • Mass of 20 cm3 of CCl4
    • Volume of 6.20 lbm of CCl4

Solution:

a)

b)

slide6

Specific Gravity

  • Specific Gravity (SG)
    • Ratio of the density () of the substance to the density of a reference (ref) substance at a specific condition:
    • SG = /ref
    • The reference most commonly used for solids and liquids is water at 4˚C:

ref@H2O(l) (4˚C) = 1.000 g/cm3

= 1000 kg/m3

= 62.43 lbm/ft3

slide7

Specific Gravity

  • Specific Gravity (SG)
    • SG is dimensionless.
    • means that the specific gravity of a substance at 20˚C with reference to water at 4˚C is 0.6
slide8

Specific Gravity

  • To get the density of a substance, multiply the SG value to the value of reference density.

TEST YOURSELF

  • If the specific gravity of a liquid is 2.00, find its density in the following units:
    • g/cm3
    • kg/m3
    • lbm/ft3
  • Solution:
    • 2.00 g/cm3
    • 2.00 x 103 kg/m3
    • 124.86 lbm/ft3
slide9

EXERCISE

  • A liquid has a SG of 0.50. Find
    • Density in g/cm3
    • Density in lbm/ft3
    • Mass of 3 cm3 of this liquid
    • Volume occupied by 18 g of this liquid
slide10

SOLUTION

  • Density in g/cm3
  • Density in lbm/ft3
  • Mass of 3 cm3 of this liquid
  • Volume occupied by 18 g of this liquid
slide11

FLOW RATE

  • Flow rate The rate at which a material is transported through a process line
  • Can be expressed as :
    • mass flow rate, (mass/time)
    • volumetric flow rate, (volume/time)
  • The density of a fluid can be used to convert a known volumetric flow rate of a process stream to the mass flow rate of that stream or vice versa.

The mass flow rates of process streams must be known for many process calculations, but it is frequently more convenient to measure volumetric flow rates than mass flow rate.

Therefore, the density is used to convert volume flow rate to mass flow rate.

slide12

FLOWmeter

  • Flow meter Device mounted in a process line that provides a
  • continuous reading of the flow rate in the line.
  • Two commonly used flow meter:

a) Rotameter

b) Orifice meter

slide13

MOLES & MOLECULAR WEIGHT

Atomic weight of an element Mass of an atom relative to carbon

isotope 12C having a mass of exactly 12

Molecular weight of compound Sum of the atomic weights of atoms that

constitute a molecule of the compound

Moles= Mass / Molecular Weight

Unit for moles are g-mole, kmol,lb-mole ( g-mole is same as mol {SI unit} )

slide14

MOLES & MOLECULAR WEIGHT

  • If the molecular weight of a substance is M, then there are M kg/kmol, M g/mol, and M lbm/lb-mole of this substance.
  • The molecular weight may thus be used as a conversion factor that relates the mass and the number of moles of a quantity of the substance.
  • One gram-mole of any species contains 6.02 x 1023 (Avogadro’s number) molecules of that species.
slide15

EXERCISE

What is the molar flow rate for 100kg/h CO2 (M=44) fed to the reactor?

What is the corresponding mass flow rate of 850lb-moles/min CO2?

How many gram of O2 consist in 100g of CO2?

Find the number of molecules of CO2 in 100g of CO2?

slide16

SOLUTION

What is the molar flow rate for 100kg/h CO2 (M=44) fed to the reactor?

What is the corresponding mass flow rate of 850lb-moles/min CO2?

How many gram of O2 consist in 100g of CO2?

Find the number of molecules of CO2 in 100g of CO2?

slide17

Mass & mole fractions

  • Process streams consist of mixtures of liquids or gases, or solutions of one or more solutes in a liquid solvents.
  • The following terms may be used to define the composition of a mixture of substances, including a species A.
  • Mass fraction: xA= mass of A / total mass

Unit: kg A/kg total; g A/g total; lbm A/lbm total

  • UNIT must be the SAME!
  • Mole fraction: yA= moles of A/ total moles

Unit: kmol A/kmol total; lb-moles A/lb-mole total

  • The mass percent of A is 100xA and the mole percent of A is 100yA
slide18

HOW to Convert Mass Fractions to Moles Fractions

Assuming as a basis of calculation a mass of the mixture (e.g. 100 kg or 100 lbm)

using the known mass fractions to calculate the mass of each component in the basis quantity, and converting these masses to moles.

taking the ratio of the moles of each component to the total number of moles

slide19

EXERCISE

A mixture of gases has the following mass composition:

O2 16%

CO 4%

CO2 17%

N2 63%

What is the molar composition?

slide22

Average molecular weight

  • The average molecular weight (or mean molecular weight) of a mixture, (kg/kmol, lbm/lb-mole, etc.), is the ratio of the mass of a sample of the mixture (mt) to the number of moles of all species (nt) in the sample.
  • If yi is the mole fraction of the ith the component of the mixture:
  • If xi is the mass fraction of the ith component of the mixture:
slide23

EXERCISE

Calculate the average molecular weight of air

  • from its approximate molar composition of 79 % N2, 21 % O2 and
  • from its approximate mass composition of 76.7 % N2, 23.3 % O2
  • Solution:
  • 29 kg/kmol
  • 29 g/mol
slide24

concentration

  • Mass concentration (cA):
  • Molar concentration (CA):
  • Molarity :
slide25

concentration

  • 0.02 molar solution of NaOH means:
  • A solution containing 0.02 mol NaOH/L
  • 5 L of this solution contains:
  • If a stream of this solution flows at a rate of 2 L/min, the molar flow rate of NaOH is:
slide26

Part per million (ppm) &

part per billion (pPb)

  • To express the concentrations of trace species in gases or liquids
  • May refer to mass ratios (usual for liquids) or mole ratios (usual for gases)
  • ppmi= yi x 106
  • ppbi = yi x 109
  • 15 ppm SO2 in air means:
    • - every million moles of air contains 15 moles of SO2
    • - mole fractions of SO2 in air is 15 x 10-6
    • .
slide27

F (N)

A (m2)

A (m2)

P (N/m2)

F (N)

P (N/m2)

pressure

  • A pressure is the ratio of a force to the area on which the force acts (P= F/A).
  • Pressure units: dynes/cm2, lbf/in2 or psi, (N/m2is called a Pascal (Pa) SI unit)
  • The fluid pressure may be defined as the ratio F/A, where F is the minimum force that would have to be exerted on a frictionless plug in the hole to keep the fluid from emerging.
slide28

pressure

  • Hydrostatic pressure of the fluid- the pressure P of the fluid at the base of the column

P = Po + ρgh

  • Head pressure- the height of a hypothetical column of the fluid that would exert the given pressure at its base if the pressure at the top were zero.
  • The equivalence between a pressure P (force/area) and the corresponding head Ph (height of a fluid) is given by:

P (force/area) = ρfluid g Ph (head of fluid)

slide29

Atmospheric, absolute & gauge pressure

  • Relationship between absolute pressure and gauge pressure is:

Pabsolute = Pgauge + Patmosphere

  • The atmosphere pressure can be thought of as the pressure at the base of a column of fluid (air) located at the point measurement (e.g. at sea level)
  • A typical value of the atmospheric pressure at sea level, 760.0 mm Hg, has been designated as a standard pressure of 1 atmosphere.
  • The fluid pressure referred to so far are all absolute pressures, in that a pressure of zero corresponds to a perfect vacuum.
  • Many pressure-measuring devices give the gauge pressure of a fluid, or the pressure relative to atmospheric pressure.
slide30

exercise

Pressure below the surface of a fluid

What is the pressure 30.0 m below the surface of a lake? Atmospheric pressure (the pressure at the surface) is 10.4 m H20, and the density of water is 1000.0 kg/m3. Assume that g is 9.807 m/s2.

Solution:

Ph = Po + ρgh

slide31

temperature

  • Temperature of a substance in a particular state of aggregation (solid, liquid, or gas) is a measure of the average kinetic energy possessed by the substance molecules.
  • Some temperature measuring devices based on substance properties include electrical resistance of a conductor (resistance thermometer), voltage at the junction of two similar metals (thermocouple), spectra of emitted radiation (pyrometer), and volume of a fixed mass of fluid (thermometer).
  • The following relationship may be used to convert a temperature expressed in one defined scale unit to its equivalent in another;

T (K) = T (˚ C) + 273.15

T (˚R) = T (˚ F) + 459.67

T (˚ R) = 1.8T (K)

T (˚ F) = 1.8T (˚ C) + 32

conversion factor for interval temperature
Conversion Factor for Interval Temperature
  • Consider the temperature interval from 0˚C to 5˚C:
    • 5 Celsius and 5 Kelvin degree in this interval
    • 9 Fahrenheit and 9 Rankine degree in this intervals
example
Example

Consider the interval from 20˚F to 80˚F

  • Calculate the equivalent temperature in ˚C and the interval between them
  • Calculate directly the interval in ˚C between the temperature
