  1. Safety Driven Performance 2013 Alan Turner Systems & Controls Technical Specialist October 2013

  2. Agenda • Introduction • Fiber Bragg Gratings Explained • Examples of Asset Integrity Monitoring in the Nuclear and Wind Energy Sectors • Discussion of a Riser Tensioner Monitoring System Installed on the Discovery Luanda • Discussion of an Instrumented BOP at the West Tech

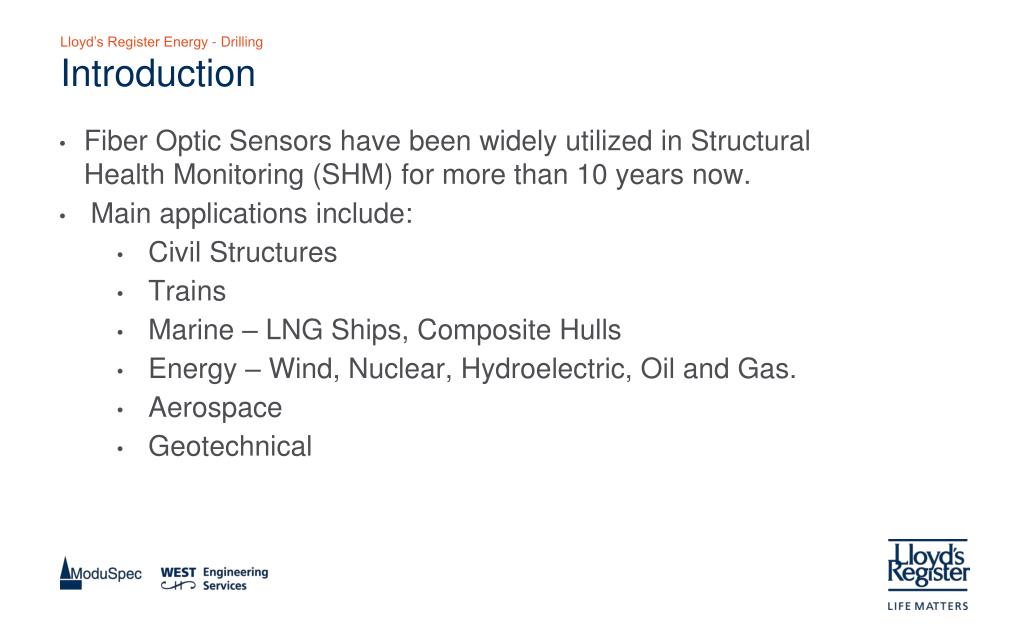

  3. Introduction • Fiber Optic Sensors have been widely utilized in Structural Health Monitoring (SHM) for more than 10 years now. • Main applications include: • Civil Structures • Trains • Marine – LNG Ships, Composite Hulls • Energy – Wind, Nuclear, Hydroelectric, Oil and Gas. • Aerospace • Geotechnical

  4. Fiber Bragg Gratings Explained

  5. Fiber Bragg Gratings Explained A Fiber Bragg Grating is a periodic change of the refractive index in the core region of an optical fiber.

  6. Fiber Bragg Gratings Explained

  7. Fiber Bragg Gratings Explained Each grating sensor is at a different fiber location and allocated a separate central wavelength and spectral operating window band.

  8. Advantages of Fiber Bragg Gratings • Immunity to electromagnetic interference (EMI) and electrical discharge (lightning). • Passive operation, intrinsically safe. • Water and corrosion resistant. • Excellent resolution and range. • Rugged, small size and light weight. • Small size allows for insitu measurements. • Multiple sensors per channel. • Absolute measurement. • Low signal loss, sensors may be interrogated for many kilometers. • Signal conditioning equipment has a much smaller foot print.

  9. Micron Optic Sensor Types os4100 Temperature Compensation Gage os3110 Metallic Weldable Strain Gage os4200 Single Ended Calibrated Temperature Gage os3200 Non-Metallic Flexible Strain Gage os4310 Double Ended Calibrated Temperature Gage os3155 Metallic Weldable Strain Gage os4350 Double Ended Calibrated Temperature Gage os1100 Single FBG in polyimide coated fiber os7100 Accelerometer

  10. Micron Optic Interrogators and Controller • 4 channels with a spectral width of 1510 to 1590 nm. Available from 1410 to 1590 nm • 1 hz to 2 khz scanning frequency • Wavelength repeatability 1 pm@1khz, 0.05 pm with 1,000 averages • Power consumption 25 watts, 50 watts max • Operating temperature 0 to 50 degrees C • Available from 1 to 16 channels • 1.4 GHz Pentium, 512 MB DDR, a 32 GB Solid State HD and Windows XP operating system • Peripheral interfaces include USB, Ethernet, RS232/422/485 and a user configurable digital I/O • Provides power management through wake-on-LAN and wake-on-clock functions. Small foot print, mounts directly on the interrogator

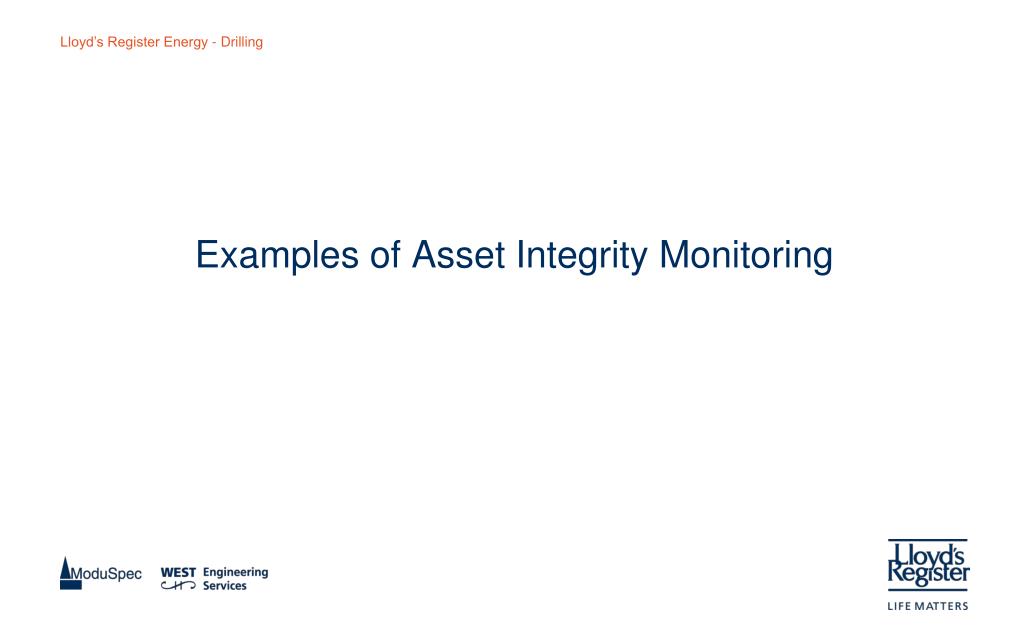

  11. Examples of Asset Integrity Monitoring

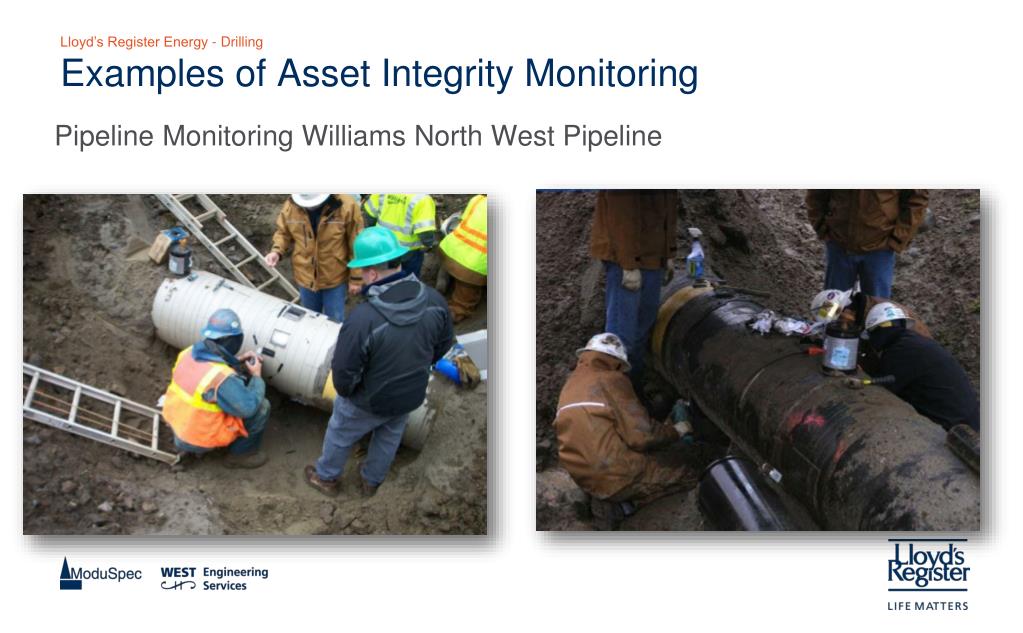

  12. Examples of Asset Integrity Monitoring Pipeline Monitoring Williams North West Pipeline

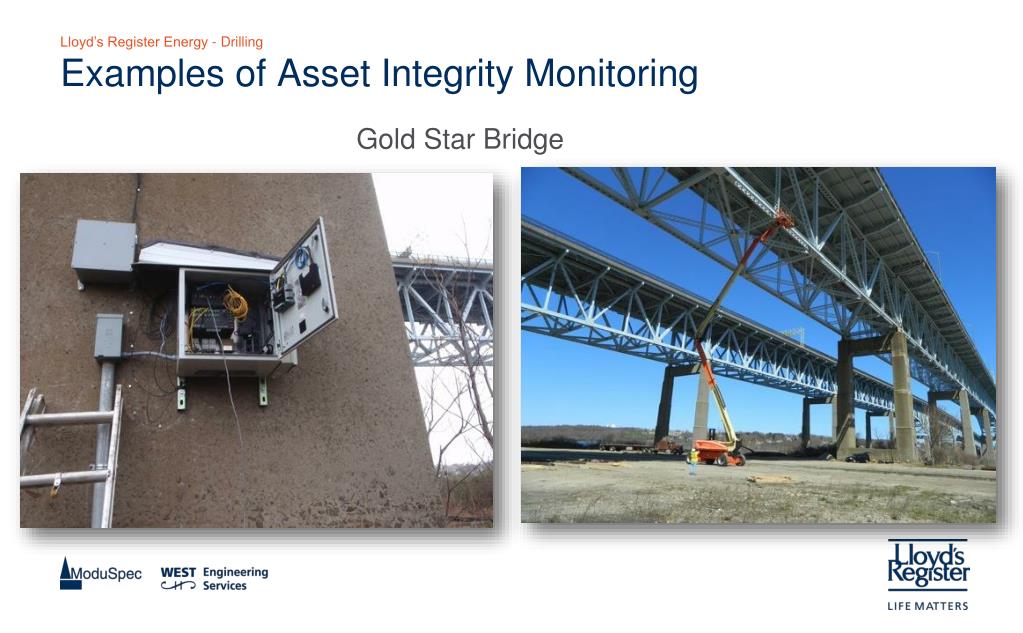

  13. Examples of Asset Integrity Monitoring Gold Star Bridge

  14. Examples of Asset Integrity Monitoring 3.5 MW Clipper Liberty Wind Turbine

  15. Installation of Robert E Ginna Nuclear Plant NEMA 4 Enclosure with splice tray. Instrumented Tendon Os3600 surface mount concrete strain gage and instrumented rebar, located on containment structure just below roof line Roof penetration to instrumentation rack located in room below the roof.

  16. Installation of Robert E Ginna Nuclear Plant Rebar and Concrete Strain Monitoring • A fiber optic strain gage was applied to a currently exposed hoop direction rebar. • A fiber optic concrete strain gage was installed 6” (15 cm) below the rebar excavation in the hoop direction. • These gages are monitored in the same DAS as the tendon monitoring system

  17. Installation at Robert E Ginna Nuclear Plant Shim and tendon with sensors installed for a total of 20 instrumented tendons.

  18. Installation of Robert E Ginna Nuclear Plant Concrete Strain Rebar Strain Rebar and Concrete Monitoring Pre/During/Post Integrated Leak Rate Test Containment Press

  19. Discussion of A Riser Tensioner Monitoring System Installed on the Discovery Luanda

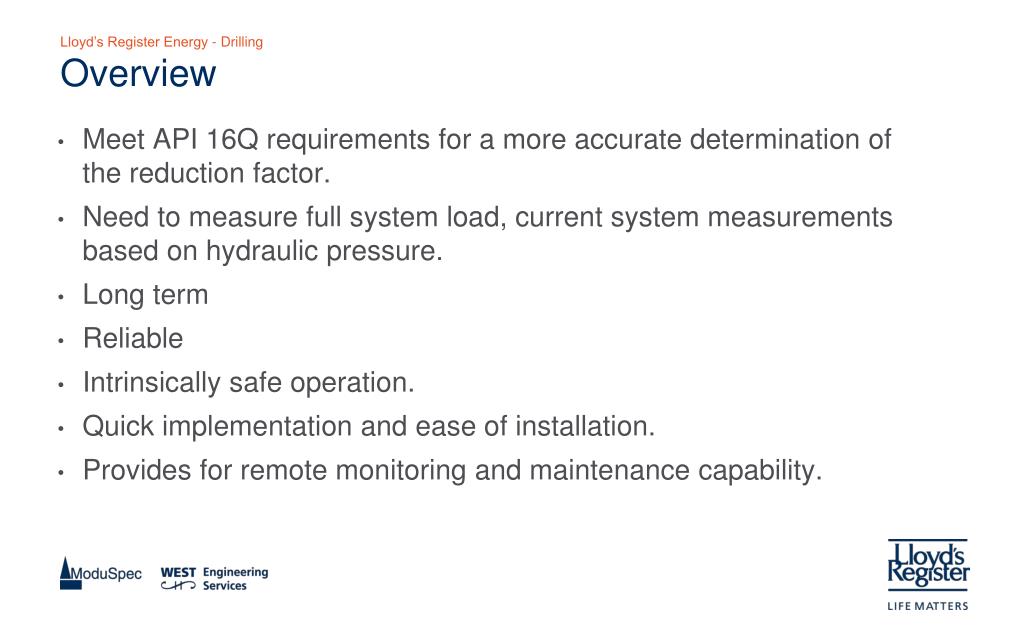

  20. Overview • Meet API 16Q requirements for a more accurate determination of the reduction factor. • Need to measure full system load, current system measurements based on hydraulic pressure. • Long term • Reliable • Intrinsically safe operation. • Quick implementation and ease of installation. • Provides for remote monitoring and maintenance capability.

  21. Functional Description of The Riser Tensioners Top View of Tensioner Layout Under Drill Floor 3 1 2 6 6 5 4

  22. Tensioners of the DSL

  23. Sensor layout for two tensioners

  24. Protection wrapping of sensor locations for transportation to the DSL. Surface preparations and sensor installation.

  25. Sensor locations after tensioner installation on the DSL. • Each tensioner has 3 os3155s 120 degrees apart in the axial direction. • Each tensioner has 1 os3200 in the hoop direction to measure pressure.

  26. Equipment Rack

  27. Acquisition rate is 10 Hz • X Axis represents approximately 2.41 minutes of data • Y Axis = Strain • Waveforms confirm a swell period of ~ 12.5 seconds correlating to ships weather

  28. Conclusion/Discussion • Sensors were installed in the Bosch Rexroth facility in Uden Netherlands in September 2012. • System was commissioned in May 2013. • Sensors were damaged during transport and installation. • Sensor protection not robust enough. • Despite damage, enough survived to acquire loads on each tensioner. • Redundancy in built-in system installation allows for sensor recovery. • Real time calculations and display are within 5% of modeled loads.

  29. Discussion of an Instrumented BOP at West Tech

  30. Overview • LRDIS has instrumented a BOP on site. • We are able to detect the pressure inside the BOP bonnet from a hoop oriented strain sensor. • Also detect dimensional changes in the bonnet due from an axial mounted strain sensor. • Allows us to infer correctly, pressure and operation – • The position of the RAMS, • Fluid flow • Solenoid operation • Regulator operation • Choke and Kill Lines • Fail-safe Valves • Pre-charge on Subsea Accumulators • Etc.

  31. BOP Pipe Ram Located at West Tech

  32. Gage Locations Hoop Gage Pressure Axial Gage Pressure

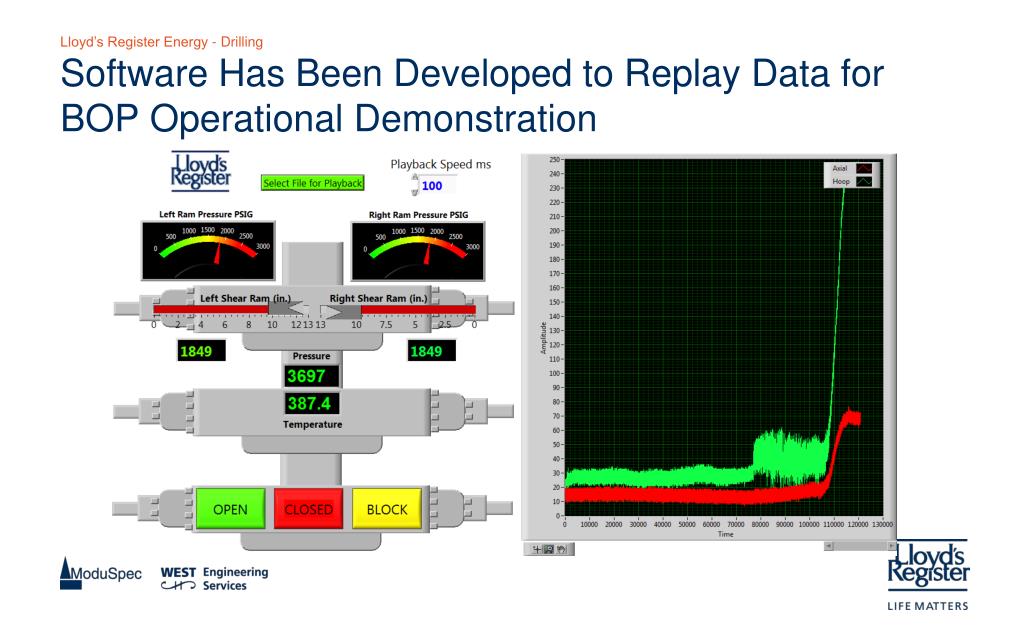

  33. Software Has Been Developed to Replay Data for BOP Operational Demonstration

  34. Hoop gage responds During cylinder pressurization. Axial gage responds after rams engage. • Acquisition rate is 100 Hz • X Axis = Time • Y Axis = Strain

  35. Expanded plot reveals a signature related to a clicking sound, from the bonnet, heard before rams engaged. More testing and analysis to determine source of signal response. This response appears to respond to the MPLs. • Acquisition rate is 1000 Hz • Waveforms could confirm bad bearing, MLPs, etc.? • Possible to count the threads in the piston rod?

  36. Ideal System • Independent of the OEM equipment • Never needs calibration • Doesn’t require local power • Today subsea engineers rely on: • Gallon count • Pressure feedback • Solenoid diagnostics • Tells us strain, temperature, and pressure

  37. Conclusion/Discussion • Sensors were installed in the West Tech facility on a Hydril Pipe Ram. • Testing revealed pressure and mechanical elongation of the bonnet. • Operational information of the BOP was realized. • Software has been developed to replay data acquired during operation to demonstrate operation of the BOP. • More testing needed to baseline the BOP. • This includes installing more sensors on valves, solenoids, accumulators and hydraulic lines.

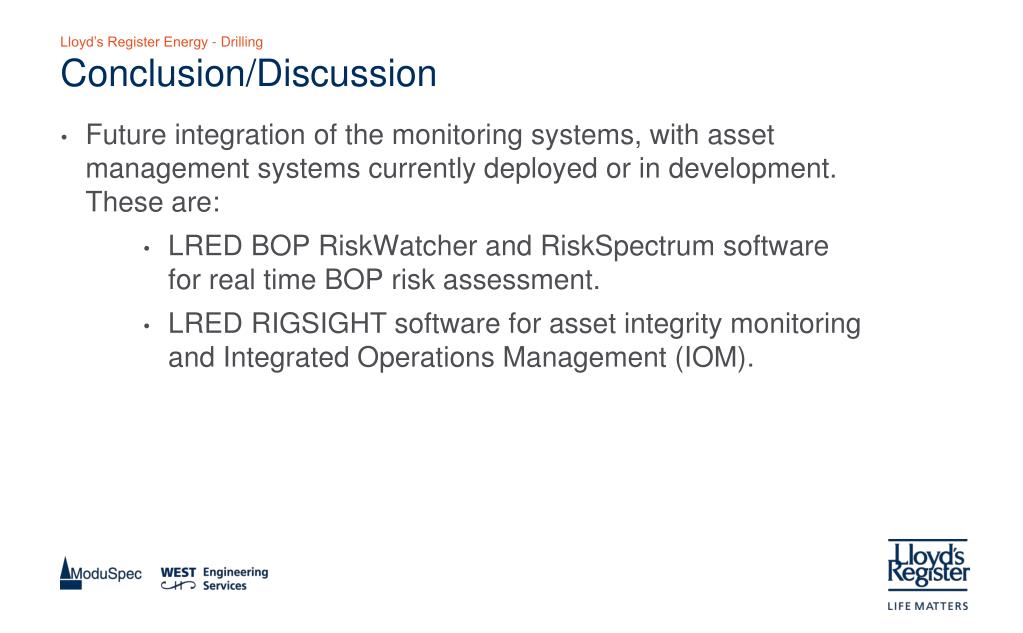

  38. Conclusion/Discussion • Future integration of the monitoring systems, with asset management systems currently deployed or in development. These are: • LRED BOP RiskWatcher and RiskSpectrum software for real time BOP risk assessment. • LRED RIGSIGHT software for asset integrity monitoring and Integrated Operations Management (IOM).

  39. Acknowledgments • Williams (End customer) • Durham Geo Slope Indicator (DGSI) • Tel: 800-837-0864, email: dge-solutions@durhamgeo.com, web: www.durhamgeo.com • Micron Optics, Inc • Tel: 404-325-0005, email: info@micronoptics.com, web: www.micronoptics.com • University Of Minnesota • Jeff Marr Tel (612) 624-4427, email: marrx003@umn.edu • Sandia National Laboratories • Jonathan White Tel (505) 284-5400, email: jonwhit@sandia.gov • Transocean • Aaron Barr Tel (713-232-7959), email: aaron.barr@deepwater.com • WEST Drilling Equipment Center • (T) 281 375 5515
