slide1

C&B Technology Inc.

DATE : 31. May. ‘01

REVISION No. 1.0

MESSRS.

APPROVAL SHEET

DESCRIPTION : CCD Color Board Camera

SET MODEL NO. : CNB - EN300, 350,300C,350C ( NTSC )

CNB - EP300,350,300C,350C ( PAL )

Receipt Stamp

ISSUED

CHECKED

APPROVED

slide2

C&B Technology Inc.

CNB-EN300/300C/350350C, EP300/300C/350350C Specifications

REVISION CONTENTS

NO

REVISION CONTENTS

REVISION DATE

Page

REMARKS

slide3

C&B Technology Inc.

CNB-EN300/300C/350350C, EP300/300C/350350C Specifications

CCD COLOR BOARD CAMERA

CNB – E N 3 0 0 C V

4

1

2

3

N : NTSC

P : PAL

1

0 : HIGH

5 : NORMAL

2

C : C/CS MOUNT LENS

P : PIN HOLE LENS

V : VARI-FOCAL LENS

3

V : VIDEO IRIS

D : DC IRIS

4

CONTENTS

PAGE

1. SPECIFICATIONS------------------------------------------------------------ 2

2. MEASUREMENT SPECIFICATIONS------------------------------------ 4

3. ENVIRONMENT CONDITION AND TEST----------------------------- 4

4. INTERFACE------------------------------------------------------------------- 5

5. RECOMMENDED CIRCUIT FOR LOCAL CONTROLS------------ 6

6. APPEARANCE---------------------------------------------------------------- 9

7. PACKING METHOD--------------------------------------------------------- 10

1/10

slide4

C&B Technology Inc.

CNB-EN300/300C/350350C, EP300/300C/350350C Specifications

1. SPECIFICATIONS

REMARKS

Signal System

NTSC ( CNB - EN300/C )

PAL ( CNB - EP300/C )

Scanning System

2 : 1 Interlace

Scanning Frequency ( H )

15.734 KHz

15.625 KHz

Scanning Frequency ( V )

59.94 Hz

50 Hz

Image Sensor

1 / 3 Inch Solid State Interline CCD Image Sensor

SONY

Total Pixels No.

811 (H) X 508 (V) 410K

795 (H) X 596 (V) 470K

Effective Pixels No.

768 (H) X 494 (V) 380K

752 (H) X 582 (V) 440K

REMARKS

Signal System

NTSC ( CNB - EN350/C)

PAL ( CNB - EP350/C )

Scanning System

2 : 1 Interlace

Scanning Frequency ( H )

15.734 KHz

15.625 KHz

Scanning Frequency ( V )

59.94 Hz

50 Hz

Image Sensor

1 / 3 Inch Solid State Interline CCD Image Sensor

SONY

Total Pixels No.

537 (H) X 505 (V) 270K

537 (H) X 597 (V) 320K

Effective Pixels No.

510 (H) X 492 (V) 250K

500 (H) X 582 (V) 290K

“ Bold : Default Mode ”

1) Angle of view at Diagonal 88。 ( f= 3.8 mm ) 60。 ( f= 5.8 mm )

2) Signal Process Digital Signal Process

3) Sync System Internal / External

4) Camera Function

a) Digital Zoom ON / Off ( 3 times )

b) Video Focus Focus free from 0.1m( f= 3.8 mm ) ,0.4m(f= 5.8 mm ) to ∞

c) White Balance Auto / Indoor / Outdoor / Push Auto / Manual ( R&B Gain Level UP/Down )

Special ( R or B Gain Level Control )

c) Shutter Speed Auto / Manual (1/60 ~ 1/ 10000 ( NTSC) / 1/50 ~ 1/10000 (PAL) )

d) Iris Control Fixed / Manual ( Video Iris, DC Iris Optional)

e) Gain Control Auto / Off

f) Sharpness Manual ( Sharpness UP ~ Down )

g) Brightness Manual ( Brightness UP ~ Down )

h) Negative Off / On

i) Flickerless Off / On ( 1 / 100 sec Shutter Set (NTSC) / 1 / 120 sec Shutter Set (PAL) )

j) Back Light Auto / Off / On

2/10

slide5

C&B Technology Inc.

CNB-EN300/300C/350350C, EP300/300C/350350C Specifications

5) Video Output Level

NTSC

Video Level

0.714 ± 0.07V ( 100 ± 10 IRE)

Sync Level

0.286 ± 0.035V ( 40 ± 10 IRE)

Burst Level

0.286 ± 0.035V ( 40 ± 10 IRE)

PAL

Video Level

700 ± 70 mV

Sync Level

300 ± 35 mV

Burst Level

300 ± 35 mV

6) Color Reproduction

COLOR

RED

BLUE

YELLOW

BURST

NTSC

Amplitude ( % )

200 ± 40 %

130 ± 40 %

115 ± 40 %

100 %(Base)

Phase ( 。 )

103 ± 20。

345 ± 20。

170 ± 20。

180。(Base)

PAL

Amplitude ( % )

200 ± 40 %

130 ± 40 %

115 ± 40 %

100 %(Base)

Phase ( 。 )

103 ± 20。

345 ± 20。

170 ± 20。

135。(Base)

7) Horizontal Resolution More than 470 Lines ( CNB-EN300/C,EP300/C )

More than 380 Lines ( CNB-EN350/C,EP350/C )

9) Sensitivity Typ. 0.5Lux ---- At signal Level 30 IRE

( LENS-F : F = 1.4 ( WIDE ) AGC Gain : Max )

8) Luminance S/N More than 48dB

10) Supplied Voltage 9.0 V ~ 15.0 V ( Recommendation 12.0 V ± 0.5 V )

11) Supplied Current 150mA

12) Power consumption 2.0 W (Max)

13) Dimensions 38.0 (W) × 38.0 (H) × 28.0(D) mm

14) Weight 25 g ( Approx. )

16) Appearance / Dimensions See Attached Page 8.

17) Packing Method See Attached Page 9.

3/10

slide6

C&B Technology Inc.

CNB-EN300/300C/350350C, EP300/300C/350350C Specifications

2. MEASUREMENT SPECIFICATIONS

* Standard Measurement Condition and Measurement Procedure

See an Annexed Document “ APPENDIX 2 ”

3. ENVIRONMENT CONDITION AND TEST

1) Operating Condition Temperature -10 。C ~ 50。C ( Recommendation : - 5 。C ~ 40。C )

Humidity 10 % ∼ 85 %

2) Storage Condition Temperature -20 。C ~ 60。C

Humidity 0 % ∼ 90 %

3) High Temperature storage Test

Leaving the packed at Temperature of 60。C for 72 Hours, and after leaving it at

Normal Temperature for 8 Hours, there should be no Problem in Performance.

4) Low Temperature storage Test

Leaving the packed at Temperature of -20。C for 72 Hours, and after leaving it at

Normal Temperature for 8 Hours, there should be no Problem in Performance.

4/10

slide7

C&B Technology Inc.

CNB-EN300/300C/350350C, EP300/300C/350350C Specifications

4. INTERFACE

1) Pin Assignment ( J204, 7 Pin Connector ; Maker Molex/Yenho , 12512WS-07A00,Pitch 1.25 mm )

PIN No.

I/O

Note

NAME

1.0 Vp-p at 75Ω

Output

1

VIDEO OUT

2

GND (For Video)

3

9 V ~ 15 V ( Recommendation 12±0.5 V )

DC IN (ALIVE)

Input

See Attached Page 6.

4

Input

A/D KEY

5

GND

6

Input

See Attached Page 6.

Line VD

7

Output

5V OUT

FOR AC 24V Line VD(Not used)

2) Pin Assignment ( J203, 4 Pin Connector ; Maker Molex / Yenho, 12505WS-04A00,Pitch 1,25 mm )

: RS-232C TTL

See an Annexed Document “ APPENDIX 3 ” (PROTOCOL)

PIN No.

I/O

LEVEL

NAME

CMOS Level 5V ( Low : Max 0.8V , High : Min 3.7V )

1

RD(For RS-232C)

Input

CMOS Level 5V ( Low : Max 0.8V , High : Min 3.7V )

2

TD(For RS- 232C)

Output

3

Output

5V

FOR RS-232C ( Not used)

4

GND

FOR RS-232C

3) Pin Assignment ( J205, 4 Pin Connector ; Maker Molex / Yenho , 12505WS-04A00, 1.25 mm )

* Optional DC/VIDEO TYPE

PIN No.

LEVEL

DC IRIS

VIDEO IRIS

1

N.C

DAMP +

2

12V

DAMP -

3

V. LEVEL

DRIVE +

4

GND

GND

5/10

slide8

C&B Technology Inc.

CNB-EN300/300C/350350C, EP300/300C/350350C Specifications

5. RECOMMENDED CIRCUIT FOR LOCAL CONTROLS

1) Selectable KEY Function

NO.

Function

NO.

Function

1

Tele (Digital Zoom)

16

Backlight On / Off

2

Wide (Digital Zoom)

17

Color / Black

3

Pan Right

18

Initial Set

4

Pan Left

19

Power On / Off

5

Tilt Up

20

6

Tilt Down

21

7

Auto Pan

22

Flickerless On /Off

8

Auto Tilt

23

9

24

Red control

10

WB Push Auto

25

Blue control

11

Brightness (Negative) Control ( + )

26

Mirror

12

Brightness (Negative) Control ( - )

27

Auto Zoom

13

Sharpness Control ( + )

28

AGC On/Off

14

Sharpness Control ( - )

29

15

Positive / Negative

30

1-1) KEY Function

J204

0.01uF

6.8K

8.2K

12K

18K

33K

68K

180K

A/D KEY

4

POWER

ON/OFF

TELE(+)

WIDE(-)

COLOR /

BLACK

Auto

Pan

Initial Set

Auto

Tilt

MIRROR

2 ) Line In Pulse ( EX. FV)

5 V

0 V

Min : 200 nsec

60 Hz ± 0.25 Hz ( NTSC )

50 Hz ± 0.25 Hz ( PAL)

A) Pulse- Signal Spec of EX.FV

6/10

slide9

C&B Technology Inc.

CNB-EN300/300C/350350C, EP300/300C/350350C Specifications

3) PWB LAY OUT (CSP BOARD)

VR201

SW201

LOW

HIGH

DC LEVEL

1 2 3 4

4

IC 204

J205

1

7

J204

1

1

4

J203

4) SW Assignment ( SW201:MSH-04)

LOW

PIN No.

LOW

HIGH

BLC ON

BLC OFF

1

2

ELC

ALC

1

2

3

4

AGC ON

AGC OFF

3

Digital Zoom x1

Digital Zoom x2

4

HI

7/10

slide10

C&B Technology Inc.

CNB-EN300/300C/350350C, EP300/300C/350350C Specifications

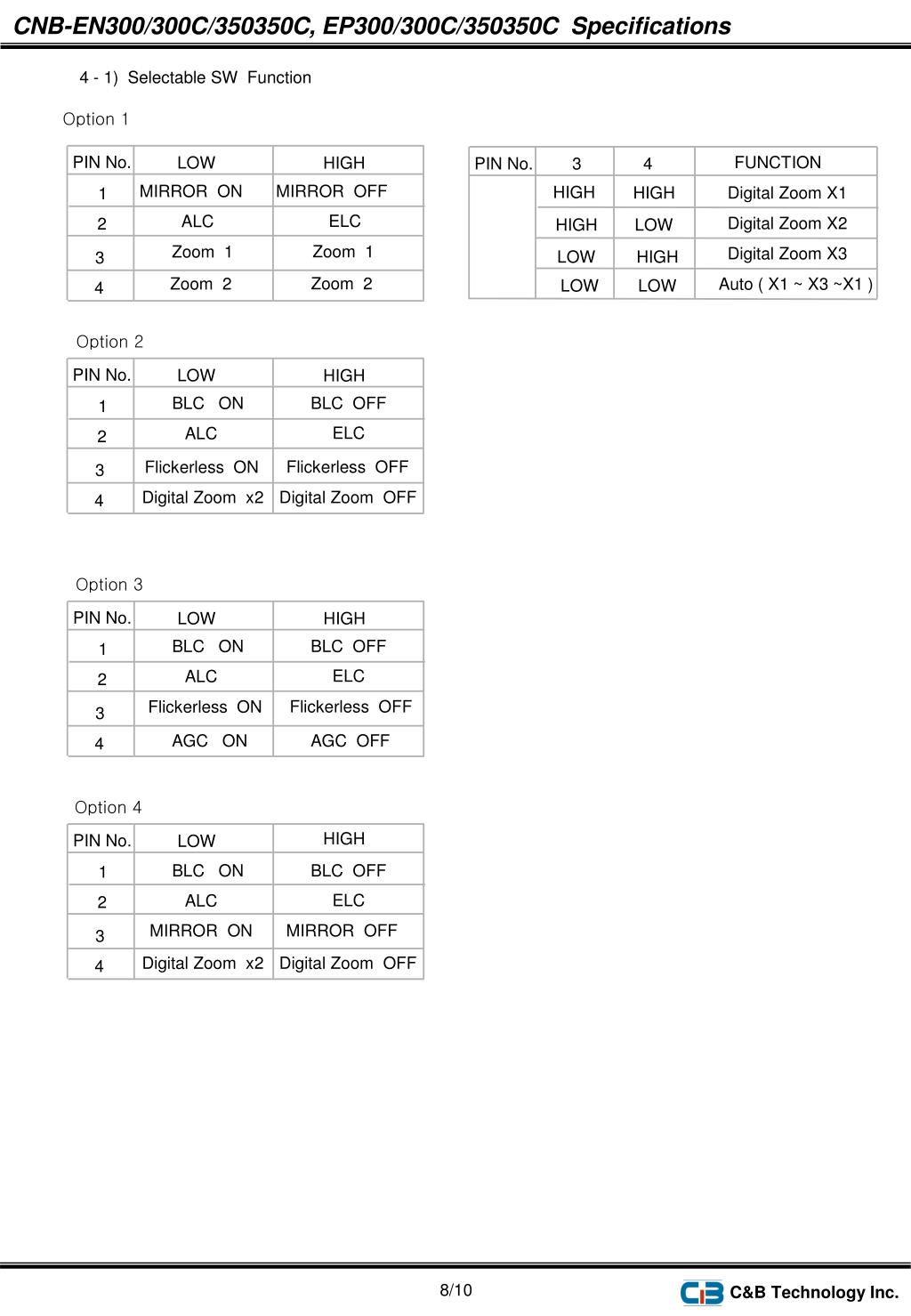

4 - 1) Selectable SW Function

Option 1

PIN No.

PIN No.

3

4

FUNCTION

LOW

HIGH

MIRROR ON

MIRROR OFF

HIGH

1

HIGH

Digital Zoom X1

ELC

ALC

2

Digital Zoom X2

HIGH

LOW

Zoom 1

Zoom 1

Digital Zoom X3

3

LOW

HIGH

Zoom 2

Zoom 2

Auto ( X1 ~ X3 ~X1 )

LOW

LOW

4

Option 2

PIN No.

LOW

HIGH

BLC ON

BLC OFF

1

ELC

ALC

2

Flickerless OFF

Flickerless ON

3

Digital Zoom x2

Digital Zoom OFF

4

Option 3

PIN No.

LOW

HIGH

BLC ON

BLC OFF

1

ELC

ALC

2

Flickerless OFF

Flickerless ON

3

AGC ON

AGC OFF

4

Option 4

PIN No.

HIGH

LOW

BLC ON

BLC OFF

1

ELC

ALC

2

MIRROR ON

MIRROR OFF

3

Digital Zoom x2

Digital Zoom OFF

4

8/10

slide11

C&B Technology Inc.

CNB-EN300/300C/350350C, EP300/300C/350350C Specifications

6. APPEARANCE

9/10

slide12

C&B Technology Inc.

CNB-EN300/300C/350350C, EP300/300C/350350C Specifications

7. PACKING METHOD

10/10

slide13

C&B Technology Inc.

APPENDIX 2

DATE : 17. May. ‘01

REVISION No. 0.9

Measurement Specifications

MODEL

CNB - EN300/C, 350/C CNB - EP300/C, 350/C

slide14

C&B Technology Inc.

CNB-EN300/300C/350350C, EP300/300C/350350C Specifications

1. MEASUREMENT CONDITIONS

1) Standard Measurement Conditions

Supplied Voltage DC 12V ± 0.5 V

Ambient Temperature 23 ℃

Humidity 60 % RH

Measurement Fixture Video output , DC input , RS-232C level Convert ( 5Vpp -> 12Vpp)

Power Supply 12V ± 0.5 V

Color Monitor CMM20 - 11 , Shibasoku or Equivalent

Monochrome Monitor More than 800 TV Lines Horizontal Resolution

Waveform Monitor /

Vector Scope 1720 , Tektronix ( NTSC / EIA ) or Equivalent

1730 , Tektronix ( PAL / CCIR ) or Equivalent

S / N ( Signal to Noise )Meter VN31AX , Shibasoku ( NTSC/PAL/EIA/CCIR ) or Equivalent

Illumination Meter /

Color Temperature Meter XY-1 / CL-100 , Minolta Camera or Equivalent

Light Box Dai Nippon Printing Co.

- Color Temperature 3200。K ± 100 。K

- Illumination More than 2000 Lux

Test Charts ( Transparent Chart )

Color Bar Chart , Dai Nippon Printing Co.

Gray Scale Chart , Dai Nippon Printing Co. ( Gamma 0.45 )

Resolution Chart , Dai Nippon Printing Co. ( Reflective Chart )

Gray Scale Chart , Murakami Color Research Lab

Light Source Halogen Lamp ( with Dimmer Switch )

- Color Temperature 3200。K ± 100 。K

- Illumination Variable with Dimmer

Color Temperature Filter LB 140 , Hoya or Kenko or Equivalent

( Color Temperature Conversion Filter )

Adjustment PC With Serial Port 1 or 2

RS-232C Cable Each Terminal Connector ( D-Sub 9 Pin )

E

Q

U

I

P

M

E

N

T

S

2. Measuring System

1) System 1.

Camera

FFC

Measurement

Fixture

Color

Monitor

Light Box

PC with

Serial Port

Waveform /

Vector scope

Monochrome

Monitor

2) System 2.

Light Source

Camera

Same as above System 1.

Reflective Chart

1/5

slide15

C&B Technology Inc.

CNB-EN300/300C/350350C, EP300/300C/350350C Specifications

2. MEASUREMENT PROCEDURE

1. VIDEO OUPUT LEVEL

TEST CONDITIONS

Refer to “ 1. MEASUREMENT CONDITIONS “

MEASURING SYSTEM

System 1.

PROCEDURE :

  • Shoot the gray scale chart , and move the camera to fit a scene of monitor fully and bring
  • the chart into focus.
  • 2. Measure the video output level on the waveform monitor
  • ( Before the above measurement , Measure the SYNC and BURST level )

A

C

B

( Fig 1. ) Video Output Waveform

SPECIFICATION :

NTSC

Video Level A

100 ± 10 IRE

Sync Level B

40 ± 5 IRE

Burst Level C

40 ± 5 IRE

PAL

Video Level A

700 ± 70 mV

Sync Level B

300 ± 35 mV

Burst Level C

300 ± 35 mV

2/5

slide16

C&B Technology Inc.

CNB-EN300/300C/350350C, EP300/300C/350350C Specifications

2. COLOR REPRODUCTION

TEST CONDITIONS

Refer to “ 1. MEASUREMENT CONDITIONS “

MEASURING SYSTEM

System 1.

PROCEDURE :

1. Shoot the color bar chart , and move the camera to fit a scene of monitor fully and bring

the chart into focus.

2. Measure the color amplitude and color phase on the vector scope of Red,Blue,Yellow .

( Before the above measurement , Adjust the burst amplitude and phase on the vectorscope

so that the burst level becomes 100% and its phase becomes 180 。 (NTSC) (135 。 PAL)

( Fig 2. ) Video Output Waveform

( Fig 3. ) Video Output Color Vector

SPECIFICATION :

COLOR

RED

BLUE

YELLOW

BURST

NTSC

Amplitude ( % )

200 ± 40 %

130 ± 40 %

115 ± 40 %

100 %

Phase ( 。 )

103 ± 20。

345 ± 20。

170 ± 20。

180。

PAL

Amplitude ( % )

200 ± 40 %

130 ± 40 %

115 ± 40 %

100 %

Phase ( 。 )

103 ± 20。

345 ± 20。

170 ± 20。

135。

3/5

slide17

C&B Technology Inc.

CNB-EN300/300C/350350C, EP300/300C/350350C Specifications

3. LUMINANCE S / N

TEST CONDITIONS

Refer to “ 1. MEASUREMENT CONDITIONS “

MEASURING SYSTEM

System 1.

PROCEDURE :

1. Shoot the light box , and move the camera to fit a scene of monitor fully and bring

the chart into focus.

2. The noise meter settings are ;

Input level : Preset

High Pass Filter : 100KHz

Low Pass Filter : 4.2 MHz

Sub-carrier Trap : On

Weighting : On

Sag & Hue Comp. : Optimum

3. Measure the maximum S/N on the noise meter .

SPECIFICATION :

NTSC : More than 48 dB

PAL : More than 48 dB

4. HORIZONTAL RESOLUTION

TEST CONDITIONS

Refer to “ 1. MEASUREMENT CONDITIONS “

MEASURING SYSTEM

System 1.

PROCEDURE :

1. Shoot the resolution chart , and move the camera to fit a scene of monitor fully and bring

the chart into focus.

2. Adjust the brightness and contrast of the B/W monitor so that each steps of resolution chart

can be observed .

3. Change the scan size of monitor to underscan.

4. The reference arrows on the resolution chart are positioned at theedge of the underscanned

picture .

5. Change the scan size of monitor from underscan to overscan .

6. Measure the maximum horizontal resolution on the picture .

SPECIFICATION :

More than 470 TV Lines ( High Resolution )

More than 380 TV Lines ( Normal Resolution )

4/5

slide18

C&B Technology Inc.

CNB-EN300/300C/350350C, EP300/300C/350350C Specifications

5. LOW LUMINANCE SENSITIVITY

TEST CONDITIONS

Refer to “ 1. MEASUREMENT CONDITIONS “

MEASURING SYSTEM

System 2.

PROCEDURE :

1. Shoot the gray scale chart ( reflective ), and move the camera to fit a scene of monitor fully and bring the chart into focus.

2. Adjust the brightness of the light source by using the dimmer switch so that the white peak level

of the chart becomes 30 IRE ( NTSC ) ,( 210 mV ,PAL) on the waveform monitor .

3. Measure the level of illumination by using the illumination meter .

SPECIFICATION :

NTSC (HI) : 0.5 Lux ( 30 IRE )

PAL (HI) : 0.5 Lux ( 210 mV )

NTSC (Normal) : 0.1 Lux ( 30 IRE )

PAL (Normal) : 0.1 Lux ( 210 mV )

5/5
