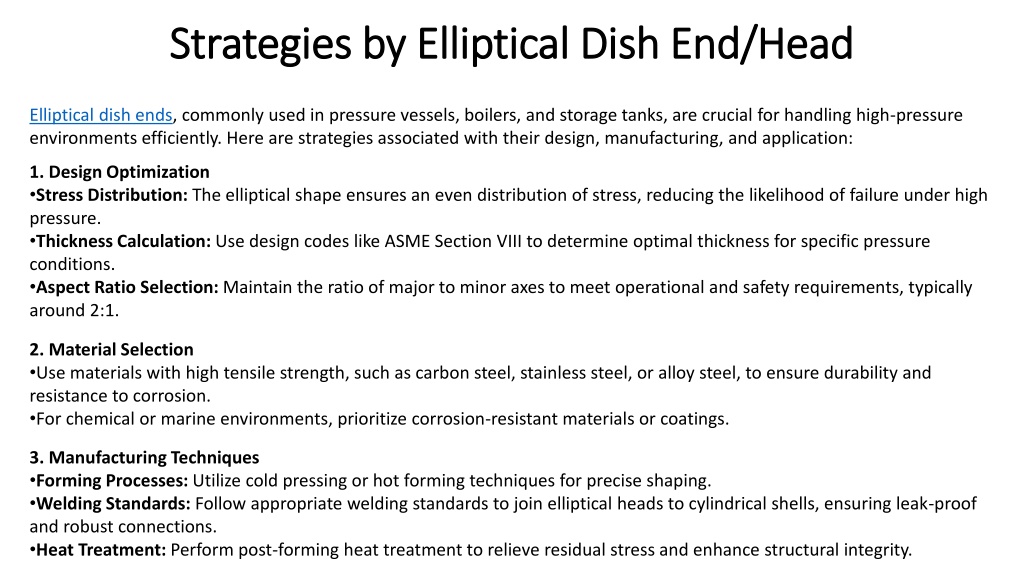

  1. Strategies by Elliptical Dish End/Head Elliptical dish ends, commonly used in pressure vessels, boilers, and storage tanks, are crucial for handling high-pressure environments efficiently. Here are strategies associated with their design, manufacturing, and application: • 1. Design Optimization • Stress Distribution: The elliptical shape ensures an even distribution of stress, reducing the likelihood of failure under high pressure. • Thickness Calculation: Use design codes like ASME Section VIII to determine optimal thickness for specific pressure conditions. • Aspect Ratio Selection: Maintain the ratio of major to minor axes to meet operational and safety requirements, typically around 2:1. • 2. Material Selection • Use materials with high tensile strength, such as carbon steel, stainless steel, or alloy steel, to ensure durability and resistance to corrosion. • For chemical or marine environments, prioritize corrosion-resistant materials or coatings. • 3. Manufacturing Techniques • Forming Processes: Utilize cold pressing or hot forming techniques for precise shaping. • Welding Standards: Follow appropriate welding standards to join elliptical heads to cylindrical shells, ensuring leak-proof and robust connections. • Heat Treatment: Perform post-forming heat treatment to relieve residual stress and enhance structural integrity.

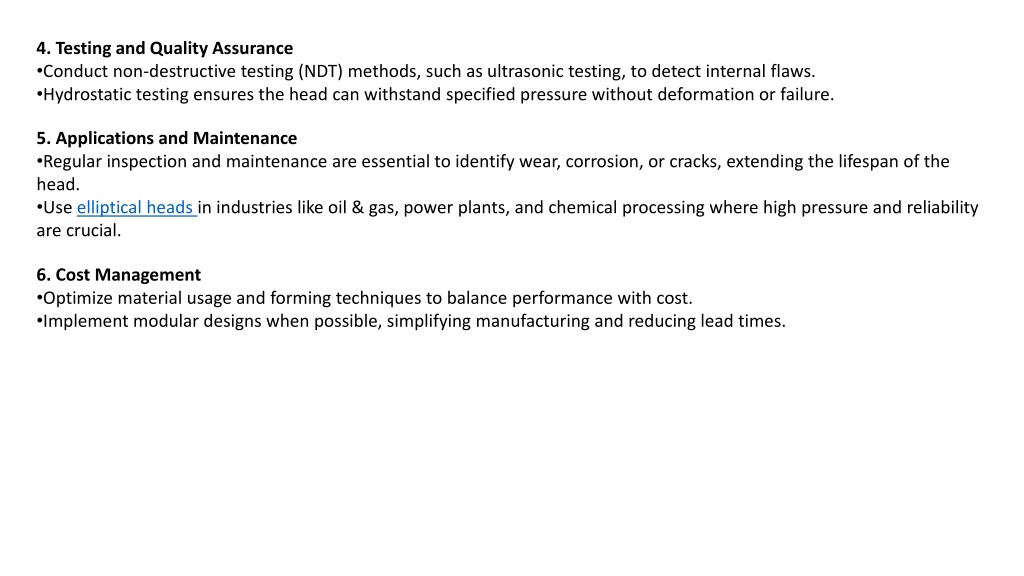

  2. 4. Testing and Quality Assurance • Conduct non-destructive testing (NDT) methods, such as ultrasonic testing, to detect internal flaws. • Hydrostatic testing ensures the head can withstand specified pressure without deformation or failure. • 5. Applications and Maintenance • Regular inspection and maintenance are essential to identify wear, corrosion, or cracks, extending the lifespan of the head. • Use elliptical heads in industries like oil & gas, power plants, and chemical processing where high pressure and reliability are crucial. • 6. Cost Management • Optimize material usage and forming techniques to balance performance with cost. • Implement modular designs when possible, simplifying manufacturing and reducing lead times.

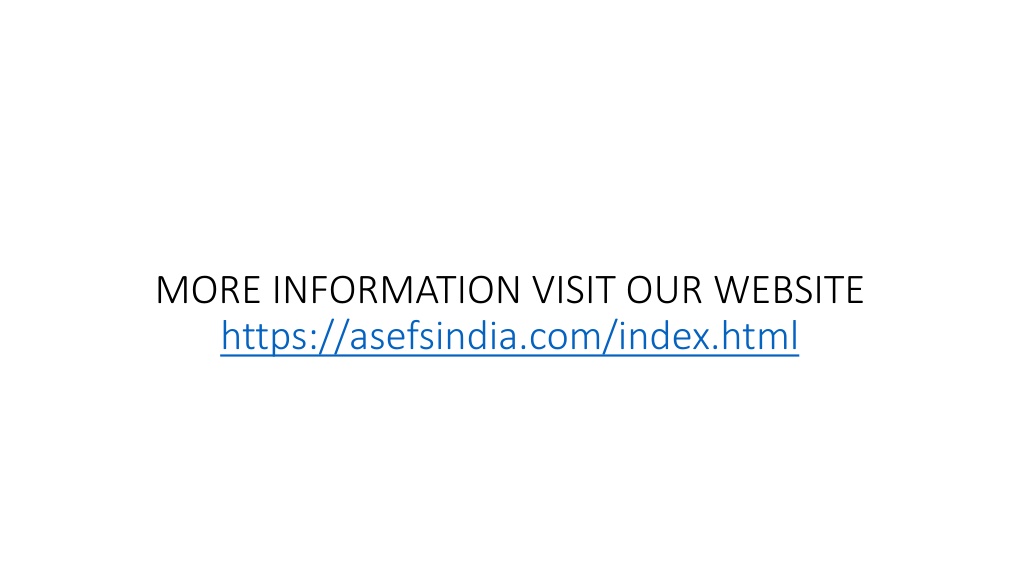

  3. MORE INFORMATION VISIT OUR WEBSITEhttps://asefsindia.com/index.html
