Storage tank corrosion prevention

Preventing corrosion in storage tanks requires a combination of protective coatings, cathodic protection, regular inspections, and proper environmental control. These methods extend tank lifespan, improve safety, and reduce maintenance costs.<br>

pooja277
Download Presentation

Storage tank corrosion prevention

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

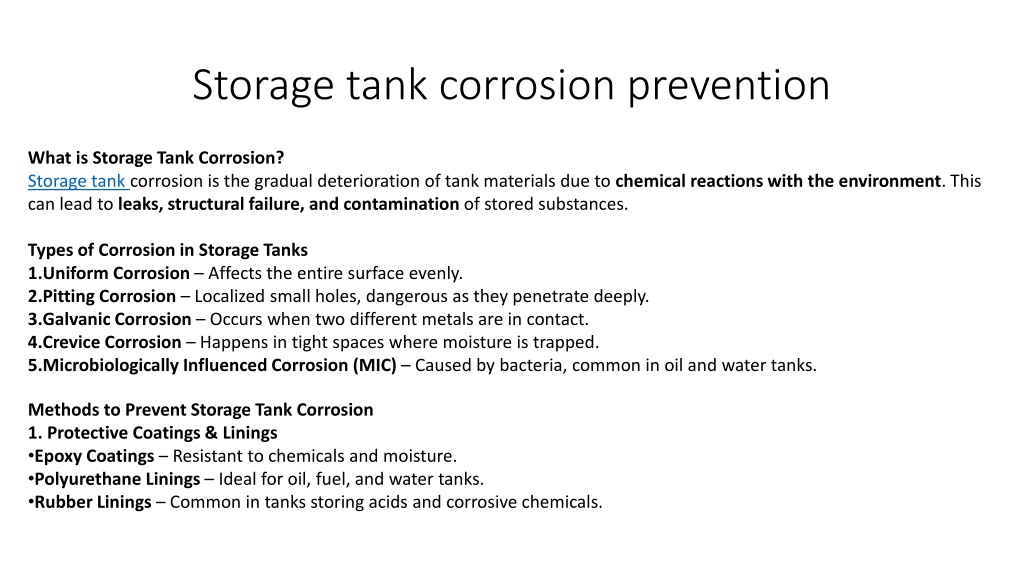

  1. Storage tank corrosion prevention What is Storage Tank Corrosion? Storage tank corrosion is the gradual deterioration of tank materials due to chemical reactions with the environment. This can lead to leaks, structural failure, and contamination of stored substances. Types of Corrosion in Storage Tanks Uniform Corrosion – Affects the entire surface evenly. Pitting Corrosion – Localized small holes, dangerous as they penetrate deeply. Galvanic Corrosion – Occurs when two different metals are in contact. Crevice Corrosion – Happens in tight spaces where moisture is trapped. Microbiologically Influenced Corrosion (MIC) – Caused by bacteria, common in oil and water tanks. • Methods to Prevent Storage Tank Corrosion • 1. Protective Coatings & Linings • Epoxy Coatings – Resistant to chemicals and moisture. • Polyurethane Linings – Ideal for oil, fuel, and water tanks. • Rubber Linings – Common in tanks storing acids and corrosive chemicals.

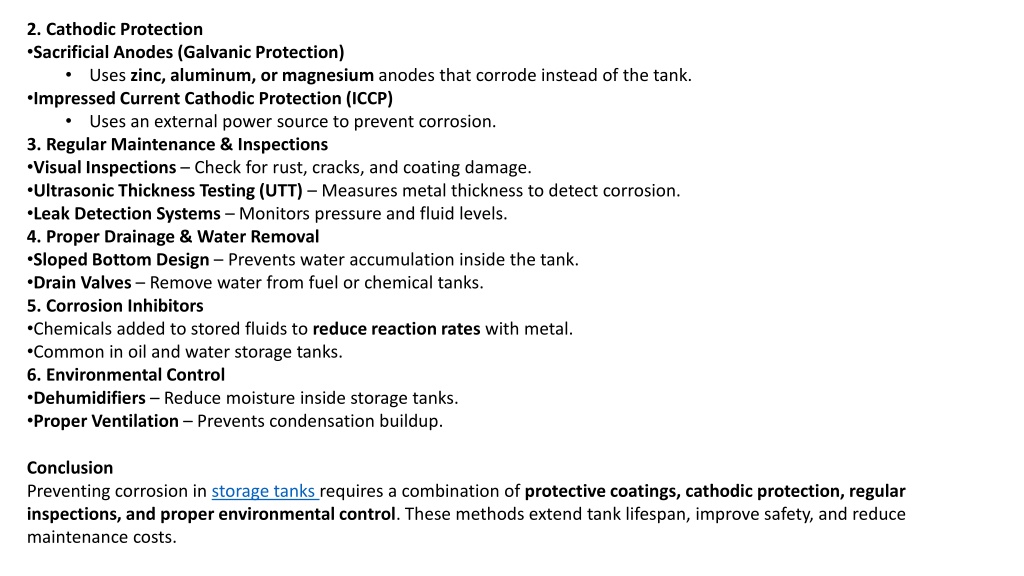

  2. 2. Cathodic Protection • Sacrificial Anodes (Galvanic Protection) • Uses zinc, aluminum, or magnesium anodes that corrode instead of the tank. • Impressed Current Cathodic Protection (ICCP) • Uses an external power source to prevent corrosion. • 3. Regular Maintenance & Inspections • Visual Inspections – Check for rust, cracks, and coating damage. • Ultrasonic Thickness Testing (UTT) – Measures metal thickness to detect corrosion. • Leak Detection Systems – Monitors pressure and fluid levels. • 4. Proper Drainage & Water Removal • Sloped Bottom Design – Prevents water accumulation inside the tank. • Drain Valves – Remove water from fuel or chemical tanks. • 5. Corrosion Inhibitors • Chemicals added to stored fluids to reduce reaction rates with metal. • Common in oil and water storage tanks. • 6. Environmental Control • Dehumidifiers – Reduce moisture inside storage tanks. • Proper Ventilation – Prevents condensation buildup. Conclusion Preventing corrosion in storage tanks requires a combination of protective coatings, cathodic protection, regular inspections, and proper environmental control. These methods extend tank lifespan, improve safety, and reduce maintenance costs.
