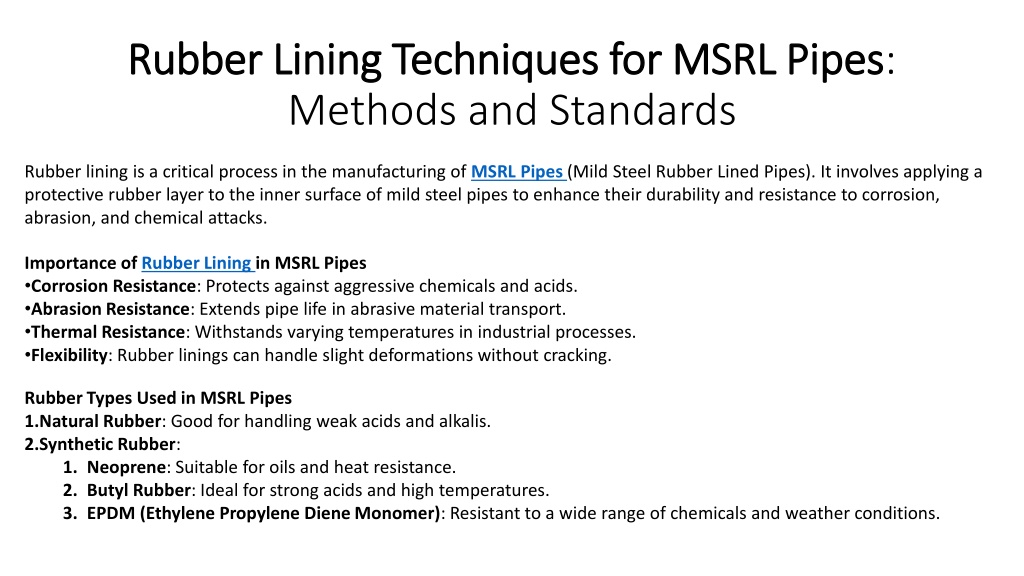

  1. Rubber Lining Techniques for MSRL Pipes: Methods and Standards Rubber lining is a critical process in the manufacturing of MSRL Pipes(Mild Steel Rubber Lined Pipes). It involves applying a protective rubber layer to the inner surface of mild steel pipes to enhance their durability and resistance to corrosion, abrasion, and chemical attacks. • Importance of Rubber Lining in MSRL Pipes • Corrosion Resistance: Protects against aggressive chemicals and acids. • Abrasion Resistance: Extends pipe life in abrasive material transport. • Thermal Resistance: Withstands varying temperatures in industrial processes. • Flexibility: Rubber linings can handle slight deformations without cracking. • Rubber Types Used in MSRL Pipes • Natural Rubber: Good for handling weak acids and alkalis. • Synthetic Rubber: • Neoprene: Suitable for oils and heat resistance. • Butyl Rubber: Ideal for strong acids and high temperatures. • EPDM (Ethylene Propylene Diene Monomer): Resistant to a wide range of chemicals and weather conditions.

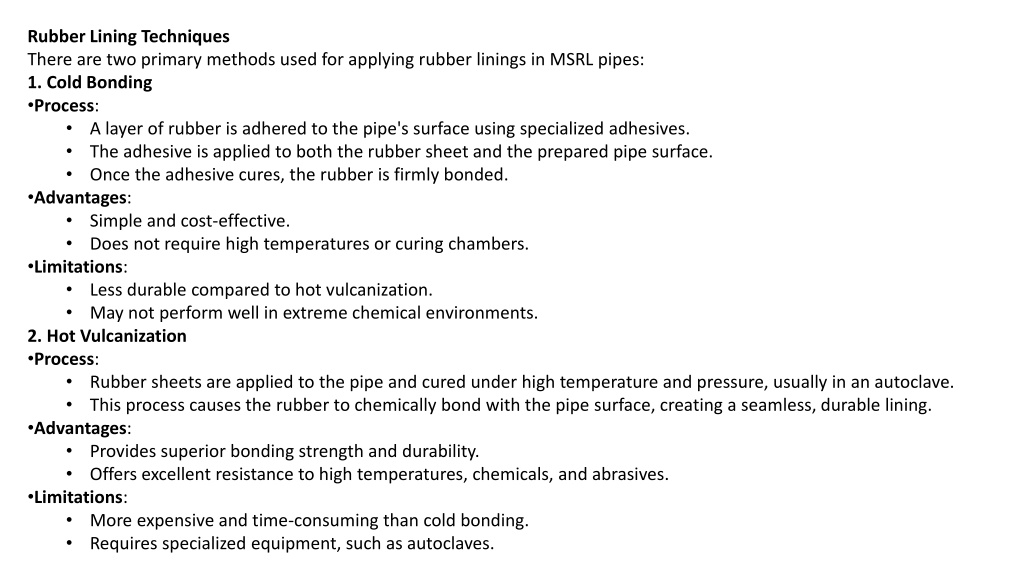

  2. Rubber Lining Techniques • There are two primary methods used for applying rubber linings in MSRL pipes: • 1. Cold Bonding • Process: • A layer of rubber is adhered to the pipe's surface using specialized adhesives. • The adhesive is applied to both the rubber sheet and the prepared pipe surface. • Once the adhesive cures, the rubber is firmly bonded. • Advantages: • Simple and cost-effective. • Does not require high temperatures or curing chambers. • Limitations: • Less durable compared to hot vulcanization. • May not perform well in extreme chemical environments. • 2. Hot Vulcanization • Process: • Rubber sheets are applied to the pipe and cured under high temperature and pressure, usually in an autoclave. • This process causes the rubber to chemically bond with the pipe surface, creating a seamless, durable lining. • Advantages: • Provides superior bonding strength and durability. • Offers excellent resistance to high temperatures, chemicals, and abrasives. • Limitations: • More expensive and time-consuming than cold bonding. • Requires specialized equipment, such as autoclaves.

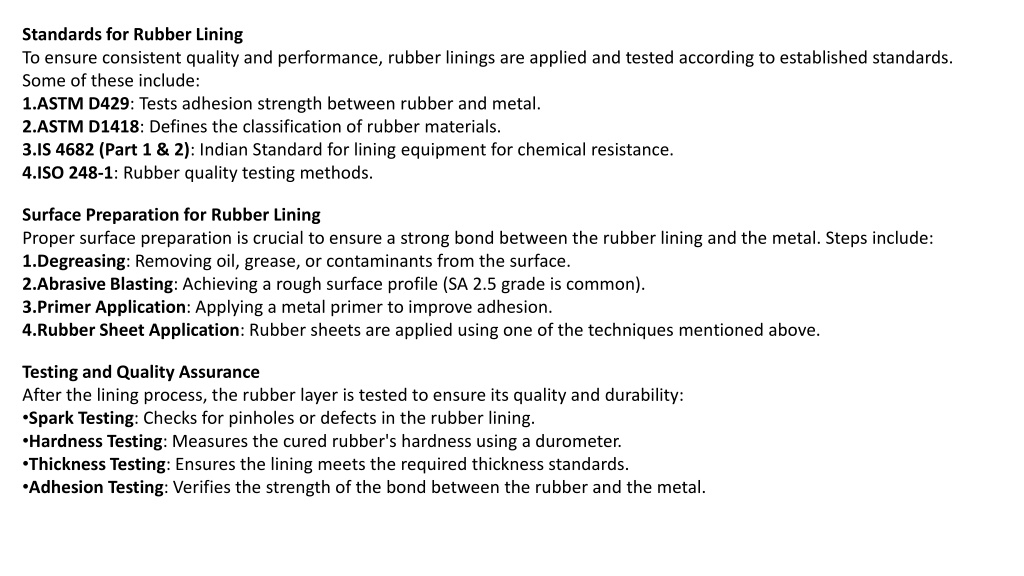

  3. Standards for Rubber Lining To ensure consistent quality and performance, rubber linings are applied and tested according to established standards. Some of these include: ASTM D429: Tests adhesion strength between rubber and metal. ASTM D1418: Defines the classification of rubber materials. IS 4682 (Part 1 & 2): Indian Standard for lining equipment for chemical resistance. ISO 248-1: Rubber quality testing methods. Surface Preparation for Rubber Lining Proper surface preparation is crucial to ensure a strong bond between the rubber lining and the metal. Steps include: Degreasing: Removing oil, grease, or contaminants from the surface. Abrasive Blasting: Achieving a rough surface profile (SA 2.5 grade is common). Primer Application: Applying a metal primer to improve adhesion. Rubber Sheet Application: Rubber sheets are applied using one of the techniques mentioned above. • Testing and Quality Assurance • After the lining process, the rubber layer is tested to ensure its quality and durability: • Spark Testing: Checks for pinholes or defects in the rubber lining. • Hardness Testing: Measures the cured rubber's hardness using a durometer. • Thickness Testing: Ensures the lining meets the required thickness standards. • Adhesion Testing: Verifies the strength of the bond between the rubber and the metal.

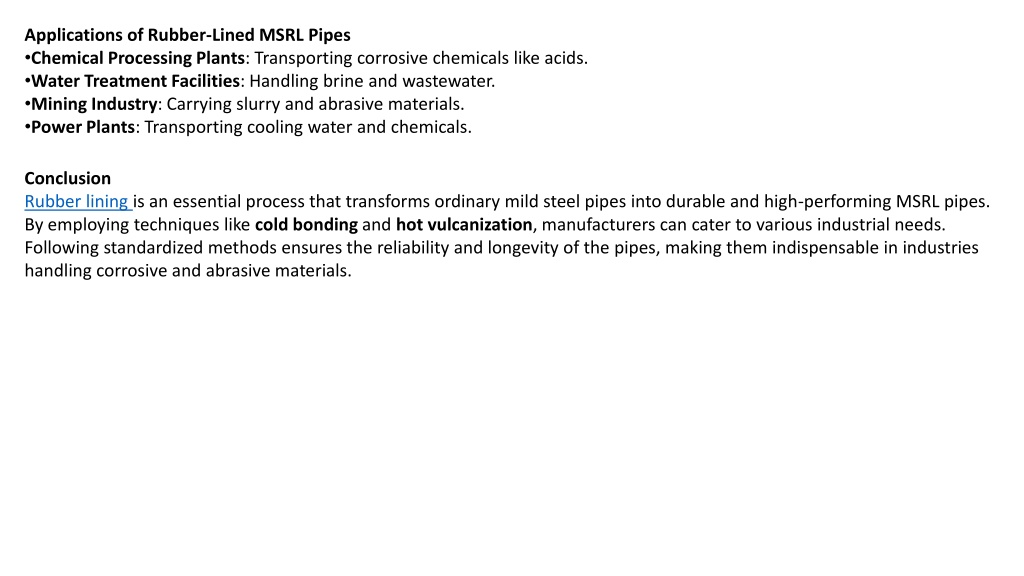

  4. Applications of Rubber-Lined MSRL Pipes • Chemical Processing Plants: Transporting corrosive chemicals like acids. • Water Treatment Facilities: Handling brine and wastewater. • Mining Industry: Carrying slurry and abrasive materials. • Power Plants: Transporting cooling water and chemicals. Conclusion Rubber lining is an essential process that transforms ordinary mild steel pipes into durable and high-performing MSRL pipes. By employing techniques like cold bonding and hot vulcanization, manufacturers can cater to various industrial needs. Following standardized methods ensures the reliability and longevity of the pipes, making them indispensable in industries handling corrosive and abrasive materials.

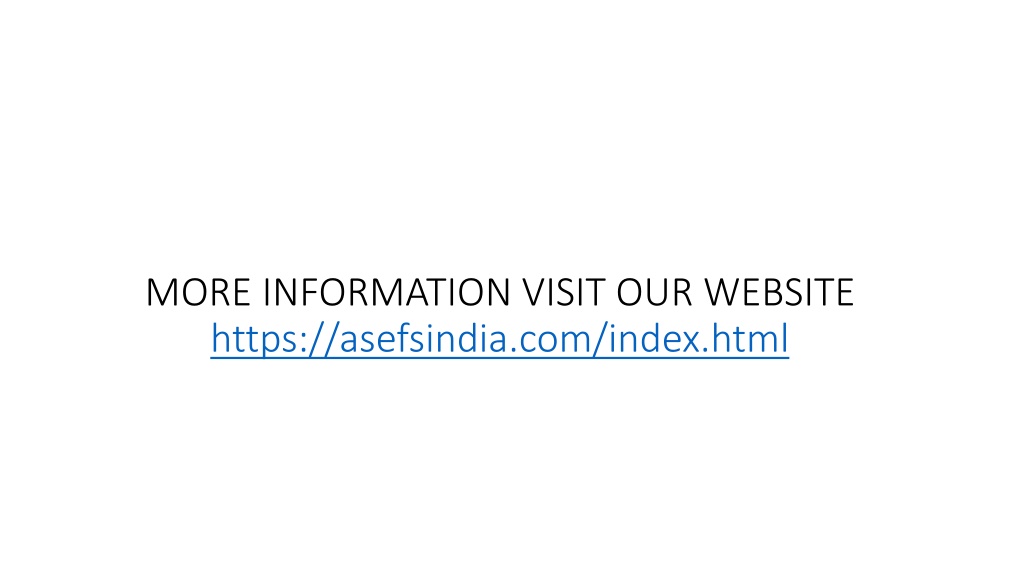

  5. MORE INFORMATION VISIT OUR WEBSITEhttps://asefsindia.com/index.html
