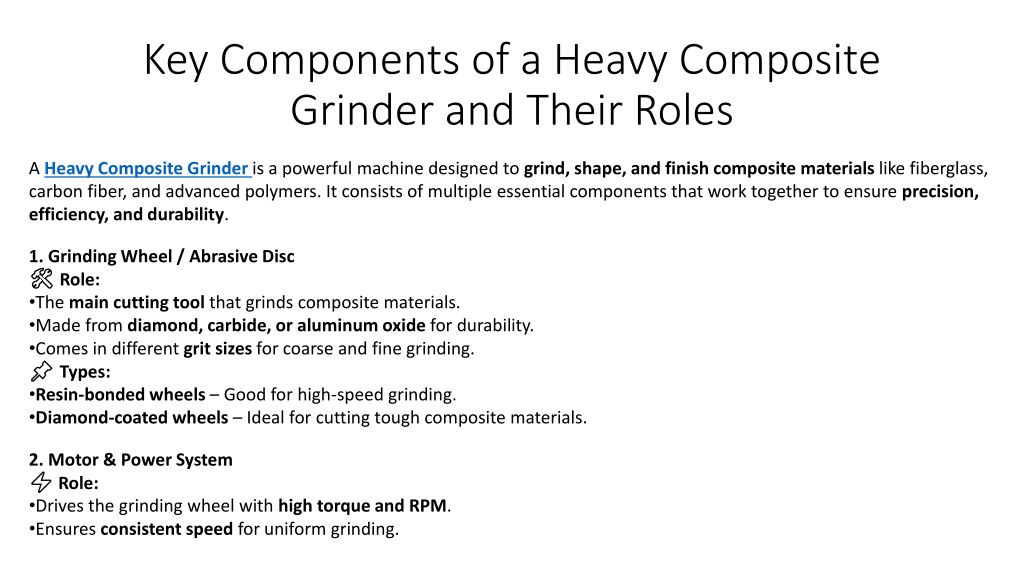

  1. Key Components of a Heavy Composite Grinder and Their Roles A Heavy Composite Grinderis a powerful machine designed to grind, shape, and finish composite materials like fiberglass, carbon fiber, and advanced polymers. It consists of multiple essential components that work together to ensure precision, efficiency, and durability. • 1. Grinding Wheel / Abrasive Disc • 🛠 Role: • The main cutting tool that grinds composite materials. • Made from diamond, carbide, or aluminum oxide for durability. • Comes in different grit sizes for coarse and fine grinding. • 📌 Types: • Resin-bonded wheels – Good for high-speed grinding. • Diamond-coated wheels – Ideal for cutting tough composite materials. • 2. Motor & Power System • ⚡ Role: • Drives the grinding wheel with high torque and RPM. • Ensures consistent speed for uniform grinding.

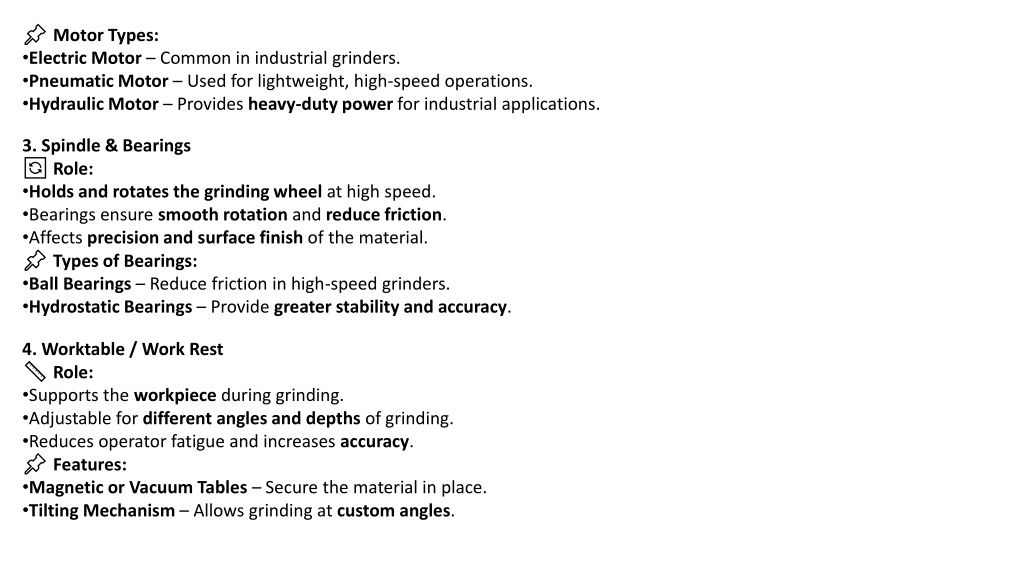

  2. 📌 Motor Types: • Electric Motor – Common in industrial grinders. • Pneumatic Motor – Used for lightweight, high-speed operations. • Hydraulic Motor – Provides heavy-duty power for industrial applications. • 3. Spindle & Bearings • 🔄 Role: • Holds and rotates the grinding wheel at high speed. • Bearings ensure smooth rotation and reduce friction. • Affects precision and surface finish of the material. • 📌 Types of Bearings: • Ball Bearings – Reduce friction in high-speed grinders. • Hydrostatic Bearings – Provide greater stability and accuracy. • 4. Worktable / Work Rest • 📏 Role: • Supports the workpiece during grinding. • Adjustable for different angles and depths of grinding. • Reduces operator fatigue and increases accuracy. • 📌 Features: • Magnetic or Vacuum Tables – Secure the material in place. • Tilting Mechanism – Allows grinding at custom angles.

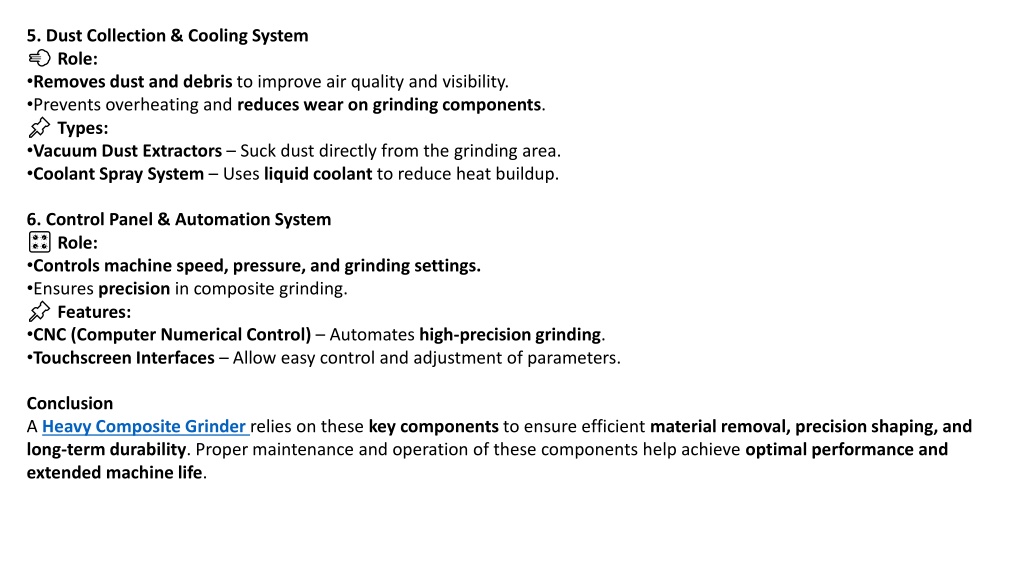

  3. 5. Dust Collection & Cooling System • 💨 Role: • Removes dust and debris to improve air quality and visibility. • Prevents overheating and reduces wear on grinding components. • 📌 Types: • Vacuum Dust Extractors – Suck dust directly from the grinding area. • Coolant Spray System – Uses liquid coolant to reduce heat buildup. • 6. Control Panel & Automation System • 🎛 Role: • Controls machine speed, pressure, and grinding settings. • Ensures precision in composite grinding. • 📌 Features: • CNC (Computer Numerical Control) – Automates high-precision grinding. • Touchscreen Interfaces – Allow easy control and adjustment of parameters. Conclusion A Heavy Composite Grinderrelies on these key components to ensure efficient material removal, precision shaping, and long-term durability. Proper maintenance and operation of these components help achieve optimal performance and extended machine life.
