By combining these strategies, it is possible to minimize the impact of scaling and fouling, enhance the efficiency of evaporators and dryers, and extend their operational lifespan. Proactive measures and a combination of prevention, monitoring, and maintenance are key to managing these challenges effectively.<br>
E N D

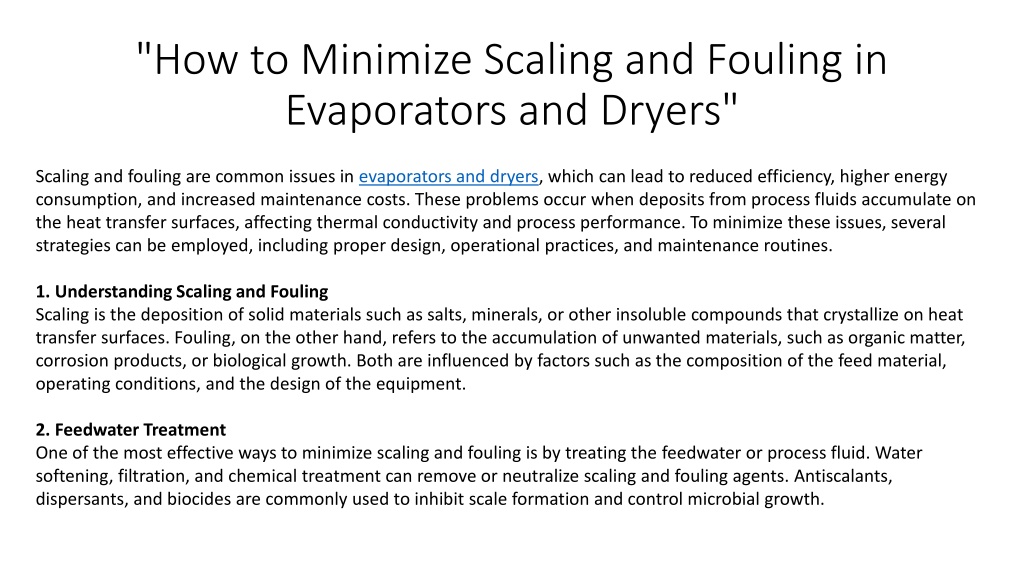

"How to Minimize Scaling and Fouling in Evaporators and Dryers" Scaling and fouling are common issues in evaporators and dryers, which can lead to reduced efficiency, higher energy consumption, and increased maintenance costs. These problems occur when deposits from process fluids accumulate on the heat transfer surfaces, affecting thermal conductivity and process performance. To minimize these issues, several strategies can be employed, including proper design, operational practices, and maintenance routines. 1. Understanding Scaling and Fouling Scaling is the deposition of solid materials such as salts, minerals, or other insoluble compounds that crystallize on heat transfer surfaces. Fouling, on the other hand, refers to the accumulation of unwanted materials, such as organic matter, corrosion products, or biological growth. Both are influenced by factors such as the composition of the feed material, operating conditions, and the design of the equipment. 2. Feedwater Treatment One of the most effective ways to minimize scaling and fouling is by treating the feedwater or process fluid. Water softening, filtration, and chemical treatment can remove or neutralize scaling and fouling agents. Antiscalants, dispersants, and biocides are commonly used to inhibit scale formation and control microbial growth.
3. Optimizing Equipment Design Designing equipment with minimal dead zones and smooth surfaces can reduce the tendency for deposits to accumulate. For example, using high-shear regions, better flow distribution, and optimized geometries can minimize stagnant areas where fouling might occur. Selecting appropriate materials for heat transfer surfaces, such as those with high thermal conductivity and low fouling tendencies, also helps. 4. Temperature and Flow Control Maintaining optimal temperature and flow conditions can significantly reduce scaling and fouling. High temperatures can promote scaling by increasing the solubility of salts, while low flow rates can lead to sedimentation. Ensuring turbulent flow within the equipment prevents the deposition of particles and enhances heat transfer. 5. Regular Cleaning Periodic cleaning of heat transfer surfaces is essential to prevent the build-up of scale and fouling. Cleaning-in-place (CIP) systems can be used for chemical or mechanical cleaning without disassembling the equipment. Cleaning frequency should be based on monitoring and process demands to prevent excessive downtime. 6. Chemical Additives The use of chemical additives, such as acid cleaners for scale removal or detergents for fouling removal, can be effective in mitigating deposits. The choice of chemicals should be compatible with the process and the materials of construction to avoid corrosion or other issues.

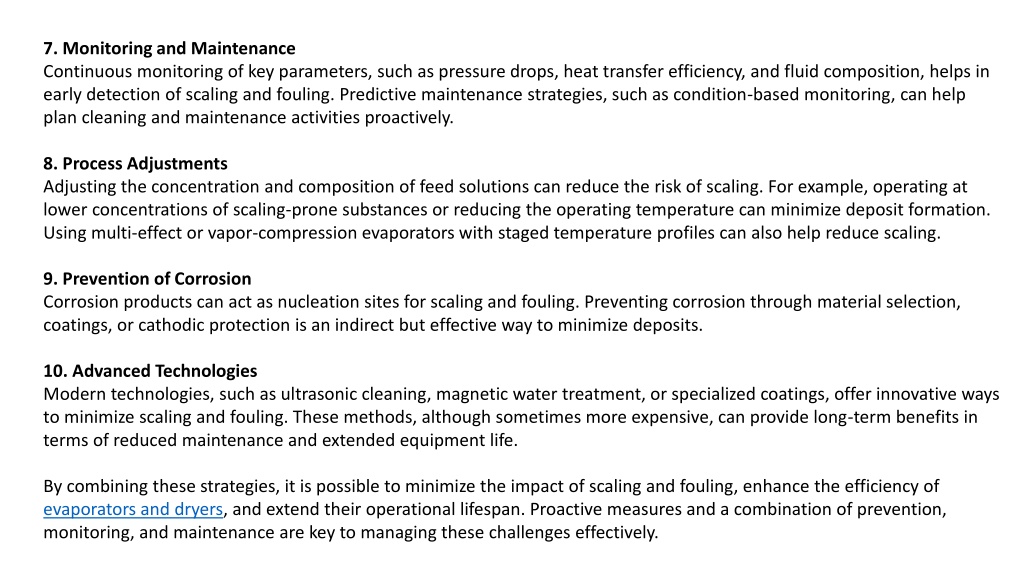

7. Monitoring and Maintenance Continuous monitoring of key parameters, such as pressure drops, heat transfer efficiency, and fluid composition, helps in early detection of scaling and fouling. Predictive maintenance strategies, such as condition-based monitoring, can help plan cleaning and maintenance activities proactively. 8. Process Adjustments Adjusting the concentration and composition of feed solutions can reduce the risk of scaling. For example, operating at lower concentrations of scaling-prone substances or reducing the operating temperature can minimize deposit formation. Using multi-effect or vapor-compression evaporators with staged temperature profiles can also help reduce scaling. 9. Prevention of Corrosion Corrosion products can act as nucleation sites for scaling and fouling. Preventing corrosion through material selection, coatings, or cathodic protection is an indirect but effective way to minimize deposits. 10. Advanced Technologies Modern technologies, such as ultrasonic cleaning, magnetic water treatment, or specialized coatings, offer innovative ways to minimize scaling and fouling. These methods, although sometimes more expensive, can provide long-term benefits in terms of reduced maintenance and extended equipment life. By combining these strategies, it is possible to minimize the impact of scaling and fouling, enhance the efficiency of evaporators and dryers, and extend their operational lifespan. Proactive measures and a combination of prevention, monitoring, and maintenance are key to managing these challenges effectively.
