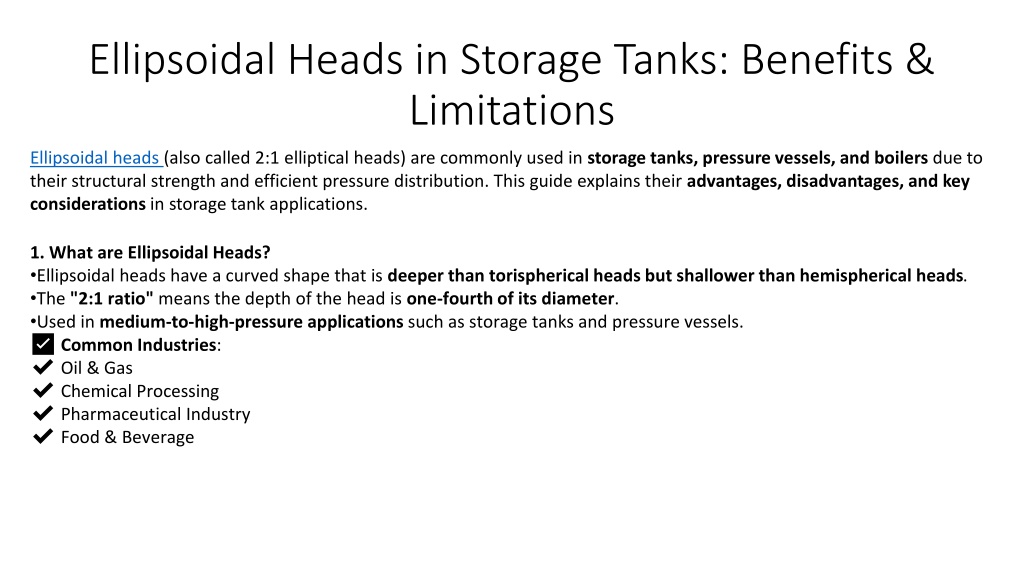

2. Ellipsoidal Heads in Storage Tanks: Benefits & Limitations Ellipsoidal heads (also called 2:1 elliptical heads) are commonly used in storage tanks, pressure vessels, and boilers due to their structural strength and efficient pressure distribution. This guide explains their advantages, disadvantages, and key considerations in storage tank applications. • 1. What are Ellipsoidal Heads? • Ellipsoidal heads have a curved shape that is deeper than torispherical heads but shallower than hemispherical heads. • The "2:1 ratio" means the depth of the head is one-fourth of its diameter. • Used in medium-to-high-pressure applications such as storage tanks and pressure vessels. • ✅ Common Industries:✔️ Oil & Gas✔️ Chemical Processing✔️ Pharmaceutical Industry✔️ Food & Beverage

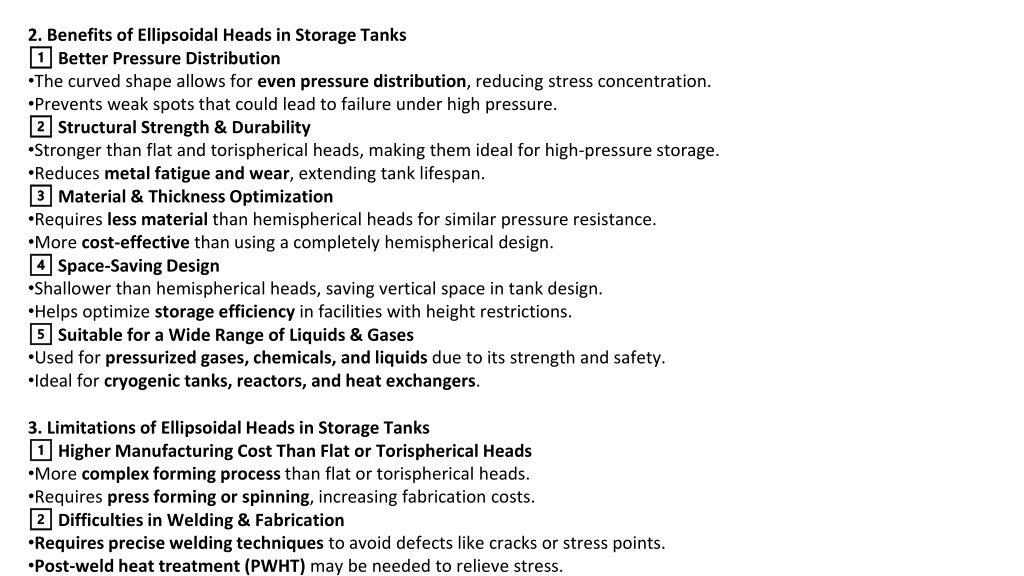

3. 2. Benefits of Ellipsoidal Heads in Storage Tanks • 1️⃣ Better Pressure Distribution • The curved shape allows for even pressure distribution, reducing stress concentration. • Prevents weak spots that could lead to failure under high pressure. • 2️⃣ Structural Strength & Durability • Stronger than flat and torispherical heads, making them ideal for high-pressure storage. • Reduces metal fatigue and wear, extending tank lifespan. • 3️⃣ Material & Thickness Optimization • Requires less material than hemispherical heads for similar pressure resistance. • More cost-effective than using a completely hemispherical design. • 4️⃣ Space-Saving Design • Shallower than hemispherical heads, saving vertical space in tank design. • Helps optimize storage efficiency in facilities with height restrictions. • 5️⃣ Suitable for a Wide Range of Liquids & Gases • Used for pressurized gases, chemicals, and liquids due to its strength and safety. • Ideal for cryogenic tanks, reactors, and heat exchangers. • 3. Limitations of Ellipsoidal Heads in Storage Tanks • 1️⃣ Higher Manufacturing Cost Than Flat or Torispherical Heads • More complex forming process than flat or torispherical heads. • Requires press forming or spinning, increasing fabrication costs. • 2️⃣ Difficulties in Welding & Fabrication • Requires precise welding techniques to avoid defects like cracks or stress points. • Post-weld heat treatment (PWHT) may be needed to relieve stress.

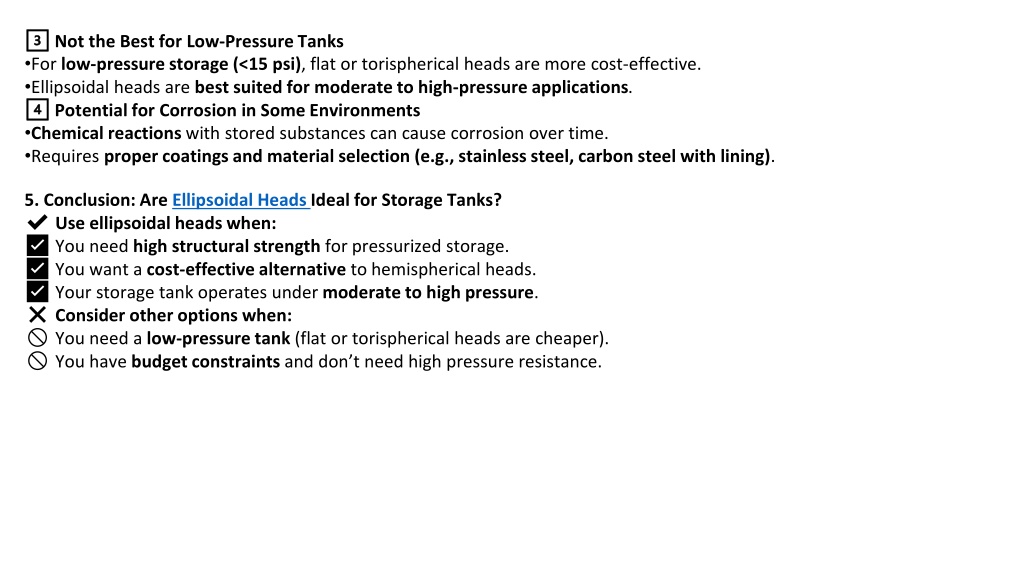

4. 3️⃣ Not the Best for Low-Pressure Tanks • For low-pressure storage (<15 psi), flat or torispherical heads are more cost-effective. • Ellipsoidal heads are best suited for moderate to high-pressure applications. • 4️⃣ Potential for Corrosion in Some Environments • Chemical reactions with stored substances can cause corrosion over time. • Requires proper coatings and material selection (e.g., stainless steel, carbon steel with lining). 5. Conclusion: Are Ellipsoidal Heads Ideal for Storage Tanks? ✔️ Use ellipsoidal heads when:✅ You need high structural strength for pressurized storage.✅ You want a cost-effective alternative to hemispherical heads.✅ Your storage tank operates under moderate to high pressure. ❌ Consider other options when:🚫 You need a low-pressure tank (flat or torispherical heads are cheaper).🚫 You have budget constraints and don’t need high pressure resistance.

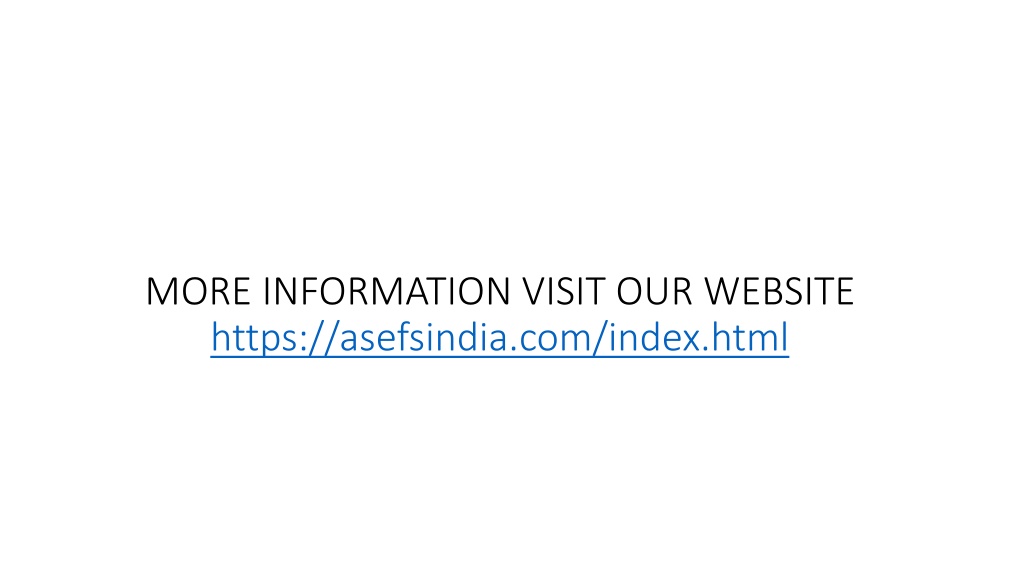

5. MORE INFORMATION VISIT OUR WEBSITEhttps://asefsindia.com/index.html
