Design Considerations for Eccentric and Concentric Reducers

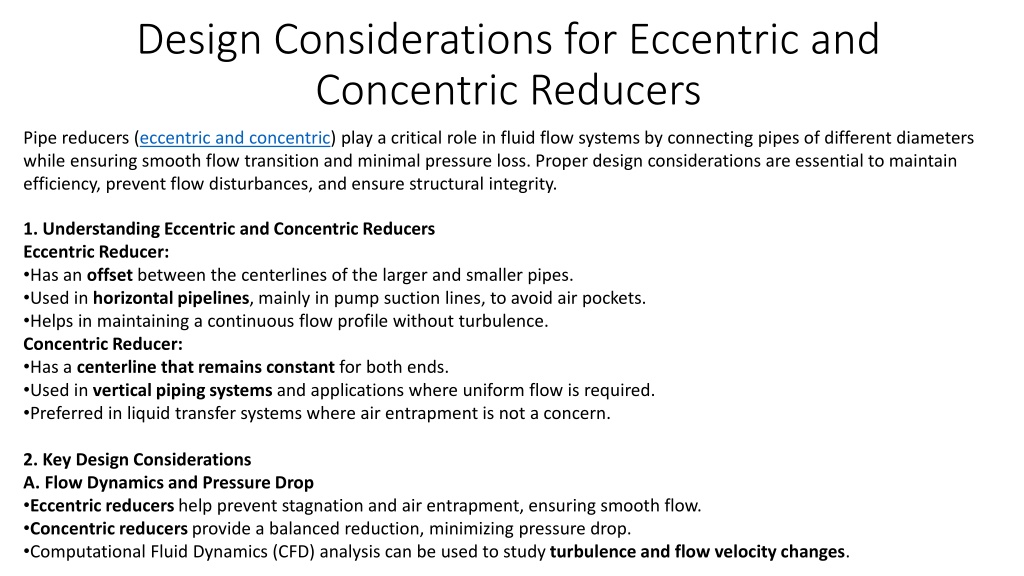

2. Design Considerations for Eccentric and Concentric Reducers Pipe reducers (eccentric and concentric) play a critical role in fluid flow systems by connecting pipes of different diameters while ensuring smooth flow transition and minimal pressure loss. Proper design considerations are essential to maintain efficiency, prevent flow disturbances, and ensure structural integrity. • 1. Understanding Eccentric and Concentric Reducers • Eccentric Reducer: • Has an offset between the centerlines of the larger and smaller pipes. • Used in horizontal pipelines, mainly in pump suction lines, to avoid air pockets. • Helps in maintaining a continuous flow profile without turbulence. • Concentric Reducer: • Has a centerline that remains constant for both ends. • Used in vertical piping systems and applications where uniform flow is required. • Preferred in liquid transfer systems where air entrapment is not a concern. • 2. Key Design Considerations • A. Flow Dynamics and Pressure Drop • Eccentric reducers help prevent stagnation and air entrapment, ensuring smooth flow. • Concentric reducers provide a balanced reduction, minimizing pressure drop. • Computational Fluid Dynamics (CFD) analysis can be used to study turbulence and flow velocity changes.

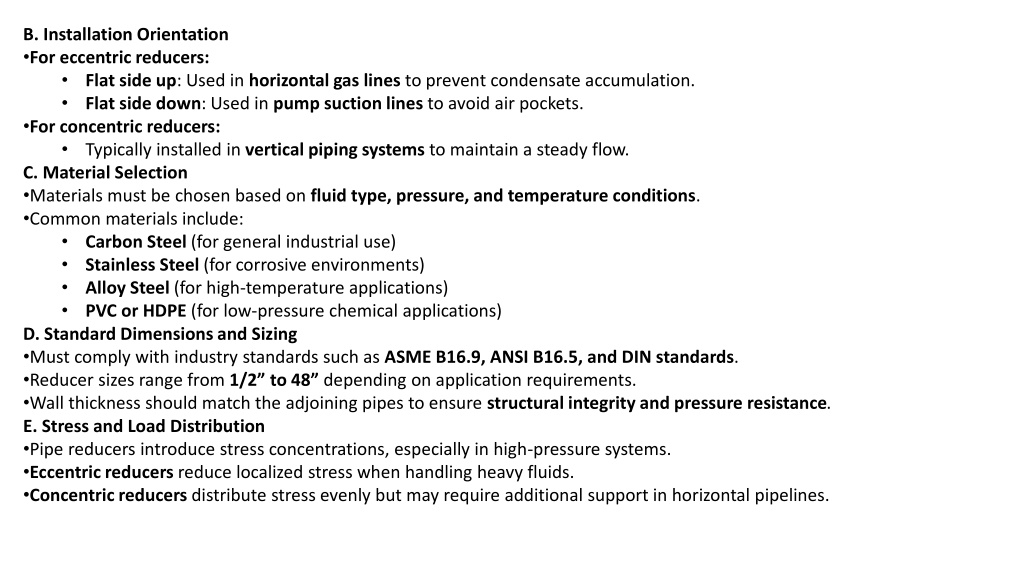

3. B. Installation Orientation • For eccentric reducers: • Flat side up: Used in horizontal gas lines to prevent condensate accumulation. • Flat side down: Used in pump suction lines to avoid air pockets. • For concentric reducers: • Typically installed in vertical piping systems to maintain a steady flow. • C. Material Selection • Materials must be chosen based on fluid type, pressure, and temperature conditions. • Common materials include: • Carbon Steel (for general industrial use) • Stainless Steel (for corrosive environments) • Alloy Steel (for high-temperature applications) • PVC or HDPE (for low-pressure chemical applications) • D. Standard Dimensions and Sizing • Must comply with industry standards such as ASME B16.9, ANSI B16.5, and DIN standards. • Reducer sizes range from 1/2” to 48” depending on application requirements. • Wall thickness should match the adjoining pipes to ensure structural integrity and pressure resistance. • E. Stress and Load Distribution • Pipe reducers introduce stress concentrations, especially in high-pressure systems. • Eccentric reducers reduce localized stress when handling heavy fluids. • Concentric reducers distribute stress evenly but may require additional support in horizontal pipelines.

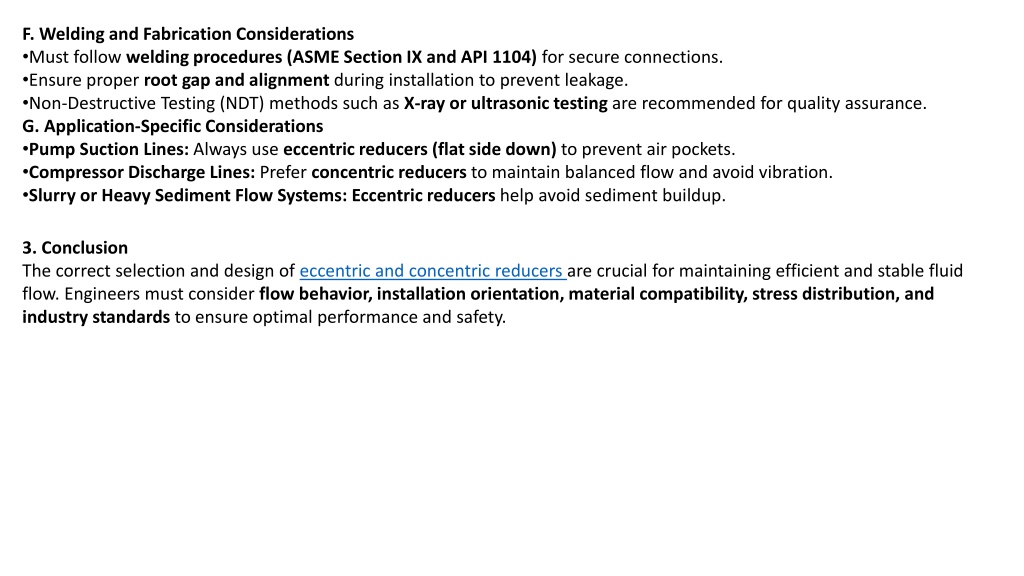

4. F. Welding and Fabrication Considerations • Must follow welding procedures (ASME Section IX and API 1104) for secure connections. • Ensure proper root gap and alignment during installation to prevent leakage. • Non-Destructive Testing (NDT) methods such as X-ray or ultrasonic testing are recommended for quality assurance. • G. Application-Specific Considerations • Pump Suction Lines: Always use eccentric reducers (flat side down) to prevent air pockets. • Compressor Discharge Lines: Prefer concentric reducers to maintain balanced flow and avoid vibration. • Slurry or Heavy Sediment Flow Systems:Eccentric reducers help avoid sediment buildup. 3. Conclusion The correct selection and design of eccentric and concentric reducers are crucial for maintaining efficient and stable fluid flow. Engineers must consider flow behavior, installation orientation, material compatibility, stress distribution, and industry standards to ensure optimal performance and safety.
