The performance of a separation column heavily depends on the selection and arrangement of internals. Properly designed and installed internals, such as trays, packing, distributors, and demister pads, enhance the efficiency, capacity, and reliability of the separation process. The right choice of internals ensures better vapor-liquid contact, optimal pressure drop, and minimized operational issues, resulting in higher product purity and more energy-efficient operations.<br>
E N D

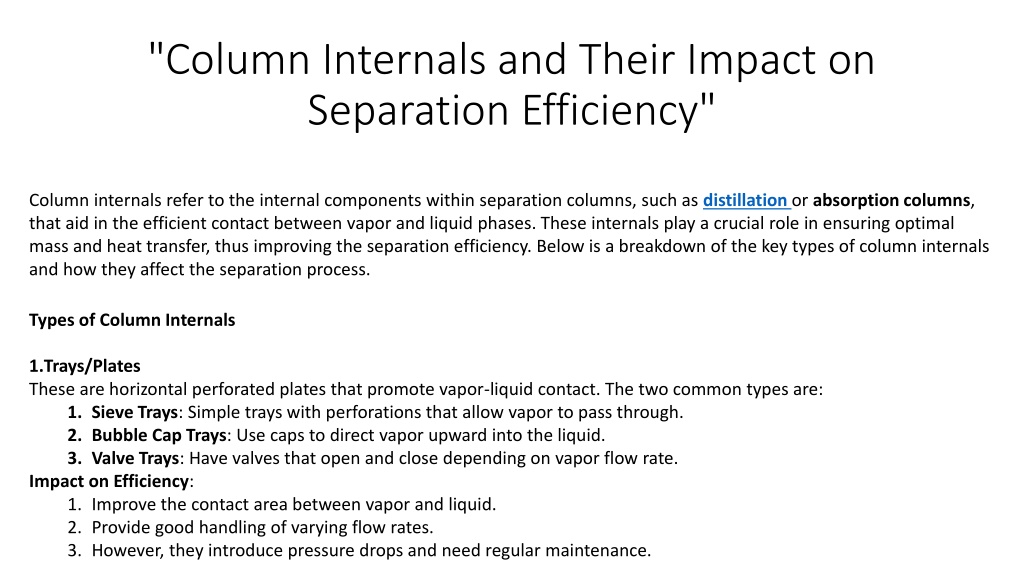

"Column Internals and Their Impact on Separation Efficiency" Column internals refer to the internal components within separation columns, such as distillationor absorption columns, that aid in the efficient contact between vapor and liquid phases. These internals play a crucial role in ensuring optimal mass and heat transfer, thus improving the separation efficiency. Below is a breakdown of the key types of column internals and how they affect the separation process. • Types of Column Internals • Trays/PlatesThese are horizontal perforated plates that promote vapor-liquid contact. The two common types are: • Sieve Trays: Simple trays with perforations that allow vapor to pass through. • Bubble Cap Trays: Use caps to direct vapor upward into the liquid. • Valve Trays: Have valves that open and close depending on vapor flow rate. • Impact on Efficiency: • Improve the contact area between vapor and liquid. • Provide good handling of varying flow rates. • However, they introduce pressure drops and need regular maintenance.

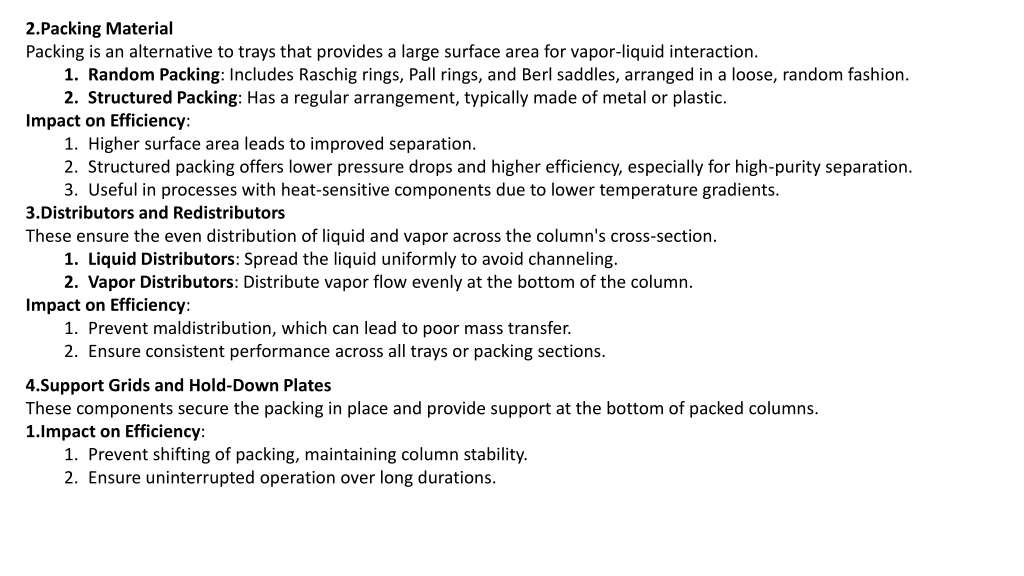

2.Packing MaterialPacking is an alternative to trays that provides a large surface area for vapor-liquid interaction. • Random Packing: Includes Raschig rings, Pall rings, and Berl saddles, arranged in a loose, random fashion. • Structured Packing: Has a regular arrangement, typically made of metal or plastic. • Impact on Efficiency: • Higher surface area leads to improved separation. • Structured packing offers lower pressure drops and higher efficiency, especially for high-purity separation. • Useful in processes with heat-sensitive components due to lower temperature gradients. • 3.Distributors and RedistributorsThese ensure the even distribution of liquid and vapor across the column's cross-section. • Liquid Distributors: Spread the liquid uniformly to avoid channeling. • Vapor Distributors: Distribute vapor flow evenly at the bottom of the column. • Impact on Efficiency: • Prevent maldistribution, which can lead to poor mass transfer. • Ensure consistent performance across all trays or packing sections. • 4.Support Grids and Hold-Down PlatesThese components secure the packing in place and provide support at the bottom of packed columns. • Impact on Efficiency: • Prevent shifting of packing, maintaining column stability. • Ensure uninterrupted operation over long durations.

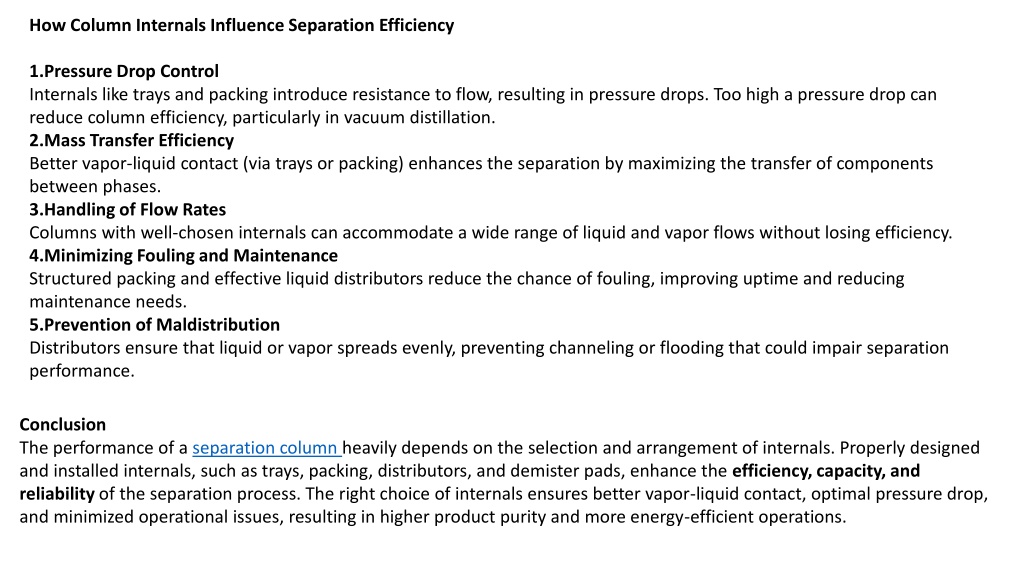

How Column Internals Influence Separation Efficiency Pressure Drop ControlInternals like trays and packing introduce resistance to flow, resulting in pressure drops. Too high a pressure drop can reduce column efficiency, particularly in vacuum distillation. Mass Transfer EfficiencyBetter vapor-liquid contact (via trays or packing) enhances the separation by maximizing the transfer of components between phases. Handling of Flow RatesColumns with well-chosen internals can accommodate a wide range of liquid and vapor flows without losing efficiency. Minimizing Fouling and MaintenanceStructured packing and effective liquid distributors reduce the chance of fouling, improving uptime and reducing maintenance needs. Prevention of MaldistributionDistributors ensure that liquid or vapor spreads evenly, preventing channeling or flooding that could impair separation performance. Conclusion The performance of a separation column heavily depends on the selection and arrangement of internals. Properly designed and installed internals, such as trays, packing, distributors, and demister pads, enhance the efficiency, capacity, and reliability of the separation process. The right choice of internals ensures better vapor-liquid contact, optimal pressure drop, and minimized operational issues, resulting in higher product purity and more energy-efficient operations.
