Presentation Transcript

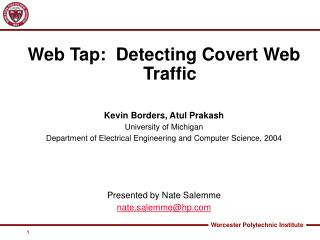

  1. Web Tap: Detecting Covert Web Traffic Kevin Borders, Atul Prakash University of Michigan Department of Electrical Engineering and Computer Science, 2004 Presented by Nate Salemme nate.salemme@hp.com

  2. Disclaimer • Content taken from Proceedings of the 11th ACM conference on Computer and communications security • Presented by Kevin Borders & Atul Prakash • Images and graphs also borrowed from • http://www.cisa.umbc.edu/courses/cmsc/444/fall05/spyware/webtap.pdf • Presentation template borrowed from Mike Putnam. Thanks Mike.

  3. About the Authors Atul Prakash -Professor in the Department of EECS at the University of Michigan. -He is also currently serving as the Director of the Software Systems Laboratory. Kevin Borders -Graduate student at the University of Michigan -Involved in Eta Kappa Nu

  4. Outline OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Introduction • Threat Model • Web Tap Filters • System Evaluation • Vulnerabilities • Related & Future Work • Conclusion

  5. Introduction OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Hackers life use to be easy • Direct connection to Internet • No protection • Backdoors and Trojans easily spawned • Programs like AOL made this easy • Security became BIG concern • Firewalls • Proxy Servers • Mail Servers

  6. Introduction OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts The Firewall

  7. Introduction OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Hackers get creative • Firewalls leave open port 80 (HTTP) • Use outgoing HTTP as attack vehicle • Examples • Spyware, Adware • User information can be hidden within legitimate outgoing HTTP traffic • System resources severely hindered through some malicious spyware

  8. Introduction OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Web Tap • Definition: “A network-level anomaly detection system that takes advantage of legitimate web request patterns to detect convert communication, backdoors, and spyware activity that is tunneled through outbound HTTP connections” – Web Tap Guys • Deployed at an organization’s proxy server or router • Acts as an extension to the proxy/firewall where all outgoing traffic is passed through • A ‘training period’ is used to calibrate Web Tap

  9. Threat Model OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • HTTP Tunnels • Backdoors Programs • Spyware

  10. Threat Model OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • HTTP Tunnels • Allow non-HTTP services to be access through an outgoing HTTP session • Wsh(Microsoft Script Host)allows file transfer and remote shell access over HTTP • Firepass creates a tunnel between a client process and a remote service

  11. Threat Model OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Backdoor Programs • Usually spawned by a user opening a Trojan from email attachment or Internet • Trojan runs on computer as a client and makes ‘calls’ to a server hosting a certain script • These calls are hidden within outgoing HTTP • HTTP headers or POST data

  12. Threat Model OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Spyware • Installed by piggybacking on legitimate software (WeatherBug, Kazaa) • Uses the same methods as described with Backdoor

  13. Web Tap Filters OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Web Tap was written in Python • Easy to code • Type Safe • Platform Independent • Web Tap reside in a module where all outgoing HTTP traffic is funneled through this module and either analyzed real-time or logged and analyzed offline • Web Tap calibrated based on 30 users over 1 week training period

  14. Web Tap Filters OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Some “hope to’s…” • Hope tokeep additional state in the header of outgoing requests to verify integrity • (Right now just calculates # of bytes in header) • Hope to measure other statistics • Request type (image, html, CGI, etc) • Request Content • Inbound Bandwidth • Inbound Content

  15. Web Tap Filters OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Web deploys the following filters • Header Formatting • Delay Times • Individual Request Size • Outbound Bandwidth Usage • Request Regularity • Request Time of Day

  16. Web Tap Filters OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Header Formatting Filter • Parses each header • If header is indicative of a non-browser request, sound alarm • Example- IE sends out header with XP signature when all computers are running Windows 98 • Good at detecting unwanted clients • AIM Express • iTunes • Gator

  17. Web Tap Filters OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Delay Times Filter • Measure inter-request arrival time for specific clients • Goal is to detect programs that makes requests with set timers • “Jumps” in CDF indicate areas of concern (30 seconds, 4 minutes, 5 minutes)

  18. Web Tap Filters OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Individual Request Size • Requests to most sites contain little information • Hackers needs to send out large amounts of data to transfer files off a remote host • Out of 1600 sites • 11 sites > 3 KB • 4 sites > 10 KB • Most effective setting is at 3 KB 99.28%

  19. Web Tap Filters OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Outbound Bandwidth Usage • Outbound bandwidth expected to be LOW for normal web browsing • Outbound bandwidth usage will increase when hackers use HTTP for covert communication • Measure both aggregate and per site bandwidth; per site used • Lower bound set at 20 KB (bytes/day) per site per user • Upper bound set at 60 KB (bytes/day) per site per user Anywhere in here is good

  20. Web Tap Filters OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Request Regularity • Due to bandwidth constraints of previous filters, Hackers spread requests over long time period • Legitimate web traffic is bursty • Too many requests indicate website is being accessed by automated program • 16% Threshold chosen for 8 hr plot

  21. Web Tap Filters OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Request Time of Day • People tend to follow a set schedule of browsing times • When requests are made outside of normal browsing period, alerts can be raised • Very effective in corporate environments (set schedules)

  22. System Evaluation OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • The TEST • 40 Days, 30 clients at the University of Michigan • 1 Week Training Period • ALL FILTERS were active • 428,608 requests logged • 6441 unique websites

  23. System Evaluation OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Header Format Filter • Detected 5 out of 30 clients that had some form of Adware • Other non-desirable clients detected (AIM Express, iTunes) • NO FALSE ALARMS

  24. System Evaluation OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Delay Time Filter • Low false alarm rate (1 every 6 days) • Some legit sites blocks that used timers (espn.com, nytimes.com) • Recommended that System Admins create “allowable sites”

  25. System Evaluation OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Request Size Filter • High false alarm rate (34%) • Mostly ASP and shopping cart scripts • Again, create database of trusted sites

  26. System Evaluation OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Request Regularity • Using both count and variance measurements • Approximately 1 false alarm every 3 days • Found Adware such as browser search bars that other filters did not pick up

  27. System Evaluation OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Daily Bandwidth Filter • As threshold decreases, false positives increase • 60KB reasonable for small group sizes • 20 KB roughly 1 false alarm per day

  28. System Evaluation OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Time of Day Filter • Training period lengthened to the first TWO weeks • During training period spyware and adware programs were active! • Time of Day filter pretty much useless

  29. System Evaluation OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Web Tap vs. Third Party HTTP Tunnel Programs • Wsh, Hopster, Firepass • These programs help people inside a network bypass firewall restrictions • All detected by Web Tap, sweet • Web Tap vs. Backdoor program (Tunl) • Tunl written for windows (since it’s vulnerable) • With no workload, set off 3 filters • Minimal workload, set off more filters • Moderate workload, even more filters • Pointless

  30. Vulnerabilities OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Single Request Size Filter • Large data transfers can be broken into multiple smaller transfers • Delay Time Filter • Delays could be randomized to prevent detection • Time of Day Filter • Schedule requests when users are active • Request Regularity • Keep a running count of activity and stay below threshold • If threshold not known, then filter can be avoided by emulating the regularity of a common site • Bandwidth limit filter • Keep a running count of total bytes that have been sent that day. Don’t exceed threshold

  31. Related and Future Work OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts Related work • Signature Analysis [Ad-Aware, Snort, Spybot] • Signature rules used to detect attacks • Web Tap relies on anomalies rather than signature • Signature Analysis is limited since new attacks are developed. • Human browsing patterns [A. Bestavros, D. Marwood, T. Kelly] • Relies on human browsing patterns • Web Tap uses some of the same browsing patterns (delay time, request size, bandwidth usage) • WebTap uses this information to determine if it’s legitiment; previous research used it for performance reasons • Content-filter Proxy [MIMEsweeper, Websense] • Block certain websites through a proxy server • Hackers can still get around this by other web proxys • http://www.freeproxy.ru/en/free_proxy/cgi-proxy.htm

  32. Related and Future Work OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts Future Work • Create database that contains hosts that tend to set off alarms • Reduce false positives • Proxy caching • Place proxy before Web Tap • This would help isolate legitimate web request from the anomalous ones • Compress large transactions • Reduce false positives for bandwidth filter • Example; 3.87 KB POST request can be compressed to 2.07 KB • Good Hackers are likely to already have compressed their requests which would prevent further compression

  33. Conclusion OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Web Tap monitors outgoing HTTP traffic as opposed to the actual attack on a server • Design filters cover wide range of Hacker tactics • Only concerned with the detection process • 30 users, 40 days, 1 week training period • Successful at detecting spyware, adware, HTTP tunneling programs, backdoors • Vulnerabilities explained • Manageable number of false alarms

  34. Thoughts OUTLINE Introduction Threat Model Web Tap Filters System Evaluation Vulnerabilities Related & Future Work Conclusion Thoughts • Good paper, easy to read and well explained • Interesting approach • Problems • User groups will be different depending on size, characteristics, etc. Each implementation of Web Tap would need to be customized • Sites with refresh counters would trigger alerts (espn.com gamecast) Not good. • They don’t mention flash crowds • Spyware/Adware screws up Time of Day filter • Tunl • ... • Applicable for schools and companies. Home?
