The Nomological Network. What Is the Nomological Net?. An idea developed by Cronbach, L. and Meehl, P. (1955). Construct Validity in Psychological Tests, Psychological Bulletin , 52, 4, 281-302. Nomological is derived from Greek and means “lawful”.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'The Nomological Network' - plato-slater


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
what is the nomological net
What Is the Nomological Net?
  • An idea developed by Cronbach, L. and Meehl, P. (1955). Construct Validity in Psychological Tests, Psychological Bulletin, 52, 4, 281-302.
  • Nomological is derived from Greek and means “lawful”.
  • Links interrelated theoretical ideas with empirical evidence.
what is the nomological net2
What Is the Nomological Net?

A representation of the concepts (constructs) of interest in a study,

Construct

Construct

Construct

Construct

Construct

what is the nomological net3

Obs

Obs

Obs

Obs

Obs

Obs

Obs

Obs

Obs

Obs

What Is the Nomological Net?

A representation of the concepts (constructs) of interest in a study,

Construct

Construct

Construct

Construct

Construct

...their observable manifestations,

what is the nomological net4

Obs

Obs

Obs

Obs

Obs

Obs

Obs

Obs

Obs

Obs

What Is the Nomological Net?

A representation of the concepts (constructs) of interest in a study,

construct

construct

construct

construct

construct

...their observable manifestations, and the interrelationships among and among these.

what is the nomological net5

Obs

Obs

Obs

Obs

Obs

Obs

Obs

Obs

Obs

Obs

What Is the Nomological Net?

Theoretical Level: Concepts, Ideas

Construct

Construct

Construct

Construct

Construct

what is the nomological net6

Obs

Obs

Obs

Obs

Obs

Obs

Obs

Obs

Obs

Obs

What Is the Nomological Net?

Theoretical Level: Concepts, Ideas

Construct

Construct

Construct

Construct

Construct

Observed Level: Measures, Programs

principles

Obs

Obs

Obs

Obs

Obs

Obs

Principles

Scientifically, to make clear what something is means to set forth the laws in which it occurs.

Construct

Construct

Construct

This interlocking system of laws is the Nomological Network.

principles1

Obs

Obs

Obs

Obs

Obs

Obs

Principles

The laws in a nomological network may relate...

Construct

Construct

Construct

observable properties or quantities to each other.

principles2

Obs

Obs

Obs

Obs

Obs

Obs

Principles

The laws in a nomological network may relate...

Construct

Construct

Construct

different theoretical constructs to each other.

principles3

Obs

Obs

Obs

Obs

Obs

Obs

Principles

The laws in a nomological network may relate...

Construct

Construct

Construct

theoretical constructs to observables.

principles4

Obs

Obs

Obs

Obs

Obs

Obs

Principles

Construct

Construct

Construct

At least some of the laws in the network must involve observables.

principles5

Obs

Obs

Obs

Obs

Obs

Obs

Principles

"Learning more about" a theoretical construct is a matter of elaborating the nomological network in which it occurs.

Construct

Construct

Construct

principles6

Obs

Obs

Obs

Obs

Obs

Obs

Obs

Obs

Principles

"Learning more about" a theoretical construct is a matter of elaborating the nomological network in which it occurs...

Construct

Construct

Construct

or of increasing the definiteness of its components.

principles7

Obs

Obs

Obs

Obs

Obs

Obs

Obs

Obs

Principles

The basic rule for adding a new construct or relation to a theory is that it must generate laws (nomologicals) confirmed by observation...

Construct

Construct

Construct

Construct

principles8

Obs

Obs

Obs

Obs

Obs

Obs

Obs

Obs

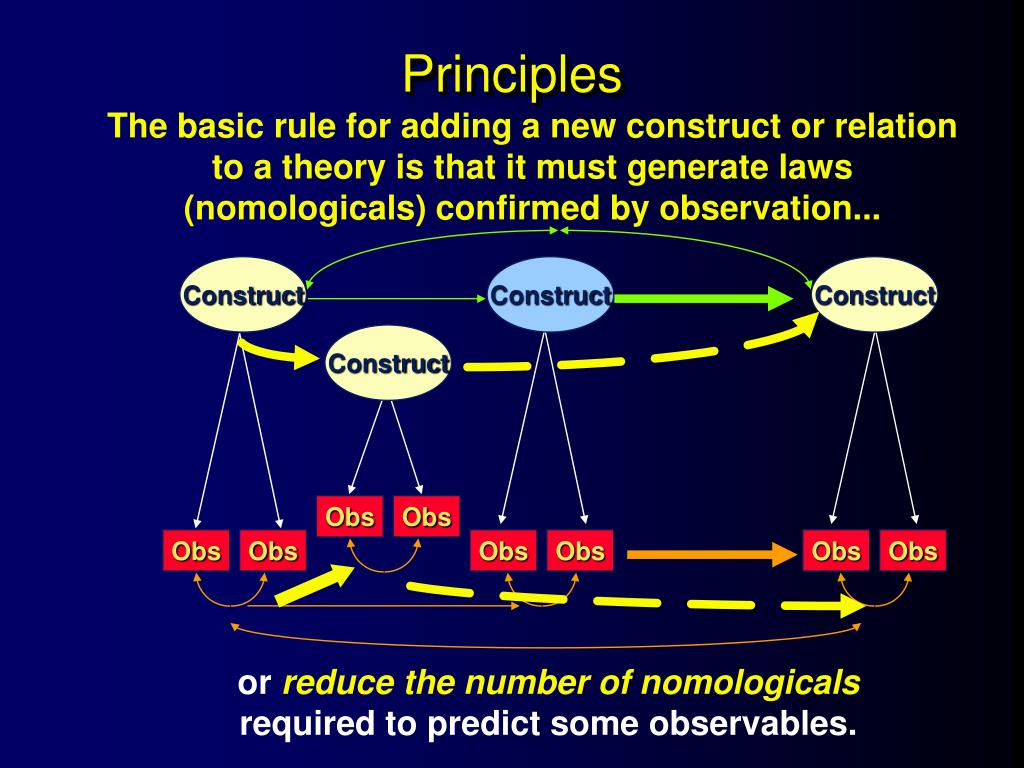

Principles

The basic rule for adding a new construct or relation to a theory is that it must generate laws (nomologicals) confirmed by observation...

Construct

Construct

Construct

Construct

or reduce the number of nomologicals required to predict some observables.

principles9

Obs

Obs

Obs

Obs

Obs

Obs

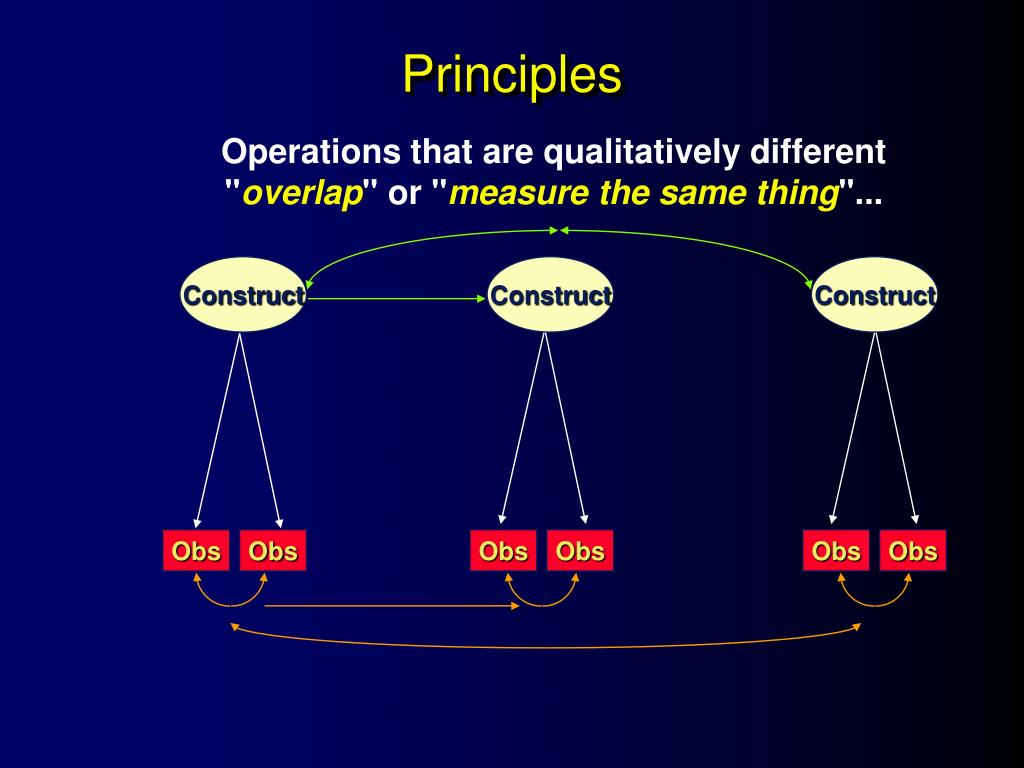

Principles

Operations that are qualitatively different "overlap" or "measure the same thing"...

Construct

Construct

Construct

principles10

Obs

Obs

Obs

Obs

Obs

Obs

Principles

Operations which are qualitatively different "overlap" or "measure the same thing"...

Construct

Construct

Construct

if their positions in the nomological net tie them to the same construct variable.

the main problem with the nomological net
The Main Problem with the Nomological Net

It doesn't tell us how we can assess the construct validity in a study.
