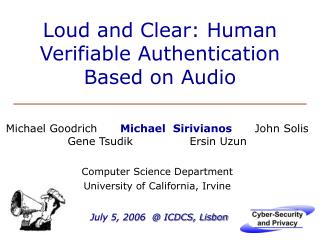

loud and clear human verifiable authentication based on audio

Michael Goodrich Michael Sirivianos John Solis Gene Tsudik Ersin Uzun

Computer Science Department

University of California, Irvine

July 5, 2006 @ ICDCS, Lisbon

Loud and Clear: Human Verifiable Authentication Based on Audio
problem
Problem

Wallet phone

Goal:Establish a secure channel between devices that lack prior association

problem1
Problem

Eve can launch man-in-the-middle attack

Goal:Establish a secure channel between devices that lack prior association

challenges
Challenges
  • Human-assisted authentication
    • Involve human user in the process
  • No pre-established shared secrets
  • No on-line or off-line authority
    • no common PKI, TTP, etc
  • Support for multiple communication media
    • e.g., Bluetooth, Infrared, 802.11, etc
  • Limited computational resources on portable

devices

outline
Outline
  • Related work and our motivation
  • Our Solution
    • System overview
    • Sample use scenarios
    • Use types
    • Vocalizable representations
  • Unidirectional authentication
  • Implementation and performance
  • Conclusions
related work secondary channels
Related work-Secondary Channels
  • Stajano et. al. [Security Protocols ‘99]
    • Use a physical link a secondary authentication

channel

    • Not all devices have suitable interfaces
  • Balfanz et. al. [NDSS ‘02]
    • Uses an infrared link as secondary channel
    • Still susceptible to man-in-the-middle attack
related work human verifiable channels
Related work–Human verifiable channels
  • Maher [US Patent, ‘95]
    • Users compare 4 hex digit truncated hash of the

shared key. Not enough bits for security.

  • Cagalj et. al. and Laur et. al.
    • Commitment-based short authenticated string schemes
    • 20 bit verification code is sufficient for security
    • Do not address verification code representation
related work textual representations
Related work–Textual representations
  • Haller [S/KEY, RFC 1760]
    • Textual representation of cryptographic strings
    • Pass-phrases not auditorially robust nor

syntactically-correct

  • Juola and Zimmermann [PGPfone, ICSLP ‘96]
    • Uses auditorially robust word list. Not syntactically-

correct, hard for human users to parse it

related work sib
Related work-SiB
  • Human readable visual hashes
    • Cumbersome task
    • High error rate
  • McCune et al [Oakland ‘05]
    • Seeing is Believing
    • Uses camera phones and bar codes

to create a visual secondary channel

    • The visual channel is not always plausible
motivation
Motivation
  • Many personal devices not equipped with

cameras

  • Cameras unsuitable for visually-impaired users
  • Bar-code scanning requires ample light and

sufficient proximity between devices

  • Camera-equipped devices typically prohibited

in high-security areas

outline1
Outline
  • Related work and our motivation
  • Our Solution
    • System overview
    • Sample use scenarios
    • Use types
    • Vocalizable representations
  • Unidirectional authentication
  • Implementation and performance
  • Conclusions
loud and clear
Loud and Clear
  • Audio channel for human-assisted

authentication of un-associated devices

    • Derive a robust-sounding, syntactically-correct

sentence from a hash of a public key

    • Vocalize the sentence
  • L&C couples vocalization and/or display of the

public authentication object on two devices

    • Suitable for secure device pairing
sample use scenarios

Personal Device

Target Device

Printer or FAX:

speaker &

small display

Cell phone:

speaker &

small display

Handheld/PDA:

speaker &

display

Base Station:

no speaker &

no display

Smart Watch:

tiny speaker &

tiny display

Mutual

authentication

possibly

required

MP3 player:

audio out &

no display

Sample use scenarios
l c use types
L&C use types

TYPE 2: Hear audible sequence

from target device, compare to

text displayed by personal

device

TYPE 1: Hear and compare two

two audible sequences, one from

each device

TYPE 3: Hear audible sequence

from personal device, compare it

to text displayed by target device

TYPE 4: Compare text displayed

on each device

device requirements
Device requirements

Device requirements for various use types

vocalizable representations
Vocalizable representations

Represent the authentication object as a syntactically-

correct, auditorially robust sentence

  • Generate a non-sensical, English-like sentence (MadLib)

from the output of a one-way hash

  • S/KEY-based word generation.
    • Divide truncated hash into 10-bit sections
    • Use each 10-bit section as index into a catalogue
    • One catalogue for each part of speech, e.g., verb, noun etc
    • Number of 10-bit sections = number of words contributing

entropy in the MadLib sentence

vocalizable representations1
Vocalizable representations

Within a catalogue, no two words sound the same

  • Create auditorially robust word lists for each

catalogue, based on PGPfone’s phonetic distance

Second pre-image resistance

  • For ephemeral Diffie-Hellman key agreement
    • 5 S/KEY-generated words needed
  • For one-year-term Diffie-Hellman public keys
    • 8 S/KEY-generated words needed
vocalizable representations2
Vocalizable representations

Within a catalogue, no two words sound the same

  • Create auditorially robust word lists for each

catalogue, based on PGPfone’s phonetic distance

Second pre-image resistance

  • For ephemeral Diffie-Hellman key agreement
    • 5 S/KEY-generated words needed
  • For one-year-term Diffie-Hellman public keys
    • 8 S/KEY-generated words needed

CALLIE FLEXIBLY ownsFLUFFYBINTURONGs that ABUSE.

auditorially robust word lists
Auditorially robust word lists

Using PGPfone’s phonetic distance, create auditorially-

robust word lists, unique for each catalogue

Construct a large set C of candidate words.

Select a random subset W of 2k words from C, where k is

the number of hash bits we wish to have this type of word

represent.

Repeatedly find the phonetically closest pair (p, q) of words

in W and replace q with a word from C - W whose distance

to any word in W is more than distance(p, q), if such word

exists.

auditorially robust word lists 2
Auditorially robust word lists (2)

Order W so that each pair of consecutive words in W are

as distant as possible.

Assign integer values to words in W, so that consecutive

integers differ in exactly one bit but their respective code

words are distant.

unidirectional authentication
Unidirectional authentication
  • Step 1:
    • PDA and fax send to each other their Diffie-Hellman

public keys

unidirectional authentication1
Unidirectional authentication
  • Step 2:
    • PDA and fax compute the MadLib for fax’s public key
unidirectional authentication2
Unidirectional authentication
  • Step 3:
    • Alice instructs PDA and fax to speak the MadLibs out
unidirectional authentication3
Unidirectional authentication
  • Step 3:
    • Alice instructs PDA and fax to speak the MadLib out
unidirectional authentication4
Unidirectional authentication
  • Step 4:
    • Alice compares the MadLibs
unidirectional authentication5
Unidirectional authentication
  • Step 5:
    • Alice instructs the devices to compute the secret key
implementation
Implementation

Programming System

  • Built on the highly portable

Ewe Java VM

Text-to-Speech Engine

  • Can utilize a variety of portable TTS engines
  • Prototype uses Digit for PC and Pocket PC, which

uses the Elan Speech Engine

  • Porting Sun’s clean Java FreeTTS and JSAPI to Ewe
implementation1
Implementation

Crypto API

  • Ported Bouncy-Castle

lightweight crypto package

to implement DH- and

RSA-based key agreement

Memory utilization

  • Digit and Ewe program reside on ~10800 KB
performance
Performance

Processing times (in milliseconds) of L&C operations

  • PC: 1.7 GHZ/2MB, 512MB RAM
  • iPAQ: 206 MHZ, 32 MB RAM
  • 10 word MadLib, 7 of whichS/Key generated
performance1
Performance

Excluding initialization and shared secret

computation:

  • ~12 secs for TYPE 1 unidirectional session
  • ~7 secs for TYPE 2 unidirectional session

With a commitment-based SAS protocol:

  • Number of S/Key generated words can be

reduced to only 2!

  • ~6 secs for TYPE 1 unidirectional session
conclusions
Conclusions
  • Loud-and-Clear (L&C)for human-assisted

device authentication

  • Light burden for human user
  • Based on the audio channel
    • Uses a TTS engine to vocalize a robust-sounding,

syntactically-correct word sequence derived from

some authentication object

  • Discussed some anticipated use cases
  • Provided experimental results for a prototype
  • Formal and comprehensive usability studies in

progress

in case you wonder
In case you wonder …

Binturong

  • a.k.a Bearcat
  • Leaves in the forest canopy,

of southeast Asia, Borneo

Vietnam, Malaysia, Indonesia

  • Belongs in the Viverridae

family

  • Endangered 
thank you
Thank you

Latest paper version available at:

www.ics.uci.edu/~msirivia/publications/icdcs.pdf

Questions?

performance2
Performance

Timings (in ms) for L&C sessions

loud and clear1
Loud and Clear

Loud and Clear (L&C) system.

  • Light burden for the human user
  • Uses spoken natural language for human-assisted

authentication

  • Suitable for secure device pairing
    • e.g., key exchange or similar tasks
outline2
Outline
  • Related work and our motivation
  • Our Solution
    • System overview
    • Sample use scenarios
    • Use types
    • Vocalizable representations
  • Unidirectional authentication
  • Implementation and performance
  • Conclusions
