  1. Title: PoE Switches & Power Supply Subtitle: An Overview of Power over Ethernet Technology

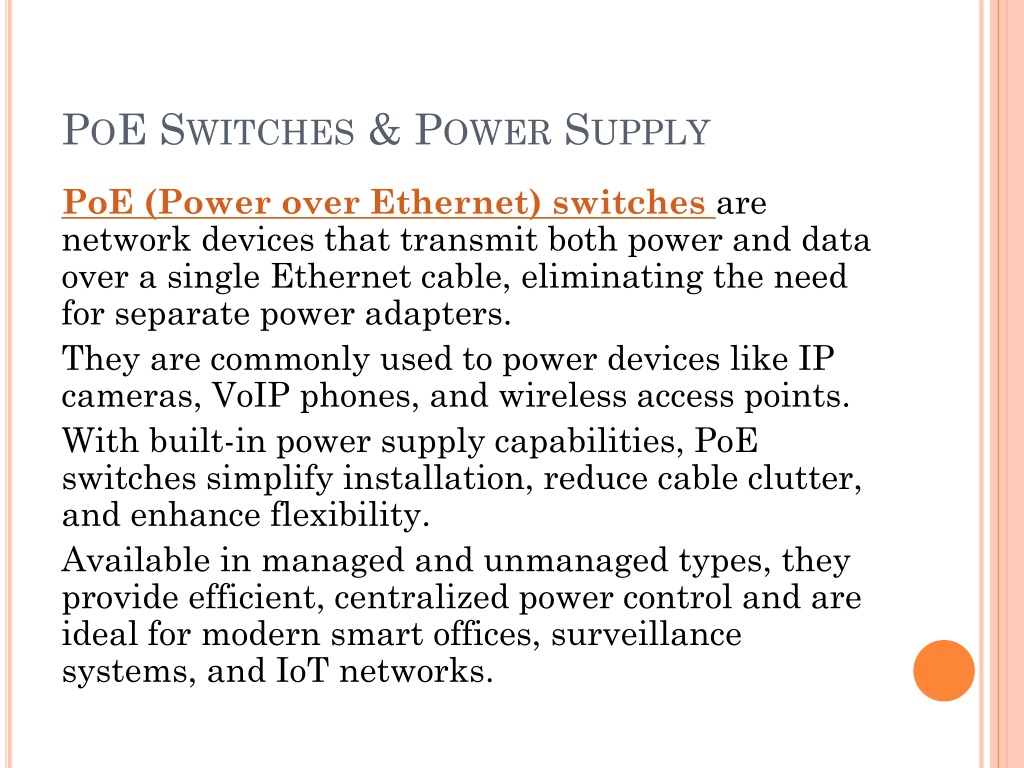

  2. PoE Switches & Power Supply PoE (Power over Ethernet) switches are network devices that transmit both power and data over a single Ethernet cable, eliminating the need for separate power adapters. They are commonly used to power devices like IP cameras, VoIP phones, and wireless access points. With built-in power supply capabilities, PoE switches simplify installation, reduce cable clutter, and enhance flexibility. Available in managed and unmanaged types, they provide efficient, centralized power control and are ideal for modern smart offices, surveillance systems, and IoT networks.

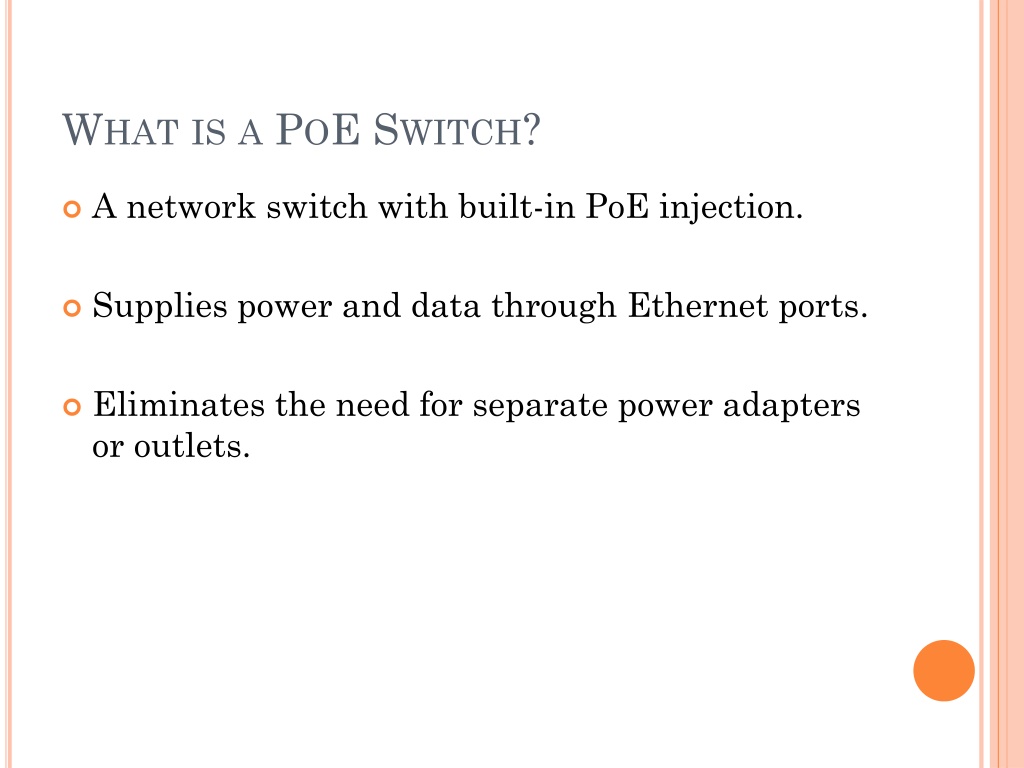

  3. What is a PoE Switch? • A network switch with built-in PoE injection. • Supplies power and data through Ethernet ports. • Eliminates the need for separate power adapters or outlets.

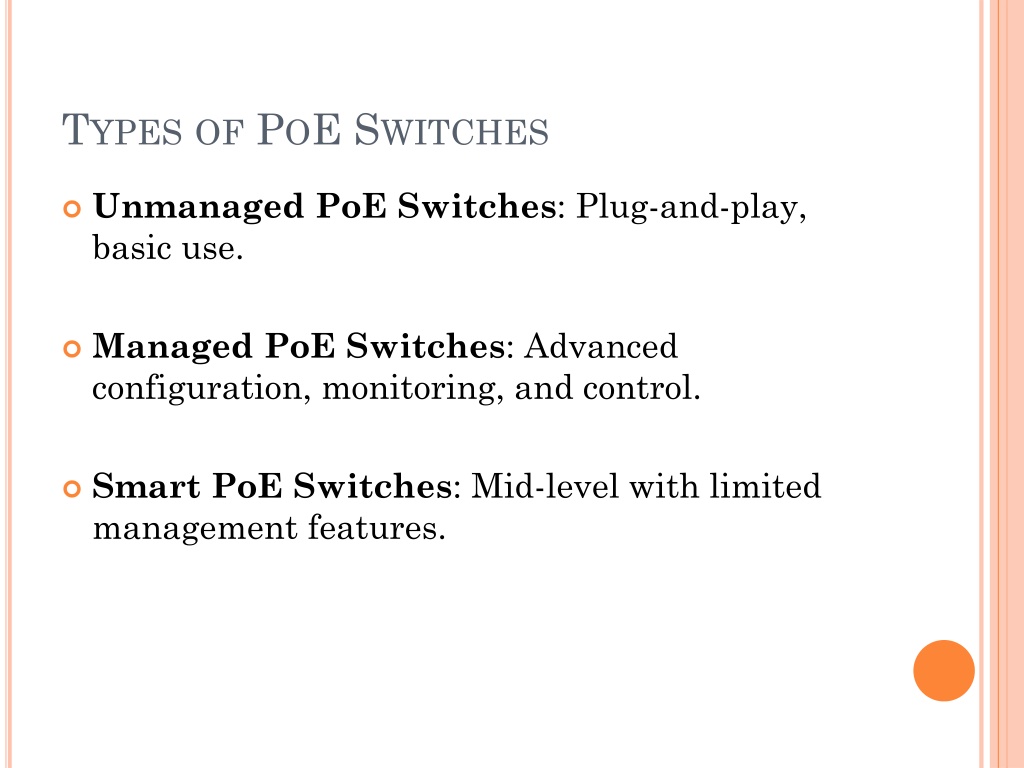

  4. Types of PoE Switches • Unmanaged PoE Switches: Plug-and-play, basic use. • Managed PoE Switches: Advanced configuration, monitoring, and control. • Smart PoE Switches: Mid-level with limited management features.

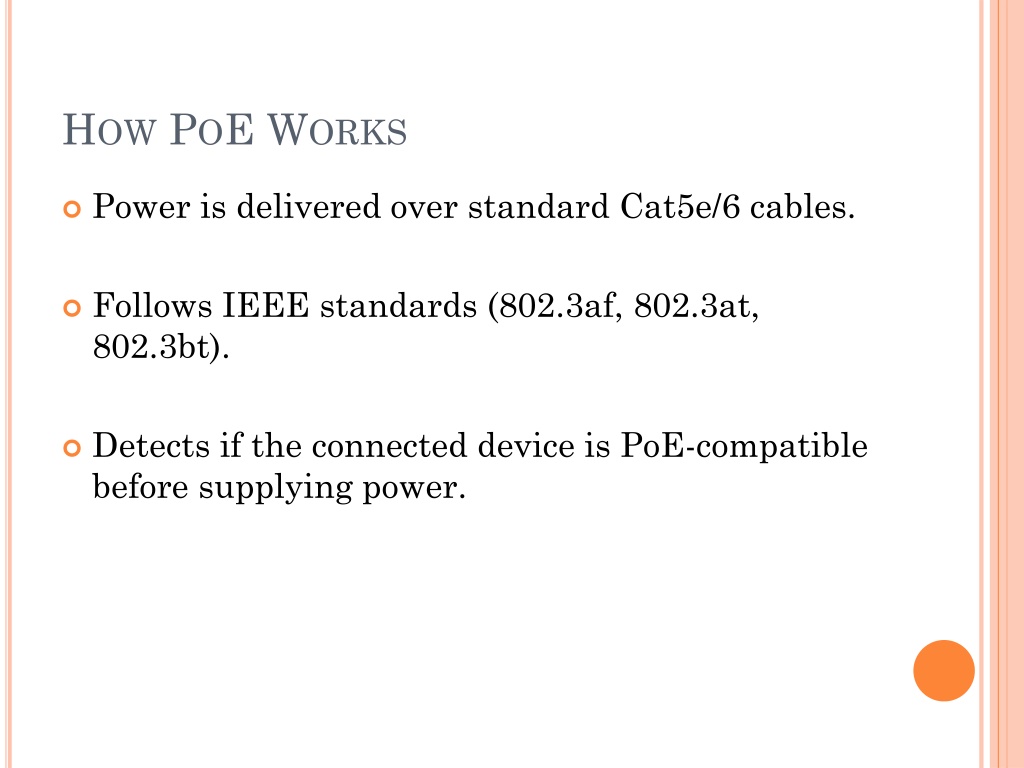

  5. How PoE Works • Power is delivered over standard Cat5e/6 cables. • Follows IEEE standards (802.3af, 802.3at, 802.3bt). • Detects if the connected device is PoE-compatible before supplying power.

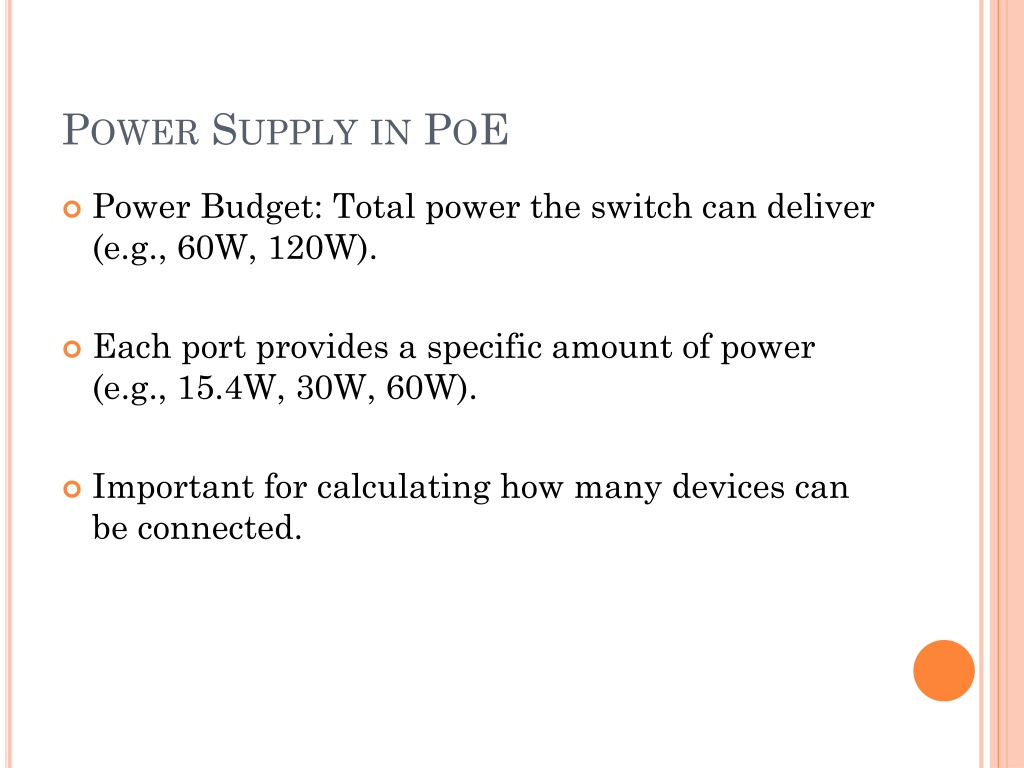

  6. Power Supply in PoE • Power Budget: Total power the switch can deliver (e.g., 60W, 120W). • Each port provides a specific amount of power (e.g., 15.4W, 30W, 60W). • Important for calculating how many devices can be connected.

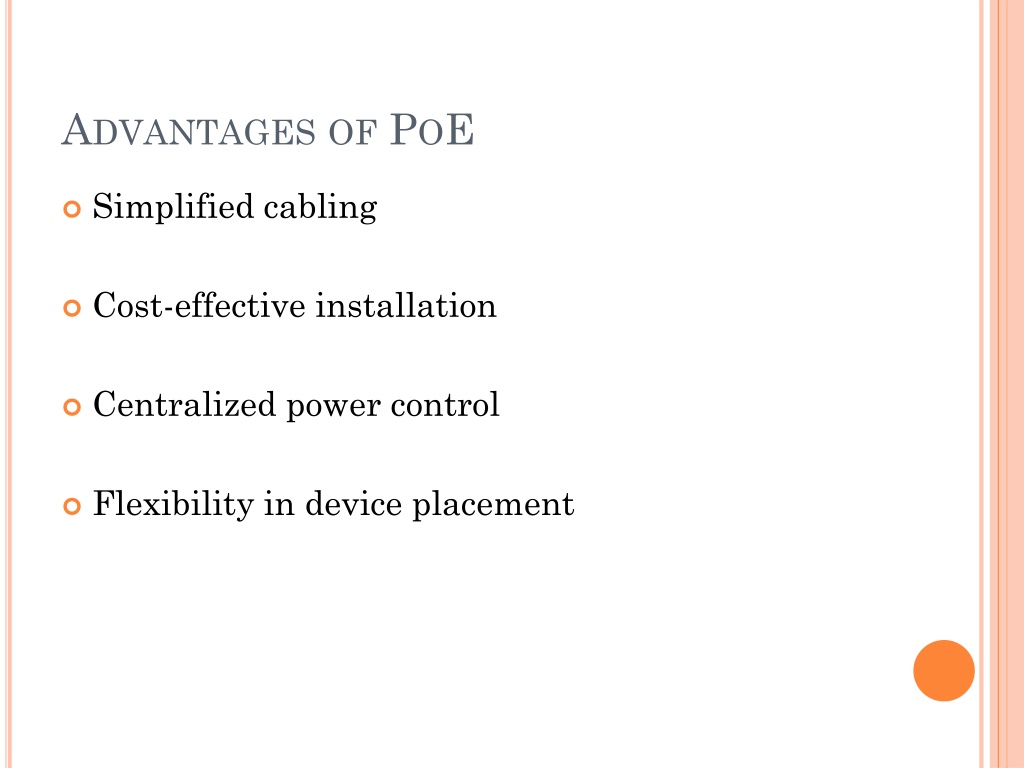

  7. Advantages of PoE • Simplified cabling • Cost-effective installation • Centralized power control • Flexibility in device placement

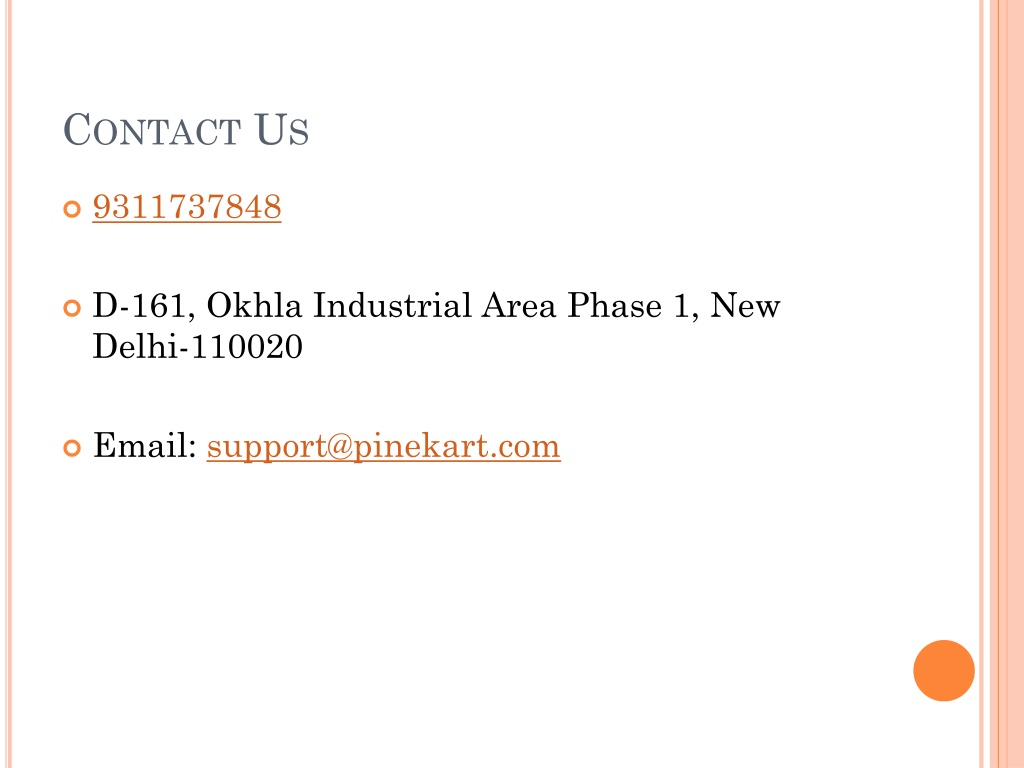

  8. Contact Us • 9311737848 • D-161, Okhla Industrial Area Phase 1, New Delhi-110020 • Email: support@pinekart.com
