Presentation Transcript
slide2

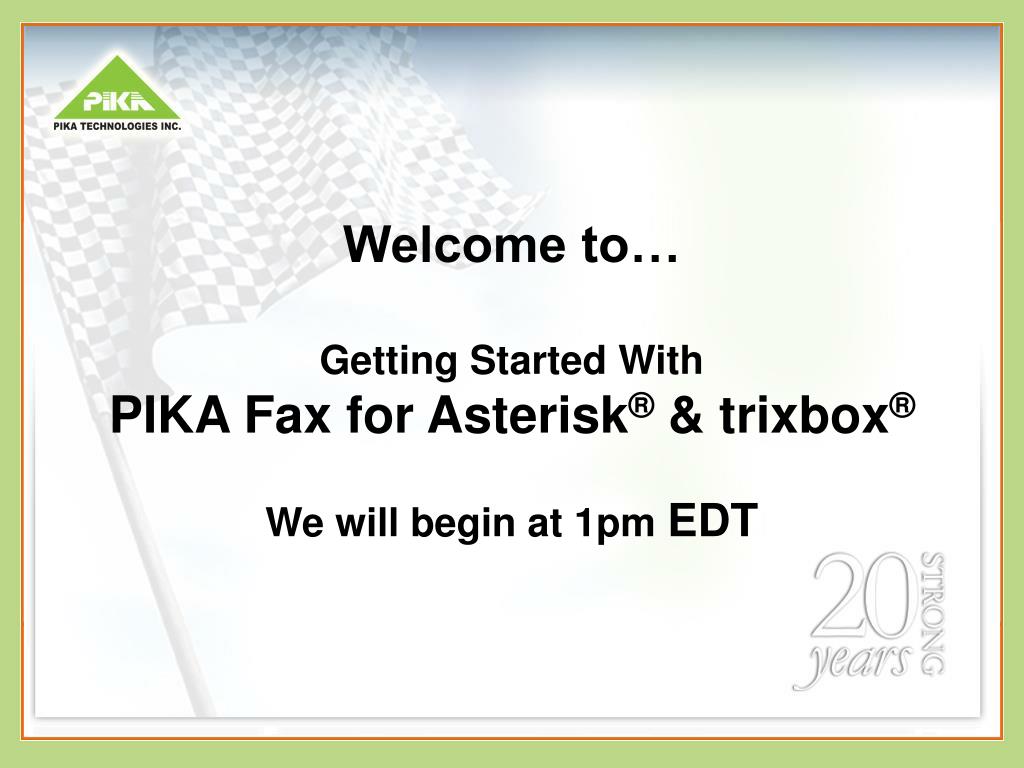

Getting Started WithPIKA Fax for Asterisk® & trixbox® Eric PretlacTechnical Support EngineerJune 18, 2008

before we get started
Before we get started
  • Audio – dial into the conference call
  • Send questions at any time during webinar
    • Question and Answer window
    • Type in question, hit send
    • Answered at the end
  • Disable pop-up blockers

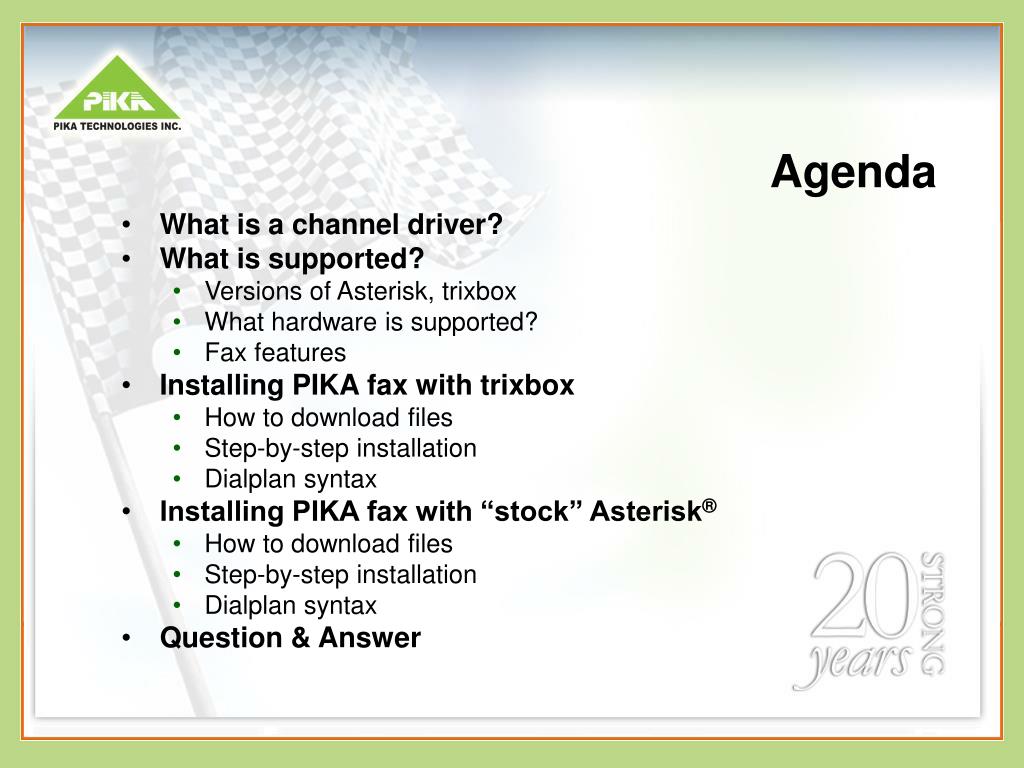

agenda
Agenda
  • What is a channel driver?
  • What is supported?
    • Versions of Asterisk, trixbox
    • What hardware is supported?
    • Fax features

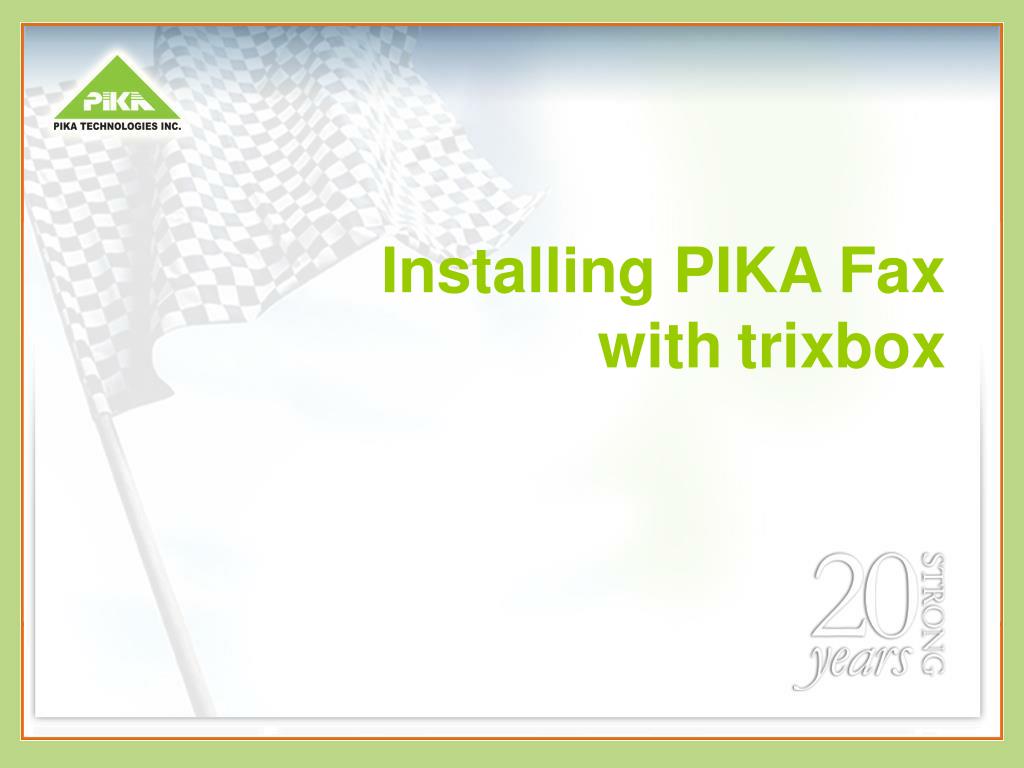

  • Installing PIKA fax with trixbox
    • How to download files
    • Step-by-step installation
    • Dialplan syntax
  • Installing PIKA fax with “stock” Asterisk®
    • How to download files
    • Step-by-step installation
    • Dialplan syntax
  • Question & Answer
terminology
Terminology
  • What is a channel driver?
    • According to www.asterisk.org
    • “Each call into Asterisk® must come in through a channel driver that supports a technology like SIP, ZAP, IAX2 etc.”
    • Program that allows PIKA cards to work with Asterisk®
pika terminology
PIKA Terminology
  • chan_pika_dsp
    • low density analog (4 port fxo) card
    • On-board DSP
  • chan_pika
    • high density analog fxo / fxs cards
    • digital T1/E1 cards
    • fax with any Asterisk® compatible board!!
what you can do with pika fax for asterisk
What you can do with PIKA Fax for Asterisk
  • Send and receive faxes (to a file)
  • Fax with any Asterisk® compatible board
    • e.g. PIKA, Digium, Sangoma, Rhino
  • Works with Asterisk® and trixbox

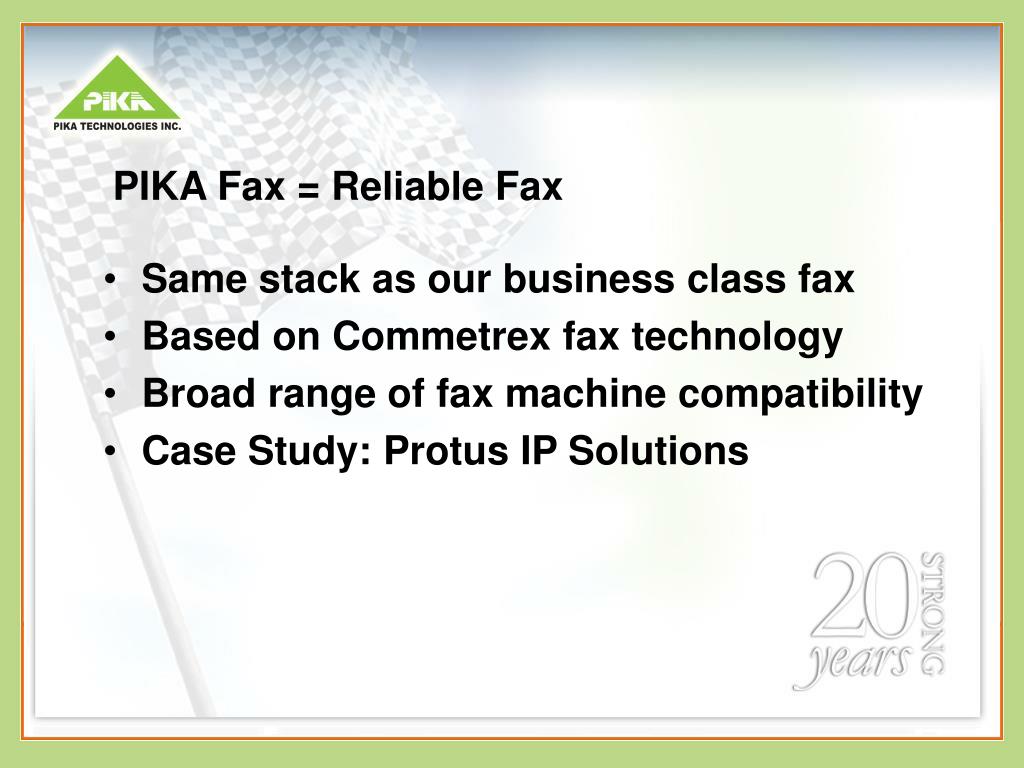

pika fax reliable fax
PIKA Fax = Reliable Fax
  • Same stack as our business class fax
  • Based on Commetrex fax technology
  • Broad range of fax machine compatibility
  • Case Study: Protus IP Solutions
pika s fax features
PIKA’s Fax Features
  • Supports ITU-T T.30
  • Supports ITU-T V.21, V.27ter, V.29 and V.17 modems for send and receive data rates up to 14.4 Kbps.
  • ECM (error correction mode)
  • Header and footers can be added by senders and receivers
pika s fax features cont d
PIKA’s Fax Features (cont’d)
  • Subscriber ID
  • T.4 and T.6 formats including:
    • Metric- and inch-based page sizes
    • All resolutions including 100x100, 200x200, 300x300 and 400x400
    • MH, MR and MMR encoding
  • TIFF-F format
pika support for trixbox
PIKA support for trixbox
  • PIKA supports trixbox CE 2.2, 2.4, 2.6

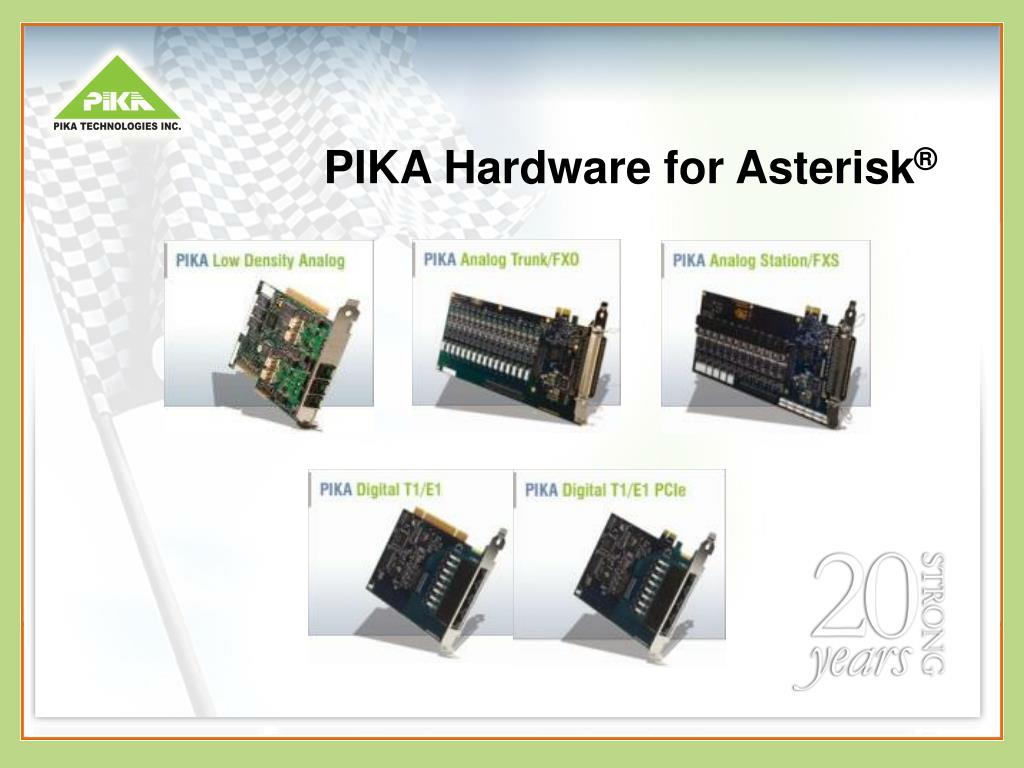

  • PIKA hardware
    • Low Density Analog (4 fxo)
    • High density Analog Trunk/ fxo
    • High density Analog Station/ fxs
    • Digital T1/E1 PCI/PCIe

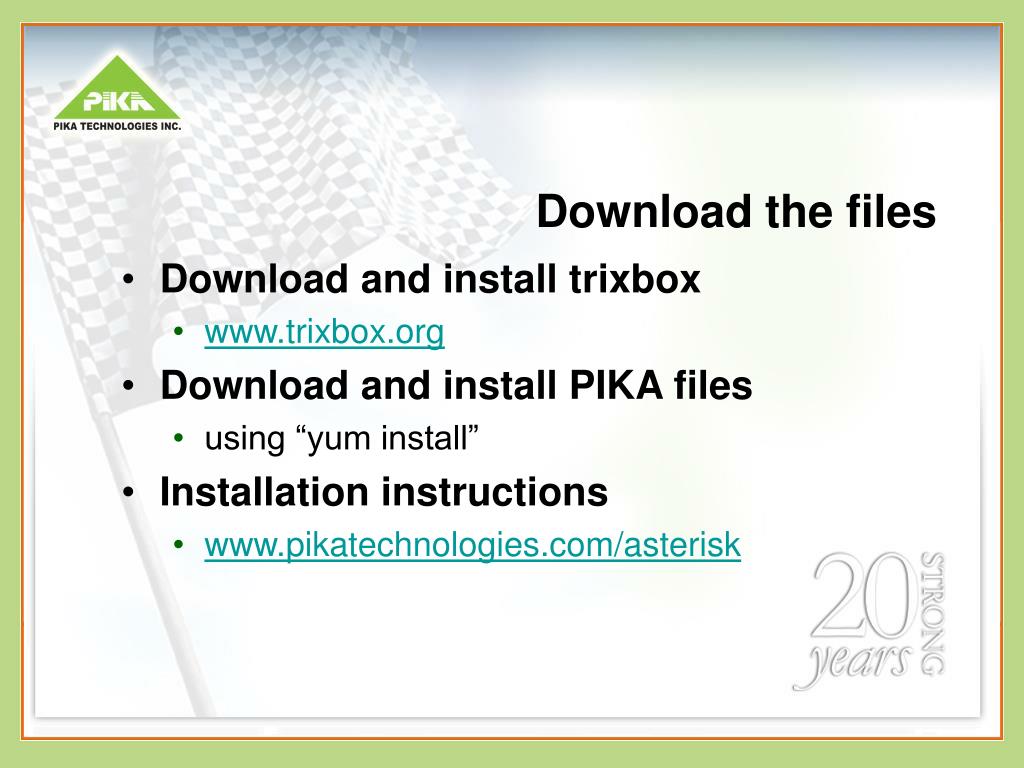

download the files
Download the files
  • Download and install trixbox
    • www.trixbox.org
  • Download and install PIKA files
    • using “yum install”
  • Installation instructions
    • www.pikatechnologies.com/asterisk

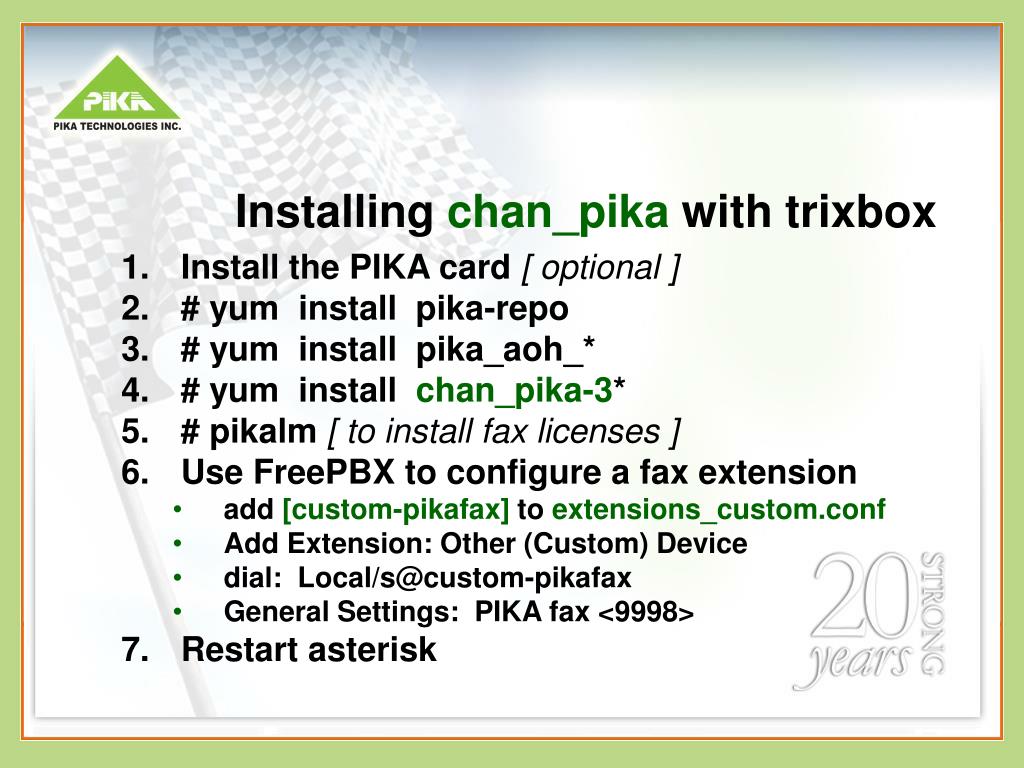

installing chan pika with trixbox
Installing chan_pika with trixbox
  • Install the PIKA card [ optional ]
  • # yum install pika-repo
  • # yum install pika_aoh_*
  • # yum install chan_pika-3*
  • # pikalm [ to install fax licenses ]
  • Use FreePBX to configure a fax extension
    • add [custom-pikafax] to extensions_custom.conf
    • Add Extension: Other (Custom) Device
    • dial: Local/s@custom-pikafax
    • General Settings: PIKA fax <9998>
  • Restart asterisk
using pika fax in your dialplan receiving
Using PIKA fax in your Dialplan - Receiving

[custom-pikafax]

exten => s,1,Wait(1)

exten => s,n,NoOp(Answer from a PSTN port)

exten => s,n,Answer

exten => s,n,Wait(1)

exten => s,n,Set(LOCALSTATIONID=1078)

exten => s,n,Set(LOCALHEADERINFO=

"PIKARxFax Test Page %P Time: %H:%M To: %l From: %r")

exten => s,n,Set(FAXFILE=/tmp/pikafax-${UNIQUEID}.tif)

exten => s,n,Wait(1)

exten => s,n,PIKARxFax(${FAXFILE})

exten => s,n,NoOp(${REMOTESTATIONID})

exten => s,n,NoOp(${FAXPAGES})

exten => s,n,NoOp(${FAXBITRATE})

exten => s,n,NoOp(${FAXRESOLUTION})

exten => s,n,Hangup

pika support for asterisk
PIKA support for Asterisk®
  • PIKA supports Asterisk 1.2 and 1.4
  • PIKA hardware
    • Low Density Analog (4 fxo)
    • High density Analog Trunk/ fxo
    • High density Analog Station/ fxs
    • Digital T1/E1 PCI/PCIe
before you begin
Before you begin…
  • gcc and glibc must be installed
  • Kernel source must be installed
  • Must disable SElinux
  • Any 32-bit distro using kernel 2.6+
  • Must use the smp kernel (chan_pika)
  • PIKA scripts check all of this! 

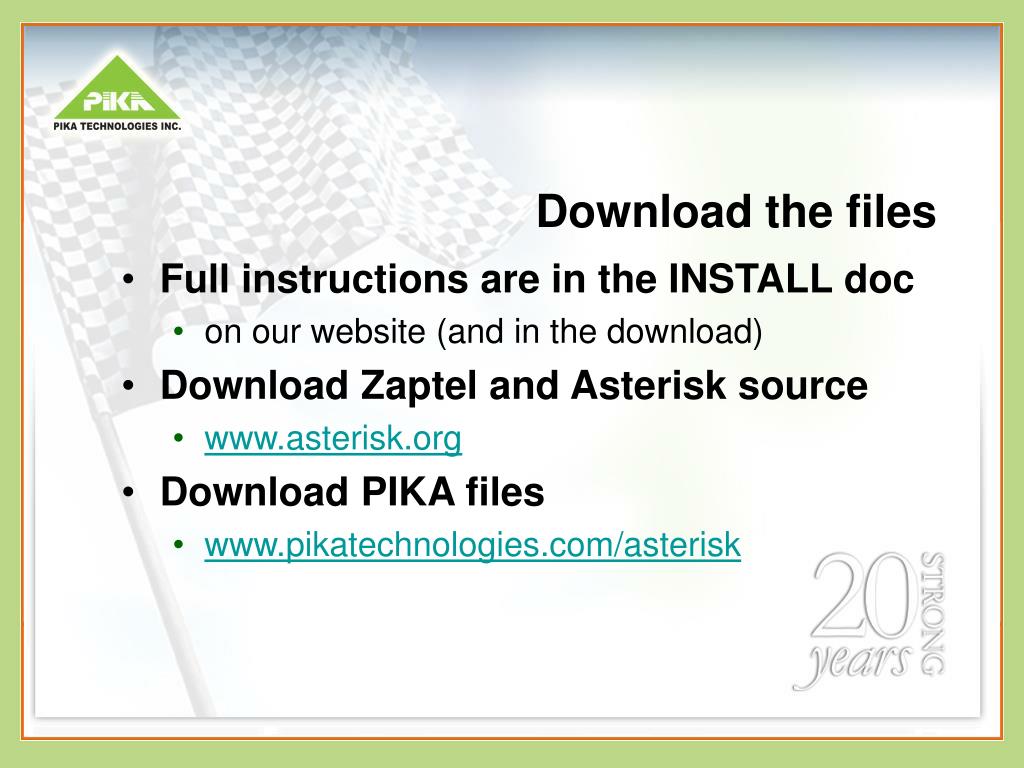

download the files1
Download the files
  • Full instructions are in the INSTALL doc
    • on our website (and in the download)
  • Download Zaptel and Asterisk source
    • www.asterisk.org
  • Download PIKA files
    • www.pikatechnologies.com/asterisk
installing chan pika
Installing chan_pika
  • Extract Asterisk source

# tar -zxf asterisk-1.4.17.tar.gz -C /usr/src/

  • Extract Zaptel source

# tar -zxf zaptel-1.4.7.tar.gz -C /usr/src/

    • PIKA uses ztdummy module
  • Extract PIKA channel driver source

# tar -zxf chan_pika-3.3.0.tgz -C /usr/src/

chan pika cont d
chan_pika (cont’d)
  • Physically install the PIKA board
  • Install the PIKA board driver and SDK

# cd /usr/src/chan_pika-3.3.0

# ./pikaaoh-2.2.8-linux-installer

  • Activate PIKA fax licenses

# pikalm

    • Enter the license string emailed to you
installing chan pika cont d

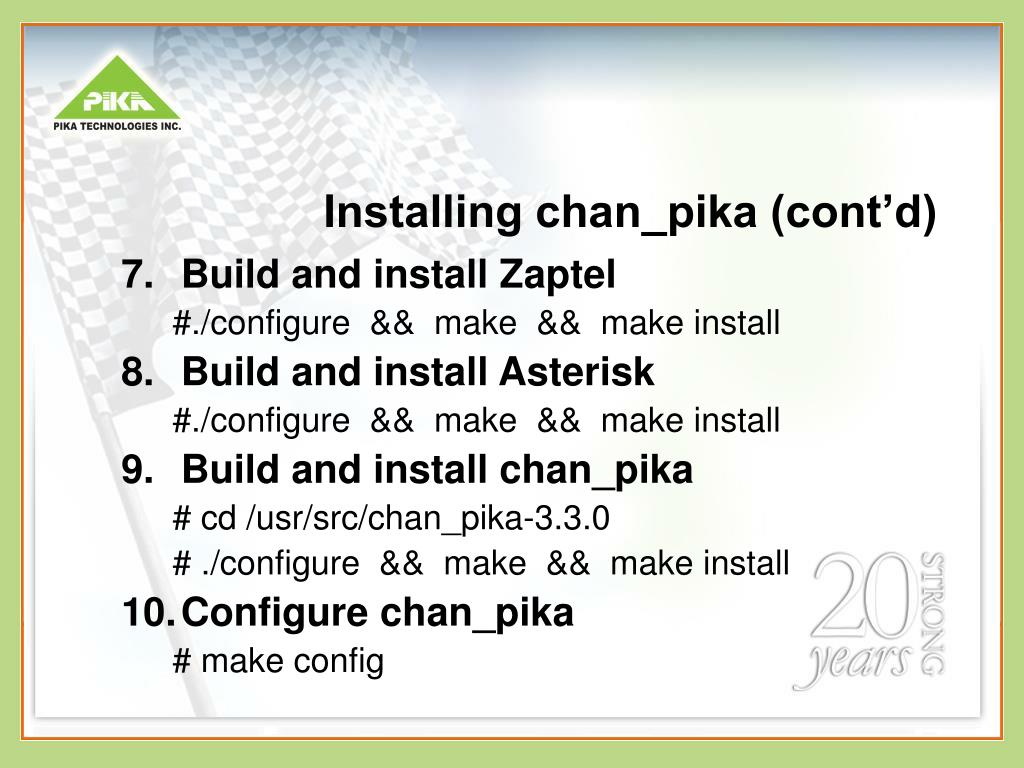

Installing chan_pika (cont’d)
  • Build and install Zaptel

#./configure && make && make install

  • Build and install Asterisk

#./configure && make && make install

  • Build and install chan_pika

# cd /usr/src/chan_pika-3.3.0

# ./configure && make && make install

  • Configure chan_pika

# make config

using pika fax in your dialplan receiving1
Using PIKA fax in your Dialplan - Receiving

[custom-pikafax]

exten => s,1,Wait(1)

exten => s,n,NoOp(Answer from a PSTN port)

exten => s,n,Answer

exten => s,n,Wait(1)

exten => s,n,Set(LOCALSTATIONID=1078)

exten => s,n,Set(LOCALHEADERINFO=

"PIKARxFax Test Page %P Time: %H:%M To: %l From: %r")

exten => s,n,Set(FAXFILE=/tmp/pikafax-${UNIQUEID}.tif)

exten => s,n,Wait(1)

exten => s,n,PIKARxFax(${FAXFILE})

exten => s,n,NoOp(${REMOTESTATIONID})

exten => s,n,NoOp(${FAXPAGES})

exten => s,n,NoOp(${FAXBITRATE})

exten => s,n,NoOp(${FAXRESOLUTION})

exten => s,n,Hangup

using pika fax in your dialplan sending
Using PIKA fax in your Dialplan - Sending

[outgoing]

exten => s,1,Dial(Zap/g0/6135551234)

exten => s,n,Set(LOCALSTATIONID=1078)

exten => s,n,Set(LOCALHEADERINFO=

"PIKARxFax Test Page %P Time: %H:%M To: %l From: %r")

exten => s,n,Set(FAXFILE=/tmp/pikafax.tif)

exten => s,n,Wait(1)

exten => s,n,PikaTxFax(${FAXFILE})

exten => s,n,Hangup

installing pika fax last step
Installing PIKA fax – Last Step!
  • Start Asterisk
  • To verify that Pika fax applications have been successfully installed:

*CLI>  show applications

PikaRxFax and PikaTxFax

*CLI>  pika show version

PIKA Channel Driver for Asterisk 3.3.0.194

GrandPrix version: 2.4.0.100

AoH version: 2.4.0.130

why choose pika fax for asterisk
Why choose PIKA Fax for Asterisk?
  • Easy to install
  • Accessible Support
  • Reliable, market proven performance
  • High Density
  • Low cost
agenda1
Agenda
  • What is a channel driver?
  • What is supported?
    • trixbox 2.2, 2.4, 2.6
    • Asterisk 1.2 & 1.4
    • PIKA hardware + 3rd party
    • Fax features
  • Installing PIKA fax with trixbox
    • How to download files
    • Step-by-step installation
    • Dialplan syntax
  • Installing PIKA fax with “stock” Asterisk®
    • How and where to download files
    • Step-by-step installation
    • Dialplan syntax
  • Question & Answer
question answer
Question & Answer

We invite you to ask questions.

Enter your question

in the Question and Answer window.

Send to LEADER.

We’ll answer as many questions

as we have time.

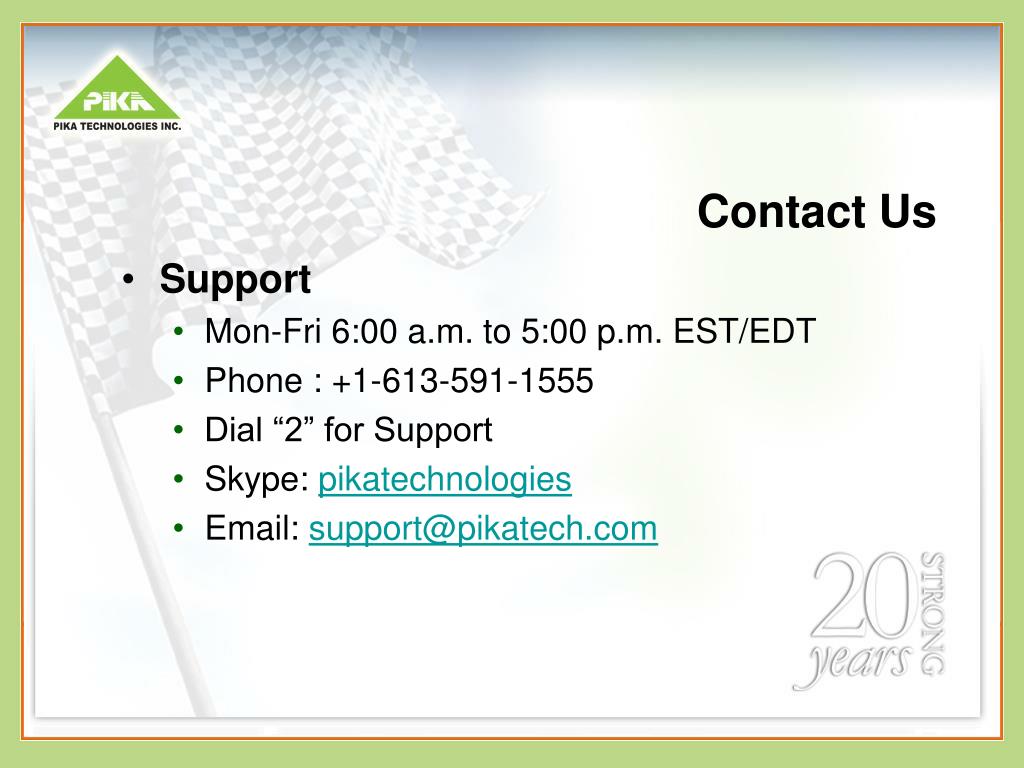

contact us
Contact Us
  • Support
    • Mon-Fri 6:00 a.m. to 5:00 p.m. EST/EDT
    • Phone : +1-613-591-1555
    • Dial “2” for Support
    • Skype: pikatechnologies
    • Email: support@pikatech.com
upcoming pika technical webinars
Upcoming PIKA Technical Webinars

www.pikatech.com

NEWS & EVENTS /

Technical Webinars

before you go
Before you go . .
  • Please fill out the on-line survey
  • Tell us how we did
  • Give us suggestions for future topics
slide35

Thank you

for your time.
