  1. Polyester plinths of THALASSA polyester wall-mounting and floor-standing enclosures UE_TR_UE11MK15en

  2. Contents • Installation of an enclosure • Why use a plinth? • Advantages • Plinth offer

  3. Installation of an enclosure Enclosures can be installed • On a post • Against a wall • On a structure • Flush

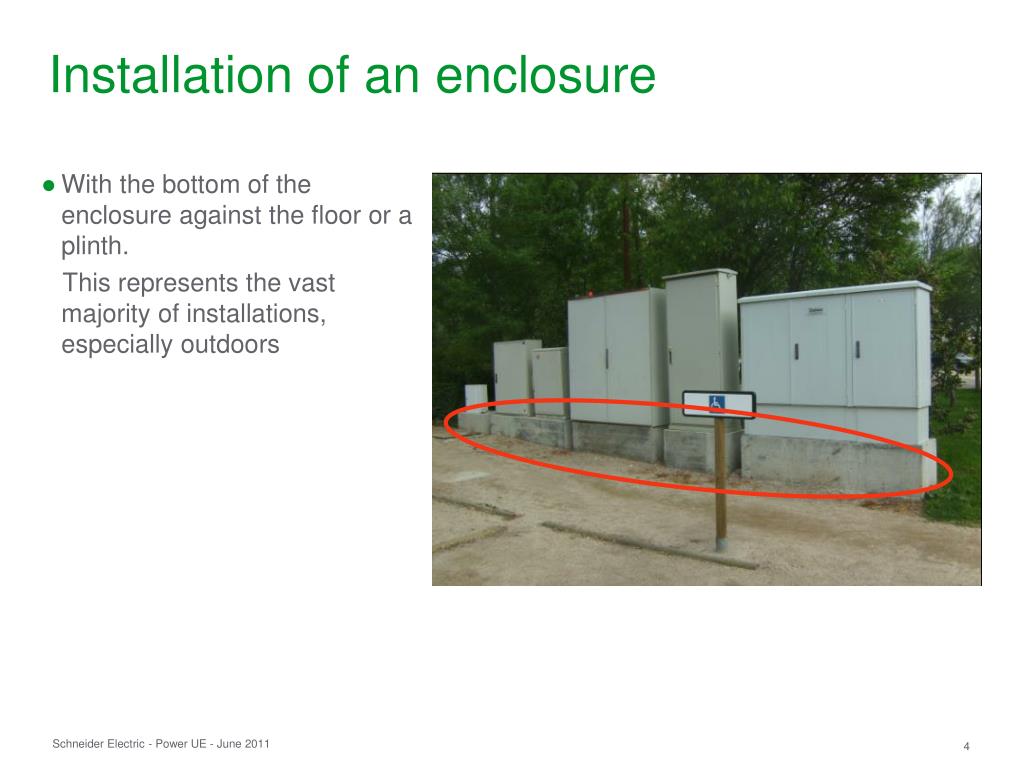

  4. Installation of an enclosure • With the bottom of the enclosure against the floor or a plinth. This represents the vast majority of installations, especially outdoors

  5. Installation of an enclosure Finished floor Unfinished floor Finished floor or floor with concrete foundation Partly embedded, non-opening plinth On the foundation Directly at floor level On a plinthbetween the floor (or the foundation) and the enclosure Partly embedded, opening plinth

  6. Contents • Installation of an enclosure • Why use a plinth? • Advantages • Plinth offer

  7. Why use a plinth? • Plinths can be used to: • Avoid the hazard posed by water rising • Improve working height • House stand by cables • Avoid having to build a concrete foundation (plinth) • Opening plinths can be used to: • Make it easier to install cables, with front or rear access • Ensure the cables are supported • Provide access for maintenance (adding/replacing cables)

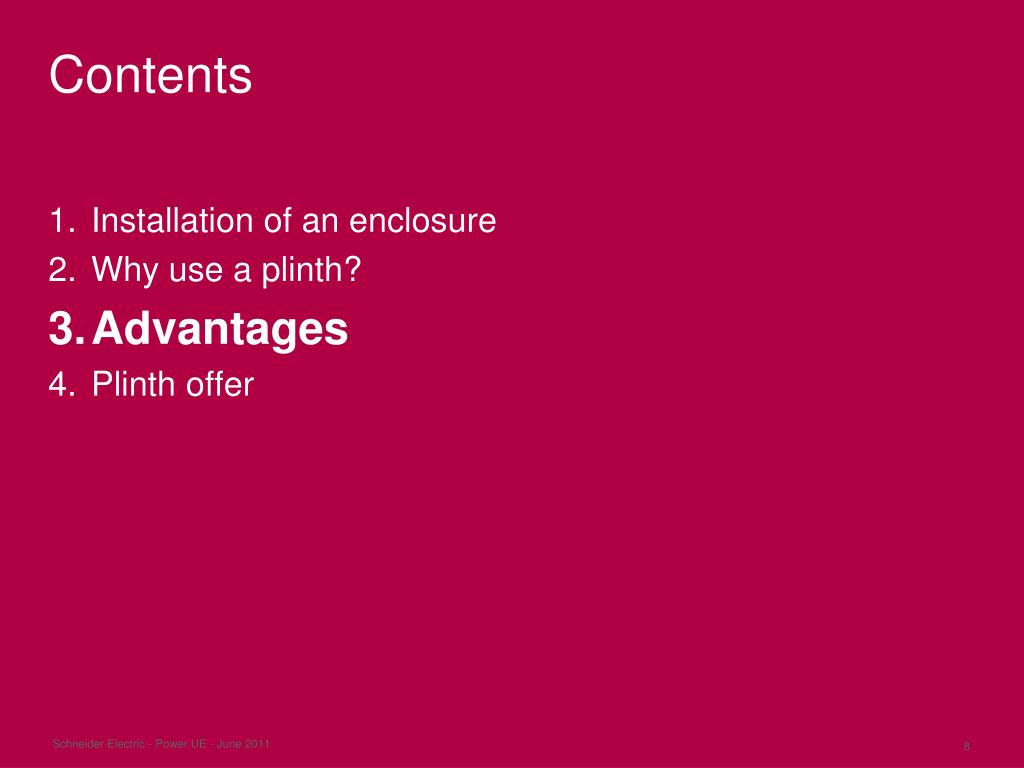

  8. Contents • Installation of an enclosure • Why use a plinth? • Advantages • Plinth offer

  9. Advantages What would you think of a plinth that offers the following advantages? Security and protection Easy installation • No electric risk = total insulation / Class II equivalent • Choice of IP • High mechanical strength • Attractive lock and hidden screw • Lock requiring a special tool—cannot be opened through primary vandalism—or no external lock • Choice of height or stackable plinth • No concrete foundation (plinth) needed • Installation on unfinished floors using an accessory • Easy assembly—symmetry to avoid mistakes • Compatible with horizontal coupling of enclosures Assistance for installing and supporting cables Maintenance access • Plinth opens from the front and back—more access options • Cable-supporting accessory • Different positions for the cable-supporting accessory • Option of installing several cross-rails for supporting cables

  10. Contents • Installation of an enclosure • Why use a plinth? • Advantages • Plinth offer

  11. ZM plinth offerfor Thalassa PLM ranges Thalassa PLM dimensions 310 x 215 x 160 307 x 255 x 164 430 x 330 x 200 530 x 430 x 200 647 x 436 x 250 747 x 536 x 300 847 x 636 x 300 1056 x 852 x 350

  12. ZA & ZZ plinth offer for Thalassa PLA ranges PLAZ / PLAZT PLA / PLAT

  13. Plinth offer • Same material as the enclosures: polyester reinforced with fibreglass • IP 44 (and an accessory for increasing to IP 54) (degree of protection) • IK 10 (protection against impacts) • Choice of height (function to support - raise) • ZM and ZA => 200 mm and option of stacking 2 => 400 mm PLA or PLAT PLM ZA ZM ZA

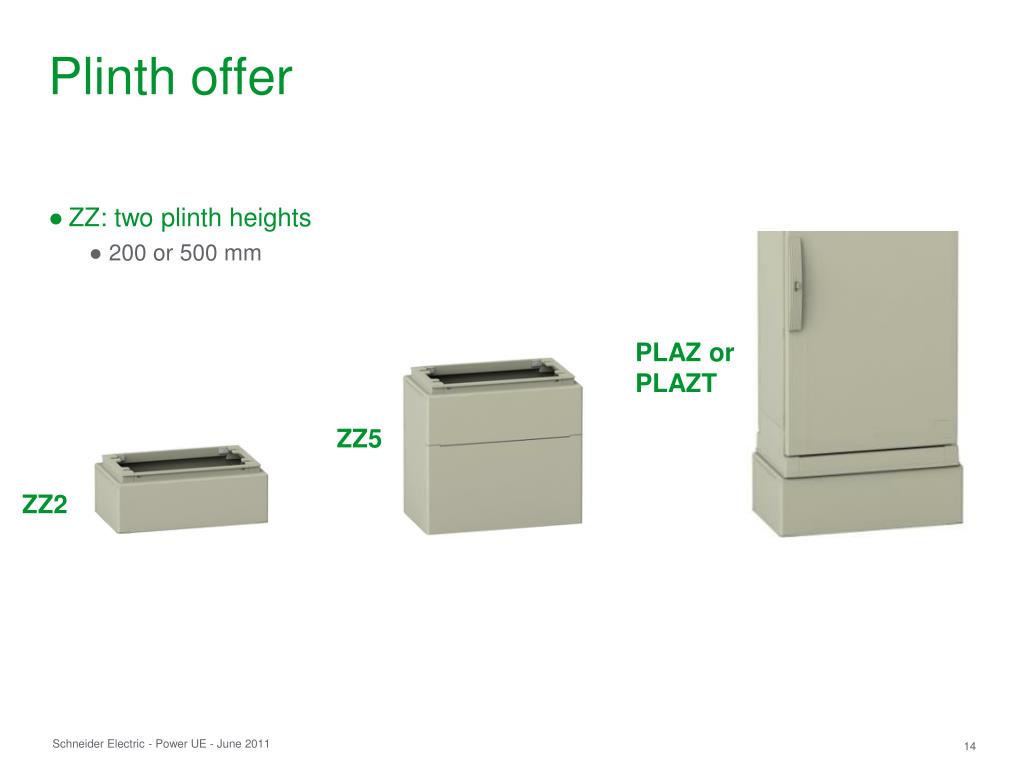

  14. Plinth offer • ZZ: two plinth heights • 200 or 500 mm PLAZ or PLAZT ZZ5 ZZ2

  15. Plinth offer / ZM, ZA and ZZ (components and accessories) Lateral (support function) Identical opening front and rear - (access function) Transverse reinforcement (function of withstanding pressure) ZZ: no external opening as standard (total security function) Optional lock installation (opening from the outside) ZM and ZA: locking by special tool (Allen key) (locking function and limited access from the outside) and protective cap

  16. Plinth offer / Components and accessories Internal points for holding cable-supporting cross-rails (choice of position) Packaging—unassembled supply (purpose: to minimise bulk during storage and transport) Cross-rail accessory (cable-supporting function)

  17. Plinth offer / Components and accessories Accessories with four adjustable feet for partly embedded plinths (function: fixing into the ground) In all versions of the 200-mm plinths, four sealed feet can be fixed to the bottom of the excavation The front panel does not open and the height above the floor is low (100 mm embedded, 100 mm above floor) With two stacked ZM or ZA plinths or one 500-mm ZZ plinth, four sealed feet can be fixed to the bottom of the excavation The bottom front panel is partly embedded; the top front panel can be opened Finished floor height Finished floor height
