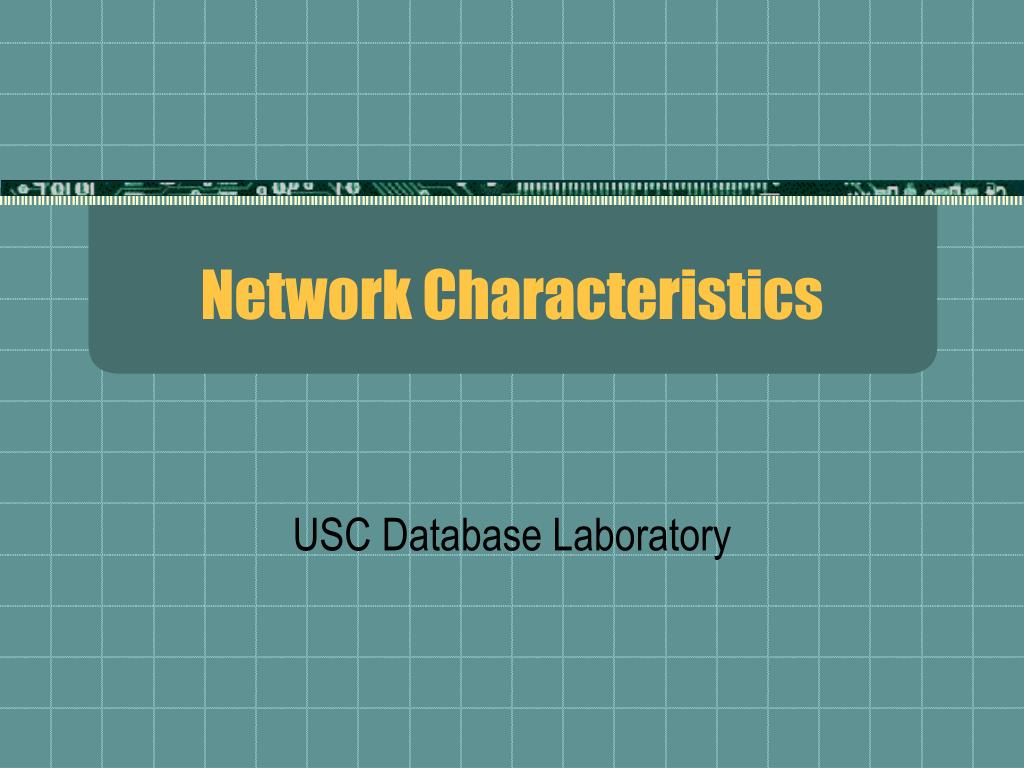

  1. Network Characteristics USC Database Laboratory

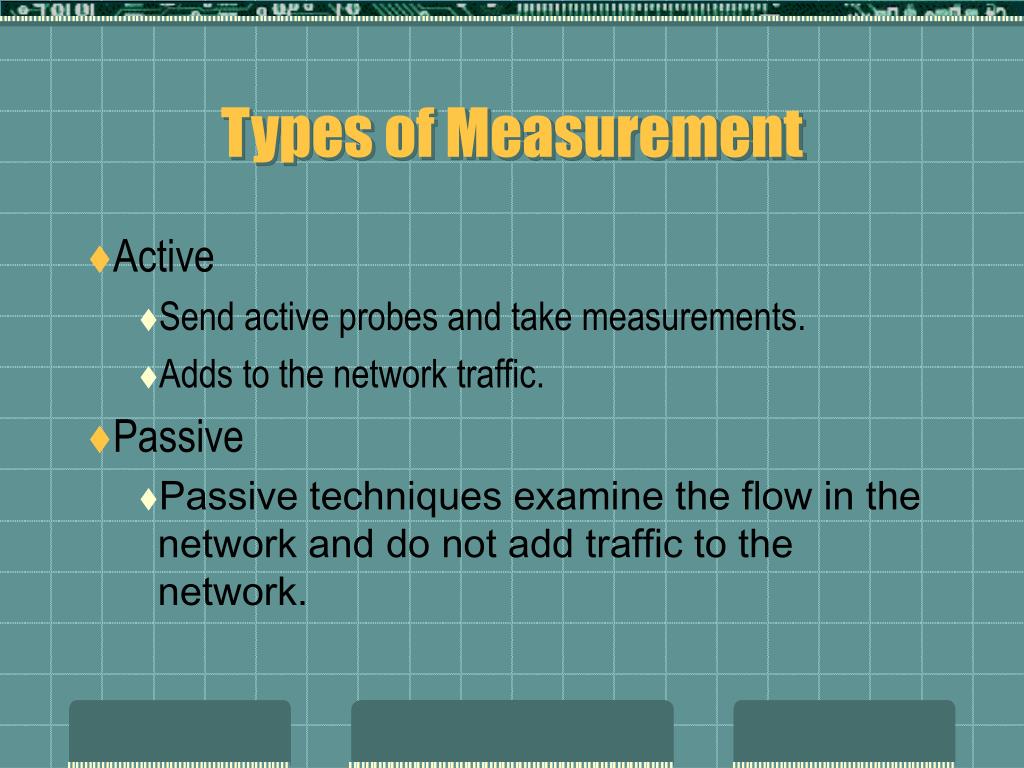

  2. Types of Measurement • Active • Send active probes and take measurements. • Adds to the network traffic. • Passive • Passive techniques examine the flow in the network and do not add traffic to the network.

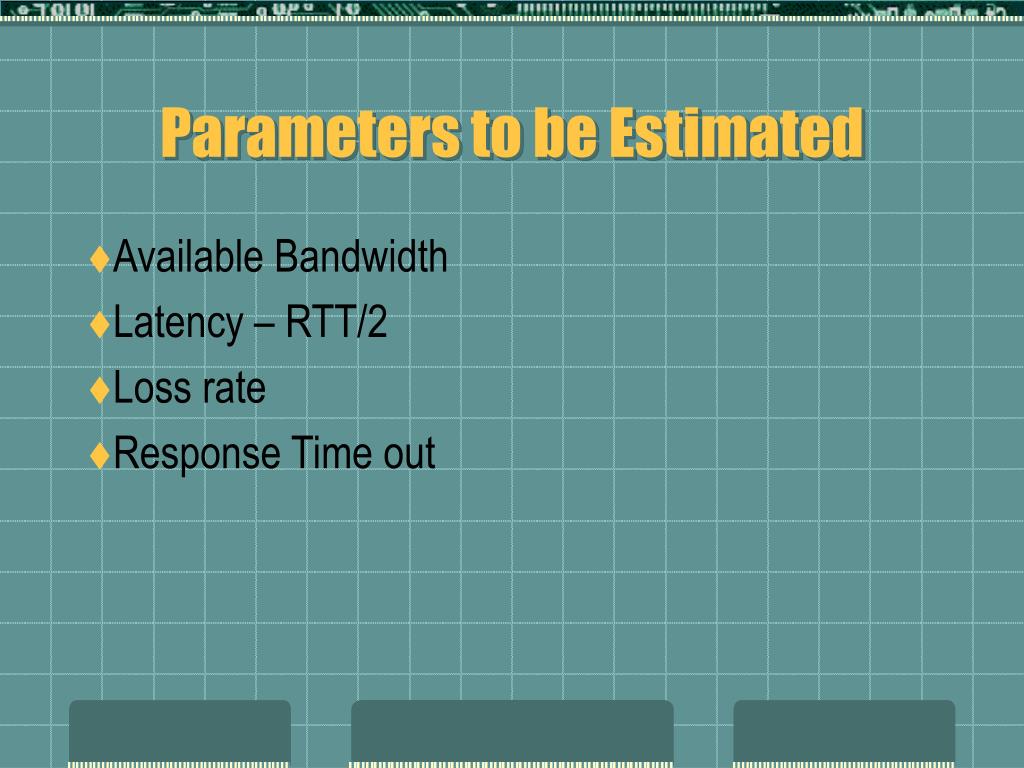

  3. Parameters to be Estimated • Available Bandwidth • Latency – RTT/2 • Loss rate • Response Time out

  4. Bandwidth • Actual Bandwidth. • Available Bandwidth. • Bottleneck Bandwidth

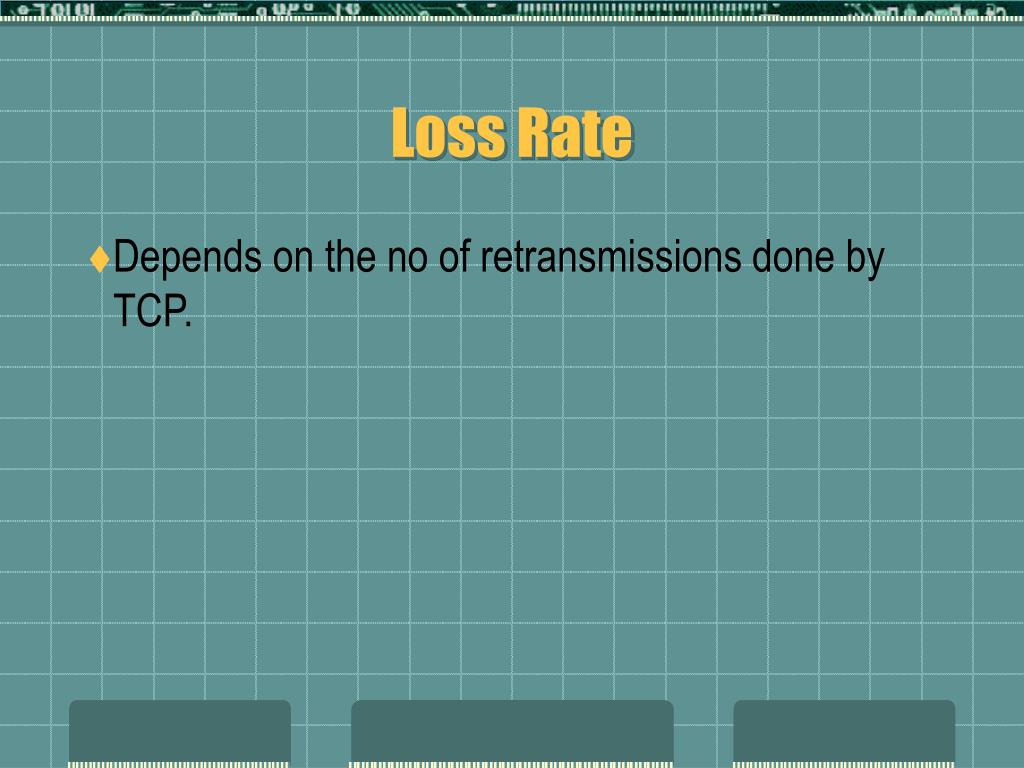

  5. Loss Rate • Depends on the no of retransmissions done by TCP.

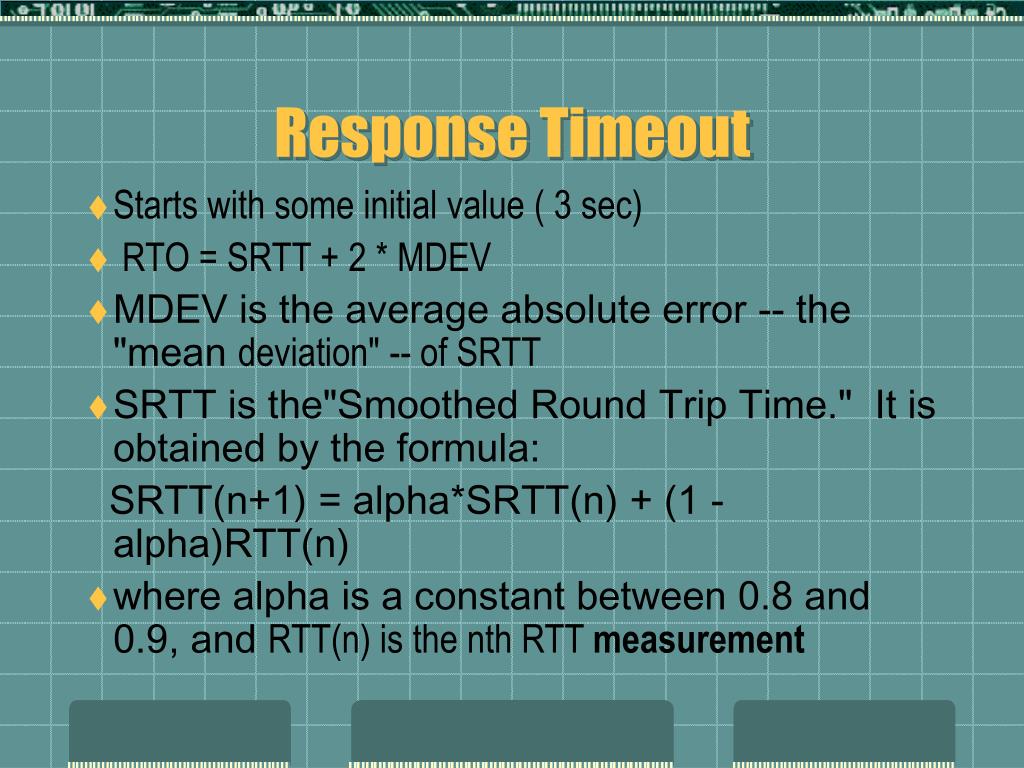

  6. Response Timeout • Starts with some initial value ( 3 sec) • RTO = SRTT + 2 * MDEV • MDEV is the average absolute error -- the "mean deviation" -- of SRTT • SRTT is the"Smoothed Round Trip Time." It is obtained by the formula:  SRTT(n+1) = alpha*SRTT(n) + (1 - alpha)RTT(n) • where alpha is a constant between 0.8 and 0.9, and RTT(n) is the nth RTT measurement

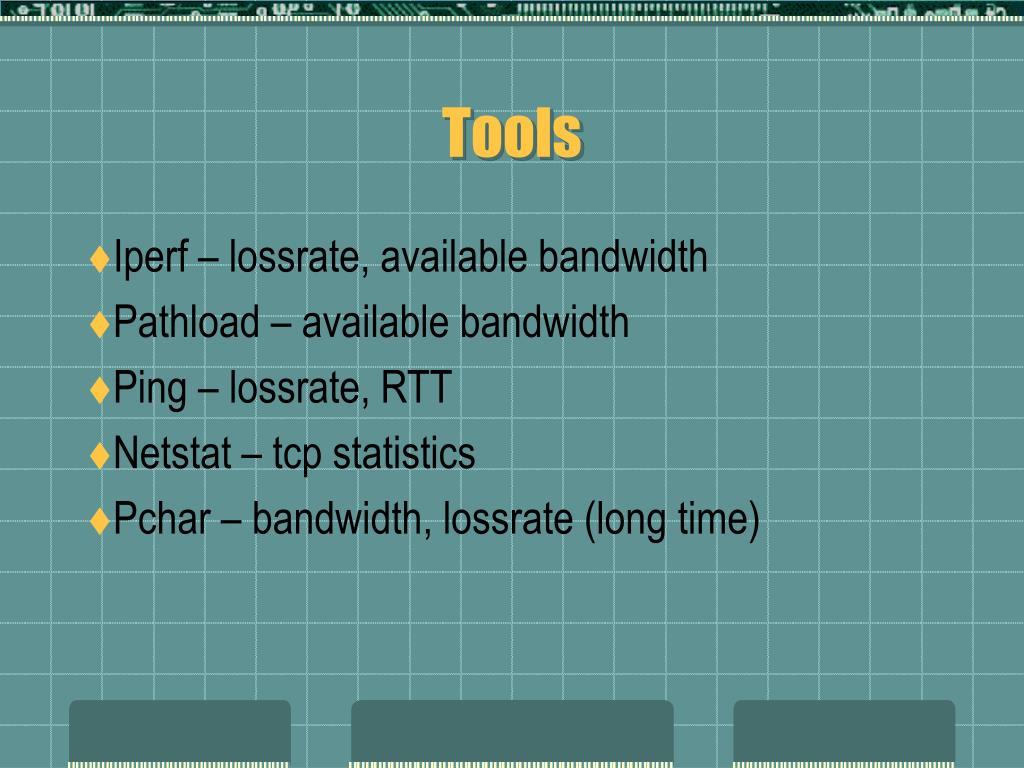

  7. Tools • Iperf – lossrate, available bandwidth • Pathload – available bandwidth • Ping – lossrate, RTT • Netstat – tcp statistics • Pchar – bandwidth, lossrate (long time)

  8. Available Bandwidth Estimation • Most of the tools focus on capacity rather than available bandwidth. • Done using Pathload • Explanation of pathload follows -

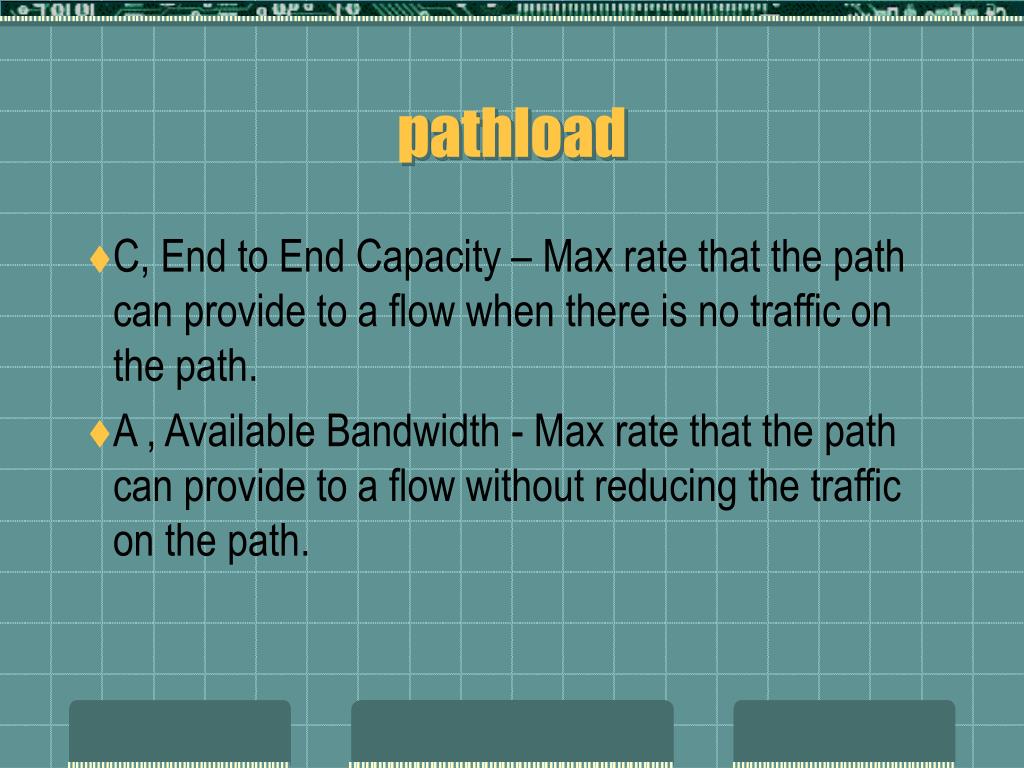

  9. pathload • C, End to End Capacity – Max rate that the path can provide to a flow when there is no traffic on the path. • A , Available Bandwidth - Max rate that the path can provide to a flow without reducing the traffic on the path.

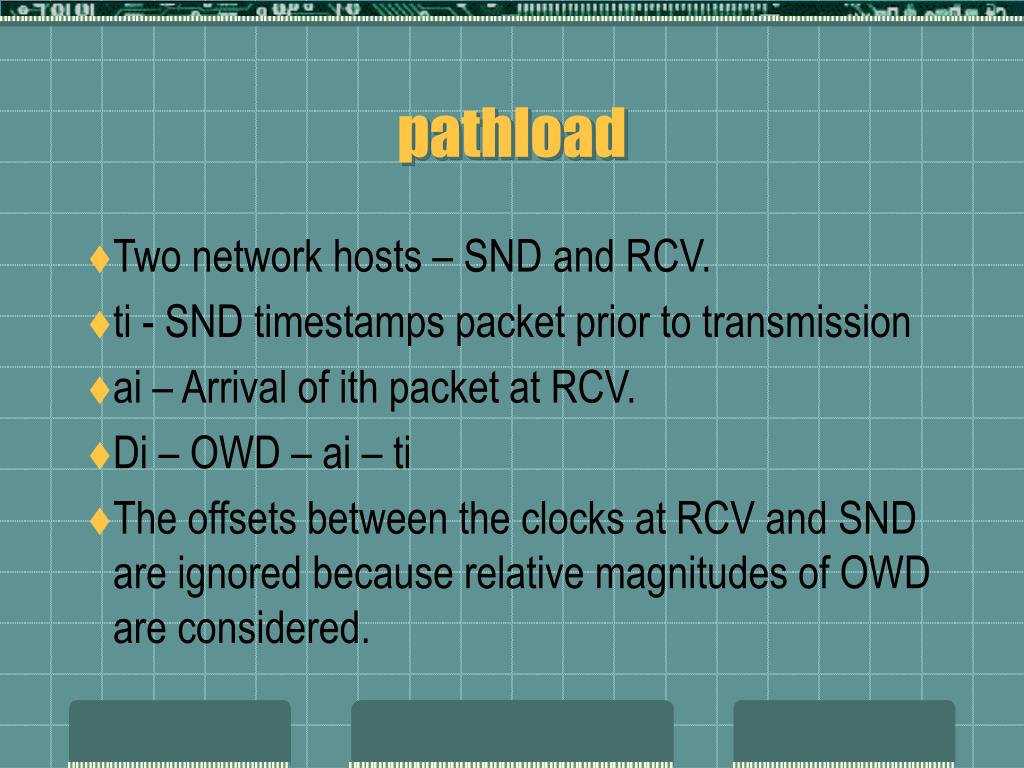

  10. pathload • Two network hosts – SND and RCV. • ti - SND timestamps packet prior to transmission • ai – Arrival of ith packet at RCV. • Di – OWD – ai – ti • The offsets between the clocks at RCV and SND are ignored because relative magnitudes of OWD are considered.

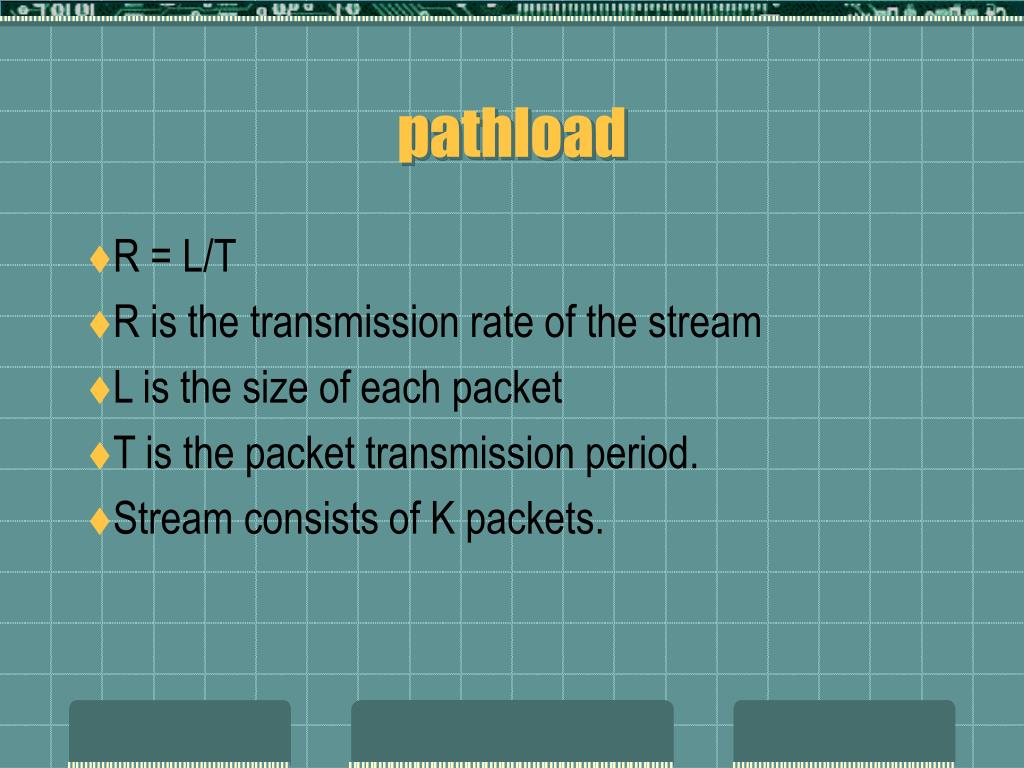

  11. pathload • R = L/T • R is the transmission rate of the stream • L is the size of each packet • T is the packet transmission period. • Stream consists of K packets.

  12. pathload • If R > A then, The relative OWDs {D1, D2, …Dk} are expected to have an increasing trend. • On the other hand if R<A The relative OWDs {D1, D2, …Dk} are expected to have a non - increasing trend.

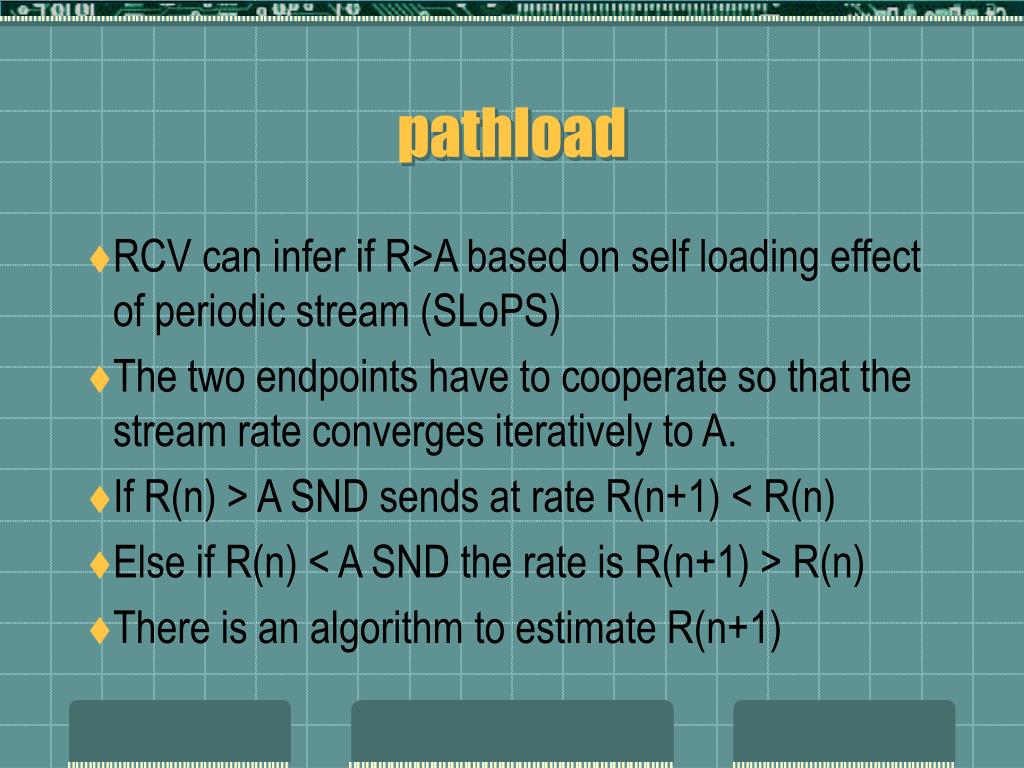

  13. pathload • RCV can infer if R>A based on self loading effect of periodic stream (SLoPS) • The two endpoints have to cooperate so that the stream rate converges iteratively to A. • If R(n) > A SND sends at rate R(n+1) < R(n) • Else if R(n) < A SND the rate is R(n+1) > R(n) • There is an algorithm to estimate R(n+1)

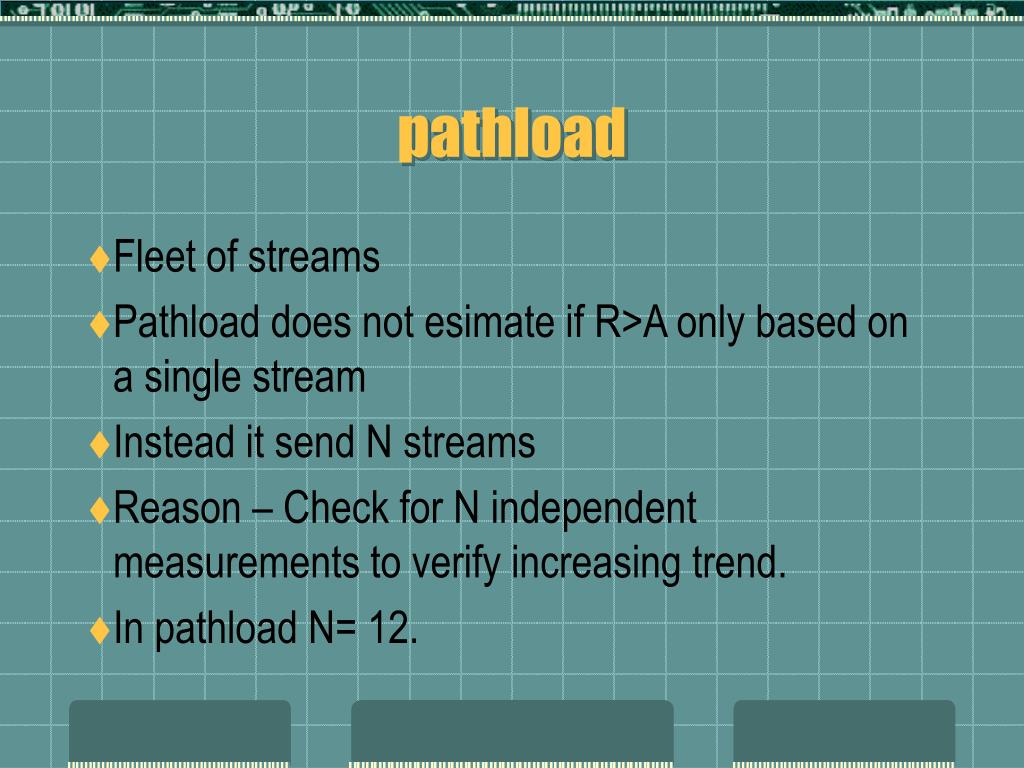

  14. pathload • Fleet of streams • Pathload does not esimate if R>A only based on a single stream • Instead it send N streams • Reason – Check for N independent measurements to verify increasing trend. • In pathload N= 12.

  15. pathload • Detection of Increasing trend- Divide {D1, D2, ..Dn) into L=sqrt(K) groups. Let m(D1)…m(Dl) be median OWD. • Pairwise Comparison test – Spct = Sum of [ I(m(Dk) > m(Dk-1)) ] / L-1 for k ranging from 2 to L. 0<=Spct<=1 Spct > 0.66 then increasing trend, Spct < 0.54 decreasing trend.

  16. pathload • Pairwise Difference Test – x = Sum of [m(Dk) – m(D(k-1))] for k = 2 to L. Spdt = (Dl – D1)/x -1<= Spdt < = 1 If Spdt > 0.55, increasing trend if Spdt < 0.45 , non increasing trend

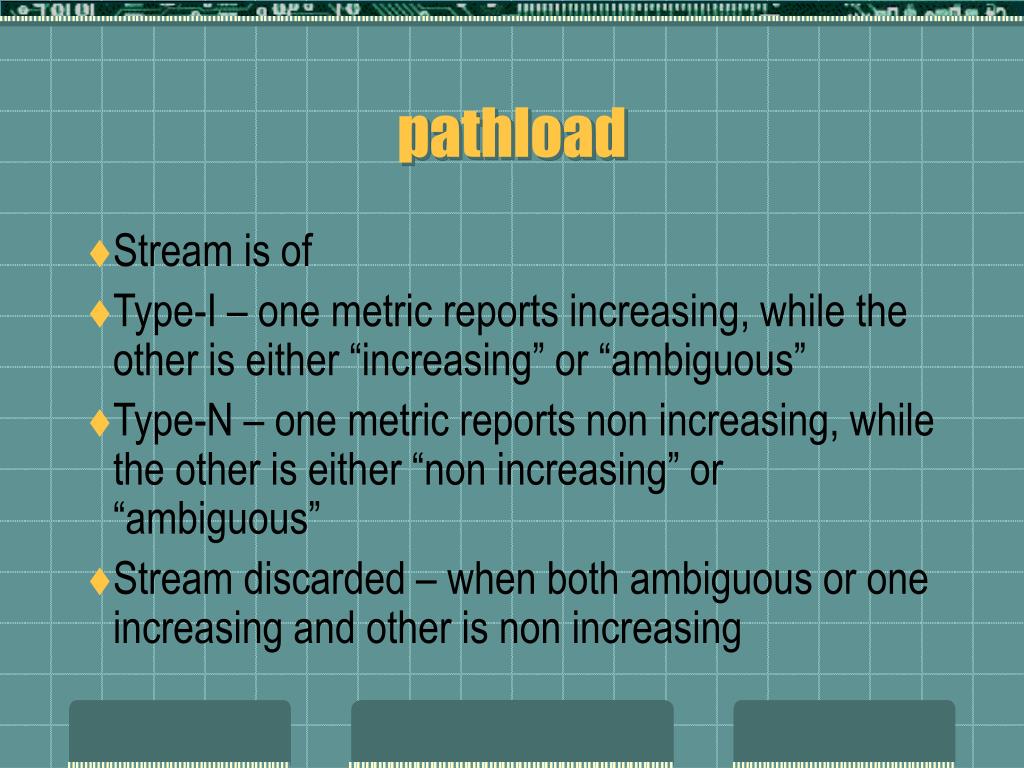

  17. pathload • Stream is of • Type-I – one metric reports increasing, while the other is either “increasing” or “ambiguous” • Type-N – one metric reports non increasing, while the other is either “non increasing” or “ambiguous” • Stream discarded – when both ambiguous or one increasing and other is non increasing

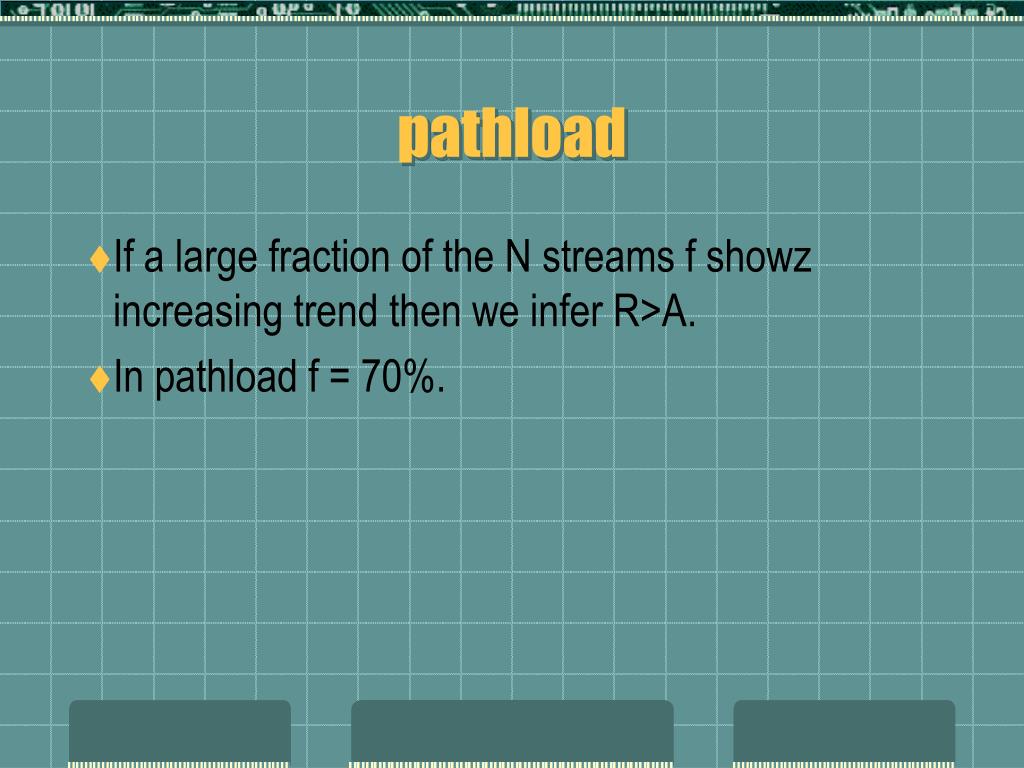

  18. pathload • If a large fraction of the N streams f showz increasing trend then we infer R>A. • In pathload f = 70%.

  19. pathload • Termination – 1. When Rmax – Rmin <= w Rmax = highest rate less than bandwidth. Rmin = lowest rate greater than bandwidth. 2. Rmax – Gmax < = x And Gmin - Rmin <= x Gmin = lowest range that has been shown in grey area Gmax = highest range that has been shown in grey area

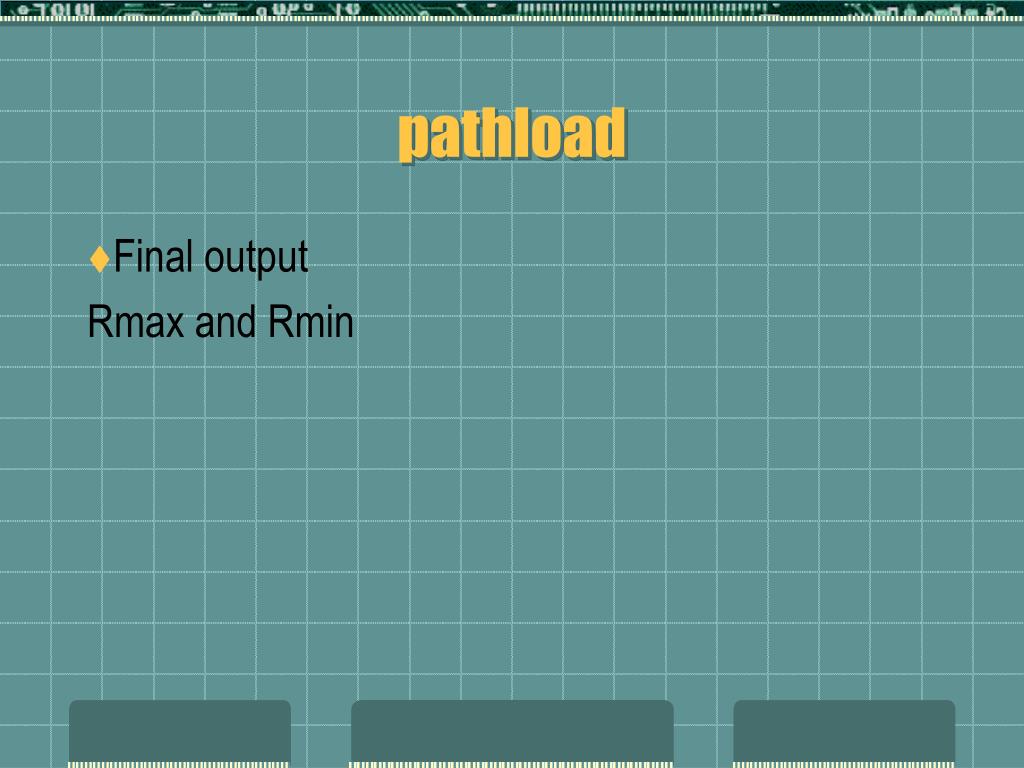

  20. pathload • Final output Rmax and Rmin

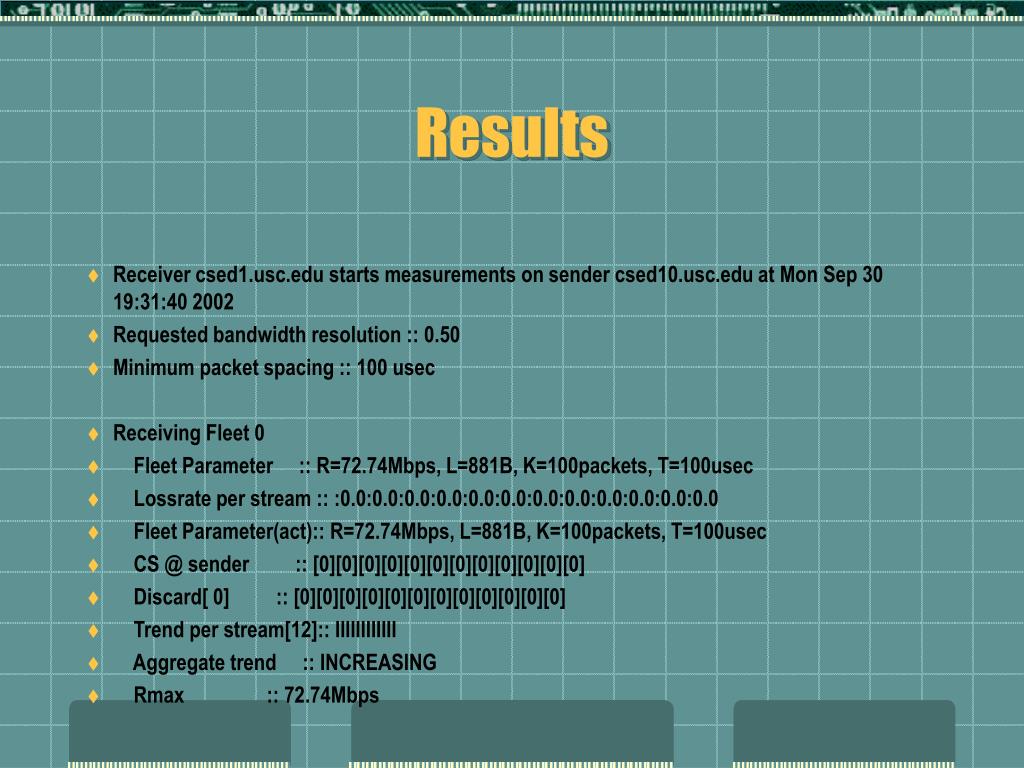

  21. Results • Receiver csed1.usc.edu starts measurements on sender csed10.usc.edu at Mon Sep 30 19:31:40 2002 • Requested bandwidth resolution :: 0.50 • Minimum packet spacing :: 100 usec • Receiving Fleet 0 • Fleet Parameter :: R=72.74Mbps, L=881B, K=100packets, T=100usec • Lossrate per stream :: :0.0:0.0:0.0:0.0:0.0:0.0:0.0:0.0:0.0:0.0:0.0:0.0 • Fleet Parameter(act):: R=72.74Mbps, L=881B, K=100packets, T=100usec • CS @ sender :: [0][0][0][0][0][0][0][0][0][0][0][0] • Discard[ 0] :: [0][0][0][0][0][0][0][0][0][0][0][0] • Trend per stream[12]:: IIIIIIIIIIII • Aggregate trend :: INCREASING • Rmax :: 72.74Mbps

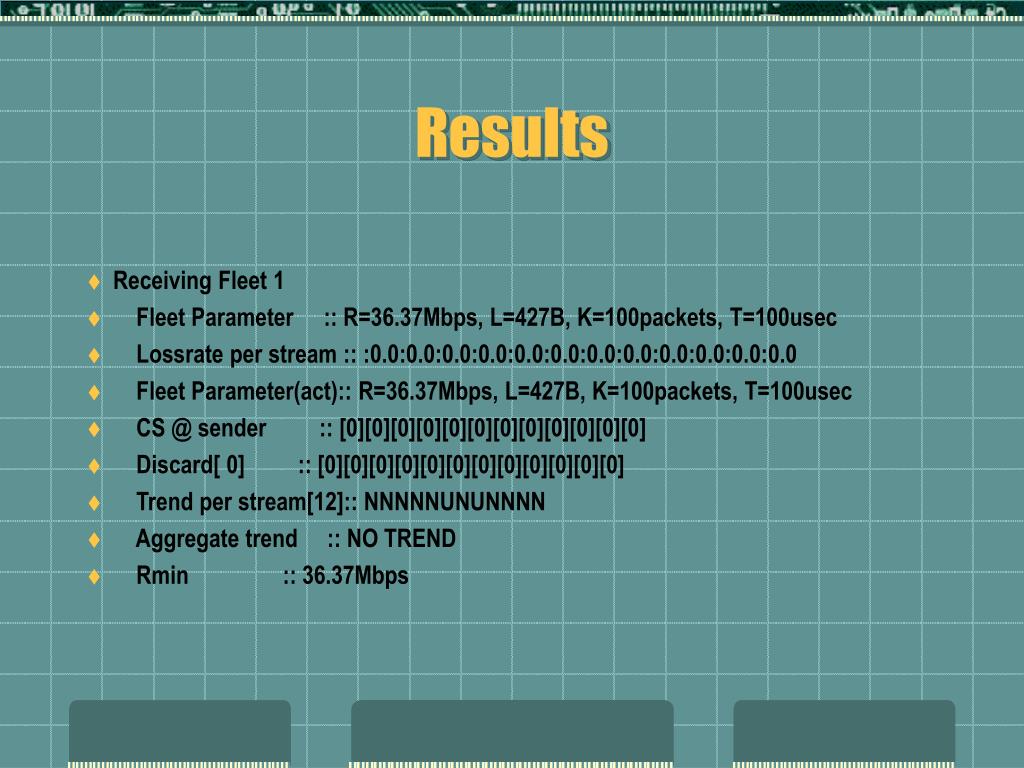

  22. Results • Receiving Fleet 1 • Fleet Parameter :: R=36.37Mbps, L=427B, K=100packets, T=100usec • Lossrate per stream :: :0.0:0.0:0.0:0.0:0.0:0.0:0.0:0.0:0.0:0.0:0.0:0.0 • Fleet Parameter(act):: R=36.37Mbps, L=427B, K=100packets, T=100usec • CS @ sender :: [0][0][0][0][0][0][0][0][0][0][0][0] • Discard[ 0] :: [0][0][0][0][0][0][0][0][0][0][0][0] • Trend per stream[12]:: NNNNNUNUNNNN • Aggregate trend :: NO TREND • Rmin :: 36.37Mbps

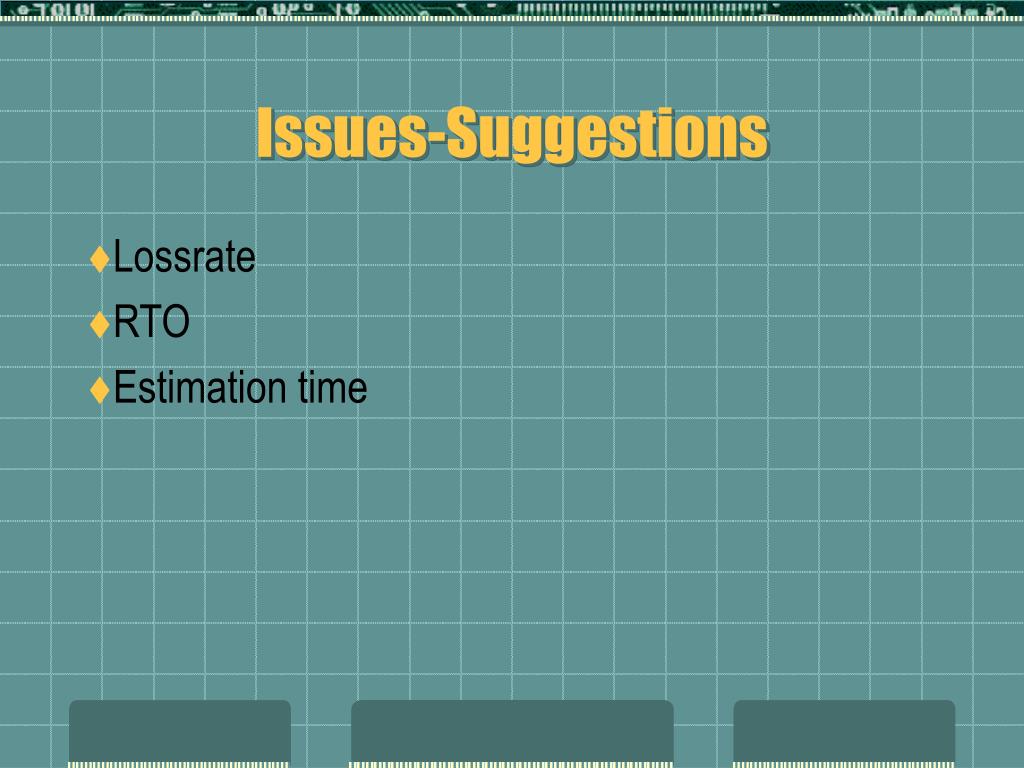

  23. Issues-Suggestions • Lossrate • RTO • Estimation time
