distributed maintenance of spanning tree using labeled tree encoding

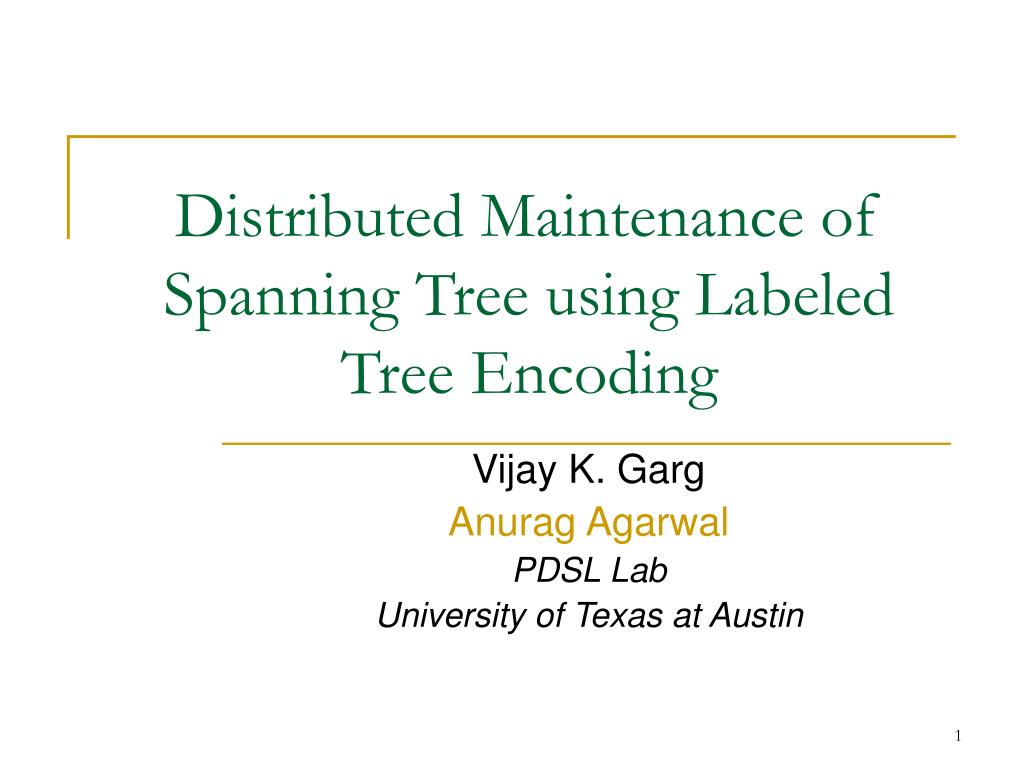

Distributed Maintenance of Spanning Tree using Labeled Tree Encoding

Vijay K. Garg

Anurag Agarwal

PDSL Lab

University of Texas at Austin

outline

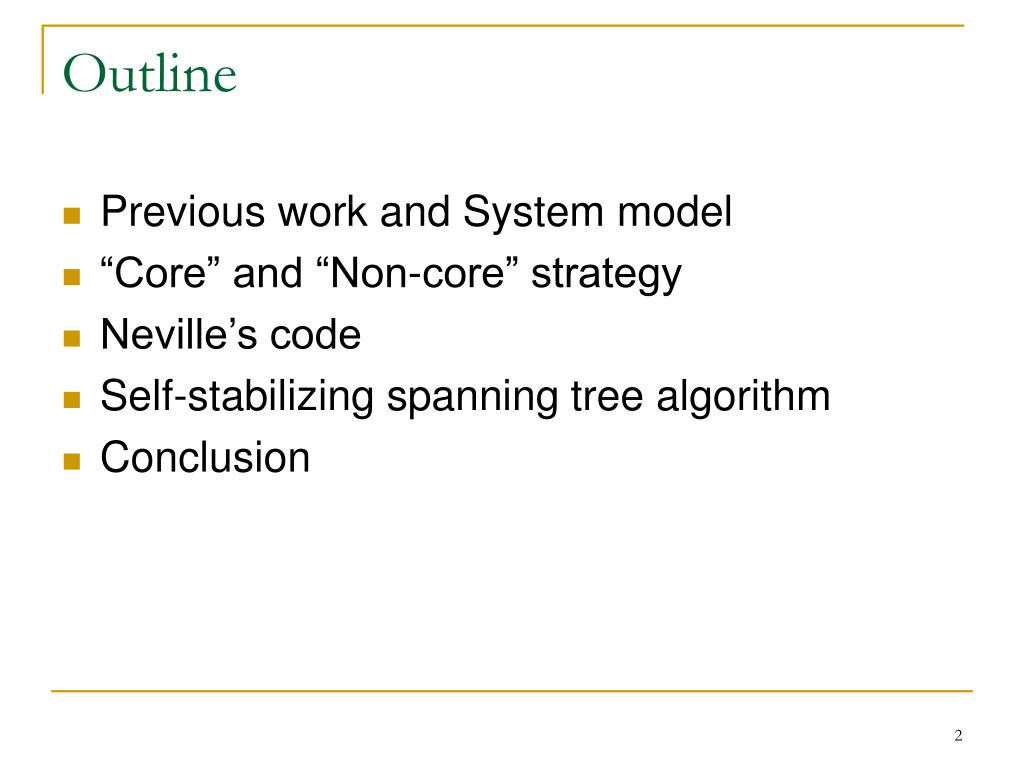

Outline
  • Previous work and System model
  • “Core” and “Non-core” strategy
  • Neville’s code
  • Self-stabilizing spanning tree algorithm
  • Conclusion
motivation
Motivation
  • Maintaining spanning trees in distributed fashion
    • Broadcast
    • Convergecast
  • Self Stabilization [Dijkstra 74] is a powerful fault-tolerance paradigm
    • Design algorithms to tolerate transient data faults
    • Despite faults, algorithm converges to a good state
previous work
Previous Work
  • Many self-stabilizing algorithms for spanning trees
    • Breadth-first spanning tree: [DIM90, AK93]
    • Depth-first spanning tree: [CD94]
    • Minimum spanning tree: [AS97]
  • Our work makes stronger assumptions but achieves better bounds
comparison with previous work
Comparison with Previous Work
  • Popular model assumes all communication registers can be read/written in one time step
  • In a completely connected topology, it amounts to doing O(n) work in one time step
  • Our model assumes processes take one communication step
  • In our model, the previous algorithms would have at least O(n) time complexity
system model

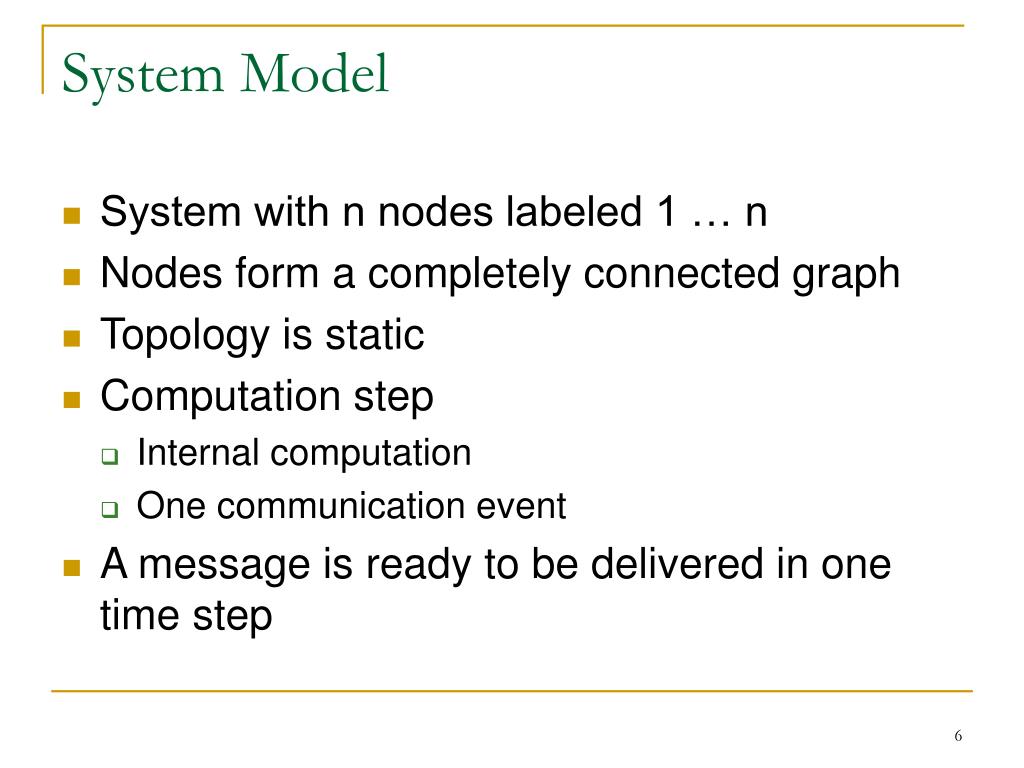

System Model
  • System with n nodes labeled 1 … n
  • Nodes form a completely connected graph
  • Topology is static
  • Computation step
    • Internal computation
    • One communication event
  • A message is ready to be delivered in one time step
core and non core strategy for self stabilization

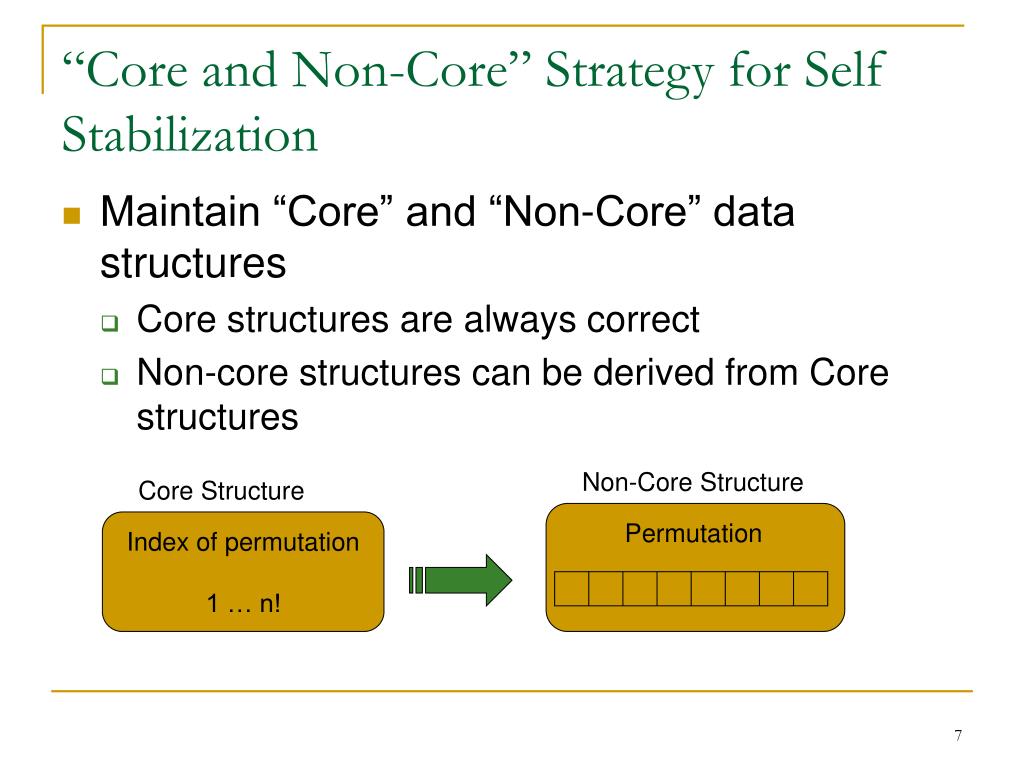

“Core and Non-Core” Strategy for Self Stabilization
  • Maintain “Core” and “Non-Core” data structures
    • Core structures are always correct
    • Non-core structures can be derived from Core structures

Non-Core Structure

Core Structure

Index of permutation

1 … n!

Permutation

core and non core strategy for self stabilization1

n = 4

Non-Core Structure

Core Structure

Index of permutation

2

Permutation

1

2

4

3

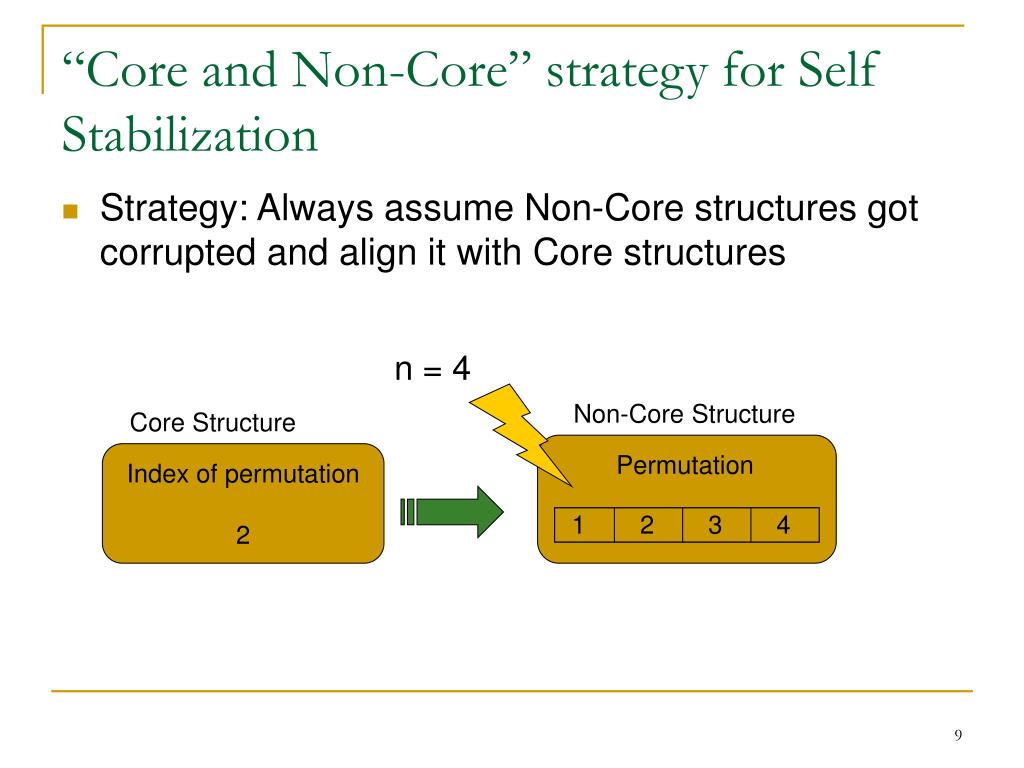

“Core and Non-Core” strategy for Self Stabilization
  • Strategy: Always assume Non-Core structures got corrupted and align it with Core structures
core and non core strategy for self stabilization2

n = 4

Non-Core Structure

Core Structure

Index of permutation

2

Permutation

1

2

4

3

1

2

3

4

“Core and Non-Core” strategy for Self Stabilization
  • Strategy: Always assume Non-Core structures got corrupted and align it with Core structures
core and non core strategy for self stabilization3

1

2

4

3

1

2

3

4

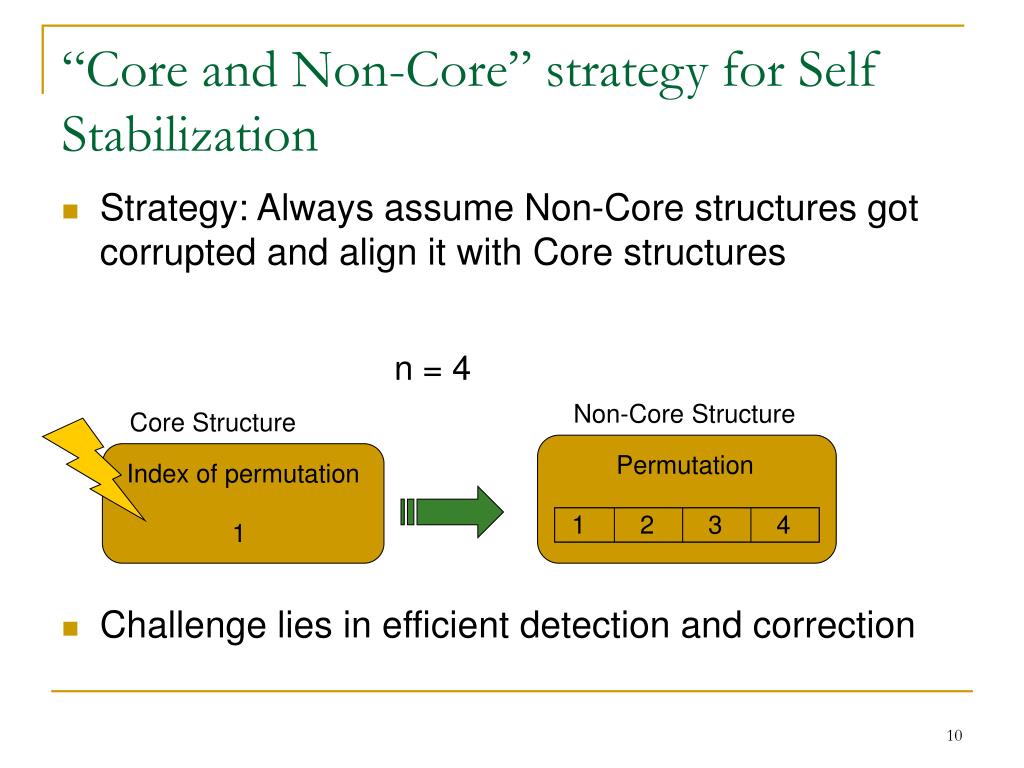

“Core and Non-Core” strategy for Self Stabilization
  • Strategy: Always assume Non-Core structures got corrupted and align it with Core structures
  • Challenge lies in efficient detection and correction

n = 4

Non-Core Structure

Core Structure

Index of permutation

2

Permutation

1

neville s code neville 53

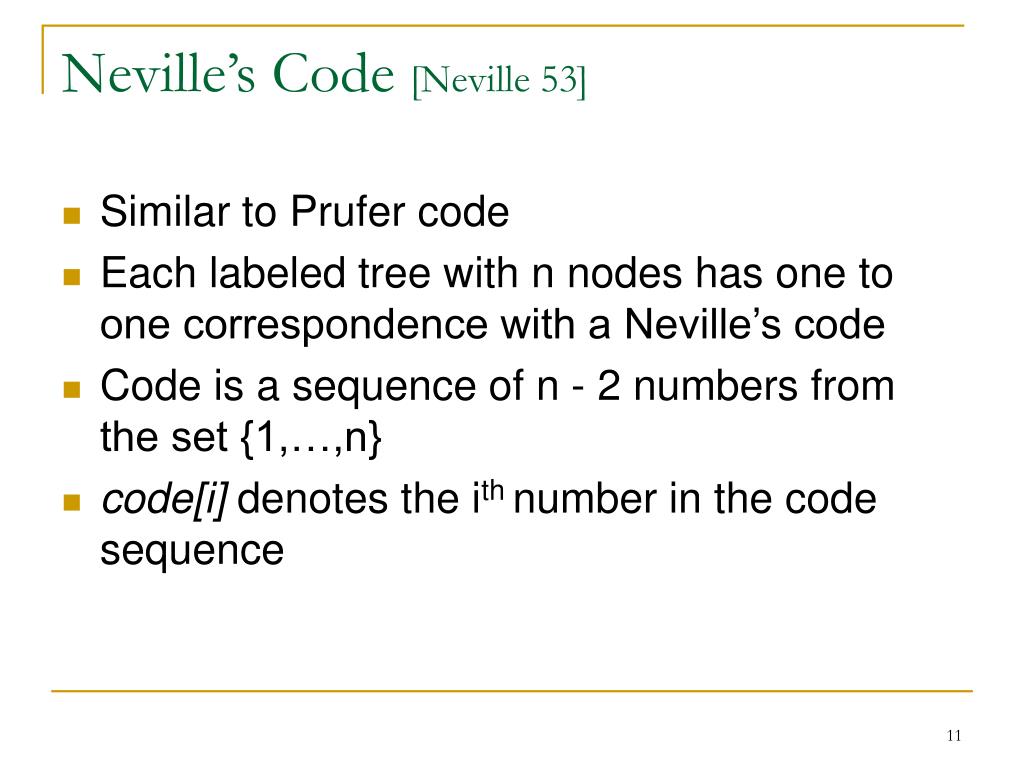

Neville’s Code [Neville 53]
  • Similar to Prufer code
  • Each labeled tree with n nodes has one to one correspondence with a Neville’s code
  • Code is a sequence of n - 2 numbers from the set {1,…,n}
  • code[i] denotes the ith number in the code sequence
neville s code example
Neville’s Code: Example

8

6

3

Code = 7768338

7

5

4

2

1

spanning tree neville s code

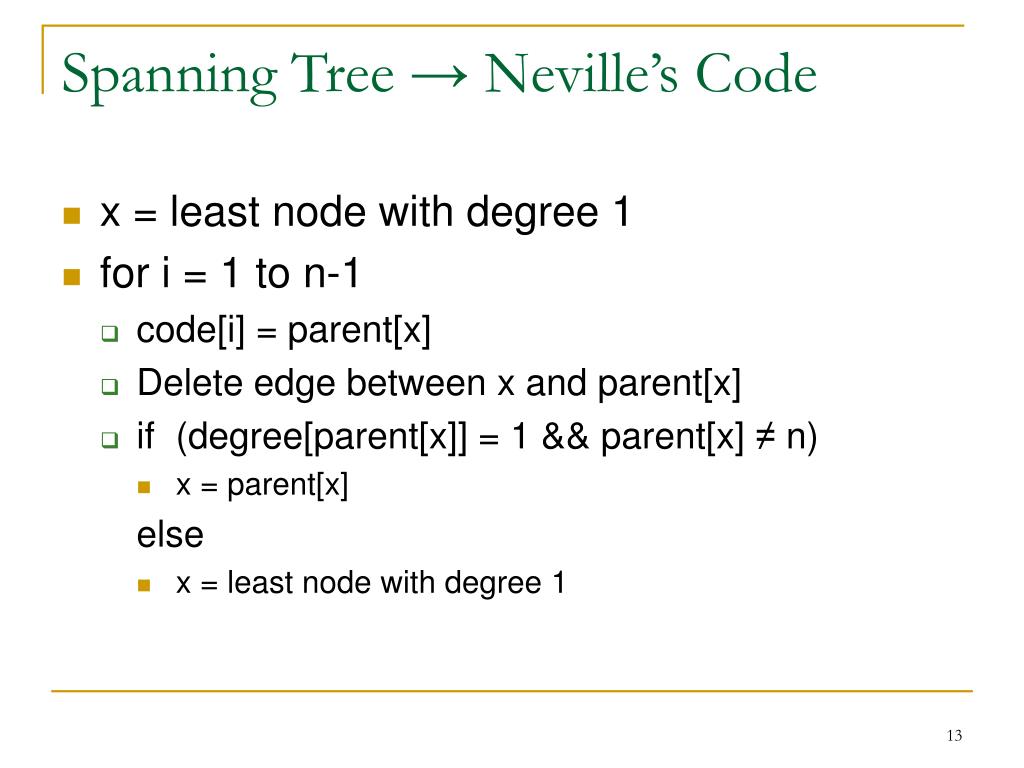

Spanning Tree → Neville’s Code
  • x = least node with degree 1
  • for i = 1 to n-1
    • code[i] = parent[x]
    • Delete edge between x and parent[x]
    • if (degree[parent[x]] = 1 && parent[x] ≠ n)
      • x = parent[x]

else

      • x = least node with degree 1
neville s code example1
Neville’s Code: Example
  • x = least node with degree 1
  • for i = 1 to n-1
    • code[i] = parent[x]
    • Delete edge between x and parent[x]
    • if (degree[parent[x]] = 1 && parent[x] ≠ n)
      • x = parent[x]

else

      • x = least node with degree 1

8

6

3

7

5

4

2

1

code = 7768

code = 776

code = 77

code = 7

code = 7768338

x = 7

x = 1

x = 2

x = 6

self stabilization using neville s code
Self Stabilization using Neville’s code
  • Need to maintain “parent” (Non-core) for each node
  • Auxiliary data structures for efficiency
    • code[i] : Neville’s code
    • f[i] : Iteration in which node i is chosen as “x”
    • z[i] : last occurrence of node i in code
  • Node i maintains ith components of data structures
  • Put constraints on these data structures so that the parent pointers give a valid tree
constraints
Constraints
  • Three constraint sets provide different guarantees on the structure of the resulting spanning tree with respect to the tree generated by Neville’s code

Spanning Tree (R)

Isomorphic (C)

Identical

Efficiency

constraints for r

8

6

3

7

5

4

2

1

Constraints for R
  • (R1) For all i: code[f[i]] = parent[i]
    • Follows from the code building procedure
  • Node 7 was chosen as “x” in iteration 3. So f[7] = 3
  • code[f[7]] = code[3] = 6 = parent[7]

code = 7768338

constraints for r1

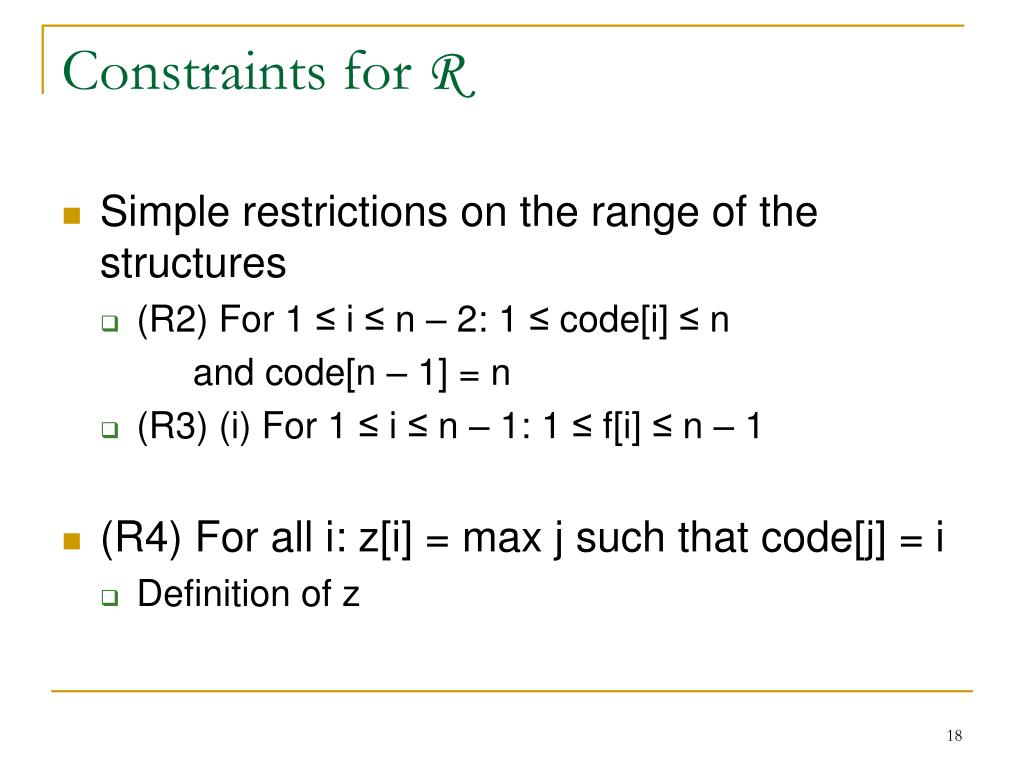

Constraints for R
  • Simple restrictions on the range of the structures
    • (R2) For 1 ≤ i ≤ n – 2: 1 ≤ code[i] ≤ n

and code[n – 1] = n

    • (R3) (i) For 1 ≤ i ≤ n – 1: 1 ≤ f[i] ≤ n – 1
  • (R4) For all i: z[i] = max j such that code[j] = i
    • Definition of z
constraints for r2

8

6

3

7

5

4

2

1

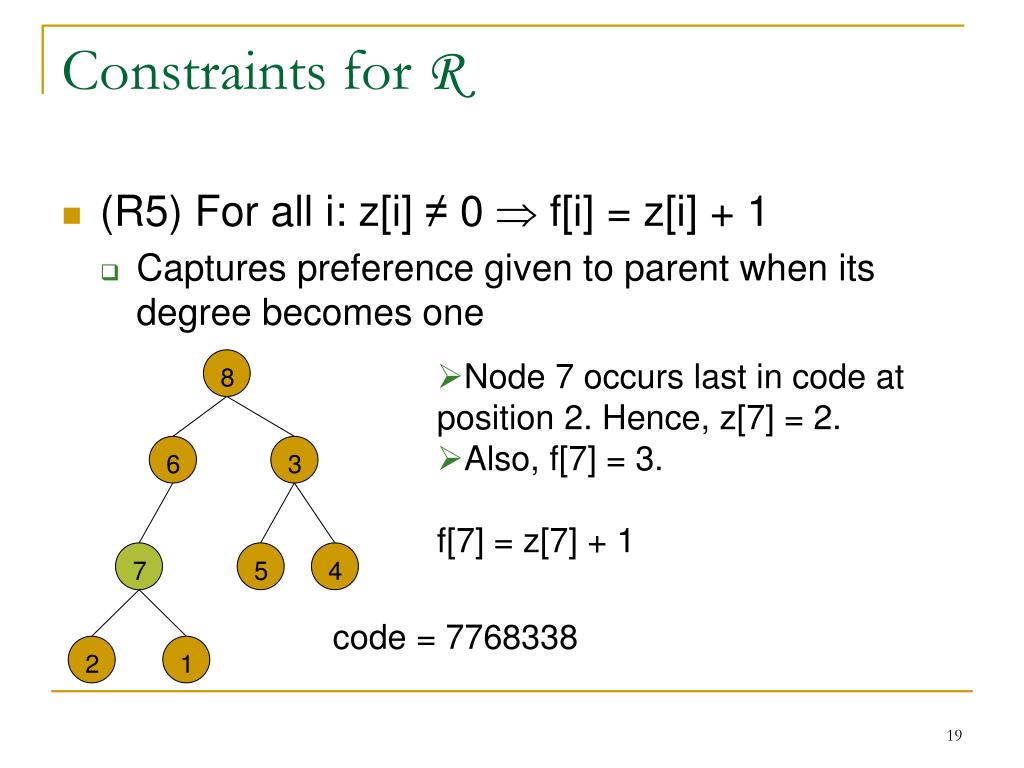

Constraints for R
  • (R5) For all i: z[i] ≠ 0  f[i] = z[i] + 1
    • Captures preference given to parent when its degree becomes one
  • Node 7 occurs last in code at position 2. Hence, z[7] = 2.
  • Also, f[7] = 3.
  • f[7] = z[7] + 1

code = 7768338

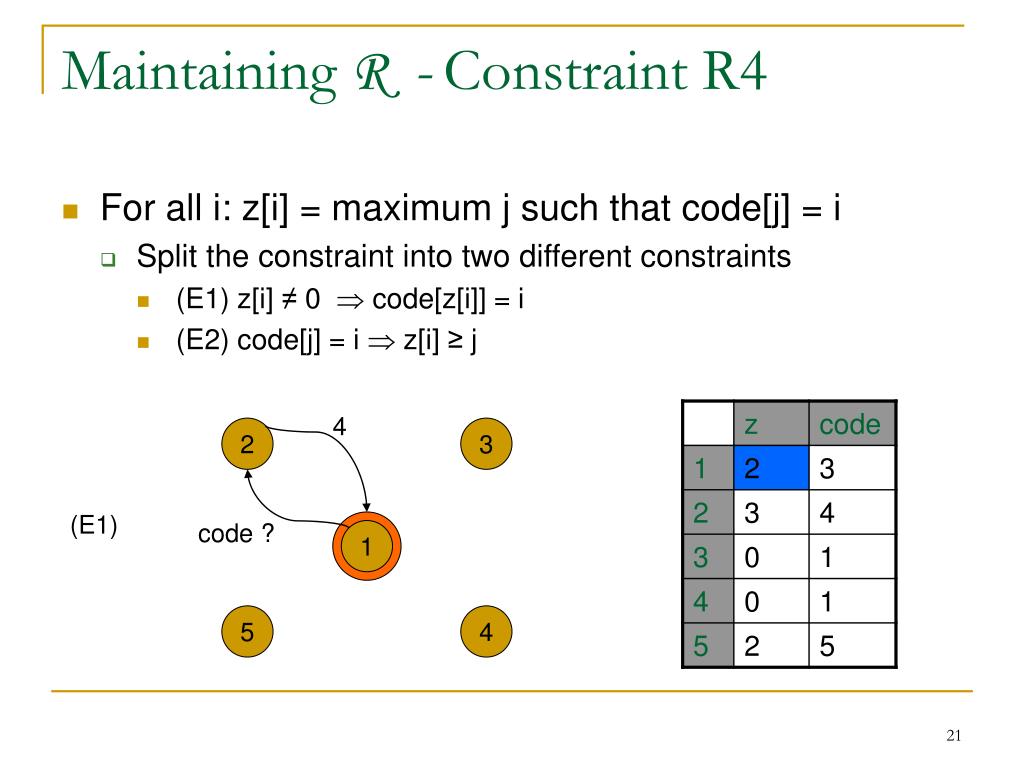

maintaining r constraint r4

1

Maintaining R - Constraint R4
  • For all i: z[i] = maximum j such that code[j] = i
    • Split the constraint into two different constraints
      • (E1) z[i] ≠ 0  code[z[i]] = i
      • (E2) code[j] = i  z[i] ≥ j

2

3

5

4

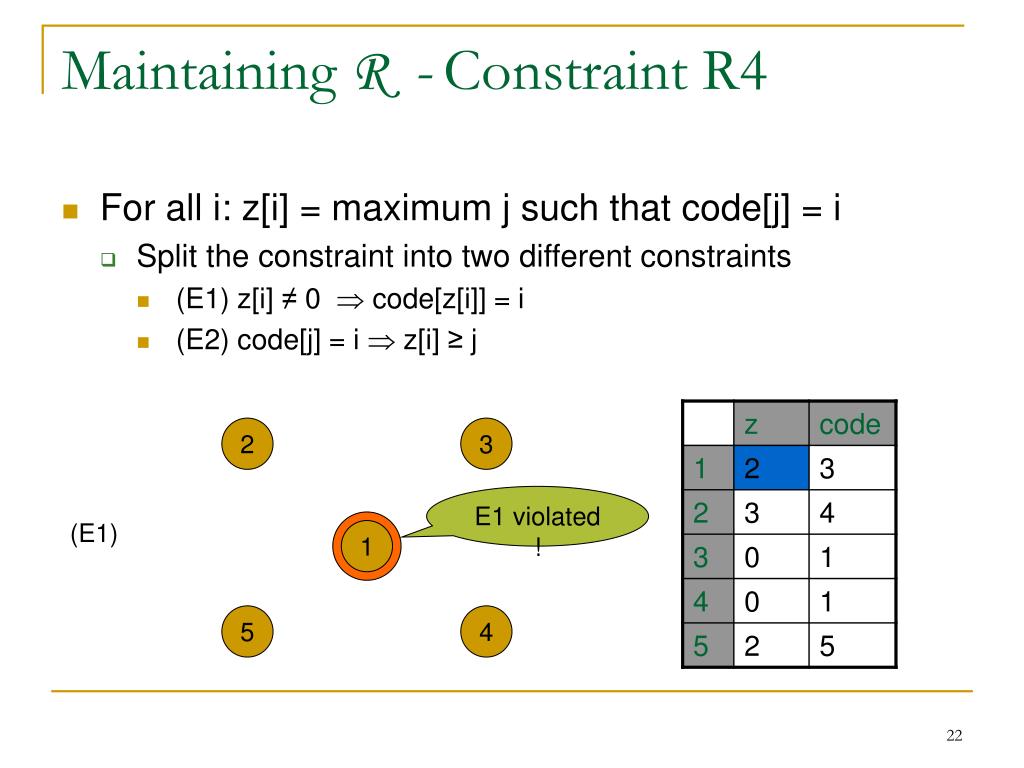

maintaining r constraint r41

1

Maintaining R - Constraint R4
  • For all i: z[i] = maximum j such that code[j] = i
    • Split the constraint into two different constraints
      • (E1) z[i] ≠ 0  code[z[i]] = i
      • (E2) code[j] = i  z[i] ≥ j

4

2

3

(E1)

code ?

5

4

maintaining r constraint r42

1

Maintaining R - Constraint R4
  • For all i: z[i] = maximum j such that code[j] = i
    • Split the constraint into two different constraints
      • (E1) z[i] ≠ 0  code[z[i]] = i
      • (E2) code[j] = i  z[i] ≥ j

2

3

E1 violated !

(E1)

5

4

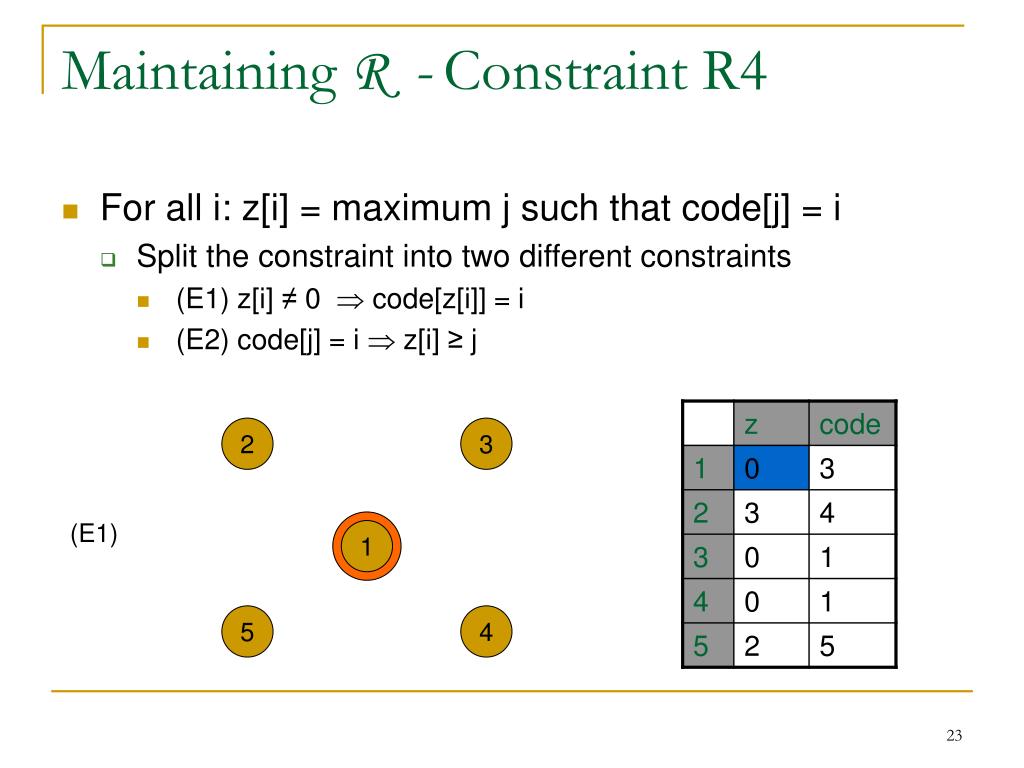

maintaining r constraint r43

1

Maintaining R - Constraint R4
  • For all i: z[i] = maximum j such that code[j] = i
    • Split the constraint into two different constraints
      • (E1) z[i] ≠ 0  code[z[i]] = i
      • (E2) code[j] = i  z[i] ≥ j

2

3

(E1)

5

4

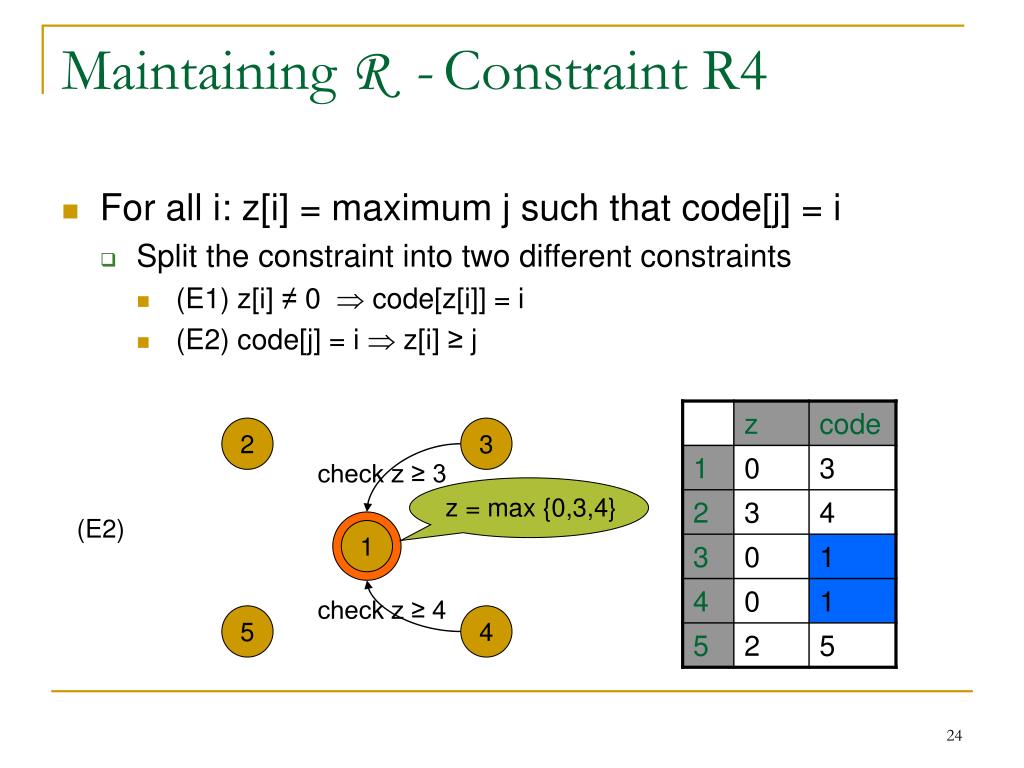

maintaining r constraint r44

1

Maintaining R - Constraint R4
  • For all i: z[i] = maximum j such that code[j] = i
    • Split the constraint into two different constraints
      • (E1) z[i] ≠ 0  code[z[i]] = i
      • (E2) code[j] = i  z[i] ≥ j

2

3

check z ≥ 3

z = max {0,3,4}

(E2)

check z ≥ 4

5

4

maintaining r constraint r45

1

Maintaining R - Constraint R4
  • For all i: z[i] = maximum j such that code[j] = i
    • Split the constraint into two different constraints
      • (E1) z[i] ≠ 0  code[z[i]] = i
      • (E2) code[j] = i  z[i] ≥ j

2

3

(E2)

5

4

maintaining r other constraints
Maintaining R - Other Constraints
  • Local checks: Can be checked and corrected without contacting any other node
    • (R2) , (R3) (i), (R5)
  • (R1) For all i: code[f[i]] = parent[i]
    • Inquire node f[i] to get code[f[i]] and match with parent[i]
    • On mismatch, reset parent[i] to agree with code[f[i]]
analysis of algorithm for maintaining r

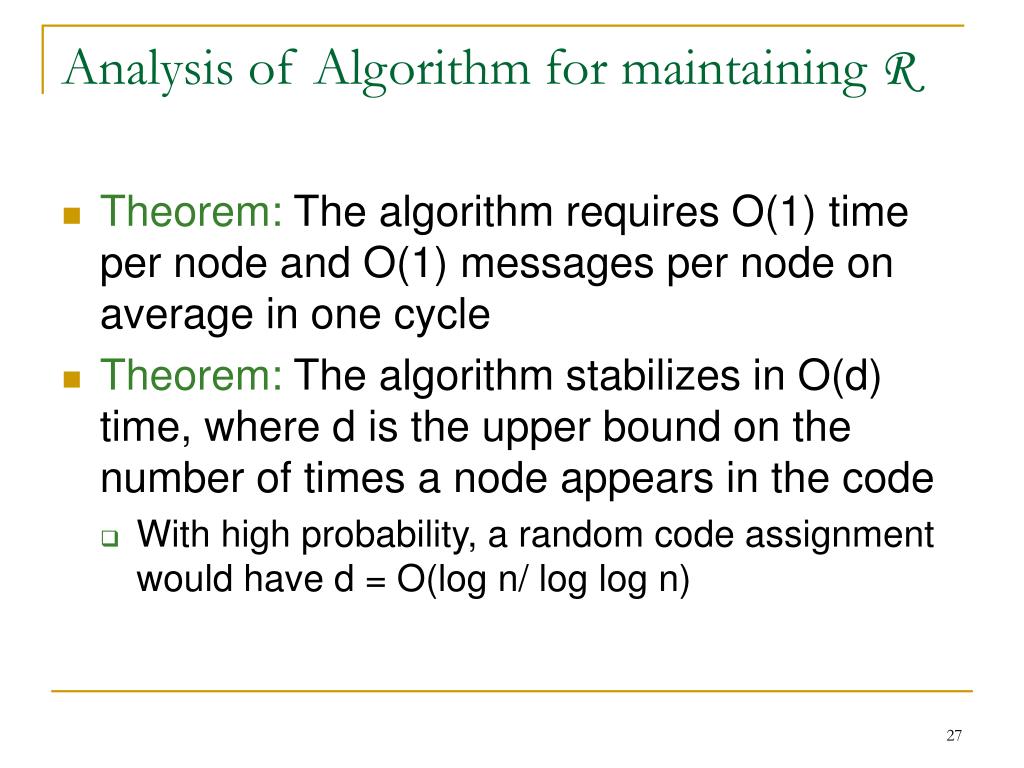

Analysis of Algorithm for maintaining R
  • Theorem: The algorithm requires O(1) time per node and O(1) messages per node on average in one cycle
  • Theorem: The algorithm stabilizes in O(d) time, where d is the upper bound on the number of times a node appears in the code
    • With high probability, a random code assignment would have d = O(log n/ log log n)
conclusion

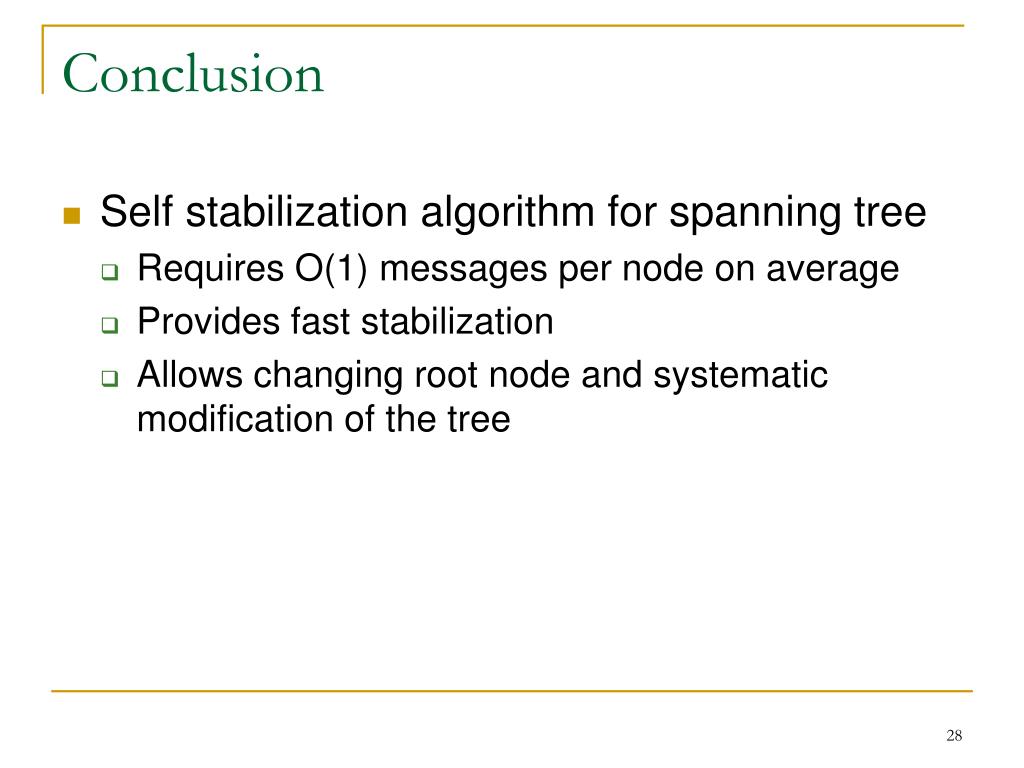

Conclusion
  • Self stabilization algorithm for spanning tree
    • Requires O(1) messages per node on average
    • Provides fast stabilization
    • Allows changing root node and systematic modification of the tree
future work
Future Work
  • Remove the restriction on topology and labels
  • Apply the strategy of core and non-core states to other problems
neville s code spanning tree

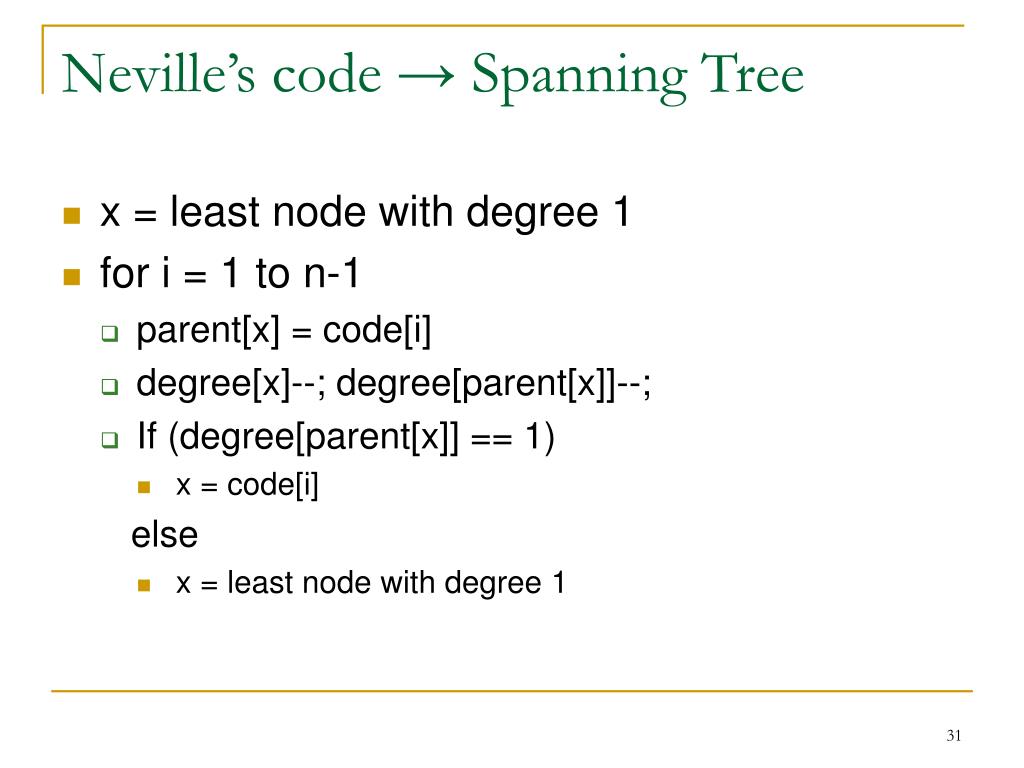

Neville’s code → Spanning Tree
  • x = least node with degree 1
  • for i = 1 to n-1
    • parent[x] = code[i]
    • degree[x]--; degree[parent[x]]--;
    • If (degree[parent[x]] == 1)
      • x = code[i]

else

      • x = least node with degree 1
slide32
Round vs Bounded Delivery Time
    • Round: Every process takes atleast one step
    • Definition allows one process to send/receive multiple messages in one time unit
self stabilization using neville s code1
Self Stabilization using Neville’s code
  • Need to maintain “parent” for each node
  • Auxiliary data structures for efficient detection
    • code[i] : Neville’s code
    • f[i] : Iteration in which node i was selected as x
    • z[i] : last occurrence of node i in code
  • Node i maintains ith components of data structures
  • Put constraints on these data structures so that the parent pointers give a valid tree
constraints1
Constraints
  • (R1) For all i: code[f[i]] = parent[i]
  • (R2) 1 <= i <= n-2, 1 <= code[i] <= n

and code[n – 1] = n

  • (R3) (i) 1 <= f[i] <= n – 1

(ii) f is a permutation on [1…n]

  • (R4) For all i: z[i] = max. j such that code[j] = i
  • (R5) For all i: z[i] != 0 => f[i] = z[i] + 1
two sets of constraints

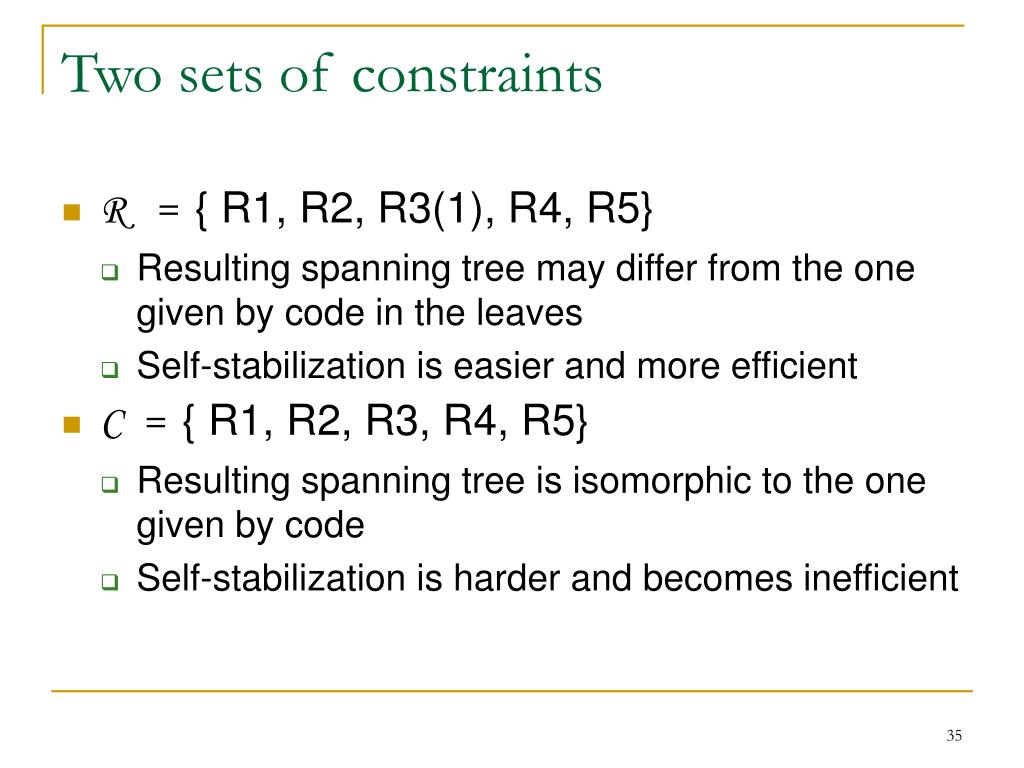

Two sets of constraints
  • R = { R1, R2, R3(1), R4, R5}
    • Resulting spanning tree may differ from the one given by code in the leaves
    • Self-stabilization is easier and more efficient
  • C = { R1, R2, R3, R4, R5}
    • Resulting spanning tree is isomorphic to the one given by code
    • Self-stabilization is harder and becomes inefficient
one interesting constraint

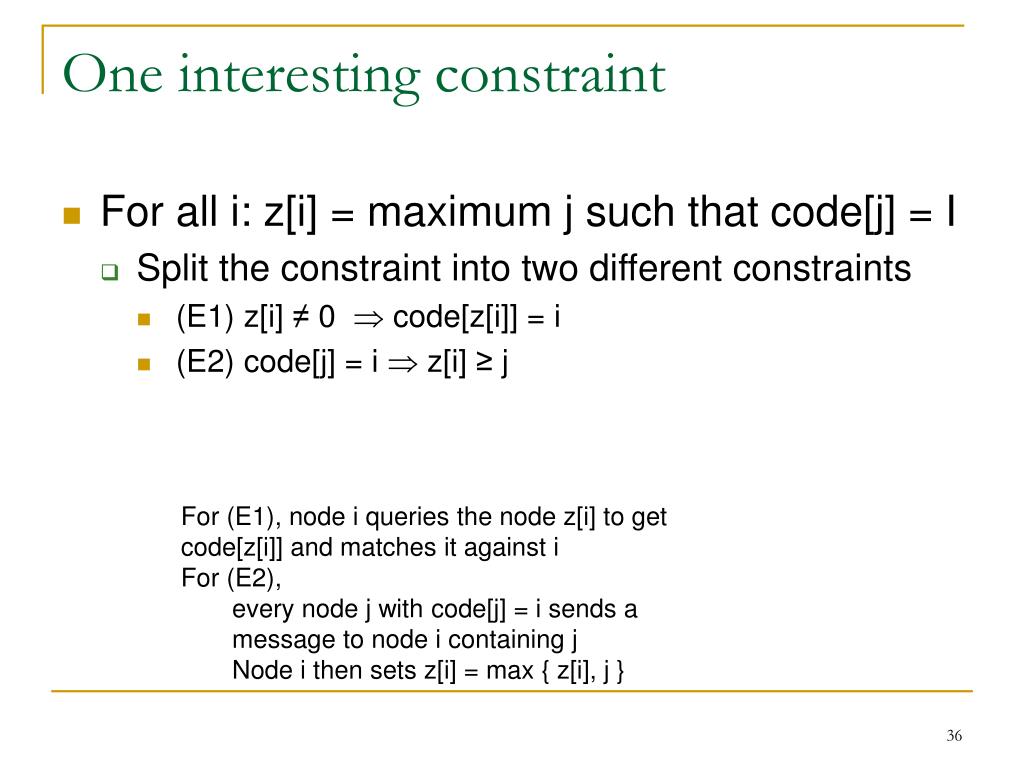

One interesting constraint
  • For all i: z[i] = maximum j such that code[j] = I
    • Split the constraint into two different constraints
      • (E1) z[i] ≠ 0  code[z[i]] = i
      • (E2) code[j] = i  z[i] ≥ j
  • For (E1), node i queries the node z[i] to get code[z[i]] and matches it against i
  • For (E2),
    • every node j with code[j] = i sends a message to node i containing j
    • Node i then sets z[i] = max { z[i], j }
references

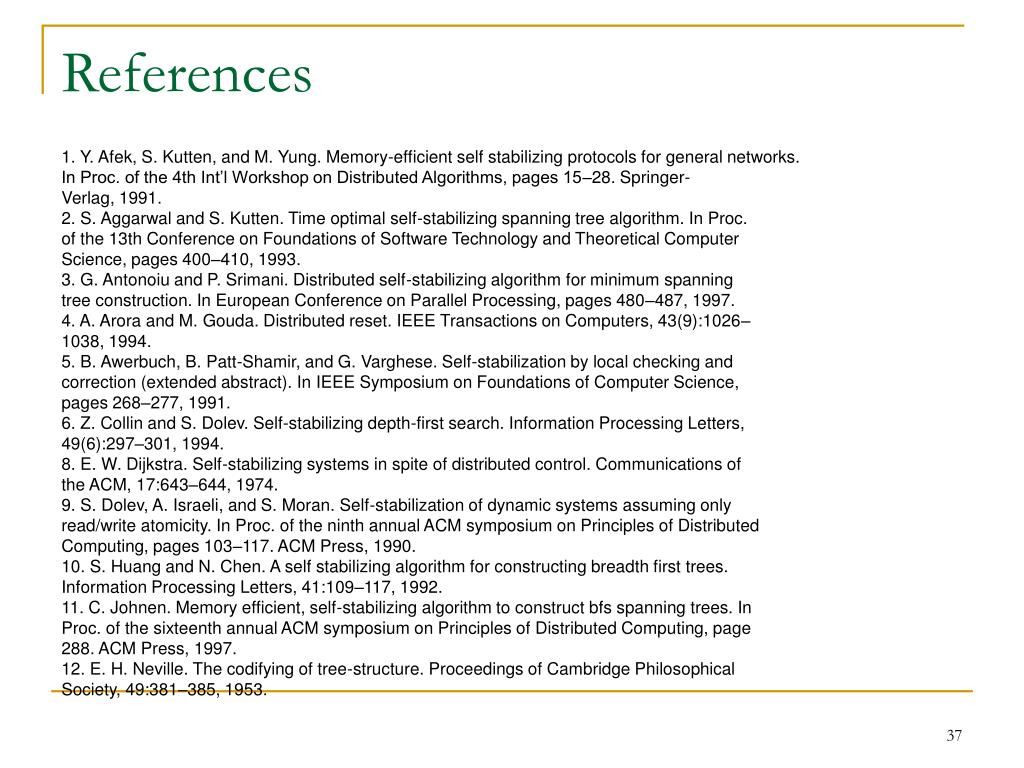

References

1. Y. Afek, S. Kutten, and M. Yung. Memory-efficient self stabilizing protocols for general networks.

In Proc. of the 4th Int’l Workshop on Distributed Algorithms, pages 15–28. Springer-

Verlag, 1991.

2. S. Aggarwal and S. Kutten. Time optimal self-stabilizing spanning tree algorithm. In Proc.

of the 13th Conference on Foundations of Software Technology and Theoretical Computer

Science, pages 400–410, 1993.

3. G. Antonoiu and P. Srimani. Distributed self-stabilizing algorithm for minimum spanning

tree construction. In European Conference on Parallel Processing, pages 480–487, 1997.

4. A. Arora and M. Gouda. Distributed reset. IEEE Transactions on Computers, 43(9):1026–

1038, 1994.

5. B. Awerbuch, B. Patt-Shamir, and G. Varghese. Self-stabilization by local checking and

correction (extended abstract). In IEEE Symposium on Foundations of Computer Science,

pages 268–277, 1991.

6. Z. Collin and S. Dolev. Self-stabilizing depth-first search. Information Processing Letters,

49(6):297–301, 1994.

8. E. W. Dijkstra. Self-stabilizing systems in spite of distributed control. Communications of

the ACM, 17:643–644, 1974.

9. S. Dolev, A. Israeli, and S. Moran. Self-stabilization of dynamic systems assuming only

read/write atomicity. In Proc. of the ninth annual ACM symposium on Principles of Distributed

Computing, pages 103–117. ACM Press, 1990.

10. S. Huang and N. Chen. A self stabilizing algorithm for constructing breadth first trees.

Information Processing Letters, 41:109–117, 1992.

11. C. Johnen. Memory efficient, self-stabilizing algorithm to construct bfs spanning trees. In

Proc. of the sixteenth annual ACM symposium on Principles of Distributed Computing, page

288. ACM Press, 1997.

12. E. H. Neville. The codifying of tree-structure. Proceedings of Cambridge Philosophical

Society, 49:381–385, 1953.
