Overview of Level 0.3 and Level 0.5 Quicklook Data Products for Spacecraft Telemetry

Level 0.3 and Level 0.5 are critical data products designed for fast and accurate space mission analysis. Level 0.3 provides a quick estimate based on telemetry data combined with flight dynamics and ancillary science data, available just minutes after telemetry receipt. In contrast, Level 0.5 is the final product, incorporating actual orbital positions, velocities, and telemetry, ready within 1-2 days. Together, these levels enable timely decision-making and analysis for spacecraft operations and scientific research.

phong
Download Presentation

Overview of Level 0.3 and Level 0.5 Quicklook Data Products for Spacecraft Telemetry

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

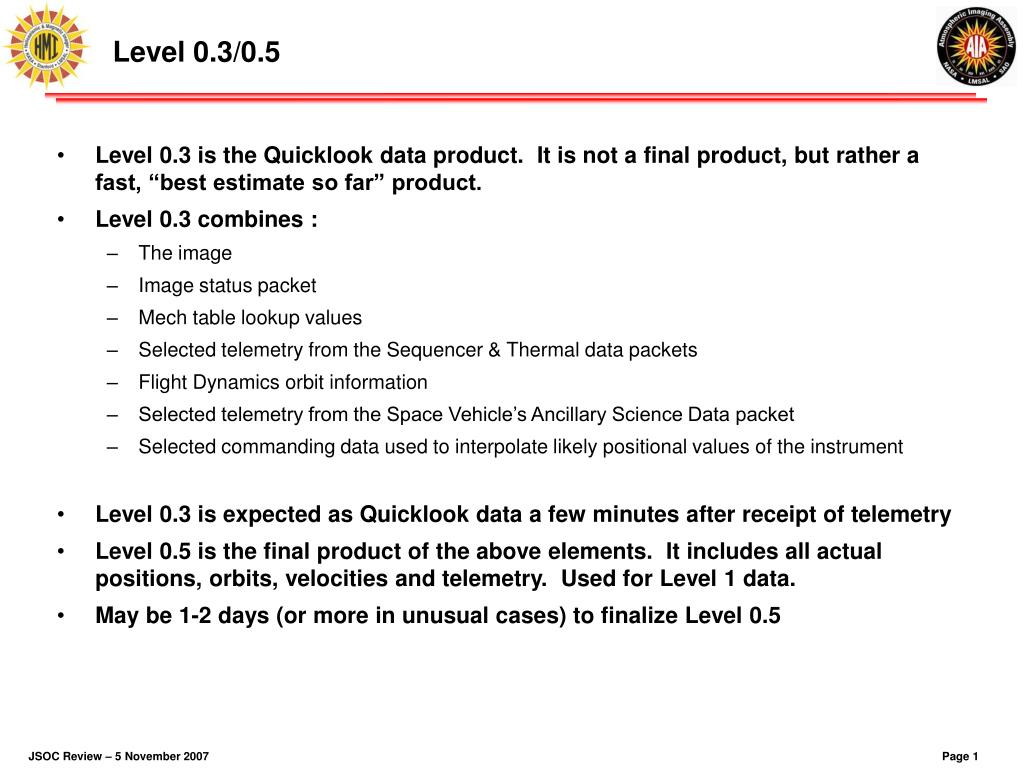

  1. Level 0.3/0.5 • Level 0.3 is the Quicklook data product. It is not a final product, but rather a fast, “best estimate so far” product. • Level 0.3 combines : • The image • Image status packet • Mech table lookup values • Selected telemetry from the Sequencer & Thermal data packets • Flight Dynamics orbit information • Selected telemetry from the Space Vehicle’s Ancillary Science Data packet • Selected commanding data used to interpolate likely positional values of the instrument • Level 0.3 is expected as Quicklook data a few minutes after receipt of telemetry • Level 0.5 is the final product of the above elements. It includes all actual positions, orbits, velocities and telemetry. Used for Level 1 data. • May be 1-2 days (or more in unusual cases) to finalize Level 0.5

  2. SDO Spacecraft Housekeeping • In the Ancillary Science Data Packet • Includes: Eclipse flags, best estimate of attitude quaternion, quaternion from inertial to sun • reference frame, ephemeris model time • Available in 24-hour dayfiles, and streaming in from the SOC via socket • Flight Dynamics System data • Covers orbit predictions and spacecraft position and velocities • Comes with several weeks’ worth of position predictions. Will be sent to us again if actual is • not within error tolerance of predicted position. • Available weekly for pickup • Commands • Needed for Quicklook products • Telemetry • Will include Image, Image Status Packet and Mech Table conversions as Level 0.1 • Still need to determine which telemetry of the Sequencer and Thermal packets to include • Final telemetry list will be largely determined by the Level 1.5 product - still in development • Other space vehicle telemetry may also be required beyond the ASDP. Ancillary & Housekeeping Data
