impact of cloning and virtualization on active directory domain services
SIM406

Impact of Cloning and Virtualization on Active Directory Domain Services

Dean Wells

Active Directory Product Group

Microsoft

session objectives and takeaways

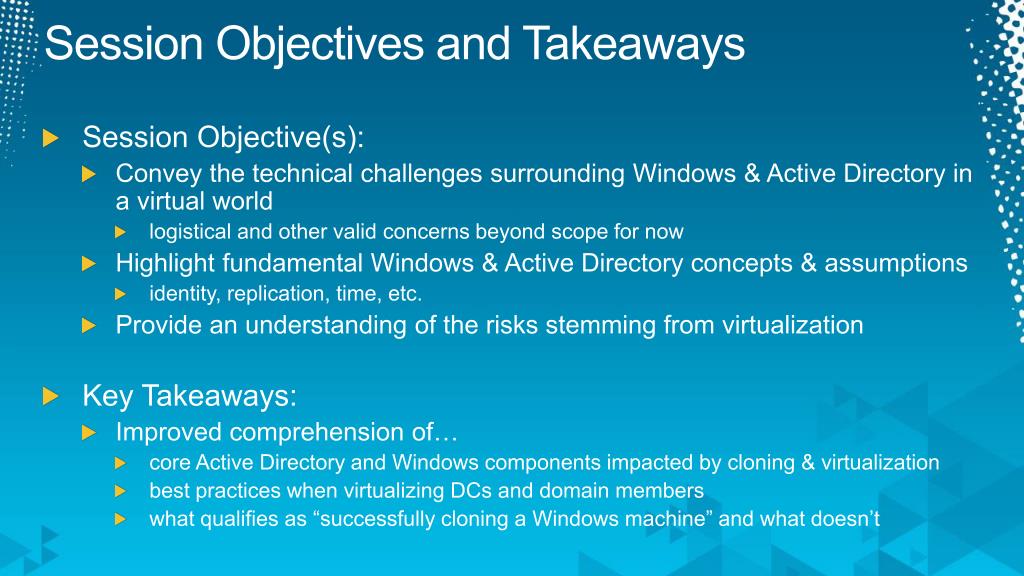

Session Objectives and Takeaways
  • Session Objective(s):
    • Convey the technical challenges surrounding Windows & Active Directory in a virtual world
      • logistical and other valid concerns beyond scope for now
    • Highlight fundamental Windows & Active Directory concepts & assumptions
      • identity, replication, time, etc.
    • Provide an understanding of the risks stemming from virtualization
  • Key Takeaways:
    • Improved comprehension of…
      • core Active Directory and Windows components impacted by cloning & virtualization
      • best practices when virtualizing DCs and domain members
      • what qualifies as “successfully cloning a Windows machine” and what doesn’t
windows concepts

Windows Concepts

Machine Identities

computer identity comprises
Computer-identity comprises…
  • Name
    • Stored locally, suffixed with a $
  • IP address
    • Network identifier
    • Name/IP information stored in DNS
  • SIDs
    • What are these?
    • What is that for?
what is a sid
Protocol Documentation – Glossary:

An identifier for security principals in Windows that is used to identify an account or a group

Conceptually, a SID is composed of three parts:

aSID prefix

revision (1 = revision 1) + an identifier authority (5 = NT Authority)

an account-authorityportion (typically the domain’s SID)

principals created in the same domain share the same prefix and authority-portion

an integer uniquely representing an identity relative to the account-authority

commonly known as the relative identifier(RID)

a 30-bit address-space (~1 billion principals per domain-lifetime)

S-1-5-21-2000478354-492864223-854245397-19221

What is a SID?
sid assignment

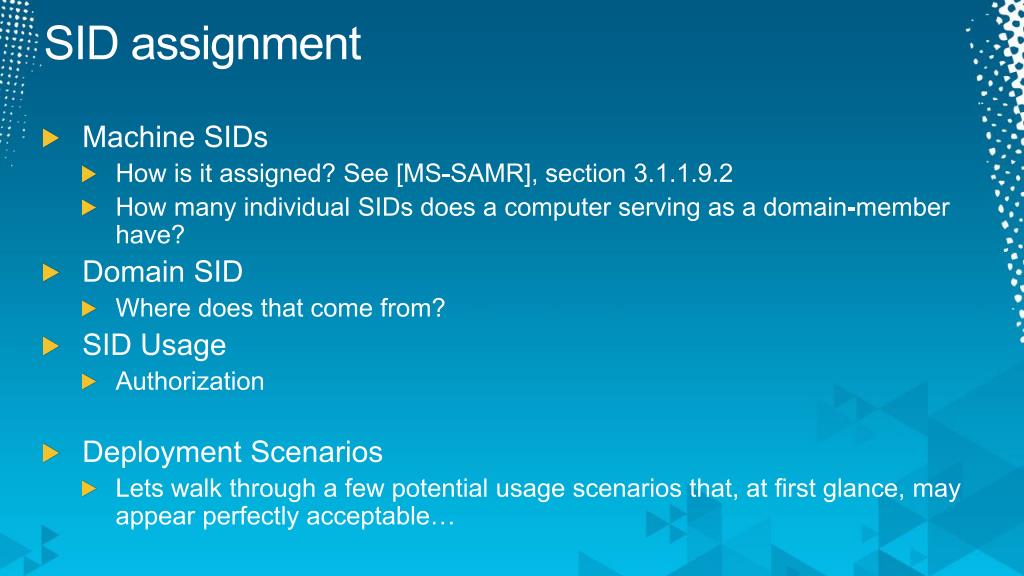

SID assignment
  • Machine SIDs
    • How is it assigned? See [MS-SAMR], section 3.1.1.9.2
    • How many individual SIDs does a computer serving as a domain-member have?
  • Domain SID
    • Where does that come from?
  • SID Usage
    • Authorization
  • Deployment Scenarios
    • Lets walk through a few potential usage scenarios that, at first glance, may appear perfectly acceptable…
deployment scenarios

Deployment Scenarios

Pay close attention; this gets tricky…

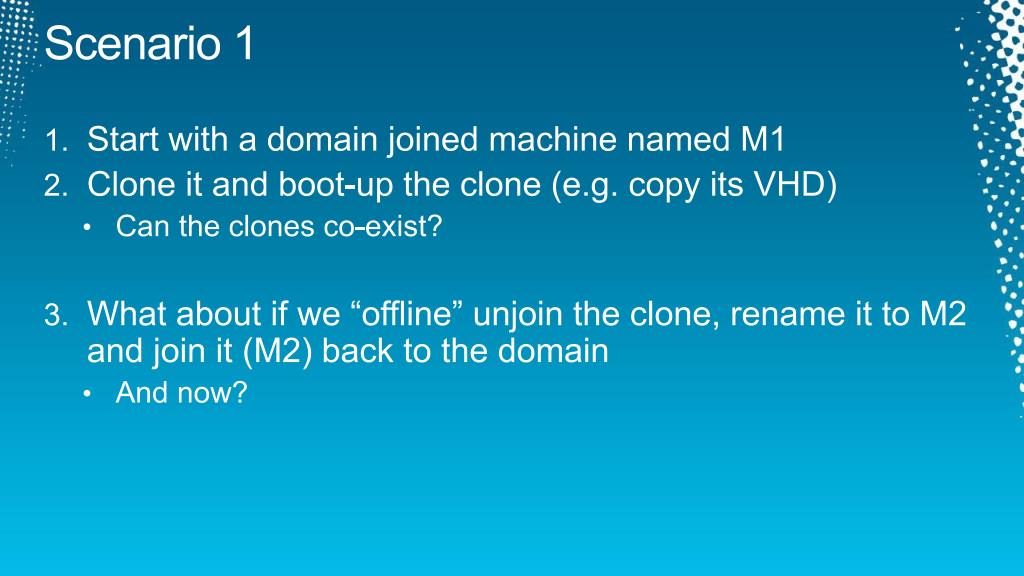

scenario 1
Start with a domain joined machine named M1

Clone it and boot-up the clone (e.g. copy its VHD)

Can the clones co-exist?

What about if we “offline” unjoin the clone, rename it to M2 and join it (M2) back to the domain

And now?

Scenario 1
scenario 2
Scenario 2

2k8r2.VHD

Windows

Server

7) PEACH\Administrator logs on to a PEACH domain-member and tries to map a drive to:\\luigi.princess.peach.com\Gameboy What happens?

1)A template VHD file that is used to deploy new Windows servers is copied

4) Another copy is made of the template VHD. It is renamed to LUIGI & joined to the PRINCESS domain

2) The cloned VM is renamed & promoted to a DC creating the PEACH domain

6) The PEACH\Administrator is added as a member of CHILD\SuperMarioBros

5) CHILD\SuperMarioBros is granted READ/WRITE access to the Gameboy share on LUIGI

3) A child domain (PRINCESS) is promoted from a clean OS-install in a branch office

scenario 3
Setup a machine M1

Clone M1 to get M2

Promote both in different domains in different forests

Result: 2 domains share the same SID space

Establish trust between the 2 domains/forests

What happens?

Scenario 3

M1 & M2 promoted as first DCs in two forests

M1 is cloned  M2

Trust?

Forest1.com

SID: S-10

Computer: M1

SID: S-10

Forest2.com

SID: S-10

Computer: M2

SID: S-10

scenario 4
Create domain from machine M1 (dom1.lab)

Install a new machine M2

Clone M2 to get new machine: M3

Promote M2 as a replica in dom1.lab

Join M3 to dom1.lab domain hosted by M1 and M2

Anything wrong here?

Scenario 4
windows concepts12

Windows Concepts

Active Directory Replication

update sequence numbers usn

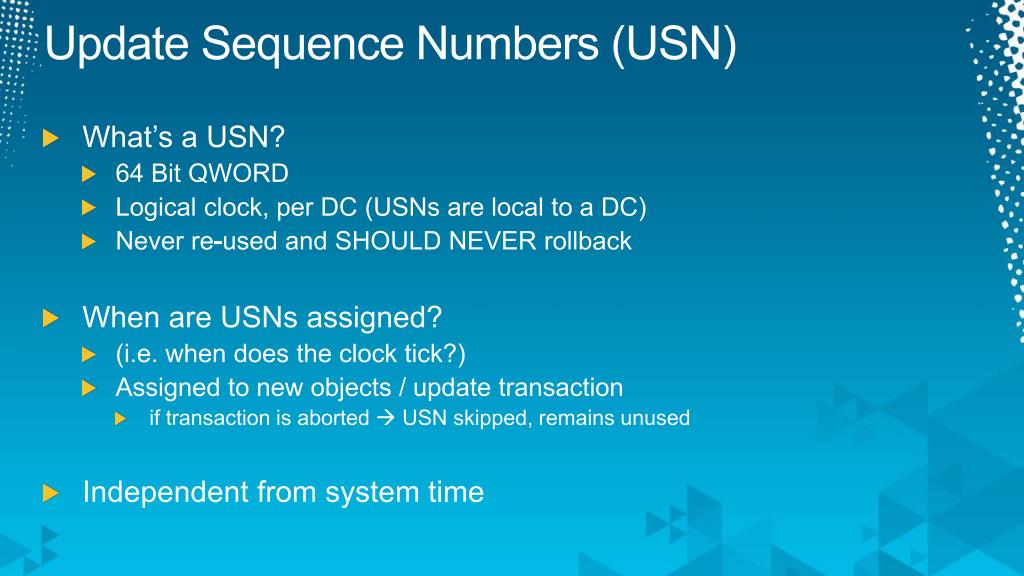

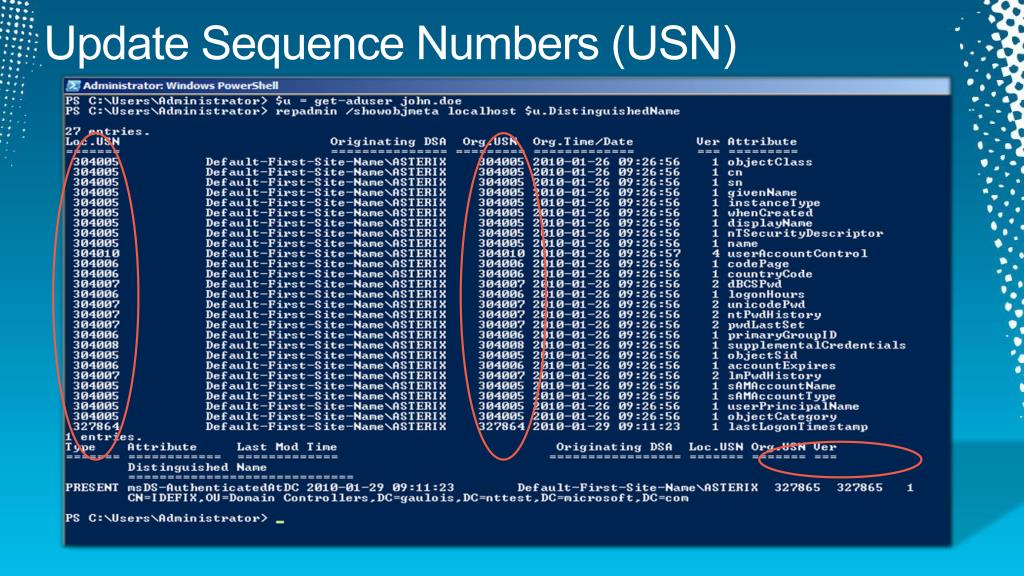

Update Sequence Numbers (USN)
  • What’s a USN?
    • 64 Bit QWORD
    • Logical clock, per DC (USNs are local to a DC)
    • Never re-used and SHOULD NEVER rollback
  • When are USNs assigned?
    • (i.e. when does the clock tick?)
    • Assigned to new objects / update transaction
      • if transaction is aborted  USN skipped, remains unused
  • Independent from system time
object creation metadata

Object usnCreated=4711

ObjectusnChanged =4711

Property

Value

USN

Version#

Timestamp

Originating GUID

Orig. USN

P1:

Value

4711

1

<time>

DS1

4711

P2:

Value

4711

1

<time>

4711

DS1

P3:

Value

4711

1

<time>

4711

DS1

P4:

Value

4711

1

<time>

DS1

4711

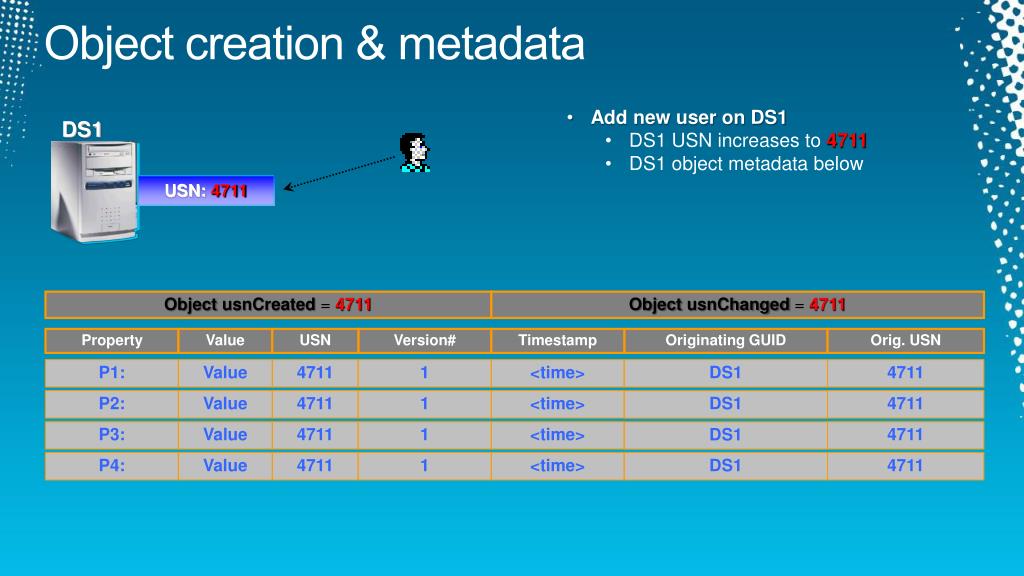

Object creation & metadata
  • Add new user on DS1
    • DS1 USN increases to 4711
    • DS1 object metadata below

DS1

USN: 4710

USN: 4711

object replication metadata

Object usnCreated =2052

Object usnChanged =2052

Property

Value

USN

Version#

Timestamp

Originating GUID

Orig. USN

P1:

Value

2052

1

<time>

DS1

4711

P2:

Value

2052

1

<time>

4711

DS1

P3:

Value

2052

1

<time>

4711

DS1

P4:

Value

2052

1

<time>

DS1

4711

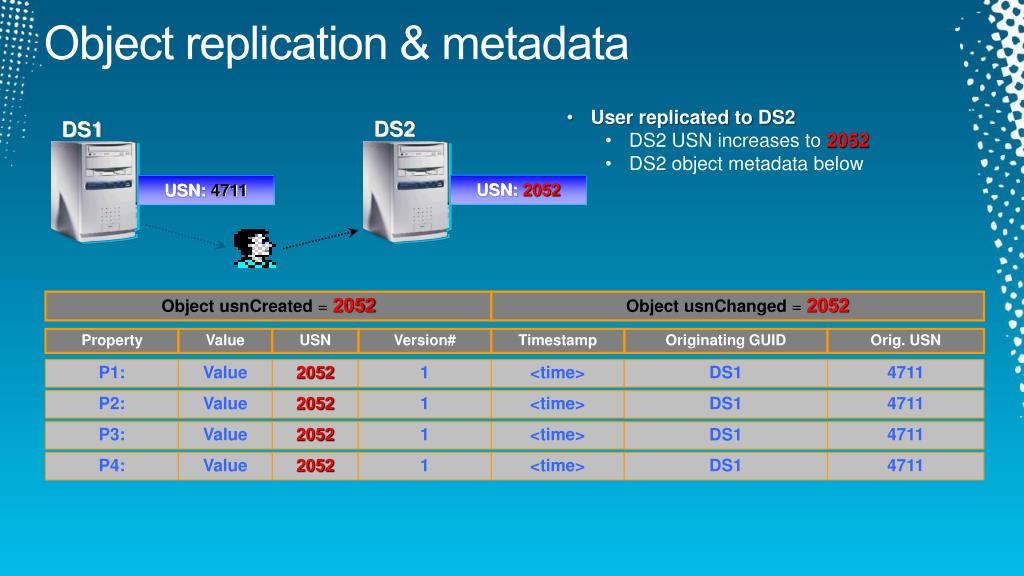

Object replication & metadata
  • User replicated to DS2
    • DS2 USN increases to 2052
    • DS2 object metadata below

DS2

DS1

USN: 2052

USN: 2051

USN: 4711

high watermark vector table

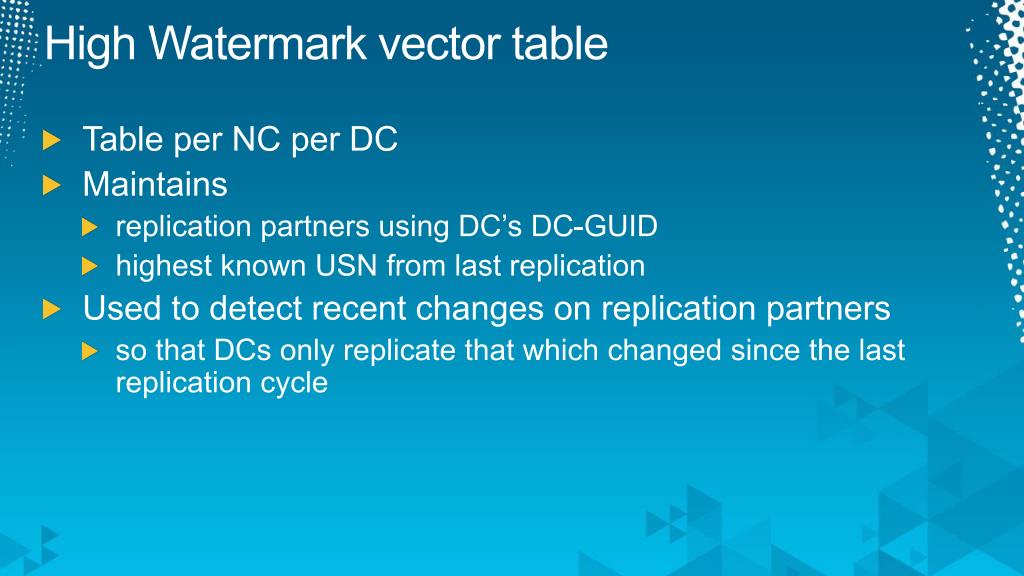

High Watermark vector table
  • Table per NC per DC
  • Maintains
    • replication partners using DC’s DC-GUID
    • highest known USN from last replication
  • Used to detect recent changes on replication partners
    • so that DCs only replicate that which changed since the last replication cycle
high watermark vector table18

DC GUID

Highest known USN

DS1 GUID

4711

DS3 GUID

1217

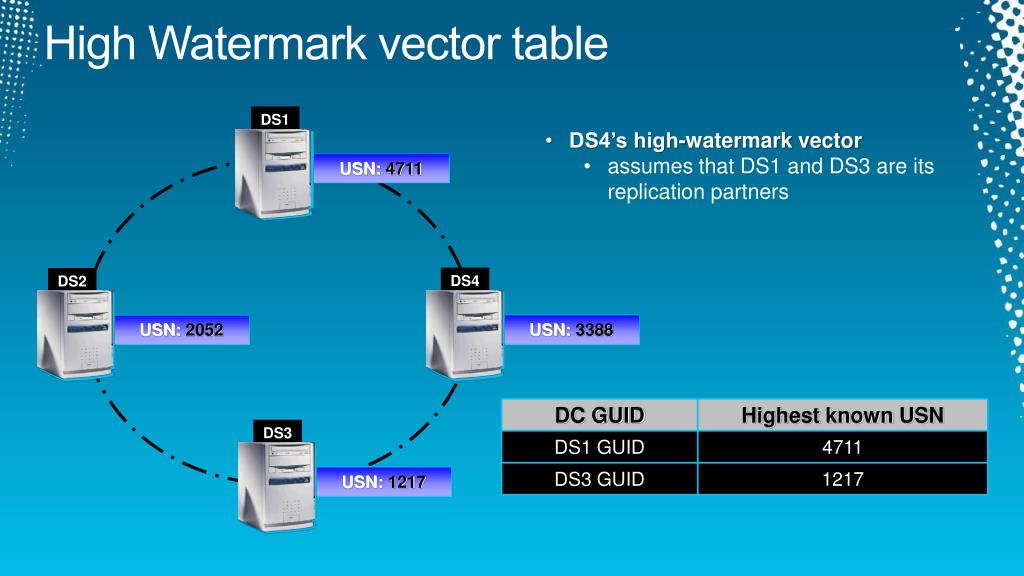

High Watermark vector table

DS1

  • DS4’s high-watermark vector
    • assumes that DS1 and DS3 are its replication partners

USN: 4711

DS4

DS2

USN: 3388

USN: 2052

DS3

USN: 1217

database identity

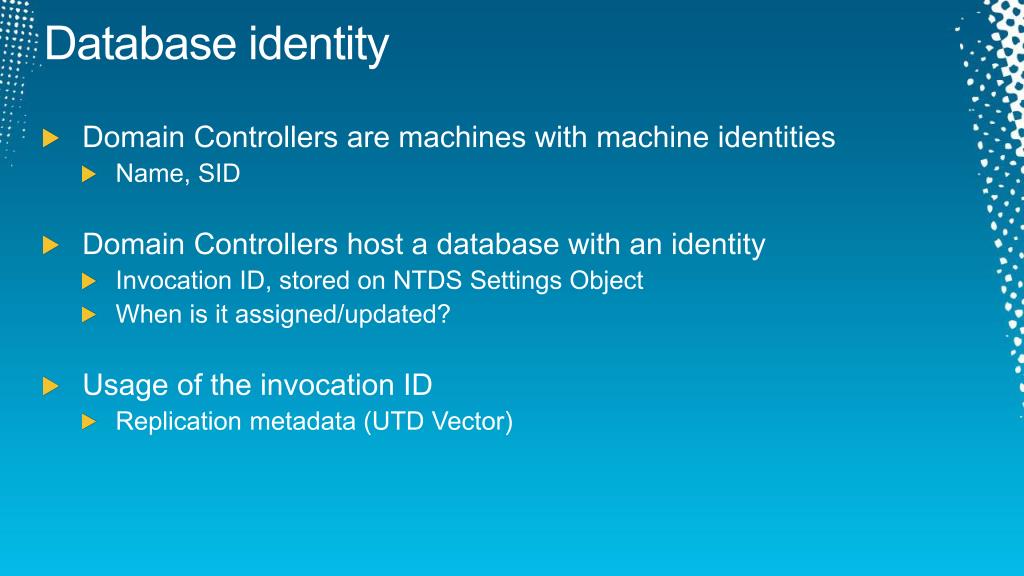

Database identity
  • Domain Controllers are machines with machine identities
    • Name, SID
  • Domain Controllers host a database with an identity
    • Invocation ID, stored on NTDS Settings Object
    • When is it assigned/updated?
  • Usage of the invocation ID
    • Replication metadata (UTD Vector)
up to dateness utd vector table

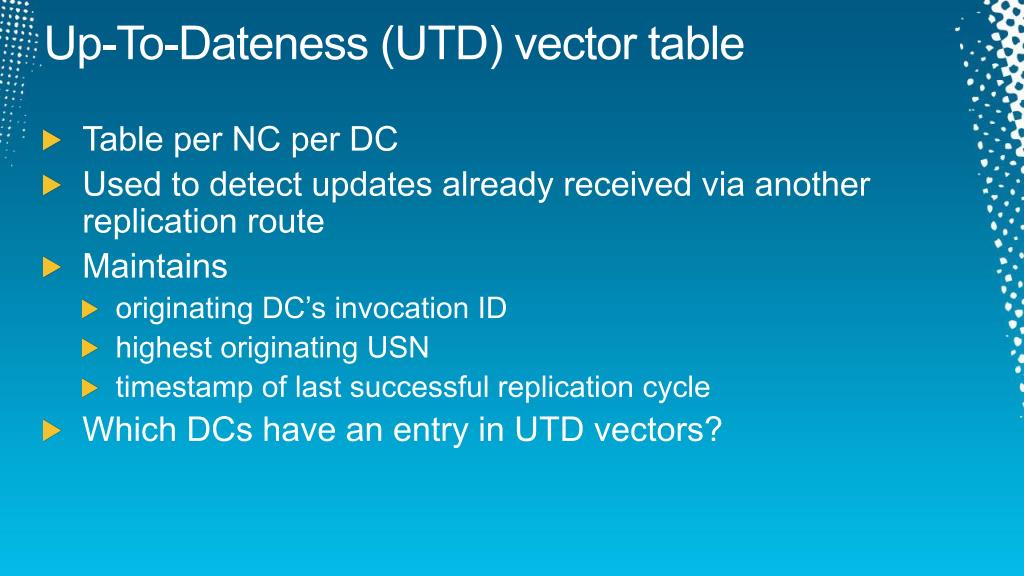

Up-To-Dateness (UTD) vector table
  • Table per NC per DC
  • Used to detect updates already received via another replication route
  • Maintains
    • originating DC’s invocation ID
    • highest originating USN
    • timestamp of last successful replication cycle
  • Which DCs have an entry in UTD vectors?
up to dateness utd vector table21

Replication timestamp

Invocation ID

Highest originating USN

12:02.31

DS1 GUID

4691

12:02.29

DS2 GUID

2052

12:02.36

DS3 GUID

1216

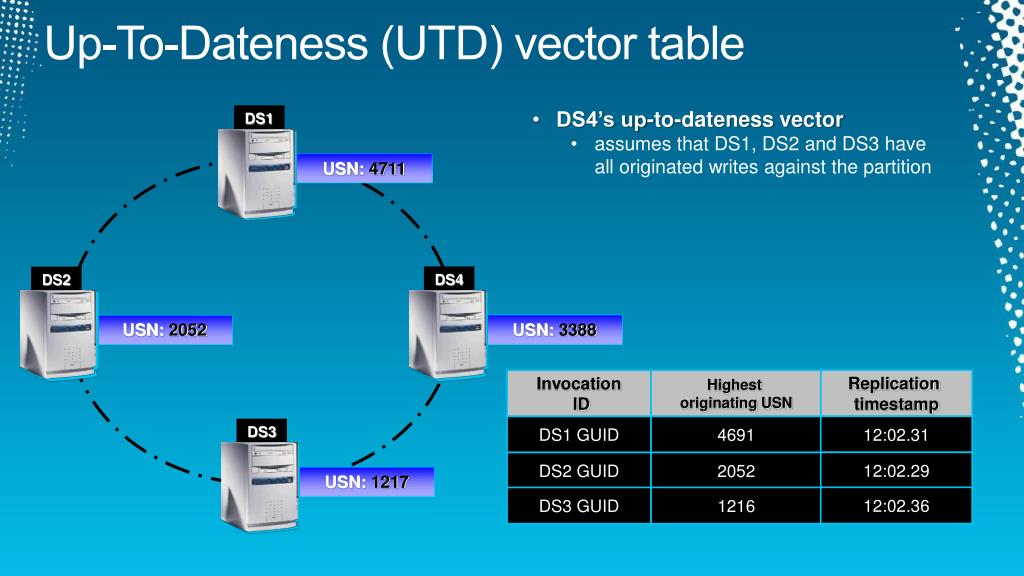

Up-To-Dateness (UTD) vector table
  • DS4’s up-to-dateness vector
    • assumes that DS1, DS2 and DS3 have all originated writes against the partition

DS1

USN: 4711

DS4

DS2

USN: 3388

USN: 2052

DS3

USN: 1217

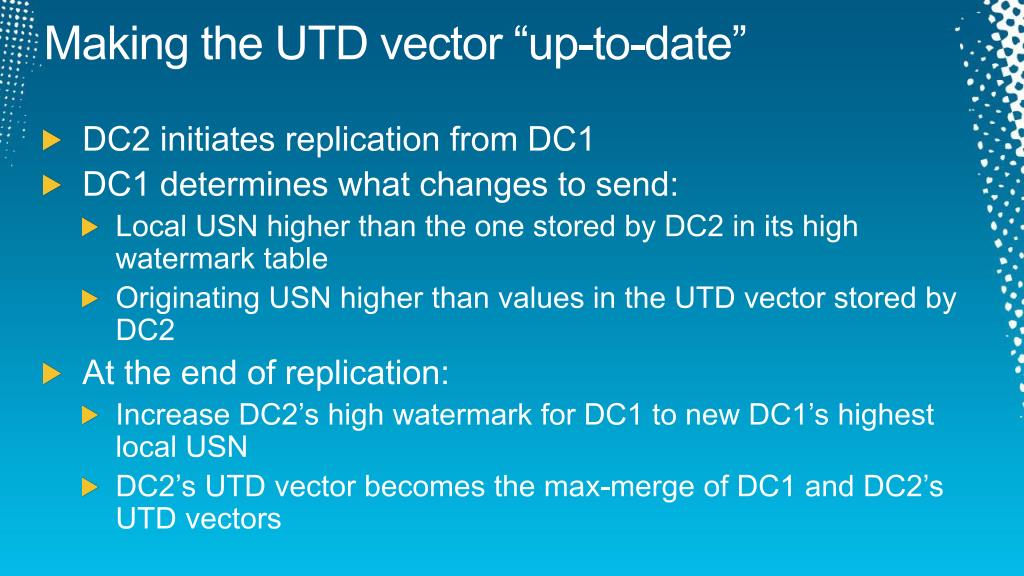

making the utd vector up to date
Making the UTD vector “up-to-date”
  • DC2 initiates replication from DC1
  • DC1 determines what changes to send:
    • Local USN higher than the one stored by DC2 in its high watermark table
    • Originating USN higher than values in the UTD vector stored by DC2
  • At the end of replication:
    • Increase DC2’s high watermark for DC1 to new DC1’s highest local USN
    • DC2’s UTD vector becomes the max-merge of DC1 and DC2’s UTD vectors
lingering objects

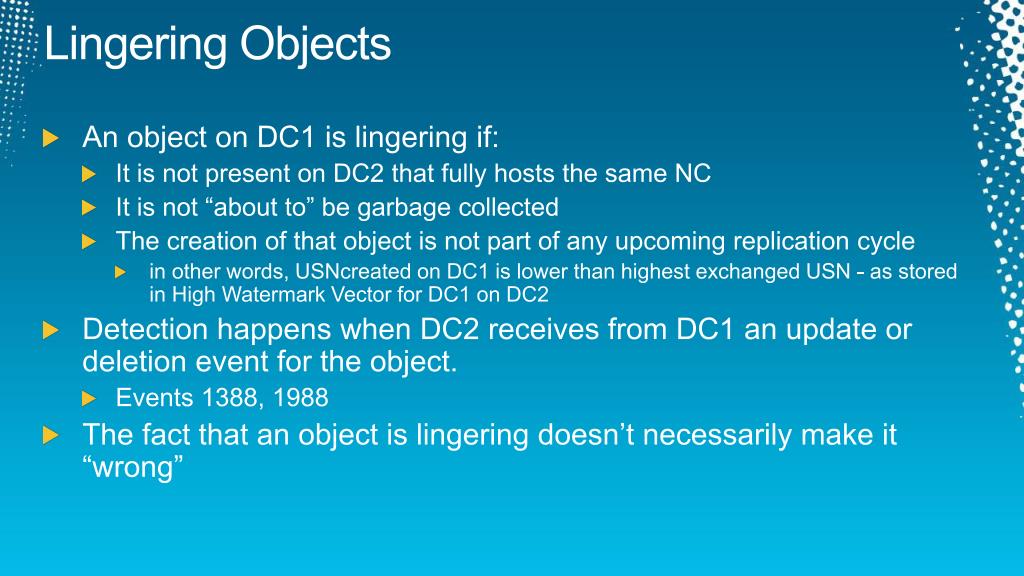

Lingering Objects
  • An object on DC1 is lingering if:
    • It is not present on DC2 that fully hosts the same NC
    • It is not “about to” be garbage collected
    • The creation of that object is not part of any upcoming replication cycle
      • in other words, USNcreated on DC1 is lower than highest exchanged USN - as stored in High Watermark Vector for DC1 on DC2
  • Detection happens when DC2 receives from DC1 an update or deletion event for the object.
    • Events 1388, 1988
  • The fact that an object is lingering doesn’t necessarily make it “wrong”
usn rollback

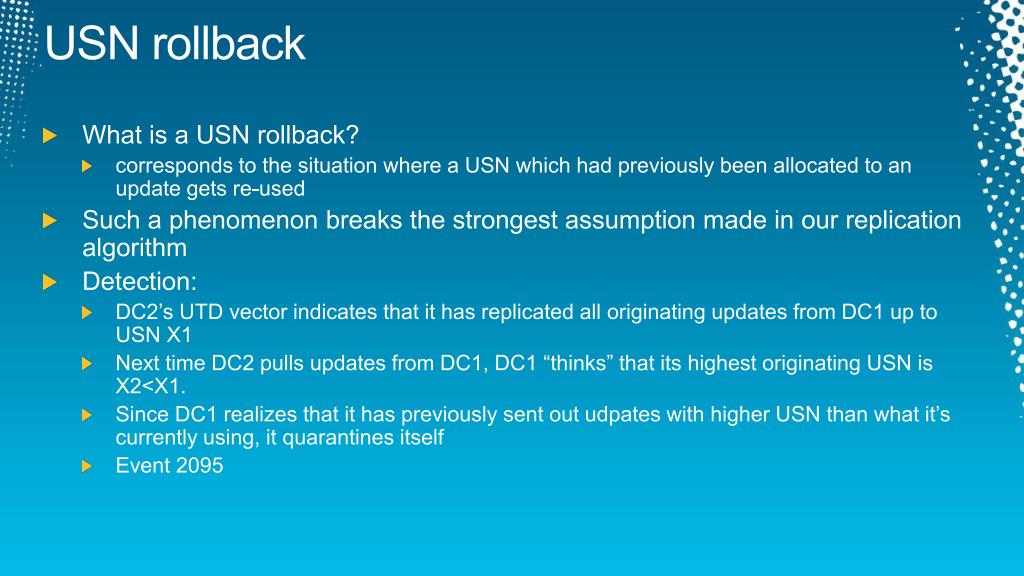

USN rollback
  • What is a USN rollback?
    • corresponds to the situation where a USN which had previously been allocated to an update gets re-used
  • Such a phenomenon breaks the strongest assumption made in our replication algorithm
  • Detection:
    • DC2’s UTD vector indicates that it has replicated all originating updates from DC1 up to USN X1
    • Next time DC2 pulls updates from DC1, DC1 “thinks” that its highest originating USN is X2<X1.
    • Since DC1 realizes that it has previously sent out udpates with higher USN than what it’s currently using, it quarantines itself
    • Event 2095
usn rollback25

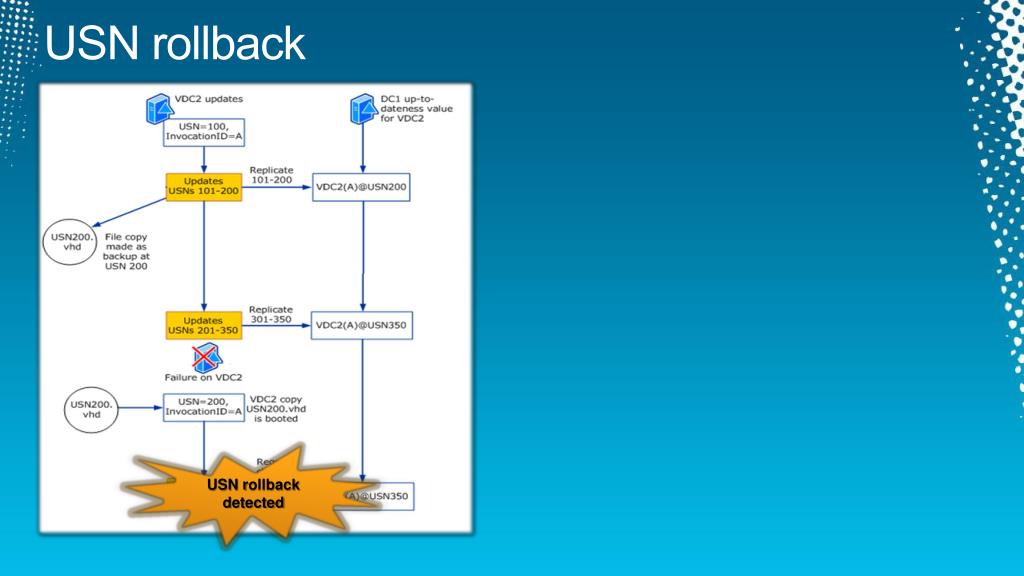

USN rollback

USN rollback detected

usn bubbles how a usn rollback can turn really bad
USN bubbles… how a USN rollback can turn really bad

USN rollback detected

USN rollback NOTdetected!

improper backup restore
Improper Backup/Restore
  • What can go wrong with an improper backup/restore?
    • Summary of a real-world case:
      • 2500 users not able to log on
      • users having access to resources they should not have access to anymore
      • schema mismatches after Schema Master rolled back
      • Exchange server failing
      • RID pool allocated twice after RID master rolled back
application backup restore
Application – Backup/Restore
  • Resetting the invocation ID
    • Use supported backup/restore solutions
      • VSS writers, whether in Windows backup or 3rd party solutions
    • Last resort option… (and not formally tested)
      • before you apply the snapshot, disable the network adapters on the VM
      • apply the snapshot
      • set registry value Database Restored from Backup = 1
      • reboot
      • verify that the DC has a new invocation ID
      • re-enable network adapters
application p2v migration
Application – P2V migration
  • Is it enough to reset the invocation ID on the newly created Virtual DC?
  • Online or offline P2V?
  • Lab creation via P2V
    • What happens if various DCs are P2V’d at different times and placed in test network?
  • Recommendations:
    • Use P2V in SCVMM, it has a few checks in place
    • Reset the invocation ID
    • Do not place physical and P2V’d VM on same network… ever!
application rodcs
Application – RODCs
  • Virtualization of RODCs
    • Can I take snapshots of RODCs and use them?
      • Mostly but with various ramifications, e.g.
        • lastLogon and other logon-statistics-attributes written only locally on RODC
    • Can I clone RODCs in a branch site?
      • No
miscellaneous considerations

Miscellaneous Considerations

TimeSync, Security, Performance, Going all virtual, etc.

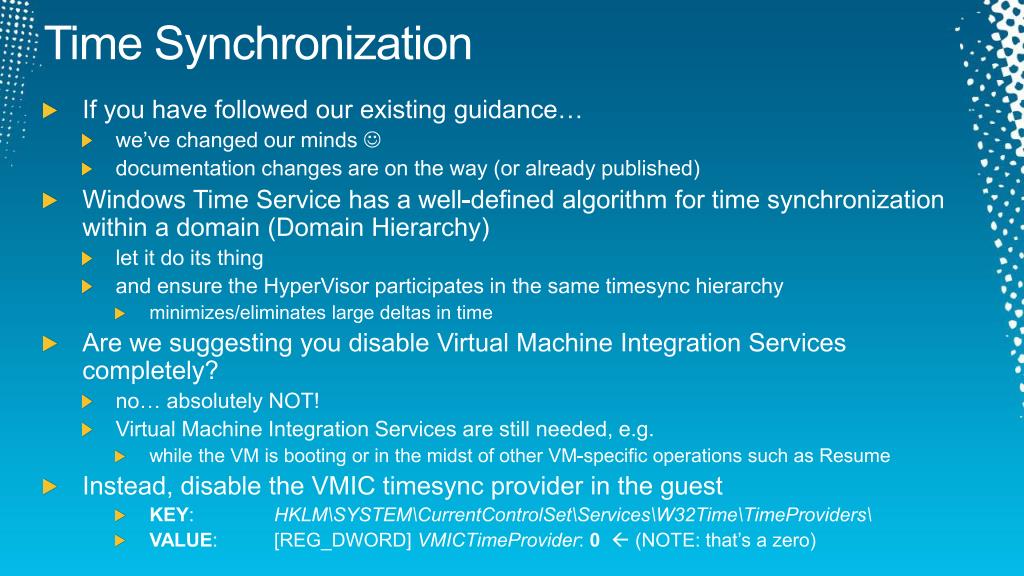

time synchronization
If you have followed our existing guidance…

we’ve changed our minds 

documentation changes are on the way (or already published)

Windows Time Service has a well-defined algorithm for time synchronization within a domain (Domain Hierarchy)

let it do its thing

and ensure the HyperVisor participates in the same timesync hierarchy

minimizes/eliminates large deltas in time

Are we suggesting you disable Virtual Machine Integration Services completely?

no… absolutely NOT!

Virtual Machine Integration Services are still needed, e.g.

while the VM is booting or in the midst of other VM-specific operations such as Resume

Instead, disable the VMIC timesync provider in the guest

KEY: HKLM\SYSTEM\CurrentControlSet\Services\W32Time\TimeProviders\

VALUE: [REG_DWORD] VMICTimeProvider: 0 (NOTE: that’s a zero)

Time Synchronization
security considerations
Security considerations
  • Hosts of domain controllers should be handled with same care as the DCs they host
  • Possible EoP from host administrator to Domain/Enterprise Admin
  • As possible, reduce attack surface on host
    • Server Core
  • A guest DC has admin privileges over domain members, including Hyper hosts, if joined to the domain
    • Possibility: make the host a DC
performance considerations
Performance considerations
  • In testing conducted in a W2K8 Hyper-V environment
    • Virtual DCs perform at about 90% compared to physical DCs
  • Is that still true?
    • No, virtualization technologies improve. We’re now almost at par
      • assuming, of course, that the host isn’t running too many VMs

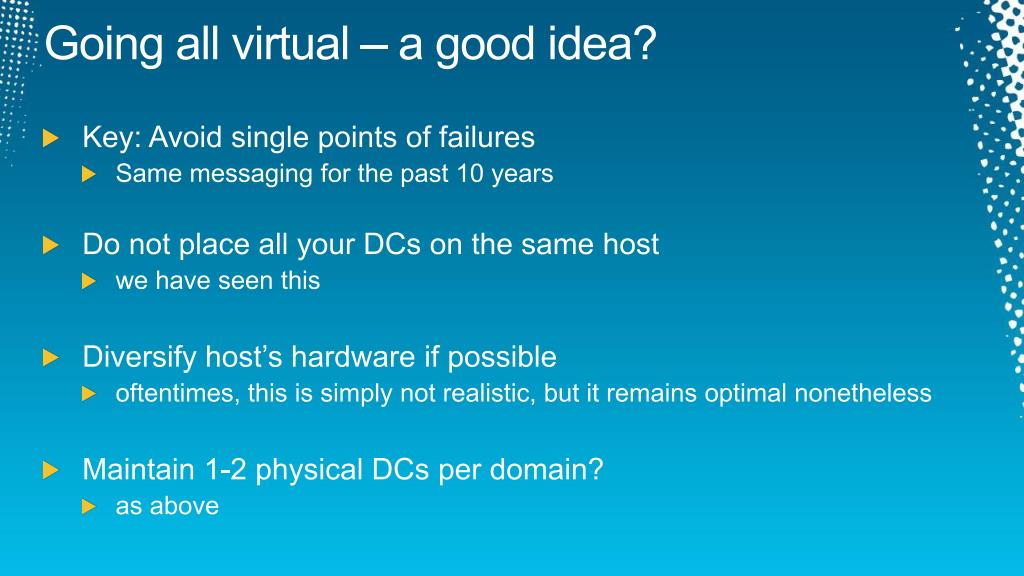

going all virtual a good idea
Going all virtual – a good idea?
  • Key: Avoid single points of failures
    • Same messaging for the past 10 years
  • Do not place all your DCs on the same host
    • we have seen this
  • Diversify host’s hardware if possible
    • oftentimes, this is simply not realistic, but it remains optimal nonetheless
  • Maintain 1-2 physical DCs per domain?
    • as above

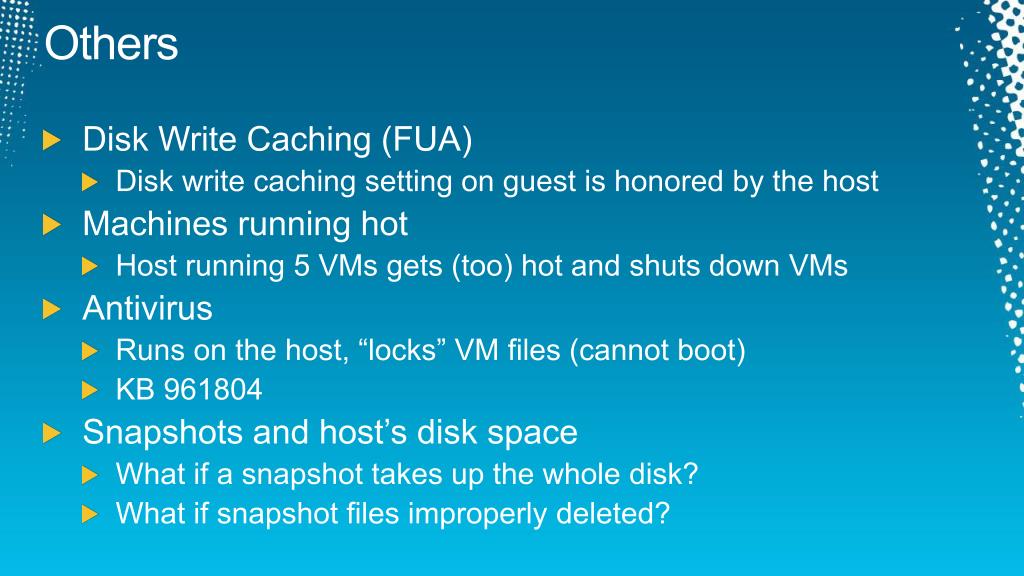

others
Others
  • Disk Write Caching (FUA)
    • Disk write caching setting on guest is honored by the host
  • Machines running hot
    • Host running 5 VMs gets (too) hot and shuts down VMs
  • Antivirus
    • Runs on the host, “locks” VM files (cannot boot)
    • KB 961804
  • Snapshots and host’s disk space
    • What if a snapshot takes up the whole disk?
    • What if snapshot files improperly deleted?
recap39
Recap
  • Cloning non Domain Controllers?
    • Perhaps, risks for 3rd-party software remain an unknown quantity
    • Best Practice: SYSPREP instead
  • Cloning Domain Controllers?
    • ABSOLUTELY NOT!
    • What if it’s the only DC in the entire forest? Still a concern:
      • it won’t naturally replicate
      • What happens to apps that understand the replication fabric, etc.
  • HyperV host snapshotting on Domain Controllers guests
    • Writeable: practically guarantees a USN rollback situation
    • RODCs: perhaps… but untested  the risks are undetermined
  • TimeSync in virtualized environments
    • Disable the VMIC timesync provider within the guest
track resources
Track Resources
  • Don’t forget to visit the Cloud Power area within the TLC (Blue Section) to see product demos and speak with experts about the Server & Cloud Platform solutions that help drive your business forward.
  • You can also find the latest information about our products at the following links:
  • Cloud Power - http://www.microsoft.com/cloud/
  • Private Cloud - http://www.microsoft.com/privatecloud/
  • Windows Server - http://www.microsoft.com/windowsserver/
  • Windows Azure - http://www.microsoft.com/windowsazure/
  • Microsoft System Center - http://www.microsoft.com/systemcenter/
  • Microsoft Forefront - http://www.microsoft.com/forefront/
resources
Resources
  • Connect. Share. Discuss.

http://northamerica.msteched.com

Learning

  • Sessions On-Demand & Community
  • Microsoft Certification & Training Resources

www.microsoft.com/teched

www.microsoft.com/learning

  • Resources for IT Professionals
  • Resources for Developers

http://microsoft.com/technet

http://microsoft.com/msdn

slide44

© 2011 Microsoft Corporation. All rights reserved. Microsoft, Windows, Windows Vista and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries.

The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.
