  1. The ISIS Hˉ Ion Source Status & Plans Dan Faircloth

  2. The ISIS Ion Source Penning H- ion source Surface Plasma Source (SPS) 35 mA through 0.610 mm aperture 200-250 s, 50 Hz  1% duty cycle  20 ml/min H2  3 g/month Cs • 0.17  mm mrad (665 keV, 35 mA, rms) 20-30 day average lifetime

  3. Ion Beam Extract Electrode Penning Pole Pieces Discharge Region Aperture Plate Ceramic Anode Source Body Copper Spacer Cathode Mica 10mm Mounting Flange

  4. H2 Gas Pulse ~200μs 50A Discharge Pulse ~600μs 17kV Extract Pulse ~250μs 35mA H- Beam Mode of Operation Time

  5. Research and Development Program Goals for ISIS upgrades and future accelerators: • Double output current 35mA → 70mA • Increase pulse length 200μs → 1 or 2 ms • Improve emittance • Maximise lifetime

  6. Top Loading Ion Source Ion Source Assembly Flange and Magnet Assembly

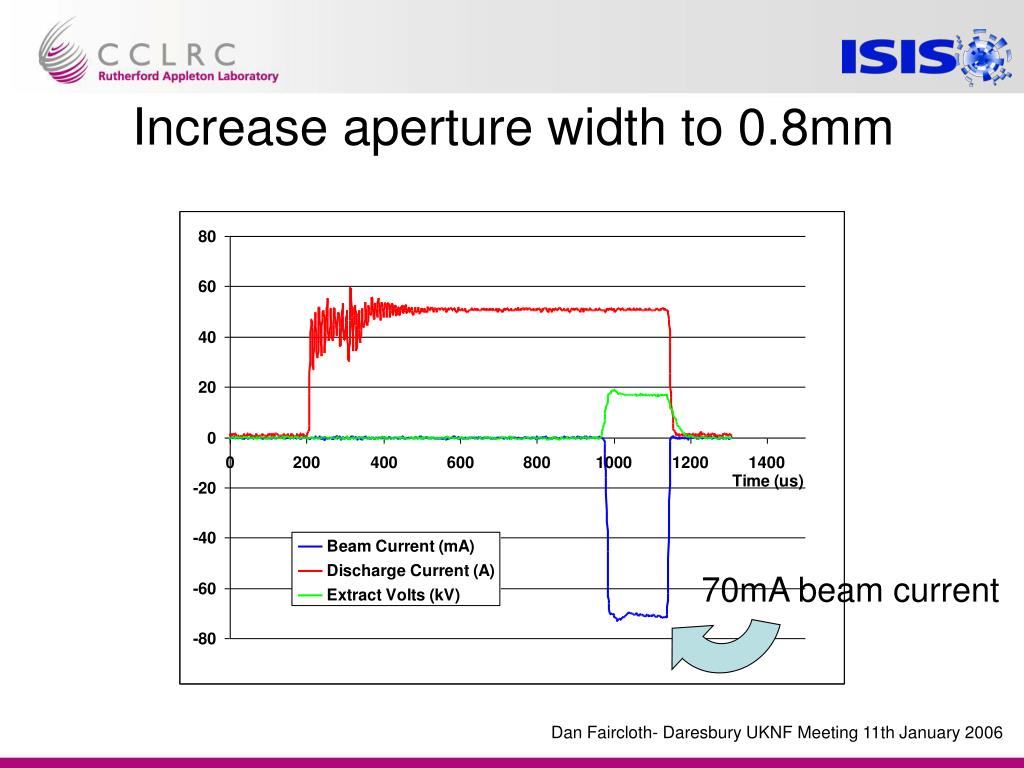

  7. Increase aperture width to 0.8mm 70mA beam current

  8. Thermal Modelling 17 keV normalised Hrms= 0.03  mm mrad Vrms= 0.16  mm mrad 600 520 440 360 280 200 0T 0.5T Electromagnetic Modelling

  9. Research and Development Program Goals for ISIS upgrades and future accelerators: • Double output current 35mA → 70mA • Increase pulse length 200μs → 1 or 2 ms • Improve emittance • Maximise lifetime

  10. Next Steps • Development program delayed by problems with the extract voltage power supply. • The power supply has now been repaired and modified by the manufactures and is awaiting reinstallation on the high voltage platform. • This will allow extraction at higher voltages and longer pulse lengths.

  11. Experiments on the ISDR • Pepper Pot emittance measurements • Energy analyser • 25kV extract voltage • Lifetime studies with long pulse length

  12. SOURCE PART COST (£) BODY 800 ANODE 200 CATHODE 200 BUCKET 500 FLANGE 500 VEECO VALVE 300 EXTRACTOR ELECTRODE + CARRIER 200 THERMOCOUPLES 60 APERATURE PLATE 50 CERAMIC PILLARS AND SHEILDS 150 TRANSPORT TUBE ASSEMBLY 200 MICA 10 NUTS BOLTS WASHERS ETC 20 TOTAL 3190 For operation at least 4 complete sources are required. TOTAL £12,760 MAGNET FLANGE PART COST (£) MAGNET FLANGE 5000 BENDING MAGNET 1000 COLD BOX 1500 FEED THROUGHS 1000 CERAMIC INSULATOR 1000 CEASIUM SHEILD 300 PRESSURE GAUGES 600 TOTAL £10,400 ANCILLIARY EQUIPMENT PART COST (£) EXTRACT POWER SUPPLY 20000 AC ARC POWER SUPPLY 6000 DC ARC POWER SUPPLY 4000 MAGNET POWER SUPPLY 1500 CHILLER/CIRCULATOR 1500 TEMPERATURE CRATE 3000 GAS CONTROLLER 2000 ISOLATING TRANSFORMER 4000 VACCUUM PUMPS 2000 HV PLATFORM POWER SUPPLY 5000 FRIDGE 1000 ASSOCIATED PIPEWORK 500 TOTAL £50,500 HV PLATFORM PART COST (£) PLATFORMS 2000 HV CAGE 1000 CABLING 1000 LIFTING GEAR 2000 TOTAL £6,000 GRAND TOTAL £79,660 Ion Source FETS Cost

  13. Ion Source FETS Development Plan 2005 2006 2007 2008 2009 Purchase power supplies Prepare R8 Manufacture vacuum vessels Manufacture 4 additional top loading ion sources Design and build HV platform and cage Ancillary wiring Assemble ion source Commission ion source Characterise ion source
