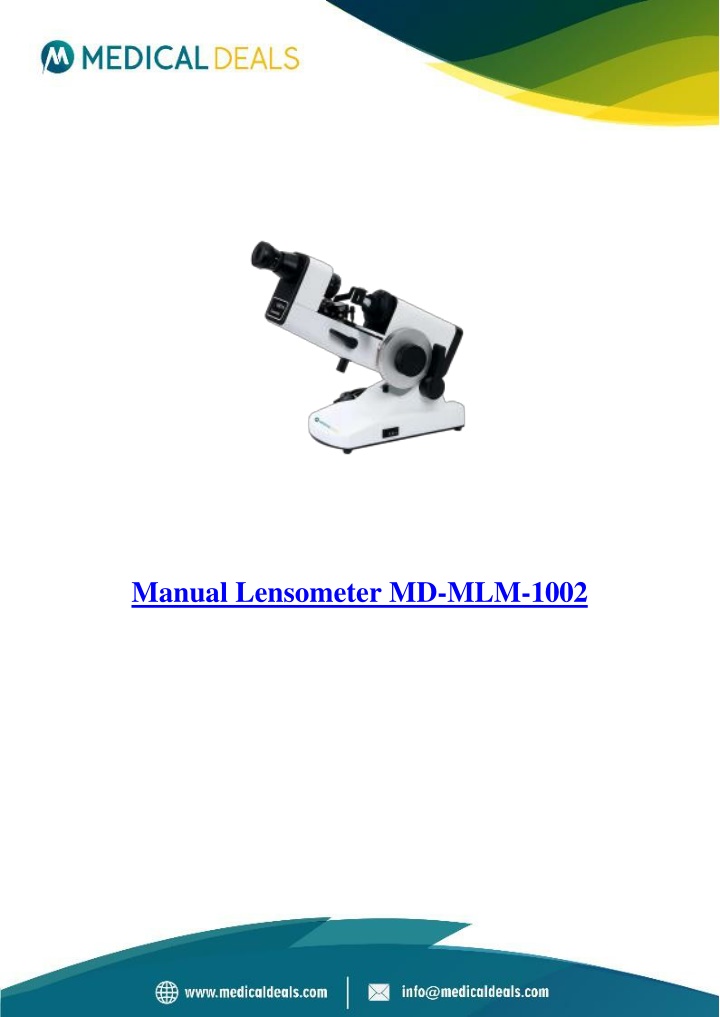

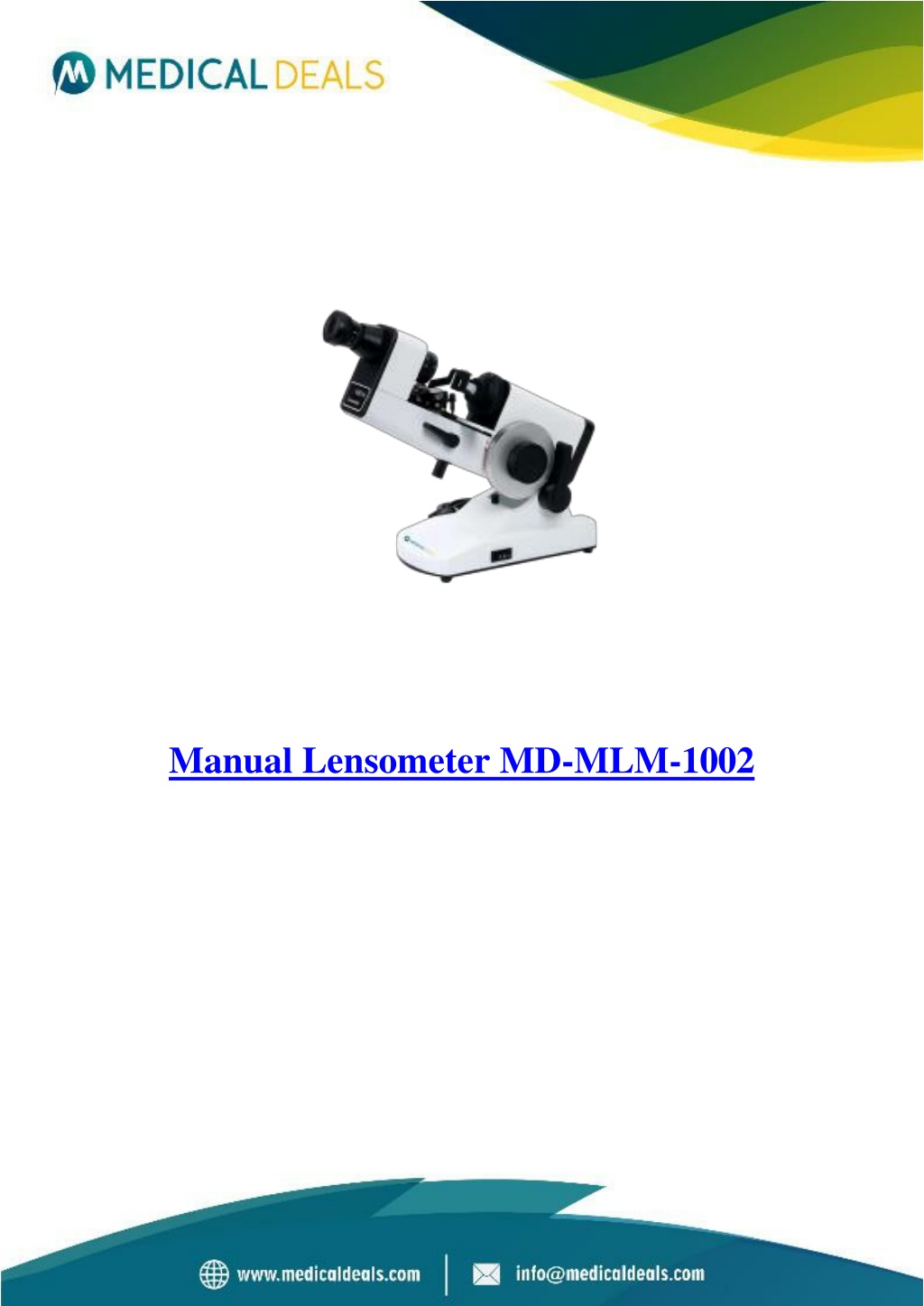

  1. Manual Lensometer MD-MLM-1002

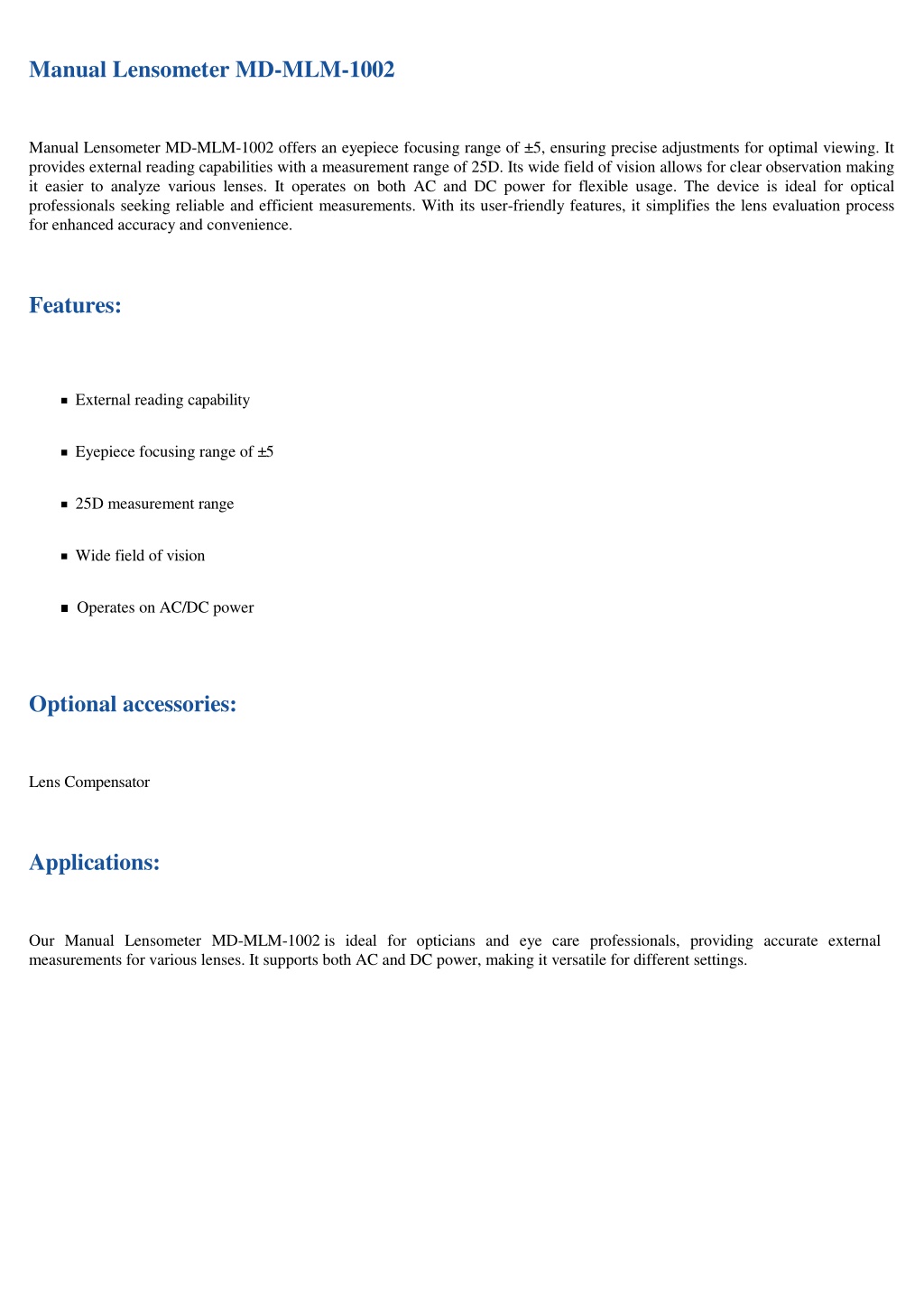

  2. Manual Lensometer MD-MLM-1002 Manual Lensometer MD-MLM-1002 offers an eyepiece focusing range of ±5, ensuring precise adjustments for optimal viewing. It provides external reading capabilities with a measurement range of 25D. Its wide field of vision allows for clear observation making it easier to analyze various lenses. It operates on both AC and DC power for flexible usage. The device is ideal for optical professionals seeking reliable and efficient measurements. With its user-friendly features, it simplifies the lens evaluation process for enhanced accuracy and convenience. Features: External reading capability Eyepiece focusing range of ±5 25D measurement range Wide field of vision Operates on AC/DC power Optional accessories: Lens Compensator Applications: Our Manual Lensometer MD-MLM-1002 is ideal for opticians and eye care professionals, providing accurate external measurements for various lenses. It supports both AC and DC power, making it versatile for different settings.

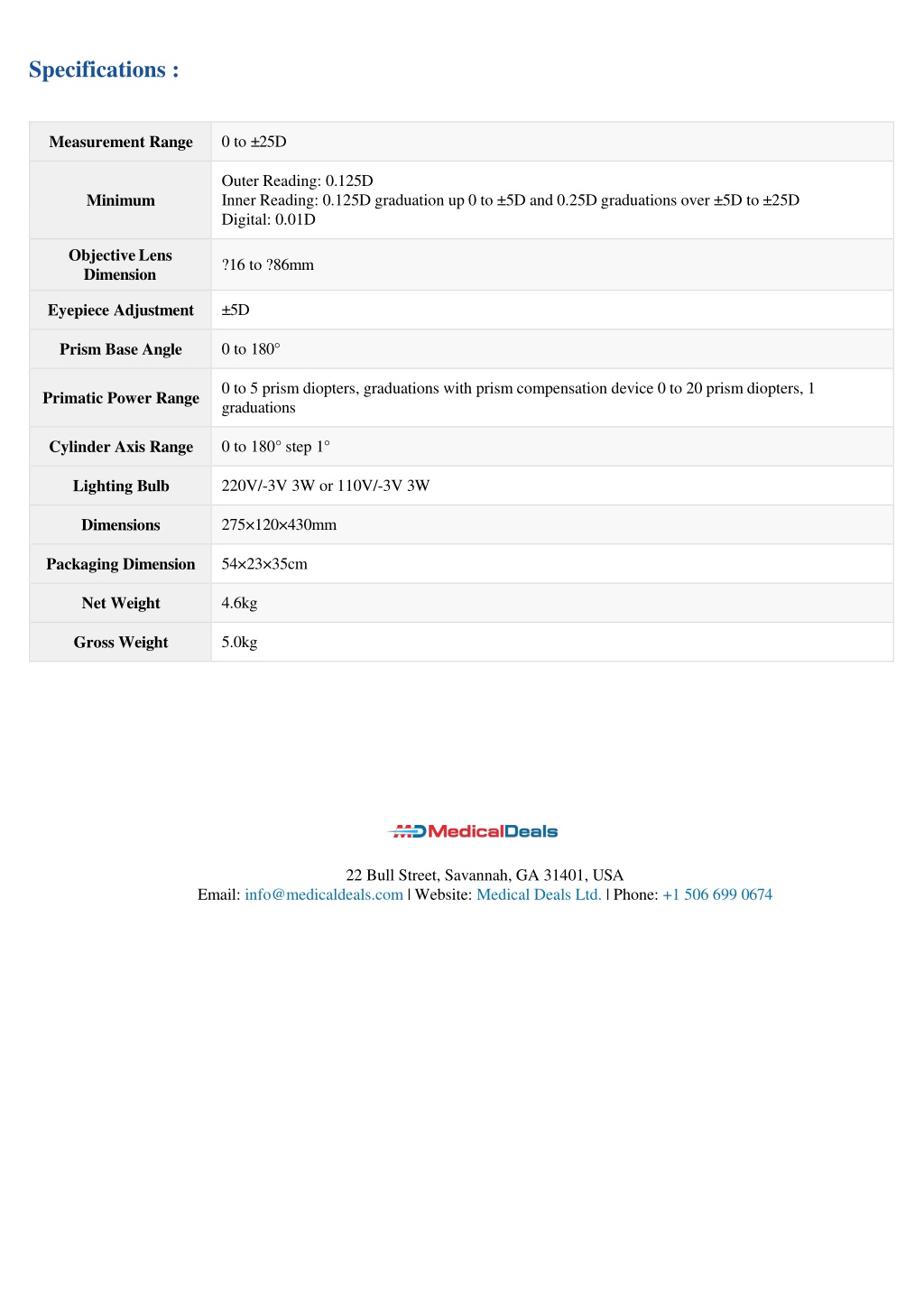

  3. Specifications : Measurement Range 0 to ±25D Outer Reading: 0.125D Inner Reading: 0.125D graduation up 0 to ±5D and 0.25D graduations over ±5D to ±25D Digital: 0.01D Minimum Objective Lens Dimension ?16 to ?86mm Eyepiece Adjustment ±5D Prism Base Angle 0 to 180° 0 to 5 prism diopters, graduations with prism compensation device 0 to 20 prism diopters, 1 graduations Primatic Power Range Cylinder Axis Range 0 to 180° step 1° Lighting Bulb 220V/-3V 3W or 110V/-3V 3W Dimensions 275×120×430mm Packaging Dimension 54×23×35cm Net Weight 4.6kg Gross Weight 5.0kg 22 Bull Street, Savannah, GA 31401, USA Email: info@medicaldeals.com | Website: Medical Deals Ltd. | Phone: +1 506 699 0674
