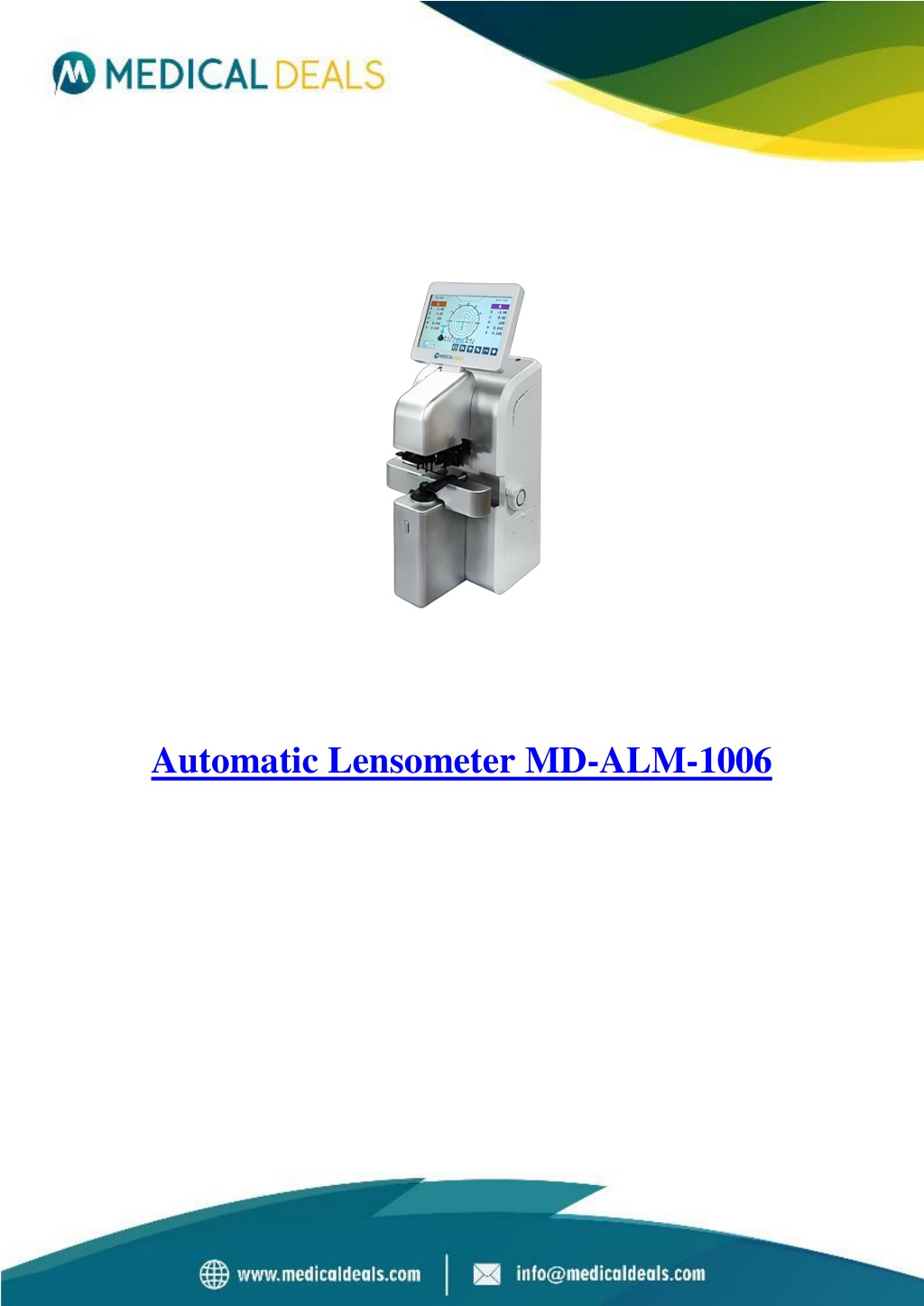

  1. Automatic Lensometer MD-ALM-1006

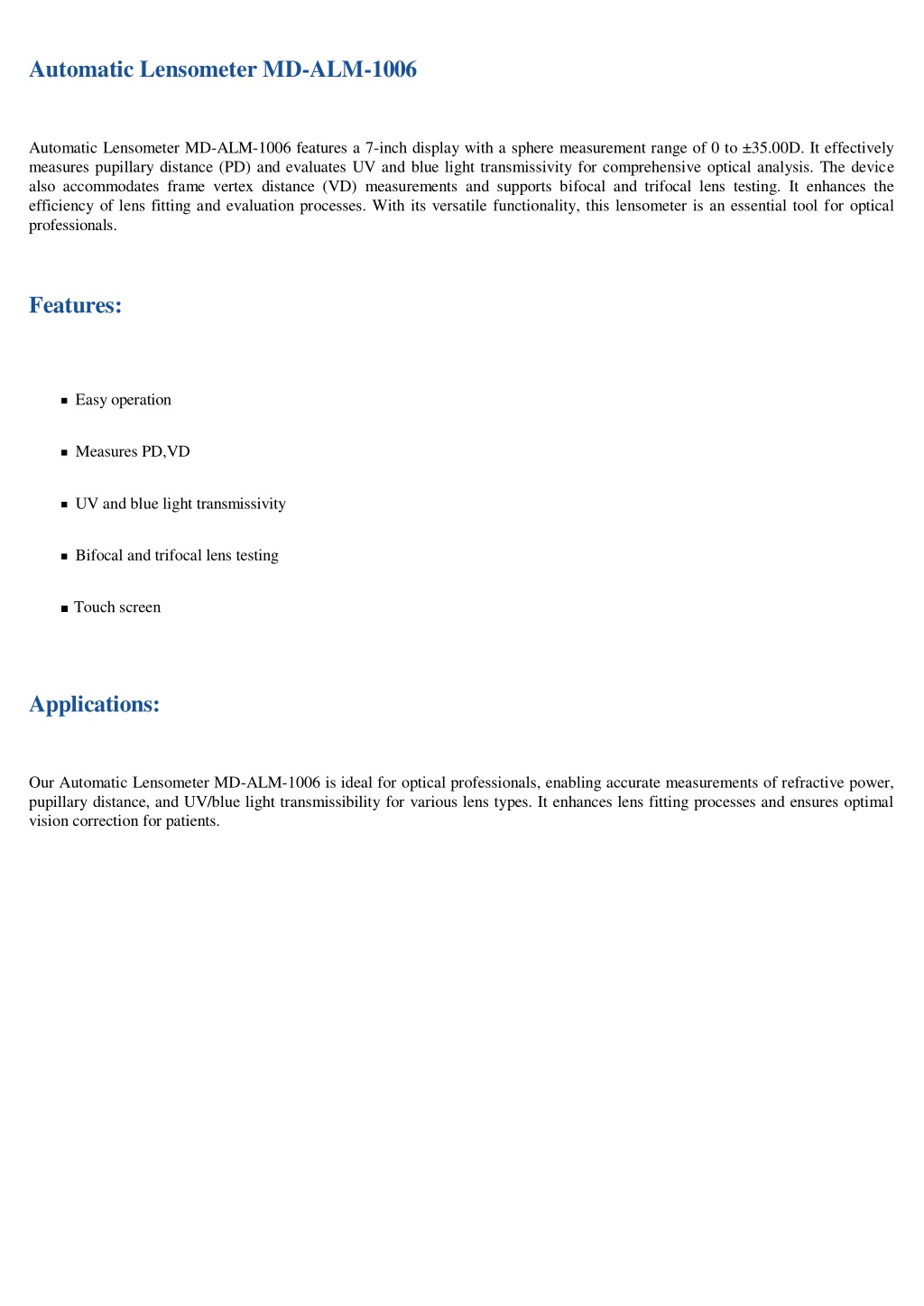

  2. Automatic Lensometer MD-ALM-1006 Automatic Lensometer MD-ALM-1006 features a 7-inch display with a sphere measurement range of 0 to ±35.00D. It effectively measures pupillary distance (PD) and evaluates UV and blue light transmissivity for comprehensive optical analysis. The device also accommodates frame vertex distance (VD) measurements and supports bifocal and trifocal lens testing. It enhances the efficiency of lens fitting and evaluation processes. With its versatile functionality, this lensometer is an essential tool for optical professionals. Features: Easy operation Measures PD,VD UV and blue light transmissivity Bifocal and trifocal lens testing Touch screen Applications: Our Automatic Lensometer MD-ALM-1006 is ideal for optical professionals, enabling accurate measurements of refractive power, pupillary distance, and UV/blue light transmissibility for various lens types. It enhances lens fitting processes and ensures optimal vision correction for patients.

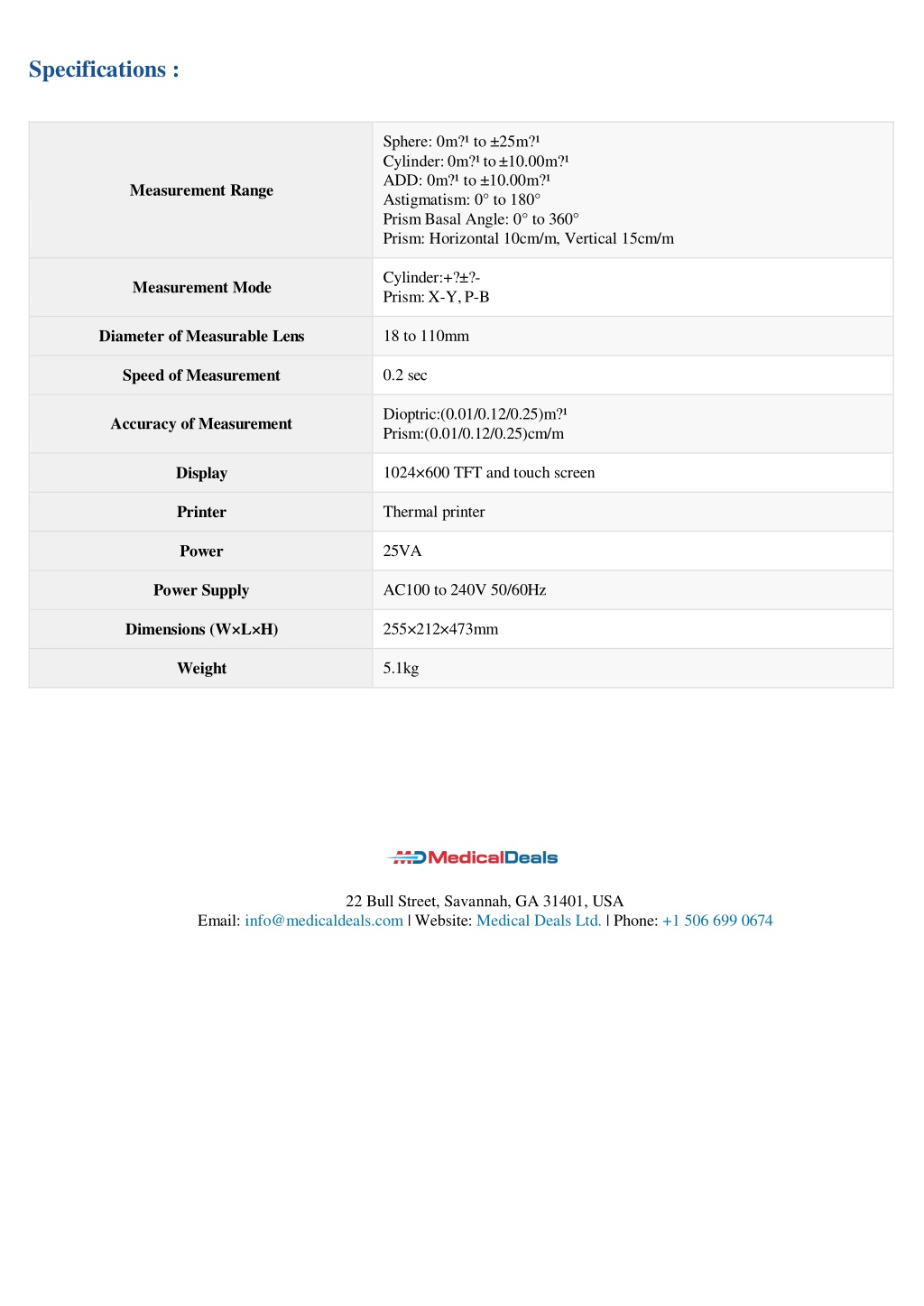

  3. Specifications : Sphere: 0m?¹ to ±25m?¹ Cylinder: 0m?¹ to ±10.00m?¹ ADD: 0m?¹ to ±10.00m?¹ Astigmatism: 0° to 180° Prism Basal Angle: 0° to 360° Prism: Horizontal 10cm/m, Vertical 15cm/m Measurement Range Cylinder:+?±?- Prism: X-Y, P-B Measurement Mode Diameter of Measurable Lens 18 to 110mm Speed of Measurement 0.2 sec Dioptric:(0.01/0.12/0.25)m?¹ Prism:(0.01/0.12/0.25)cm/m Accuracy of Measurement Display 1024×600 TFT and touch screen Printer Thermal printer Power 25VA Power Supply AC100 to 240V 50/60Hz Dimensions (W×L×H) 255×212×473mm Weight 5.1kg 22 Bull Street, Savannah, GA 31401, USA Email: info@medicaldeals.com | Website: Medical Deals Ltd. | Phone: +1 506 699 0674
