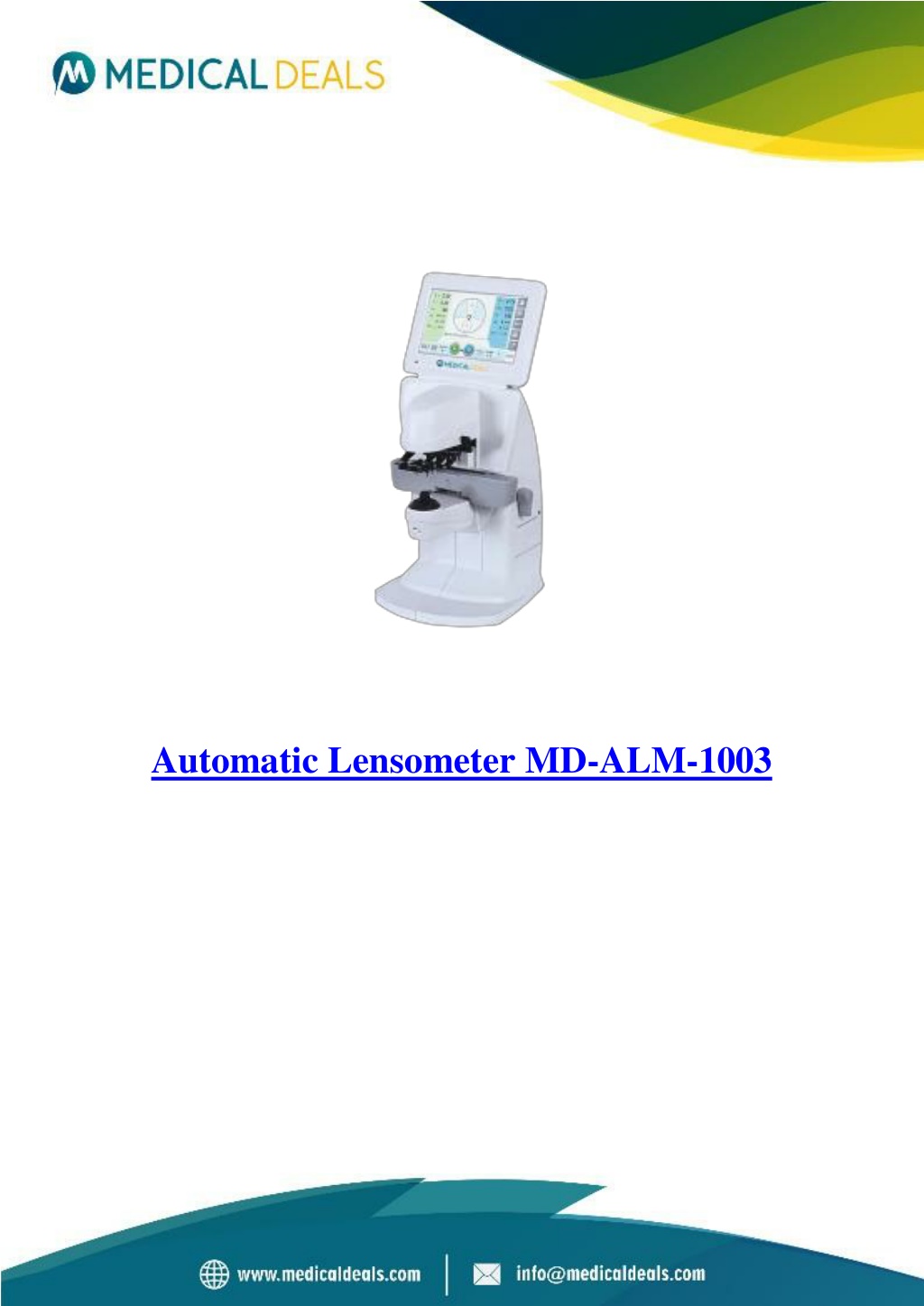

  1. Automatic Lensometer MD-ALM-1003

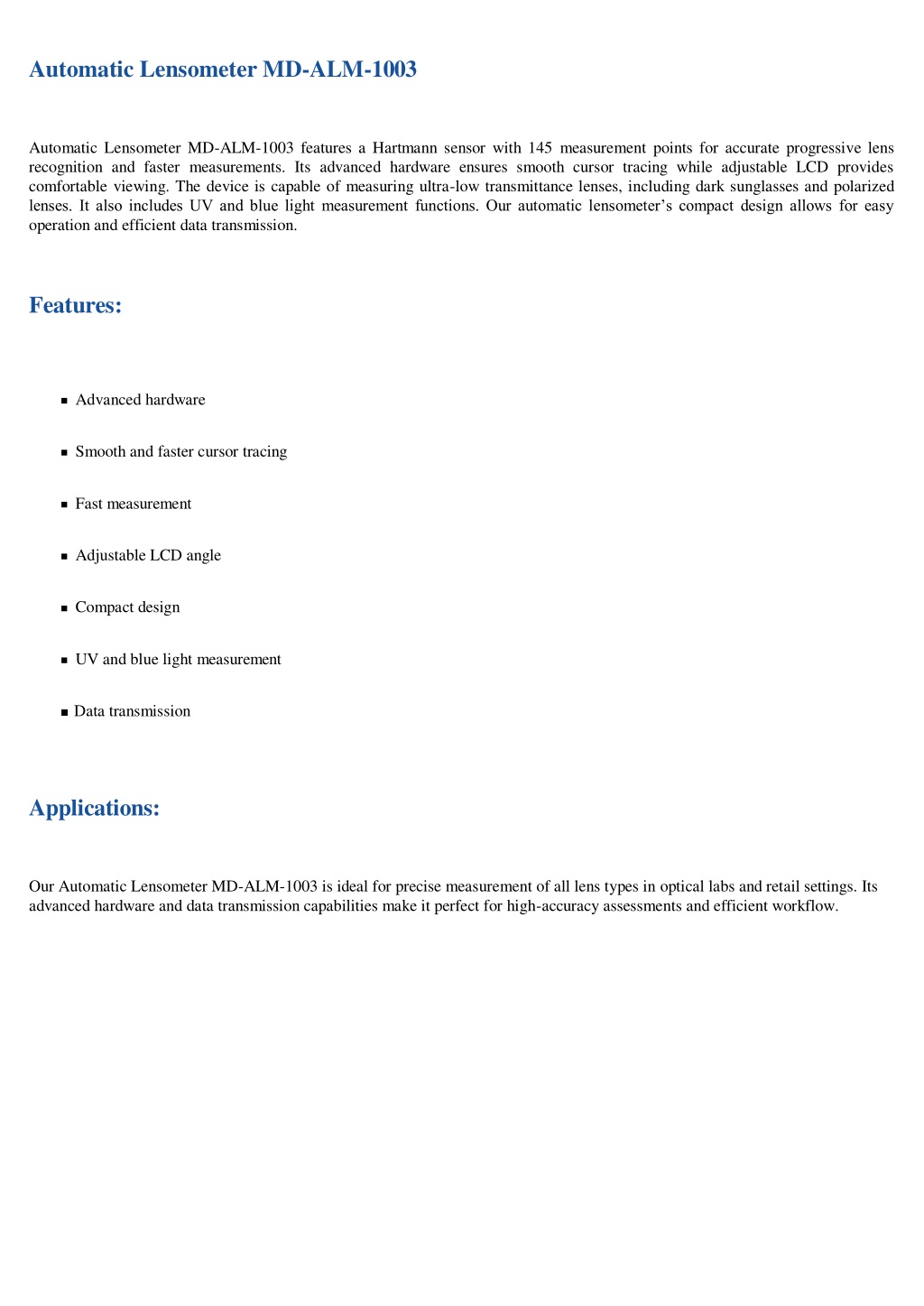

  2. Automatic Lensometer MD-ALM-1003 Automatic Lensometer MD-ALM-1003 features a Hartmann sensor with 145 measurement points for accurate progressive lens recognition and faster measurements. Its advanced hardware ensures smooth cursor tracing while adjustable LCD provides comfortable viewing. The device is capable of measuring ultra-low transmittance lenses, including dark sunglasses and polarized lenses. It also includes UV and blue light measurement functions. Our automatic lensometer’s compact design allows for easy operation and efficient data transmission. Features: Advanced hardware Smooth and faster cursor tracing Fast measurement Adjustable LCD angle Compact design UV and blue light measurement Data transmission Applications: Our Automatic Lensometer MD-ALM-1003 is ideal for precise measurement of all lens types in optical labs and retail settings. Its advanced hardware and data transmission capabilities make it perfect for high-accuracy assessments and efficient workflow.

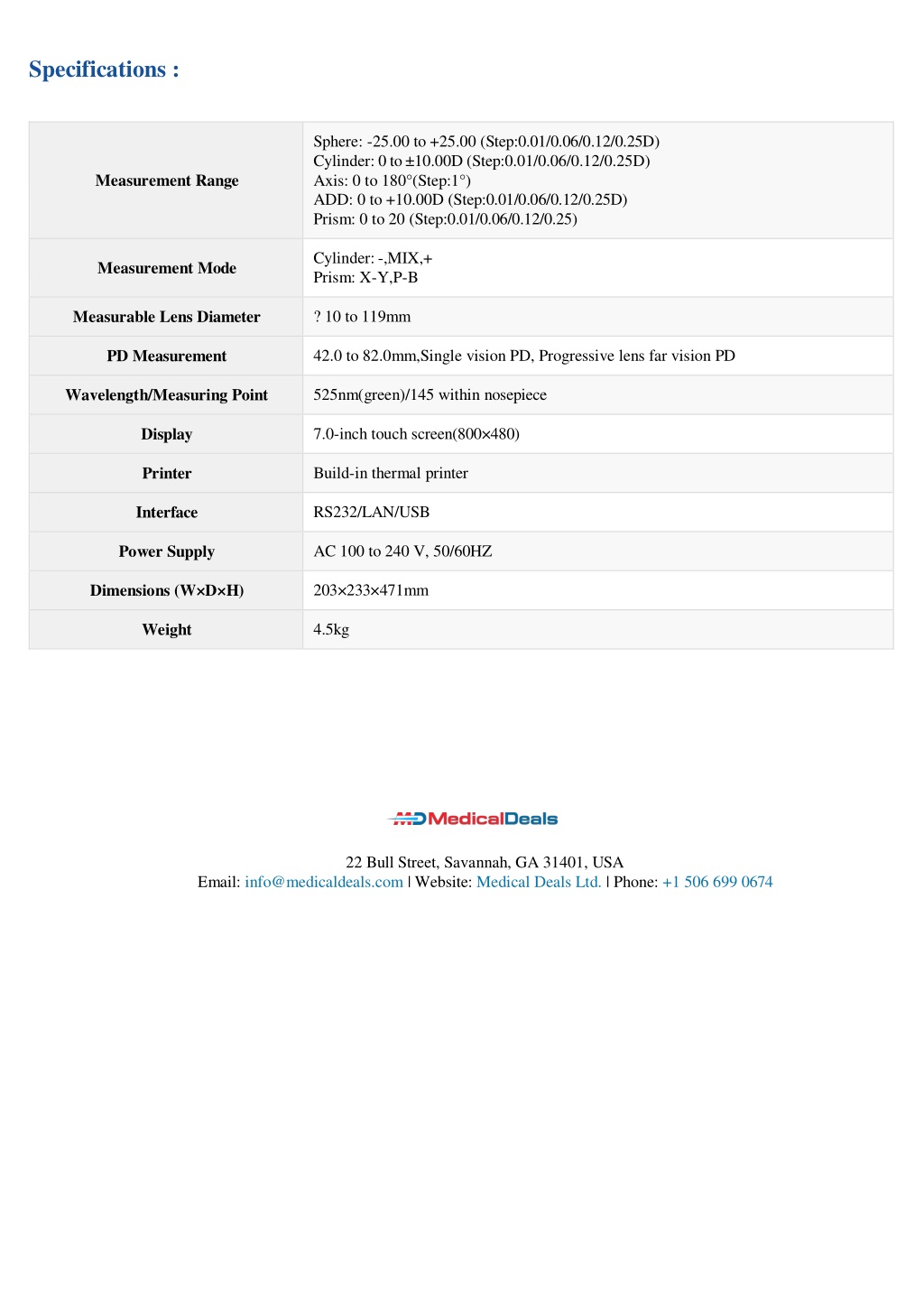

  3. Specifications : Sphere: -25.00 to +25.00 (Step:0.01/0.06/0.12/0.25D) Cylinder: 0 to ±10.00D (Step:0.01/0.06/0.12/0.25D) Axis: 0 to 180°(Step:1°) ADD: 0 to +10.00D (Step:0.01/0.06/0.12/0.25D) Prism: 0 to 20 (Step:0.01/0.06/0.12/0.25) Measurement Range Cylinder: -,MIX,+ Prism: X-Y,P-B Measurement Mode Measurable Lens Diameter ? 10 to 119mm PD Measurement 42.0 to 82.0mm,Single vision PD, Progressive lens far vision PD Wavelength/Measuring Point 525nm(green)/145 within nosepiece Display 7.0-inch touch screen(800×480) Printer Build-in thermal printer Interface RS232/LAN/USB Power Supply AC 100 to 240 V, 50/60HZ Dimensions (W×D×H) 203×233×471mm Weight 4.5kg 22 Bull Street, Savannah, GA 31401, USA Email: info@medicaldeals.com | Website: Medical Deals Ltd. | Phone: +1 506 699 0674
