Automatic-Lensometer-MD-ALM-1002

Medical Deals Automatic Lensometer, with a green LED light source and high-speed CPU, delivers precise and efficient operation. It auto-detects lens types, reads measurements, and stores data. A high-resolution LED screen and user-friendly design ensure smooth and accurate performance.

peters385
Download Presentation

Automatic-Lensometer-MD-ALM-1002

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

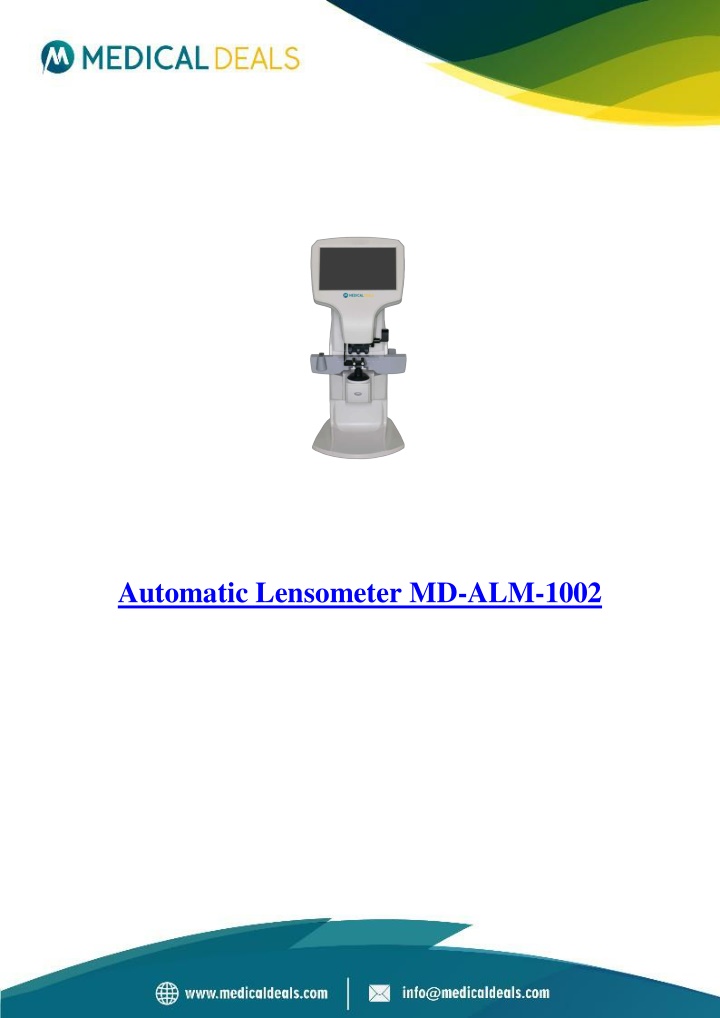

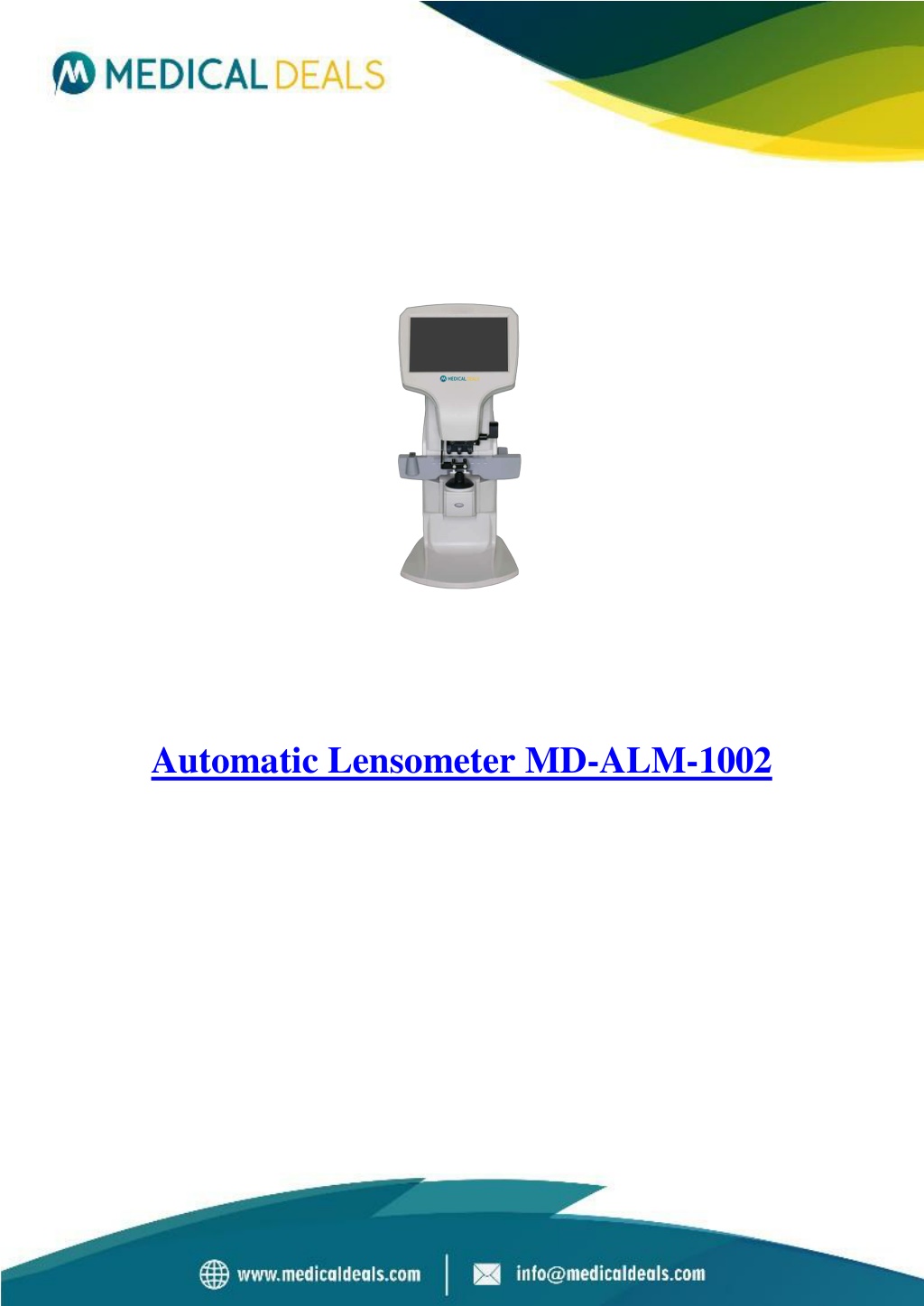

  1. Automatic Lensometer MD-ALM-1002

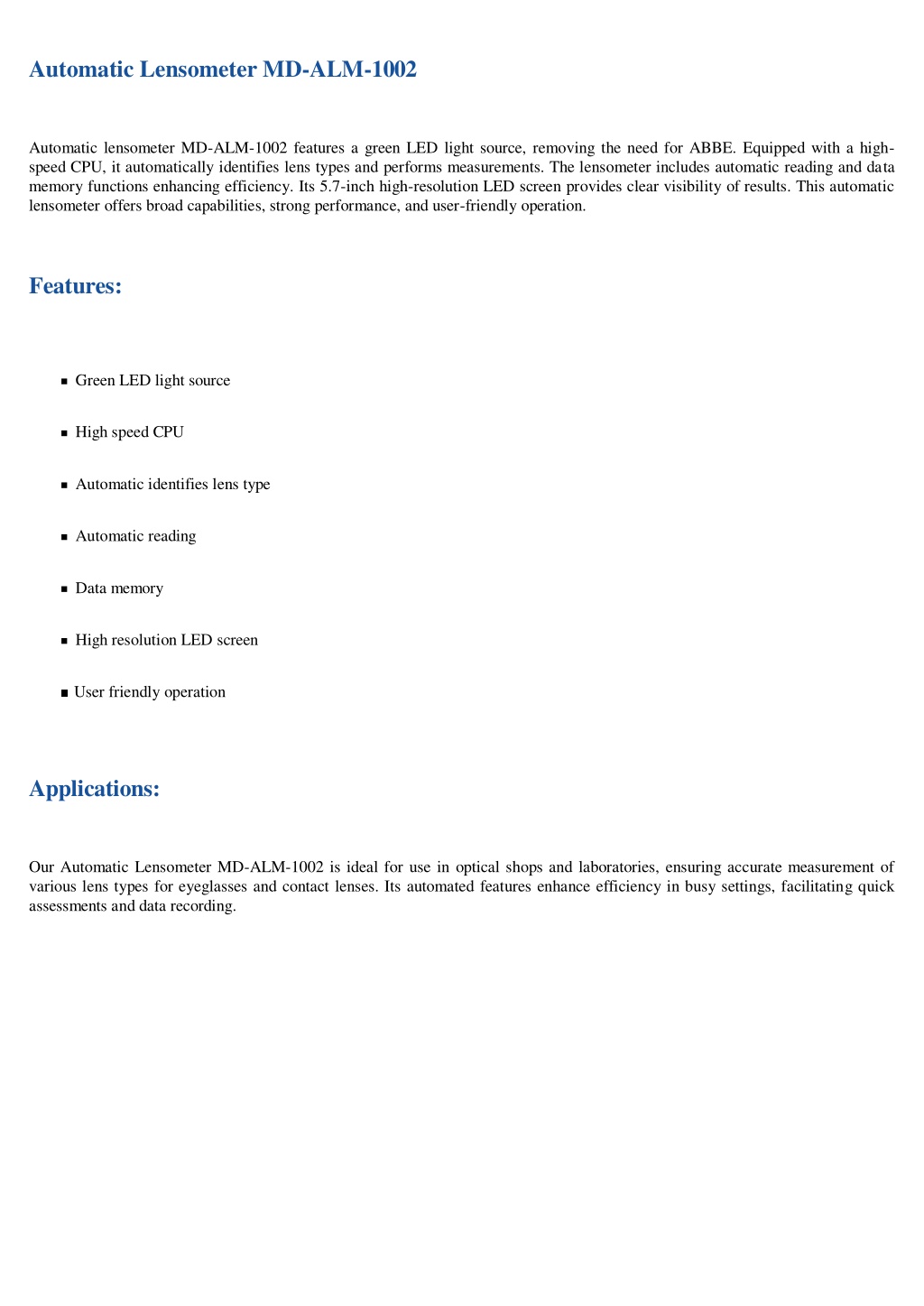

  2. Automatic Lensometer MD-ALM-1002 Automatic lensometer MD-ALM-1002 features a green LED light source, removing the need for ABBE. Equipped with a high- speed CPU, it automatically identifies lens types and performs measurements. The lensometer includes automatic reading and data memory functions enhancing efficiency. Its 5.7-inch high-resolution LED screen provides clear visibility of results. This automatic lensometer offers broad capabilities, strong performance, and user-friendly operation. Features: Green LED light source High speed CPU Automatic identifies lens type Automatic reading Data memory High resolution LED screen User friendly operation Applications: Our Automatic Lensometer MD-ALM-1002 is ideal for use in optical shops and laboratories, ensuring accurate measurement of various lens types for eyeglasses and contact lenses. Its automated features enhance efficiency in busy settings, facilitating quick assessments and data recording.

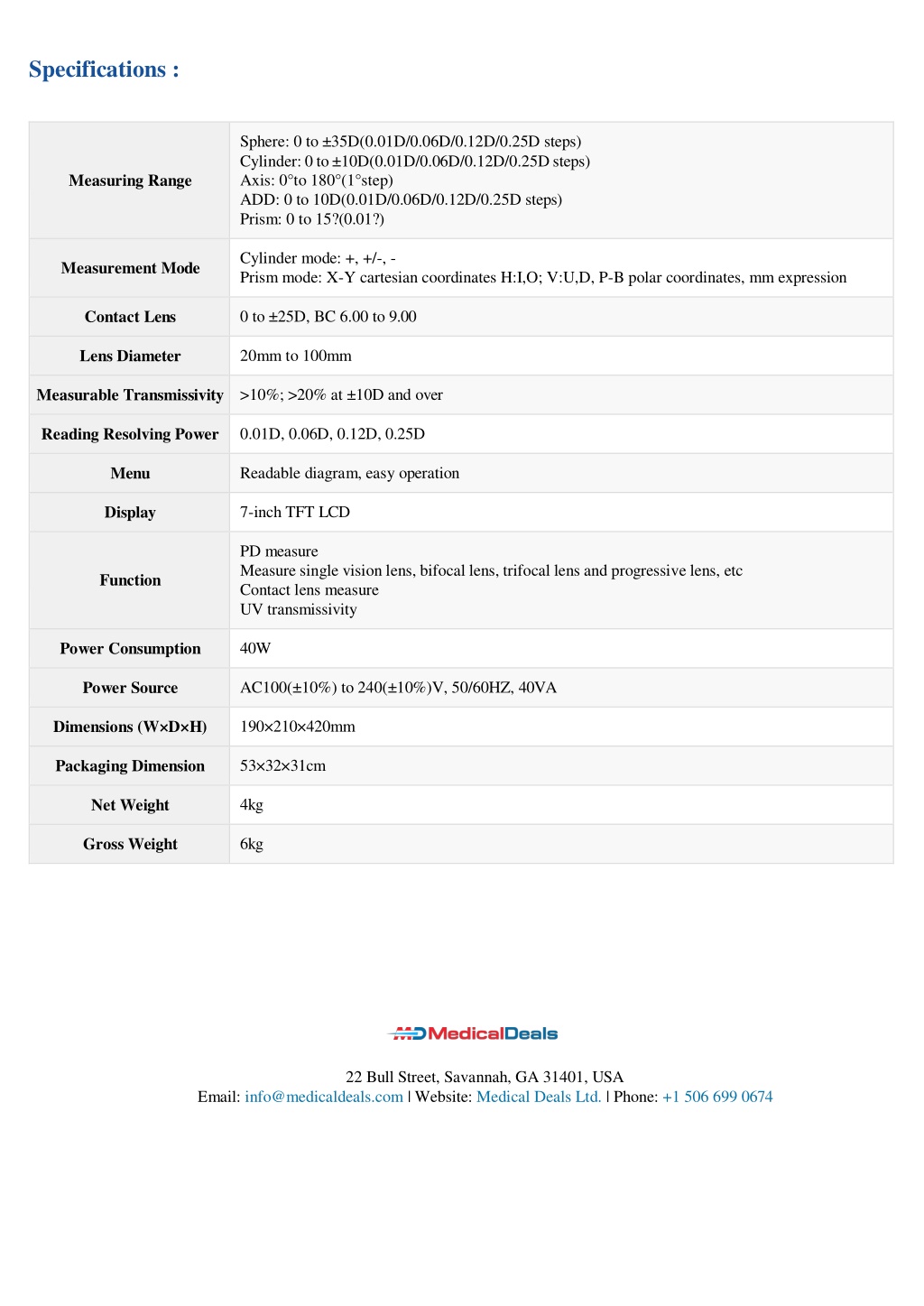

  3. Specifications : Sphere: 0 to ±35D(0.01D/0.06D/0.12D/0.25D steps) Cylinder: 0 to ±10D(0.01D/0.06D/0.12D/0.25D steps) Axis: 0°to 180°(1°step) ADD: 0 to 10D(0.01D/0.06D/0.12D/0.25D steps) Prism: 0 to 15?(0.01?) Measuring Range Cylinder mode: +, +/-, - Prism mode: X-Y cartesian coordinates H:I,O; V:U,D, P-B polar coordinates, mm expression Measurement Mode Contact Lens 0 to ±25D, BC 6.00 to 9.00 Lens Diameter 20mm to 100mm Measurable Transmissivity >10%; >20% at ±10D and over Reading Resolving Power 0.01D, 0.06D, 0.12D, 0.25D Menu Readable diagram, easy operation Display 7-inch TFT LCD PD measure Measure single vision lens, bifocal lens, trifocal lens and progressive lens, etc Contact lens measure UV transmissivity Function Power Consumption 40W Power Source AC100(±10%) to 240(±10%)V, 50/60HZ, 40VA Dimensions (W×D×H) 190×210×420mm Packaging Dimension 53×32×31cm Net Weight 4kg Gross Weight 6kg 22 Bull Street, Savannah, GA 31401, USA Email: info@medicaldeals.com | Website: Medical Deals Ltd. | Phone: +1 506 699 0674
