Automatic-Lensometer-MD-ALM-1001

Medical Deals Automatic Lensometer delivers precise image analysis for all lens types. It measures spherical and cylindrical power, astigmatism axis, frame PD, and PH values. With a clear display, it offers the convenience of direct result printing. Compact and efficient, weighing 7.5 kg.

peters385
Download Presentation

Automatic-Lensometer-MD-ALM-1001

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

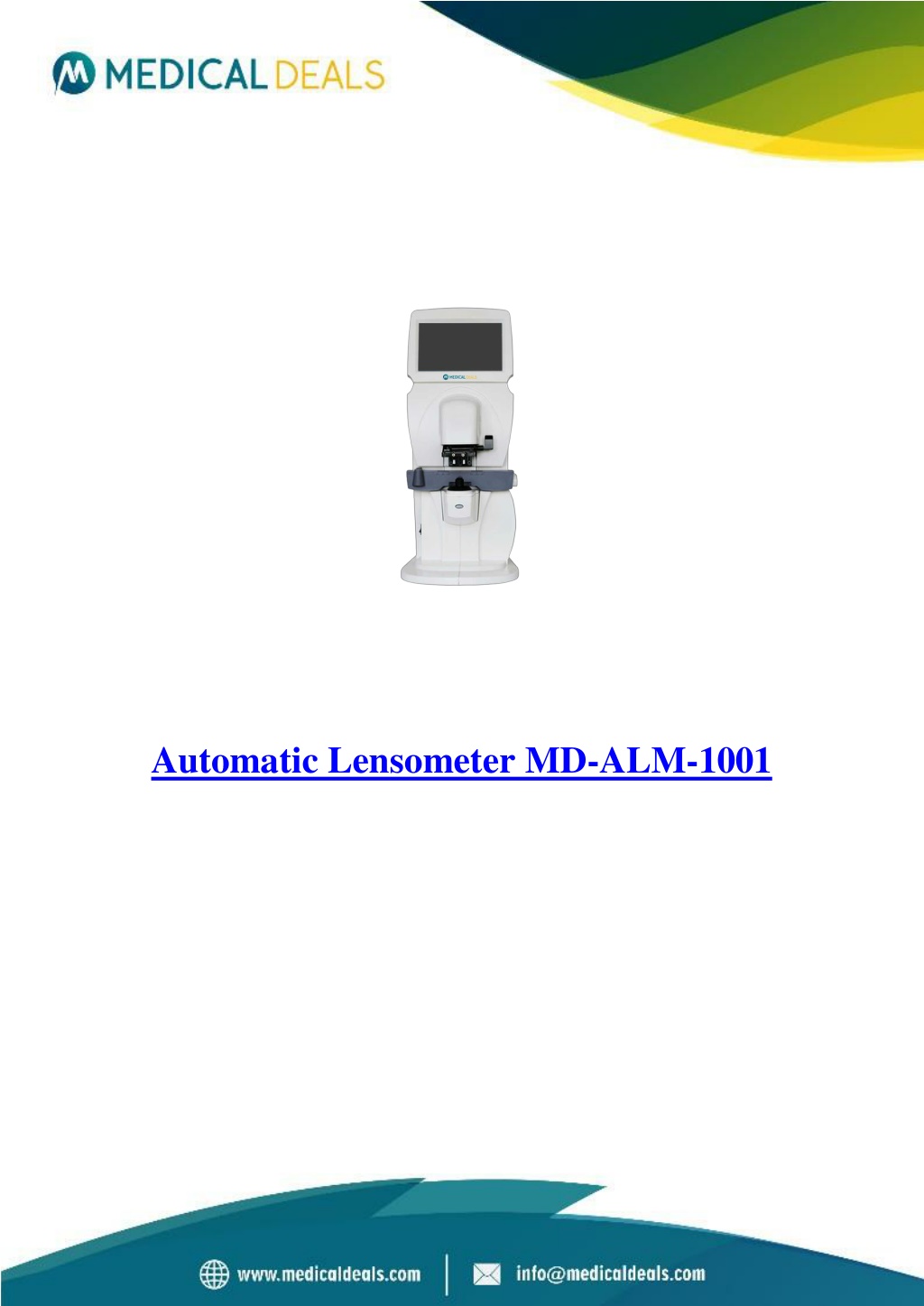

  1. Automatic Lensometer MD-ALM-1001

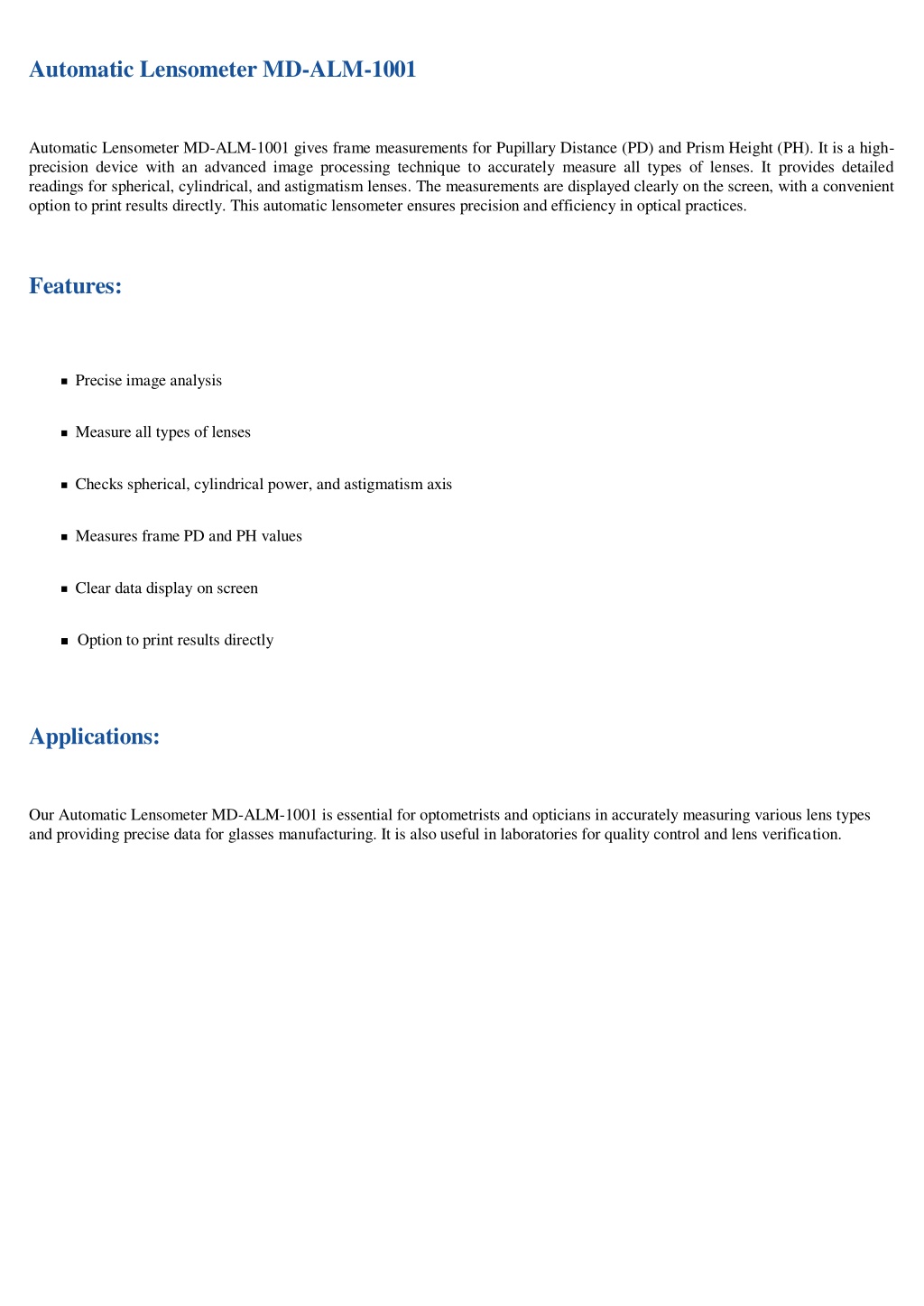

  2. Automatic Lensometer MD-ALM-1001 Automatic Lensometer MD-ALM-1001 gives frame measurements for Pupillary Distance (PD) and Prism Height (PH). It is a high- precision device with an advanced image processing technique to accurately measure all types of lenses. It provides detailed readings for spherical, cylindrical, and astigmatism lenses. The measurements are displayed clearly on the screen, with a convenient option to print results directly. This automatic lensometer ensures precision and efficiency in optical practices. Features: Precise image analysis Measure all types of lenses Checks spherical, cylindrical power, and astigmatism axis Measures frame PD and PH values Clear data display on screen Option to print results directly Applications: Our Automatic Lensometer MD-ALM-1001 is essential for optometrists and opticians in accurately measuring various lens types and providing precise data for glasses manufacturing. It is also useful in laboratories for quality control and lens verification.

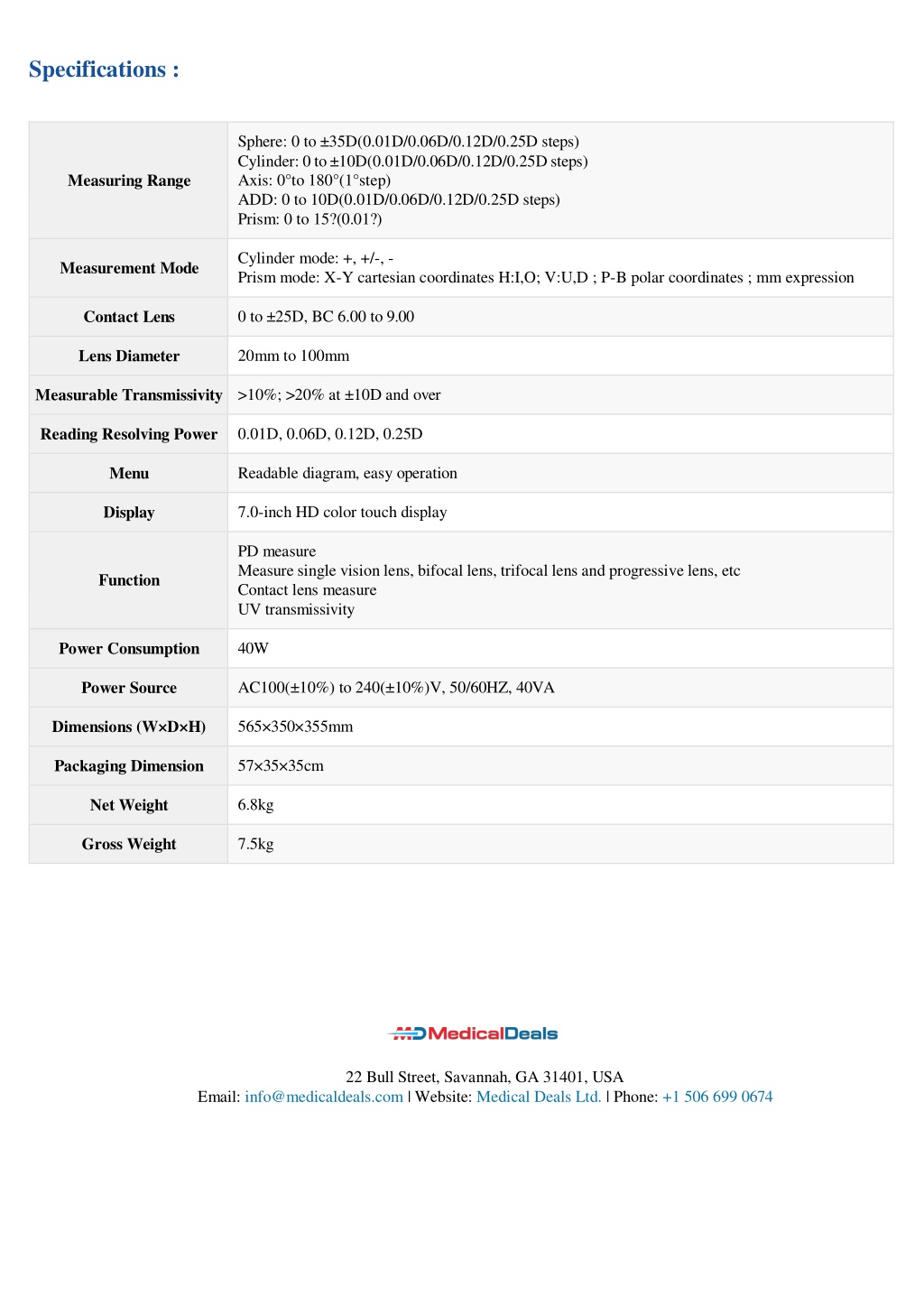

  3. Specifications : Sphere: 0 to ±35D(0.01D/0.06D/0.12D/0.25D steps) Cylinder: 0 to ±10D(0.01D/0.06D/0.12D/0.25D steps) Axis: 0°to 180°(1°step) ADD: 0 to 10D(0.01D/0.06D/0.12D/0.25D steps) Prism: 0 to 15?(0.01?) Measuring Range Cylinder mode: +, +/-, - Prism mode: X-Y cartesian coordinates H:I,O; V:U,D ; P-B polar coordinates ; mm expression Measurement Mode Contact Lens 0 to ±25D, BC 6.00 to 9.00 Lens Diameter 20mm to 100mm Measurable Transmissivity >10%; >20% at ±10D and over Reading Resolving Power 0.01D, 0.06D, 0.12D, 0.25D Menu Readable diagram, easy operation Display 7.0-inch HD color touch display PD measure Measure single vision lens, bifocal lens, trifocal lens and progressive lens, etc Contact lens measure UV transmissivity Function Power Consumption 40W Power Source AC100(±10%) to 240(±10%)V, 50/60HZ, 40VA Dimensions (W×D×H) 565×350×355mm Packaging Dimension 57×35×35cm Net Weight 6.8kg Gross Weight 7.5kg 22 Bull Street, Savannah, GA 31401, USA Email: info@medicaldeals.com | Website: Medical Deals Ltd. | Phone: +1 506 699 0674
