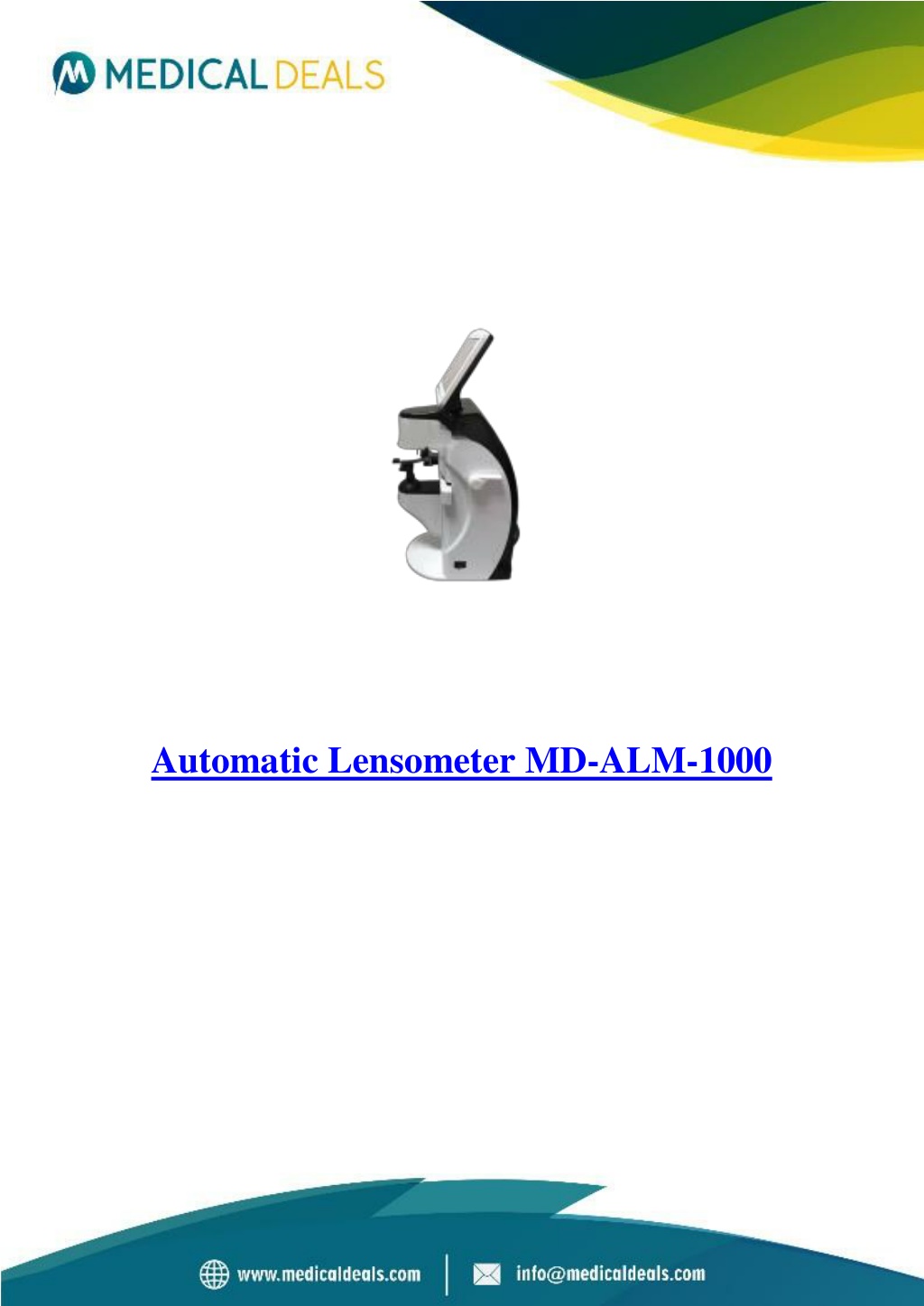

  1. Automatic Lensometer MD-ALM-1000

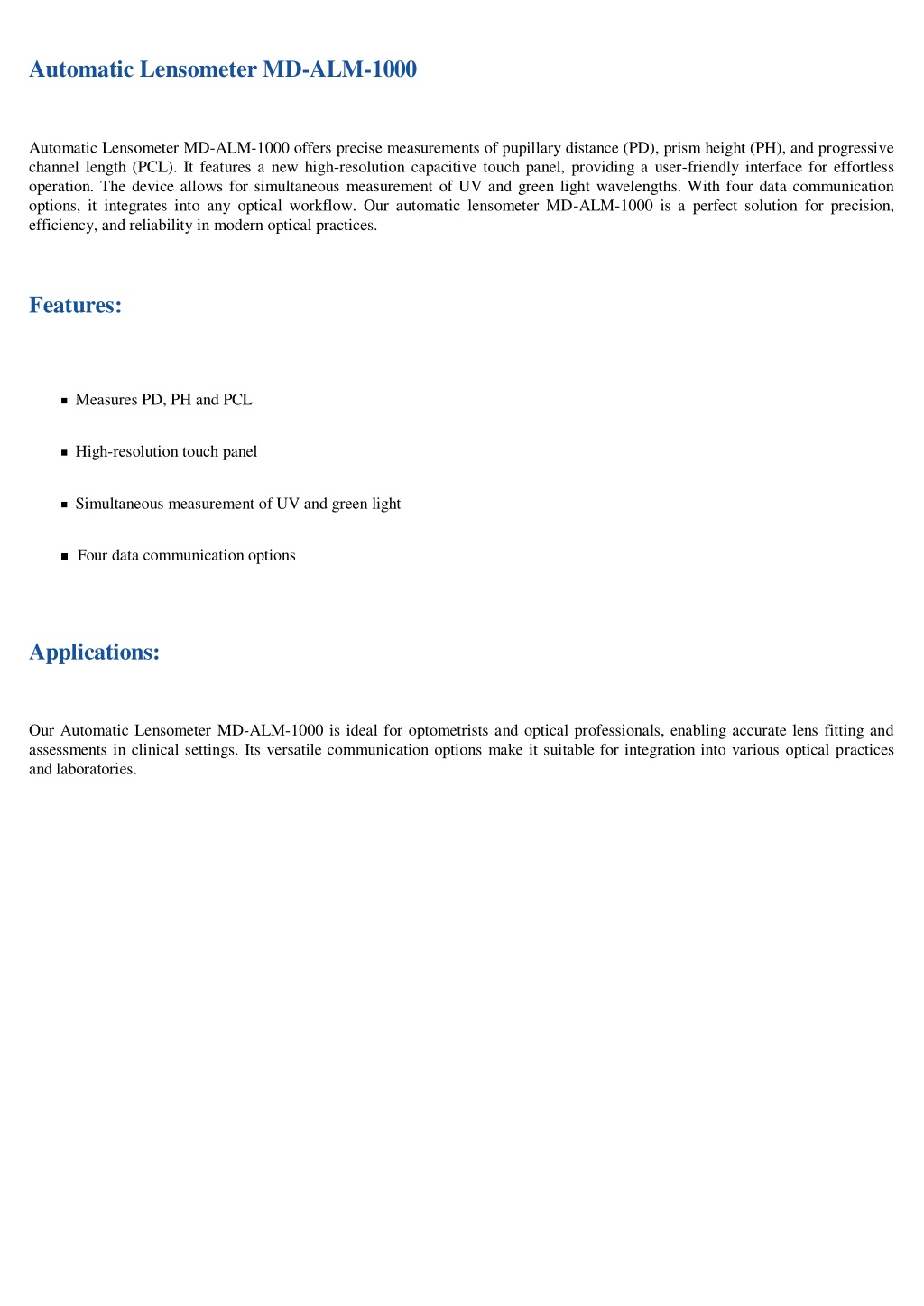

  2. Automatic Lensometer MD-ALM-1000 Automatic Lensometer MD-ALM-1000 offers precise measurements of pupillary distance (PD), prism height (PH), and progressive channel length (PCL). It features a new high-resolution capacitive touch panel, providing a user-friendly interface for effortless operation. The device allows for simultaneous measurement of UV and green light wavelengths. With four data communication options, it integrates into any optical workflow. Our automatic lensometer MD-ALM-1000 is a perfect solution for precision, efficiency, and reliability in modern optical practices. Features: Measures PD, PH and PCL High-resolution touch panel Simultaneous measurement of UV and green light Four data communication options Applications: Our Automatic Lensometer MD-ALM-1000 is ideal for optometrists and optical professionals, enabling accurate lens fitting and assessments in clinical settings. Its versatile communication options make it suitable for integration into various optical practices and laboratories.

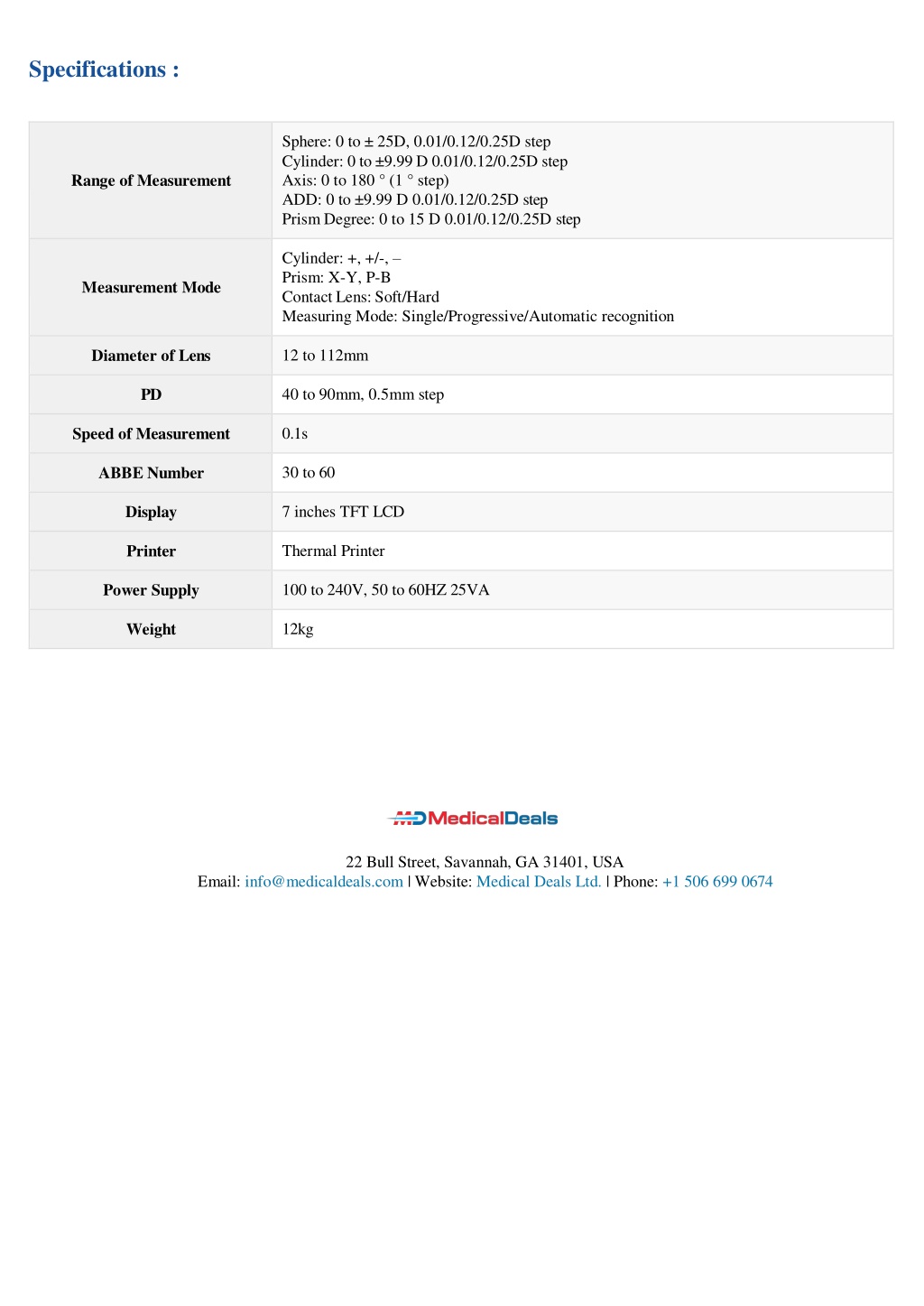

  3. Specifications : Sphere: 0 to ± 25D, 0.01/0.12/0.25D step Cylinder: 0 to ±9.99 D 0.01/0.12/0.25D step Axis: 0 to 180 ° (1 ° step) ADD: 0 to ±9.99 D 0.01/0.12/0.25D step Prism Degree: 0 to 15 D 0.01/0.12/0.25D step Range of Measurement Cylinder: +, +/-, – Prism: X-Y, P-B Contact Lens: Soft/Hard Measuring Mode: Single/Progressive/Automatic recognition Measurement Mode Diameter of Lens 12 to 112mm PD 40 to 90mm, 0.5mm step Speed of Measurement 0.1s ABBE Number 30 to 60 Display 7 inches TFT LCD Printer Thermal Printer Power Supply 100 to 240V, 50 to 60HZ 25VA Weight 12kg 22 Bull Street, Savannah, GA 31401, USA Email: info@medicaldeals.com | Website: Medical Deals Ltd. | Phone: +1 506 699 0674
