EXAMPLE 2

EXAMPLE 2. Write a translation rule and verify congruence. Write a rule for the translation of ABC to A ′ B ′ C ′. Then verify that the transformation is an isometry. SOLUTION.

perrin
Download Presentation

EXAMPLE 2

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

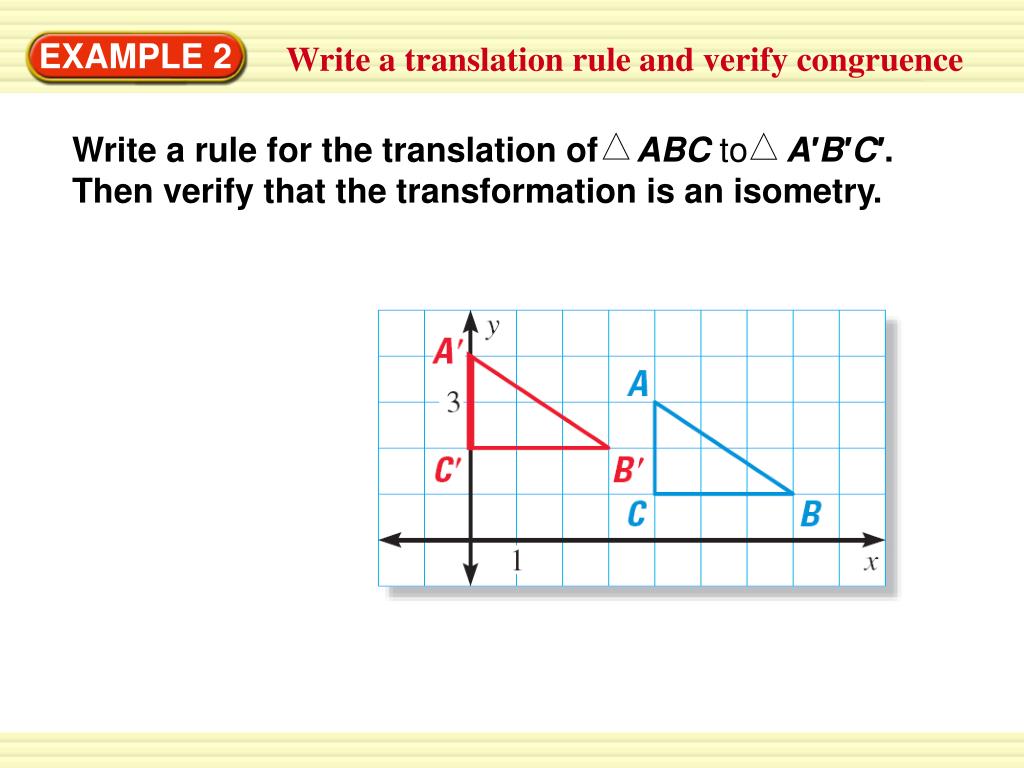

  1. EXAMPLE 2 Write a translation rule and verify congruence Write a rule for the translation ofABCto A′B′C′.Then verify that the transformation is an isometry.

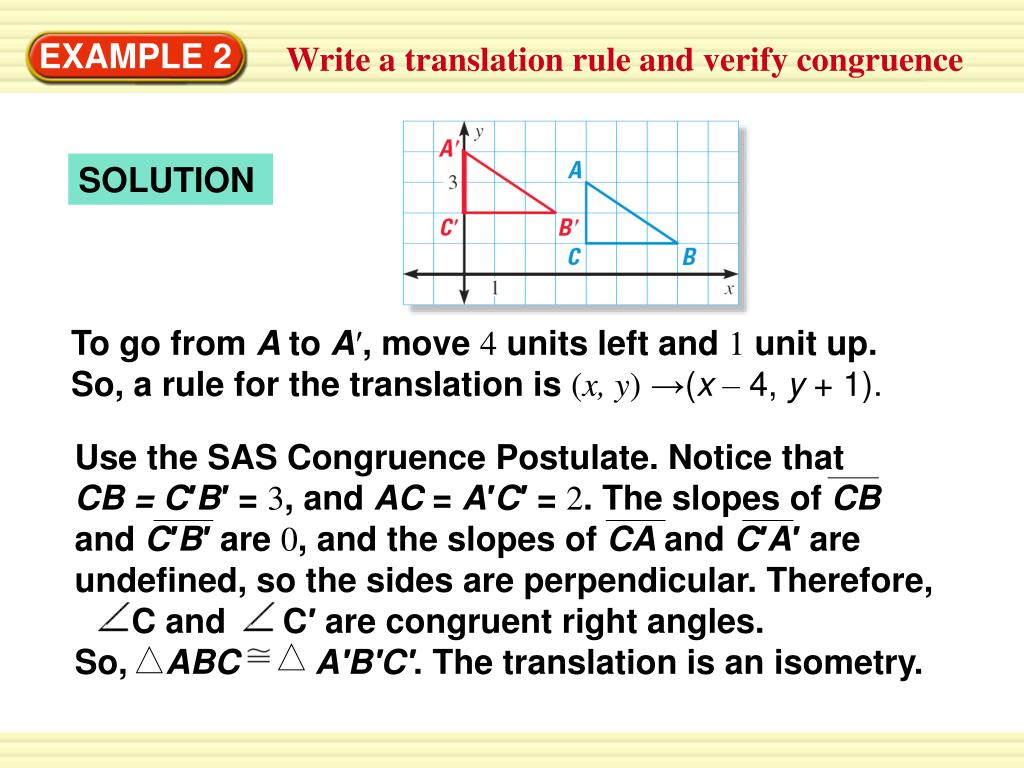

  2. SOLUTION Use the SAS Congruence Postulate. Notice that CB =C′B′ = 3, and AC = A′C′ = 2. The slopes of CB and C′B′ are 0, and the slopes of CA and C′A′ are undefined, so the sides are perpendicular. Therefore, C and C′ are congruent right angles. So, ABCA′B′C′. The translation is an isometry. EXAMPLE 2 Write a translation rule and verify congruence To go from A to A′, move 4 units left and 1 unit up. So, a rule for the translation is (x, y) →(x –4, y + 1).

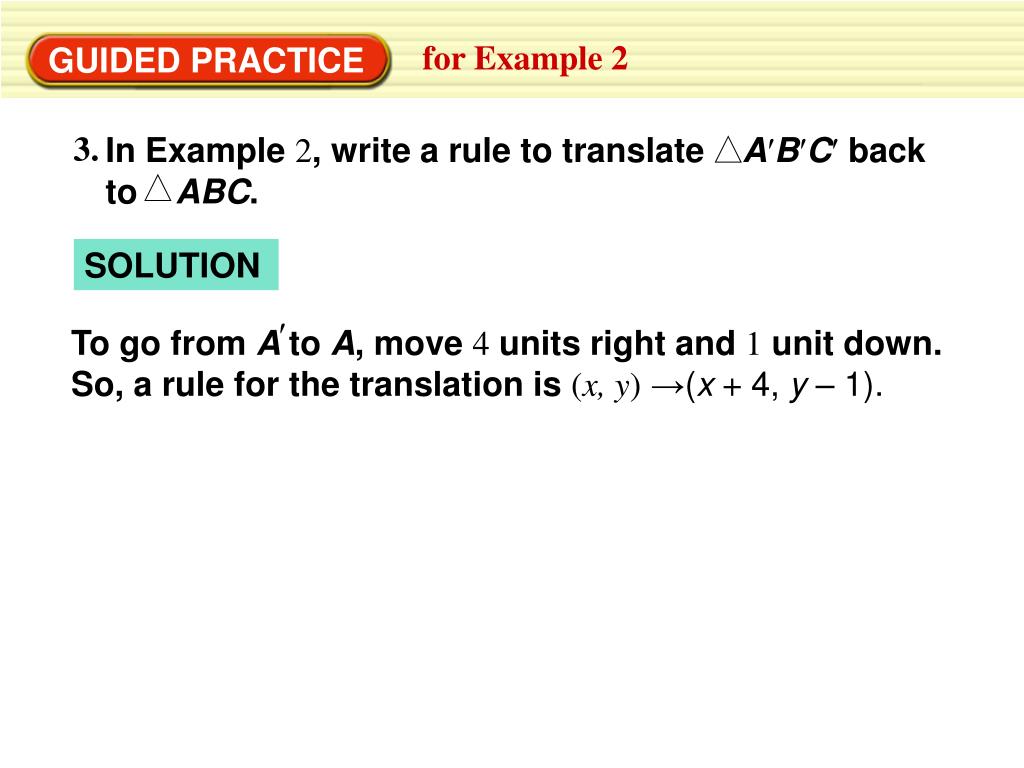

  3. 3. In Example 2, write a rule to translate A′B′C′ back to ABC. ′ To go from A to A, move 4 units right and 1 unit down. So, a rule for the translation is (x, y) →(x +4, y – 1). for Example 2 GUIDED PRACTICE SOLUTION
