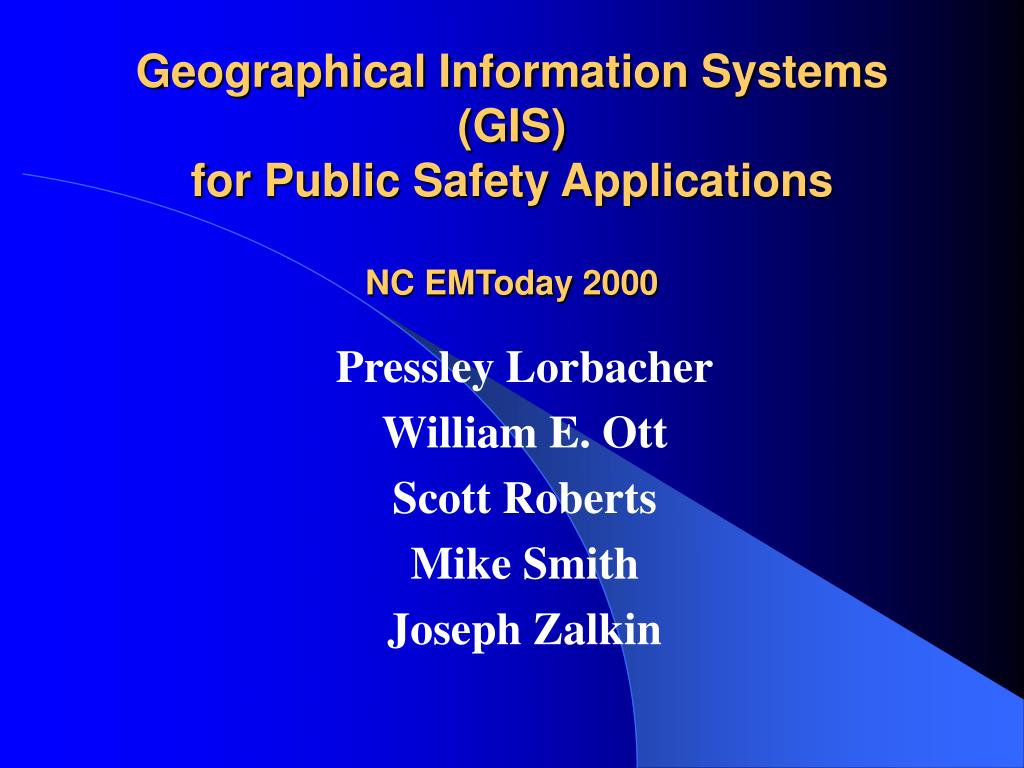

Geographical Information Systems (GIS)for Public Safety ApplicationsNC EMToday 2000

Pressley Lorbacher

William E. Ott

Scott Roberts

Mike Smith

Joseph Zalkin

what is gis
What is GIS?
  • Geographic Information Systems
  • In the strictest sense, a GIS is a computer system capable of assembling, storing, manipulating, and displaying geographically referenced information , i.e. data identified according to their locations. Practitioners also regard the total GIS as including operating personnel and the data that go into the system.
how does gis work

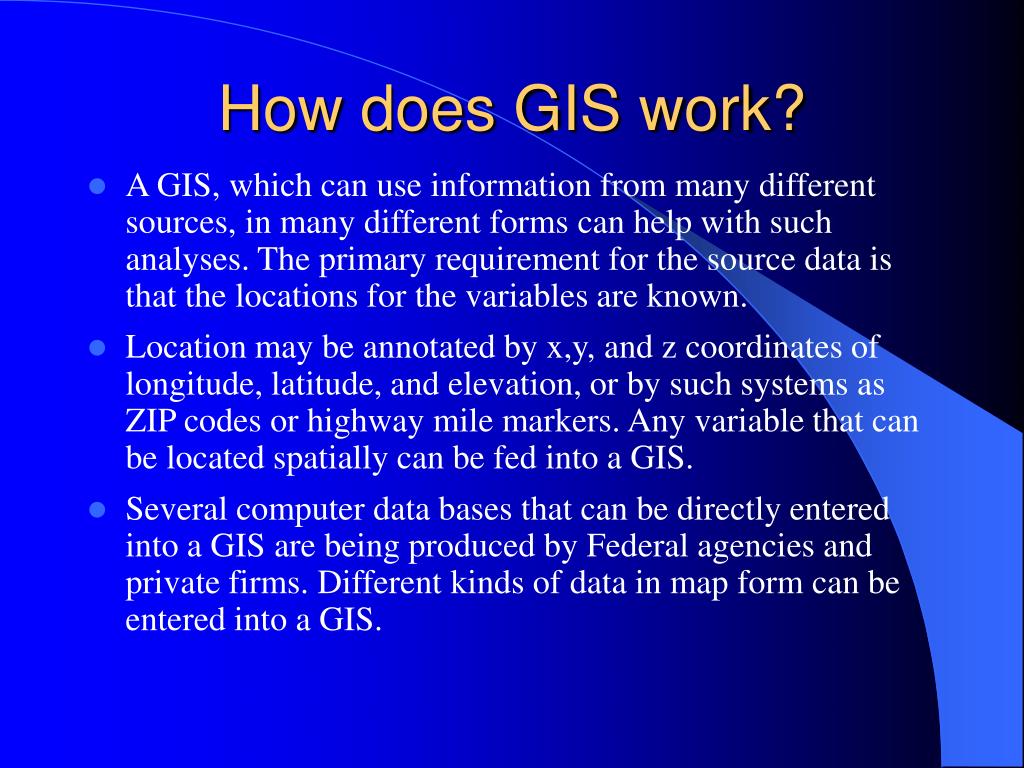

How does GIS work?
  • A GIS, which can use information from many different sources, in many different forms can help with such analyses. The primary requirement for the source data is that the locations for the variables are known.
  • Location may be annotated by x,y, and z coordinates of longitude, latitude, and elevation, or by such systems as ZIP codes or highway mile markers. Any variable that can be located spatially can be fed into a GIS.
  • Several computer data bases that can be directly entered into a GIS are being produced by Federal agencies and private firms. Different kinds of data in map form can be entered into a GIS.
how does gis work4

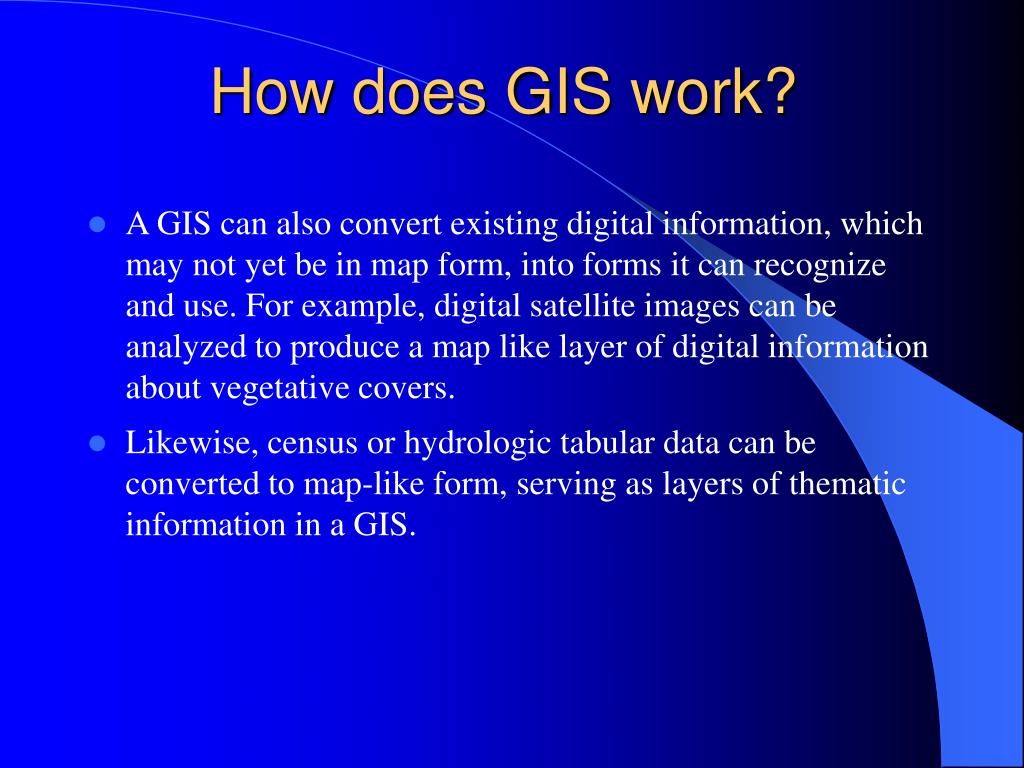

How does GIS work?
  • A GIS can also convert existing digital information, which may not yet be in map form, into forms it can recognize and use. For example, digital satellite images can be analyzed to produce a map like layer of digital information about vegetative covers.
  • Likewise, census or hydrologic tabular data can be converted to map-like form, serving as layers of thematic information in a GIS.
gis buzzwords

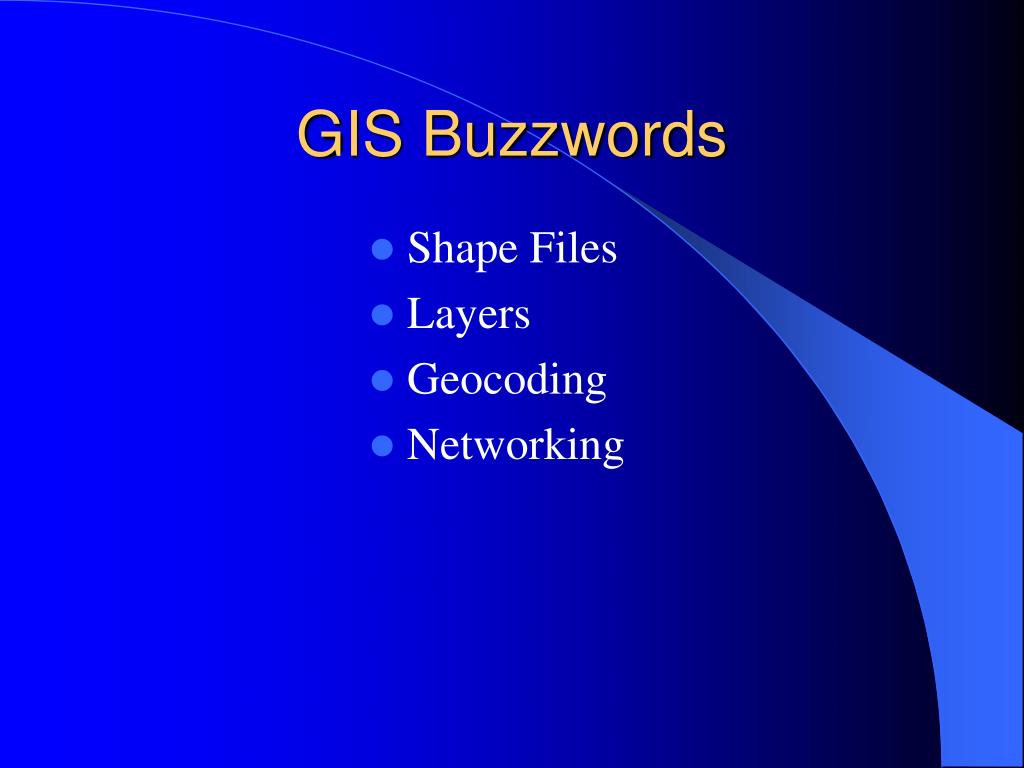

GIS Buzzwords
  • Shape Files
  • Layers
  • Geocoding
  • Networking
data capture how can a gis use the information in a map

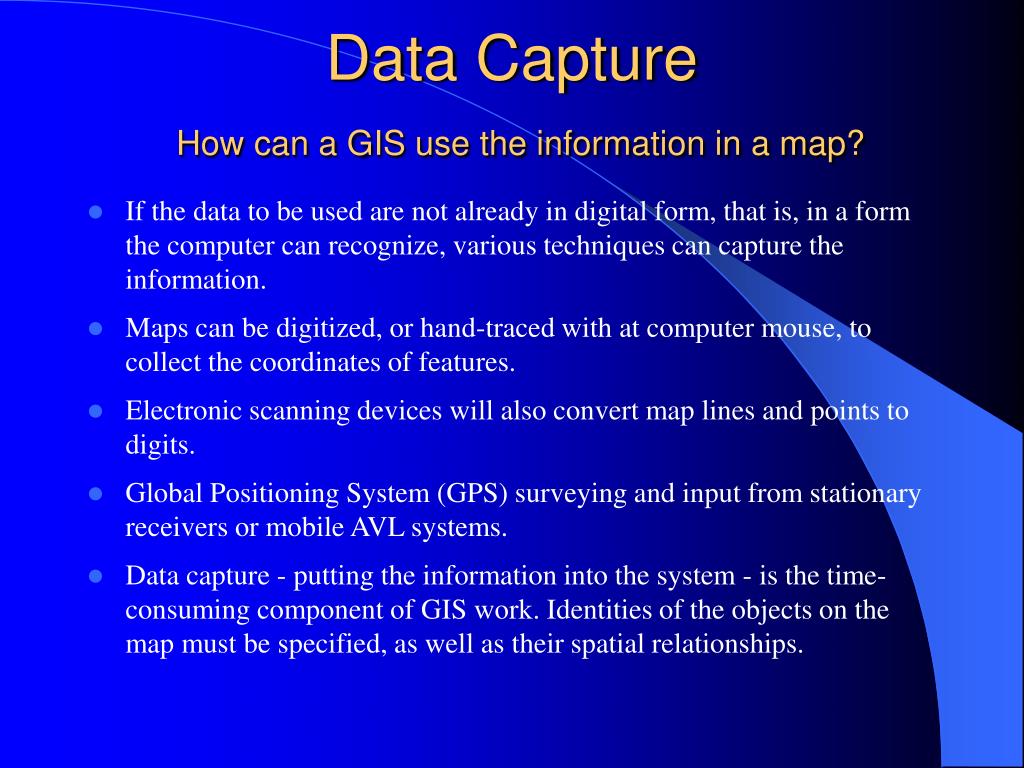

Data CaptureHow can a GIS use the information in a map?
  • If the data to be used are not already in digital form, that is, in a form the computer can recognize, various techniques can capture the information.
  • Maps can be digitized, or hand-traced with at computer mouse, to collect the coordinates of features.
  • Electronic scanning devices will also convert map lines and points to digits.
  • Global Positioning System (GPS) surveying and input from stationary receivers or mobile AVL systems.
  • Data capture - putting the information into the system - is the time-consuming component of GIS work. Identities of the objects on the map must be specified, as well as their spatial relationships.
data systems

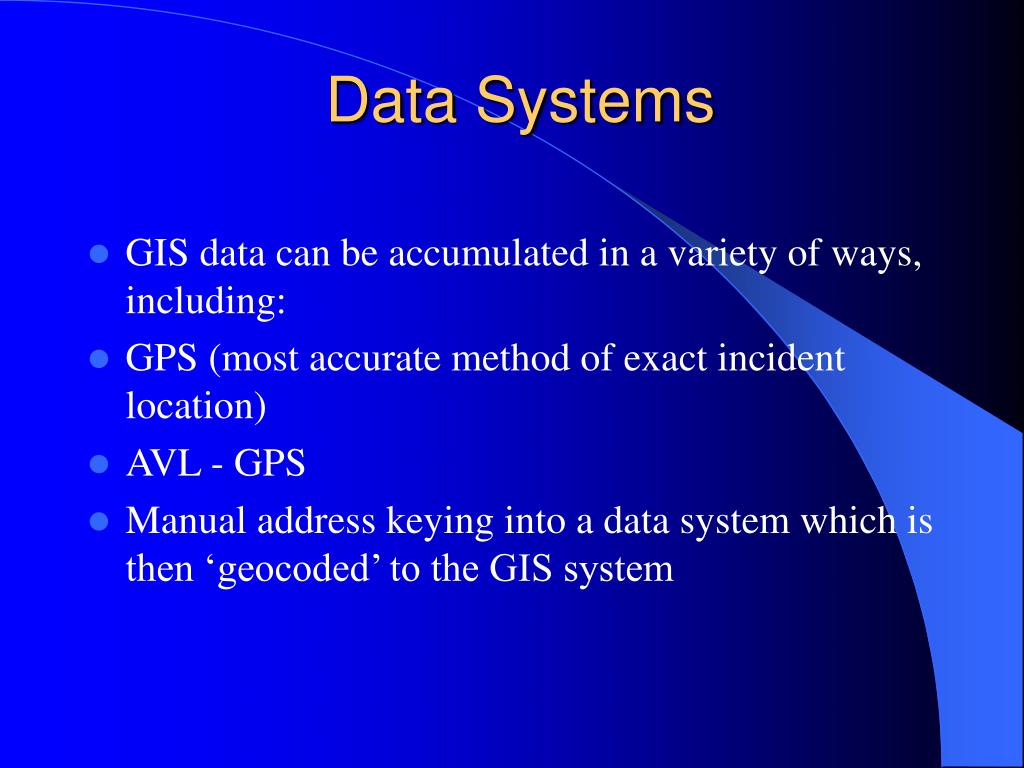

Data Systems
  • GIS data can be accumulated in a variety of ways, including:
  • GPS (most accurate method of exact incident location)
  • AVL - GPS
  • Manual address keying into a data system which is then ‘geocoded’ to the GIS system
projection and registration
Projection and Registration
  • A property ownership map might be at a different scale from a soils map. Map information in a GIS must be manipulated so that it registers, or fits, with information gathered from other maps. Before the digital data can be analyzed, they may have to undergo other manipulations - projection conversions, for example - that integrate them into a GIS.
  • Projection is a fundamental component of mapmaking. A projection is a mathematical means of transferring information from the Earth's three-dimensional curved surface to a two-dimensional medium - paper or a computer screen. Different projections are used for different types of maps because each projection is particularly appropriate to certain uses. For example, a projection that accurately represents the shapes of the continents will distort their relative sizes.
data modeling

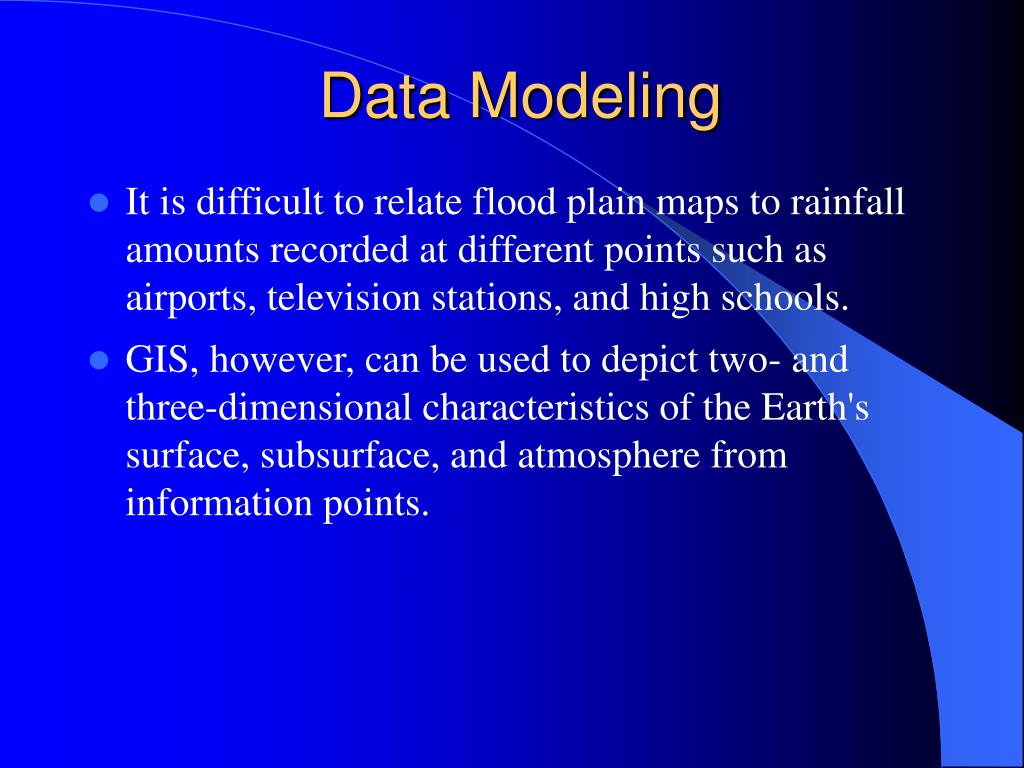

Data Modeling
  • It is difficult to relate flood plain maps to rainfall amounts recorded at different points such as airports, television stations, and high schools.
  • GIS, however, can be used to depict two- and three-dimensional characteristics of the Earth's surface, subsurface, and atmosphere from information points.
info retrieval modeling and networking
Info Retrieval, Modeling, and Networking
  • What do you know about the swampy area at the end of your street? With a GIS you can "point" at a location, object, or area on the screen and retrieve recorded information about it from off-screen files.
  • Using scanned aerial photographs as a visual guide, you can ask a GIS about the geology or hydrology of the area or even about how close a swamp is to end of a street. This kind of analytic function allows you to draw conclusions about the swamp's environmental sensitivity.
  • In the past 35 years, were there any gas stations or factories operating next to the swamp? Any within two miles and uphill from the swamp? A GIS can recognize and analyze the spatial relationships among mapped phenomena. Conditions of adjacency (what is next to what), containment (what is enclosed by what), and proximity (how close something is to something else ) can be determined with a GIS.
info retrieval modeling and networking12
Info Retrieval, Modeling, and Networking

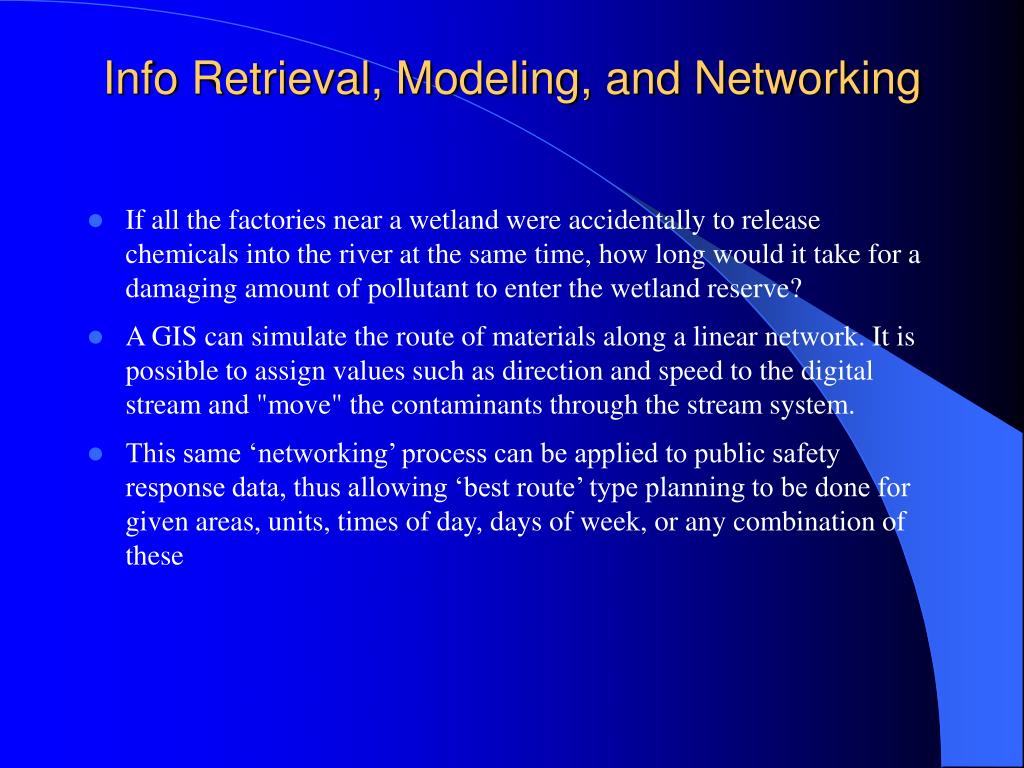

  • If all the factories near a wetland were accidentally to release chemicals into the river at the same time, how long would it take for a damaging amount of pollutant to enter the wetland reserve?
  • A GIS can simulate the route of materials along a linear network. It is possible to assign values such as direction and speed to the digital stream and "move" the contaminants through the stream system.
  • This same ‘networking’ process can be applied to public safety response data, thus allowing ‘best route’ type planning to be done for given areas, units, times of day, days of week, or any combination of these
data output information

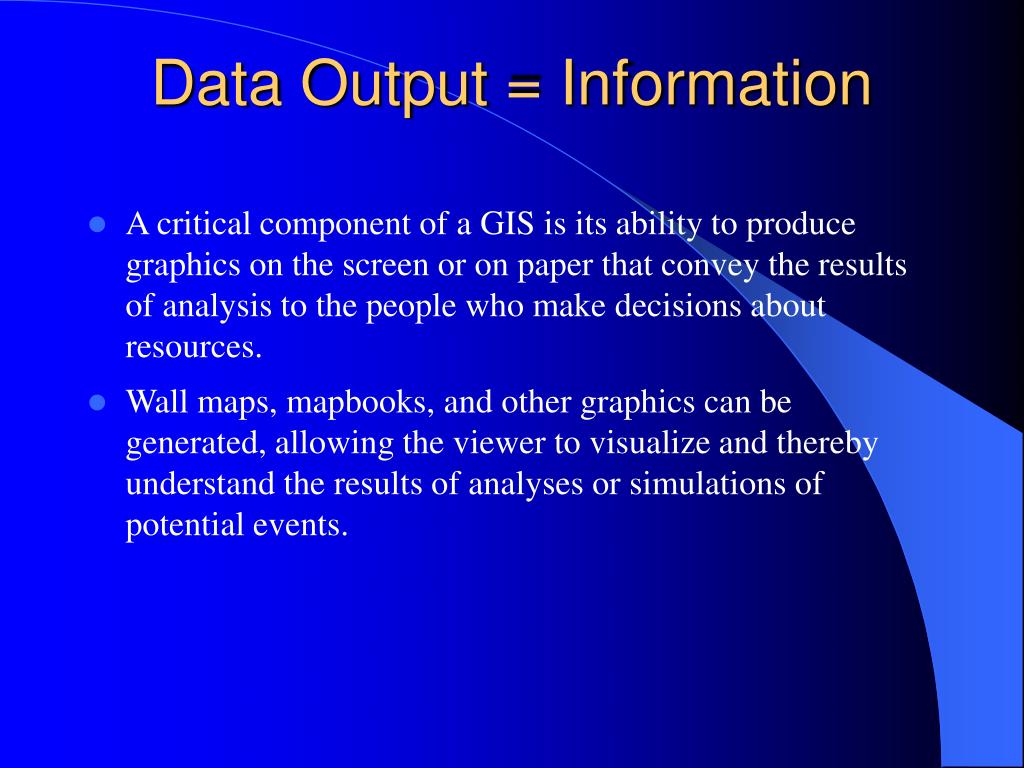

Data Output = Information
  • A critical component of a GIS is its ability to produce graphics on the screen or on paper that convey the results of analysis to the people who make decisions about resources.
  • Wall maps, mapbooks, and other graphics can be generated, allowing the viewer to visualize and thereby understand the results of analyses or simulations of potential events.
application of gis

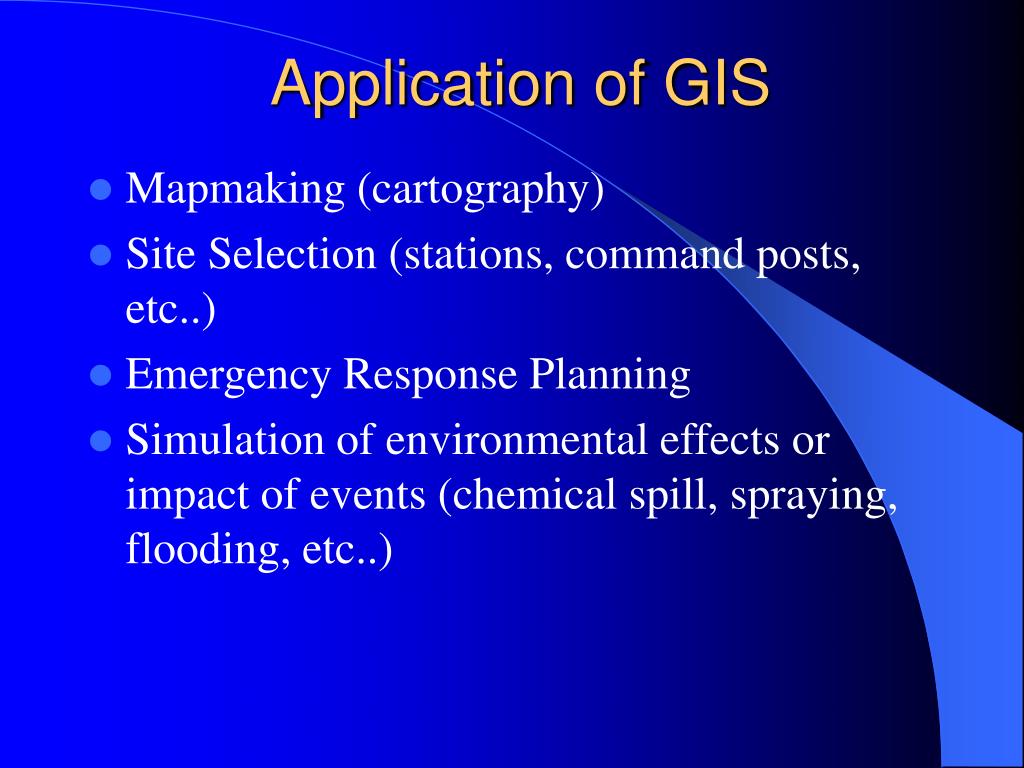

Application of GIS
  • Mapmaking (cartography)
  • Site Selection (stations, command posts, etc..)
  • Emergency Response Planning
  • Simulation of environmental effects or impact of events (chemical spill, spraying, flooding, etc..)
coordinate systems
Coordinate Systems

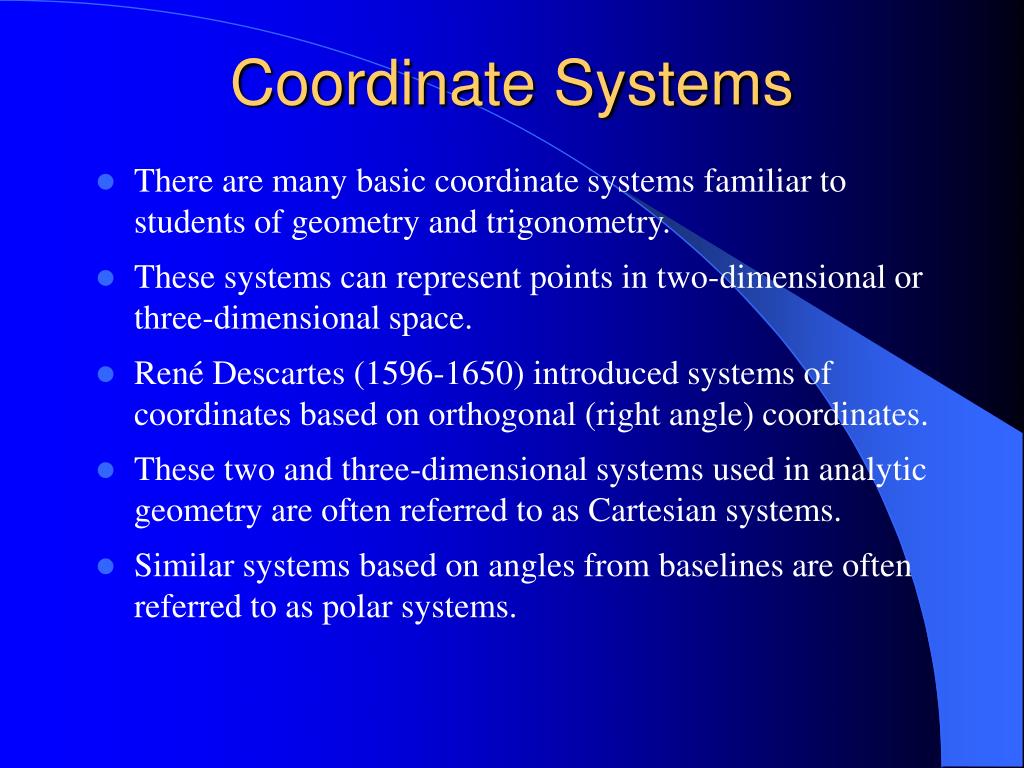

  • There are many basic coordinate systems familiar to students of geometry and trigonometry.
  • These systems can represent points in two-dimensional or three-dimensional space.
  • René Descartes (1596-1650) introduced systems of coordinates based on orthogonal (right angle) coordinates.
  • These two and three-dimensional systems used in analytic geometry are often referred to as Cartesian systems.
  • Similar systems based on angles from baselines are often referred to as polar systems.
coordinate systems16
Coordinate Systems
  • The most commonly used coordinate system today is the latitude, longitude, and height system.
  • The Prime Meridian and the Equator are the reference planes used to define latitude and longitude.
  • The geodetic latitude (there are many other defined latitudes) of a point is the angle from the equatorial plane to the vertical direction of a line normal to the reference ellipsoid.
  • The geodetic longitude of a point is the angle between a reference plane and a plane passing through the point, both planes being perpendicular to the equatorial plane.
  • The geodetic height at a point is the distance from the reference ellipsoid to the point in a direction normal to the ellipsoid.
coordinate systems universal transverse mercator utm

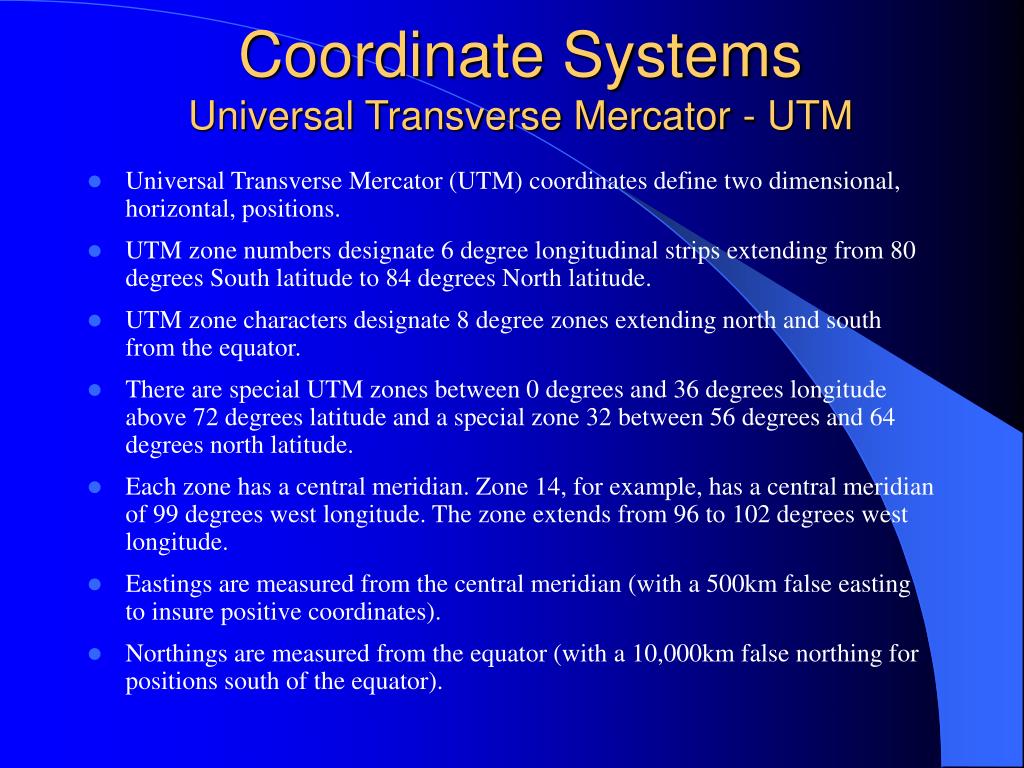

Coordinate SystemsUniversal Transverse Mercator - UTM
  • Universal Transverse Mercator (UTM) coordinates define two dimensional, horizontal, positions.
  • UTM zone numbers designate 6 degree longitudinal strips extending from 80 degrees South latitude to 84 degrees North latitude.
  • UTM zone characters designate 8 degree zones extending north and south from the equator.
  • There are special UTM zones between 0 degrees and 36 degrees longitude above 72 degrees latitude and a special zone 32 between 56 degrees and 64 degrees north latitude.
  • Each zone has a central meridian. Zone 14, for example, has a central meridian of 99 degrees west longitude. The zone extends from 96 to 102 degrees west longitude.
  • Eastings are measured from the central meridian (with a 500km false easting to insure positive coordinates).
  • Northings are measured from the equator (with a 10,000km false northing for positions south of the equator).
geodetic datums

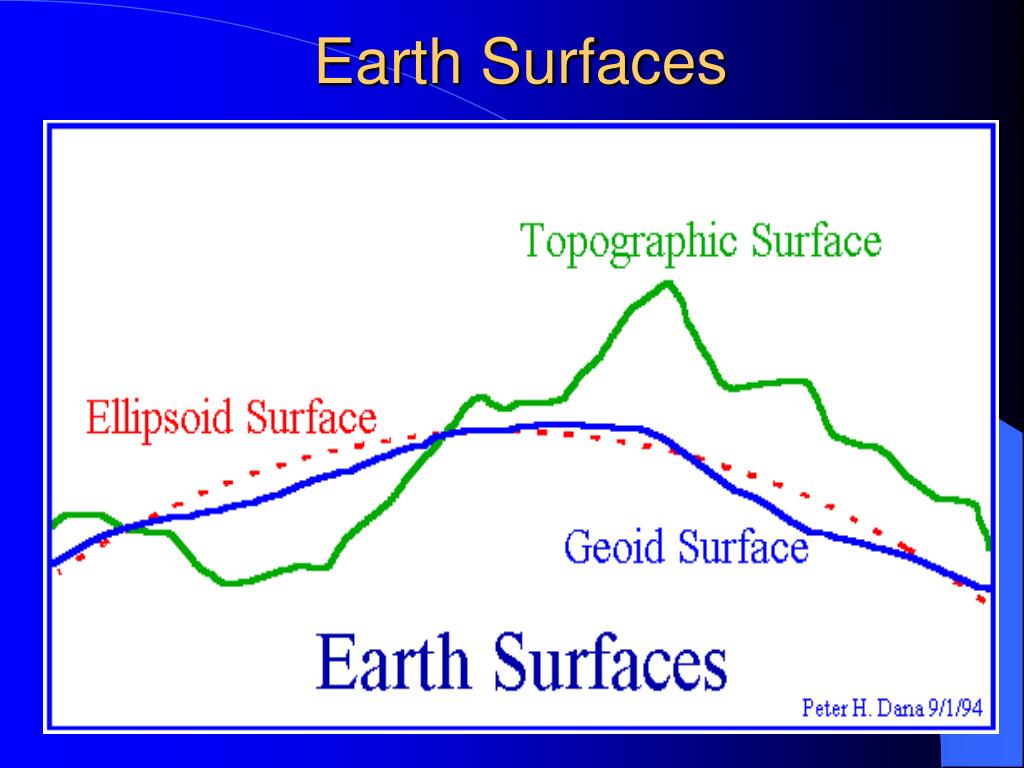

Geodetic Datums
  • Referencing geodetic coordinates to the wrong datum can result in position errors of hundreds of meters. Different nations and agencies use different datums as the basis for coordinate systems used to identify positions in geographic information systems, precise positioning systems, and navigation systems. The diversity of datums in use today and the technological advancements that have made possible global positioning measurements with sub-meter accuracies requires careful datum selection and careful conversion between coordinates in different datums.
gis software
GIS Software
  • ESRI ArcInfo / ArcView plus many add in modules
  • ESRI is the market leader and gold standard within the government and engineering communities
  • Other vendors offer competing products, which combined make up less than 15% of the GIS market
gis software costs
GIS Software Costs
  • $8,000 and up for full GIS system
  • $1,000 and up for GIS modeling only. This is what the typical public safety agency would need if their local government has a GIS system that can feed map data to analyze with response data
gis hardware costs

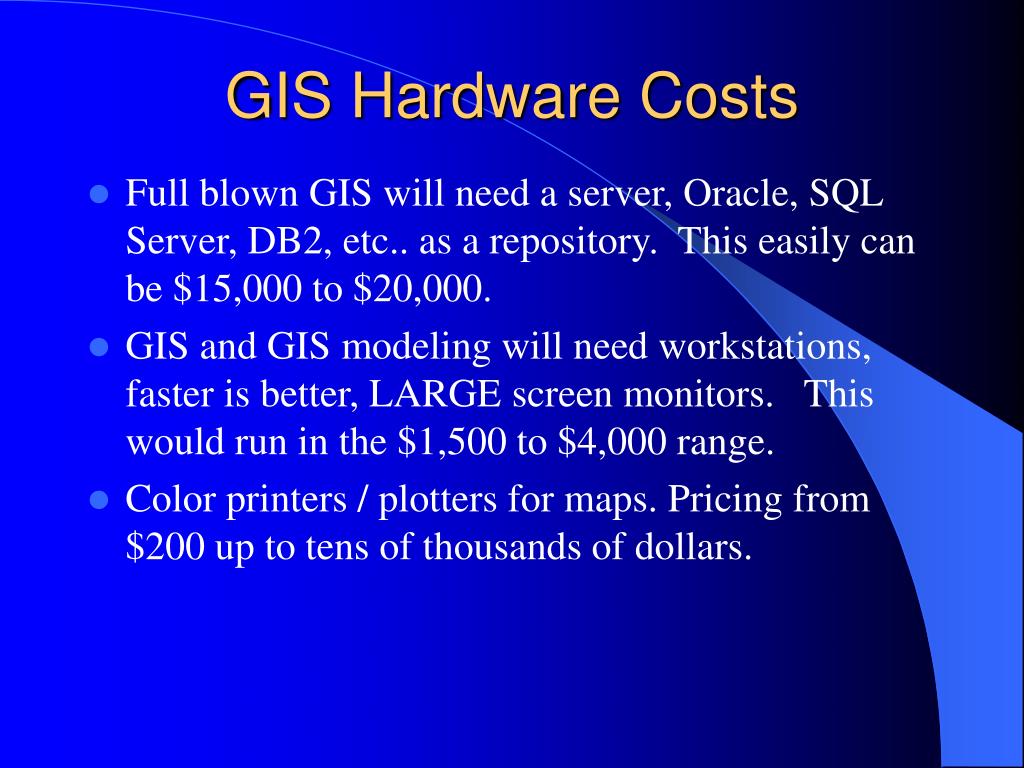

GIS Hardware Costs
  • Full blown GIS will need a server, Oracle, SQL Server, DB2, etc.. as a repository. This easily can be $15,000 to $20,000.
  • GIS and GIS modeling will need workstations, faster is better, LARGE screen monitors. This would run in the $1,500 to $4,000 range.
  • Color printers / plotters for maps. Pricing from $200 up to tens of thousands of dollars.
public safety specifics for gis
Public Safety Specifics for GIS

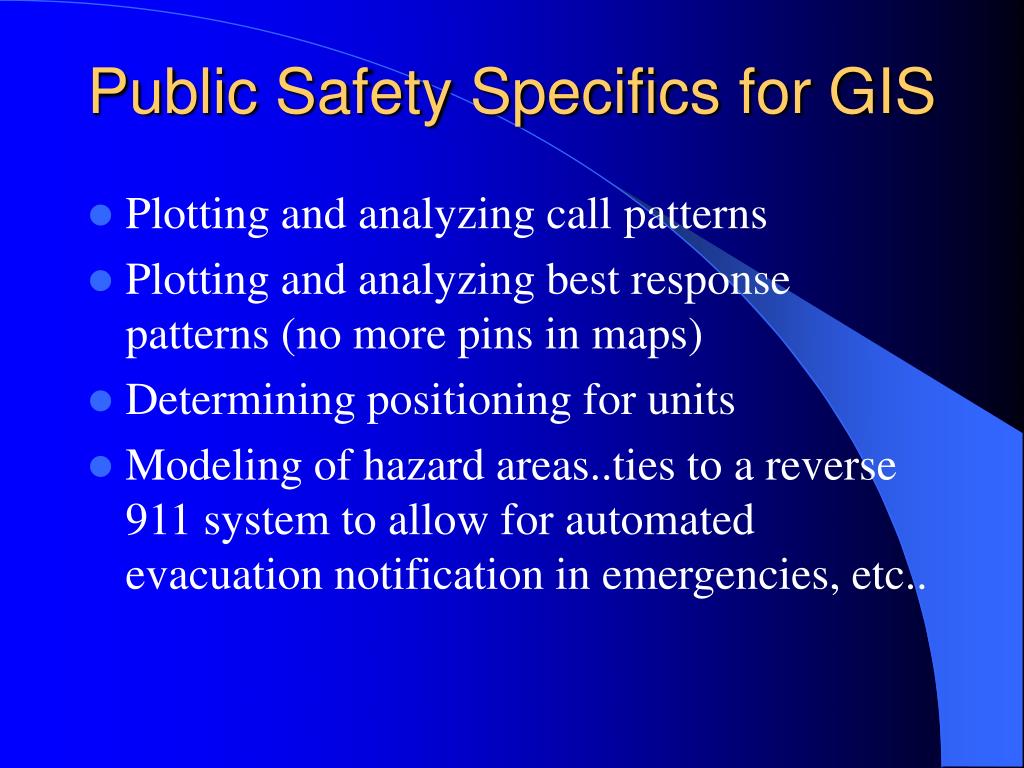

  • Plotting and analyzing call patterns
  • Plotting and analyzing best response patterns (no more pins in maps)
  • Determining positioning for units
  • Modeling of hazard areas..ties to a reverse 911 system to allow for automated evacuation notification in emergencies, etc..
data drives decisions
Data Drives Decisions

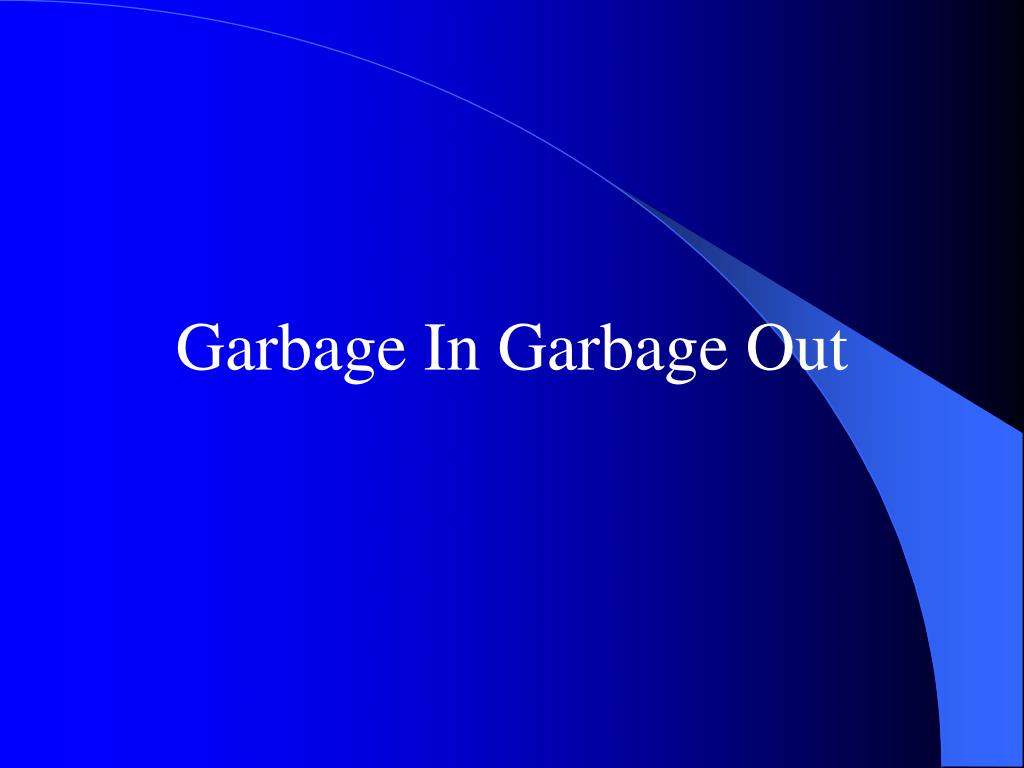

  • Garbage In - Garbage Out
  • A Thing Seldom Looked for is Seldom Found
  • New Locations
  • Historical Data
  • Pre-Planning
public perception

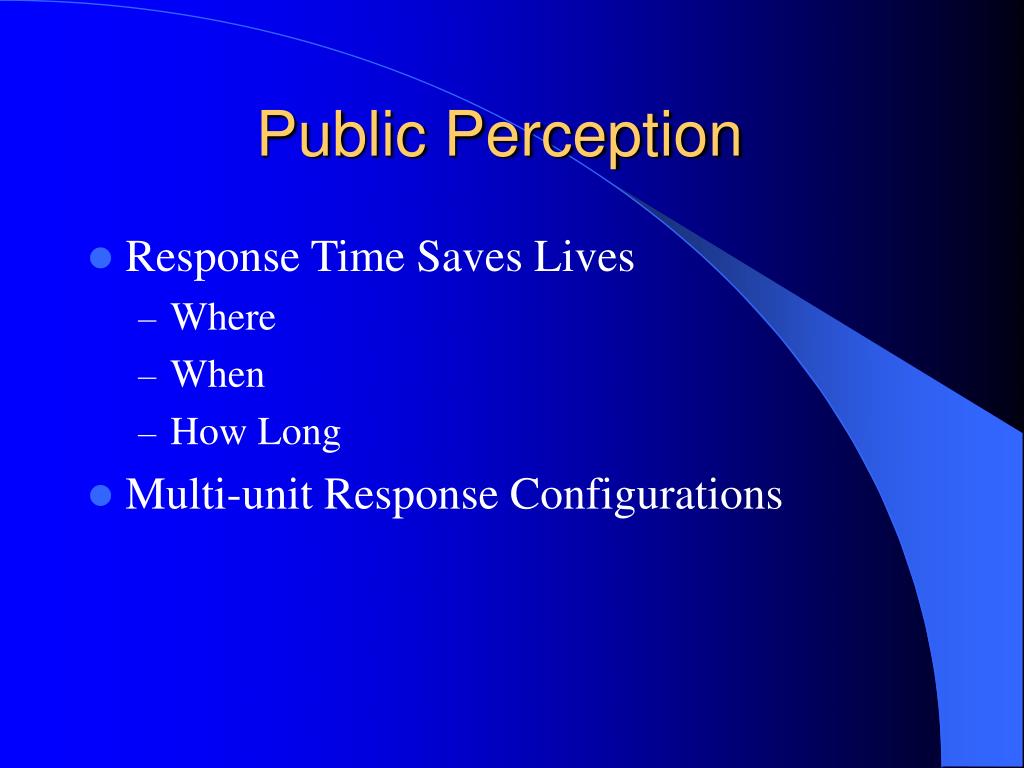

Public Perception
  • Response Time Saves Lives
    • Where
    • When
    • How Long
  • Multi-unit Response Configurations
planning
Planning

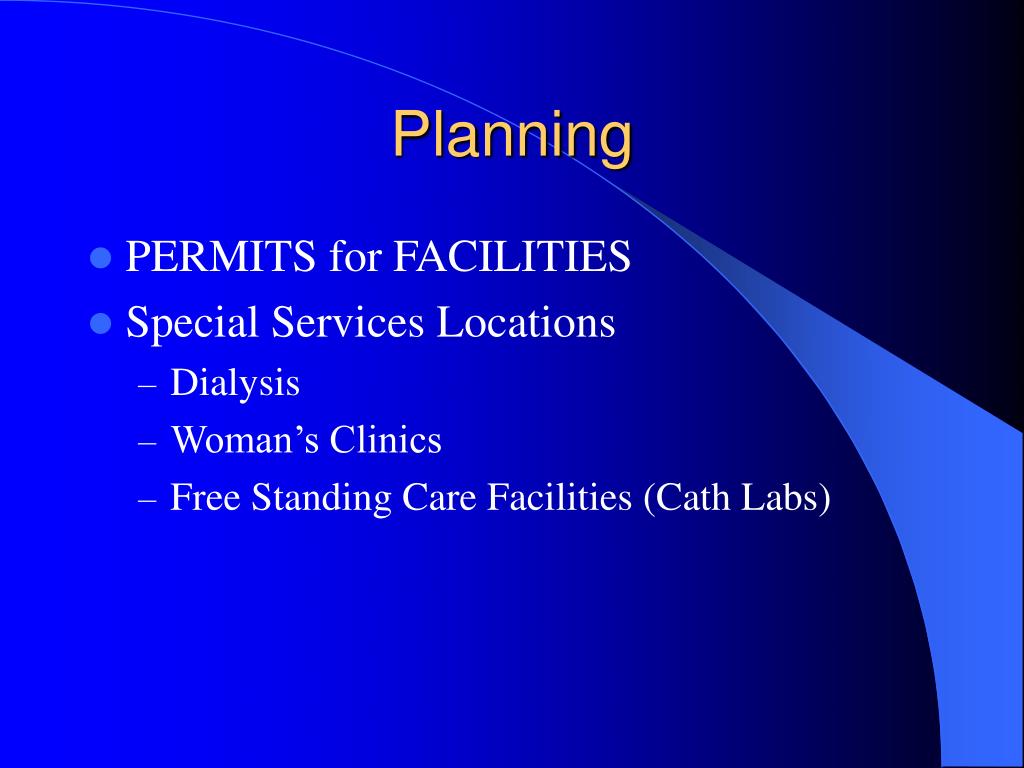

  • PERMITS for FACILITIES
  • Special Services Locations
    • Dialysis
    • Woman’s Clinics
    • Free Standing Care Facilities (Cath Labs)
durham north carolina

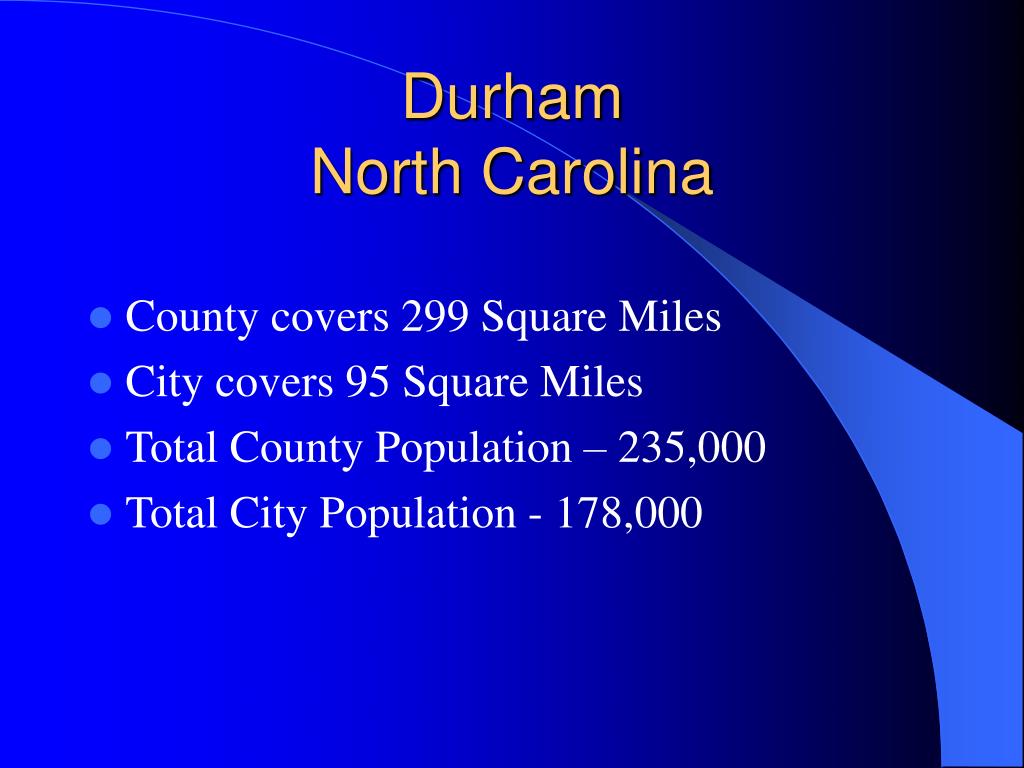

Durham North Carolina
  • County covers 299 Square Miles
  • City covers 95 Square Miles
  • Total County Population – 235,000
  • Total City Population - 178,000
ems responses by unit 1999
County Units

Medic 30 - 198

Medic 40 - 675

Medic 50 - 504

Medic 60 – 1,305

Medic 70 – 592

City Units

Medic 1 - 3,067

Medic 2 - 2,530

Medic 3 - 3,755

Medic 5 - 4,057

Medic 6 - 3,759

Medic 8 - 2,332

EMS Responses by Unit1999
calls by area
City North - 9,217

City South - 12,133

County North - 1,247

County South - 1,173

Calls by Area
gis mapping
GIS Mapping

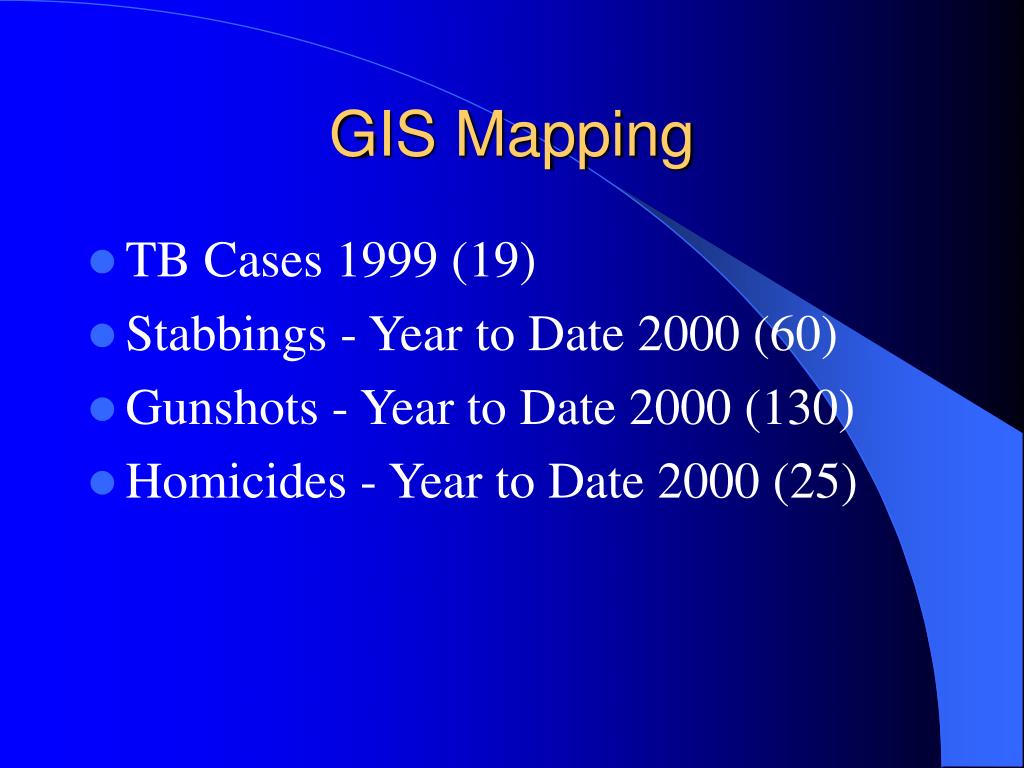

  • TB Cases 1999 (19)
  • Stabbings - Year to Date 2000 (60)
  • Gunshots - Year to Date 2000 (130)
  • Homicides - Year to Date 2000 (25)
geographical information systems
Geographical Information Systems

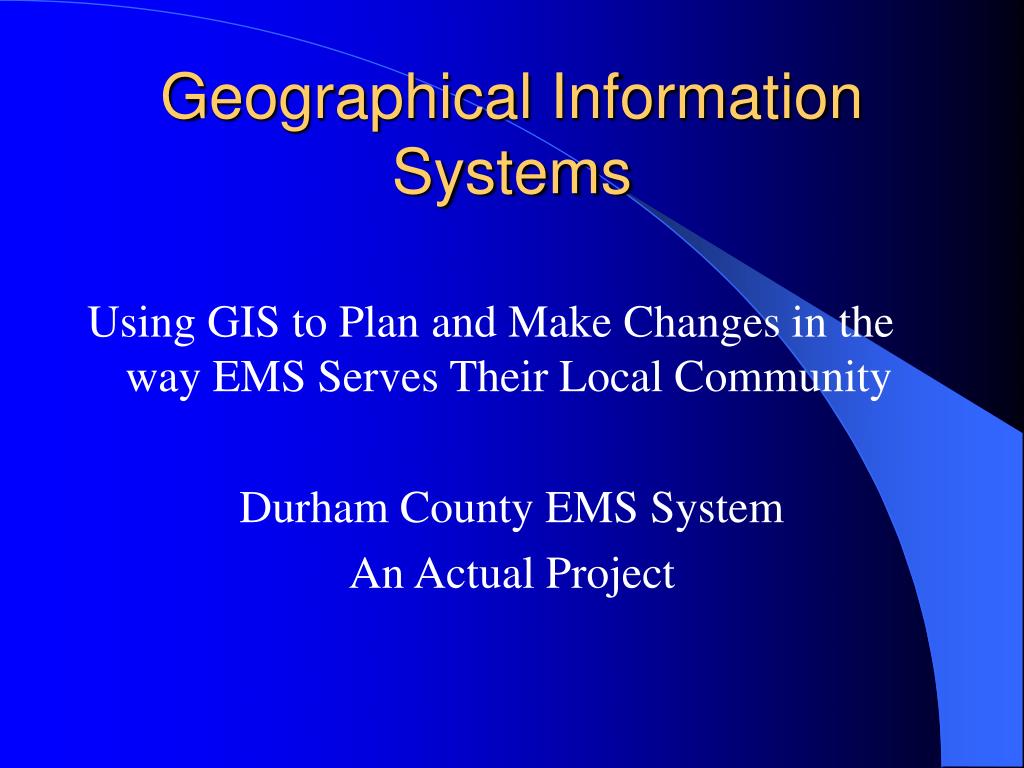

Using GIS to Plan and Make Changes in the way EMS Serves Their Local Community

Durham County EMS System

An Actual Project

real life gis

Real Life GIS

Defining Change

slide42

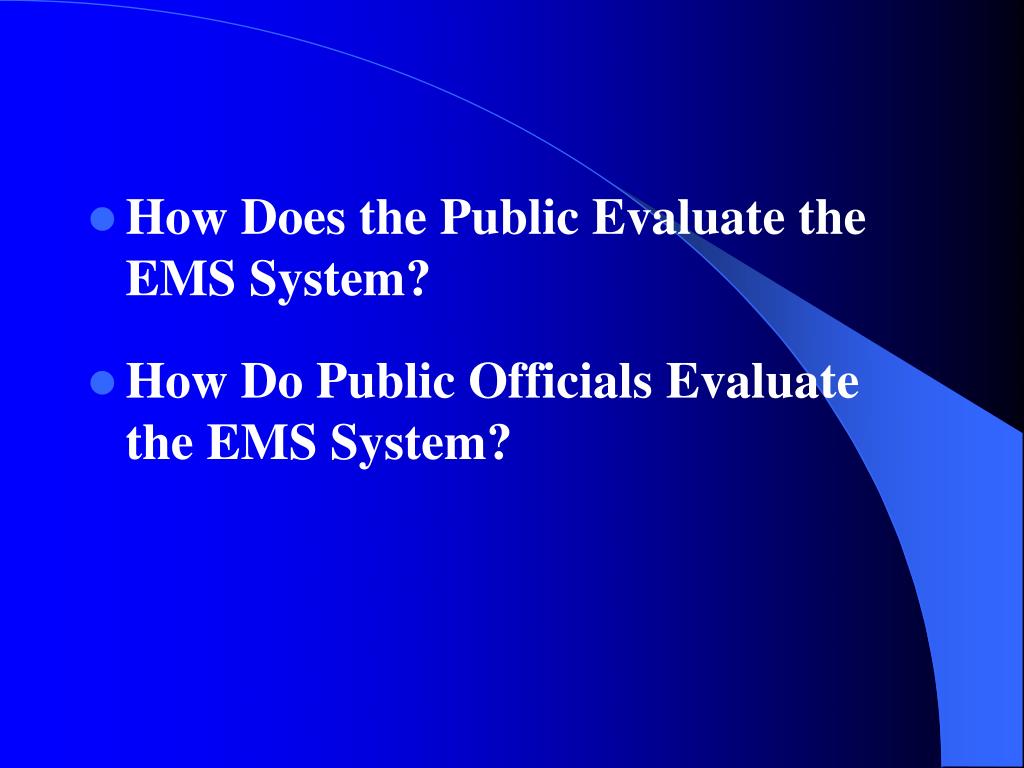

How Does the Public Evaluate the EMS System?
  • How Do Public Officials Evaluate the EMS System?
slide44

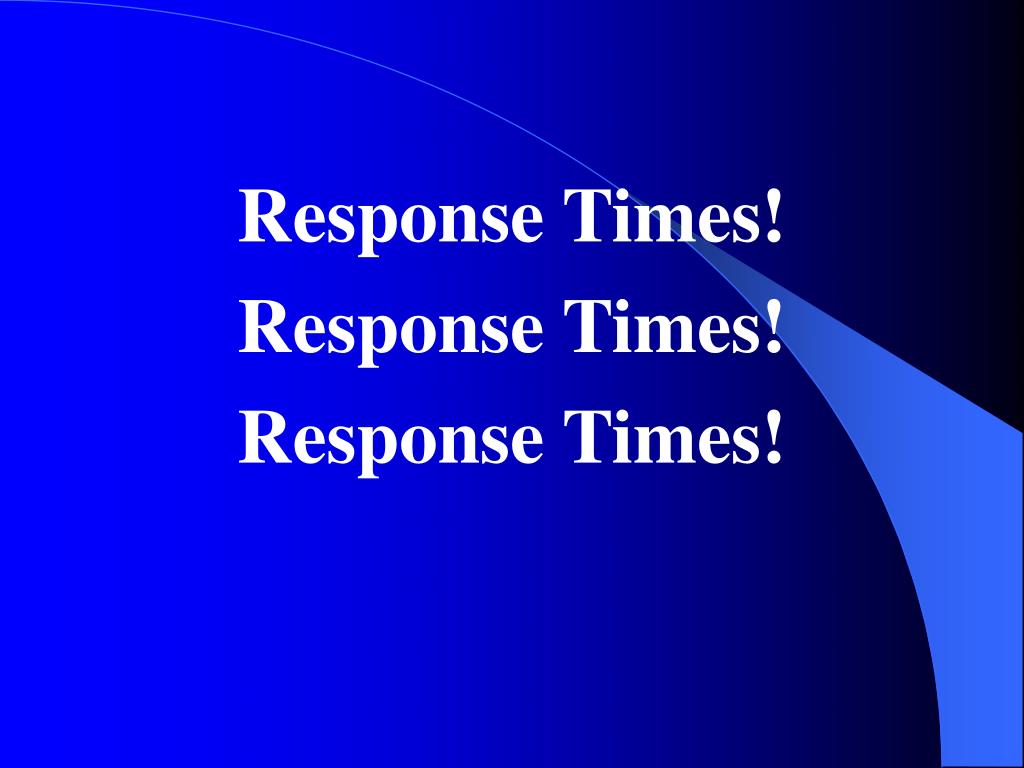

Response Times!

Response Times!

Response Times!

slide45

Measuring Data for Use in Geographical Information Systems

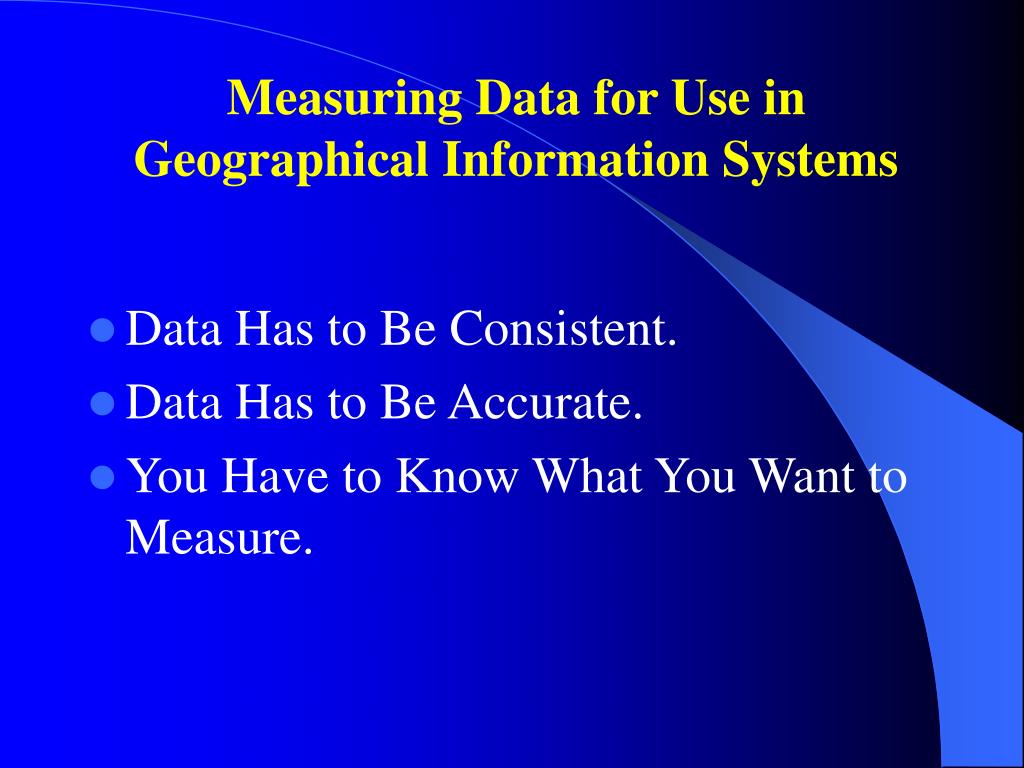

  • Data Has to Be Consistent.
  • Data Has to Be Accurate.
  • You Have to Know What You Want to Measure.
defining change

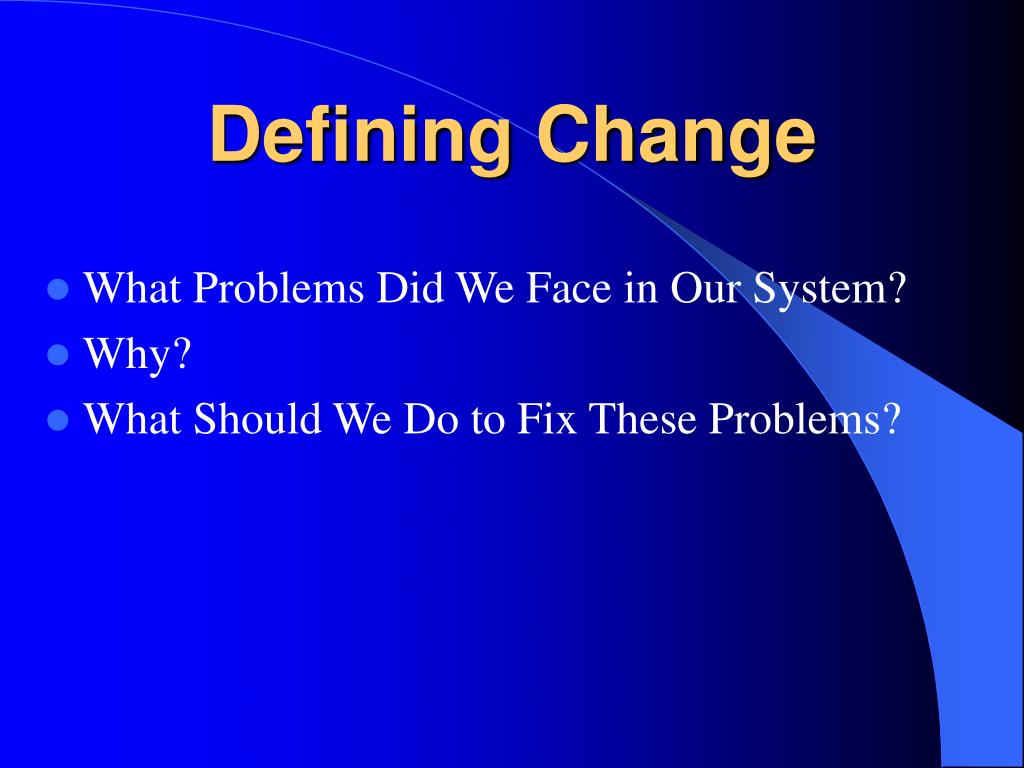

Defining Change
  • What Problems Did We Face in Our System?
  • Why?
  • What Should We Do to Fix These Problems?
slide48

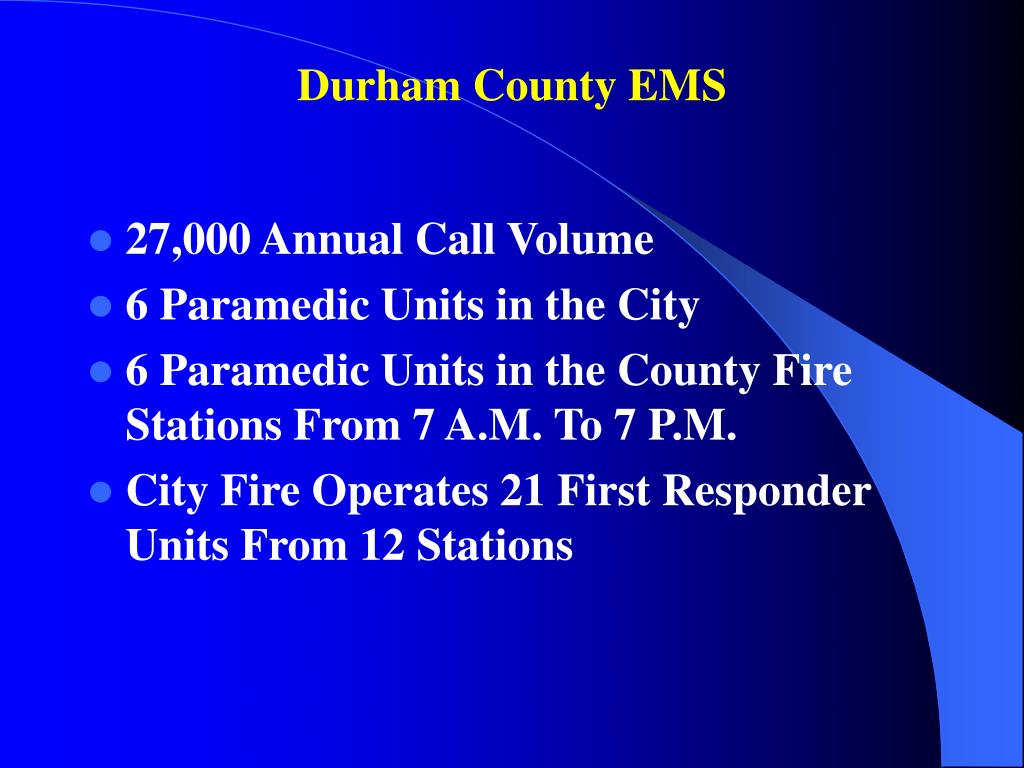

Durham County EMS

  • 27,000 Annual Call Volume
  • 6 Paramedic Units in the City
  • 6 Paramedic Units in the County Fire Stations From 7 A.M. To 7 P.M.
  • City Fire Operates 21 First Responder Units From 12 Stations
slide49

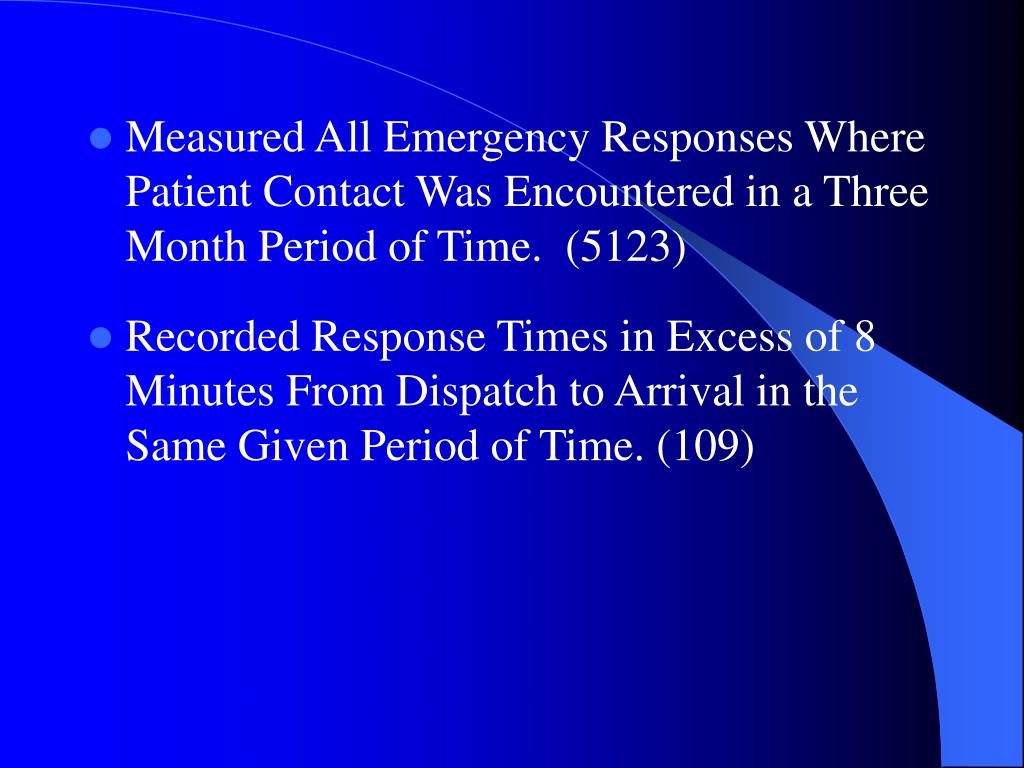

Measured All Emergency Responses Where Patient Contact Was Encountered in a Three Month Period of Time. (5123)
  • Recorded Response Times in Excess of 8 Minutes From Dispatch to Arrival in the Same Given Period of Time. (109)
slide51
A Picture Is Worth a Thousand Words

or Approximately

$ 600,000 !

slide54
Now As Administrators What Does

This Picture Tell You?

what did the picture identify
What did the picture identify?
  • Definite Need for Southwest Paramedic Coverage.
  • Inner City Call Volume Was Greater Than the Number of Available Paramedic Units.
  • Calls in the County That Were in Excess of 8 Minute Response Times Were at Night When the Paramedic Coverage Was Discontinued.
what did we do
What did we do ?
  • Placed a Paramedic Unit in the Southwest Portion of Durham Utilizing a City Fire Station.
  • Expanded Paramedic Coverage in the County Fire Stations to 24 Hours.
slide59
Implemented Three (3) City Fire Department EMT-Intermediate Transport Units in the Inner City Districts to Back-up the Inner City Paramedic Units When They Are Occupied.
  • County EMS Contracted With Parkwood EMS to Provide Paramedic Service in the South / Southwest Area of Durham With 2 Paramedic Units.
