slide2

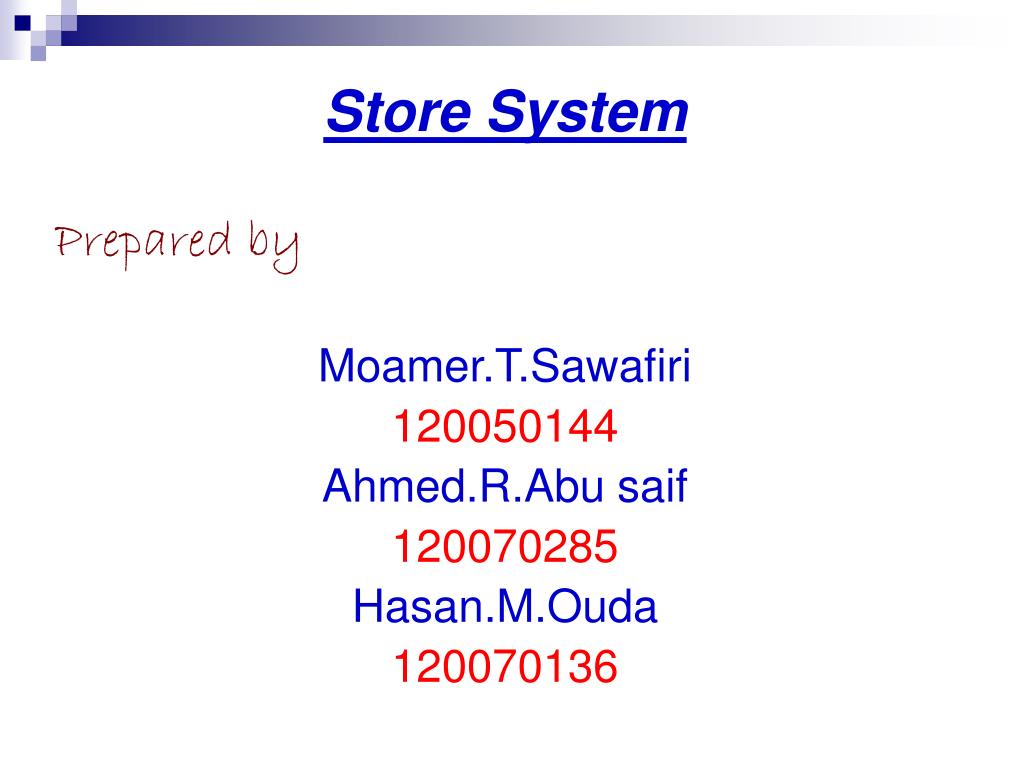

Store System

Prepared by

Moamer.T.Sawafiri

120050144

Ahmed.R.Abu saif

120070285

Hasan.M.Ouda

120070136

dedication
Dedication

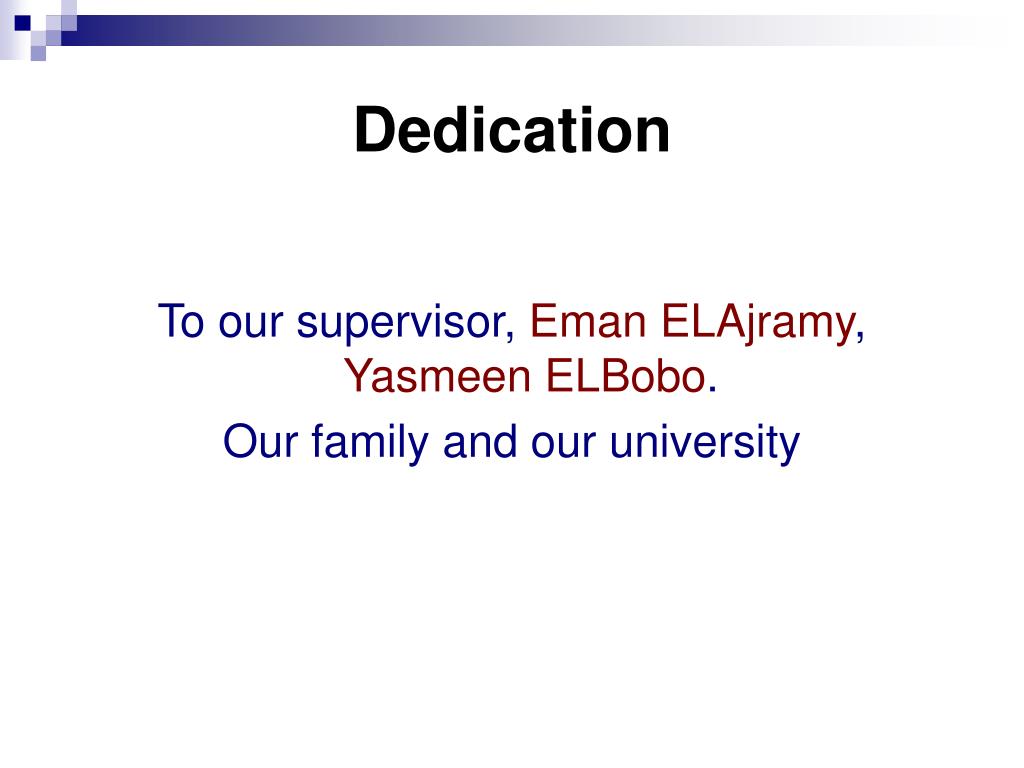

To our supervisor,Eman ELAjramy,Yasmeen ELBobo.

Our family and our university

slide4

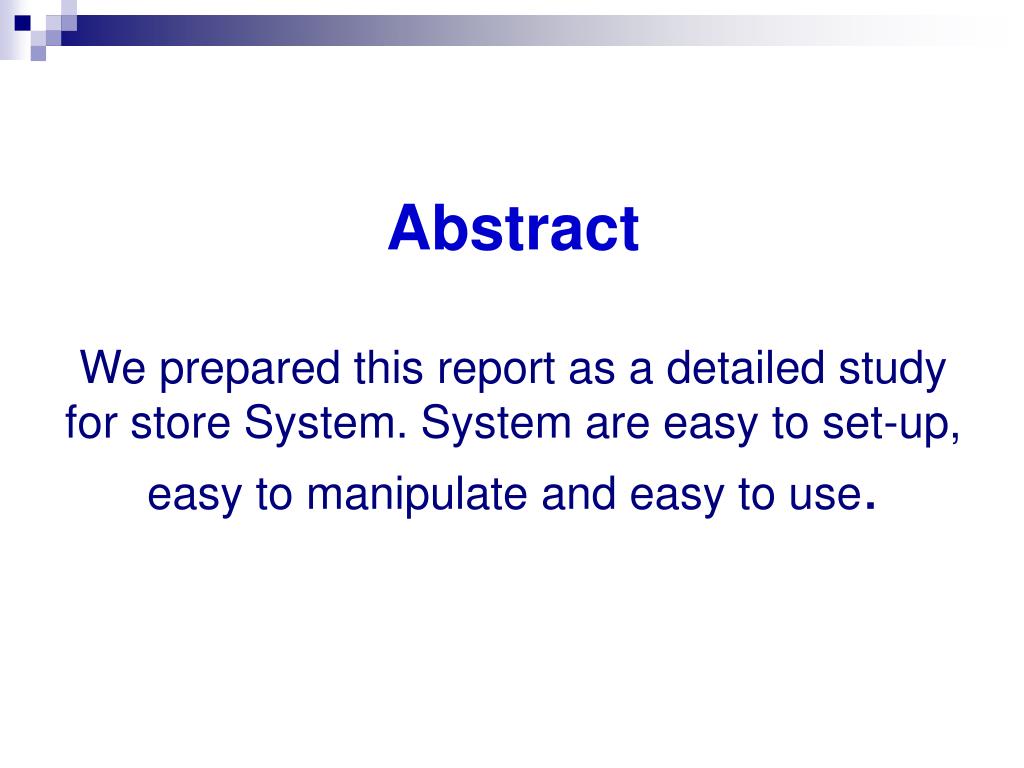

AbstractWe prepared this report as a detailed study for store System. System are easy to set-up, easy to manipulate and easy to use.
table of contents
Table of Contents

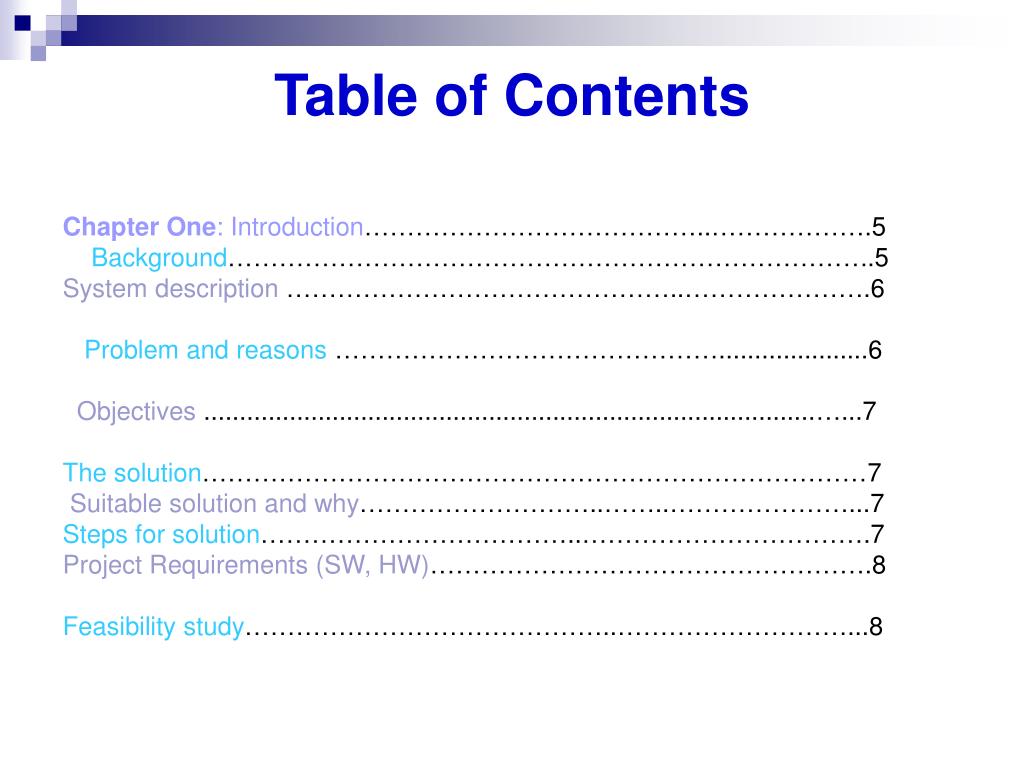

Chapter One: Introduction…………………………………..……………….5

Background………………………………………………………………….5

System description ………………………………………..………………….6

Problem and reasons ……………………………………….....................6

Objectives ......................................................................................…...7

The solution……………………………………………………………………7

Suitable solution and why………………………..……..…………………...7

Steps for solution………………………………..…………………………….7

Project Requirements (SW, HW)…………………………………………….8

Feasibility study……………………………………..………………………...8

slide6

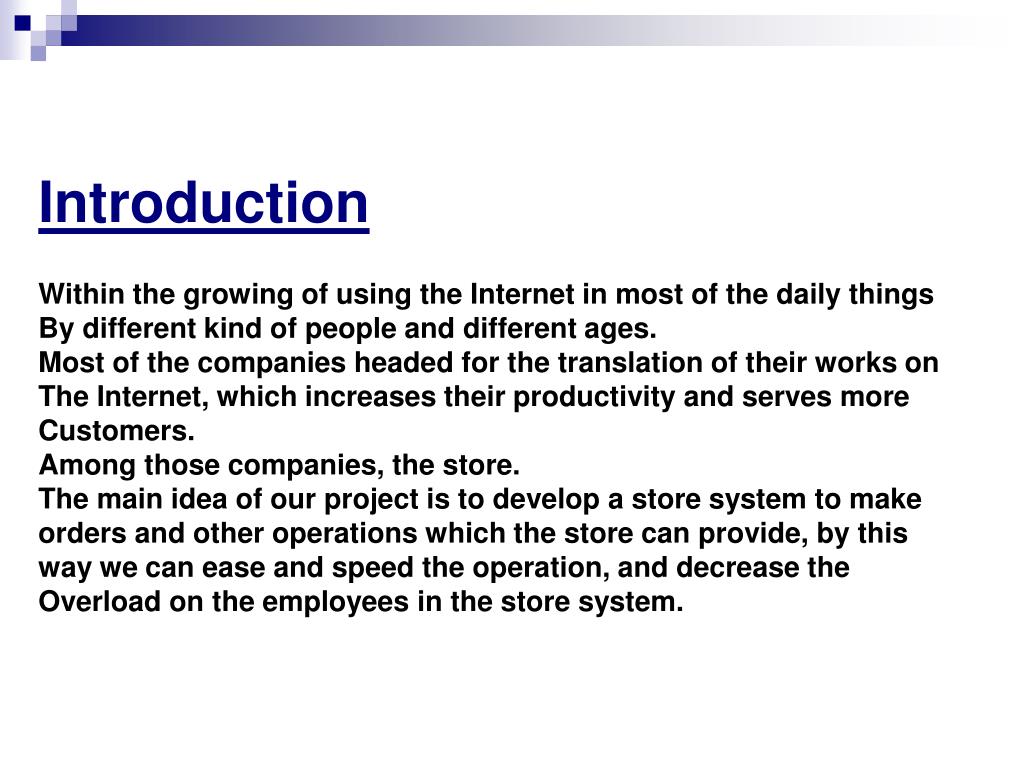

IntroductionWithin the growing of using the Internet in most of the daily thingsBy different kind of people and different ages.Most of the companies headed for the translation of their works onThe Internet, which increases their productivity and serves moreCustomers. Among those companies, the store.The main idea of our project is to develop a store system to make orders and other operations which the store can provide, by this way we can ease and speed the operation, and decrease theOverload on the employees in the store system.

slide7

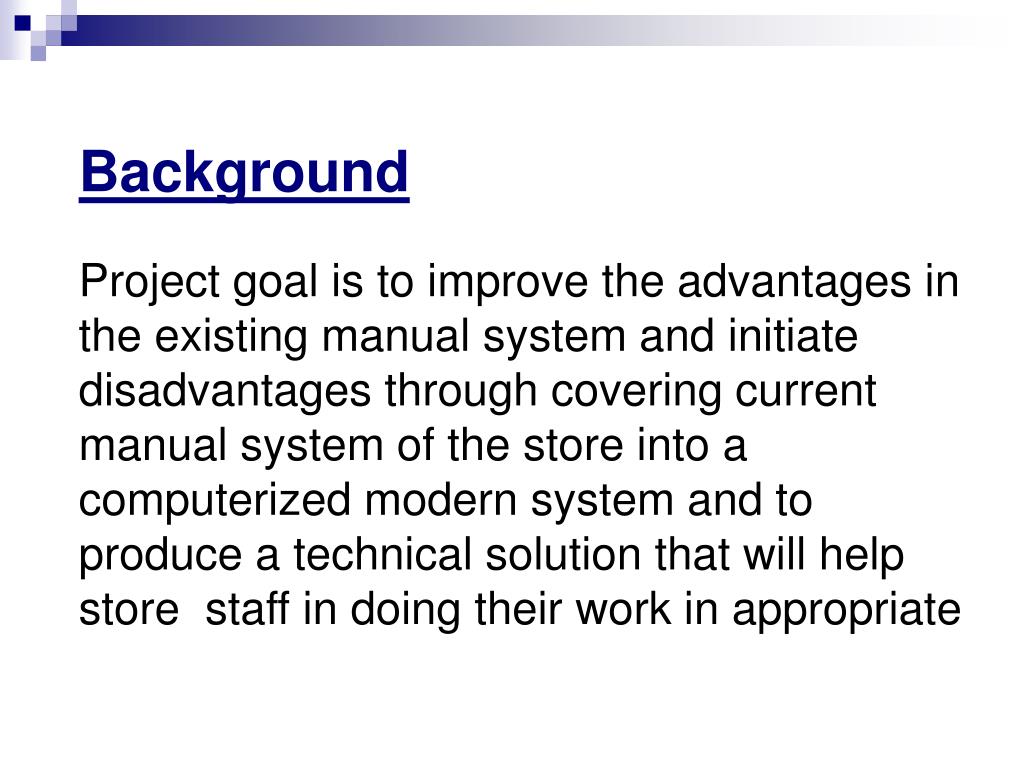

BackgroundProject goal is to improve the advantages in the existing manual system and initiate disadvantages through covering current manual system of the store into a computerized modern system and to produce a technical solution that will help store staff in doing their work in appropriate

slide8

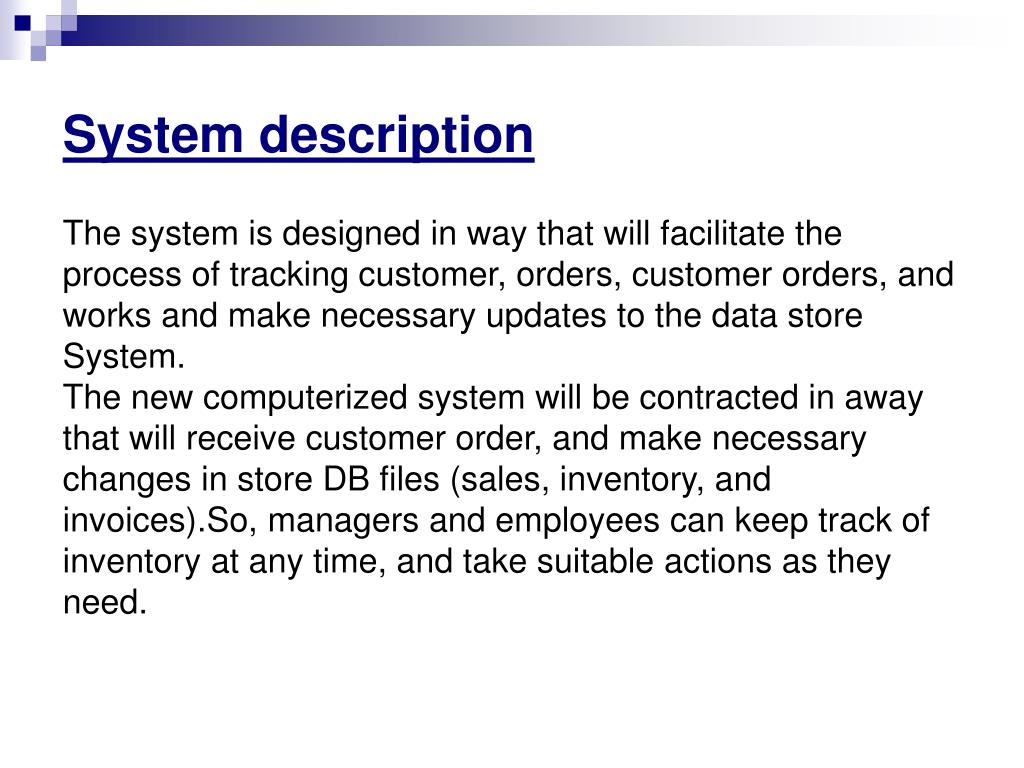

System descriptionThe system is designed in way that will facilitate the process of tracking customer, orders, customer orders, and works and make necessary updates to the data store System.The new computerized system will be contracted in away that will receive customer order, and make necessary changes in store DB files (sales, inventory, and invoices).So, managers and employees can keep track of inventory at any time, and take suitable actions as they need.

slide9

The problem and reasons*In traditional store both customers and managers will face the following problems:* The going to the store the customer need time, cost and effort.* The store is not open 24 hours, so the customer cannot visit or make an order in any time he wants.* Due to the limitation of both time, and place the store interaction. For example the store offers cannot be reached easily by traditional way.

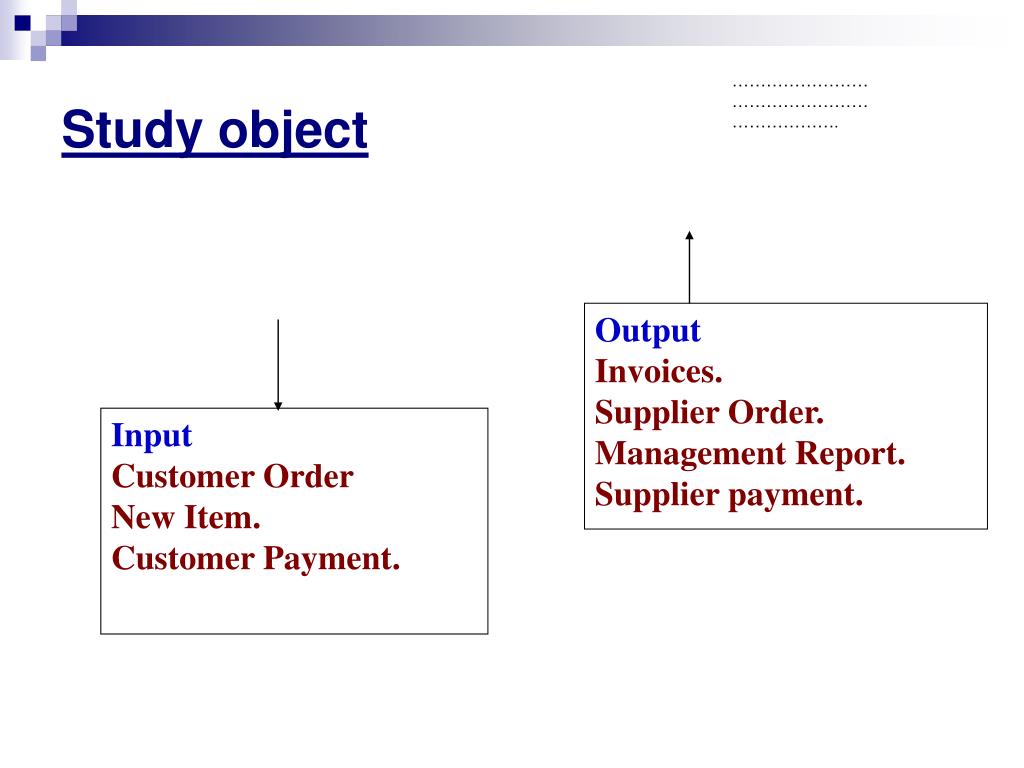

study object
Study object

………………………………………………………….

Output

Invoices.

Supplier Order.

Management Report.

Supplier payment.

Input

Customer Order

New Item.

Customer Payment.

project objective
Project Objective

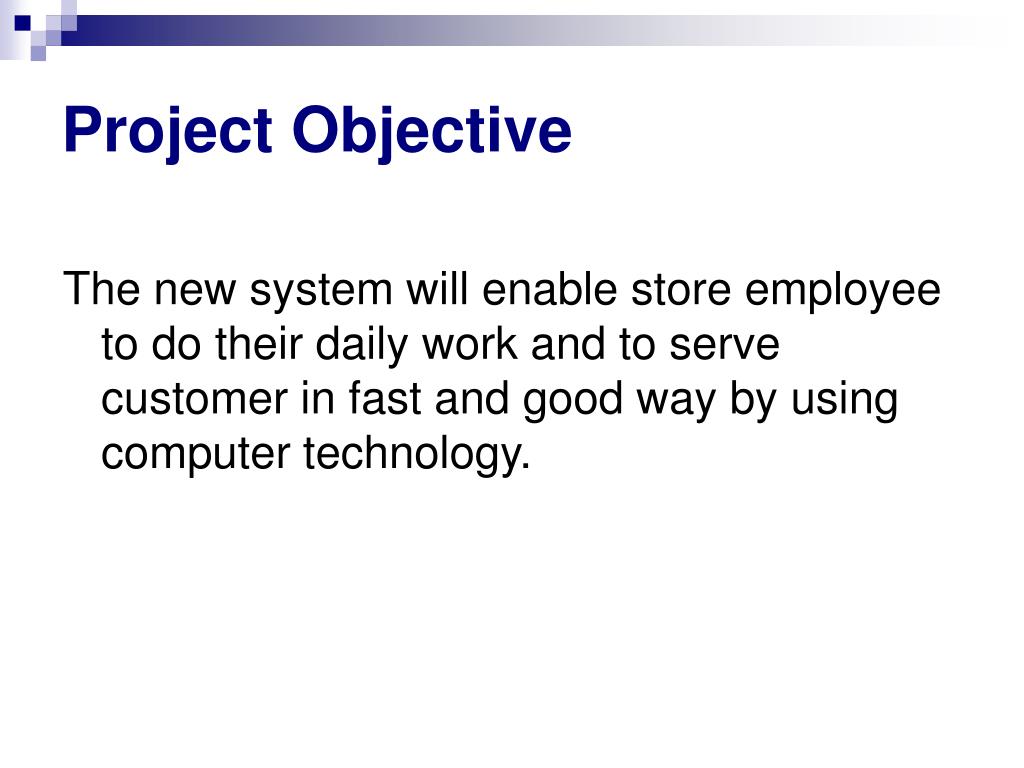

The new system will enable store employee to do their daily work and to serve customer in fast and good way by using computer technology.

slide12

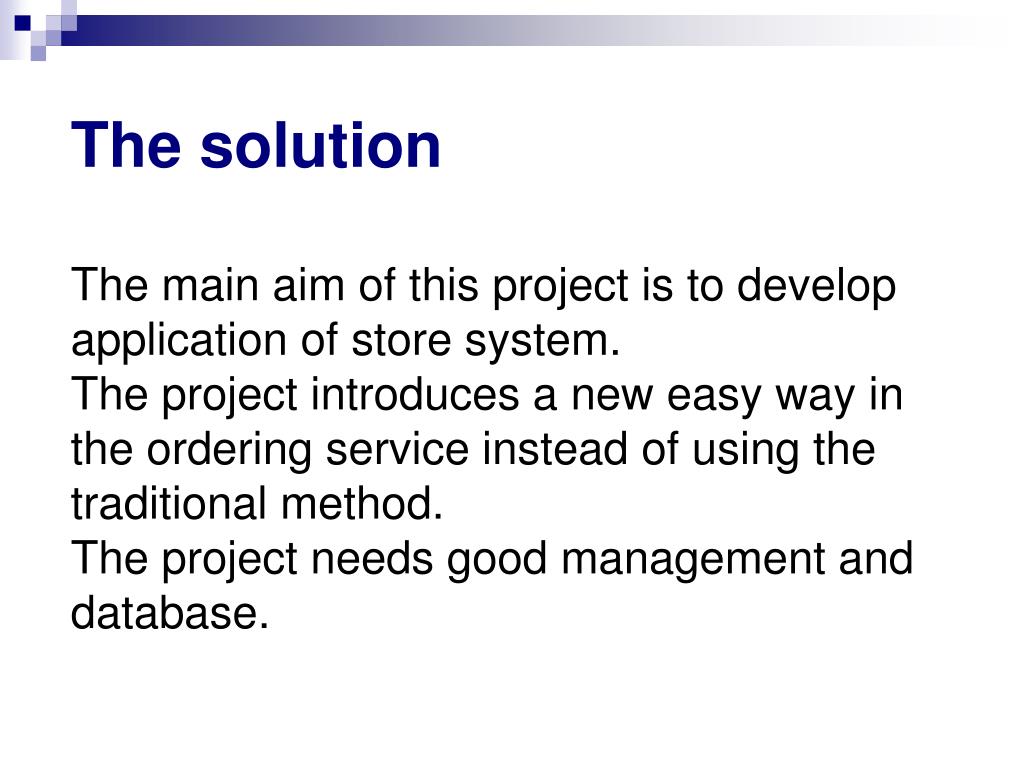

The solutionThe main aim of this project is to develop application of store system.The project introduces a new easy way in the ordering service instead of using the traditional method. The project needs good management and database.

slide13

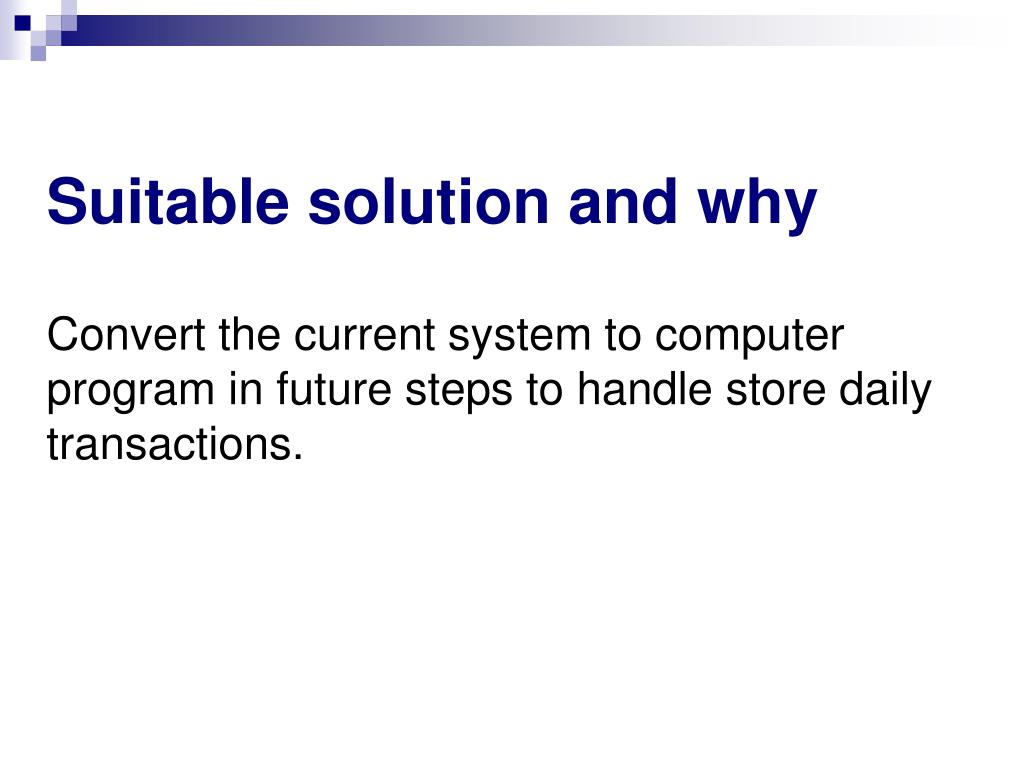

Suitable solution and whyConvert the current system to computer program in future steps to handle store daily transactions.
slide14

Steps for solution* Analyze company situation* Operating environment* Organizational structure* Define problems and constraints* Define objectives* Define scope and boundaries

slide15

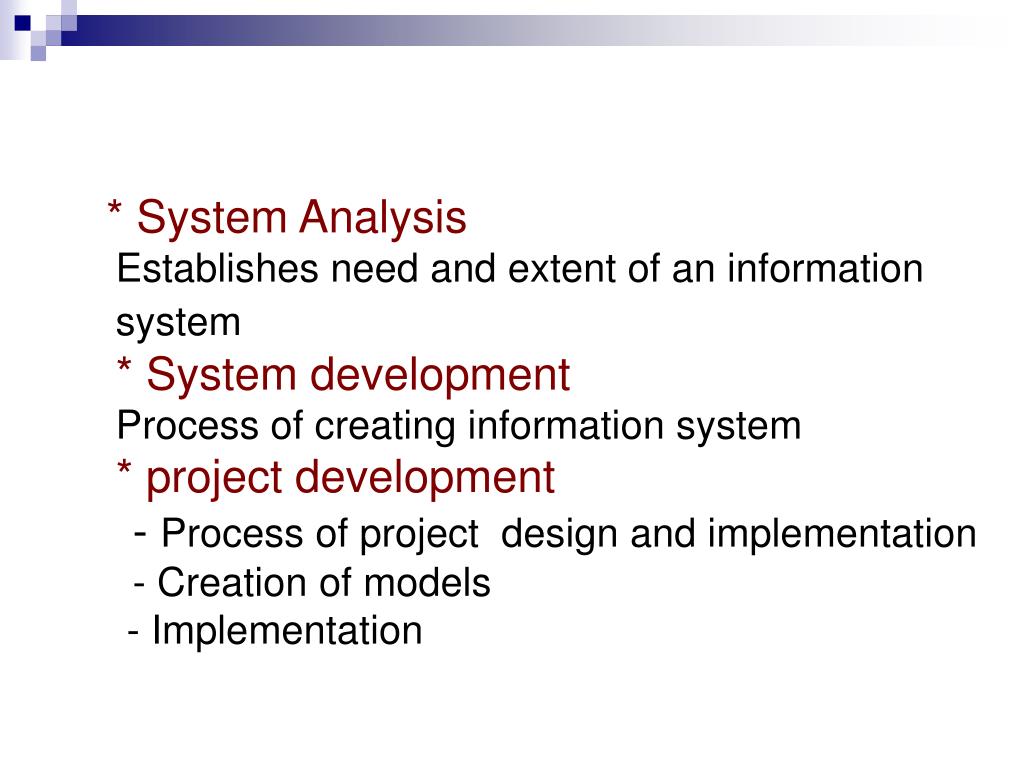

*System AnalysisEstablishes need and extent of an information system*System development Process of creating information system*project development - Process of project design and implementation - Creation of models - Implementation

project requirements sw hw and feasibility study
Requirements :

Hardware

Software

Requirements hardware :

Pc

Router

Hub

Cable

Requirements software :

Program of the accounts, sales, purchases

Web site

Database

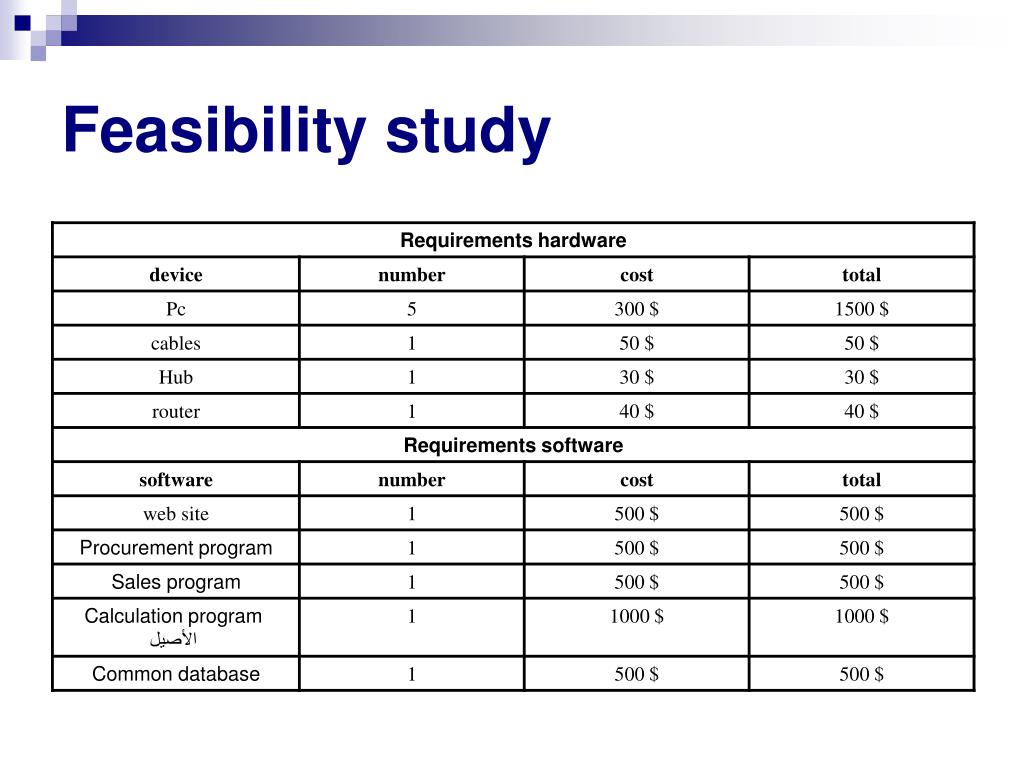

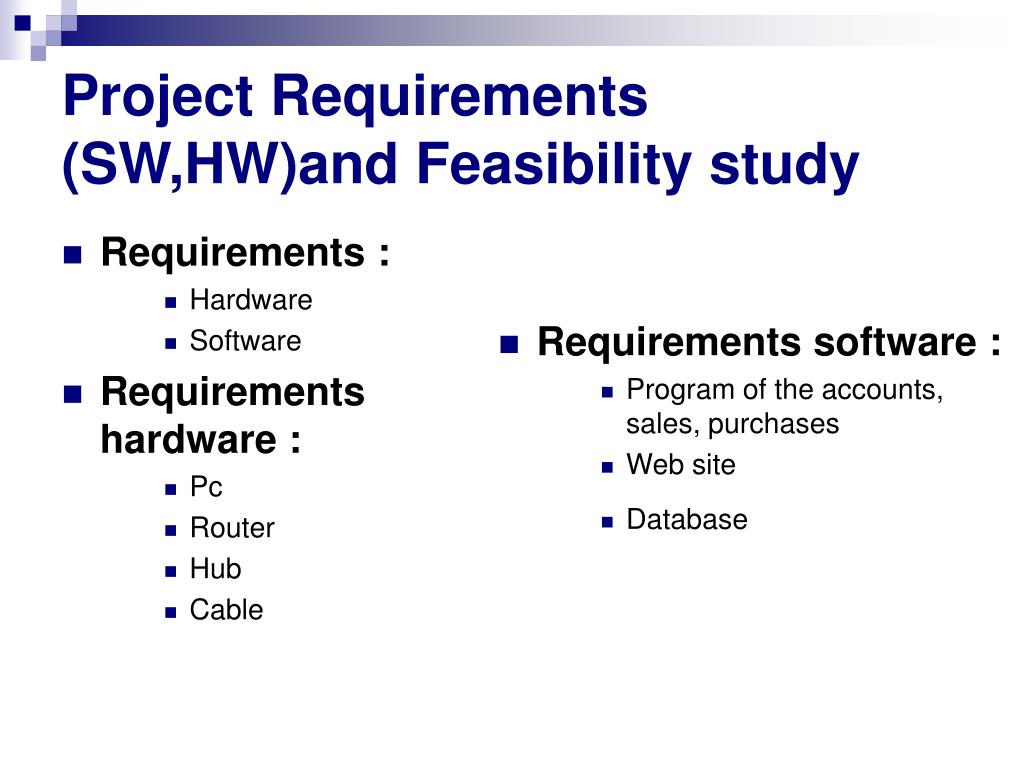

Project Requirements (SW,HW)and Feasibility study

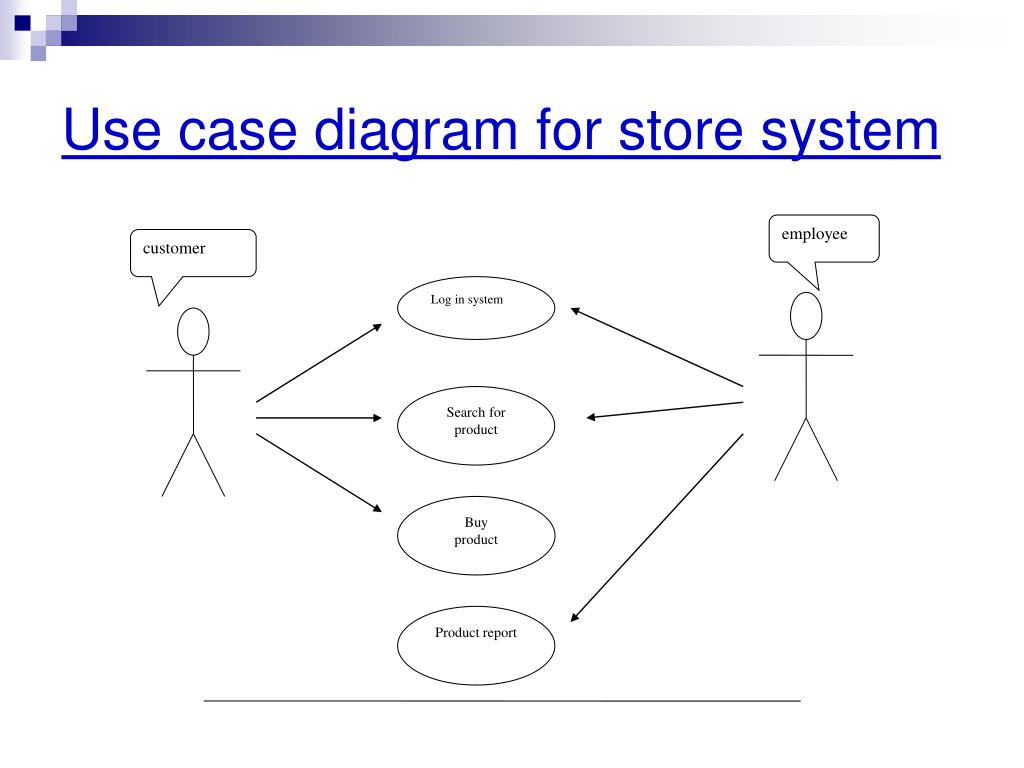

use case diagram for store system

employee

customer

Log in system

Search for product

Buy product

Product report

Use case diagram for store system

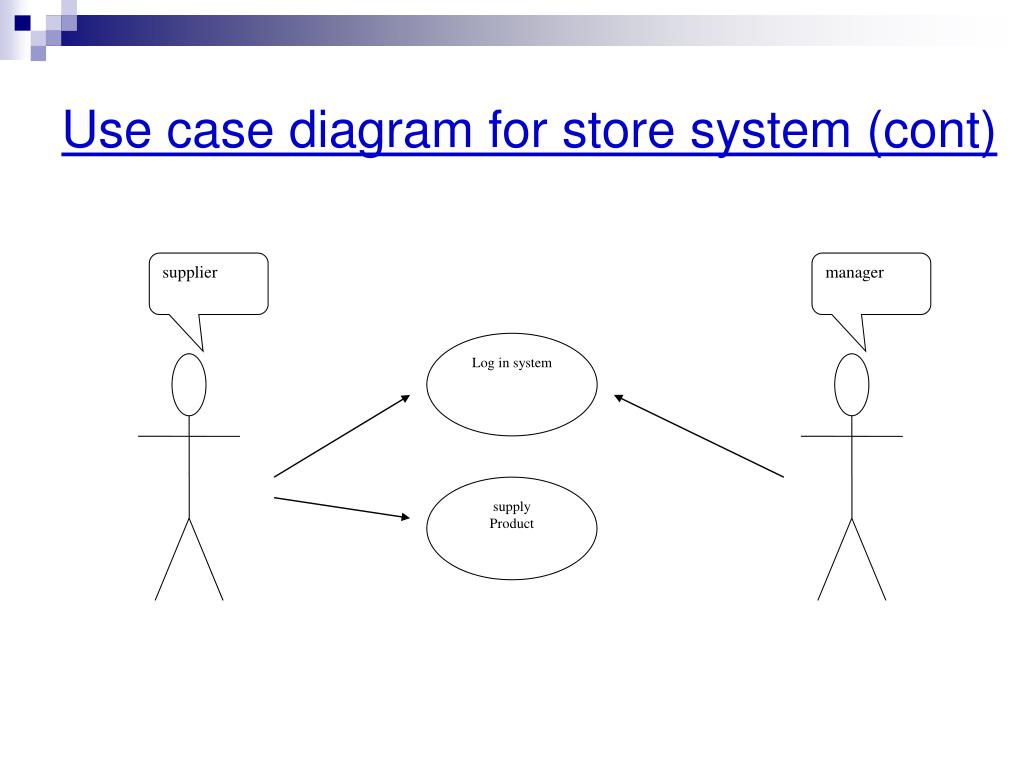

use case diagram for store system cont

supplier

manager

Log in system

supply

Product

Use case diagram for store system (cont)
activity diagram for store system

order

Check store

repost

Fill order

Send invoice

deliver

money

Close order

*

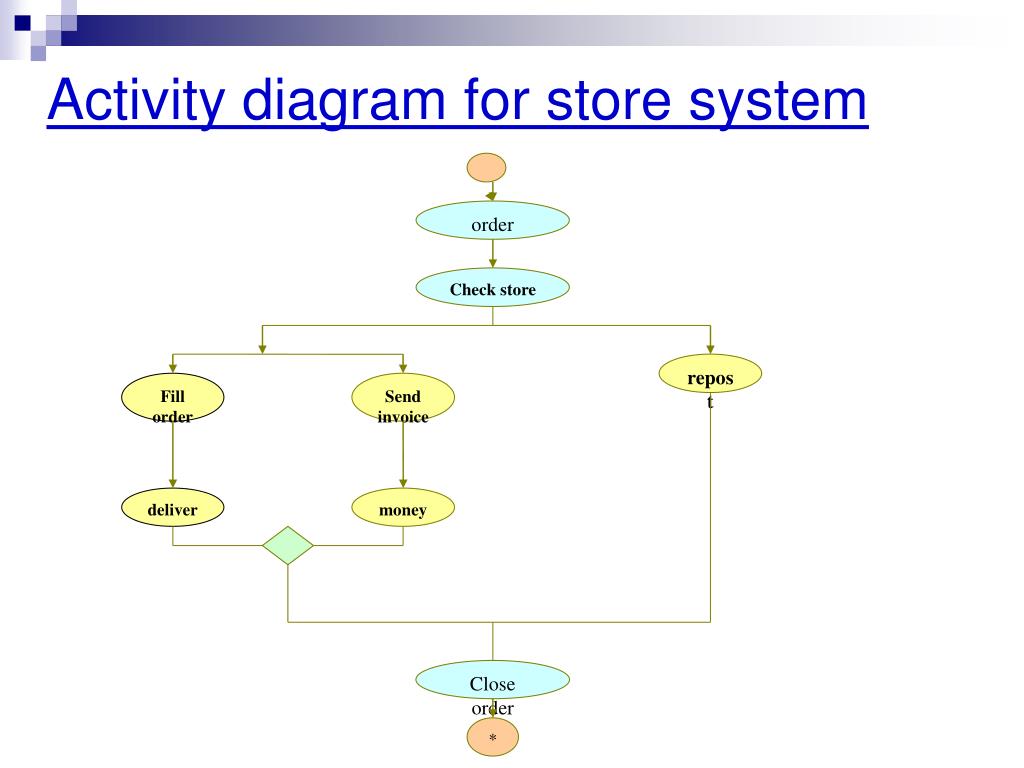

Activity diagram for store system
store diagram for store system

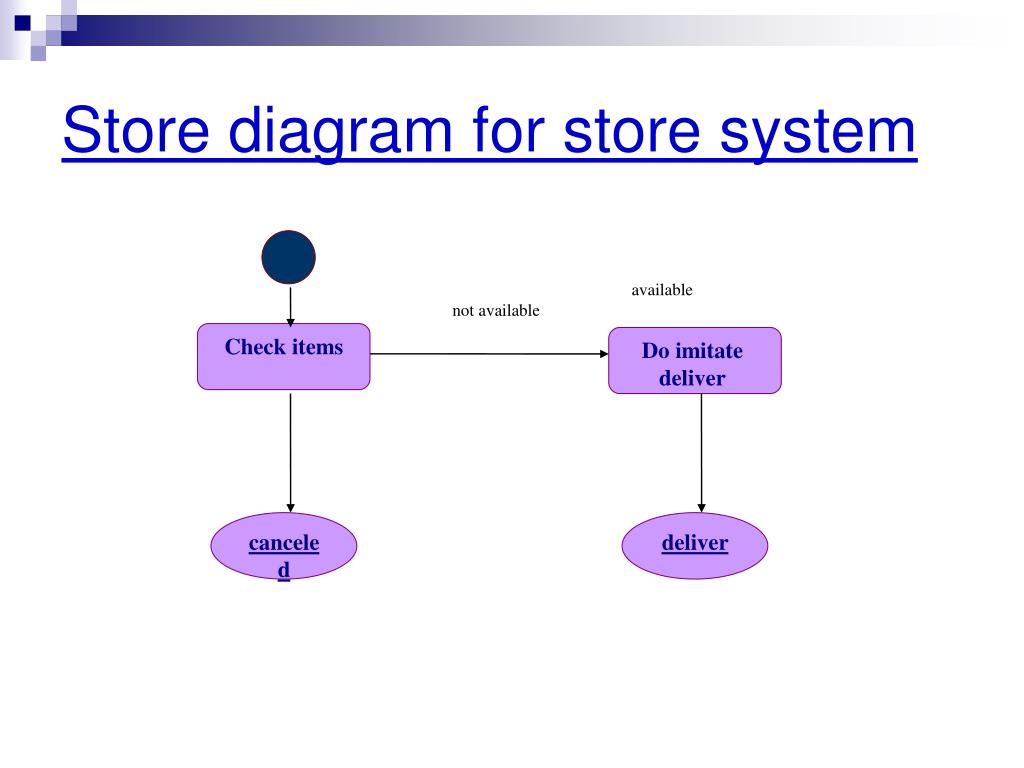

Store diagram for store system

available

not available

Check items

Do imitate deliver

canceled

deliver
