Presentation Transcript

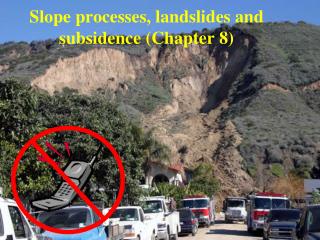

la conchita january 10 2005
La Conchita, January 10, 2005

http://landslides.usgs.gov/recent/events/laconchita/images/LaConchita0105_sm.mov

Mass wasting (page 241)

  • Materials moving down under gravity “Material” = loose rocks, soils, artificial fills or a combination of these
  • Can be fast (landslides), or slow (creep)
types of movement pages 243 244 fig 8 4
Types of movement (pages 243-244, Fig. 8.4)
  • SLIDE

When materials move along a definite plane

  • SLUMP

When materials move along a curved plane

  • FALL

When loose materials fall freely under gravity

  • FLOW

Movement of a thick, soupy fluid

slide5

LANDSLIDE CAUSES (pages 245-256)

  • Modified from USGS Landslide fact sheet
      • http://pubs.usgs.gov/fs/2002/3072/
        • Geological causes
  • Weak, sensitive and/or broken materials (sheared, jointed or fissured etc.)
  • Weathered materials
  • Materials with a discontinuous plane oriented parallel to slope (bedding, schistosity, fault, unconformity, contact, etc.)
  • Contrast in permeability and/or stiffness of materials
slide6

Morphological causes

  • Tectonic or volcanic uplift
  • Glacial rebound
  • River, wave, or glacial erosion
  • Underground erosion (solution, piping)
  • Deposition loading on top of slope
  • Vegetation removal (by fire, drought)
  • Thawing
  • Freeze-and-thaw weathering
  • Shrink-and-swell weathering
slide7

Human causes

  • Excavation of slope or its toe
  • Loading of slope or its crest
  • Drawdown (of reservoirs)
  • Deforestation
  • Irrigation
  • Mining
  • Artificial vibration
  • Water leakage from utilities
