Presentation Transcript

  1. Chapter 1: Measurements • The metric system • Becoming more common in our country. • The SI system • Developed in 1960, also called the international system of units. • Set of seven standard quantities of which all others can be derived.

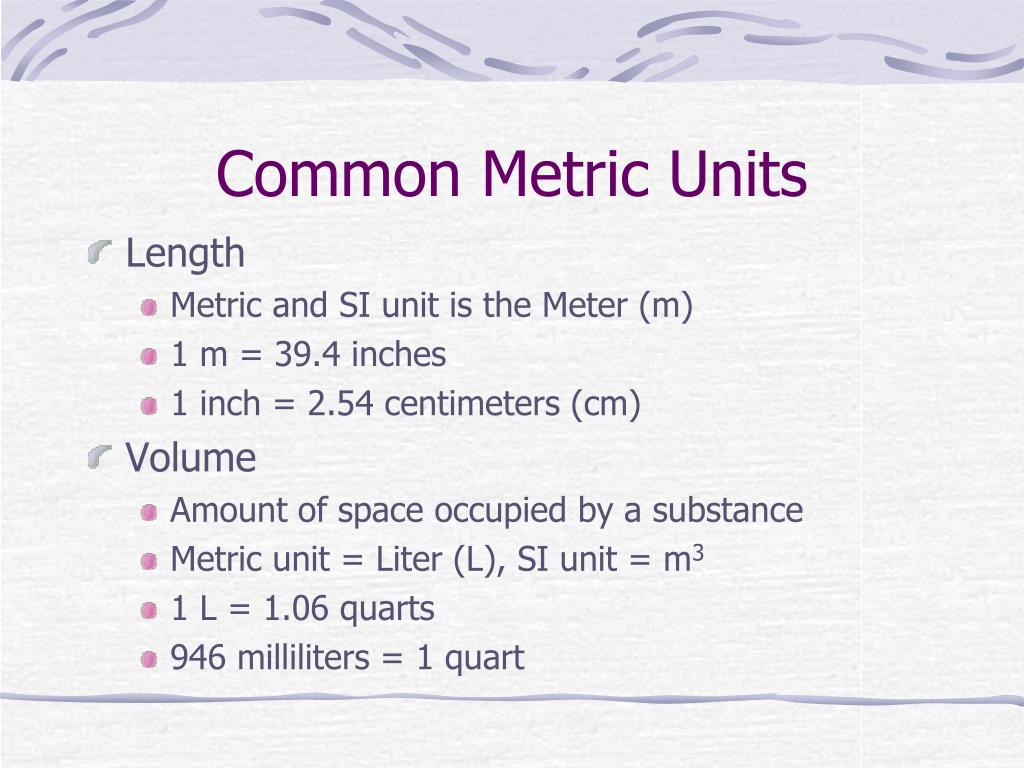

  2. Common Metric Units • Length • Metric and SI unit is the Meter (m) • 1 m = 39.4 inches • 1 inch = 2.54 centimeters (cm) • Volume • Amount of space occupied by a substance • Metric unit = Liter (L), SI unit = m3 • 1 L = 1.06 quarts • 946 milliliters = 1 quart

  3. Common Metric Units • Mass • Metric unit is the gram (g), SI unit is the kilogram (kg) • 1 kg = 2.2 pounds • 454 g = 1 pound • Time • Metric and SI unit is the second (s)

  4. Common Metric Units • Temperature • Indicates how hot or cold an object is • Metric unit is Celsius (C) and SI unit is Kelvin (K) • These will be discussed in more detail in Chapter 2.

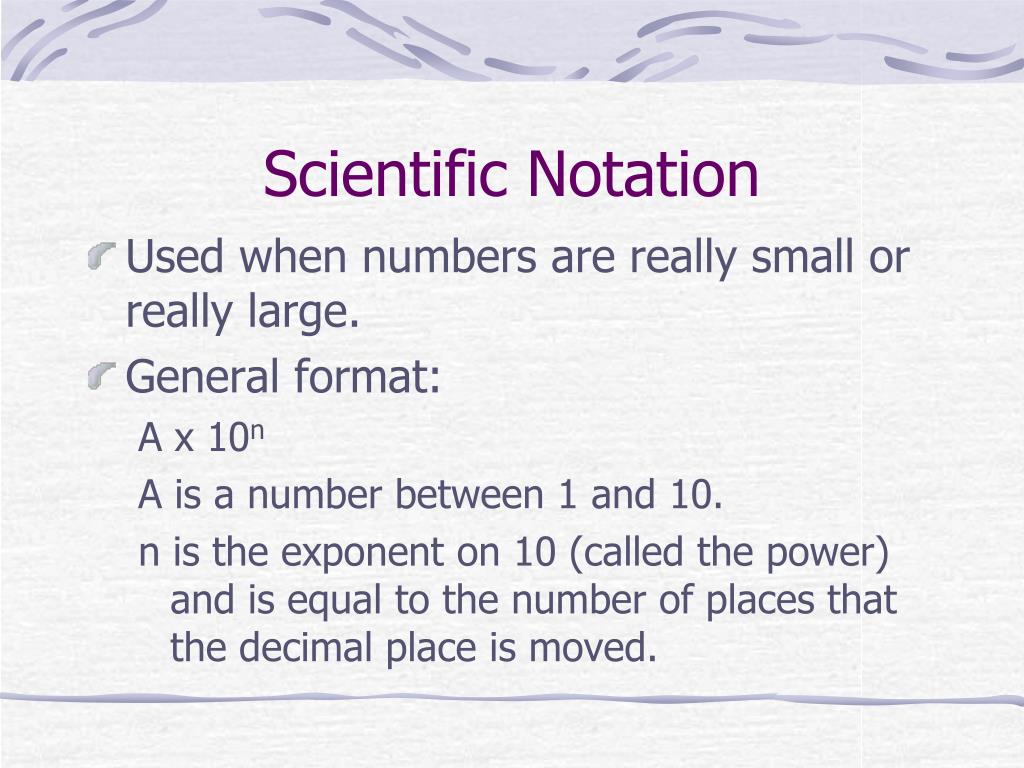

  5. Scientific Notation • Used when numbers are really small or really large. • General format: A x 10n A is a number between 1 and 10. n is the exponent on 10 (called the power) and is equal to the number of places that the decimal place is moved.

  6. Scientific Notation • Examples 0.000058 = 5.8 x 10-5 • The decimal is moved five places to the right, hence the –5 power. Note that small numbers (0< x <1) will always have a negative exponent. 58,000 = 5.8 x 104 • The decimal is moved four places to the left, hence the power of 4 is used. Note that large numbers (>1) will always have a positive exponent.

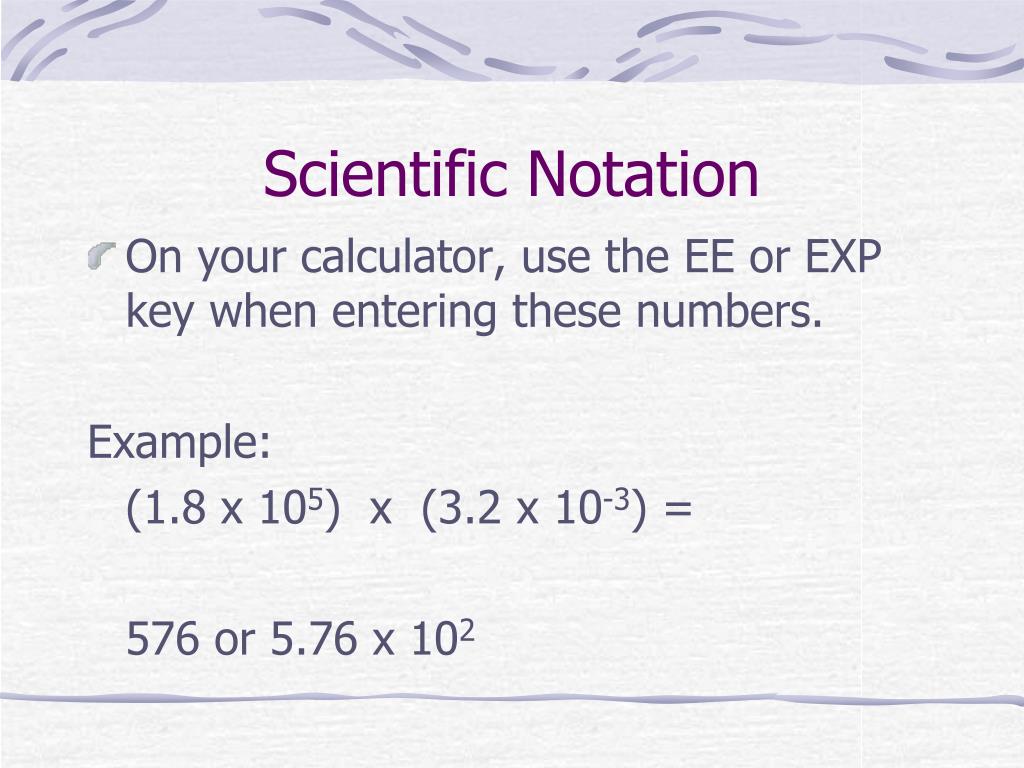

  7. Scientific Notation • On your calculator, use the EE or EXP key when entering these numbers. Example: (1.8 x 105) x (3.2 x 10-3) = 576 or 5.76 x 102

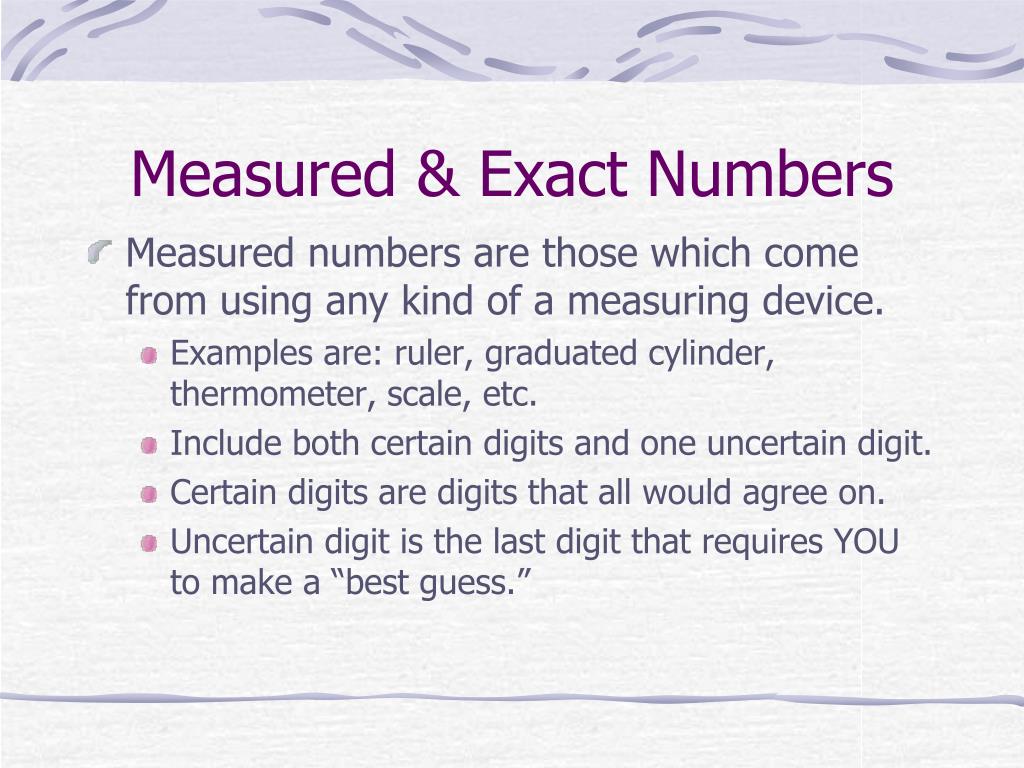

  8. Measured & Exact Numbers • Measured numbers are those which come from using any kind of a measuring device. • Examples are: ruler, graduated cylinder, thermometer, scale, etc. • Include both certain digits and one uncertain digit. • Certain digits are digits that all would agree on. • Uncertain digit is the last digit that requires YOU to make a “best guess.”

  9. Measured & Exact Numbers • “Best Guess” depends on the smallest increments on the measuring device. • A ruler may have markings for every 0.1cm. Your “best guess” might be to 0.05cm or even 0.02cm.

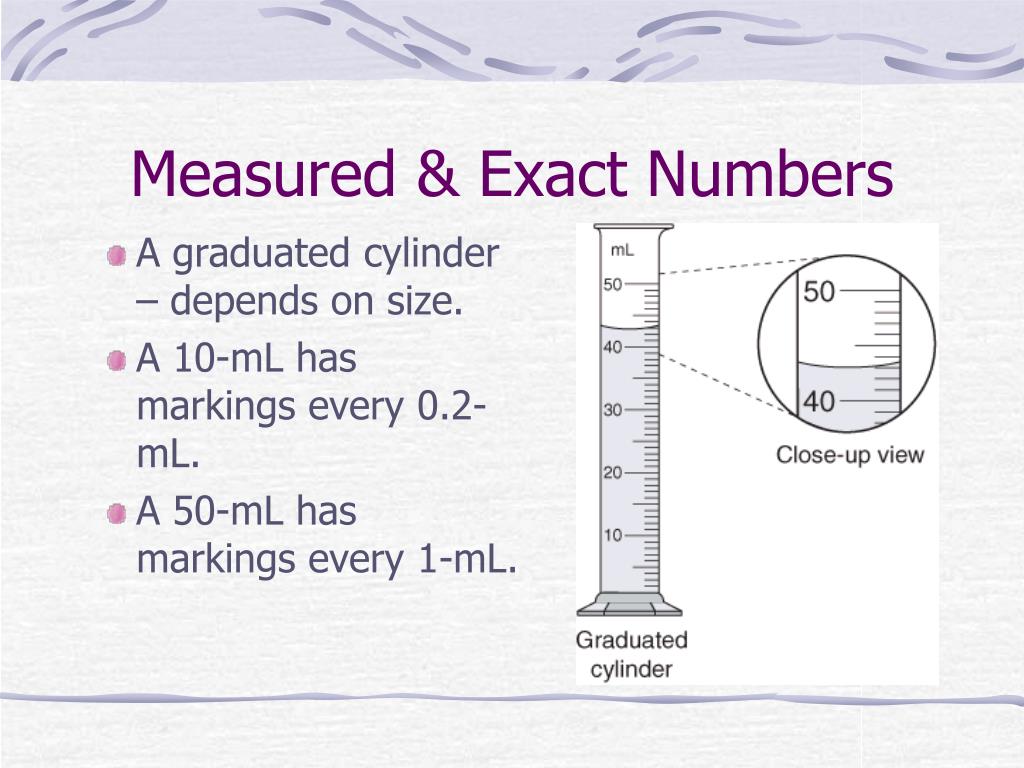

  10. Measured & Exact Numbers • A graduated cylinder – depends on size. • A 10-mL has markings every 0.2-mL. • A 50-mL has markings every 1-mL.

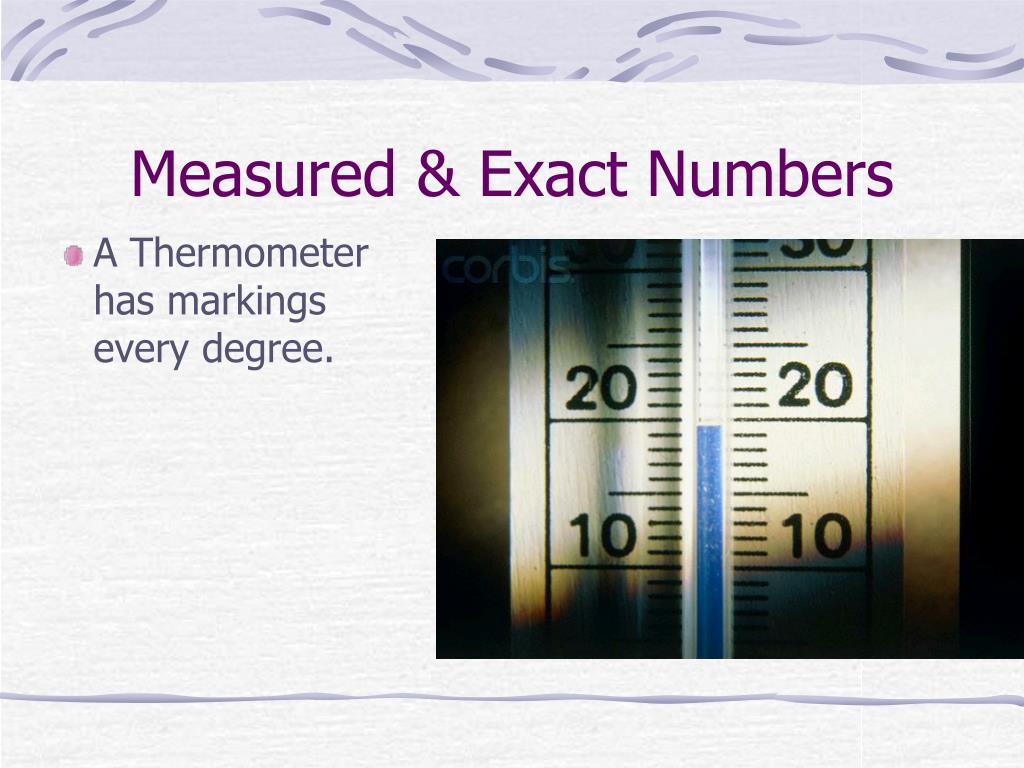

  11. Measured & Exact Numbers • A Thermometer has markings every degree.

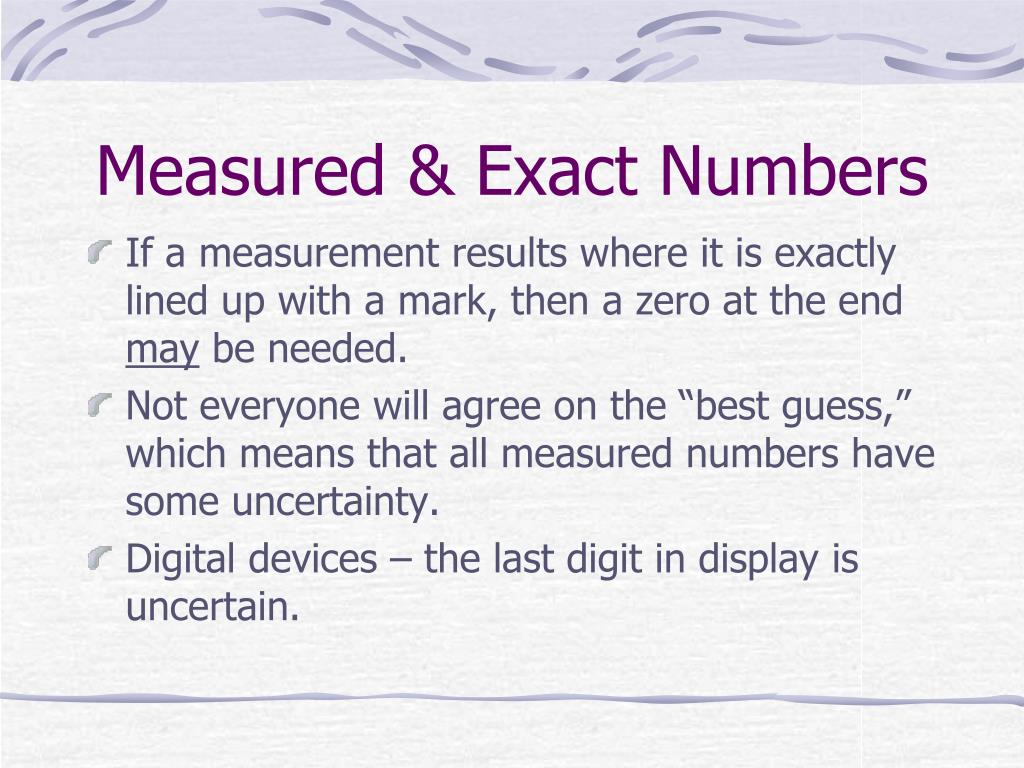

  12. Measured & Exact Numbers • If a measurement results where it is exactly lined up with a mark, then a zero at the end may be needed. • Not everyone will agree on the “best guess,” which means that all measured numbers have some uncertainty. • Digital devices – the last digit in display is uncertain.

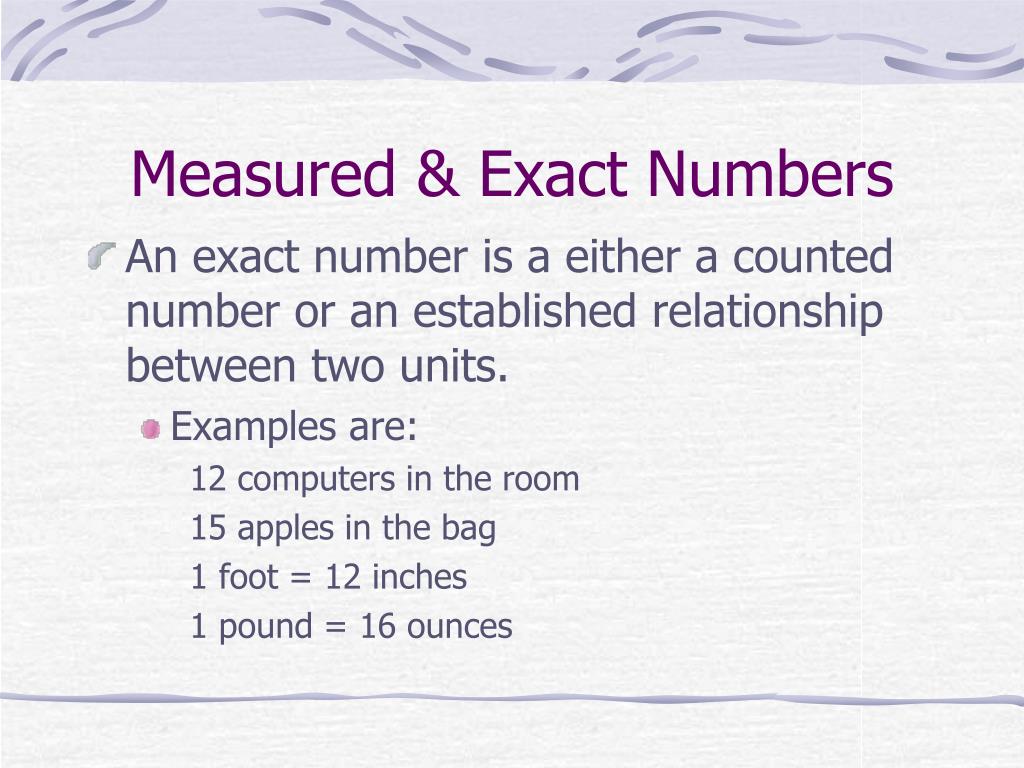

  13. Measured & Exact Numbers • An exact number is a either a counted number or an established relationship between two units. • Examples are: 12 computers in the room 15 apples in the bag 1 foot = 12 inches 1 pound = 16 ounces

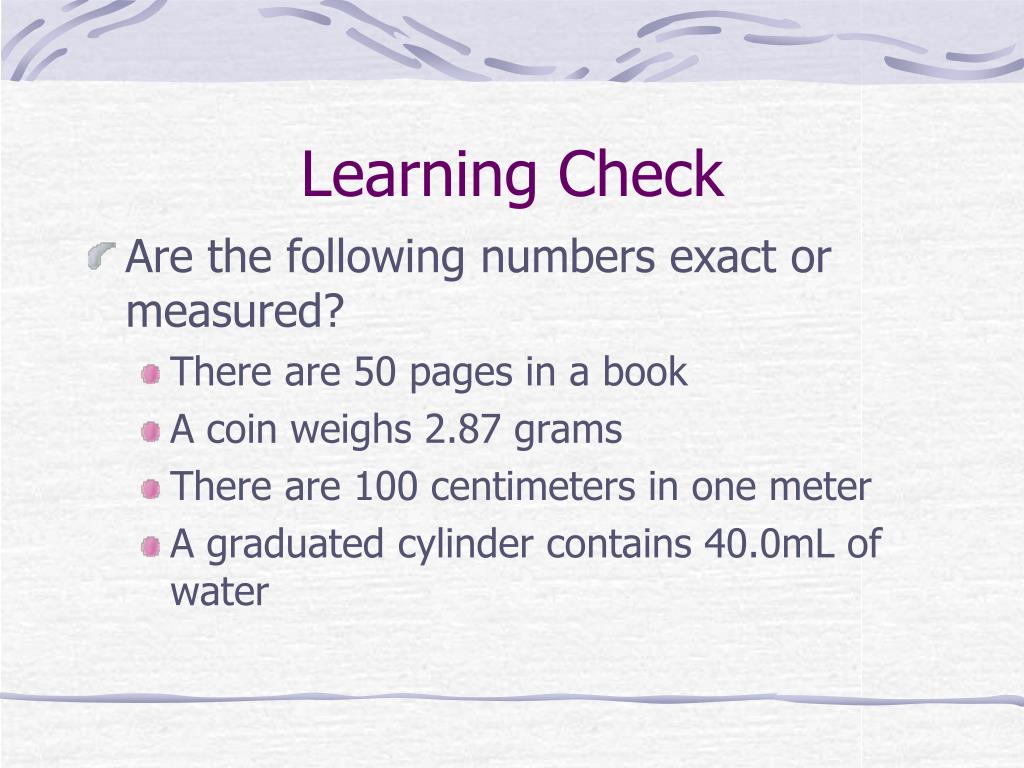

  14. Learning Check • Are the following numbers exact or measured? • There are 50 pages in a book • A coin weighs 2.87 grams • There are 100 centimeters in one meter • A graduated cylinder contains 40.0mL of water

  15. Significant Figures • Goal: Report answers from calculations by rounding the answer to the correct number of significant figures. • Accuracy refers to measurement(s) that are close to the true (accepted) measurement. • Precision refers to the agreement of values obtained while repeating the same measurement. • In the lab, we desire both of these.

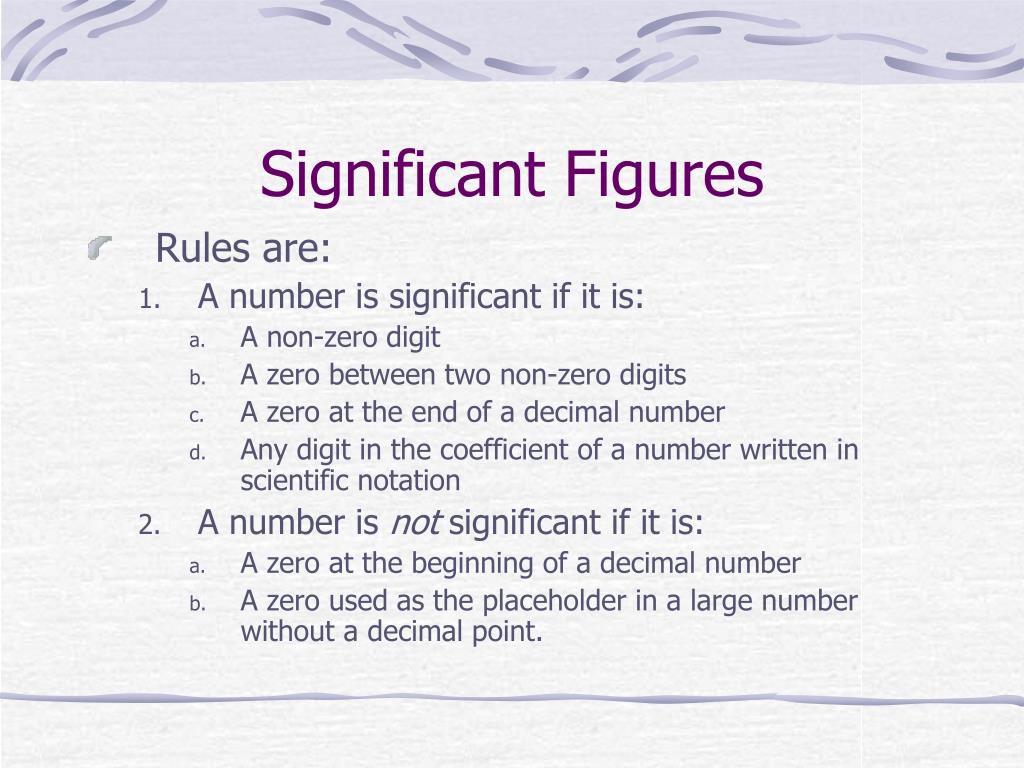

  16. Significant Figures • Rules are: • A number is significant if it is: • A non-zero digit • A zero between two non-zero digits • A zero at the end of a decimal number • Any digit in the coefficient of a number written in scientific notation • A number is not significant if it is: • A zero at the beginning of a decimal number • A zero used as the placeholder in a large number without a decimal point.

  17. Learning Check • How many significant digits do each of the following measured numbers have? 1.02 0.0045 91,000 2.50 x 10-8 0.0150 250.

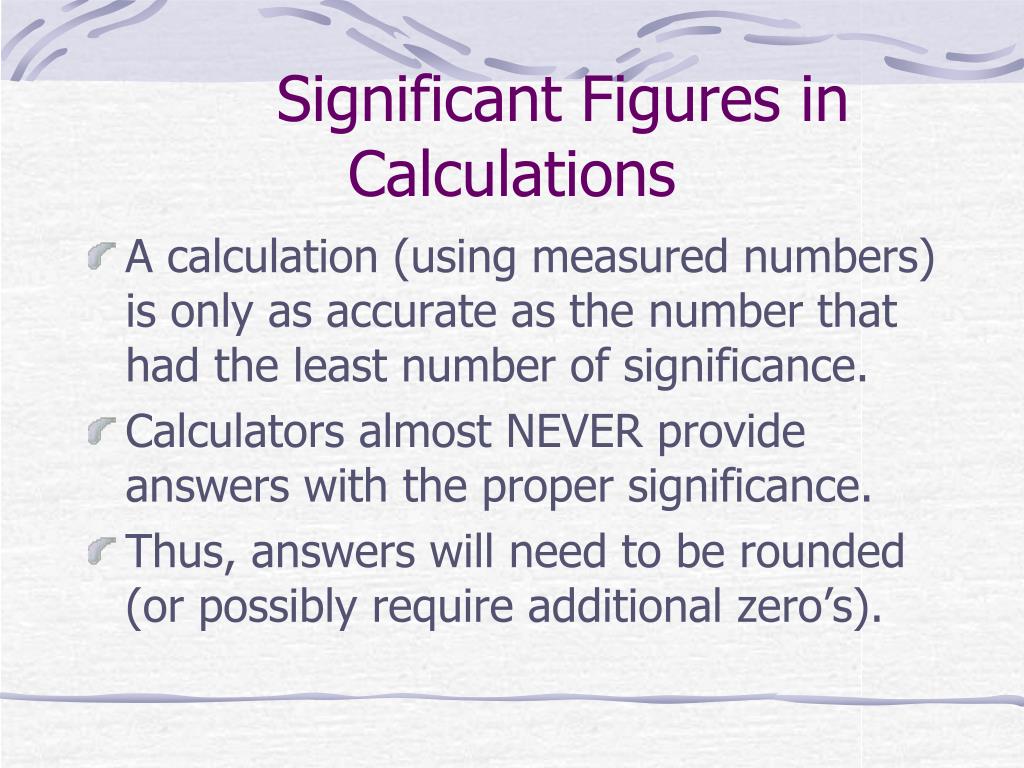

  18. Significant Figures in Calculations • A calculation (using measured numbers) is only as accurate as the number that had the least number of significance. • Calculators almost NEVER provide answers with the proper significance. • Thus, answers will need to be rounded (or possibly require additional zero’s).

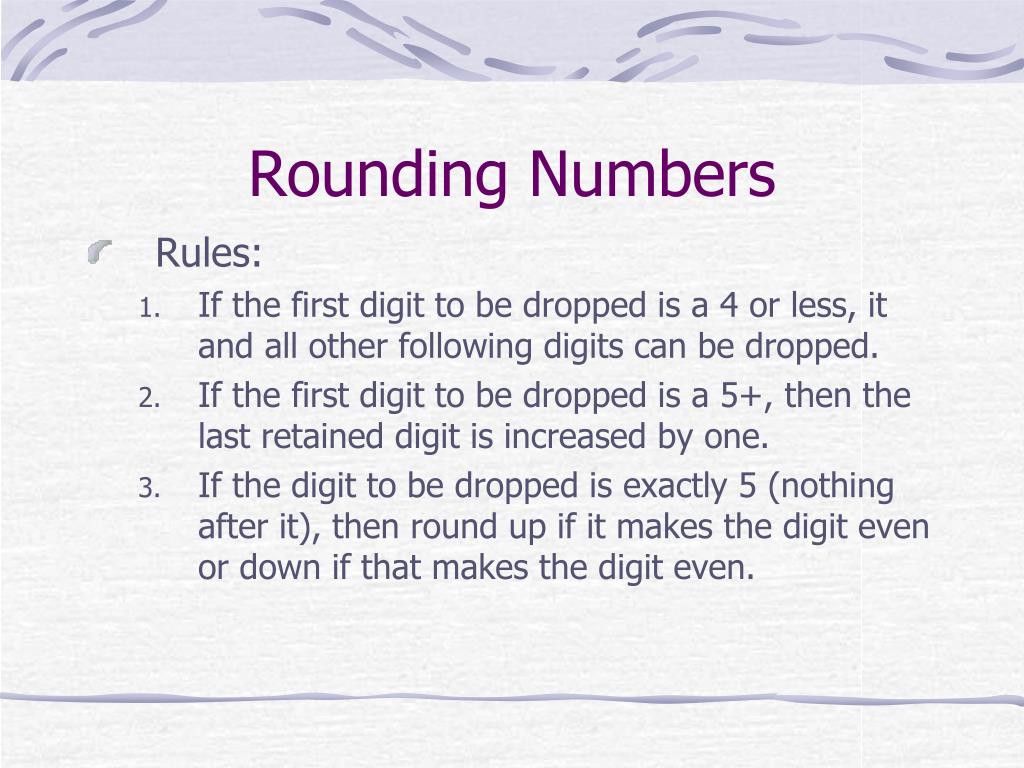

  19. Rounding Numbers • Rules: • If the first digit to be dropped is a 4 or less, it and all other following digits can be dropped. • If the first digit to be dropped is a 5+, then the last retained digit is increased by one. • If the digit to be dropped is exactly 5 (nothing after it), then round up if it makes the digit even or down if that makes the digit even.

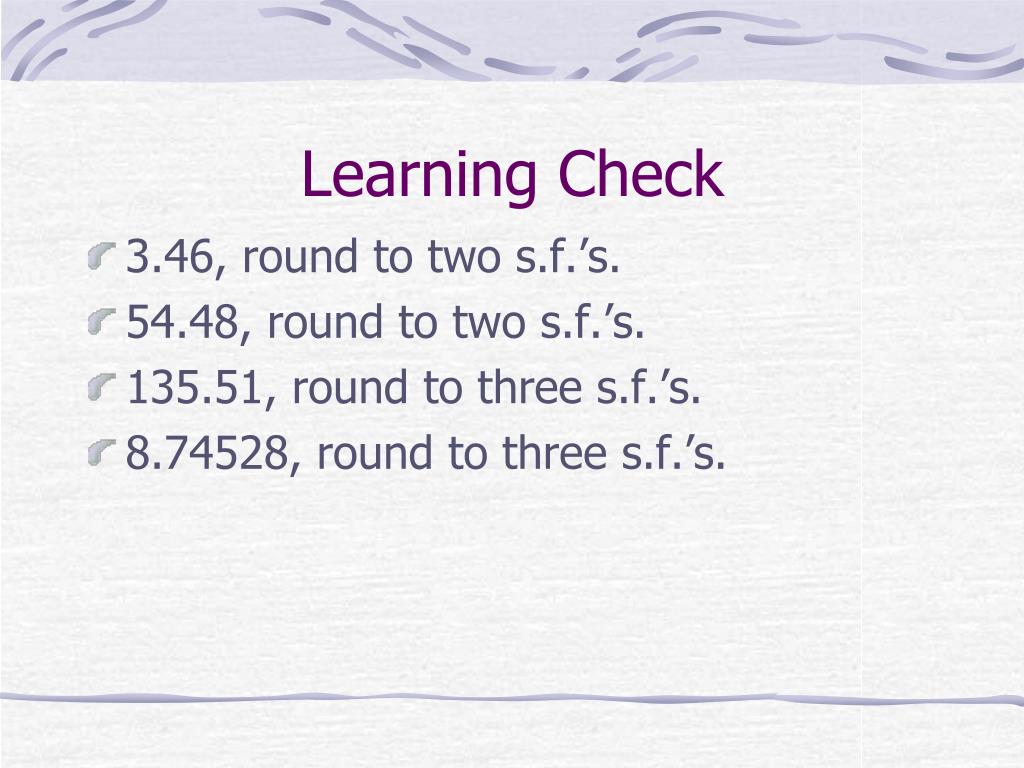

  20. Learning Check • 3.46, round to two s.f.’s. • 54.48, round to two s.f.’s. • 135.51, round to three s.f.’s. • 8.74528, round to three s.f.’s.

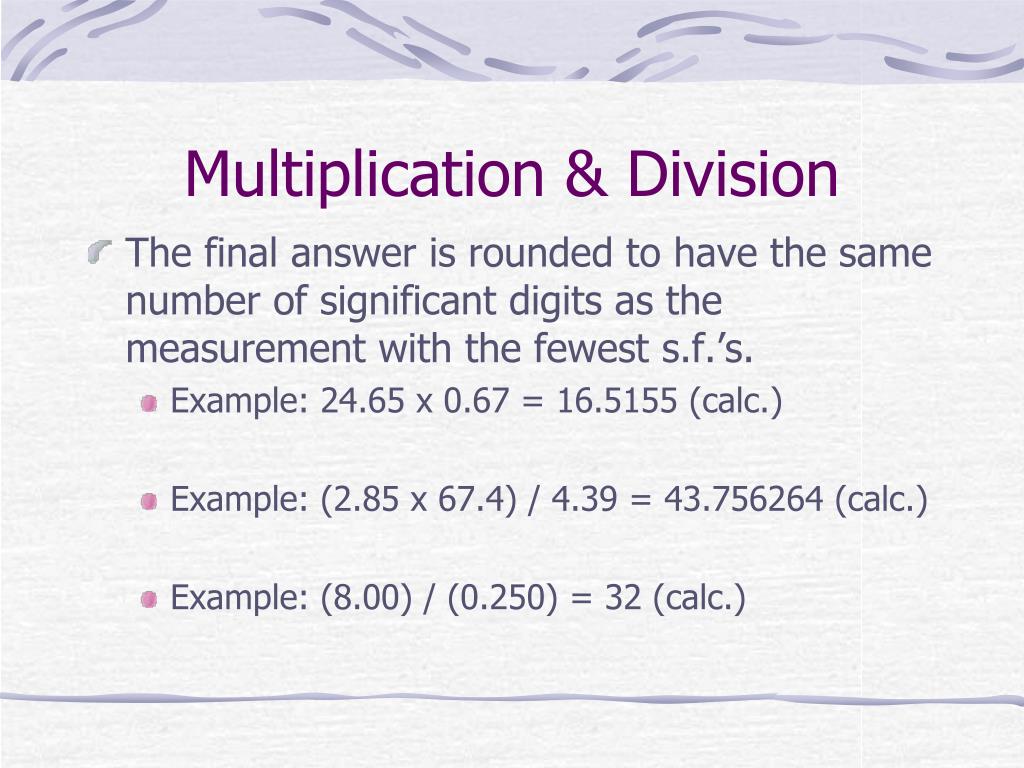

  21. Multiplication & Division • The final answer is rounded to have the same number of significant digits as the measurement with the fewest s.f.’s. • Example: 24.65 x 0.67 = 16.5155 (calc.) • Example: (2.85 x 67.4) / 4.39 = 43.756264 (calc.) • Example: (8.00) / (0.250) = 32 (calc.)

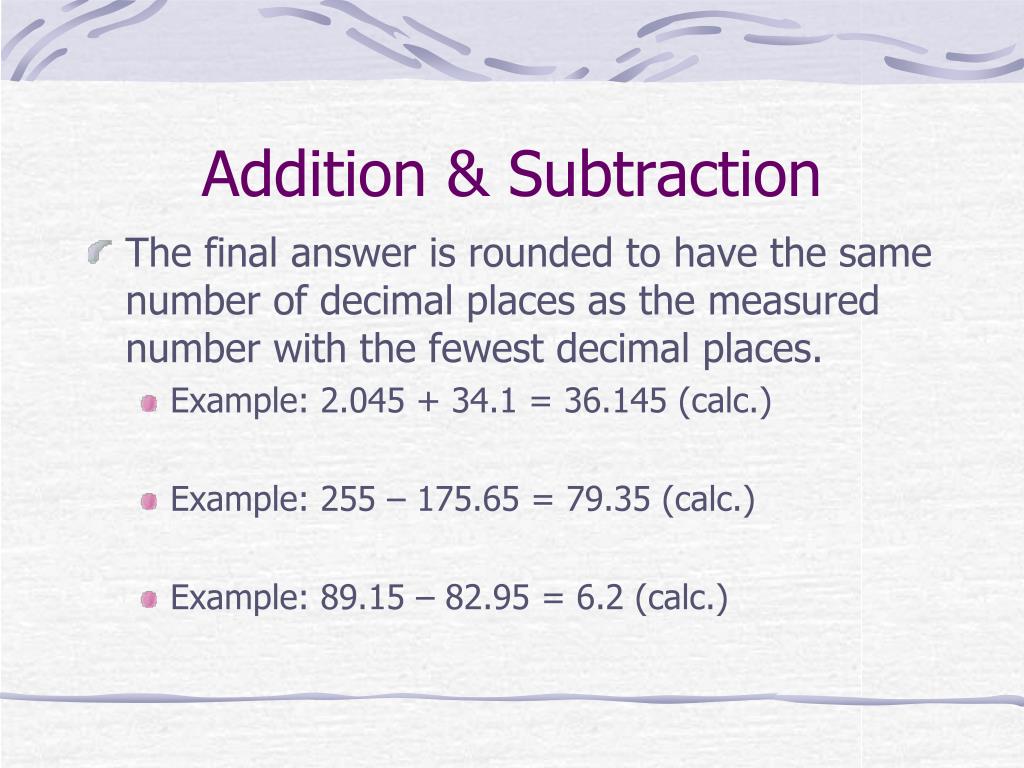

  22. Addition & Subtraction • The final answer is rounded to have the same number of decimal places as the measured number with the fewest decimal places. • Example: 2.045 + 34.1 = 36.145 (calc.) • Example: 255 – 175.65 = 79.35 (calc.) • Example: 89.15 – 82.95 = 6.2 (calc.)

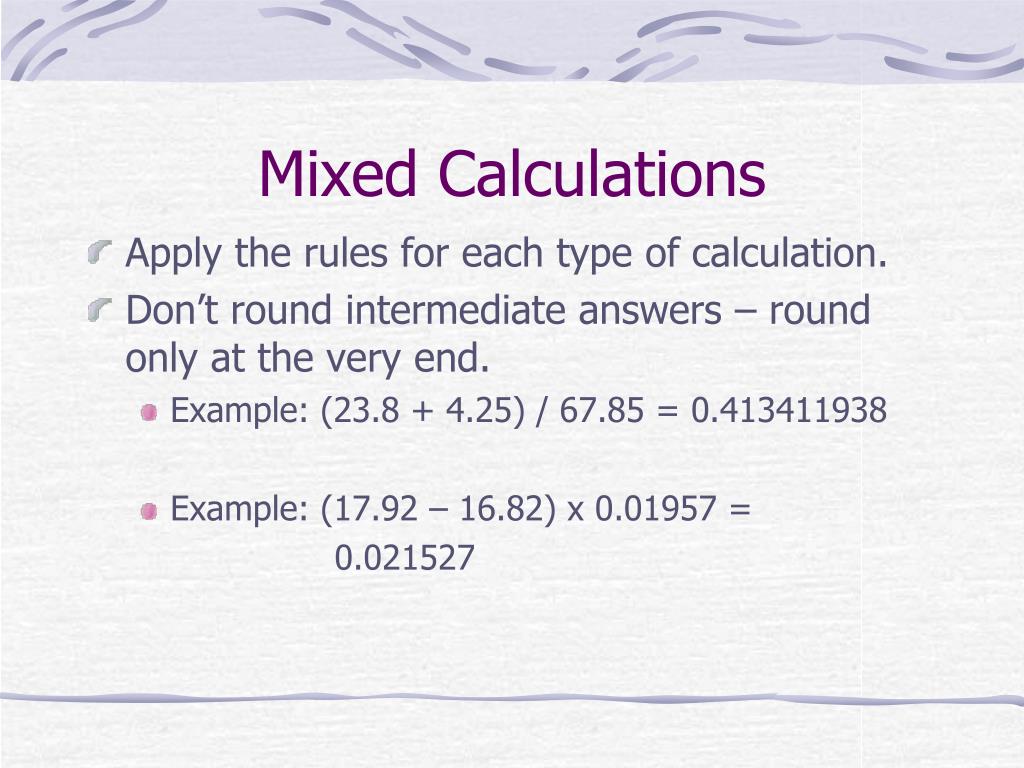

  23. Mixed Calculations • Apply the rules for each type of calculation. • Don’t round intermediate answers – round only at the very end. • Example: (23.8 + 4.25) / 67.85 = 0.413411938 • Example: (17.92 – 16.82) x 0.01957 = 0.021527

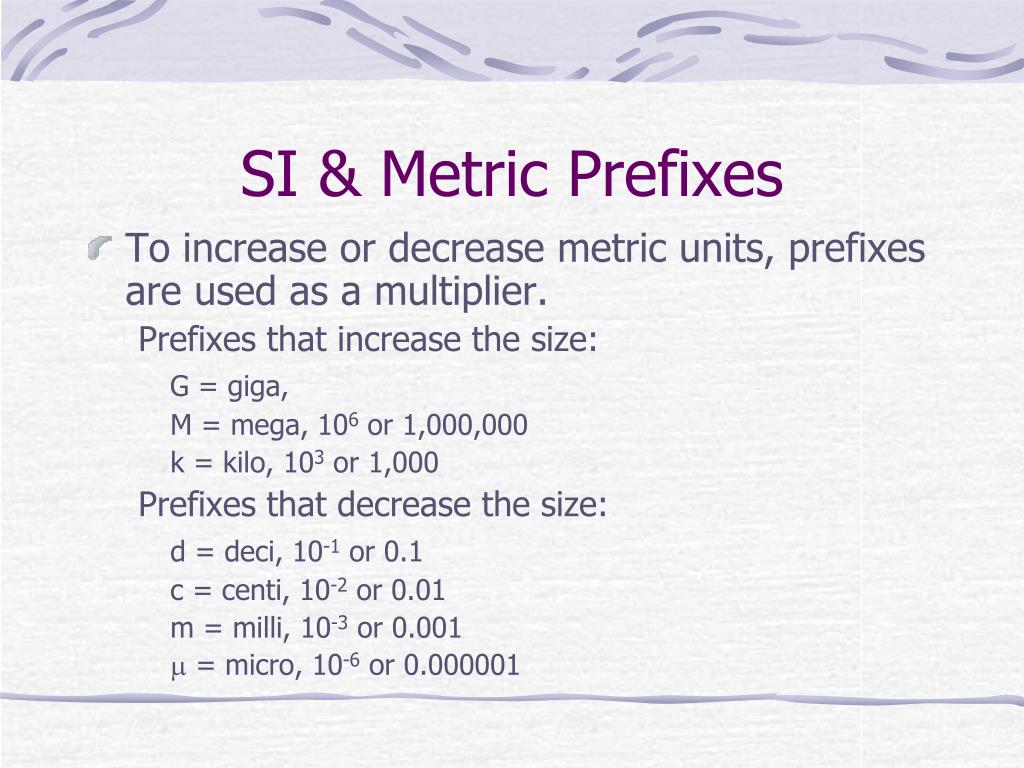

  24. SI & Metric Prefixes • To increase or decrease metric units, prefixes are used as a multiplier. Prefixes that increase the size: G = giga, M = mega, 106 or 1,000,000 k = kilo, 103 or 1,000 Prefixes that decrease the size: d = deci, 10-1 or 0.1 c = centi, 10-2 or 0.01 m = milli, 10-3 or 0.001 m = micro, 10-6 or 0.000001

  25. Some equalities • 1 m = 100 cm • 1 kg = 1000 g • 1 L = 1,000,000 mL • 1000 m = 1 km • 10 dL = 1 L • Note: Volume – a milliliter is equivalent to a cube that measures 1 cm x 1cm x 1cm or 1 cm3 (also referred to as a cubic centimeter – cc).

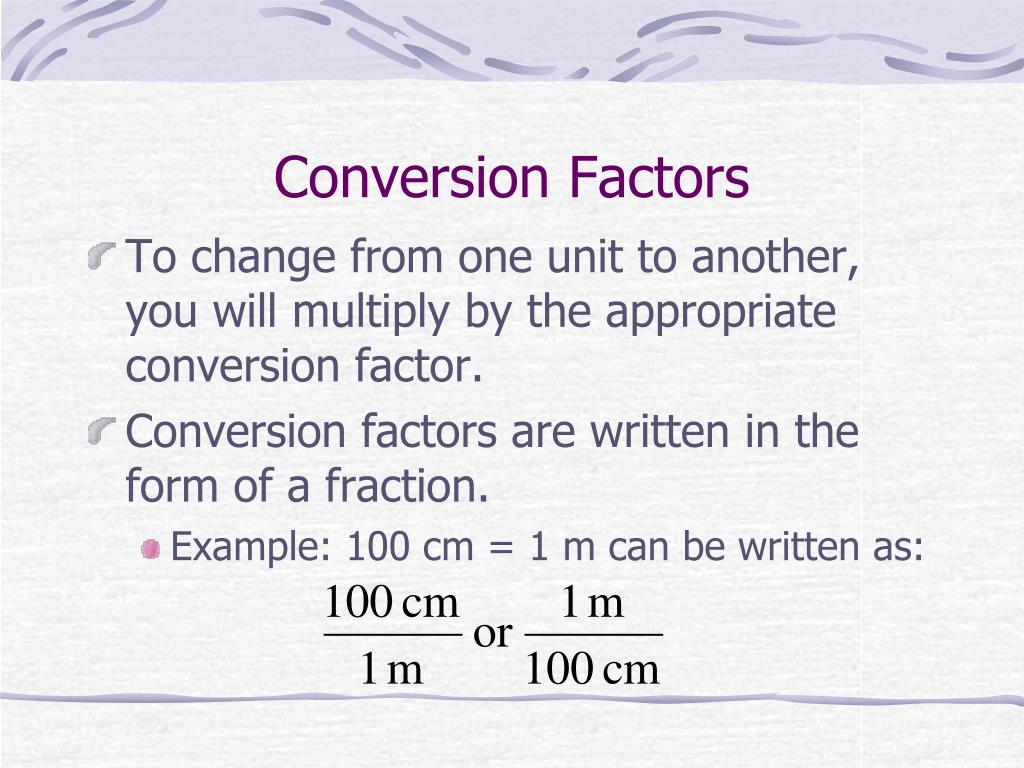

  26. Conversion Factors • To change from one unit to another, you will multiply by the appropriate conversion factor. • Conversion factors are written in the form of a fraction. • Example: 100 cm = 1 m can be written as:

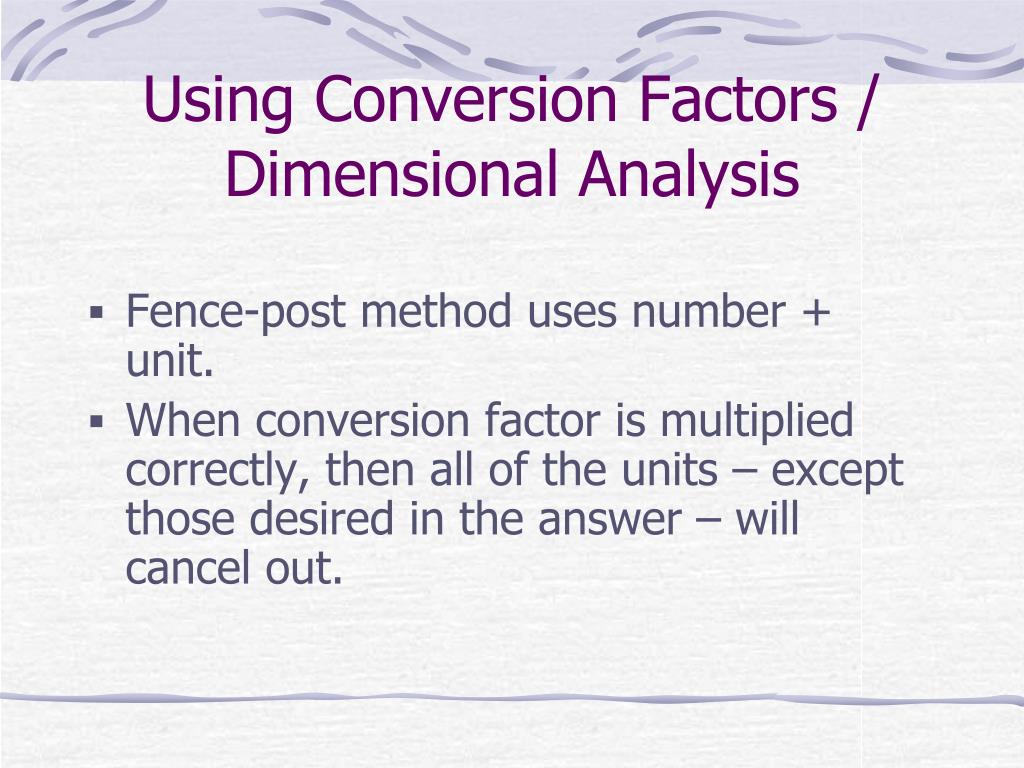

  27. Using Conversion Factors / Dimensional Analysis • Fence-post method uses number + unit. • When conversion factor is multiplied correctly, then all of the units – except those desired in the answer – will cancel out.

  28. Dimensional Analysis • Ex) Convert 35 inches to centimeters • Ex) Convert 160 pounds to kilograms

  29. Dimensional Analysis • For problems with more than one step, they can be done either as a series of steps or as one continuous problem. • Note that you will only round answers at the very END!

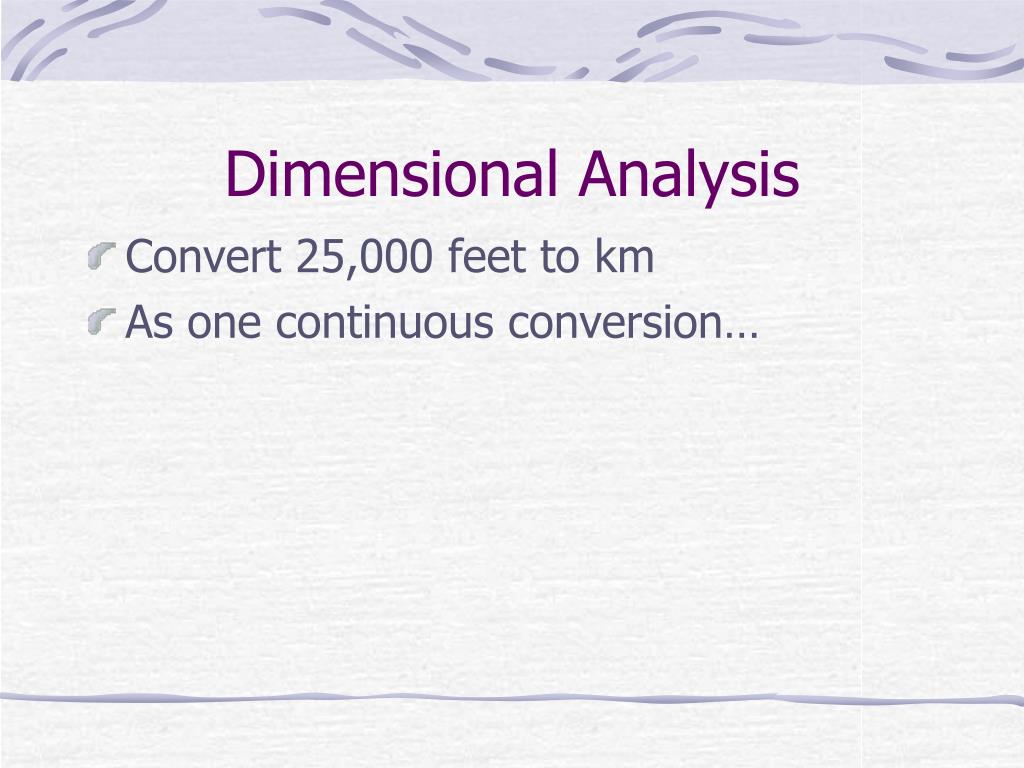

  30. Dimensional Analysis • Convert 25,000 feet to km • As one continuous conversion…

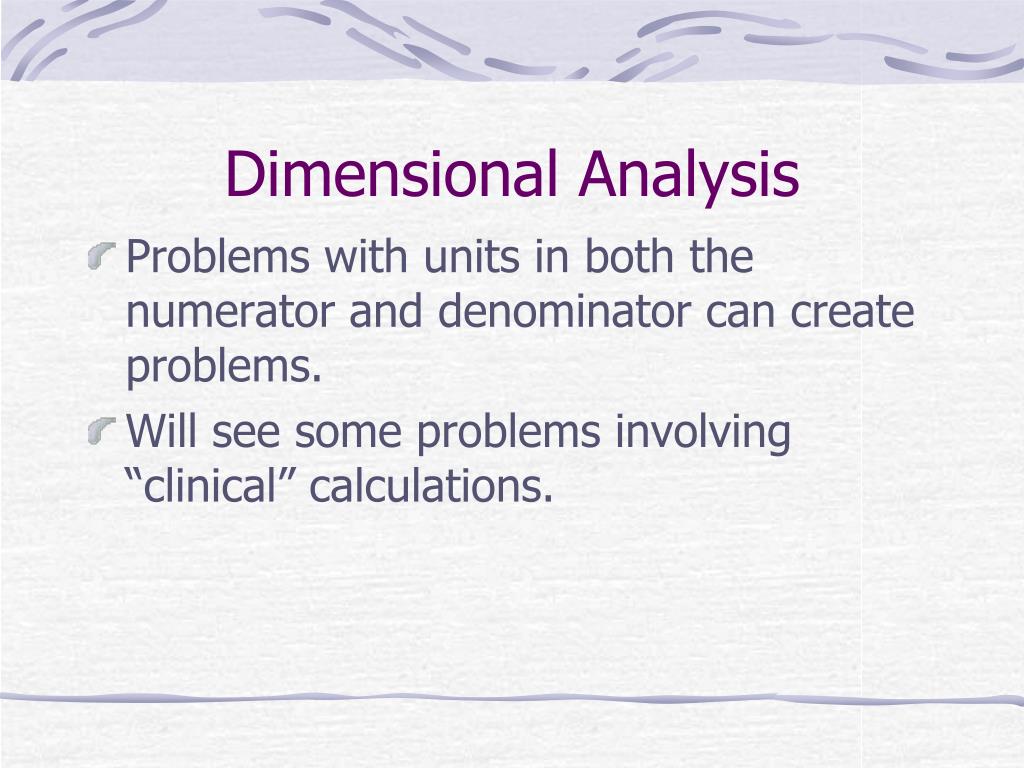

  31. Dimensional Analysis • Problems with units in both the numerator and denominator can create problems. • Will see some problems involving “clinical” calculations.

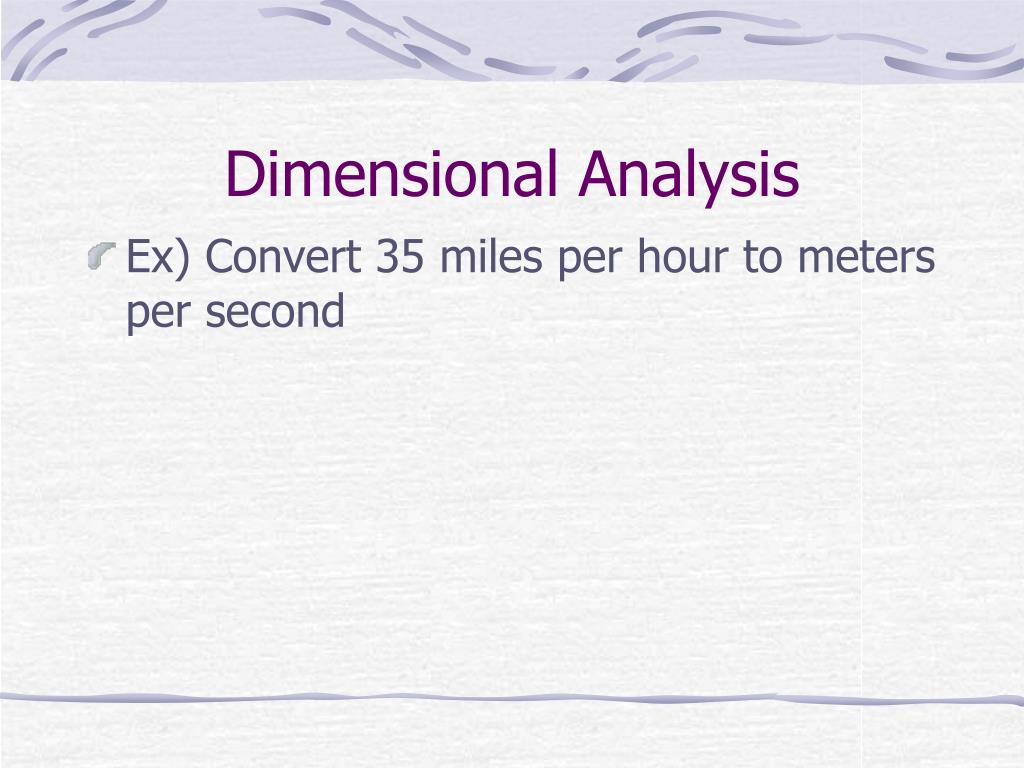

  32. Dimensional Analysis • Ex) Convert 35 miles per hour to meters per second

  33. Dimensional Analysis • Ex) A certain medicine requires that 250mg per kilogram of body mass is to be given. What dose should be given to a child that weighs 48lbs?

  34. Dimensional Analysis • Area and volume conversions can also be easily missed. • Ex) A concrete footing measuring 3.0 feet by 2.0 feet by 1.5 feet is poured. What volume of concrete is needed, in cm3? • Note: 1 ft3 12 in3, • Rather: 1 ft3 = (12)3 in3 = 1728 in3 !

  35. Dimensional Analysis • Volume of concrete = 3.0ft x 2.0ft x 1.5ft = 9.0ft3 • Alternatively, EACH dimension could be converted to cm first, then multiplied out to yield the volume.

  36. Density • The density of an object is equal to its mass divided by its volume. • You will be asked to solve for any one of the D, m, or V’s.

  37. Density Problems • Ex) An object has a mass of 35.0g and occupies 5.2mL. What is its density?

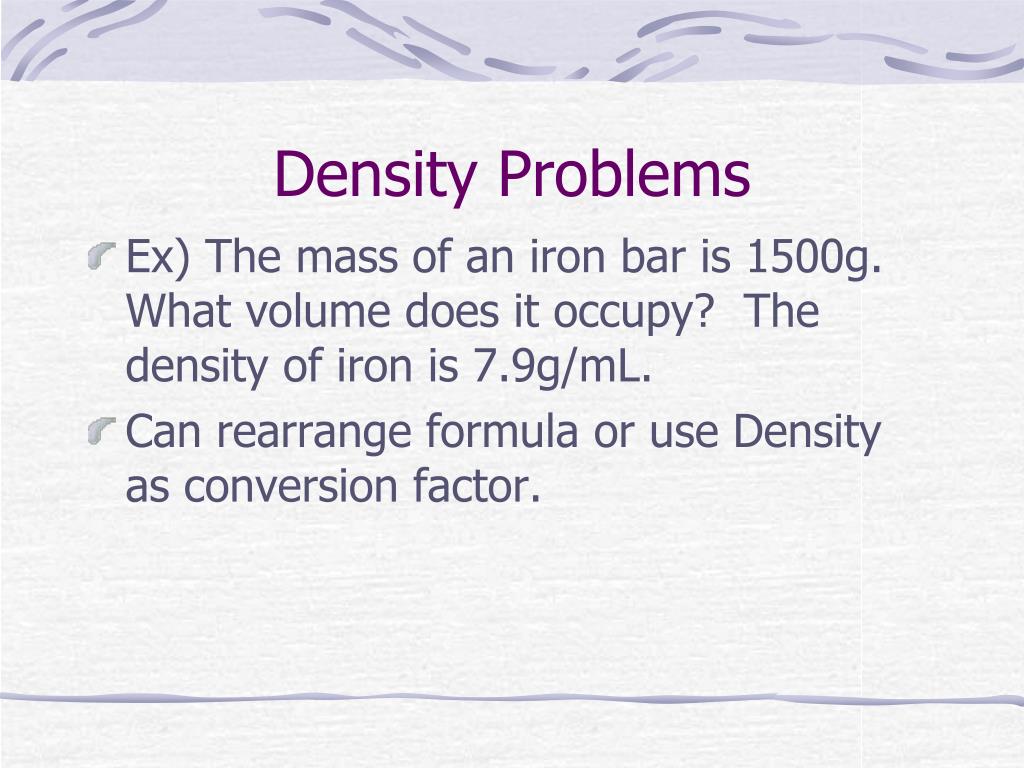

  38. Density Problems • Ex) The mass of an iron bar is 1500g. What volume does it occupy? The density of iron is 7.9g/mL. • Can rearrange formula or use Density as conversion factor.
