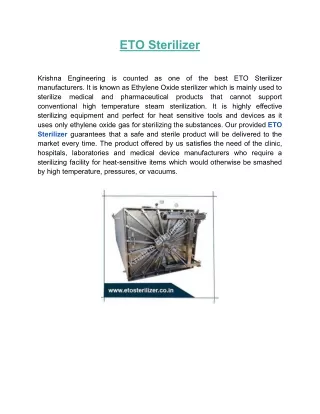

  1. ETO Sterilizer Krishna Engineering is counted as one of the best ETO Sterilizer manufacturers. It is known as Ethylene Oxide sterilizer which is mainly used to sterilize medical and pharmaceutical conventional high temperature steam sterilization. It is highly effective sterilizing equipment and perfect for heat sensitive tools and devices as it uses only ethylene oxide gas for sterilizing the substances. Our provided ETO Sterilizer guarantees that a safe and sterile product will be delivered to the market every time. The product offered by us satisfies the need of the clinic, hospitals, laboratories and medical device manufacturers who require a sterilizing facility for heat-sensitive items which would otherwise be smashed by high temperature, pressures, or vacuums. products that cannot support

  2. ETO Sterilizer Details ETO STERILIZER - 2x2x4 ETO sterilizer is known as Ethylene Oxide sterilizer which is mainly used to sterilize medical and pharmaceutical products that cannot support conventional high temperature steam sterilization. Model in Feet 2x2x4 volumetric capacity in m3 0.45 m3

  3. Working pressure 1 to 1.5 kg/cm2 Working Temperature 55 to 60c Vacuum Pump 1 HP Water Circulation Pump 0.5 hp Electric Heaters 3 KW

  4. ETO STERILIZER - 3x3x6 ETO Sterilizer is highly effective sterilizing equipment and perfect for heat sensitive tools and devices as it uses only ethylene oxide gas for sterilizing the substances. Model in Feet 3x3x6 volumetric capacity in m3 1.46 m3 Working pressure 1 to 1.5 kg/cm2 Working Temperature 55 to 60c 1.5 HP Vacuum Pump 1.5 HP Water Circulation Pump 0.5 hp

  5. Electric Heaters 6 KW ETO STERILIZER - 4x4x6 Our provided ETO Sterilization guarantees that a safe and sterile product will be delivered to the market every time. Model in Feet 4x4x6 volumetric capacity in m3 2.72 m3 Working pressure 1.0 to1.5 kg/cm2

  6. Working Temperature 55 to 60c Vacuum Pump 1.5 HP Water Circulation Pump 0.5 hp Electric Heaters 6 KW

  7. ETO STERILIZER - 4x4x8 The product offered by us satisfies the need of the clinic, hospitals, laboratories and medical device manufacturers who require a sterilizing facility for heat-sensitive items which would otherwise be smashed by high temperature, pressures, or vacuums. Model in Feet 4x4x8 volumetric capacity in m3 3.60 m3 Working pressure 1.0 to1.5 kg/cm2 Working Temperature 55 to 60c Vacuum Pump 2 HP Water Circulation Pump 1 HP

  8. Electric Heaters 9 KW ETO STERILIZER - 5x5x10 Ethylene oxide sterilization is a chemical procedure comprising of four essential factors such as gas fixation, stickiness, temperature and time etc. Model in Feet 5x5x10

  9. volumetric capacity in m3 6.97 m3 Working pressure 1.0 to1.5 kg/cm2 Working Temperature 55 to 60c Vacuum Pump 3 HP Water Circulation Pump 1 HP Electric Heaters 12 KW

  10. ETO STERILIZER - 5x5x15 EO is alkylation operators that perturb the genetic material of microorganisms, which keeps them from cell generation. Model in Feet 5x5x15 volumetric capacity in m3 11.25 m3

  11. Working pressure 1.0 to1.5 kg/cm2 Working Temperature 55 to 60c Vacuum Pump 3 HP Water Circulation Pump 1 HP Electric Heaters 12 KW

  12. ETO STERILIZER - 6x6x15 This is for the most part used to clean medicinal, food and pharmaceutical items that can’t bolster regular high temperature steam disinfection. Model in Feet 6x6x15 volumetric capacity in m3 16.2 m3 Working pressure 1.0 to1.5 kg/cm2 Working Temperature 55 to 60c Vacuum Pump 5 HP Water Circulation Pump 1.5 HP

  13. Electric Heaters 18 KW ETO STERILIZER - 6x6x20 ETO Sterilizer is primarily occupied in the production as well as exporting of a broad variety of sterilizing equipments such as ETO Sterilizer, Steam Sterilizer, Ribbon Blenders, Tray Dryer, Vacuum Dryer etc.

  14. Model in Feet 6x6x20 volumetric capacity in m3 19.44 m3 Working pressure 1.0 to1.5 kg/cm2 Working Temperature 55 to 60c Vacuum Pump 5 HP Water Circulation Pump 1.5 HP Electric Heaters 27 KW

  15. ETO STERILIZER - 7x7x20 We proudly state that, we follow the saying make in India and we are the firm of indulged in making the great range of ETO sterilizer in India with the usages of Indian machineries & materials. Model in Feet 7x7x20 volumetric capacity in m3 26.46 m3

  16. Working pressure 1.0 to1.5 kg/cm2 Working Temperature 55 to 60c Vacuum Pump 7.5 HP Water Circulation Pump 2 HP Electric Heaters 36 KW

  17. ETO STERILIZER - 7x7x30 As our ETO Sterilization is perfect in destroying all contaminants, viruses, bacteria’s thoroughly so, our sterilizers are immensely demanded over the various business sectors such as Medical industry, Food Spices industry, Hospital, Chemical industry, Pharmaceutical & Cosmetic industries etc. Model in Feet 7x7x30 volumetric capacity in m3 44.1 m3 Working pressure 1.0 to1.5 kg/cm2 Working Temperature 55 to 60c Vacuum Pump 10 HP

  18. Water Circulation Pump 2 HP Electric Heaters 54 KW ETO Sterilizer India – Using ethylene oxide gas for sterilization (usually between 37 and 63 °C) reduces the level of infectious agents using low-temperature sterilization ETO Sterilizer Specification Application Industrial Type of Sterilizer Ethylene Oxide Sterilizer Brand Krishna Engineering Warranty 1 Year In Electrical Part Volumetric Capacity 3.60 m3 Working Temperature 55 to 60 Degreec Vacuum Pump Power 2 HP

  19. Water Circulation Pump Power 1 HP Electric Heaters 9 kW Minimum Order Quantity 1 Chamber Dimension 4 x 4 x 8 Feet Automation Grade Fully Automatic Working Pressure 1.0 to 1.5 kg/cm2 Features of ETO Sterilization ● Single or double door With Sliding or Hinged door options to suit client specific requirements. ● Dimple steam Jacketed for better Uniformity of the heat Distribution. (Technology for fast Sterilization cycle and low cost operating) ● Gas evaporation system is provided to ensure gaseous sterile even at low temperature ● Simple and safe to operate ● Does not need skilled personnel for its operations ● Operates on domestic power supply only ● Extremely low electrical consumption
