Manufacturer of Butterfly Valve - Cast Steel Butterfly Valve, Electric and TEFLON/ PTFE Lined Butterfly Valve offered by Controtek Global, Ahmedabad, India.<br>CONTROTEK Butterfly Valves are designed for longer life and trouble free performance. While integrally molded sleeve ensures perfect resistance against friction between the disc and the sleeve, replaceable Sleeve ensures replacement of it during maintenance and re-use of the Body.

pdfking
Download Presentation

Butterfly valves

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

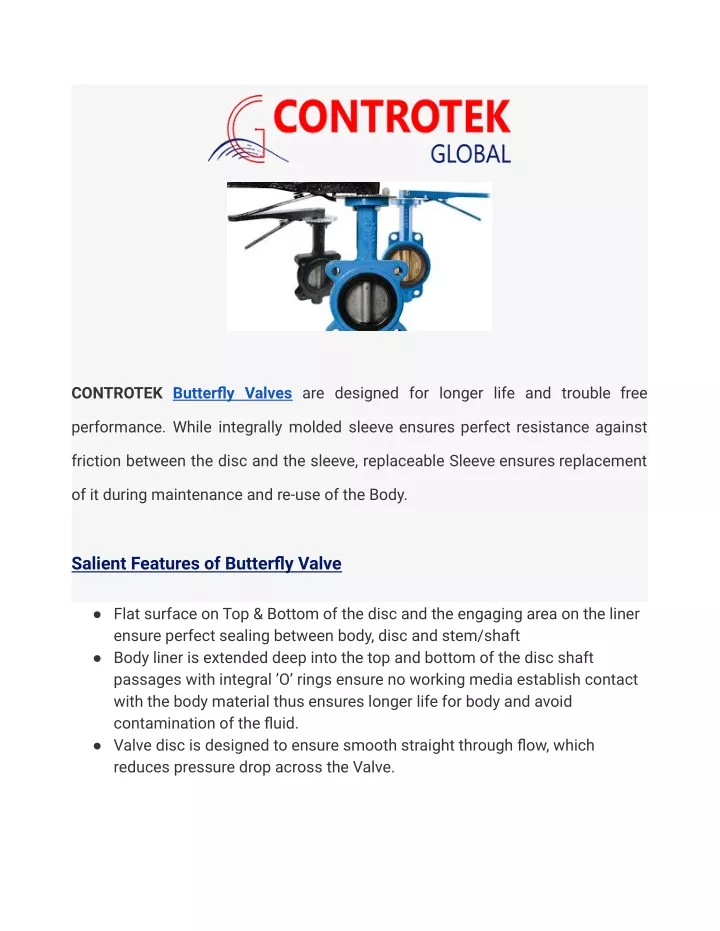

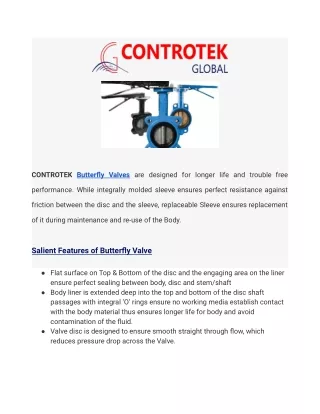

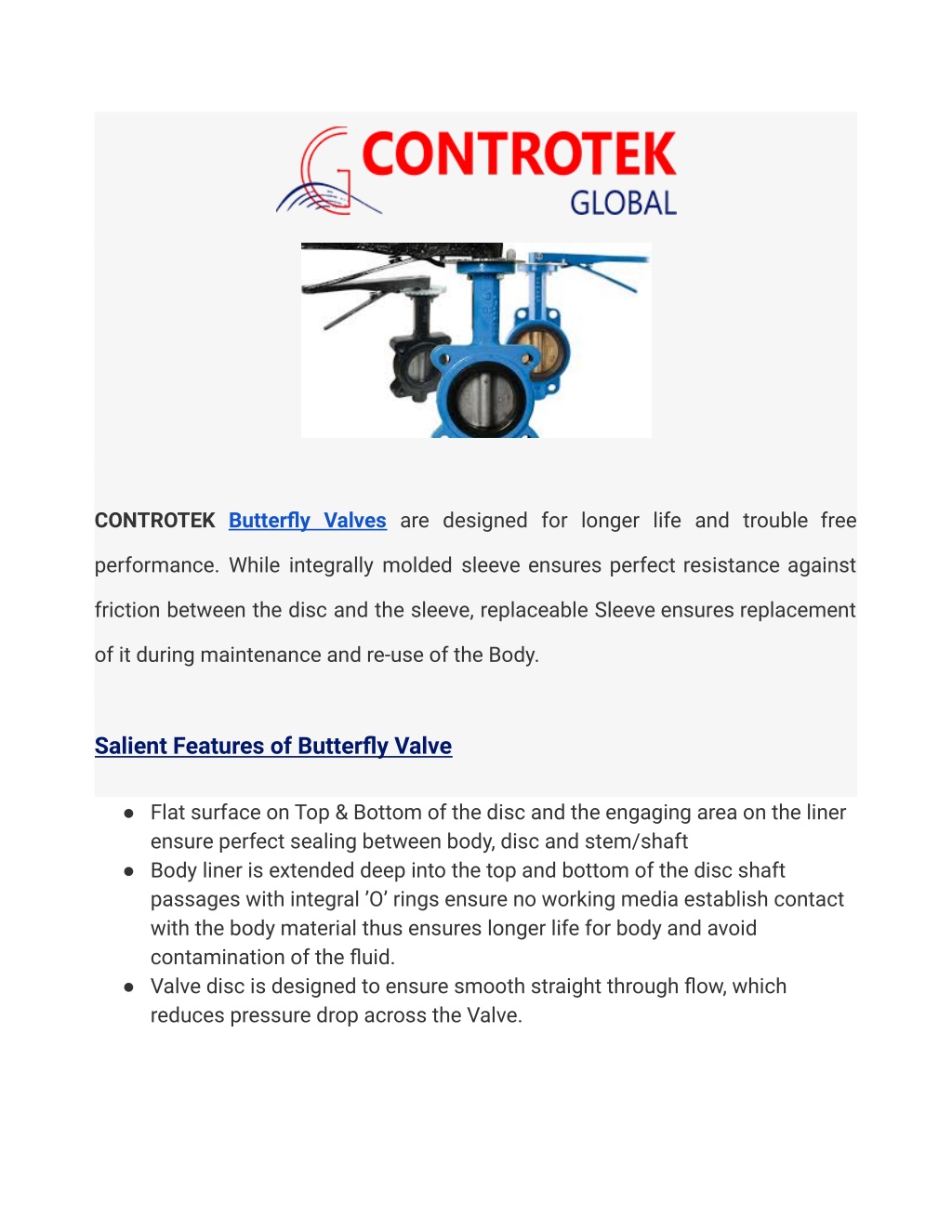

  1. CONTROTEK Butterfly Valves are designed for longer life and trouble free performance. While integrally molded sleeve ensures perfect resistance against friction between the disc and the sleeve, replaceable Sleeve ensures replacement of it during maintenance and re-use of the Body. Salient Features of Butterfly Valve ● Flat surface on Top & Bottom of the disc and the engaging area on the liner ensure perfect sealing between body, disc and stem/shaft ● Body liner is extended deep into the top and bottom of the disc shaft passages with integral ’O’ rings ensure no working media establish contact with the body material thus ensures longer life for body and avoid contamination of the fluid. ● Valve disc is designed to ensure smooth straight through flow, which reduces pressure drop across the Valve.

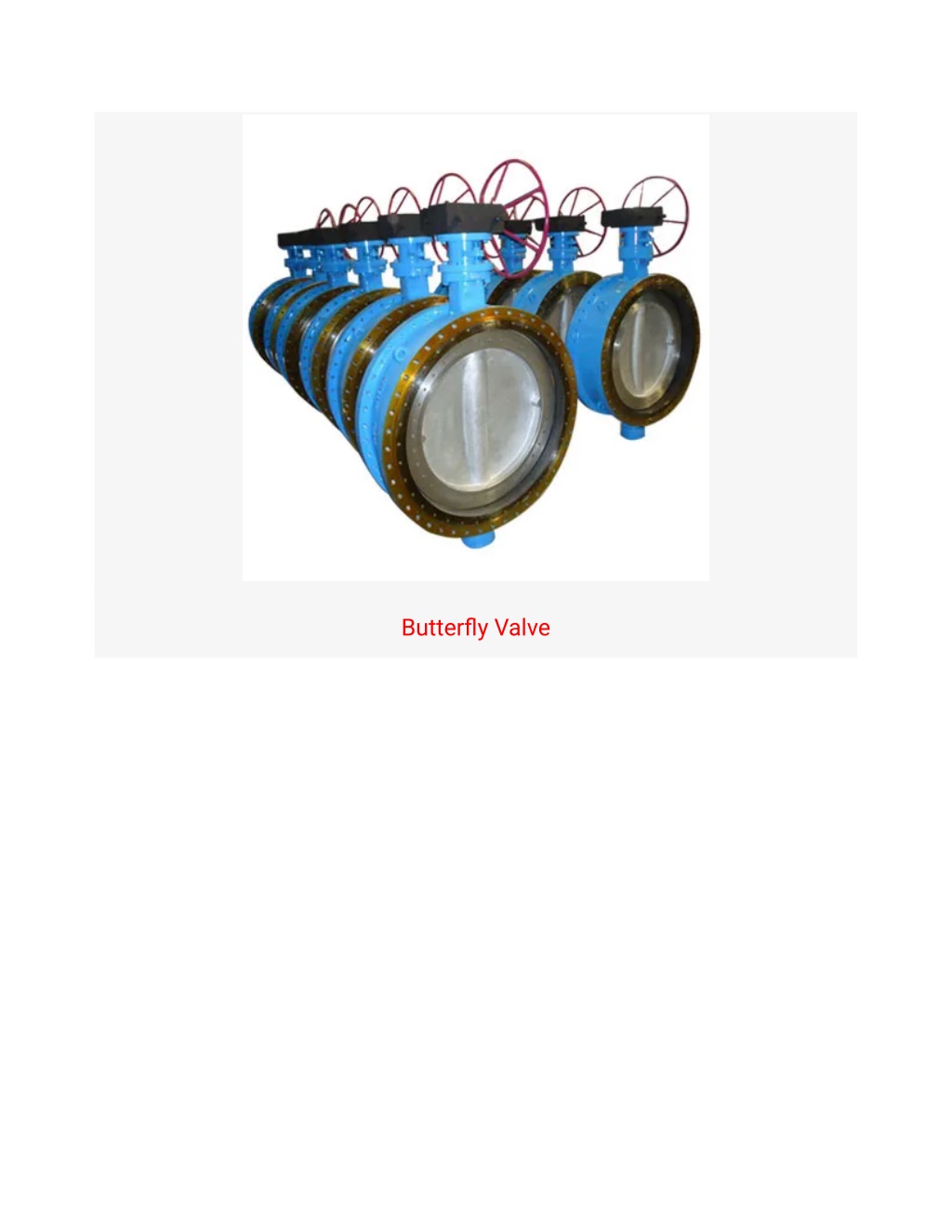

  2. Butterfly Valve

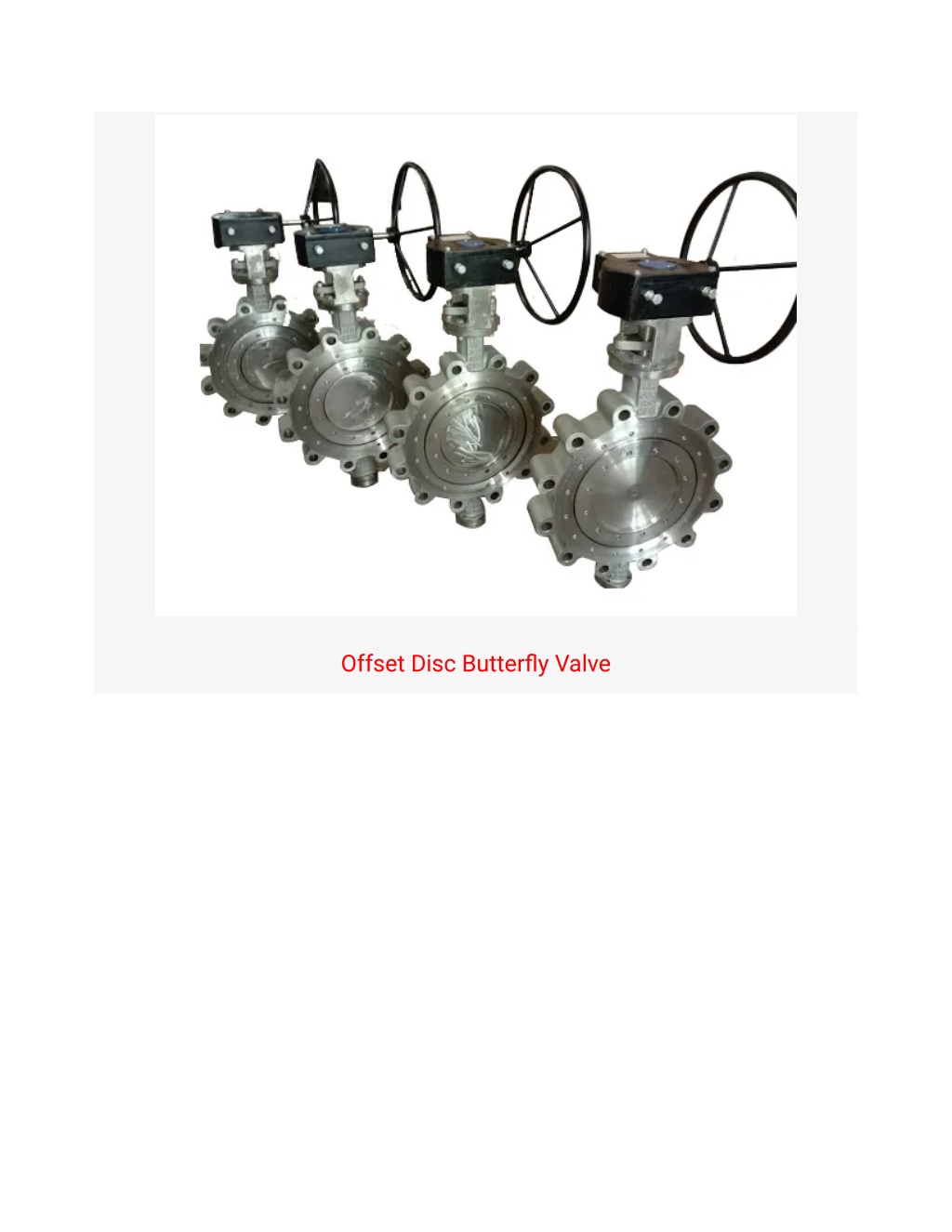

  3. Offset Disc Butterfly Valve

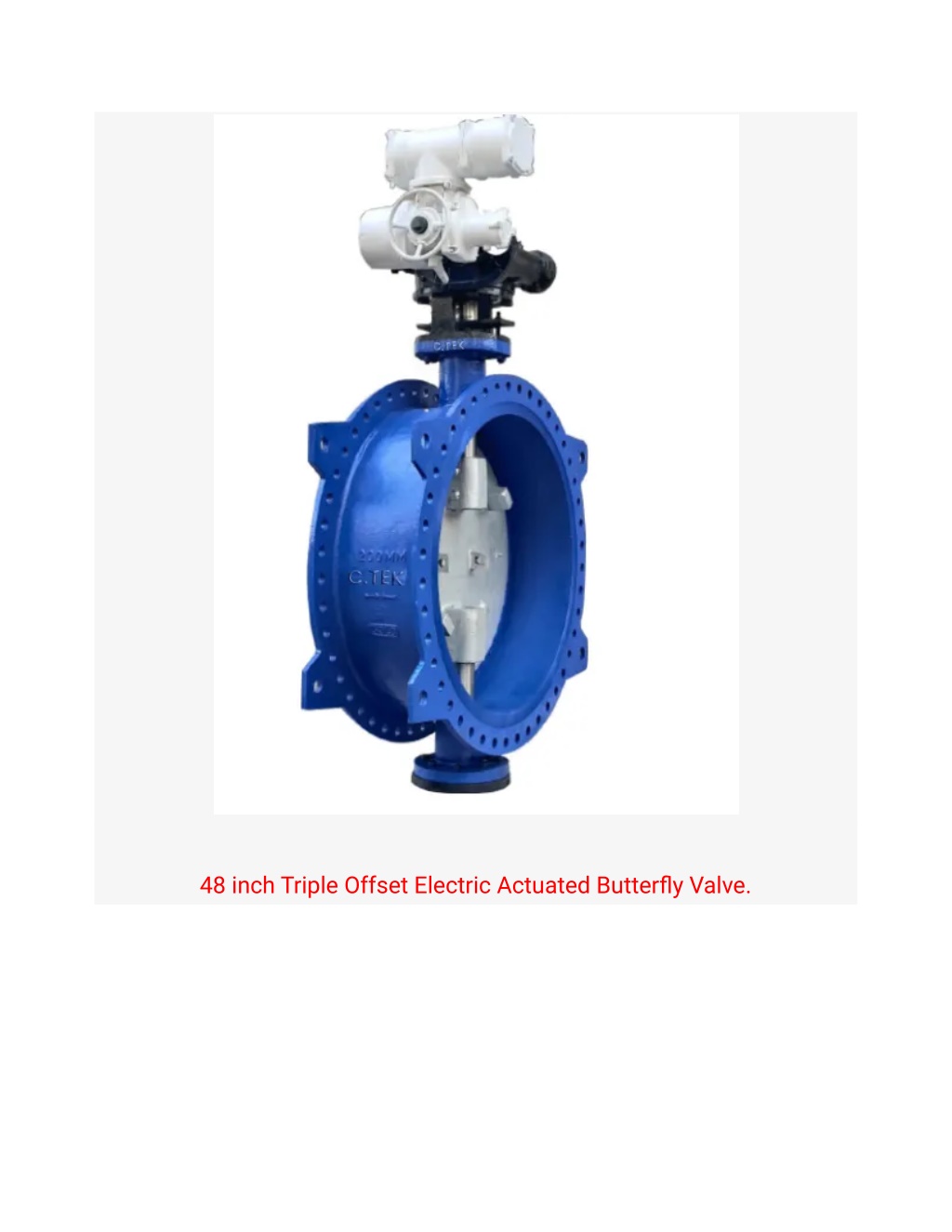

  4. 48 inch Triple Offset Electric Actuated Butterfly Valve.

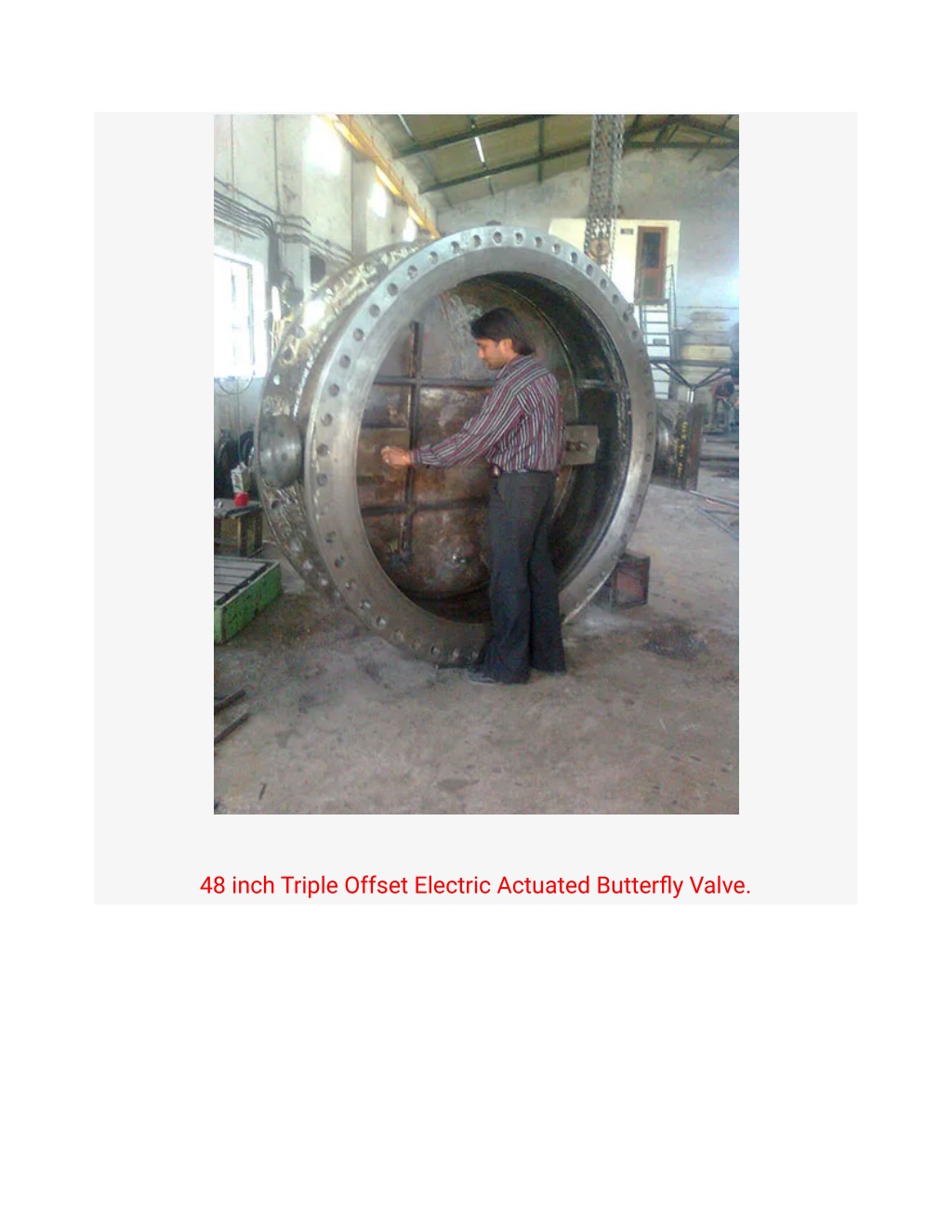

  5. 48 inch Triple Offset Electric Actuated Butterfly Valve.

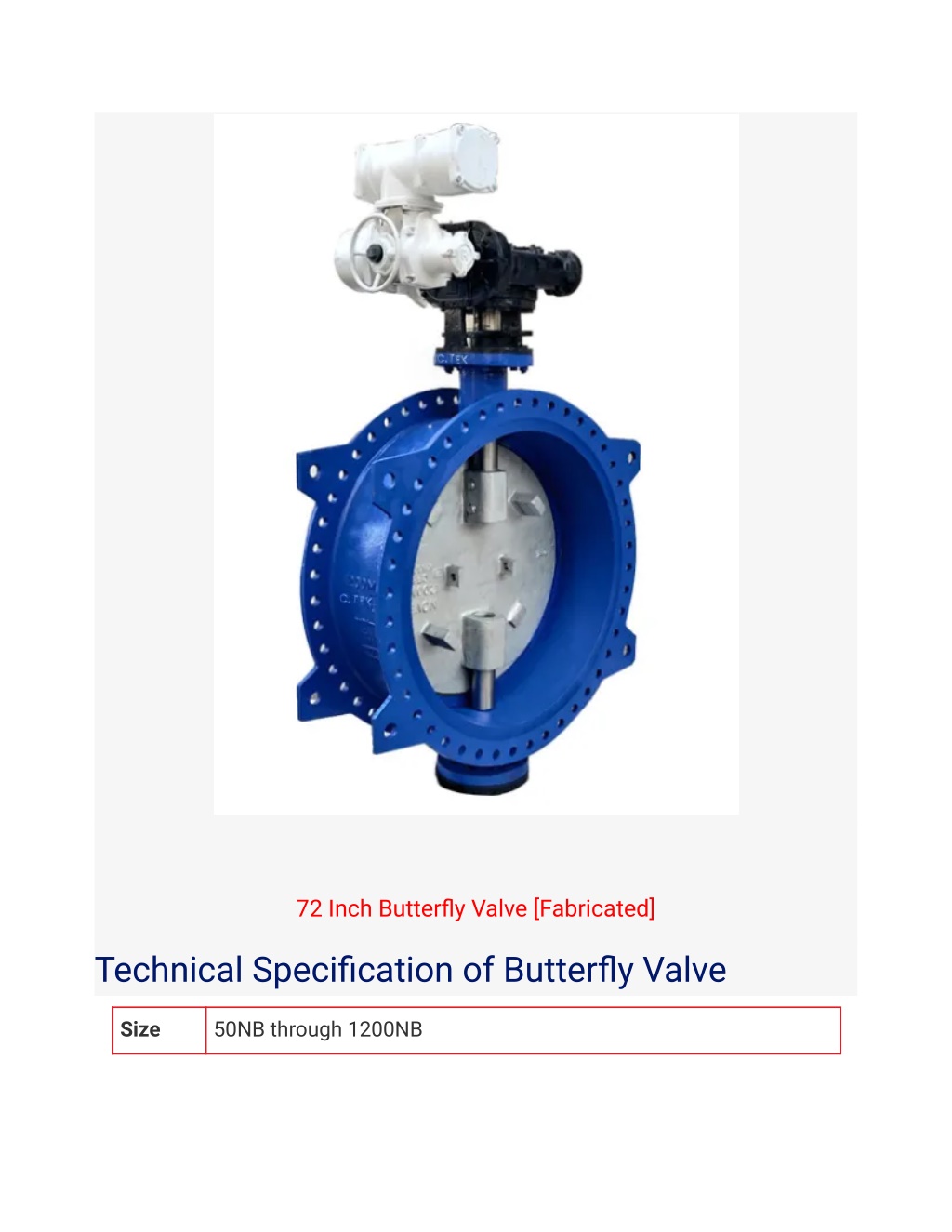

  6. 72 Inch Butterfly Valve [Fabricated] Technical Specification of Butterfly Valve Size 50NB through 1200NB

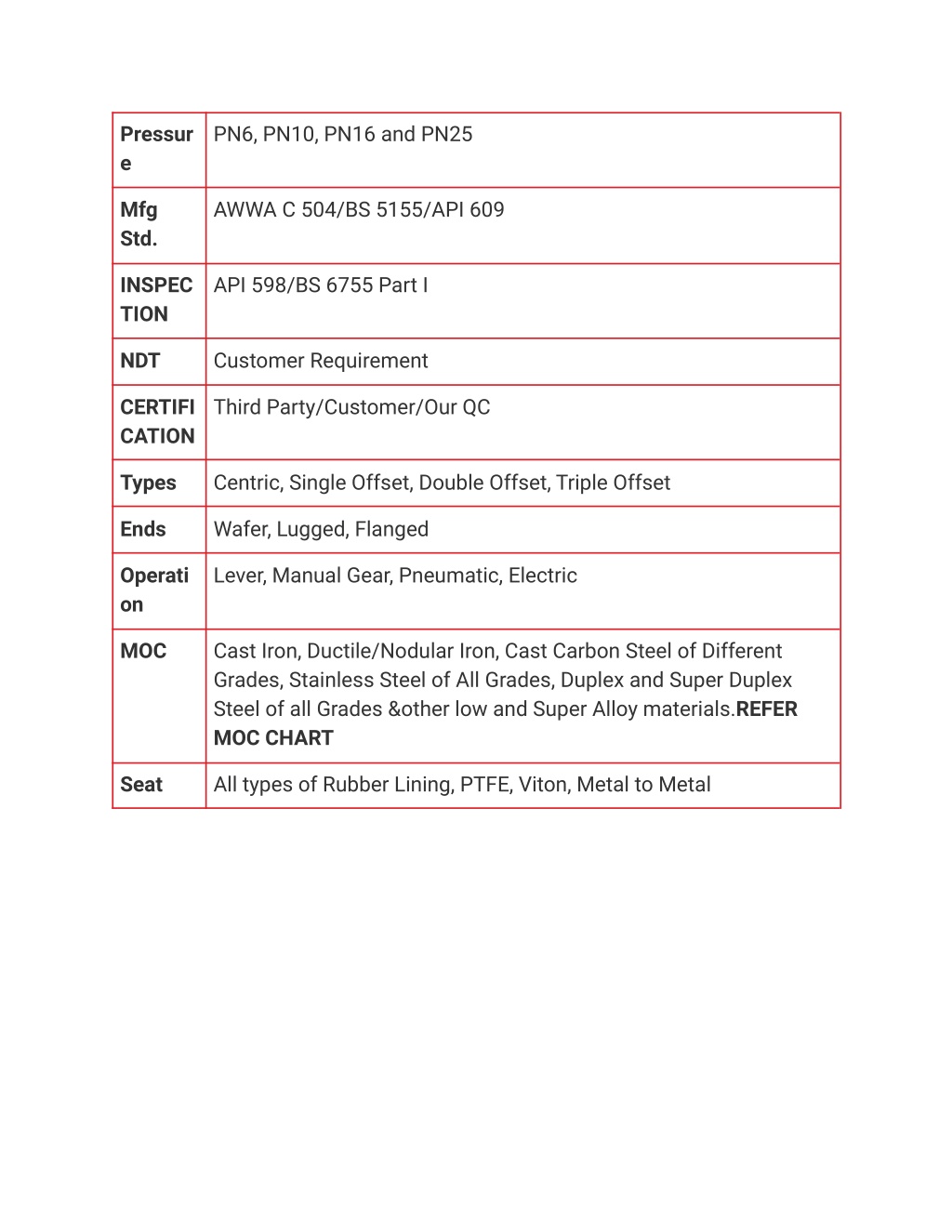

  7. Pressur e PN6, PN10, PN16 and PN25 Mfg Std. AWWA C 504/BS 5155/API 609 INSPEC TION API 598/BS 6755 Part I NDT Customer Requirement CERTIFI CATION Third Party/Customer/Our QC Types Centric, Single Offset, Double Offset, Triple Offset Ends Wafer, Lugged, Flanged Operati on Lever, Manual Gear, Pneumatic, Electric MOC Cast Iron, Ductile/Nodular Iron, Cast Carbon Steel of Different Grades, Stainless Steel of All Grades, Duplex and Super Duplex Steel of all Grades &other low and Super Alloy materials.REFER MOC CHART Seat All types of Rubber Lining, PTFE, Viton, Metal to Metal
